Model Whirlpool ET20DKXWG03 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

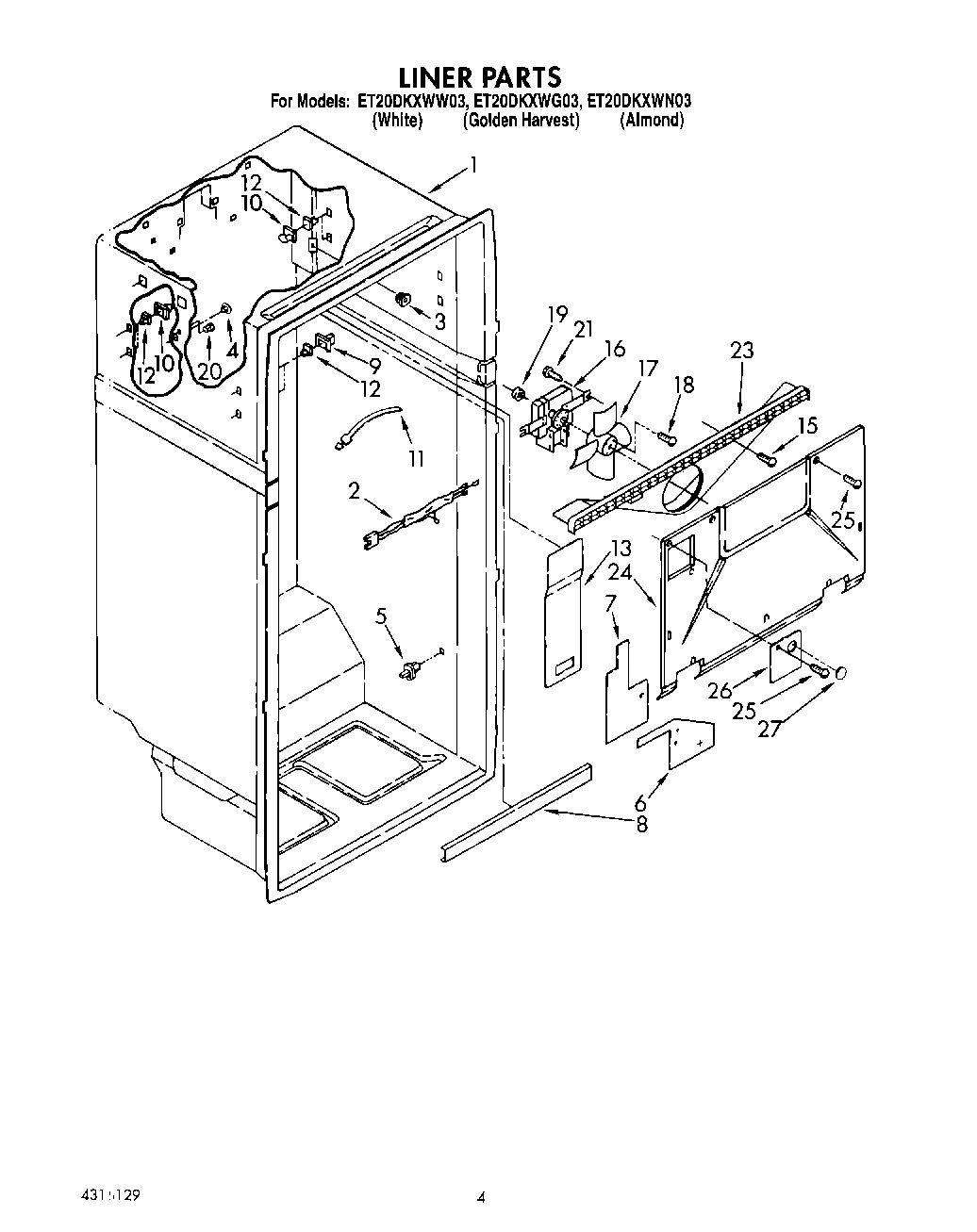

Liner (Not A Serviceable Part) WPL ARI48594A1 Contact Us For Availability

1

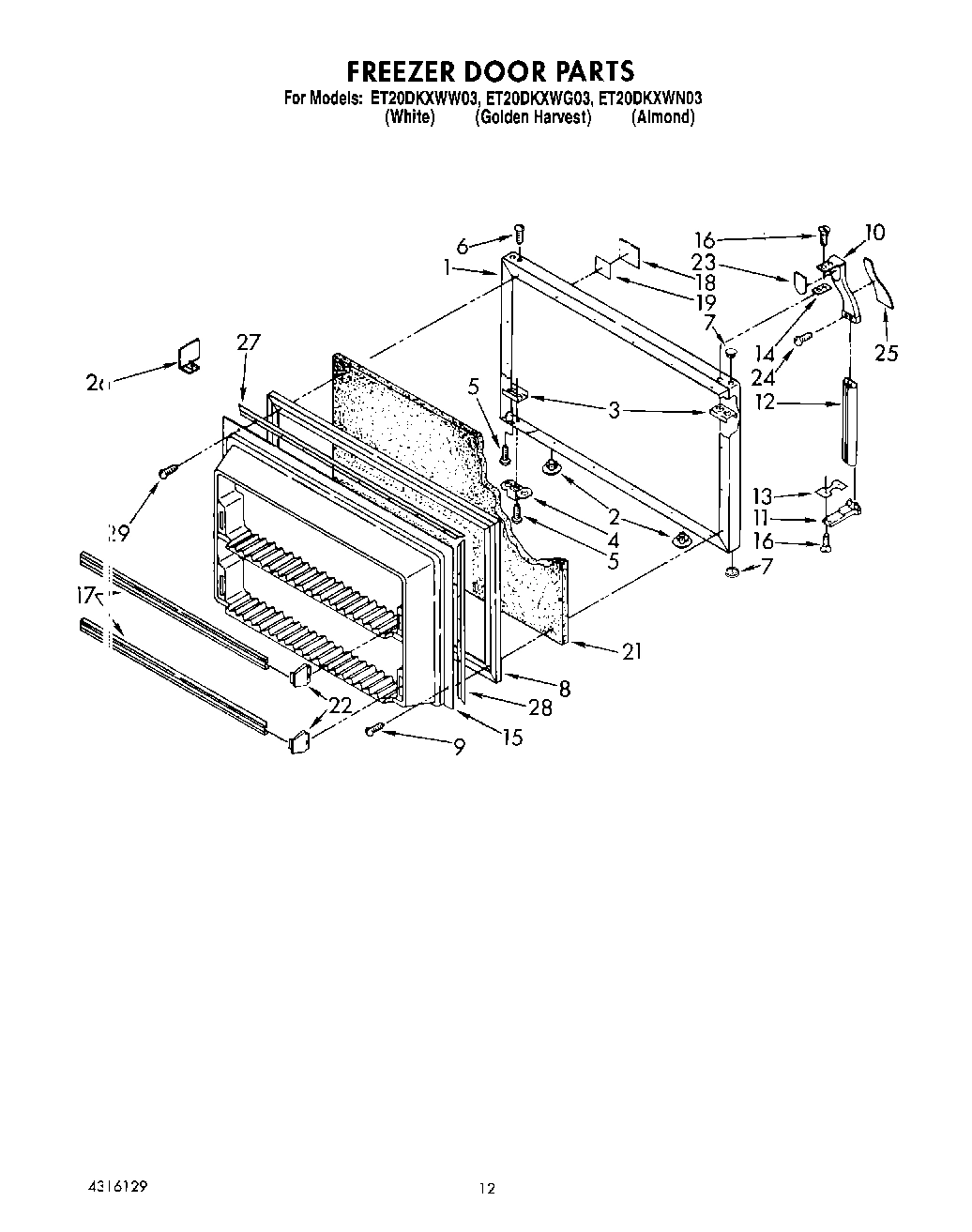

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1122662 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability

1

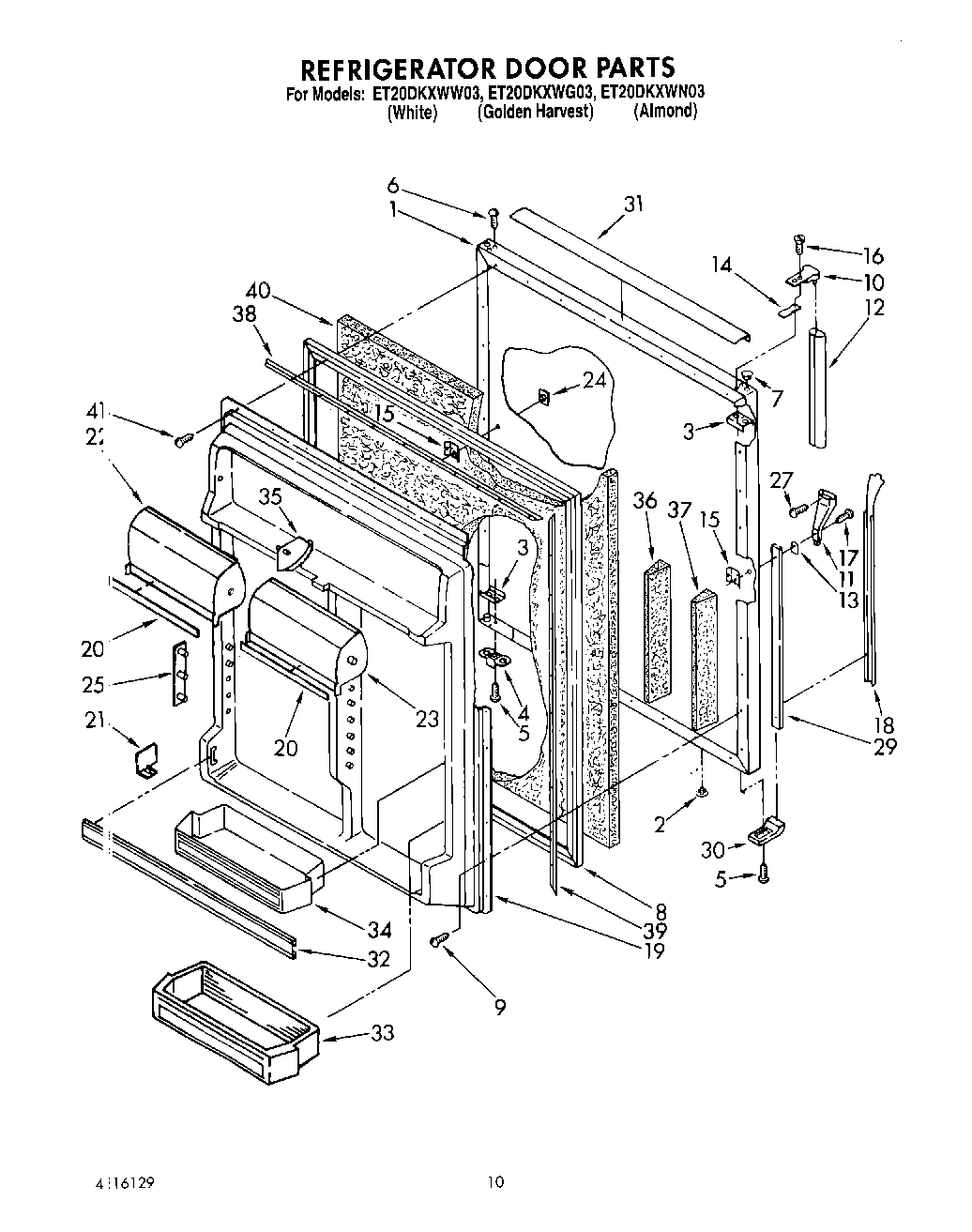

Panel, Refrigerator Door (Also Order Item 40) WPL 1122549 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 40) WPL 1122657 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 40) WPL 1122658 Contact Us For Availability

1

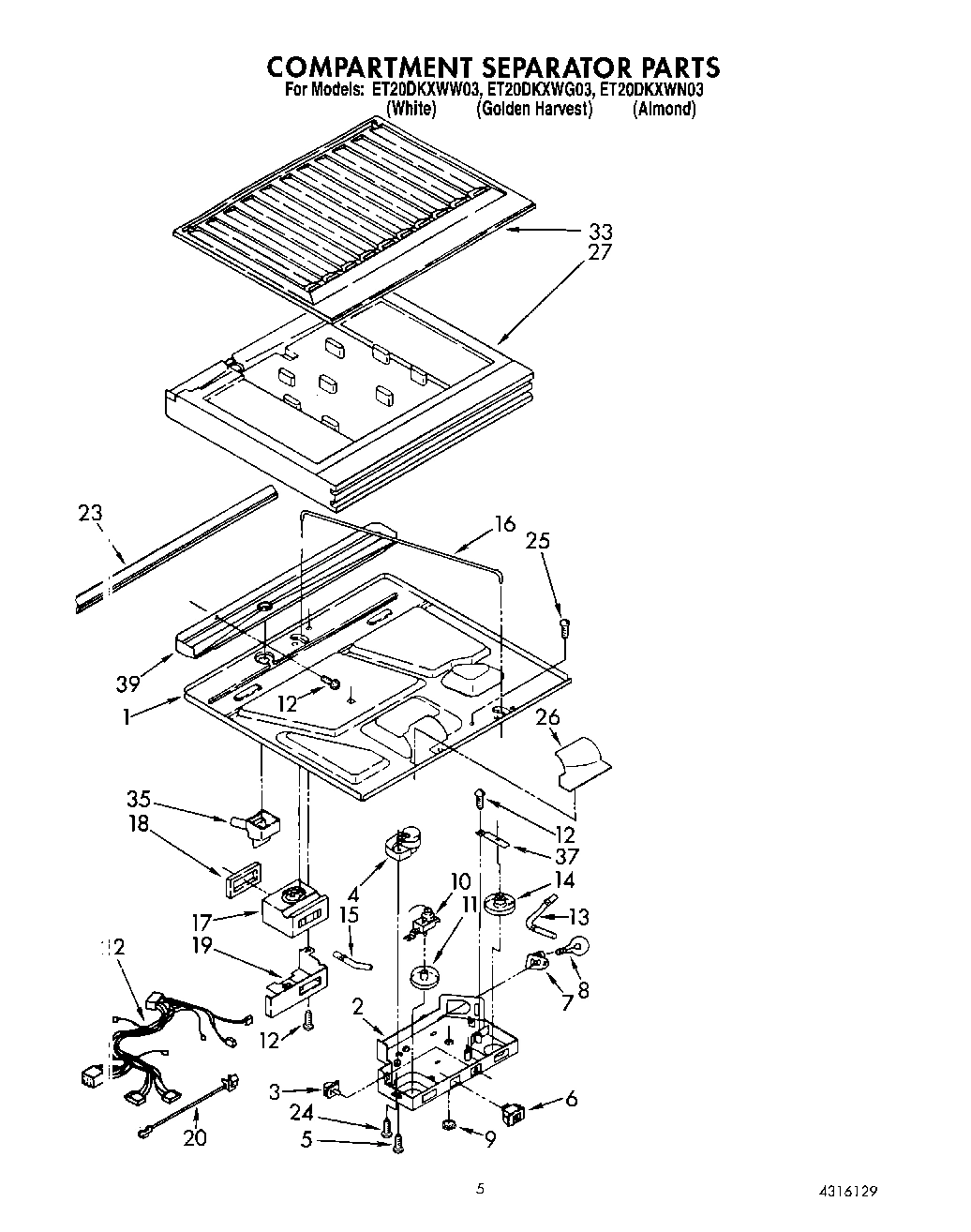

Bottom, Compartment Separator WPL 1122715 Contact Us For Availability

1

Unit, Frame WPL 2149611 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability

2

Box, Control WPL 1106805 Contact Us For Availability

2

Compressor Kit (Includes Items 11, 22, 23, 25 WPL 4318250 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Screw WPL 489333 Contact Us For Availability

3

Grommet (2) WPL 848445 Contact Us For Availability

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Roller, Rear (2) WPL 2152011 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Grommet, Compressor (4) (Production) WPL 1105200 Contact Us For Availability

6

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Electrical Shield WPL 2151521 Contact Us For Availability

6

Screw (4) WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Screw WPL 489327 Contact Us For Availability

7

Electrical Shield WPL 1106696 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

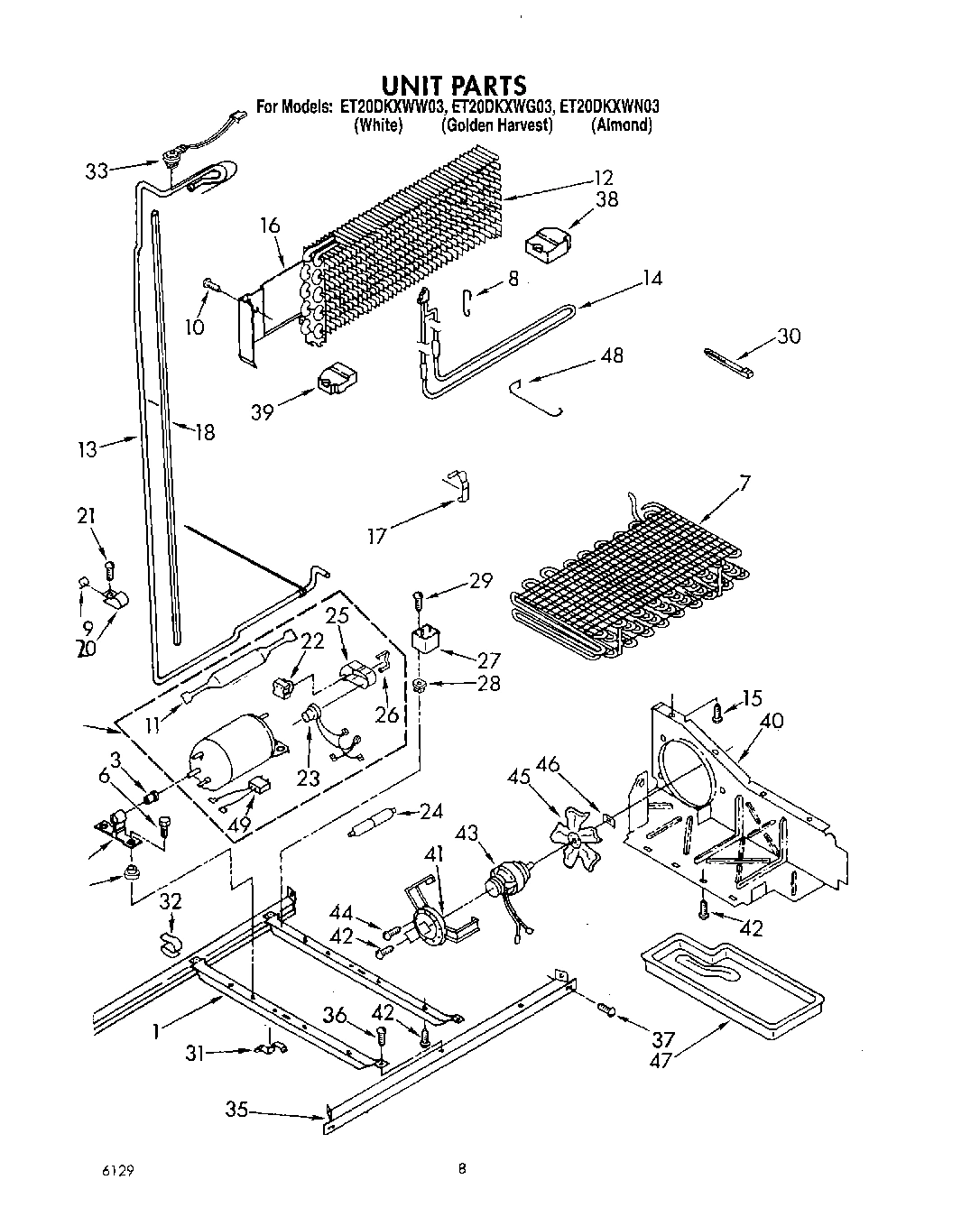

Condenser Assembly WPL 2149613 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Support, Heater WPL 851358 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Control, Front Cover WPL 2148449 Contact Us For Availability

9

Stud (2) WPL 946356 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

Handle End, Top WPL 944163 Contact Us For Availability

Heater, Mullion WPL 1105433 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Handle End, Side WPL 1109189 Contact Us For Availability

Clip, Mullion (3) WPL 1106779 Contact Us For Availability

Strap, Mtg. WPL 1123230 Contact Us For Availability

Knob, Thermostat WPL 1114315 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Spacer (3) WPL 2149077 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Handle, Center WPL 1106079 Contact Us For Availability

Handle, Center WPL 1106054 Contact Us For Availability

Evaporator Assembly WPL 1118548 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Center Rail (White) WPL 1122566 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1122568 Contact Us For Availability

Center Rail (Almond) WPL 1122569 Contact Us For Availability

Cover, Air Duct WPL 1105447 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Heat, Exchanger WPL 2149616 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Knob, Air Control WPL 1114314 Contact Us For Availability

14

Heater, Defrost WPL 2149645 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1122575 Contact Us For Availability

Light, Bar WPL 1105476 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Rod, Connecting WPL 1105459 Contact Us For Availability

Heat Shield WPL 1105545 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Hinge, Top WPL 1129045 Contact Us For Availability

Trim, Door Shelf (2) WPL 1124227 Contact Us For Availability

Air Diffuser Assembly WPL 1123221 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Shim, Hinge Top WPL 1100511 Contact Us For Availability

Nameplate WPL 1111555 Contact Us For Availability

Insert, Handle WPL 1119655 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

Interior Door Panel WPL 1126757 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Grommet, (6) WPL 1110779 Contact Us For Availability

Trim, Door Compartment (2) WPL 1124223 Contact Us For Availability

Ground Wire WPL 1114482 Contact Us For Availability

Tube Clamp (2) WPL 510716 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Hinge, Center WPL 2151453 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Divider, Door Shelf WPL 1114380 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

Shim, Hinge Center WPL 836194 Contact Us For Availability

Compartment Door, Left Side WPL 1124225 Contact Us For Availability

Wiring Assemb1y, Control Box WPL 2149637 Contact Us For Availability

Relay (See Overload) WPL ARI48595A3 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Hole Seal WPL 1129056 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

Compartment Door, Right Side WPL 1124222 Contact Us For Availability

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 1116635 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Evaporator Cover WPL 1118711 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability

Muffler WPL 1121121 Contact Us For Availability

Insert, Handle WPL 1106059 Contact Us For Availability

Pin Plate (8) WPL 1116986 Contact Us For Availability

Terminal Cover (Production) WPL 1105221 Contact Us For Availability

Terminal Cover (Service) WPL 1108115 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

Insulation, Filler WPL 942817 Contact Us For Availability

Strap, Cover (Production) WPL 1105222 Contact Us For Availability

Strap, Cover (Service) WPL 938384 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

Running Capacitor (Service) WPL 2154565 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Gasket Retainer, Side (2) WPL 1122553 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Shim, Bottom WPL 1123379 Contact Us For Availability

Retainer, Insert WPL 935871 Contact Us For Availability

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

30

Strap WPL 851095 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

31

Trim, Door WPL 1106148 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

32

Trim, Door Shelf WPL 1114376 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Corner Filler, Grille WPL 1118078 Contact Us For Availability

Bin, Door Shelf (2) WPL 1124208 Contact Us For Availability

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

Filler, Wrap Corner (2) (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrap Corner (2) (Golden Harvest) WPL 1118060 Contact Us For Availability

Bin, Door Shelf (Deep) (2) WPL 1124209 Contact Us For Availability

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

Grille WPL 1129001 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Unit, Rail WPL 2149717 Contact Us For Availability

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Hole Plug (4) (White) WPL 842031 Contact Us For Availability

Hole Plug (4) (Almond) WPL 989195 Contact Us For Availability

Hole Plug (4) (Golden Harvest) WPL 989876 Contact Us For Availability

Door Dike, Center WPL 1122711 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Cabinet, Wiring Assembly WPL 2149633 Contact Us For Availability

Door Dike, Side (2) WPL 1122709 Contact Us For Availability

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

38

Support (R.S.) WPL 1118805 Contact Us For Availability

Cover, Wiring WPL 1105606 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1122551 Contact Us For Availability

Drain Pan WPL 1105521 Contact Us For Availability

Support (L.S.) WPL 1118806 Contact Us For Availability

40

Foam Insulation (Required When Rep WPL 876029 Contact Us For Availability

40

Air, Baffle WPL 1127938 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 4210431 WPL 4210431 Contact Us For Availability

WPL 4210432 WPL 4210432 Contact Us For Availability

WPL 819245 WPL 819245 Contact Us For Availability

WPL 819288 WPL 819288 Contact Us For Availability

WPL 819344 WPL 819344 Contact Us For Availability

Fan, Mounting Bracket WPL 548695 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

45

Fan, Blade WPL 989524 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 937062 Contact Us For Availability

47

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

48

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

48

Cover, Unit WPL 2147330 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

Cover, Plug WPL 2147326 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

50

Hole Seal WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

Clamp WPL 836077 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

67

Tube Clamp WPL 1105607 Contact Us For Availability

68

Clamp WPL 1110564 Contact Us For Availability

70

Sealing, Cover Gasket WPL 1114548 Contact Us For Availability
