Model Whirlpool ET20DKXVW05 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

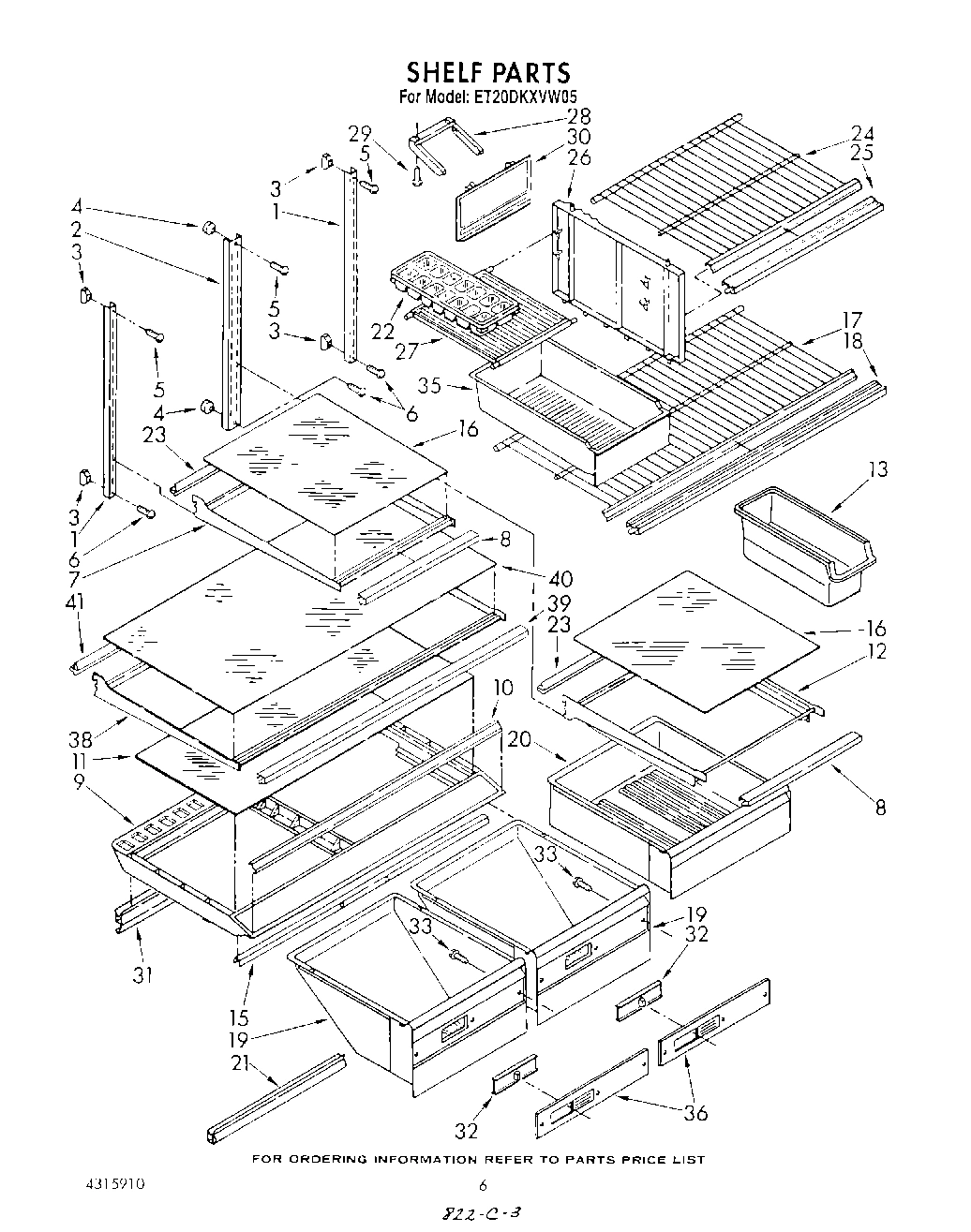

06 - SHELF , LIT/OPTIONAL

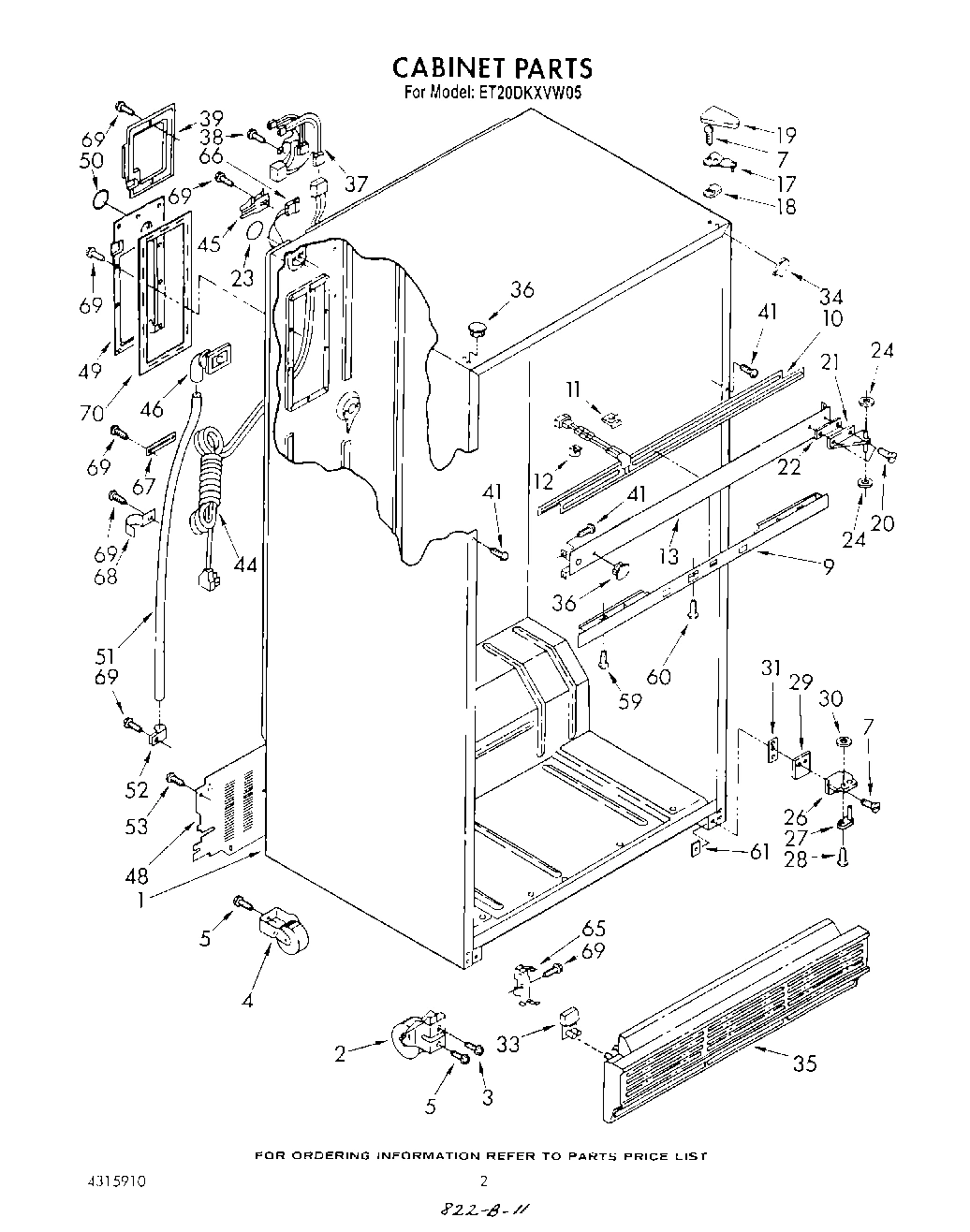

02 - CABINET

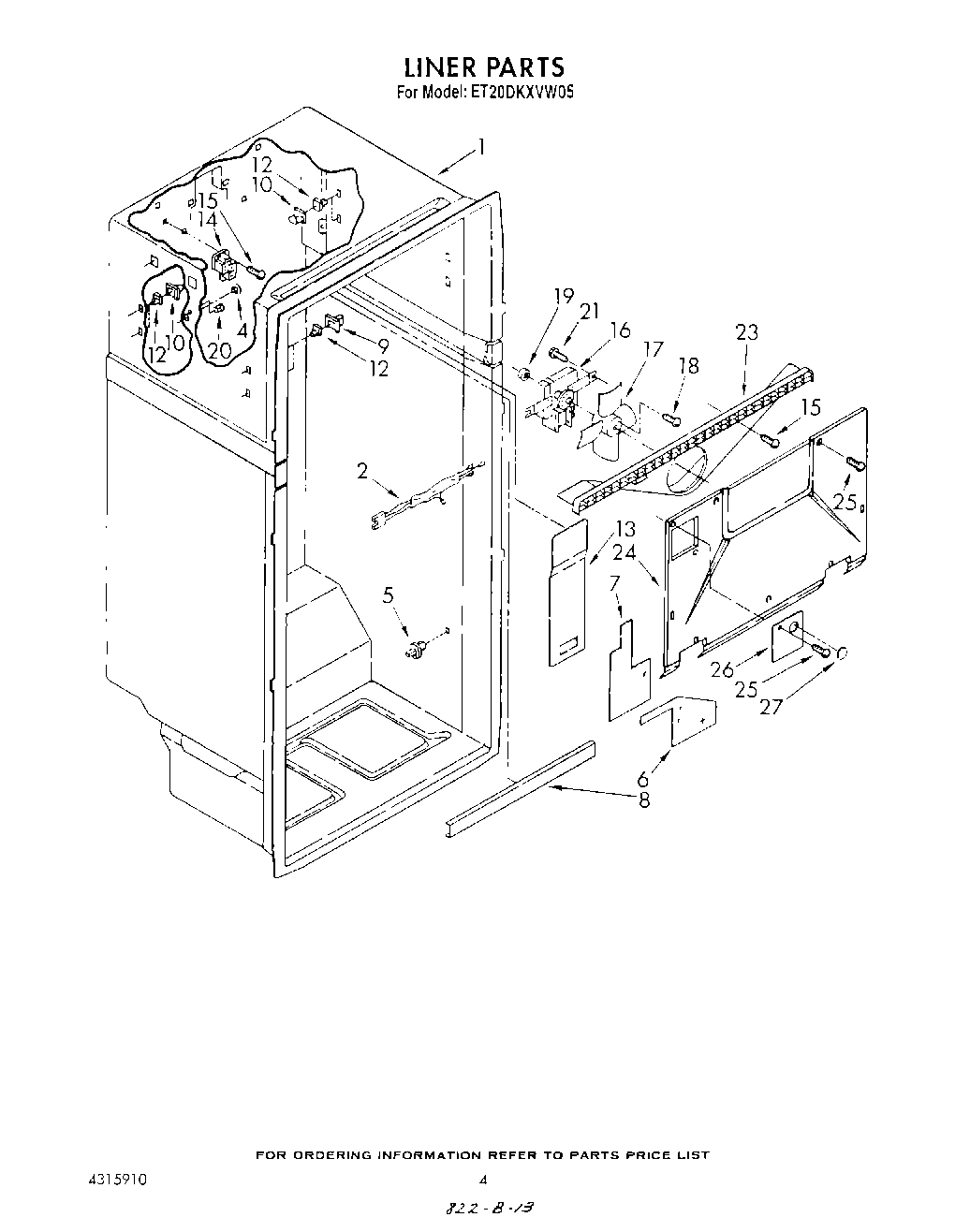

03 - LINER

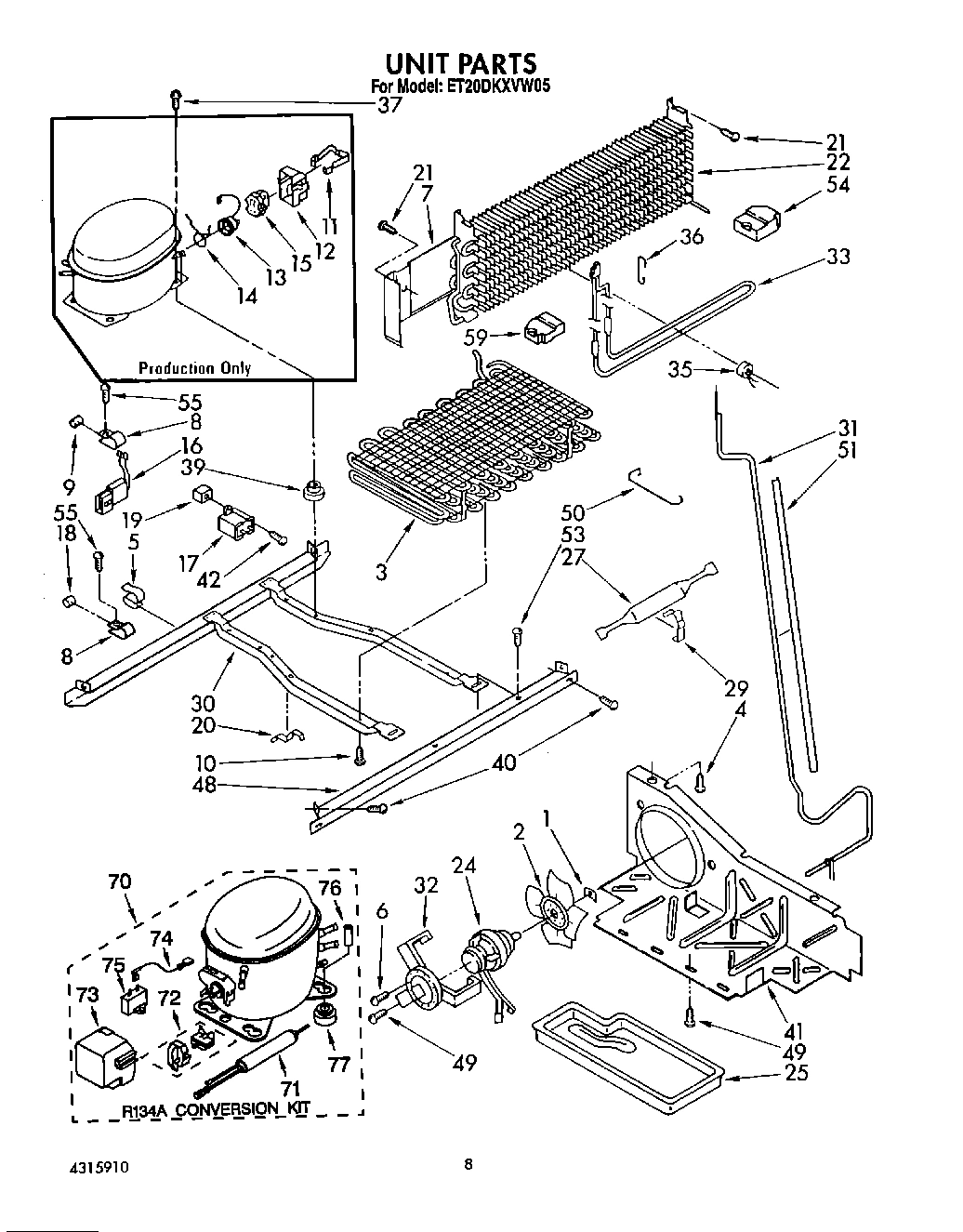

04 - UNIT

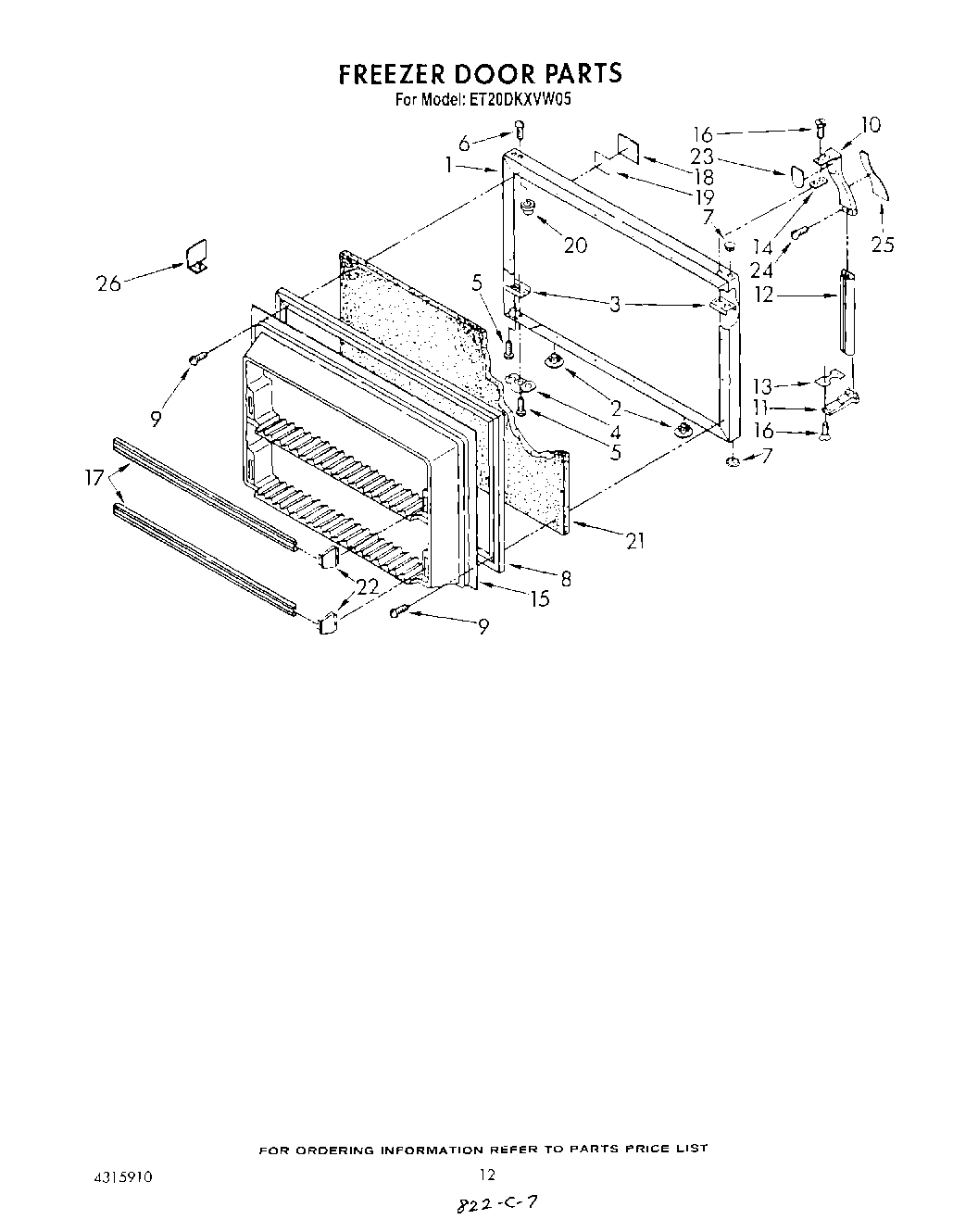

08 - FREEZER DOOR

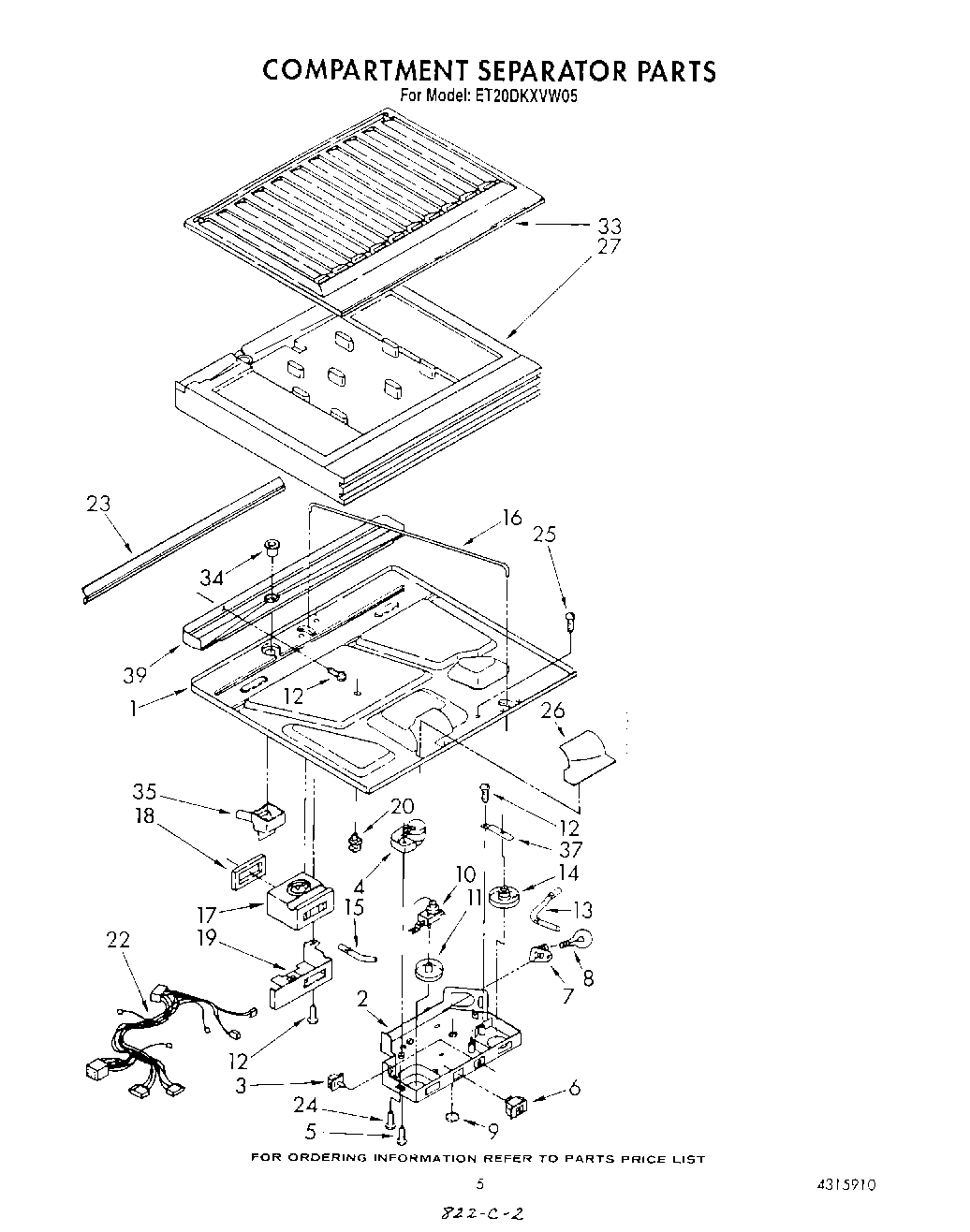

05 - COMPARTMENT SEPARATOR

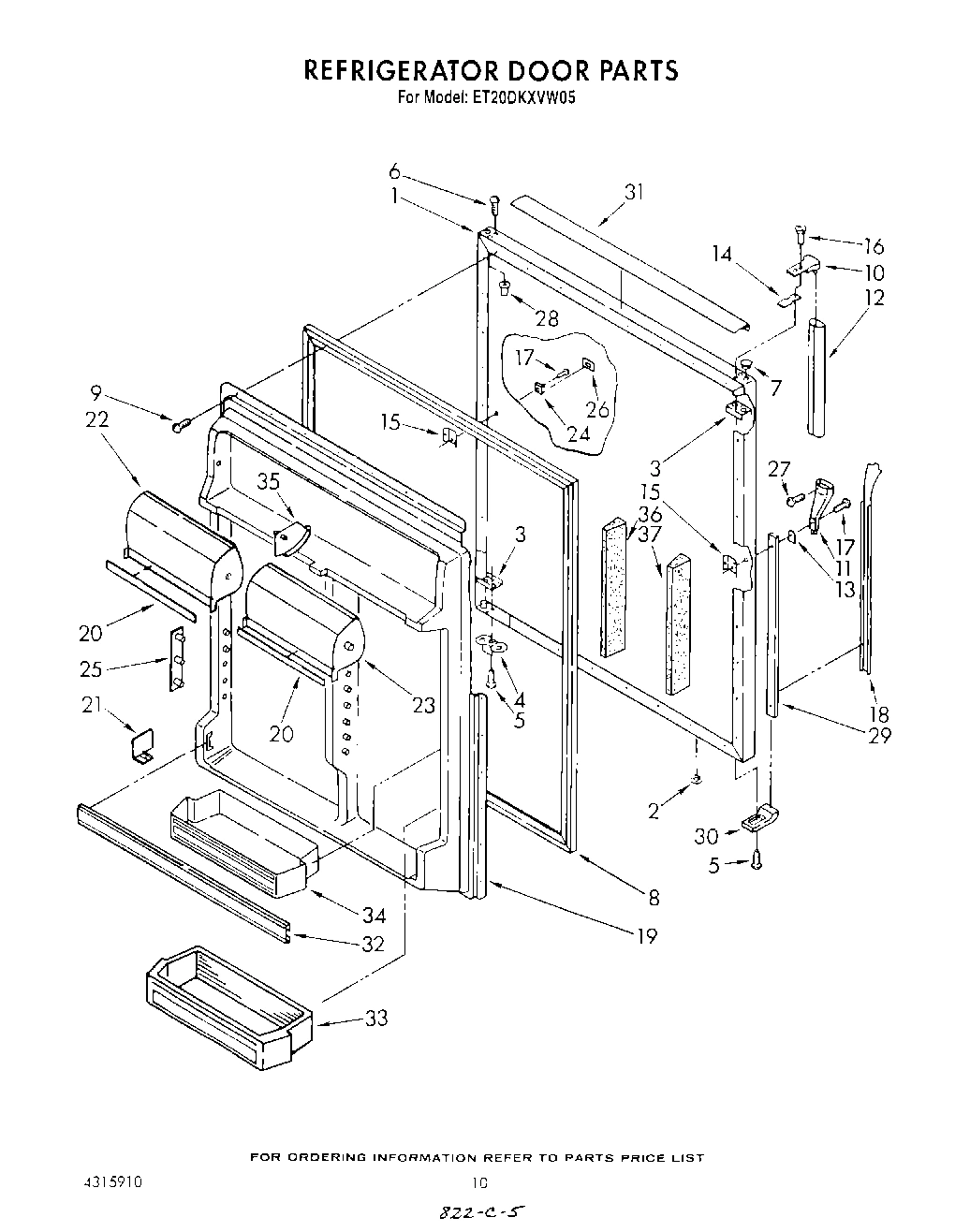

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool ET20DKXVW05 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146596A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146597A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1105509 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1105511 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1105512 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1105513 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1105514 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105450 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1105500 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1105502 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1105503 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1105504 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1105505 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
2
Wiring, Fan Motor WPL 1114721 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Box, Control WPL 1106805 Contact Us For Availability
3
Screw WPL 489333 Contact Us For Availability
3
Condenser Assembly WPL 1118657 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1105267 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
6
Electrical, Shield WPL 1106829 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Screw WPL 489327 Contact Us For Availability
7
Electrical Shield WPL 1106696 Contact Us For Availability
7
Heat Shield Evaporator WPL 1105545 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Control, Front Cover WPL 1124219 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Spacer (2) WPL 940024 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Handle, Center WPL 1106079 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110382 Contact Us For Availability
12
Handle, Center WPL 1106054 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110378 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail (White) WPL 1105424 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1105426 Contact Us For Availability
13
Center Rail (Almond) WPL 1105427 Contact Us For Availability
13
Center Rail (Toast) WPL 1105428 Contact Us For Availability
13
Center Rail (Platinum) WPL 1105429 Contact Us For Availability
13
Cover, Air Duct WPL 1105447 Contact Us For Availability
13
Overload WPL 1118665 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
14
Overload Spring WPL 1114190 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1106865 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1124227 Contact Us For Availability
17
Air Diffuser Assembly WPL 1129013 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Nameplate WPL 1111555 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1124290 Contact Us For Availability
18
Insert, Handle WPL 1119655 Contact Us For Availability
18
Insert, Handle (For Platinum Model Only) WPL 1119657 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Grommet (2) WPL 1114354 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 1124210 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Screw WPL 489179 Contact Us For Availability
20
Grommet, (6) WPL 1110779 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Stud, Hook WPL 529850 Contact Us For Availability
20
Trim, Door Compartment (2) WPL 1124223 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Divider, Door Shelf WPL 1114380 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Evaporator WPL 1118548 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 1127839 Contact Us For Availability
22
Compartment Door, Left Side WPL 1124225 Contact Us For Availability
23
Hole Seal WPL 1129056 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Compartment Door, Right Side WPL 1124222 Contact Us For Availability
24
Evaporator Cover WPL 1118708 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
25
Insert, Handle WPL 1106059 Contact Us For Availability
25
Insert, Handle (For Platinum Model Only) WPL 1114390 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1115908 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
29
Clamp, Drier WPL 548508 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Unit Mounting Frame WPL 1105534 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
31
Spacer WPL 1129868 Contact Us For Availability
31
Exchanger, Heat WPL 1118661 Contact Us For Availability
31
Trim, Door WPL 1106148 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Trim, Door Shelf WPL 1114376 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Heater, Defrost WPL 1118829 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1105465 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 1124208 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability
34
Filler, Wrap Corner (Golden Harvest) WPL 1110710 Contact Us For Availability
34
Filler, Wrap Corner (Toast) WPL 1110711 Contact Us For Availability
34
Filler, Wrap Corner (Platinum) WPL 1110712 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 1124209 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
36
Hole Plug (5) (Golden Harvest) WPL 1129064 Contact Us For Availability
36
Hole Plug (5) (Toast) WPL 1129065 Contact Us For Availability
36
Hole Plug (5) (Platinum) WPL 1129066 Contact Us For Availability
36
Support, Heater WPL 851358 Contact Us For Availability
36
WPL 1122711 WPL 1122711 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 1118814 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
WPL 1122709 WPL 1122709 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
41
WPL 876029 WPL 876029 Contact Us For Availability
41
WPL 479502 WPL 479502 Contact Us For Availability
41
WPL 799344 WPL 799344 Contact Us For Availability
41
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
41
Leveler, WPL 350941 Contact Us For Availability
41
WPL 542639 WPL 542639 Contact Us For Availability
41
WPL 72112 WPL 72112 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
41
Baffle, Air WPL 1105529 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, WPL 937062 Contact Us For Availability
48
WPL 1105531 WPL 1105531 Contact Us For Availability
48
Unit Mounting Rail WPL 1105525 Contact Us For Availability
49
WPL 1105527 WPL 1105527 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
WPL 1120224 WPL 1120224 Contact Us For Availability
52
WPL 836077 WPL 836077 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118550 Contact Us For Availability
59
Support, Evaporator (L.S.) WPL 1118551 Contact Us For Availability
61
WPL 2147310 WPL 2147310 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
70
WPL 1114548 WPL 1114548 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
