Model Whirlpool ET20DKXVF02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - COMPARTMENT SEPARATOR
06 - UNIT

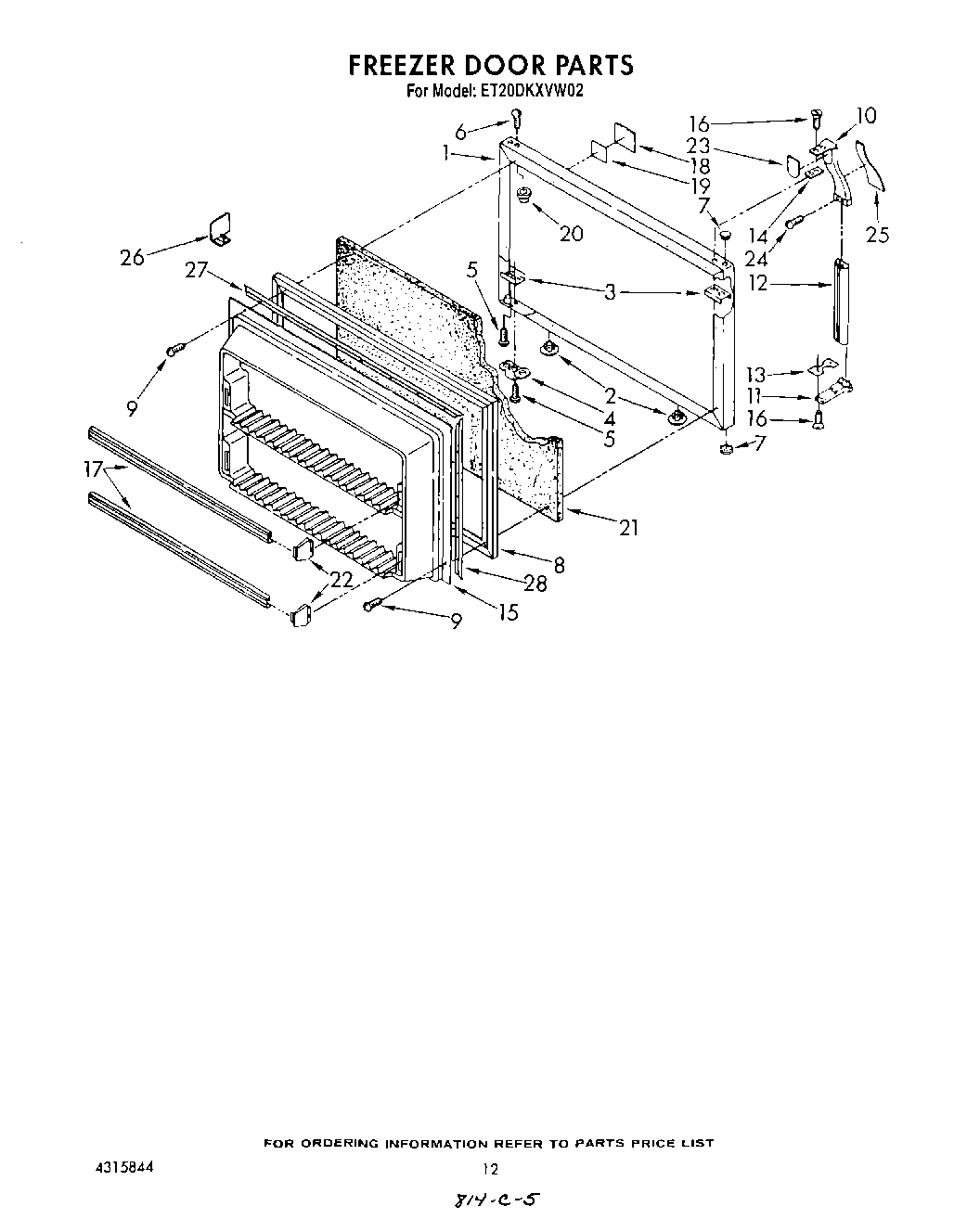

08 - FREEZER DOOR

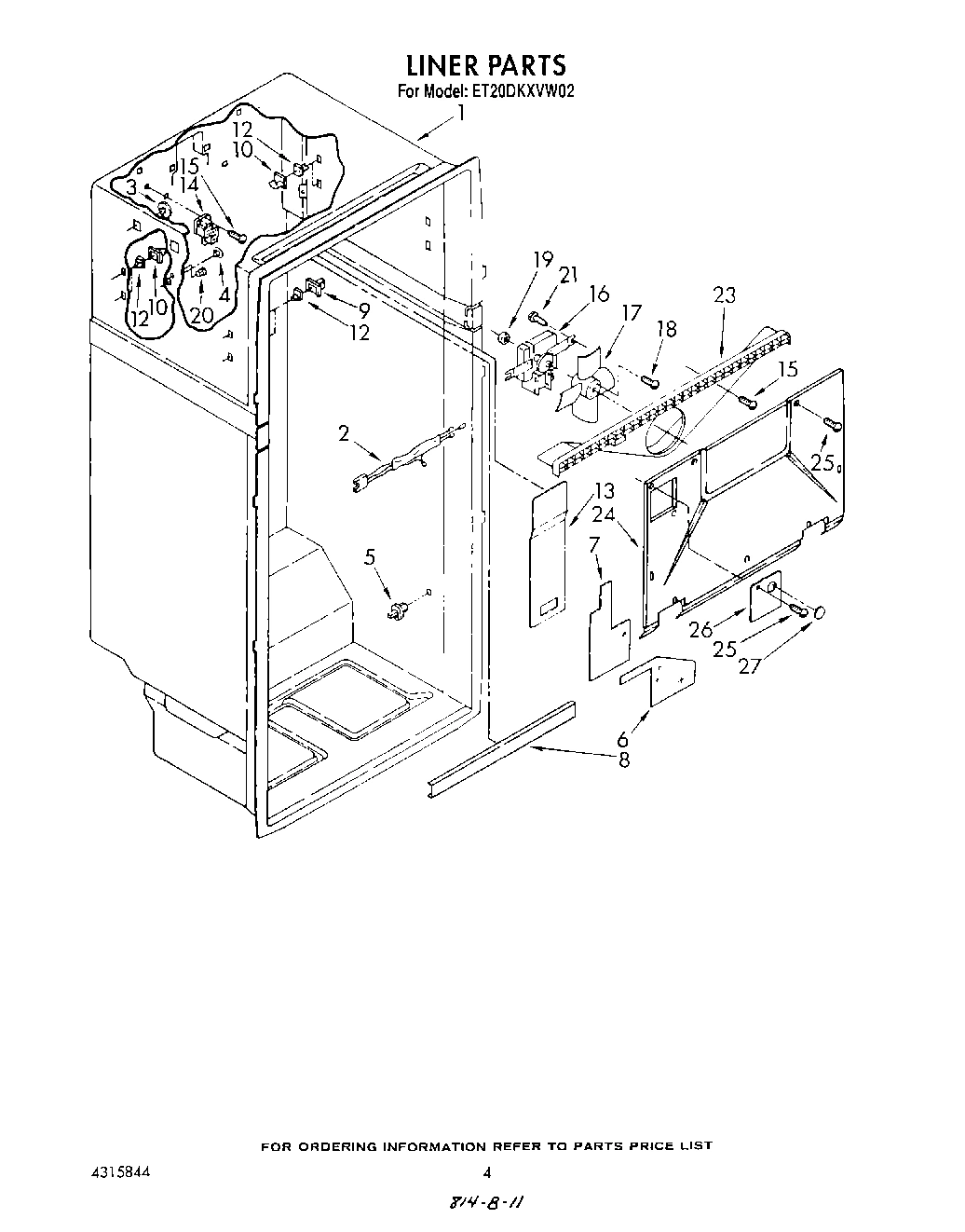

03 - LINER

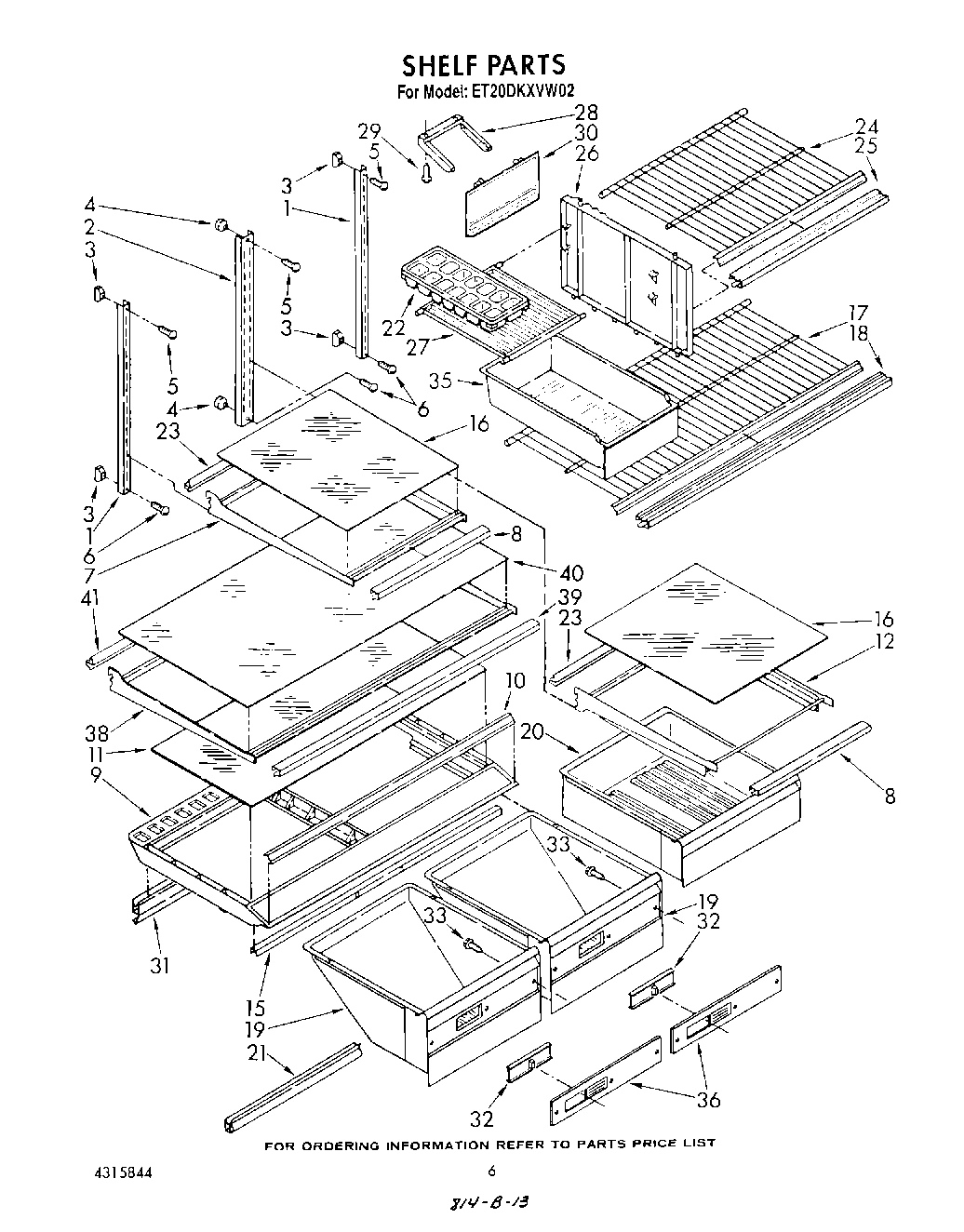

05 - SHELF , LIT/OPTIONAL

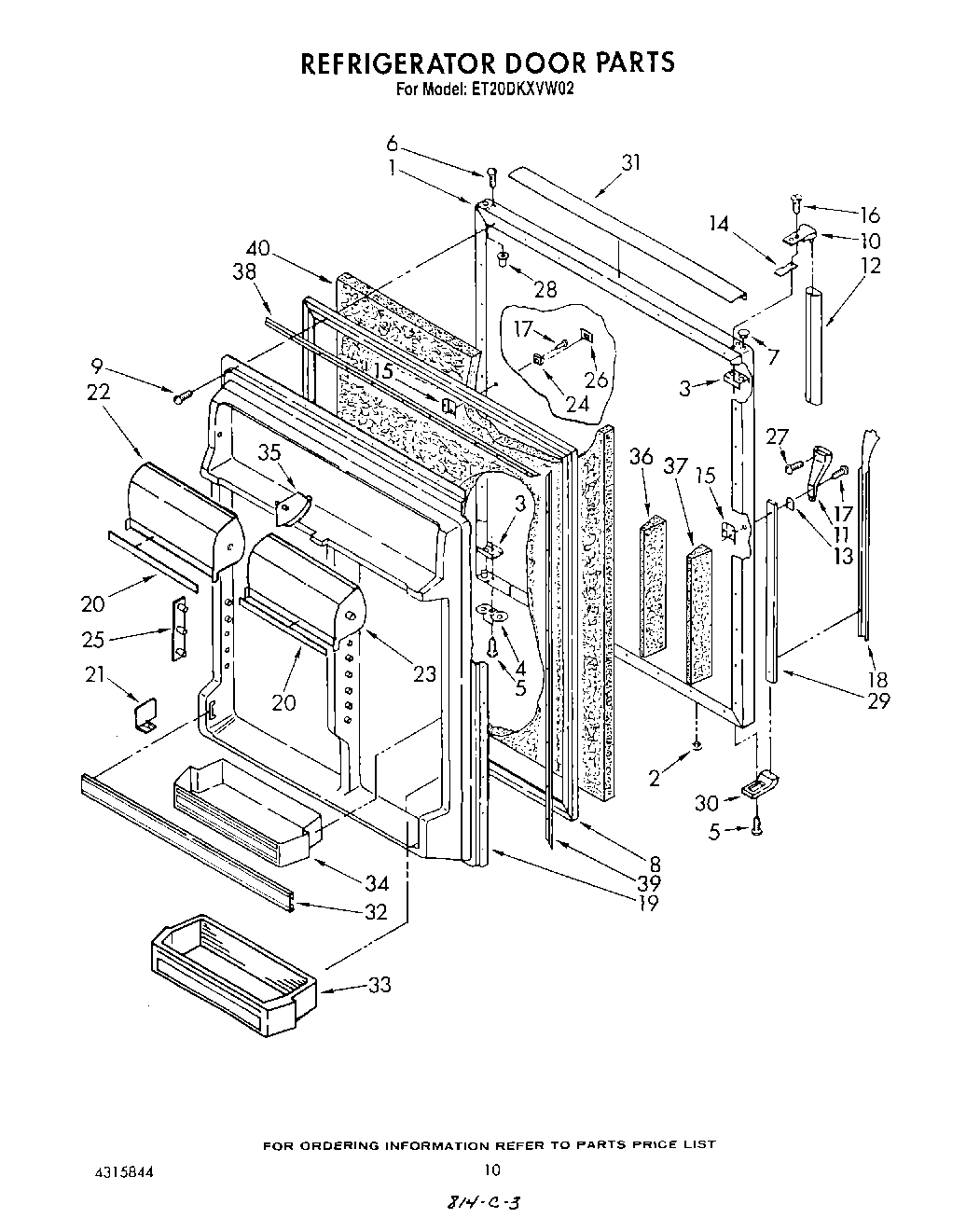

07 - REFRIGERATOR DOOR

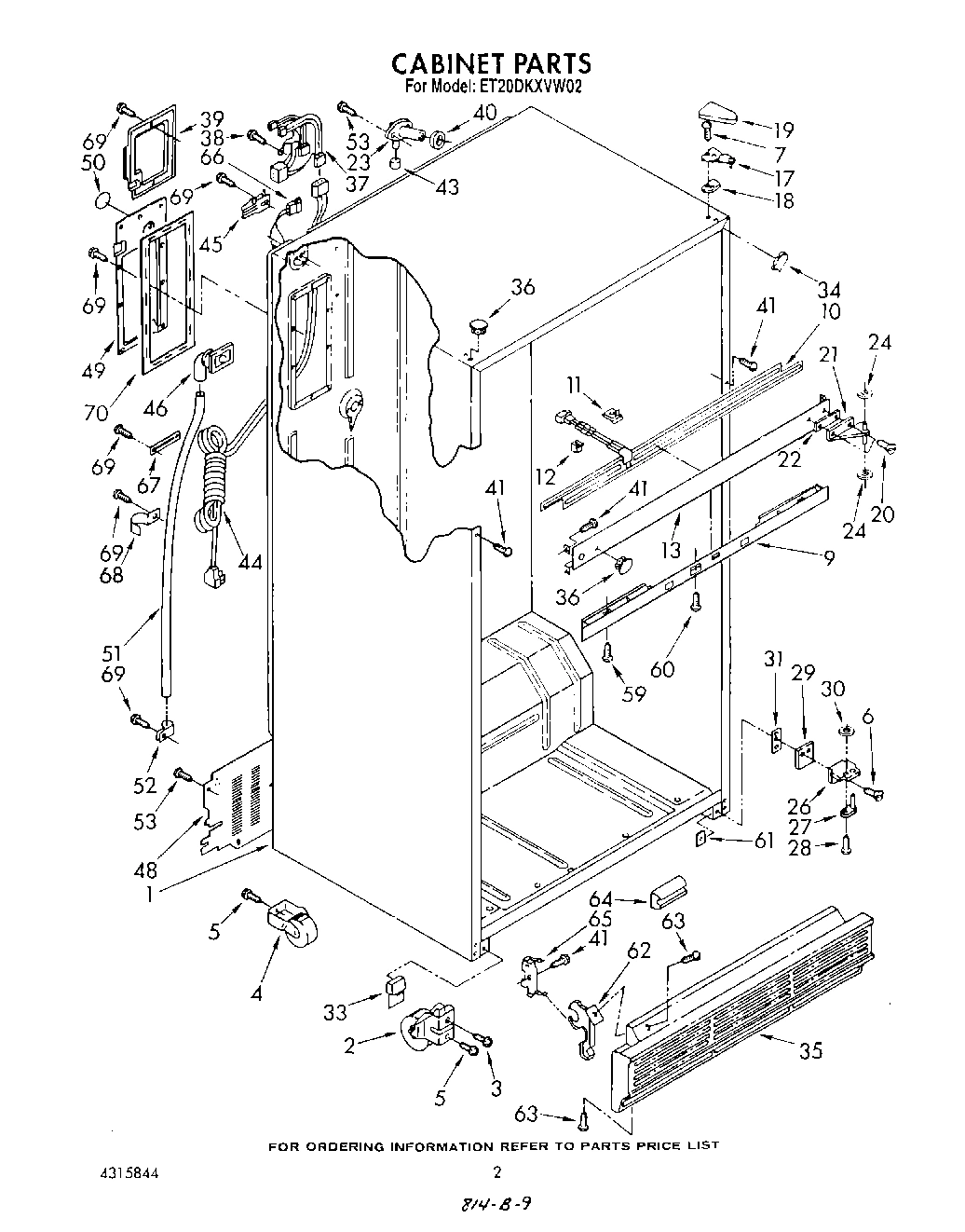

02 - CABINET
Common parts from model Whirlpool ET20DKXVF02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1118943 WPL LIT1118943 Contact Us For Availability
WPL LIT1124231 WPL LIT1124231 Contact Us For Availability
WPL LIT1124256 WPL LIT1124256 Contact Us For Availability
WPL LIT4315844 WPL LIT4315844 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1122662 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1122664 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1122665 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146527A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122657 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122658 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122659 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 40) WPL 1122660 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146526A Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Wiring, Fan Motor WPL 1114721 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
3
Hole Plug (2) WPL 944795 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw (Repair) WPL 488980 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489148 Contact Us For Availability
6
Screw (Repair) WPL 489221 Contact Us For Availability
6
Electrical, Shield WPL 1106829 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Electrical Shield WPL 1106696 Contact Us For Availability
7
Shelf, Cantilever WPL 1120435 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Trim, Shelf WPL 1110741 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 1124219 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124553 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
12
Handle, Center WPL 1106079 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110382 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1126748 Contact Us For Availability
12
Handle, Center WPL 1106054 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110378 Contact Us For Availability
12
Spacer (2) WPL 940024 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 1105447 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1122568 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Center Rail (Toast) WPL 1122570 Contact Us For Availability
13
Center Rail (Platinum) WPL 1122571 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Screw (Repair) WPL 489250 Contact Us For Availability
16
Shelf, Glass WPL 1124551 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1124227 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Nameplate WPL 1111555 Contact Us For Availability
18
Trim, Shelf Front WPL 1106958 Contact Us For Availability
18
Insert, Handle WPL 1119655 Contact Us For Availability
18
Insert, Handle (For Platinum Model Only) WPL 1119657 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 1114354 Contact Us For Availability
19
Pan, Crisper WPL 1124286 Contact Us For Availability
19
Interior Door Panel WPL 1126757 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
20
Grommet, (6) WPL 1110779 Contact Us For Availability
20
Pan, Meat WPL 1124218 Contact Us For Availability
20
Trim, Door Compartment (2) WPL 1124223 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Divider, Door Shelf WPL 1114380 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
22
Compartment Door, Left Side WPL 1124225 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
23
Reflector, Shelf WPL 1110743 Contact Us For Availability
23
Compartment Door, Right Side WPL 1124222 Contact Us For Availability
24
Evaporator Cover WPL 1118708 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
25
Insert, Handle WPL 1106059 Contact Us For Availability
25
Insert, Handle (For Platinum Model Only) WPL 1114390 Contact Us For Availability
25
Trim, Shelf WPL 1106825 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
26
Divider WPL 1106619 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1115908 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability
28
Gasket WPL 1122553 Contact Us For Availability
28
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Screw WPL 489218 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
30
Unit Mounting Frame WPL 1105534 Contact Us For Availability
30
Door, Ice Compartment WPL 1114355 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
31
Exchanger, Heat WPL 1118864 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Trim, Door WPL 1106148 Contact Us For Availability
31
Spacer, Hinge WPL 1105474 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Slide, Humidity Control WPL 1116718 Contact Us For Availability
32
Trim, Door S WPL 1114376 Contact Us For Availability
33
Heater, Defrost WPL 1105551 Contact Us For Availability
33
Screw (6) WPL 489226 Contact Us For Availability
33
WPL 1124208 WPL 1124208 Contact Us For Availability
33
Corner Filler, Grille WPL 1106808 Contact Us For Availability
34
WPL 1124209 WPL 1124209 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Golden Harvest) WPL 1118060 Contact Us For Availability
34
Filler, Wrap Corner (Toast) WPL 1118061 Contact Us For Availability
34
Filler, Wrap Corner (Platinum) WPL 1118062 Contact Us For Availability
35
Grille WPL 1106806 Contact Us For Availability
36
Support, Heater WPL 851358 Contact Us For Availability
36
Crisper Pan, Front WPL 1114776 Contact Us For Availability
36
WPL 1122711 WPL 1122711 Contact Us For Availability
36
Hole Plug (5) (Toast) WPL 1100176 Contact Us For Availability
36
Hole Plug (5) (Platinum) WPL 1100177 Contact Us For Availability
36
Hole Plug (5) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 989195 Contact Us For Availability
36
Hole Plug (5) (Golden Harvest) WPL 989876 Contact Us For Availability
37
WPL 1122709 WPL 1122709 Contact Us For Availability
37
Cabinet, Wiring Ass WPL 1118814 Contact Us For Availability
38
Shelf, Full Cantilever WPL 1124283 Contact Us For Availability
38
WPL 1122551 WPL 1122551 Contact Us For Availability
39
WPL 1122552 WPL 1122552 Contact Us For Availability
39
Trim, Shelf WPL 1119562 Contact Us For Availability
39
WPL 1105606 WPL 1105606 Contact Us For Availability
40
Glass, Shelf WPL 1124552 Contact Us For Availability
41
WPL 479502 WPL 479502 Contact Us For Availability
41
Baffle, Air WPL 1105529 Contact Us For Availability
41
Reflector, Shelf WPL 1114435 Contact Us For Availability
41
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
41
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
41
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
41
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
41
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
41
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
41
Leveler, Enamel (13 WPL 350941 Contact Us For Availability
41
WPL 542639 WPL 542639 Contact Us For Availability
41
WPL 72112 WPL 72112 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 937062 WPL 937062 Contact Us For Availability
48
Unit Mounting Rail WPL 1105525 Contact Us For Availability
48
WPL 1105531 WPL 1105531 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
WPL 1105527 WPL 1105527 Contact Us For Availability
50
WPL 1120224 WPL 1120224 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
52
WPL 836077 WPL 836077 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
59
Support, Evaporator (L.S.) WPL 1118806 Contact Us For Availability
61
WPL 836162 WPL 836162 Contact Us For Availability
63
WPL 489173 WPL 489173 Contact Us For Availability
64
WPL 546131 WPL 546131 Contact Us For Availability
65
WPL 989068 WPL 989068 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
70
WPL 1114548 WPL 1114548 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
