Model Whirlpool ET20DKXSW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - COMPARTMENT SEPARATOR
03 - LINER

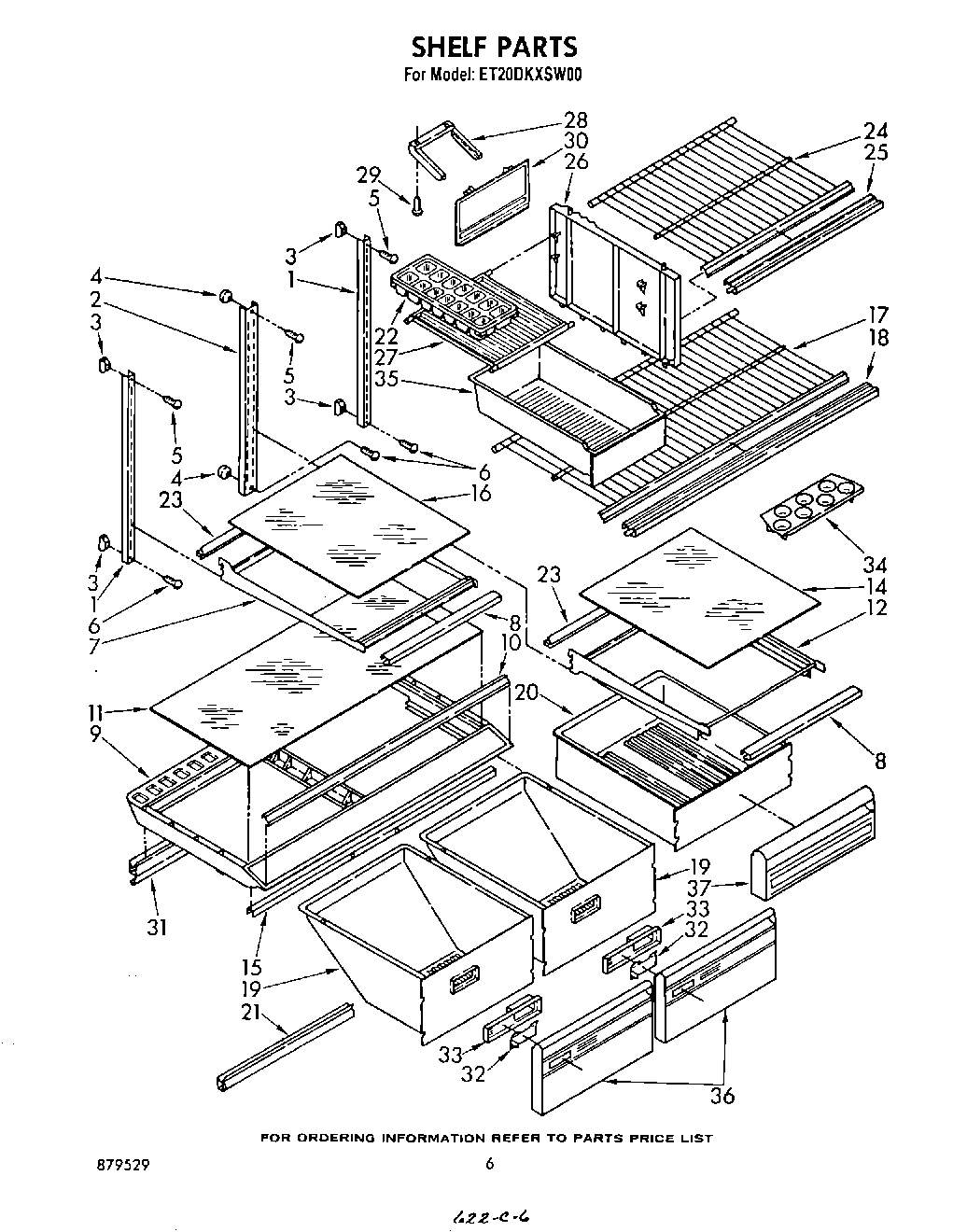

05 - SHELF , LIT/OPTIONAL

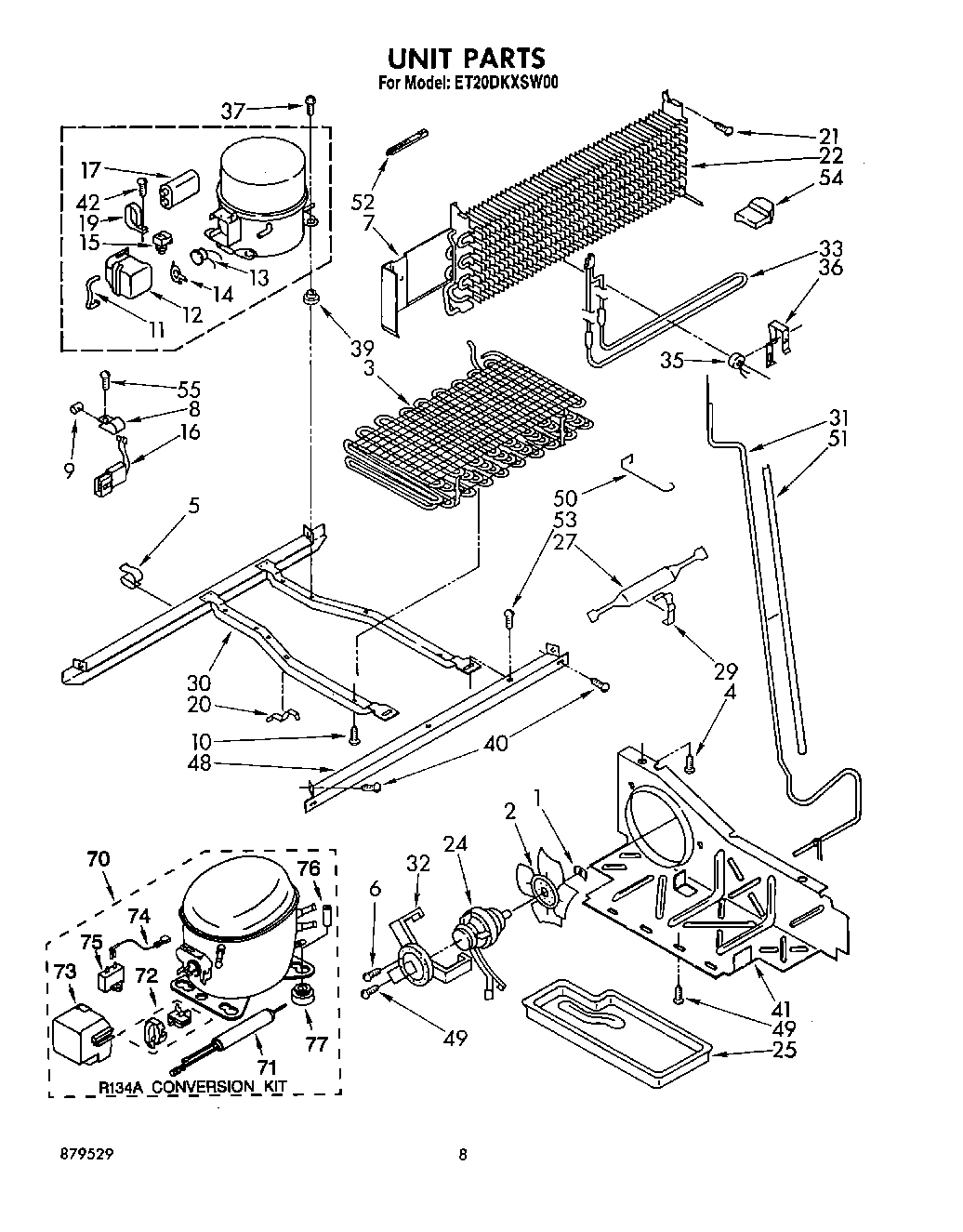

06 - UNIT

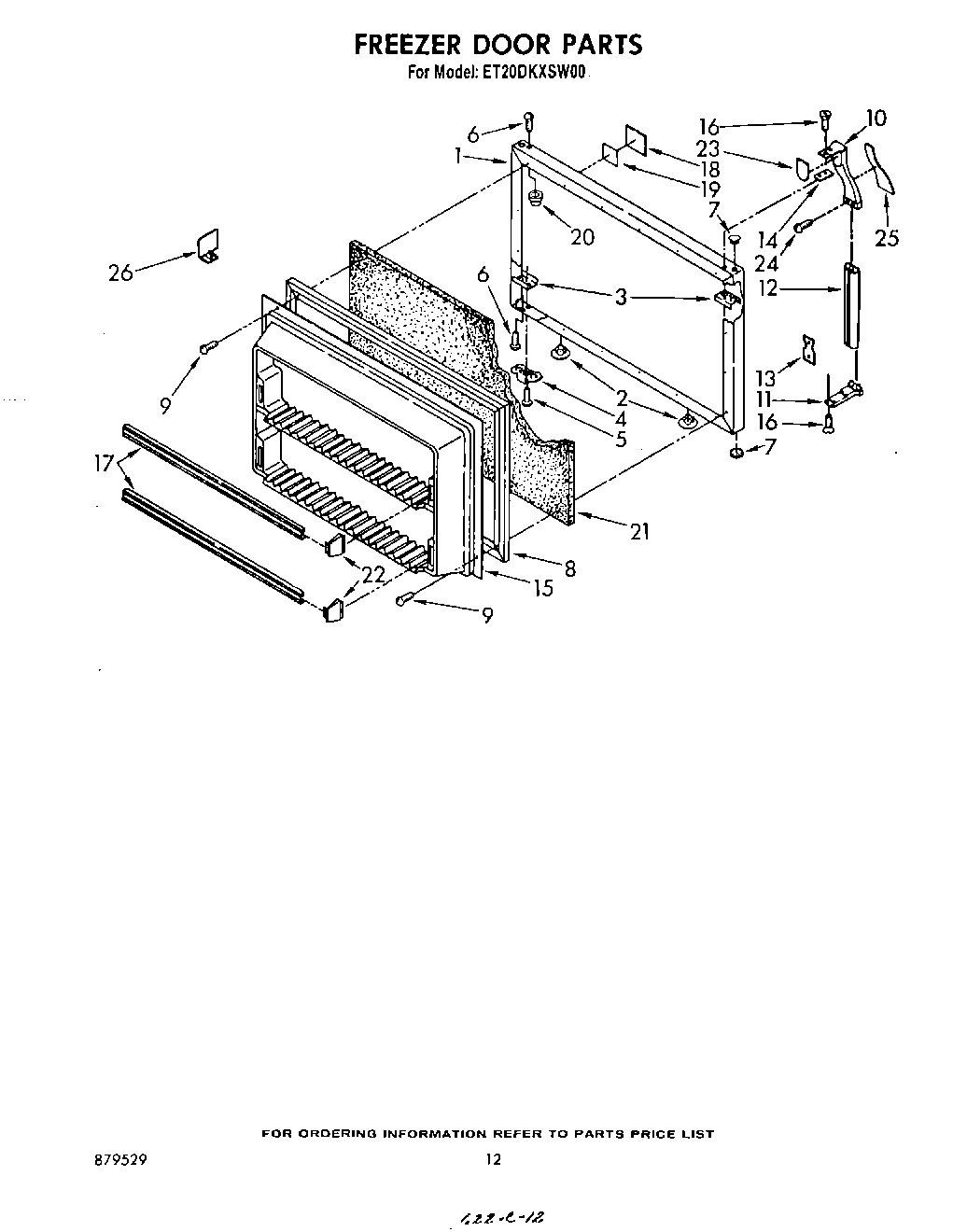

08 - FREEZER DOOR

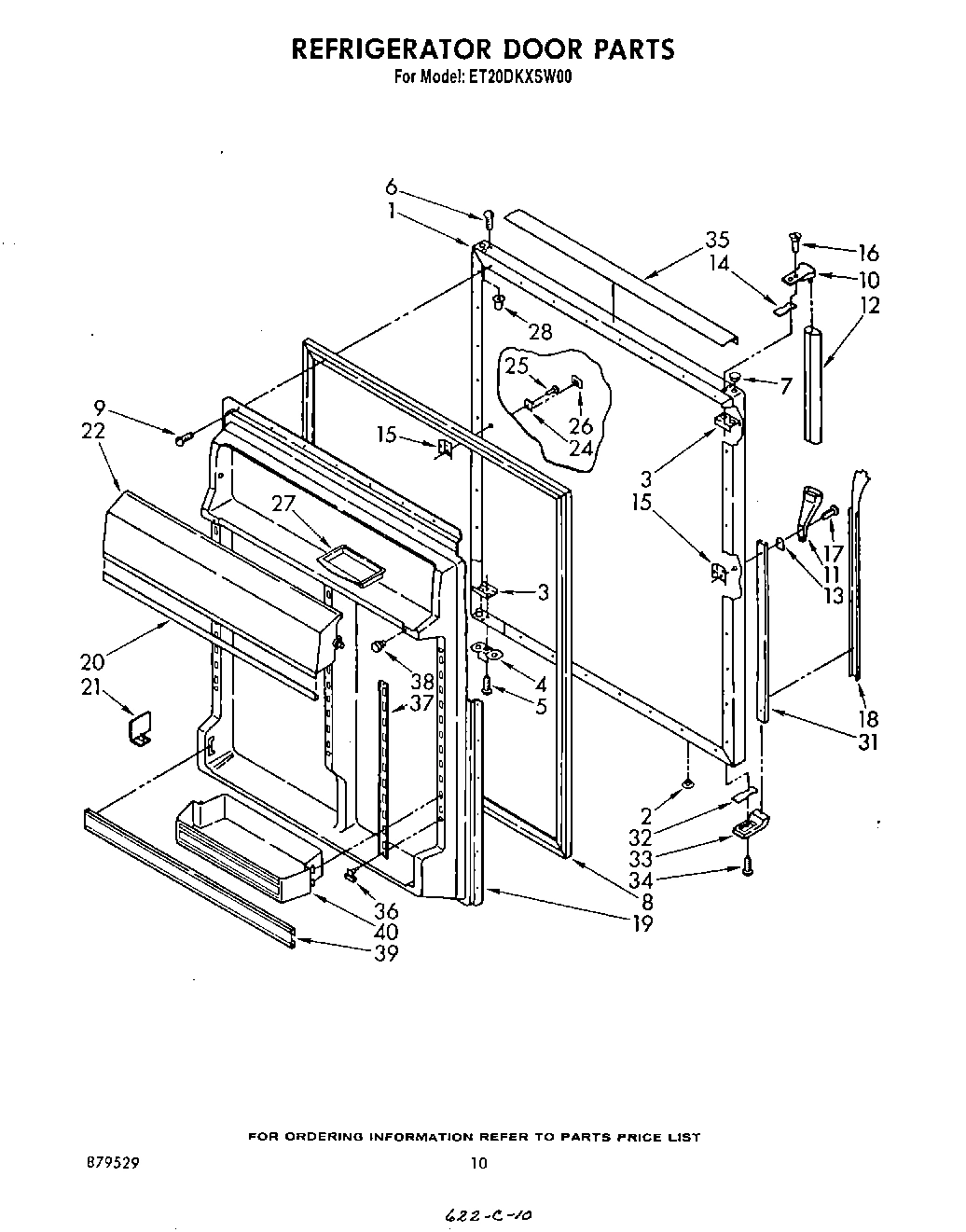

07 - REFRIGERATOR DOOR

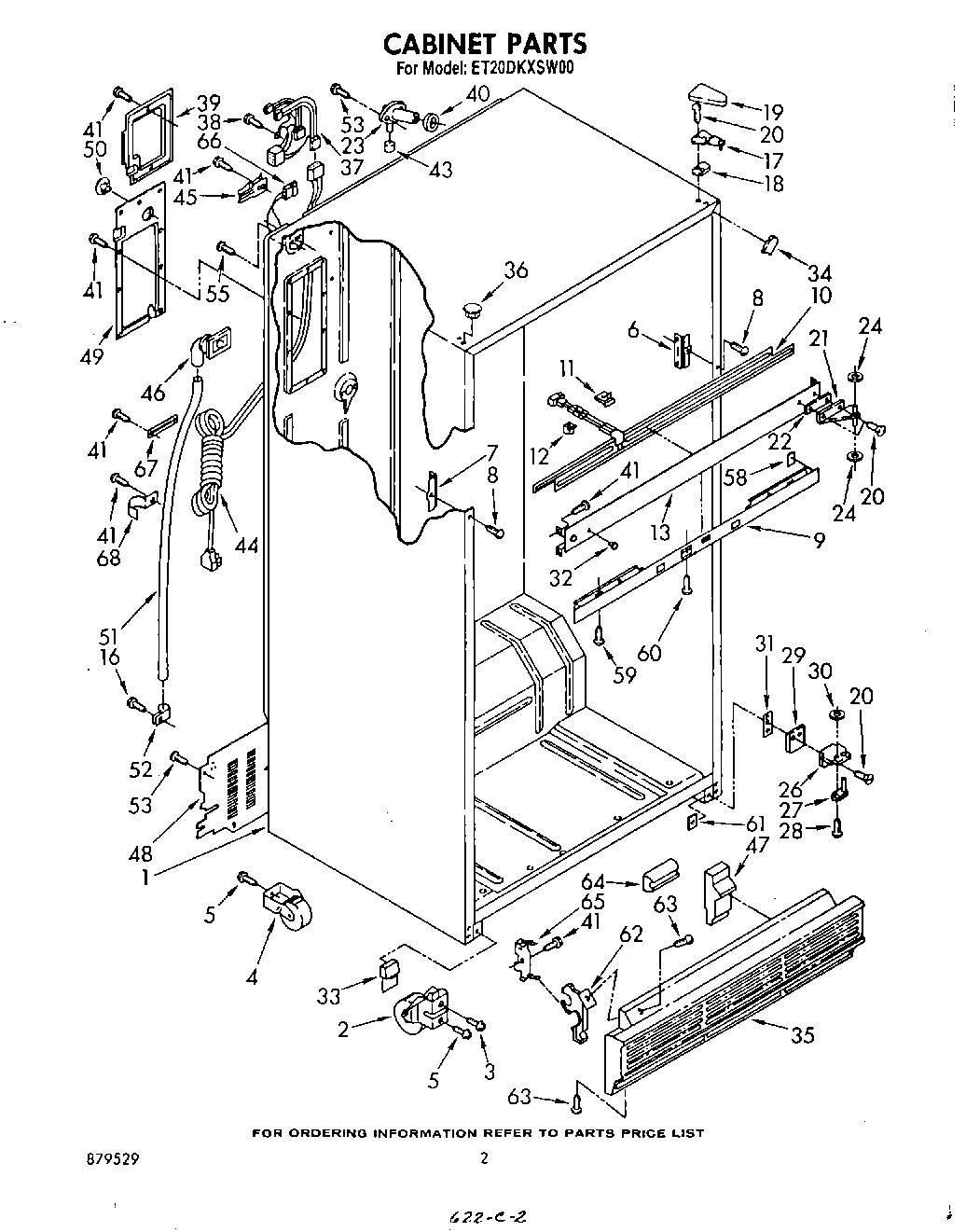

02 - CABINET
Common parts from model Whirlpool ET20DKXSW00 TOP MOUNT REFRIGERATOR
WPL LIT1108664 WPL LIT1108664 Contact Us For Availability
WPL LIT1114061 WPL LIT1114061 Contact Us For Availability
WPL LIT1114467 WPL LIT1114467 Contact Us For Availability
WPL LIT879529 WPL LIT879529 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1110697 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1105509 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1105511 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1105512 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1105513 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1105514 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1105500 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1105502 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1105503 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1105504 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1105505 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146468A Contact Us For Availability
2
Shelf, Ladder Center WPL 1106914 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
3
Condenser Assembly WPL 1105540 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw (Repair) WPL 488980 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489148 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Mounting, Bracket Mullion (R.S) WPL 1105421 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 1110739 Contact Us For Availability
7
Heat Shield Evaporator WPL 1105545 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Mounting, Bracket Mullion (L.S) WPL 1105422 Contact Us For Availability
8
Trim, Shelf WPL 1114338 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Control, Front Cover WPL 1114312 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
11
Spring, Relay Case WPL 943497 Contact Us For Availability
11
Handle End, Side WPL 935103 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability
12
Case, Relay WPL 943496 Contact Us For Availability
12
Handle, Center WPL 1106079 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110382 Contact Us For Availability
12
Handle, Center WPL 1106054 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1110378 Contact Us For Availability
12
Spacer (2) WPL 940024 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Overload WPL 1105668 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Center Rail (White) WPL 1105424 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1105426 Contact Us For Availability
13
Center Rail (Almond) WPL 1105427 Contact Us For Availability
13
Center Rail (Toast) WPL 1105428 Contact Us For Availability
13
Center Rail (Platinum) WPL 1105429 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Meat Cover WPL 1114352 Contact Us For Availability
14
Overload Spring WPL 943494 Contact Us For Availability
15
Relay WPL 945535 Contact Us For Availability
15
Interior Door Panel WPL 1106865 Contact Us For Availability
16
Shelf, Glass WPL 1110733 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Running Capacitor WPL 1101182 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1114379 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Trim, Shelf Front WPL 1106958 Contact Us For Availability
18
Nameplate WPL 1111555 Contact Us For Availability
18
Insert, Handle WPL 1106076 Contact Us For Availability
18
Insert, Handle (For Platinum Model Only) WPL 1114388 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
19
Grommet (2) WPL 1114354 Contact Us For Availability
19
Pan, Crisper WPL 1108688 Contact Us For Availability
19
Clamp, Capacitor WPL 1101184 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1106932 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
20
Grommet, (6) WPL 533881 Contact Us For Availability
20
Pan, Meat WPL 1108693 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Trim, Door Compartment WPL 1106959 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper, Gasket Front WPL 1105652 Contact Us For Availability
21
Divider, Door Shelf WPL 1114380 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
22
Ground Spacer WPL 1110565 Contact Us For Availability
22
Evaporator WPL 1103846 Contact Us For Availability
22
Compartment Door, Utility WPL 1114371 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Scroll, Fan WPL 1105517 Contact Us For Availability
23
Reflector, Shelf WPL 1110743 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Evaporator Cover WPL 1105518 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
25
Screw, 8-15 x 1/2 (4) WPL 489147 Contact Us For Availability
25
Trim, Shelf WPL 1114353 Contact Us For Availability
25
Insert, Handle WPL 1106059 Contact Us For Availability
25
Insert, Handle (For Platinum Model Only) WPL 1114390 Contact Us For Availability
26
Divider WPL 1106619 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
26
Hinge Butt, Bottom WPL 836159 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
29
Clamp, Drier WPL 548508 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
30
Door, Ice Compartment WPL 1114355 Contact Us For Availability
30
Unit Mounting Frame WPL 1105534 Contact Us For Availability
31
Crisper, Gasket Rear WPL 1105653 Contact Us For Availability
31
Exchanger, Heat WPL 1105546 Contact Us For Availability
31
Retainer, Insert WPL 935871 Contact Us For Availability
31
Spacer, Hinge WPL 1105474 Contact Us For Availability
32
Slide, Humidity Control WPL 1110541 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Shim, Endcap WPL 1105805 Contact Us For Availability
32
Plug, Hole (2) (Toast) WPL 1100174 Contact Us For Availability
32
Hole Plug (2) (Platinum) WPL 1100175 Contact Us For Availability
32
Hole, Plug (2) (White) WPL 835974 Contact Us For Availability
32
Hole, Plug (2) (Almond) WPL 989193 Contact Us For Availability
32
Hole, Plug (2) (Golden Harvest) WPL 989882 Contact Us For Availability
33
Housing, Humidity Control WPL 1110542 Contact Us For Availability
33
Heater, Defrost WPL 1105551 Contact Us For Availability
33
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
33
Corner Filler, Grille WPL 1114366 Contact Us For Availability
34
Tray, Egg (2) WPL 1108652 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability
34
Filler, Wrap Corner (Golden Harvest) WPL 1110710 Contact Us For Availability
34
Filler, Wrap Corner (Toast) WPL 1110711 Contact Us For Availability
34
Filler, WPL 1110712 Contact Us For Availability
35
Trim, Door WPL 1106148 Contact Us For Availability
35
WPL 1114365 WPL 1114365 Contact Us For Availability
36
Crisper, Pan Front WPL 1114358 Contact Us For Availability
36
Clamp WPL 1106913 Contact Us For Availability
36
Retainer, Trim (6) WPL 1106864 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Meat Pan, Front WPL 1114363 Contact Us For Availability
37
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
37
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
37
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
37
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
37
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
37
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
37
Leveler, Enamel (13 Oz. Spra WPL 350941 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 72112 WPL 72112 Contact Us For Availability
37
WPL 799832 WPL 799832 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 799908 WPL 799908 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Trim, Interior Door (3) WPL 1108631 Contact Us For Availability
37
WPL 1105690 WPL 1105690 Contact Us For Availability
38
Bunper (2) WPL 532154 Contact Us For Availability
39
Trim, Door Shelf WPL 1114376 Contact Us For Availability
39
WPL 1105606 WPL 1105606 Contact Us For Availability
40
Shelf, Cantilever (4) WPL 1114369 Contact Us For Availability
41
Baffle, Air WPL 1105529 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 937062 WPL 937062 Contact Us For Availability
47
WPL 836372 WPL 836372 Contact Us For Availability
48
Unit Mounting Rail WPL 1105525 Contact Us For Availability
48
WPL 1105531 WPL 1105531 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
WPL 1105527 WPL 1105527 Contact Us For Availability
50
WPL 655411 WPL 655411 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
52
WPL 836077 WPL 836077 Contact Us For Availability
54
Wedge, Air Baffle WPL 1105632 Contact Us For Availability
58
WPL 1106844 WPL 1106844 Contact Us For Availability
61
WPL 836162 WPL 836162 Contact Us For Availability
63
WPL 489173 WPL 489173 Contact Us For Availability
64
WPL 546131 WPL 546131 Contact Us For Availability
65
WPL 989068 WPL 989068 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
