Model Whirlpool ET19DKXEW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR DOOR
06 - FREEZER DOOR, LIT/OPTIONAL

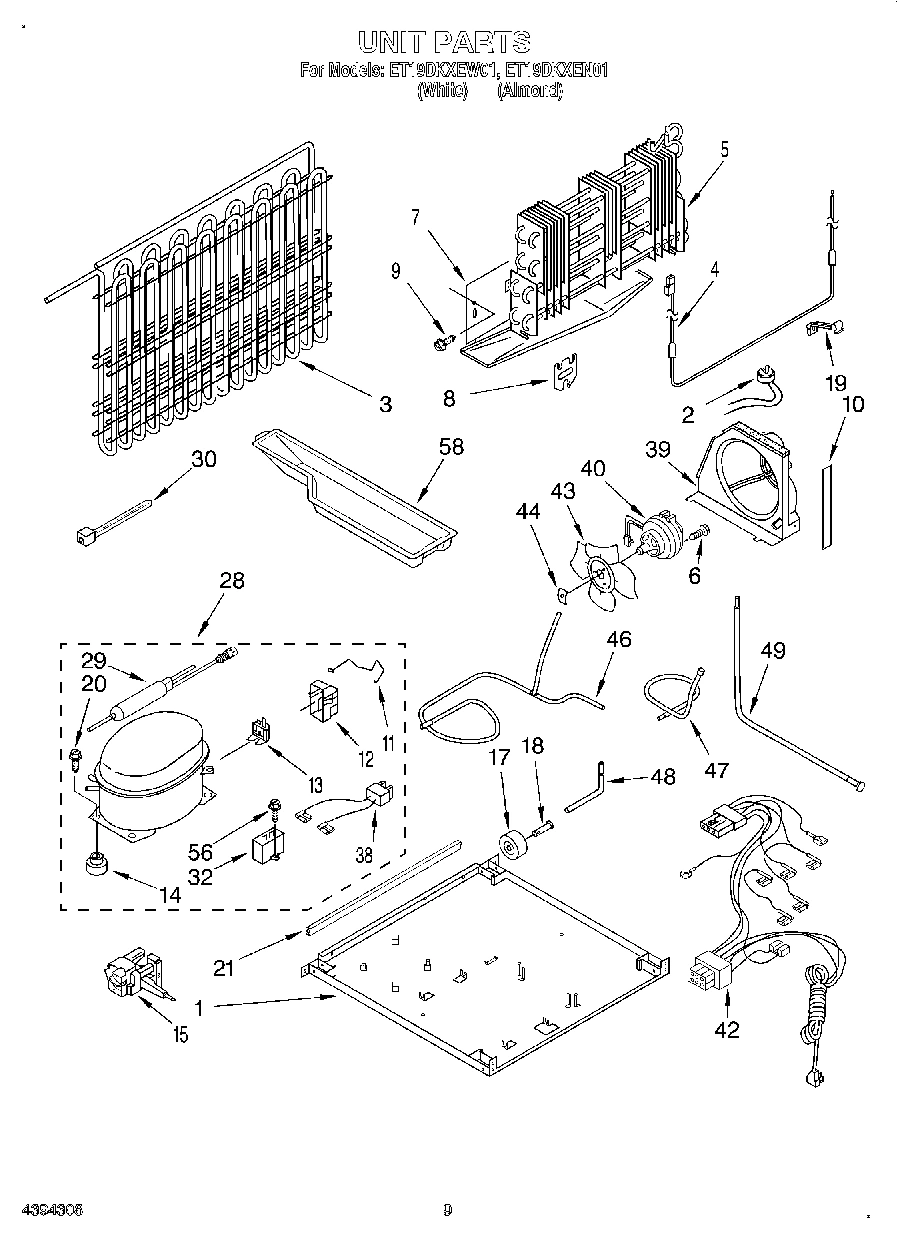

05 - UNIT

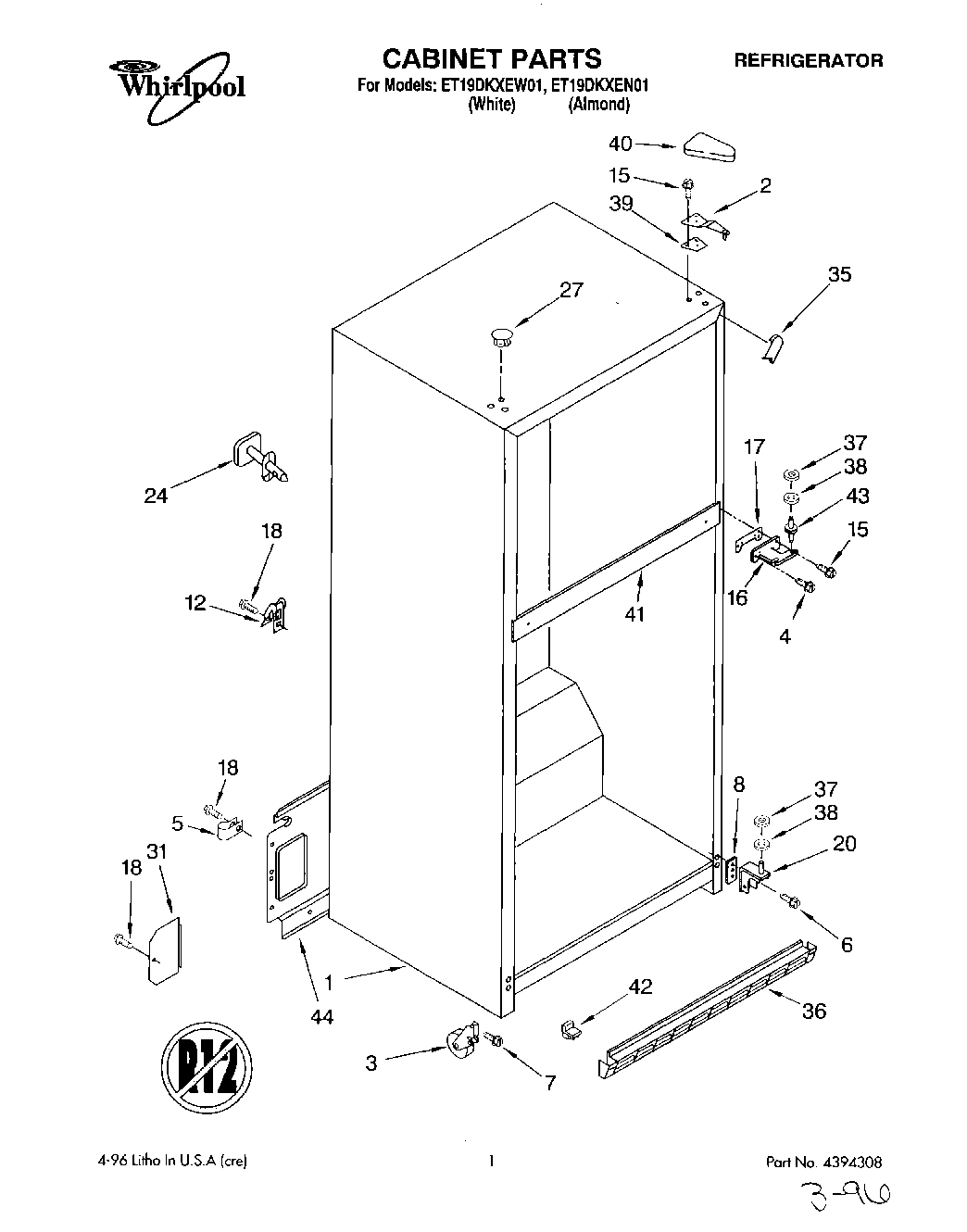

01 - CABINET

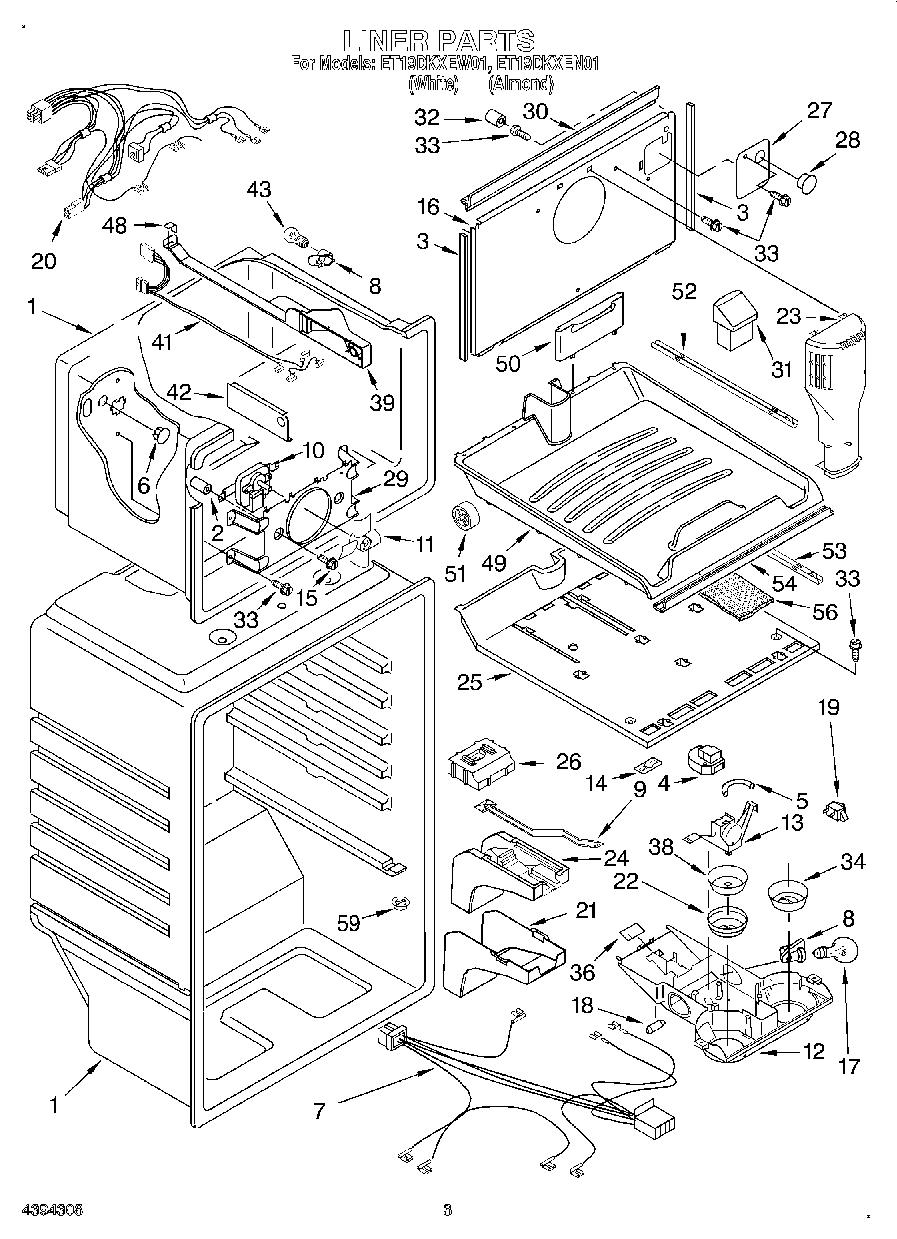

02 - LINER

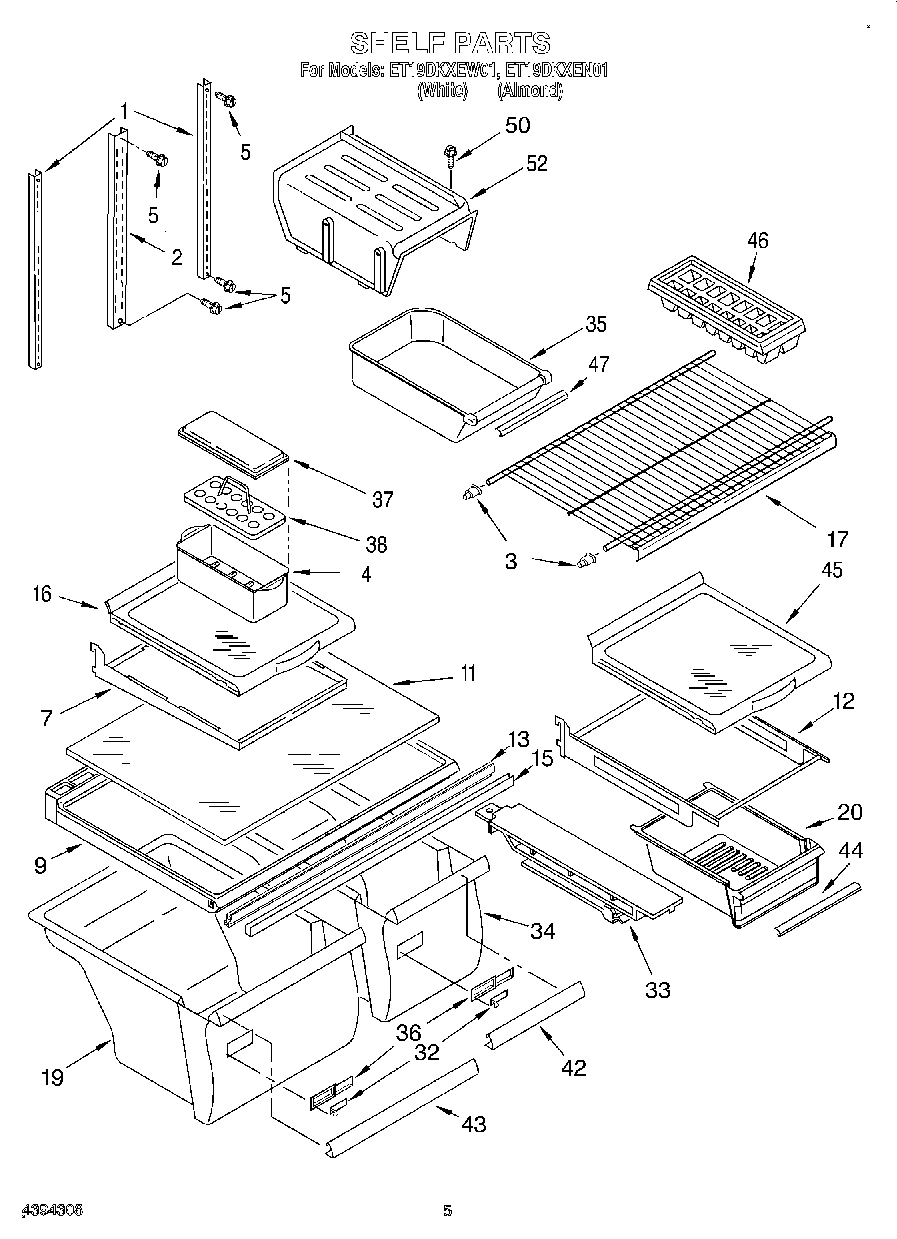

03 - SHELF
Common parts from model Whirlpool ET19DKXEW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45526A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI45529A4 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Screw WPL 2174650 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193074 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Clamp (Production Only) WPL 2169464 Contact Us For Availability
12
Control Box WPL 2179869 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179716 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Overload (Production Comp.) WPL 2169406 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2184417 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2179823 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Protector WPL 2183183 Contact Us For Availability
22
KIT, FOAM SLAB ( WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Knob, Thermostat WPL 2184572 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI45527A6 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
32
Capacitor (Service Comp.) WPL 2169137 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Ice Bucket WPL 2173688 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI45528A5 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
42
Wire Assy. Unit WPL 2184587 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2182384 Contact Us For Availability
42
Trim, Crisper Pan WPL 2190551 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
43
Trim, Crisper Pan WPL 2190552 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
44
Trim, Meat Pan WPL 2190555 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2184419 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2166299 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
