Model Whirlpool ET18ZKXAN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

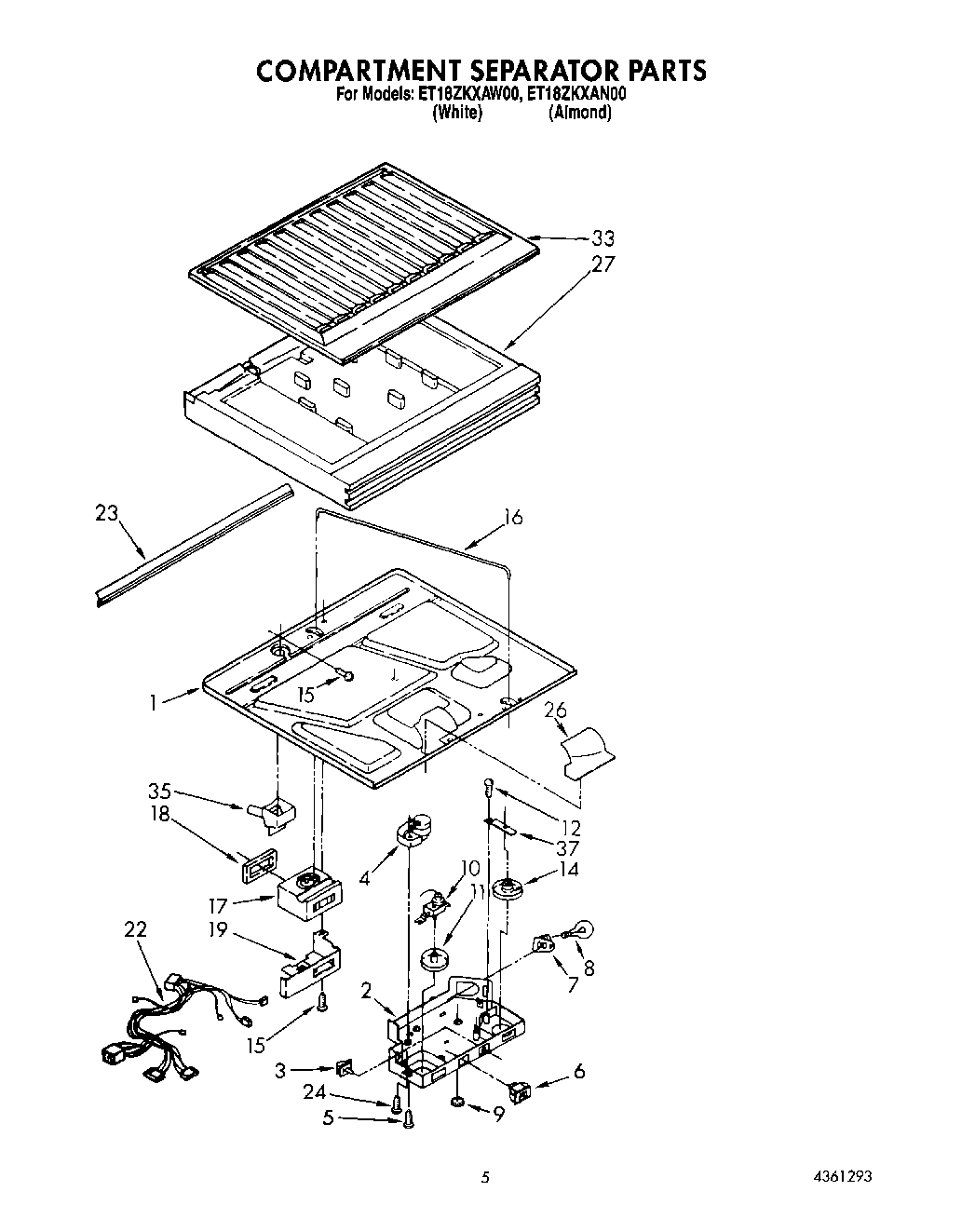

03 - COMPARTMENT SEPARATOR

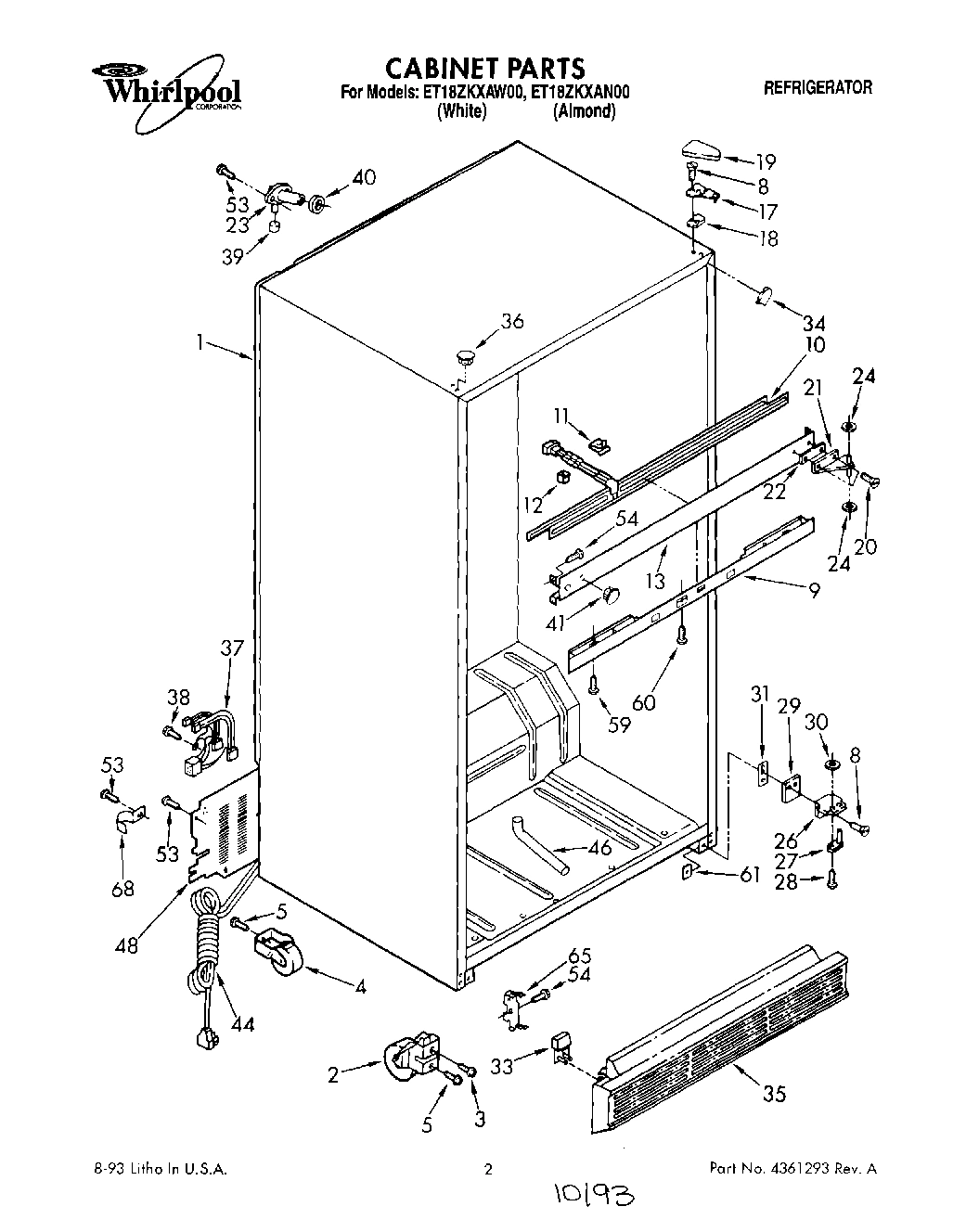

01 - CABINET

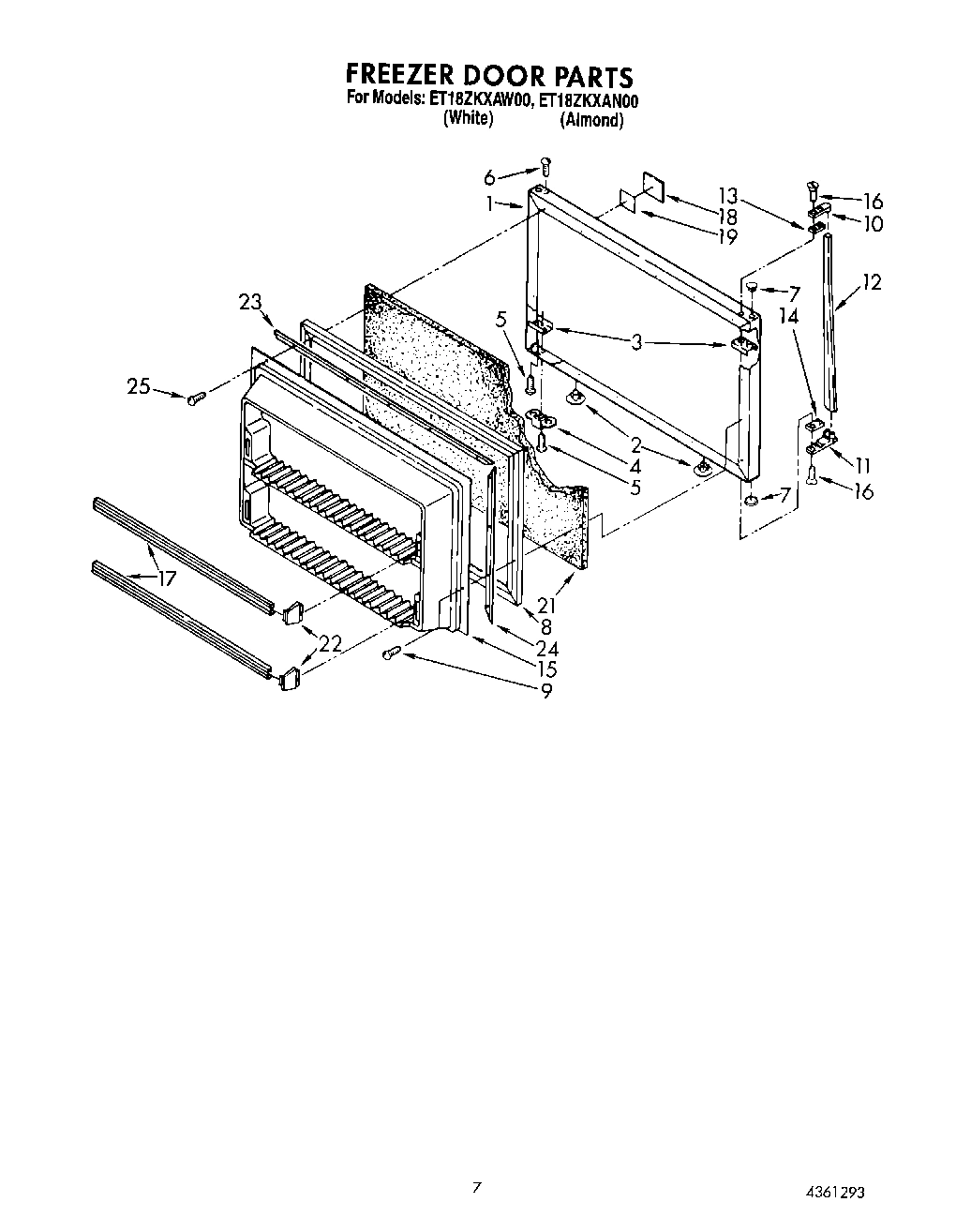

05 - FREEZER DOOR

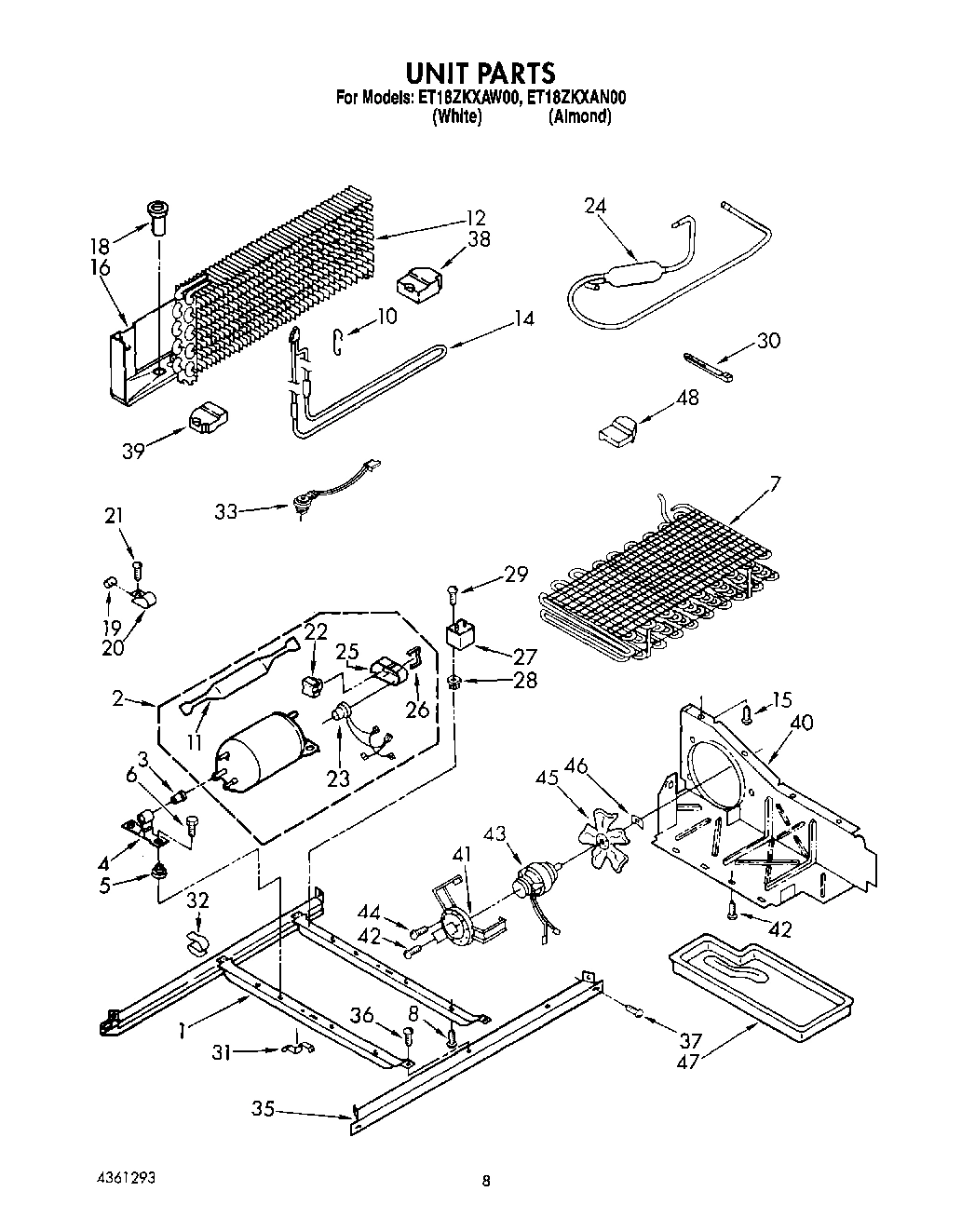

06 - UNIT

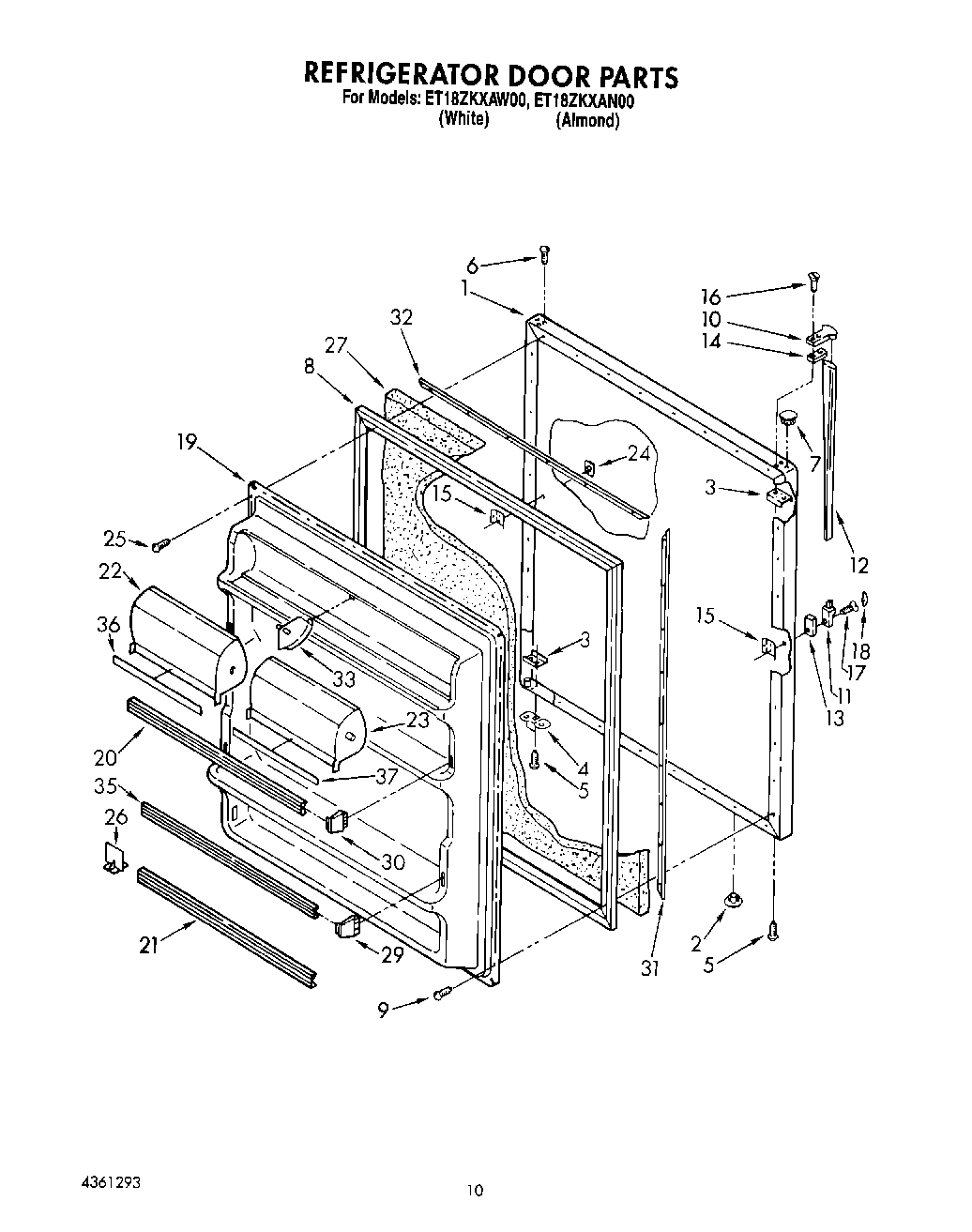

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

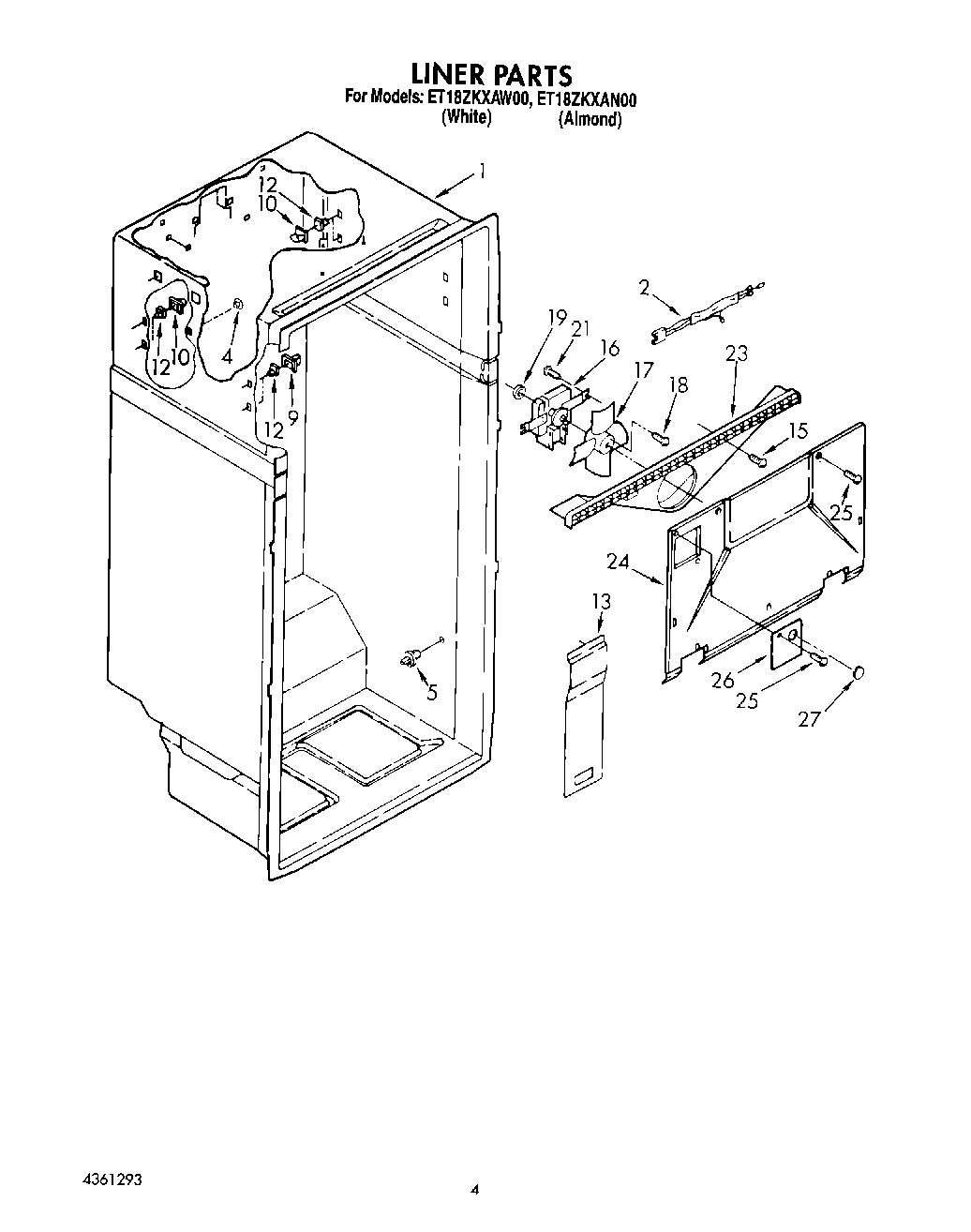

02 - LINER

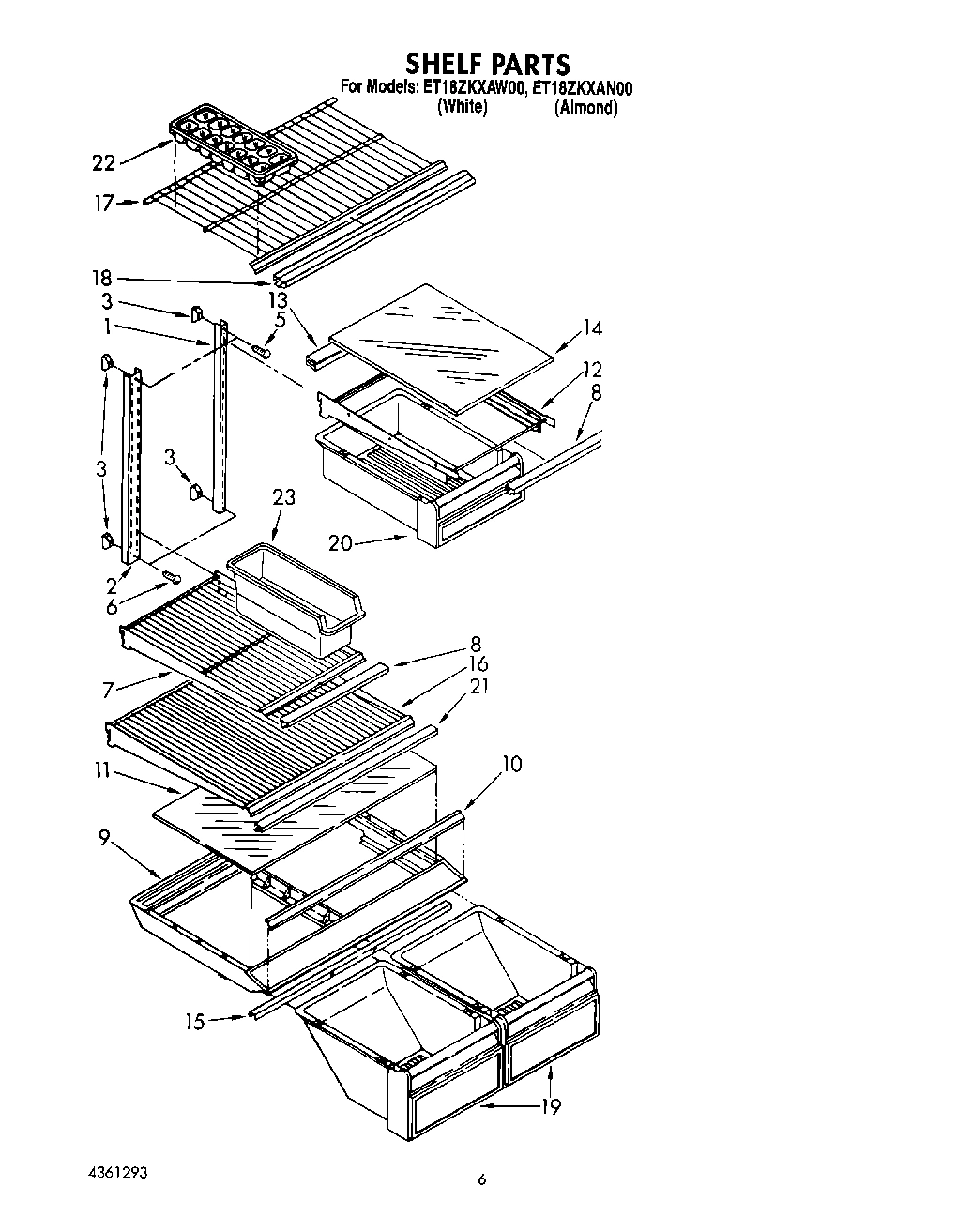

04 - SHELF
Common parts from model Whirlpool ET18ZKXAN00 TOP MOUNT REFRIGERATOR
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2160154 WPL LIT2160154 Contact Us For Availability
WPL LIT2162617 WPL LIT2162617 Contact Us For Availability
WPL LIT4361293 WPL LIT4361293 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
1
Unit, Frame WPL 1116619 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI45317A9 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 1118117 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116592 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116582 Contact Us For Availability
8
Trim, Shelf WPL 1118121 Contact Us For Availability
9
Stud, Front (2) WPL 946356 Contact Us For Availability
9
Crisper Cover WPL 2148047 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Trim, Crisper Cover WPL 1116712 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 1116558 Contact Us For Availability
13
Retainer, Glass WPL 1118119 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
14
Glass, Meat Cover WPL 1116699 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2148030 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
18
Nameplate WPL 2152334 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Trim, Shelf Front WPL 1118112 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Dampener (2) WPL 2149670 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2148977 Contact Us For Availability
20
Trim, Door Shelf WPL 2162574 Contact Us For Availability
20
Tube Clamp (2) WPL 2159720 Contact Us For Availability
20
Pan, Meat WPL 2148978 Contact Us For Availability
21
Trim, Door Shelf WPL 2162576 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Full Shelf WPL 2148050 Contact Us For Availability
22
Relay (See Overload) WPL ARI45318A7 Contact Us For Availability
22
Compartment Door, Utility WPL 2148222 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
23
Compartment, Butter Door WPL 2148220 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Muffler WPL 2159732 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Divider, Door Shelf WPL 2160049 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
32
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Trim, Door Shelf WPL 2162575 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability
36
Trim, Compartment Door WPL 1118006 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
Torx Key WPL 1117510 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Trim, Compartment Door WPL 1118014 Contact Us For Availability
37
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
37
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
37
WPL 350941 WPL 350941 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
38
Support (R.S.) WPL 1118805 Contact Us For Availability
39
Support (L.S.) WPL 1118806 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Hole Plug (White) WPL 1129062 Contact Us For Availability
41
Hole Plug (Almond) WPL 1129063 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
42
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
46
Fitting, Drain WPL 2154118 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
Cover, Unit WPL 1116613 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
