Model Whirlpool ET18XKXRWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
04 - COMPARTMENT SEPARATOR

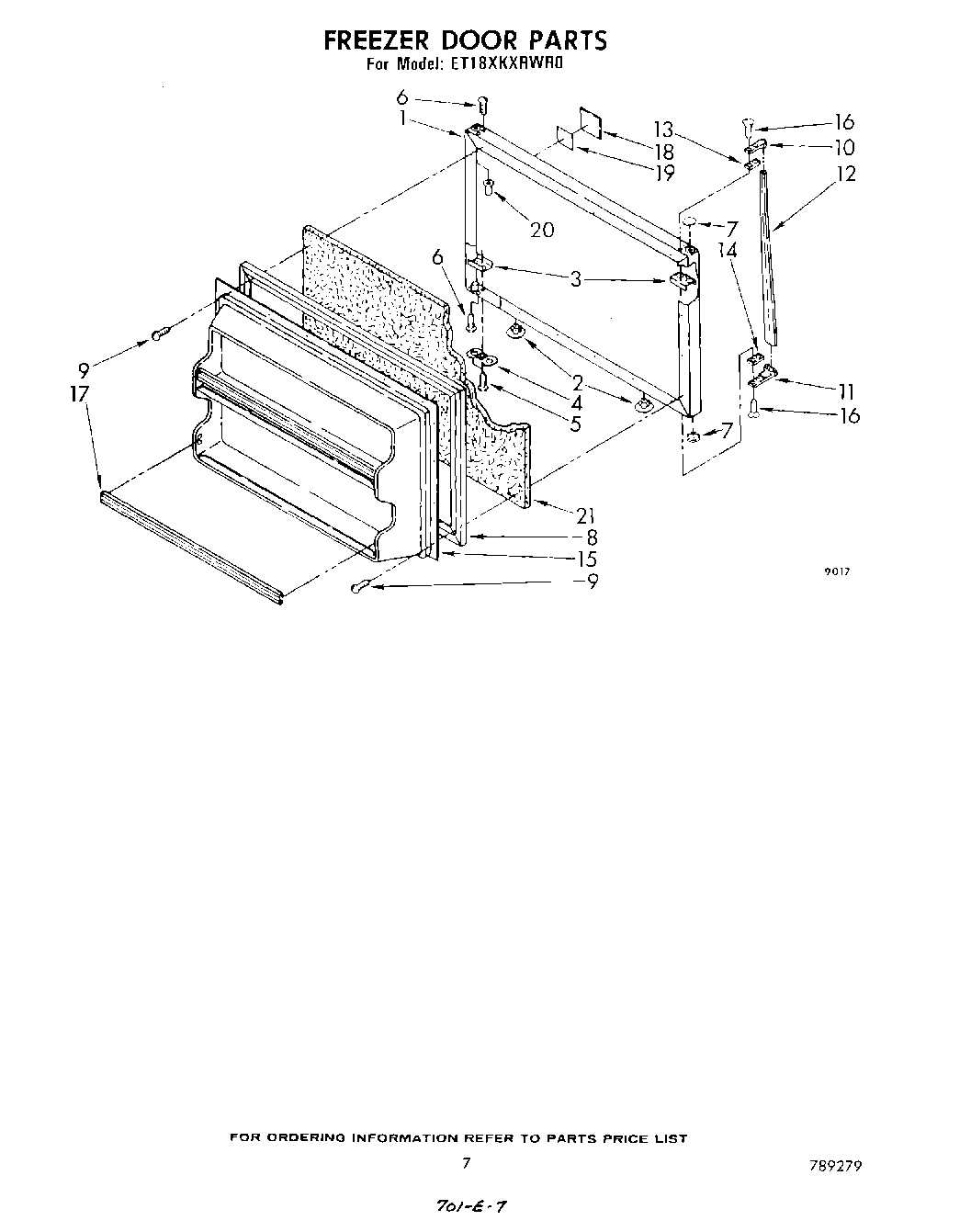

06 - FREEZER DOOR

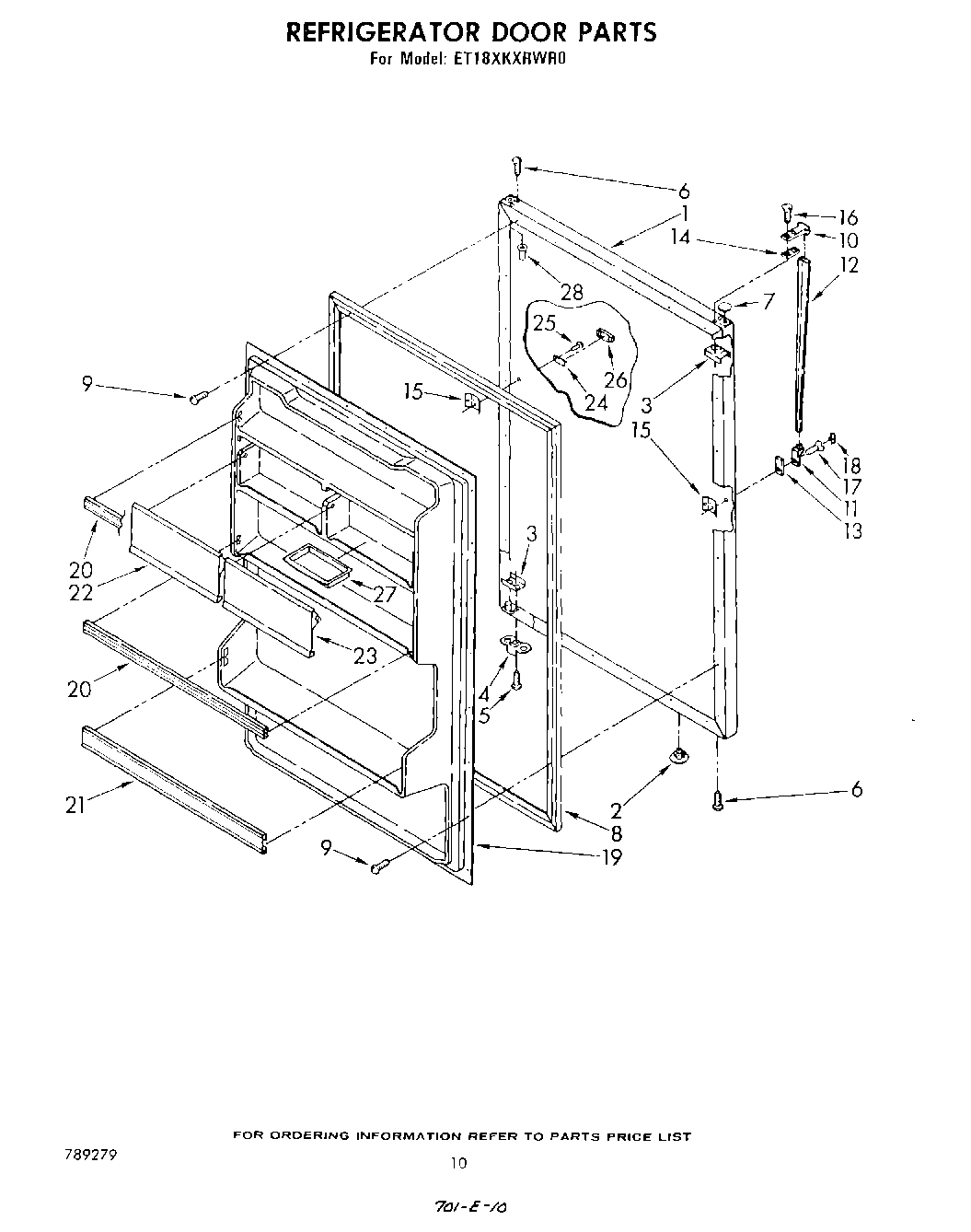

08 - REFRIGERATOR DOOR , NOT ILLUSTRATED

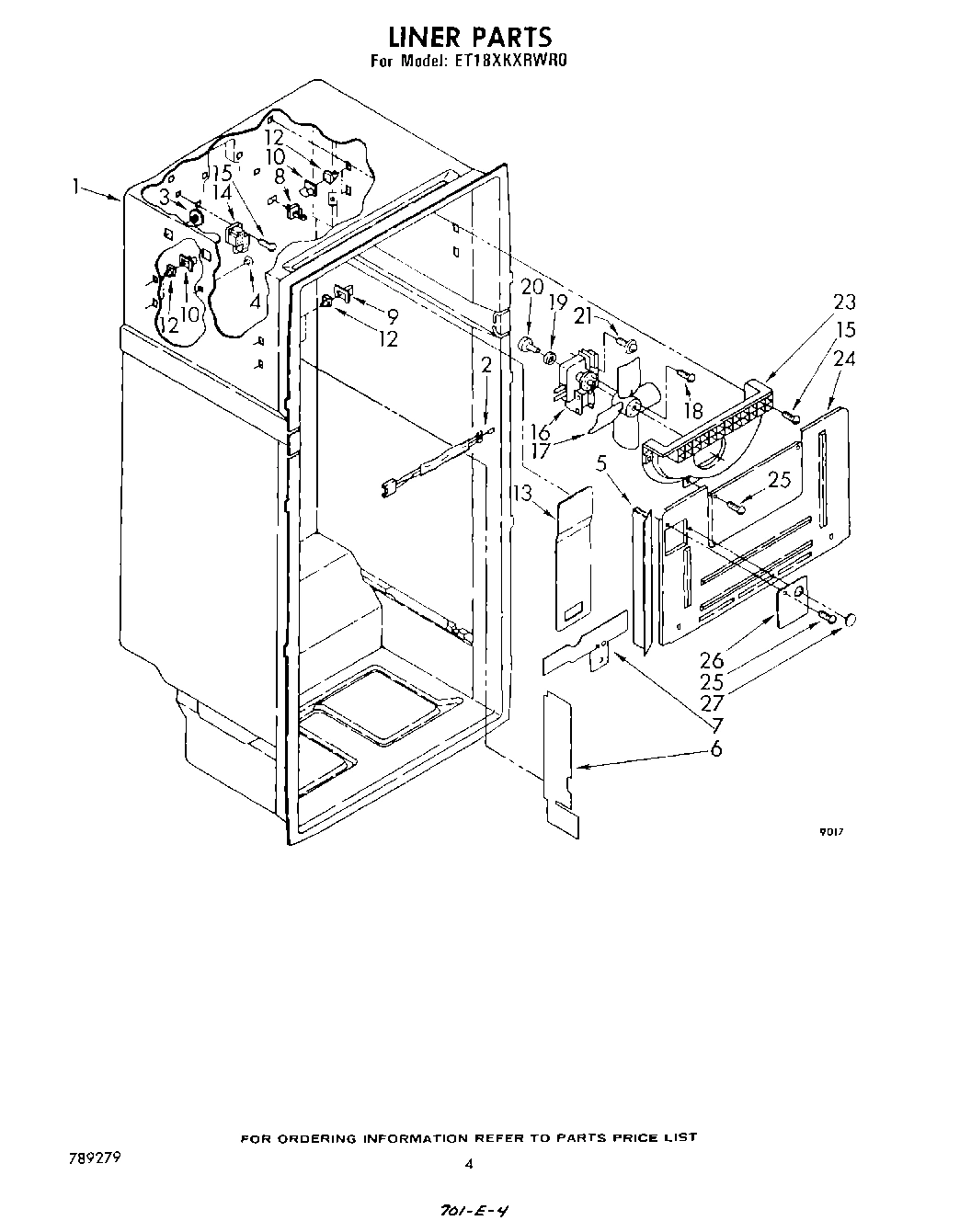

03 - LINER

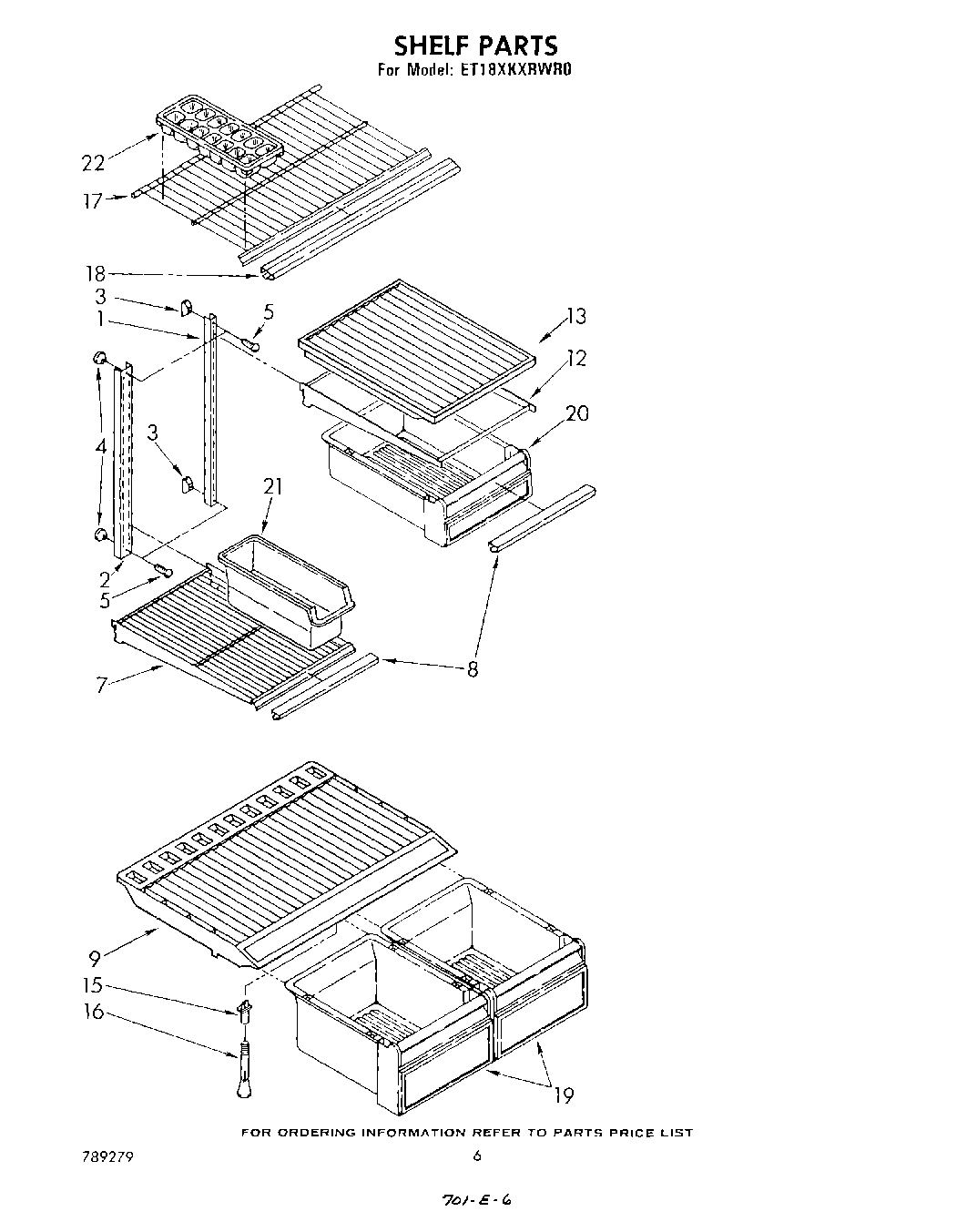

05 - SHELF

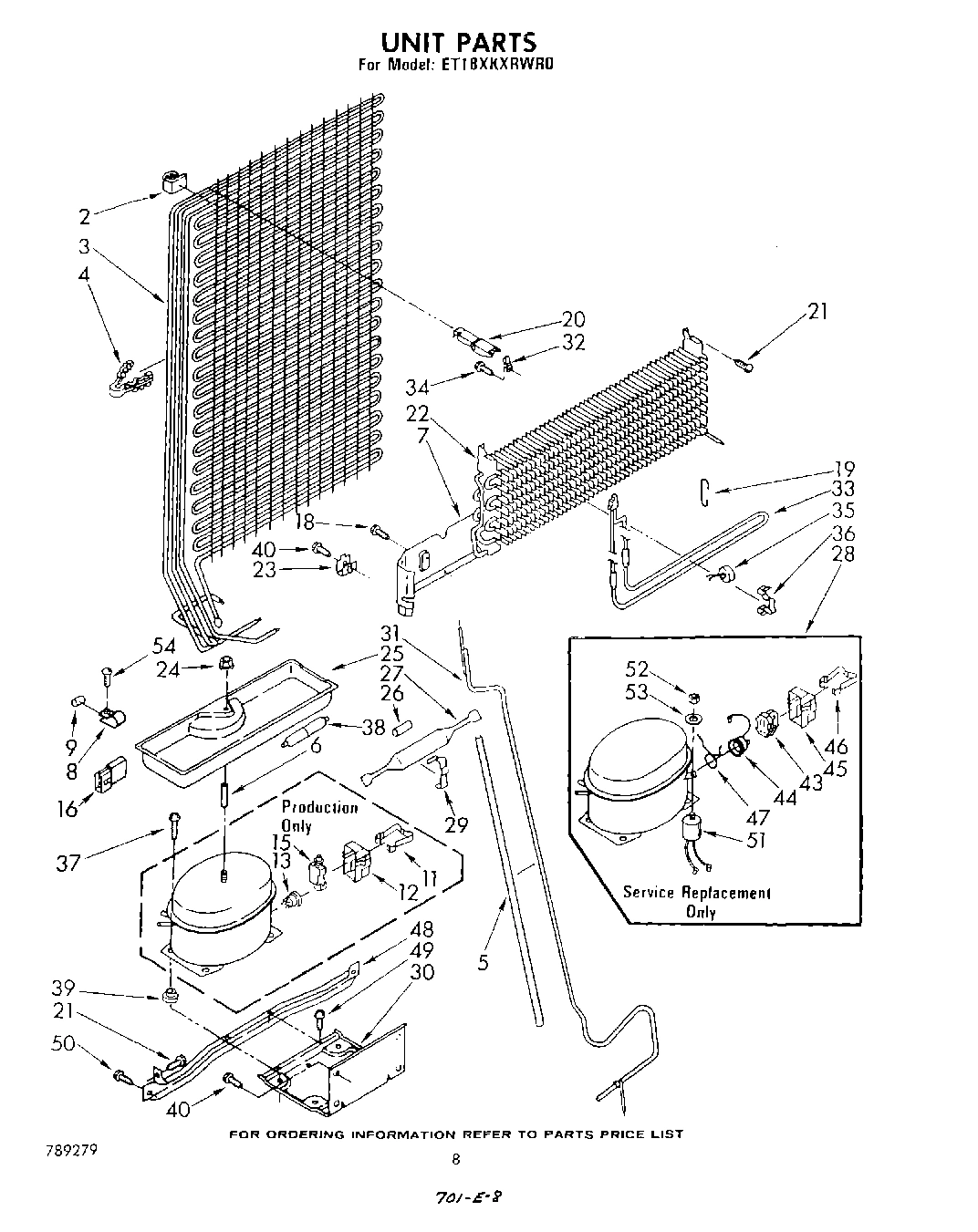

07 - UNIT
Common parts from model Whirlpool ET18XKXRWR0 TOP MOUNT REFRIGERATOR
WPL 261890 WPL 261890 Contact Us For Availability
WPL 285365 WPL 285365 Contact Us For Availability
WPL 285366 WPL 285366 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
WPL LIT1104624 WPL LIT1104624 Contact Us For Availability
WPL LIT1104893 WPL LIT1104893 Contact Us For Availability
WPL LIT1105320 WPL LIT1105320 Contact Us For Availability
WPL LIT789279 WPL LIT789279 Contact Us For Availability
1
Bottom, Compartment Separator WPL 943711 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1104642 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1104645 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1104646 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1104634 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1104636 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1104637 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1104638 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI45290A4 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1103177 Contact Us For Availability
2
Box, Control WPL 942757 Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Wiring, Fan Motor WPL 943796 Contact Us For Availability
2
Shelf, Ladder Center WPL 1103178 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
3
Hole Plug WPL 944795 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1108183 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 850608 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Clip, Tube (2) WPL 1106781 Contact Us For Availability
5
Gasket WPL 1105673 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (6) WPL 489148 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Top, Electric Shield WPL 946351 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 1104881 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1106180 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1109186 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Trim, Shelf WPL 1104614 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Cover, Crisper WPL 943730 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
12
Lockwasher WPL 489053 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104740 Contact Us For Availability
12
Handle, Center WPL 982978 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104738 Contact Us For Availability
12
Handle, Center WPL 982946 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1104615 Contact Us For Availability
12
Case, Relay WPL 1108144 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Spacer, Knob WPL 937105 Contact Us For Availability
13
Cover, Air Duct WPL 1111420 Contact Us For Availability
13
Pan, Slide & Cover WPL 1104883 Contact Us For Availability
13
Overload WPL 1105163 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 935727 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Interior Door Panel WPL 945802 Contact Us For Availability
15
Support, Crisper Cover WPL 1103731 Contact Us For Availability
15
Relay WPL 946615 Contact Us For Availability
16
Post, Cripser Cover WPL 836410 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
17
Air Diffuser Assembly WPL 1108173 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 946987 Contact Us For Availability
17
Shelf, Freezer WPL 943725 Contact Us For Availability
18
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
18
Nameplate WPL 945120 Contact Us For Availability
18
Trim, Shelf (Front) WPL 943728 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 945850 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 943736 Contact Us For Availability
19
Support, Heater WPL 1108172 Contact Us For Availability
20
Trim, Door (2) WPL 946986 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
20
Pan, Meat WPL 1104882 Contact Us For Availability
20
Condenser, Stand-Off WPL 1100636 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Trim, Door WPL 946989 Contact Us For Availability
21
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1103898 Contact Us For Availability
22
Compartment Door, Utility WPL 945812 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943734 Contact Us For Availability
23
Compartment, Butter Door WPL 945803 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
24
Clip, Medallion WPL 843213 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Medallion (Toast) WPL 1100194 Contact Us For Availability
26
Medallion (Platinum) WPL 1100195 Contact Us For Availability
26
Medallion (White) WPL 848382 Contact Us For Availability
26
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
26
Medallion (Almond) WPL 989904 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 943714 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
WPL 509929 WPL 509929 Contact Us For Availability
28
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
28
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
28
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
28
WPL 542639 WPL 542639 Contact Us For Availability
28
WPL 72112 WPL 72112 Contact Us For Availability
28
WPL 799832 WPL 799832 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 799908 WPL 799908 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
29
Protector, Wiring WPL 944998 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Insulation, Center Rail WPL 943715 Contact Us For Availability
31
Exchanger, Heat WPL 1108092 Contact Us For Availability
32
Shield, Compartment Separator WPL 942772 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Separator, Compartment (Top) WPL 943716 Contact Us For Availability
33
Heater, Defrost WPL 1105165 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1100687 WPL 1100687 Contact Us For Availability
35
WPL 1100688 WPL 1100688 Contact Us For Availability
35
WPL 940086 WPL 940086 Contact Us For Availability
35
WPL 940087 WPL 940087 Contact Us For Availability
35
WPL 940089 WPL 940089 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Drain Pan WPL 1108358 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
37
Gasket, Drain Pan WPL 1108357 Contact Us For Availability
38
Muffler WPL 1101043 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
47
Overload Spring WPL 1114190 Contact Us For Availability
48
Rail, Unit Mounting WPL 943755 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
WPL 655411 WPL 655411 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
51
Capacitor WPL 482996 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
52
Nut WPL 489142 Contact Us For Availability
53
Washer WPL 489143 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
WPL 1106510 WPL 1106510 Contact Us For Availability
54
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
57
WPL 489151 WPL 489151 Contact Us For Availability
× ![]()
