Model Whirlpool ET18TKXMWR2 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

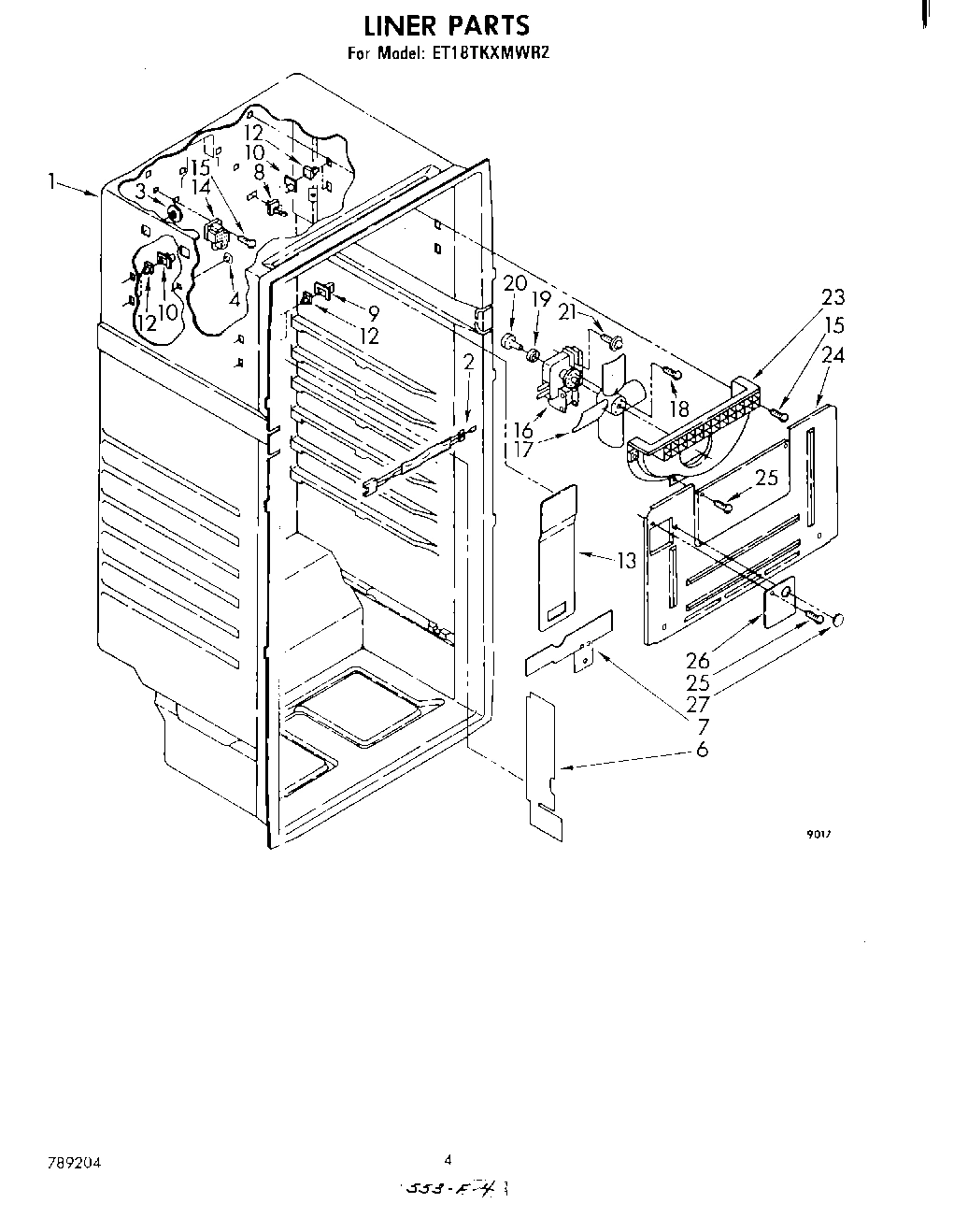

03 - LINER

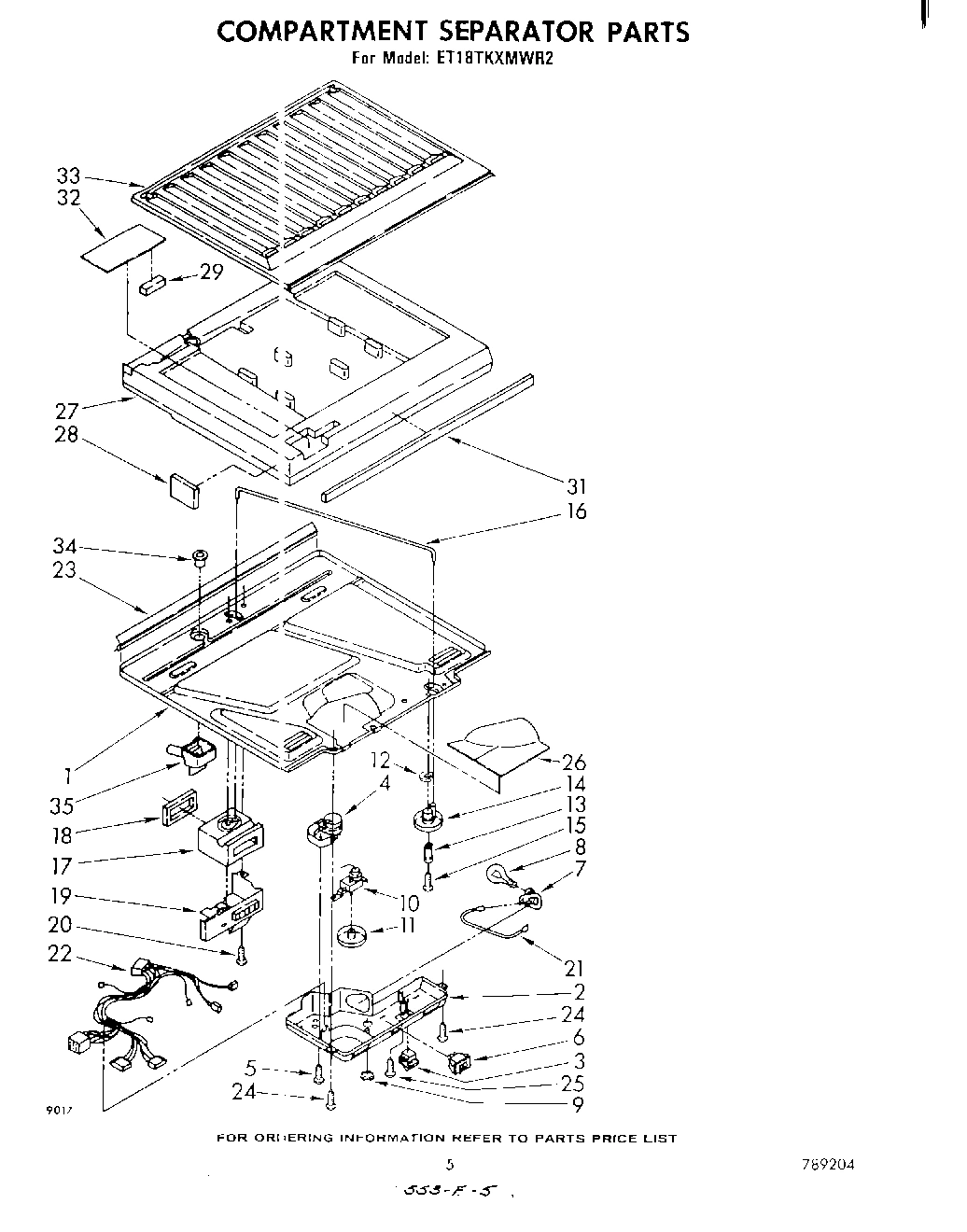

04 - COMPARTMENT SEPARATOR

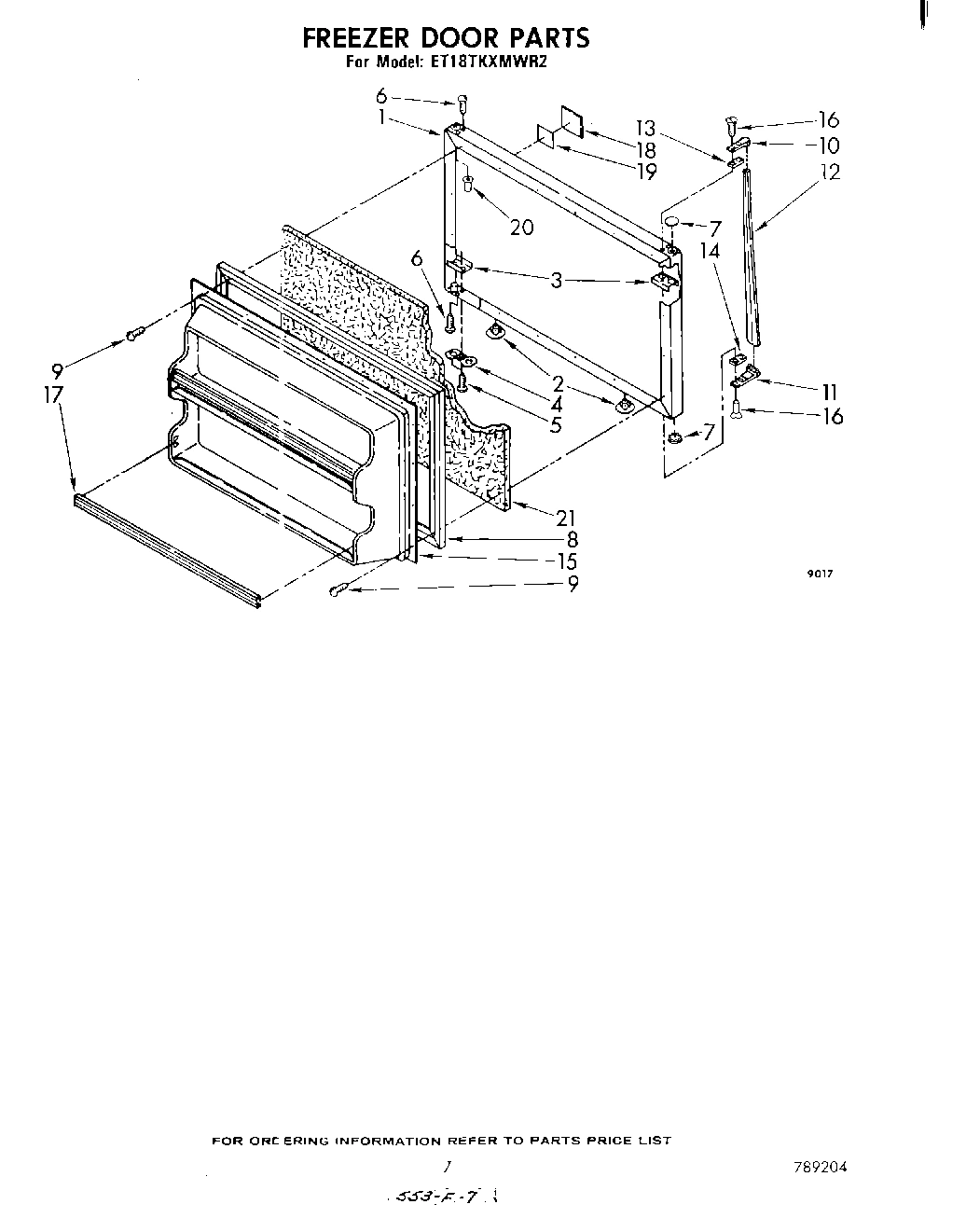

06 - FREEZER DOOR

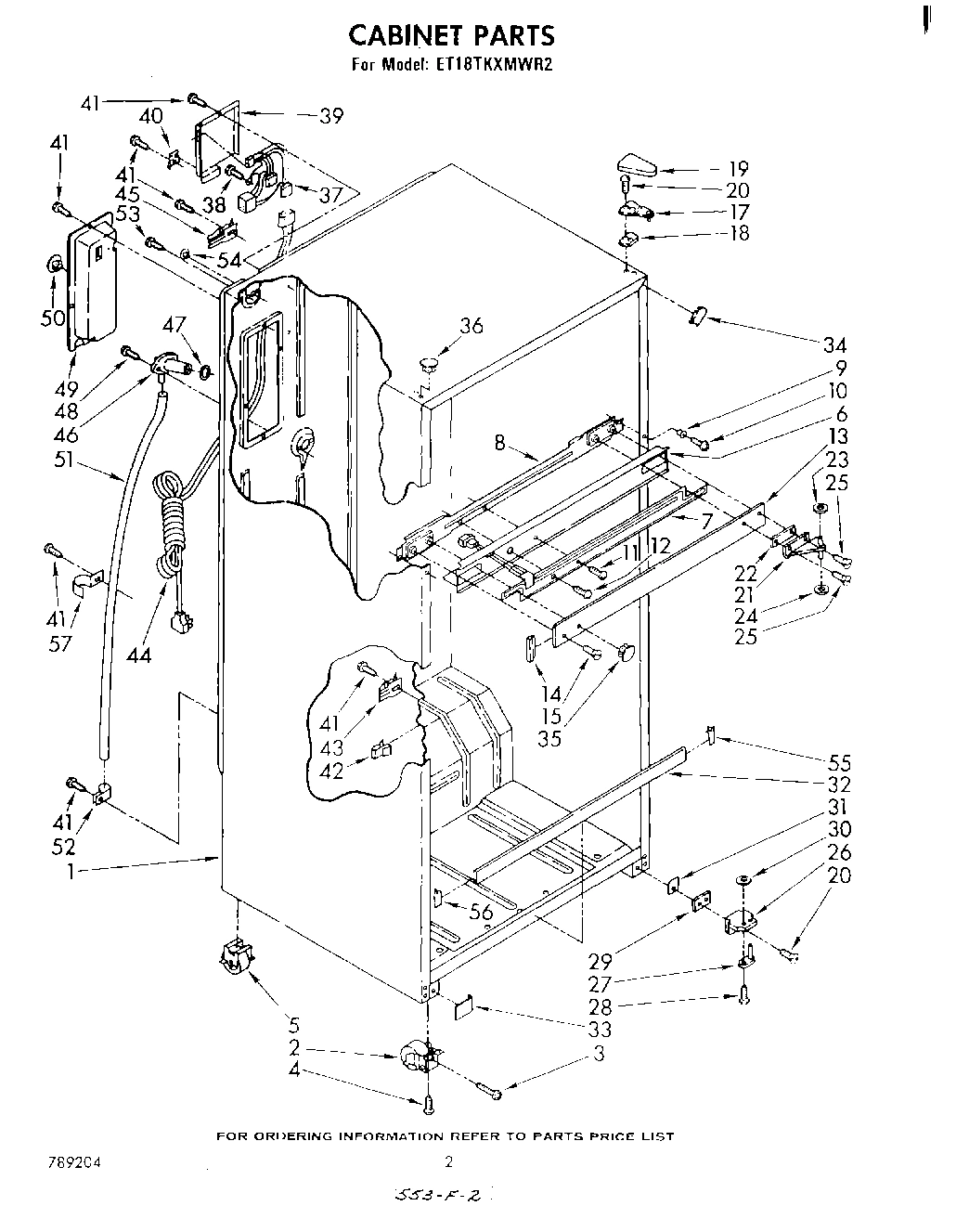

02 - CABINET

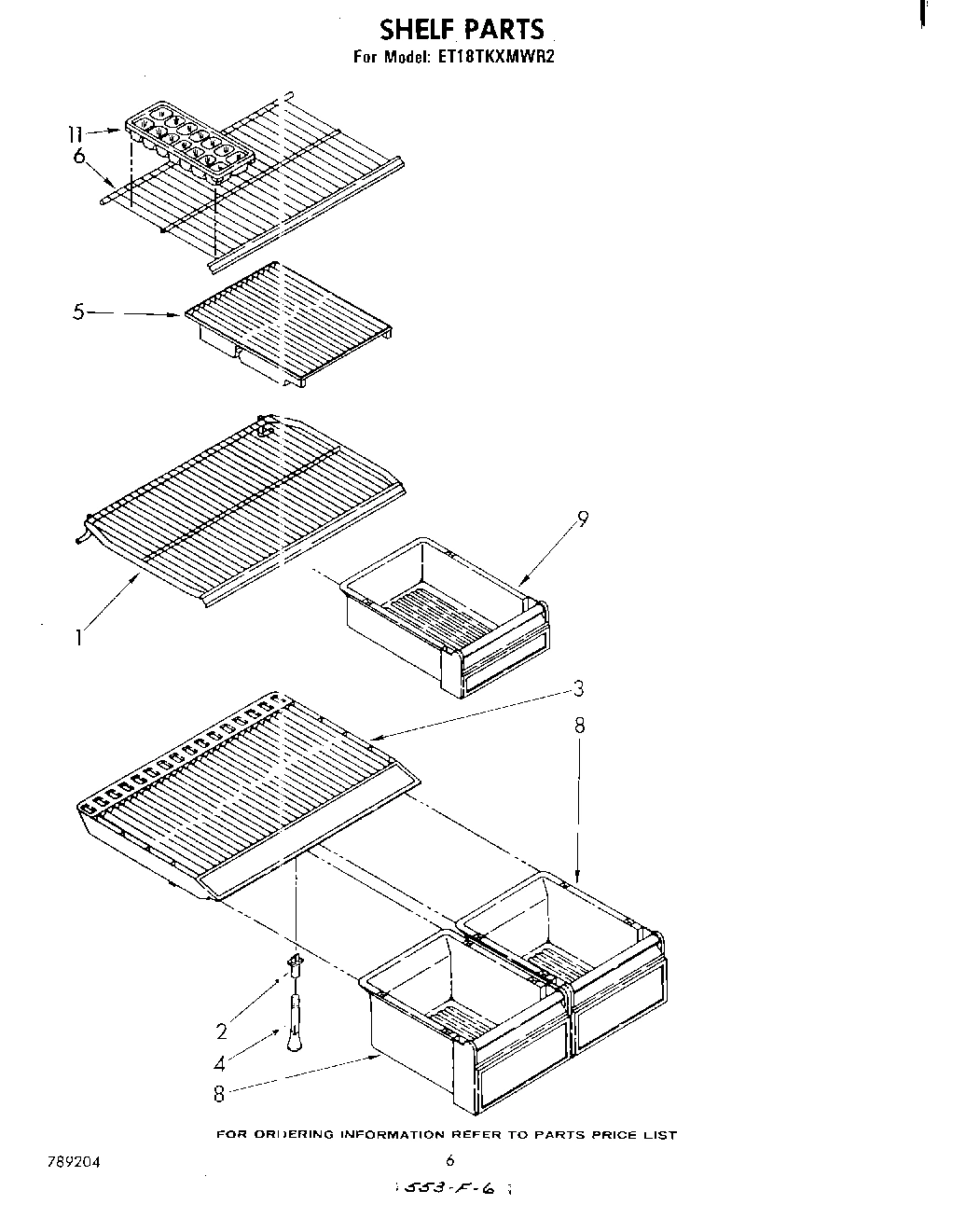

05 - SHELF
Common parts from model Whirlpool ET18TKXMWR2 TOP MOUNT REFRIGERATOR
1
Bottom, Compartment Separator WPL 943711 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1100276 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1100277 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 945292 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Cof WPL 945293 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 945294 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (New WPL 945295 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 945296 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45171A2 Contact Us For Availability
1
Shelf, Pullout (3) WPL 946454 Contact Us For Availability
2
Box, Control WPL 942757 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 942774 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Cover, Crisper WPL 1100633 Contact Us For Availability
4
Post, Cripser Cover WPL 836410 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 945486 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability
5
Roller, Rear WPL 937216 Contact Us For Availability
5
Cover, Meat Pan WPL 944739 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Frame, Center Rail WPL 943698 Contact Us For Availability
6
Shelf, Freezer WPL 1100461 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Hole Plug (Coffee) WPL 989892 Contact Us For Availability
7
Hole Plug (New Avocado) WPL 989894 Contact Us For Availability
7
Heater, Mullion WPL 943691 Contact Us For Availability
8
Door Gasket (Magnetic) WPL 946997 Contact Us For Availability
8
Center Rail, Bracket WPL 943699 Contact Us For Availability
8
Pan, Crisper (2) WPL 946438 Contact Us For Availability
9
Ferrule, Center Rail WPL 942737 Contact Us For Availability
9
Pan, Meat WPL 946426 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
12
Lockwasher WPL 489053 Contact Us For Availability
12
Handle, Center WPL 982978 Contact Us For Availability
12
Screw, 8-15 x 3/8 WPL 489113 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Spacer, Knob WPL 937105 Contact Us For Availability
13
Center Rail (Platinum) WPL 1100677 Contact Us For Availability
13
Center Rail (Toast) WPL 1100678 Contact Us For Availability
13
Center Rail (White) WPL 943692 Contact Us For Availability
13
Center Rail (Coffee) WPL 943694 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 943695 Contact Us For Availability
13
Center Rail (New Avocado) WPL 943696 Contact Us For Availability
13
Center Rail (Almond) WPL 943697 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 935727 Contact Us For Availability
14
Filler, Center Rail (2) (Platinum) WPL 1100679 Contact Us For Availability
14
Filler, Center Rail (2) (Toast) WPL 1100680 Contact Us For Availability
14
Filler, Center Rail (2) (White) WPL 946320 Contact Us For Availability
14
Filler, Center Rail (2) (Almond) WPL 946321 Contact Us For Availability
14
Filler, Center Rail (2) (Coffee) WPL 946322 Contact Us For Availability
14
Filler, Center Rail (2) (Golden Harvest) WPL 946323 Contact Us For Availability
14
Filler, Center Rail (2) (New Avocado) WPL 946324 Contact Us For Availability
15
Interior Door Panel WPL 945802 Contact Us For Availability
15
Screw, 10-32 x 3/8 WPL 489097 Contact Us For Availability
16
Rod, Connecting WPL 943713 Contact Us For Availability
17
Air Diffuser Assembly WPL 942762 Contact Us For Availability
17
Trim, Door Shelf WPL 946824 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Gasket, Air Diffuser WPL 942765 Contact Us For Availability
18
Nameplate WPL 945117 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 942767 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
20
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 942769 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943734 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
25
Screw, 8-15 x 1-1/2 WPL 488864 Contact Us For Availability
25
Screw (Repair) WPL 488949 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Hinge Butt, Bottom WPL 944783 Contact Us For Availability
27
WPL 654366 WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 943714 Contact Us For Availability
28
WPL 488714 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Protector, Wiring WPL 944998 Contact Us For Availability
29
WPL 1100778 WPL 1100778 Contact Us For Availability
29
WPL 1100779 WPL 1100779 Contact Us For Availability
29
WPL 1100780 WPL 1100780 Contact Us For Availability
29
WPL 1100781 WPL 1100781 Contact Us For Availability
29
WPL 1100782 WPL 1100782 Contact Us For Availability
29
WPL 1100783 WPL 1100783 Contact Us For Availability
29
WPL 1100784 WPL 1100784 Contact Us For Availability
31
Insulation, Center Rail WPL 943715 Contact Us For Availability
31
WPL 1100685 WPL 1100685 Contact Us For Availability
31
WPL 1100686 WPL 1100686 Contact Us For Availability
31
WPL 942818 WPL 942818 Contact Us For Availability
31
WPL 942819 WPL 942819 Contact Us For Availability
31
WPL 942820 WPL 942820 Contact Us For Availability
31
WPL 942821 WPL 942821 Contact Us For Availability
31
WPL 942822 WPL 942822 Contact Us For Availability
32
Shield, Compartment Separator WPL 942772 Contact Us For Availability
32
WPL 1100669 WPL 1100669 Contact Us For Availability
32
WPL 1100670 WPL 1100670 Contact Us For Availability
32
WPL 943685 WPL 943685 Contact Us For Availability
32
WPL 943686 WPL 943686 Contact Us For Availability
32
WPL 943687 WPL 943687 Contact Us For Availability
32
WPL 943688 WPL 943688 Contact Us For Availability
32
WPL 943689 WPL 943689 Contact Us For Availability
33
Separator, Compartment (Top) WPL 943716 Contact Us For Availability
33
WPL 1100681 WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944832 WPL 944832 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
WPL 944834 WPL 944834 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
WPL 1100683 WPL 1100683 Contact Us For Availability
34
WPL 1100684 WPL 1100684 Contact Us For Availability
34
WPL 942807 WPL 942807 Contact Us For Availability
34
WPL 942808 WPL 942808 Contact Us For Availability
34
WPL 942809 WPL 942809 Contact Us For Availability
34
WPL 942810 WPL 942810 Contact Us For Availability
34
WPL 942811 WPL 942811 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1100687 WPL 1100687 Contact Us For Availability
35
WPL 1100688 WPL 1100688 Contact Us For Availability
35
WPL 940086 WPL 940086 Contact Us For Availability
35
WPL 940087 WPL 940087 Contact Us For Availability
35
WPL 940088 WPL 940088 Contact Us For Availability
35
WPL 940089 WPL 940089 Contact Us For Availability
35
WPL 940090 WPL 940090 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989875 WPL 989875 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
WPL 989877 WPL 989877 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
WPL 944741 WPL 944741 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 940121 WPL 940121 Contact Us For Availability
49
WPL 942853 WPL 942853 Contact Us For Availability
50
WPL 655411 WPL 655411 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
55
WPL 1100671 WPL 1100671 Contact Us For Availability
55
WPL 1100672 WPL 1100672 Contact Us For Availability
55
WPL 944700 WPL 944700 Contact Us For Availability
55
WPL 944701 WPL 944701 Contact Us For Availability
55
WPL 944702 WPL 944702 Contact Us For Availability
55
WPL 944703 WPL 944703 Contact Us For Availability
55
WPL 944704 WPL 944704 Contact Us For Availability
56
WPL 1100673 WPL 1100673 Contact Us For Availability
56
WPL 1100674 WPL 1100674 Contact Us For Availability
56
WPL 944705 WPL 944705 Contact Us For Availability
56
WPL 944706 WPL 944706 Contact Us For Availability
56
WPL 944707 WPL 944707 Contact Us For Availability
56
WPL 944708 WPL 944708 Contact Us For Availability
56
WPL 944709 WPL 944709 Contact Us For Availability
57
WPL 1103015 WPL 1103015 Contact Us For Availability
× ![]()
