Model Whirlpool ET18SKRSW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

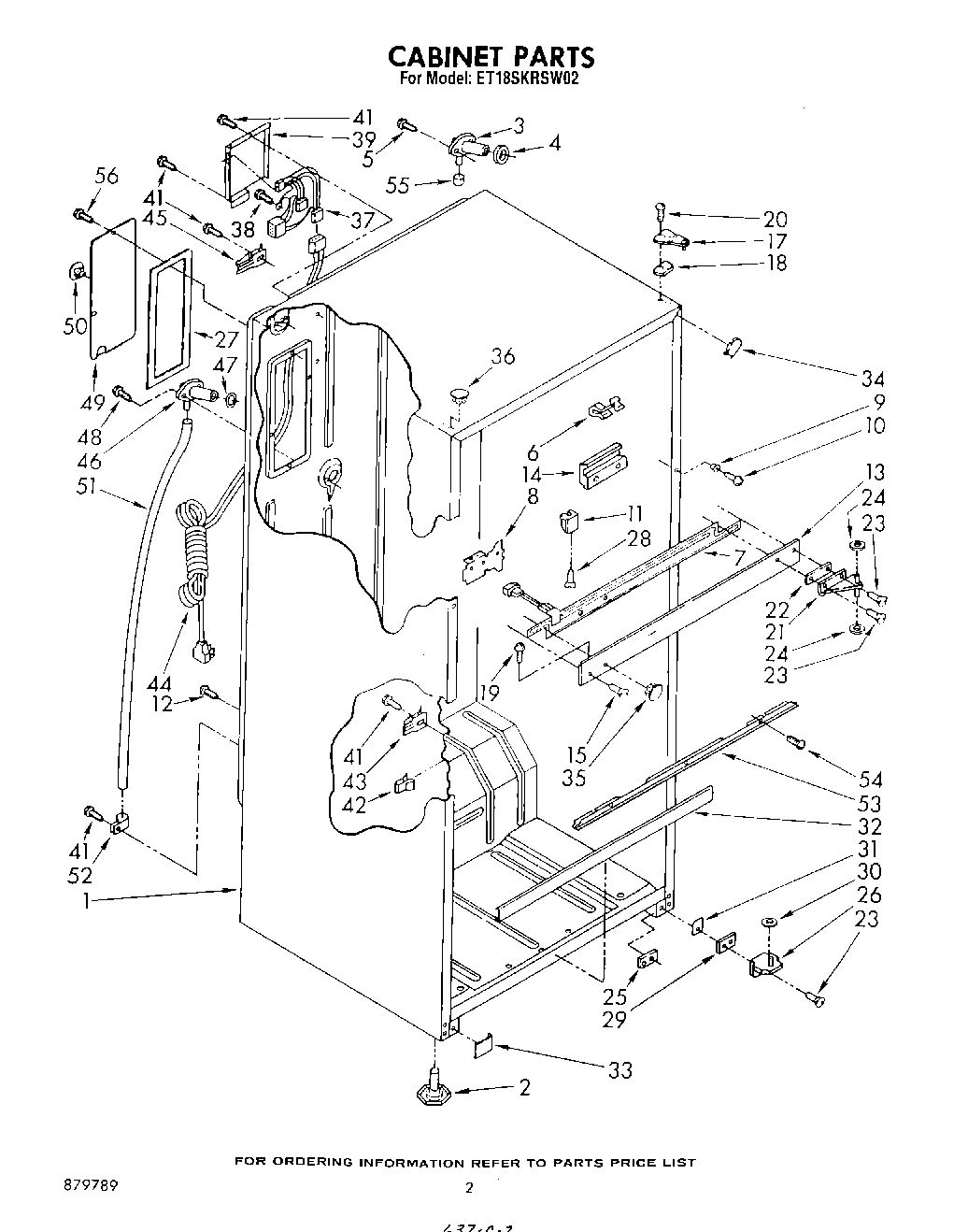

02 - CABINET

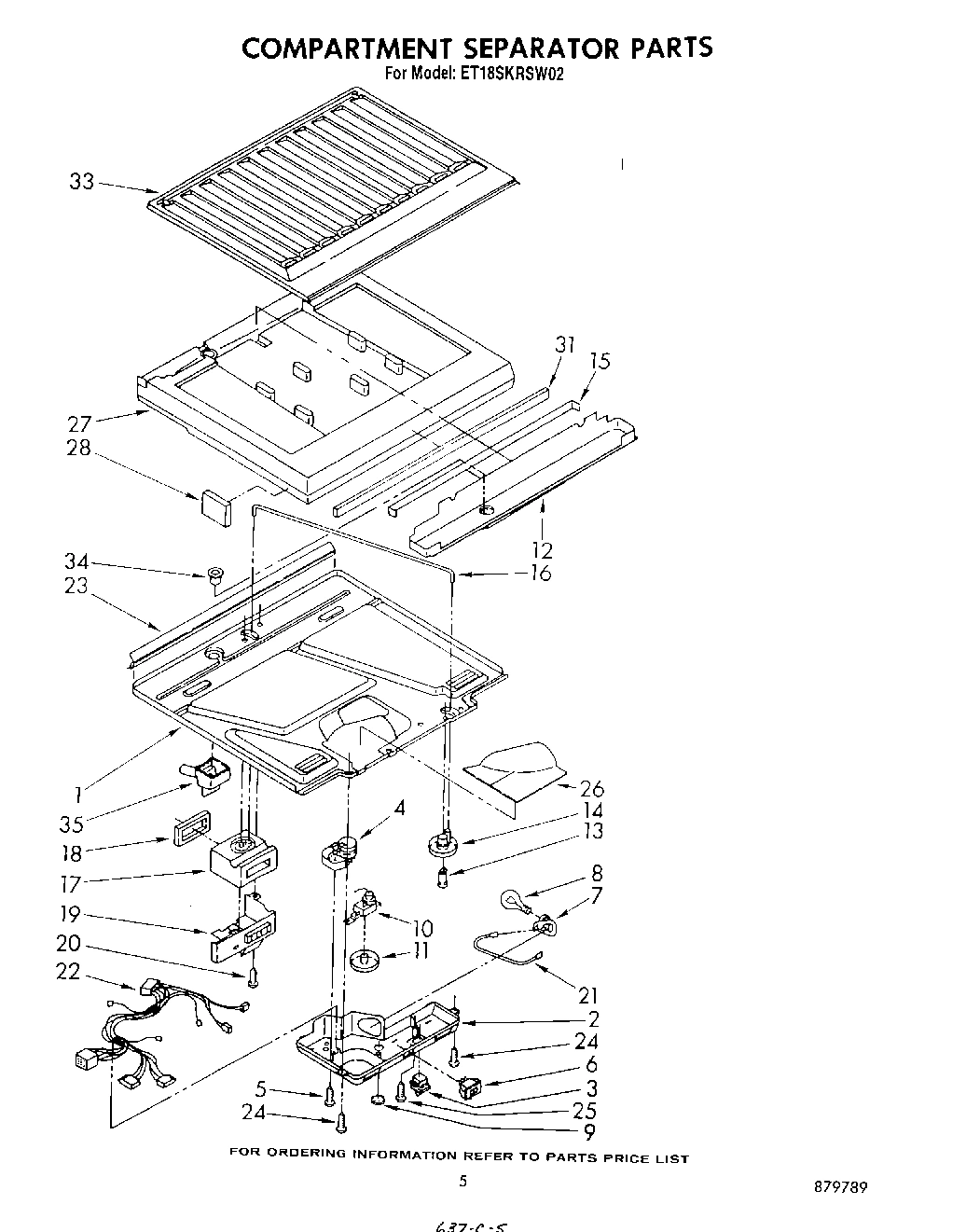

04 - COMPARTMENT SEPARATOR

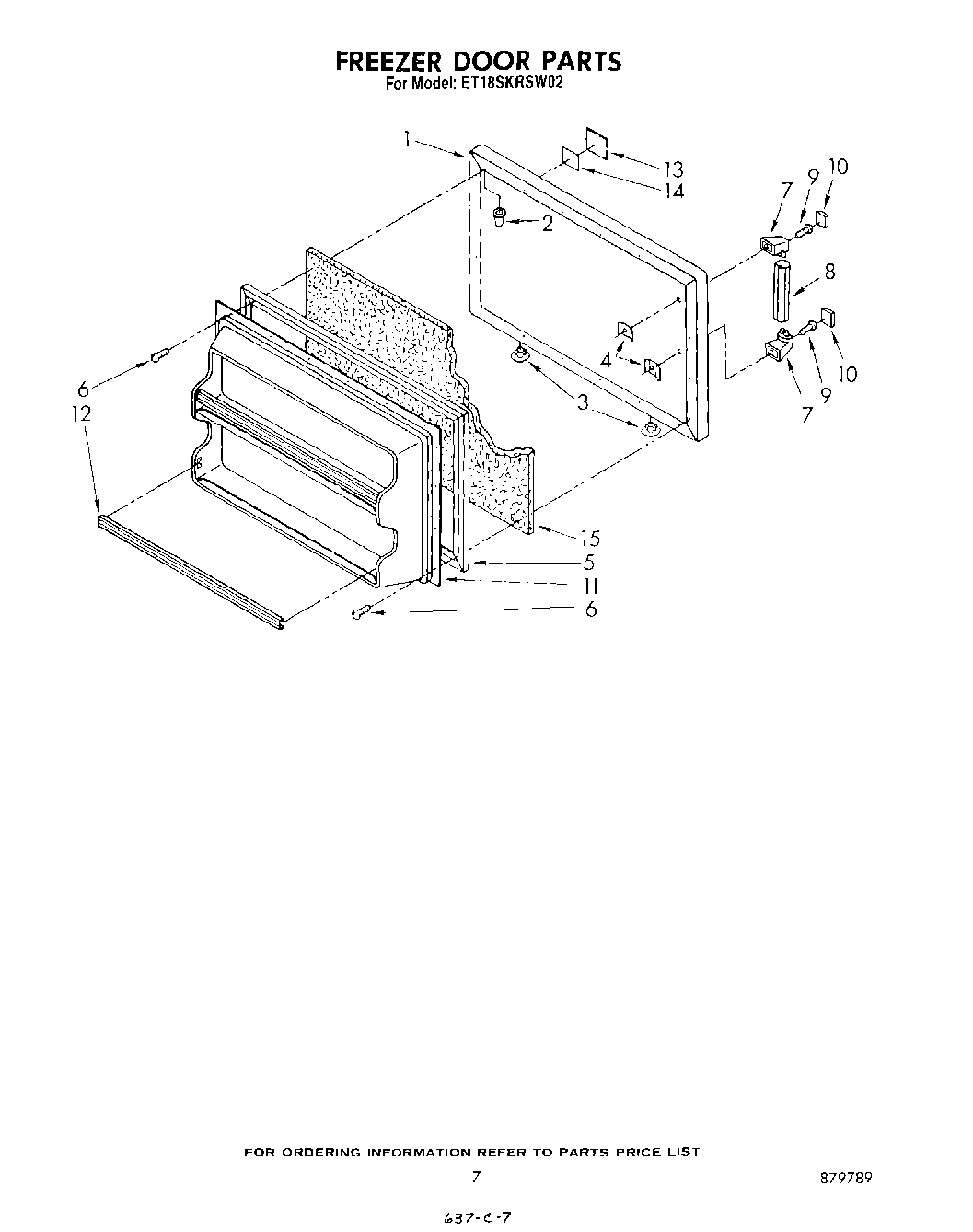

06 - FREEZER DOOR

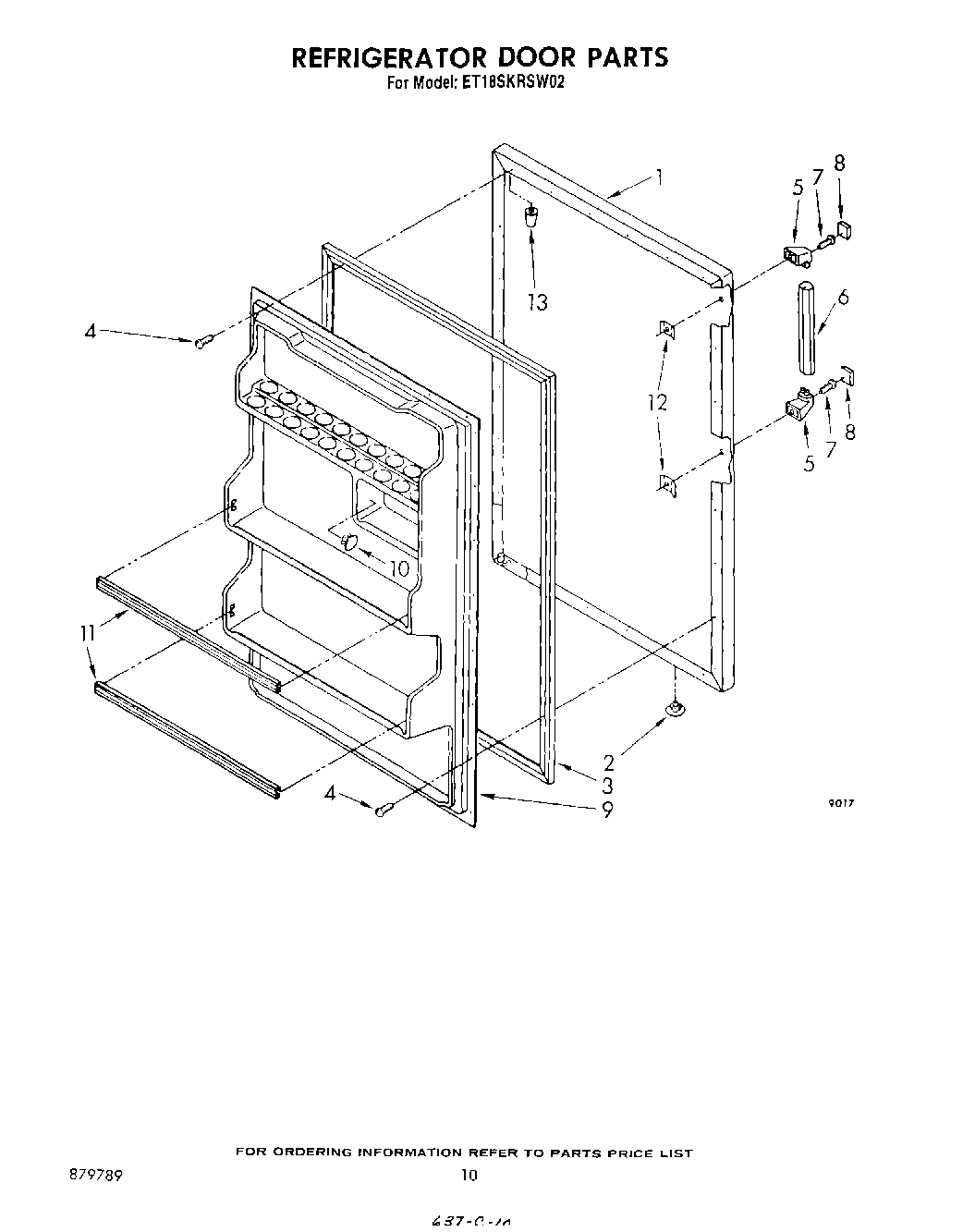

08 - REFRIGERATOR DOOR, LIT/OPTIONAL

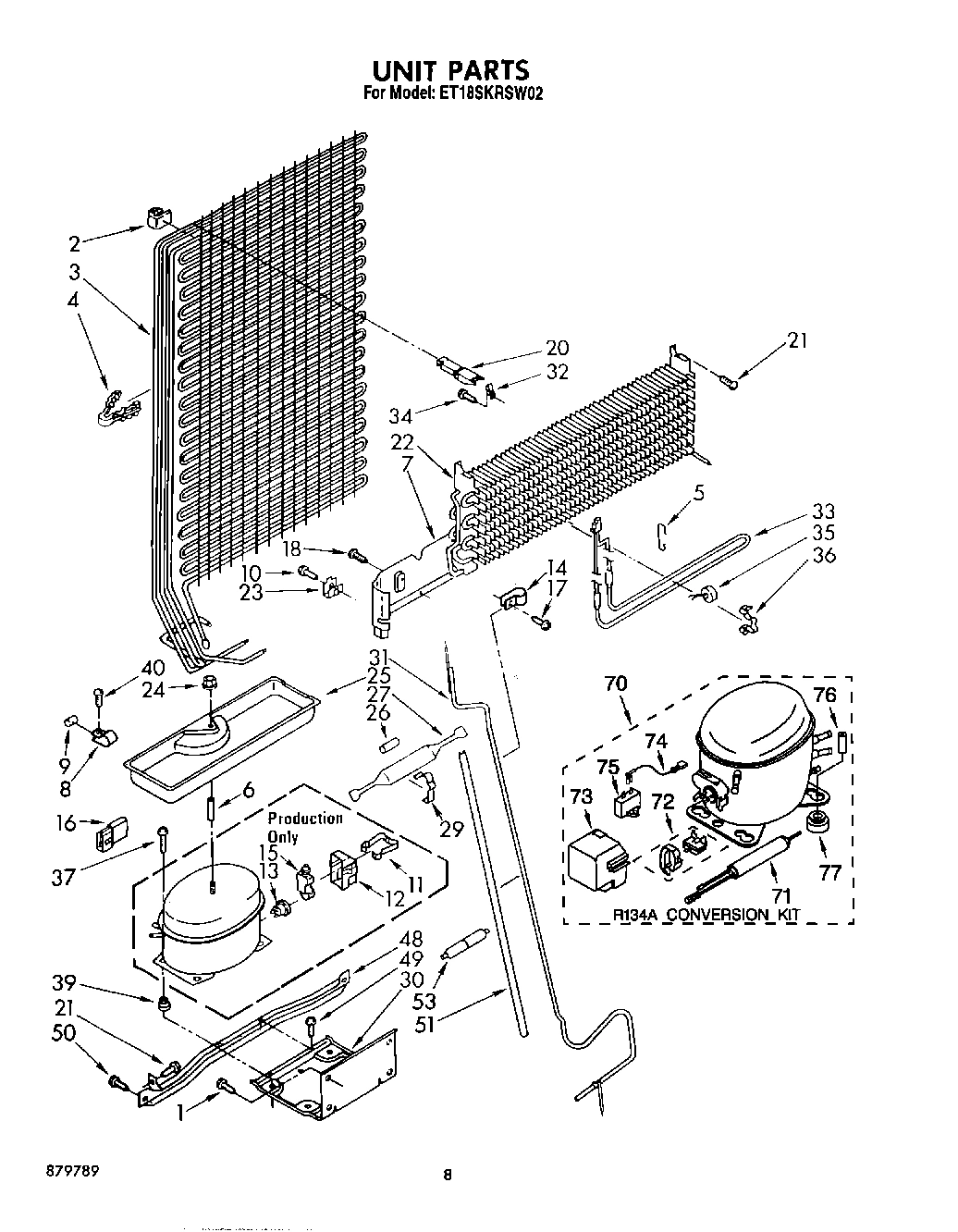

07 - UNIT

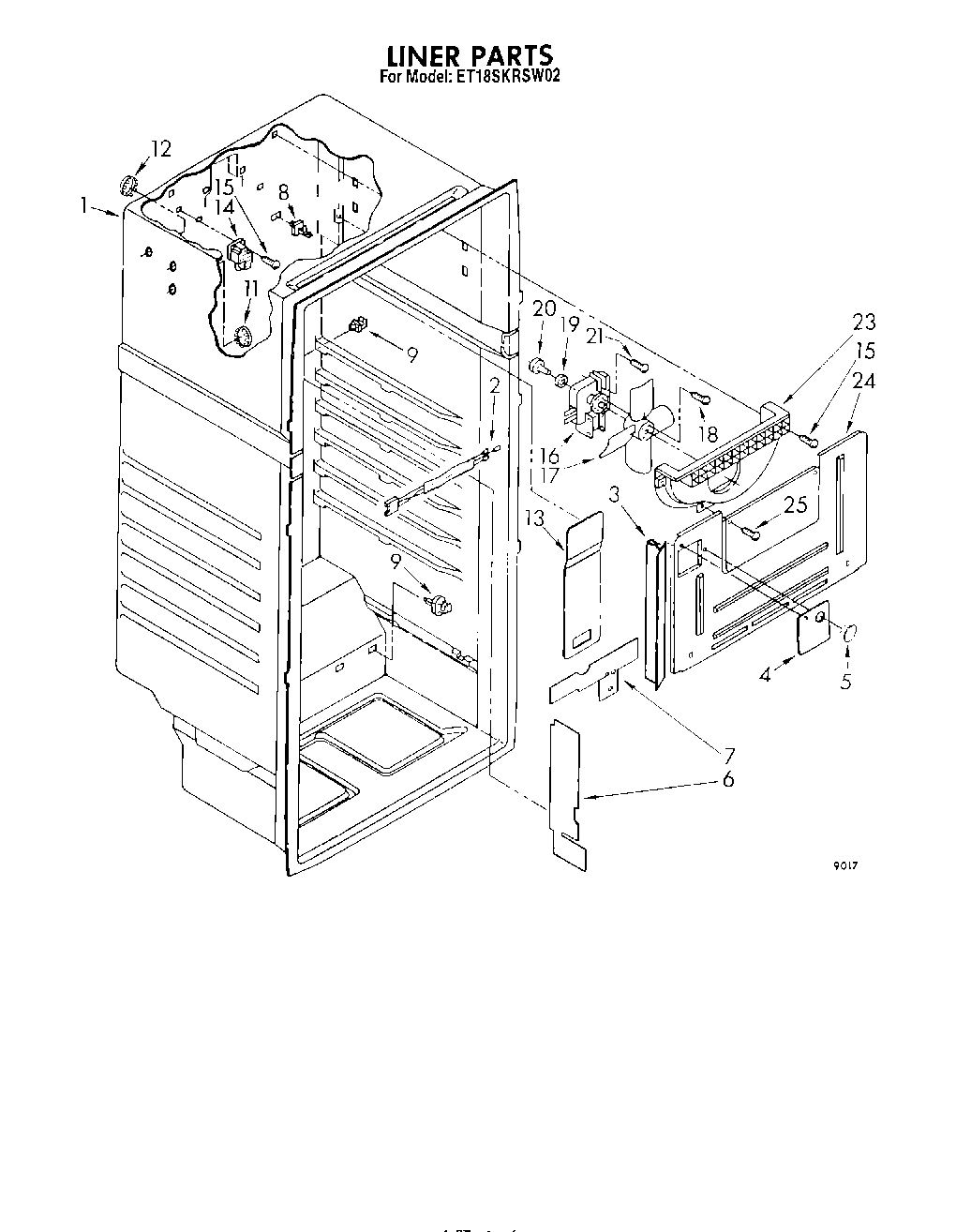

03 - LINER

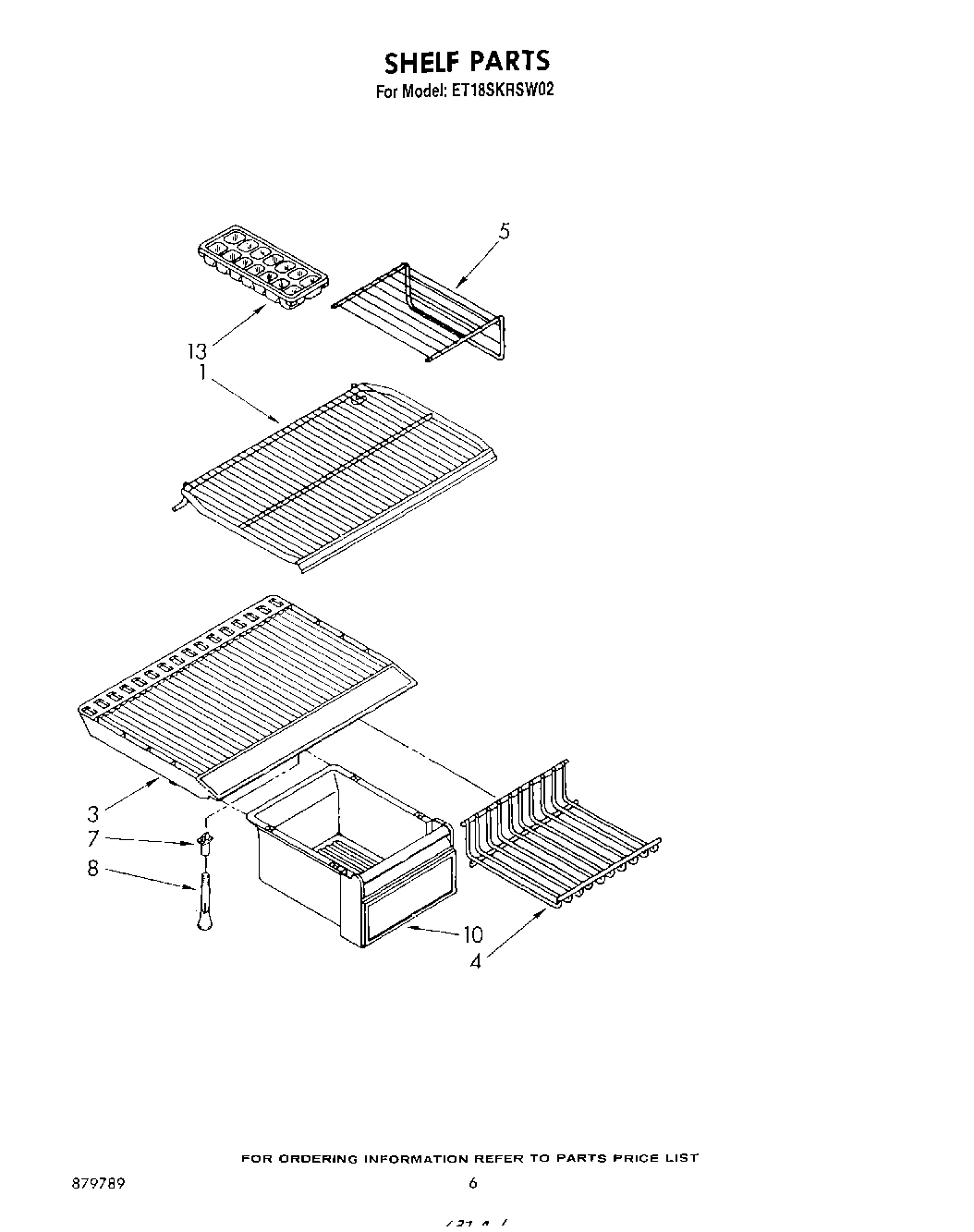

05 - SHELF
Common parts from model Whirlpool ET18SKRSW02 TOP MOUNT REFRIGERATOR
WPL LIT1105320 WPL LIT1105320 Contact Us For Availability
WPL LIT1114011 WPL LIT1114011 Contact Us For Availability
WPL LIT1116380 WPL LIT1116380 Contact Us For Availability
WPL LIT879789 WPL LIT879789 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (Whi WPL 1106166 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1106162 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI45086A7 Contact Us For Availability
1
Shelf, Pullout WPL 943719 Contact Us For Availability
2
Box, Control WPL 942757 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
2
Wiring, Fan Motor WPL 943796 Contact Us For Availability
3
Door Gasket, Magnetic WPL 1109186 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1108183 Contact Us For Availability
3
Gasket, Cover Evaporator WPL 1105673 Contact Us For Availability
3
Cover, Crisper WPL 943731 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 850608 Contact Us For Availability
4
Clip, Tube (2) WPL 1106781 Contact Us For Availability
4
Trivet WPL 943732 Contact Us For Availability
5
Door Gasket, Magnetic WPL 1106180 Contact Us For Availability
5
End Cap, Handle WPL 992814 Contact Us For Availability
5
Support, Heater WPL 1108172 Contact Us For Availability
5
Hole Plug WPL 1103725 Contact Us For Availability
5
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
6
Handle, Center WPL 1100023 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
7
Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
7
Top, Electric Shield WPL 946351 Contact Us For Availability
7
Support, Crisper Cover WPL 1103731 Contact Us For Availability
8
Post, Cripser Cover WPL 836410 Contact Us For Availability
8
Door Handle, Cover WPL 1100024 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
9
Shelf Stud WPL 939065 Contact Us For Availability
9
Screw (Repair) WPL 488923 Contact Us For Availability
9
Interior Door Panel WPL 945886 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
10
Hole Plug (2) WPL 655410 Contact Us For Availability
10
Pan, Crisper WPL 943737 Contact Us For Availability
11
Knob, Thermostat WPL 1111759 Contact Us For Availability
11
Interior Door Panel WPL 945802 Contact Us For Availability
11
Trim, Door Shelf (2) WPL 1116062 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
12
Trim, Door Shelf WPL 1116065 Contact Us For Availability
12
Case, Relay WPL 1108144 Contact Us For Availability
12
Hole Plug (2) WPL 944795 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Nameplate Assembly WPL 945114 Contact Us For Availability
13
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Silicone (Spray) WPL 799908 Contact Us For Availability
13
Overload WPL 1105163 Contact Us For Availability
13
Cover, Air Duct WPL 1111420 Contact Us For Availability
14
Knob, Air Control WPL 1111760 Contact Us For Availability
14
Tape WPL 991259 Contact Us For Availability
14
Clamp WPL 489151 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
15
Gasket, Drain Pan WPL 1108357 Contact Us For Availability
15
Relay WPL 946615 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
17
Air Diffuser Assembly WPL 1108173 Contact Us For Availability
18
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Condenser, Stand-Off WPL 1100636 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1103898 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943734 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
25
Screw, 8-15 x 1-1/2 WPL 488678 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110354 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
31
Exchanger, Heat WPL 1108092 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119325 Contact Us For Availability
33
Heater, Defrost WPL 1105165 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
40
Screw, 8 x 1/2 WPL 489050 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
48
Rail, Unit Mounting WPL 943755 Contact Us For Availability
49
Plug Assembly WPL 1106511 Contact Us For Availability
50
Hole Plug WPL 655411 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
52
Clamp WPL 519405 Contact Us For Availability
53
Filler, center WPL 1110356 Contact Us For Availability
53
Muffler WPL 1101043 Contact Us For Availability
54
Screw (3) WPL 489167 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
