Model Whirlpool ET18SKRSN05 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

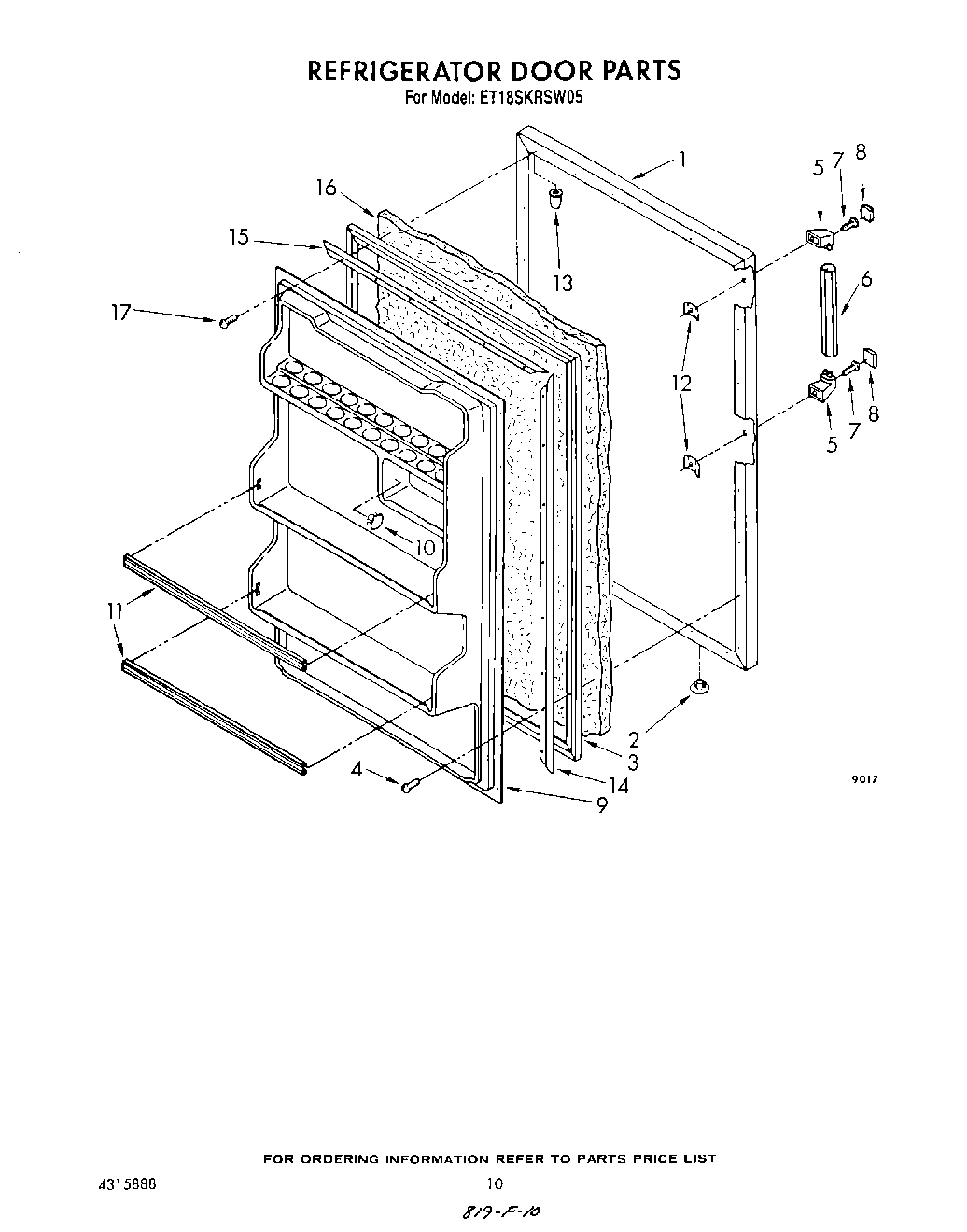

08 - REFRIGERATOR DOOR, LIT/OPTIONAL

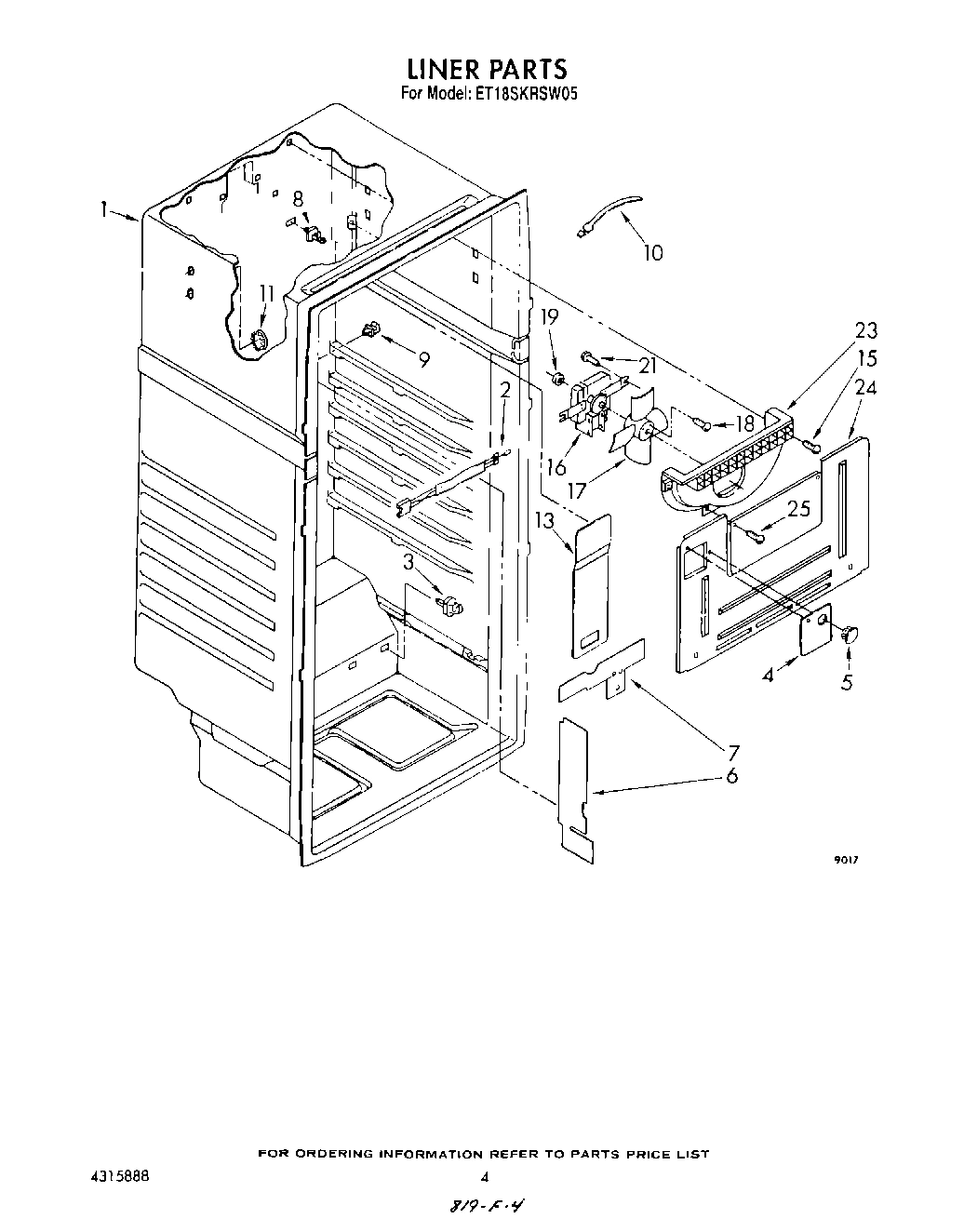

03 - LINER

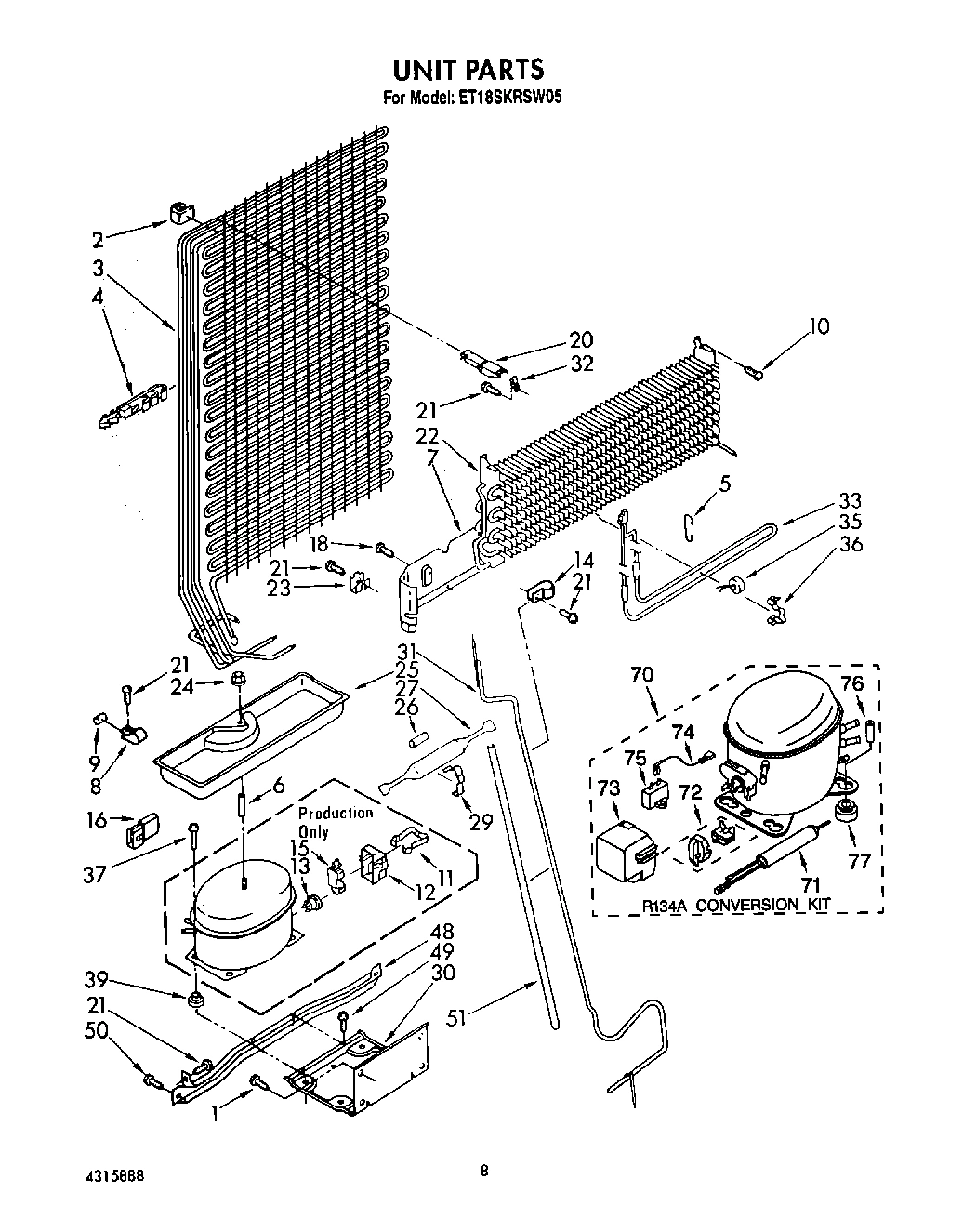

07 - UNIT
05 - SHELF

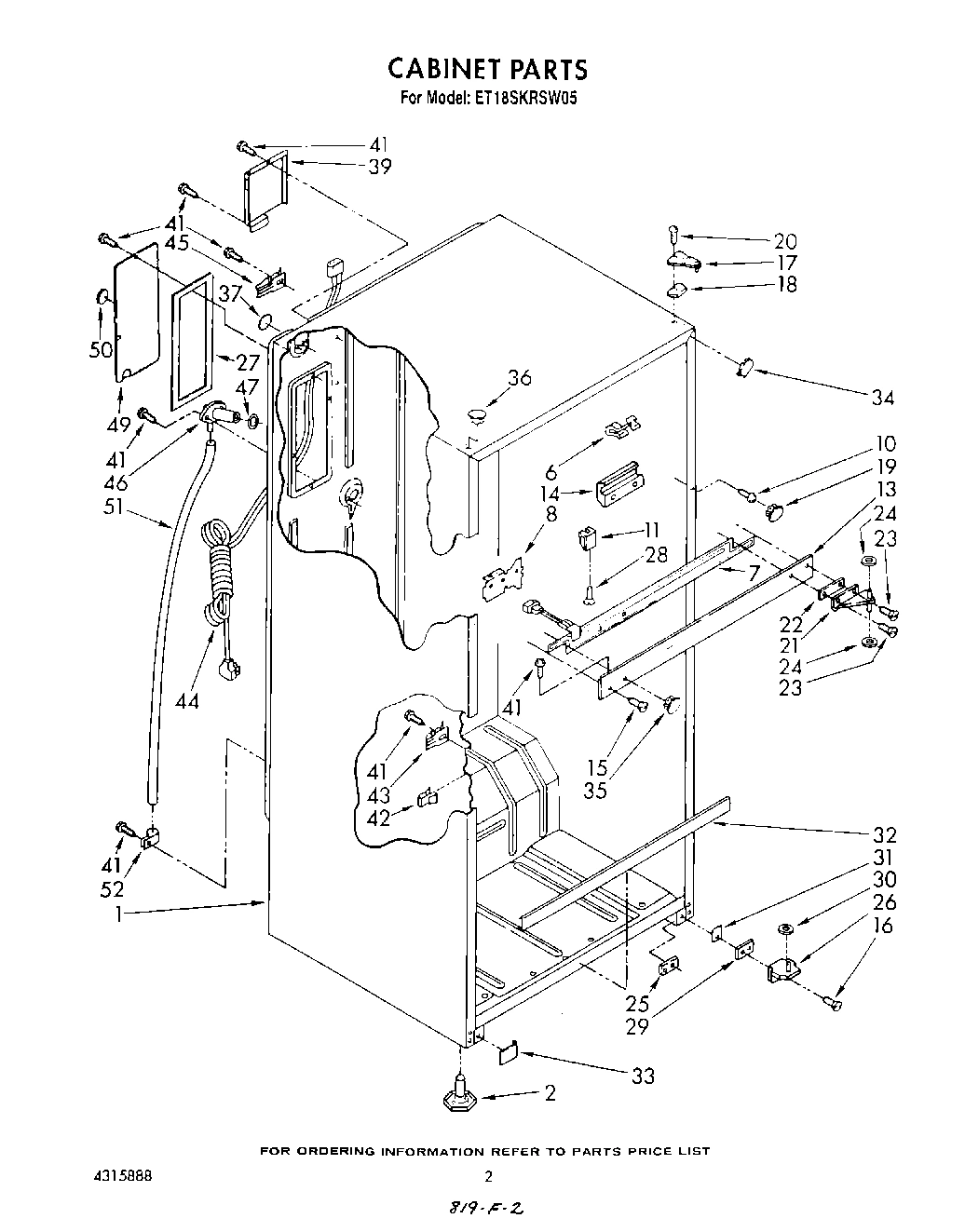

02 - CABINET

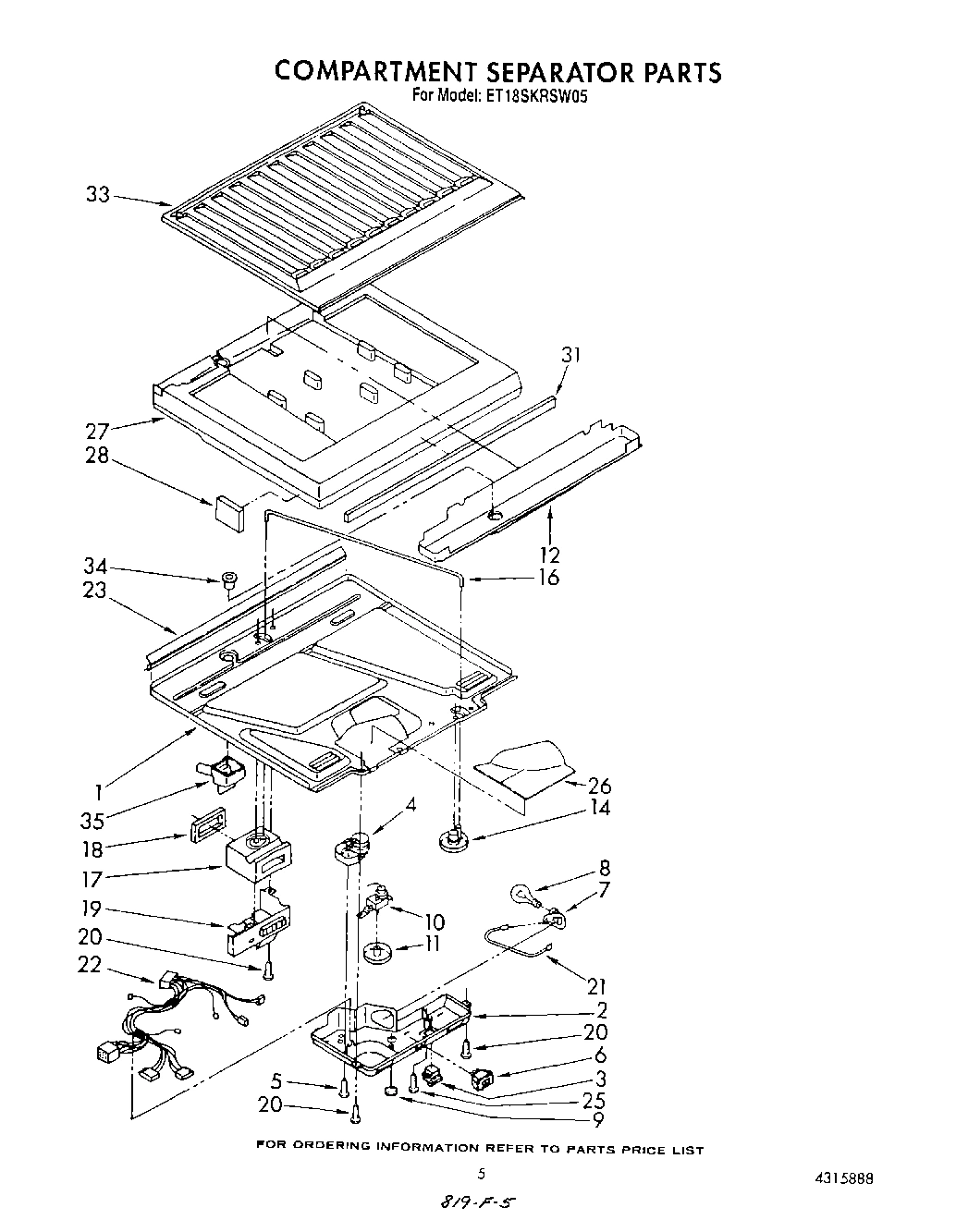

04 - COMPARTMENT SEPARATOR

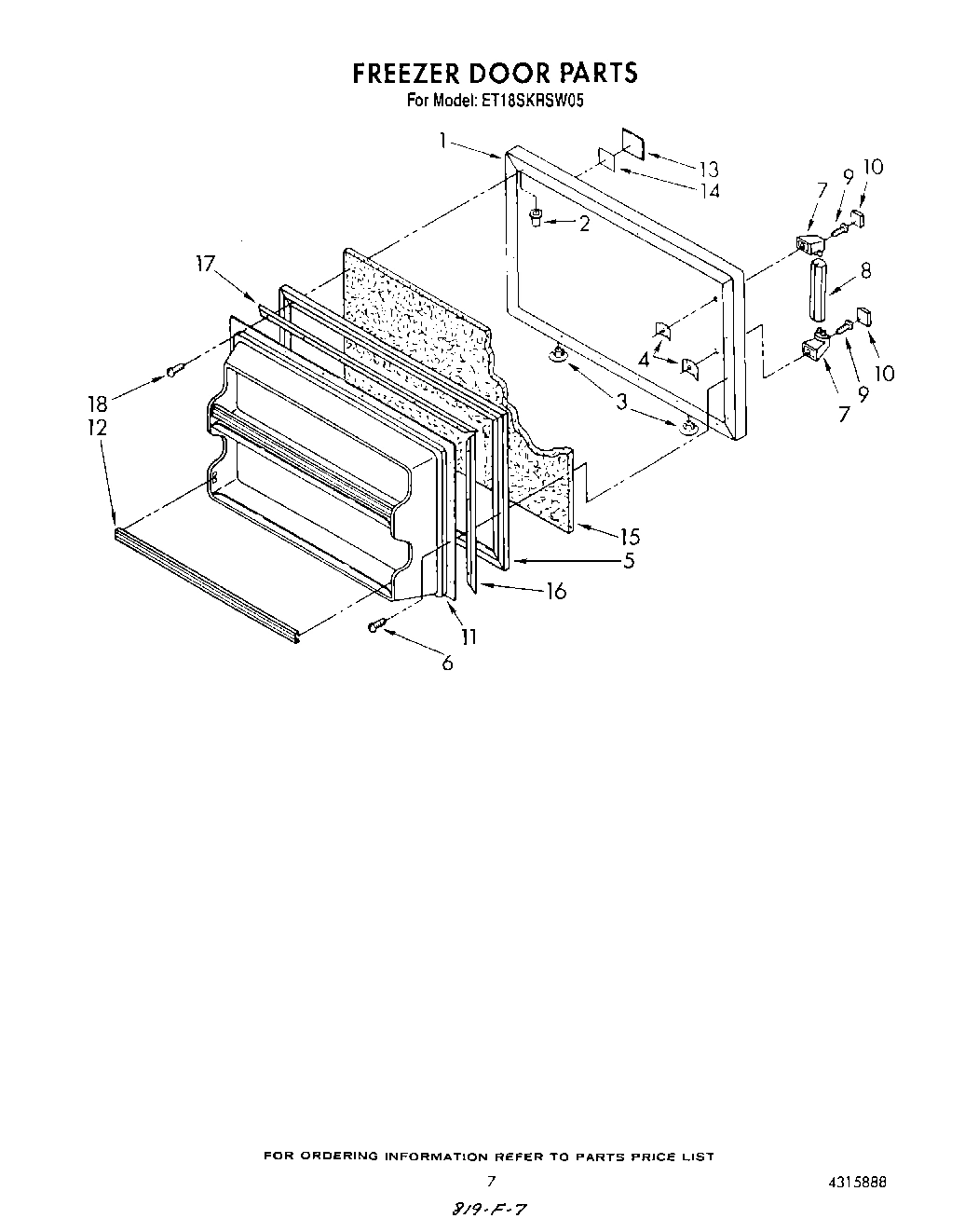

06 - FREEZER DOOR
Common parts from model Whirlpool ET18SKRSN05 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Pullout WPL 943719 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45081A4 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (Whi WPL 1106166 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 15) (Alm WPL 1115667 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
2
Leveler (2) WPL 944766 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1108183 Contact Us For Availability
3
Cover, Crisper WPL 943731 Contact Us For Availability
3
Hole Plug (White) WPL 534927 Contact Us For Availability
3
Hole Plug (Almond) WPL 989197 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Trivet WPL 943732 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1114283 Contact Us For Availability
5
Support, Heater WPL 1108172 Contact Us For Availability
5
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
5
Door Gasket, Magnetic WPL 1122830 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Breaker, Trim Clip (3) WPL 534365 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
7
Support, Crisper Cover WPL 1103731 Contact Us For Availability
7
Heater, Mullion WPL 1108139 Contact Us For Availability
7
End Cap, Handle WPL 992814 Contact Us For Availability
8
Post, Cripser Cover WPL 836410 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Handle, Center WPL 1100023 Contact Us For Availability
9
Shelf Stud WPL 939065 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
9
Screw (2) WPL 489246 Contact Us For Availability
9
Screw (Repair) WPL 489250 Contact Us For Availability
10
Pan, Crisper WPL 943737 Contact Us For Availability
10
Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability
10
Door Handle, Cover WPL 1100024 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Spacer WPL 940024 Contact Us For Availability
11
Knob, Thermostat WPL 1111759 Contact Us For Availability
11
Interior Door Panel WPL 1120631 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
12
Trim, Door Shelf WPL 1116065 Contact Us For Availability
13
Overload WPL 1105163 Contact Us For Availability
13
Center Rail (White) WPL 1120501 Contact Us For Availability
13
Center Rail (Almond) WPL 1120503 Contact Us For Availability
13
Nameplate Assembly WPL 945114 Contact Us For Availability
14
Clamp WPL 489151 Contact Us For Availability
14
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
14
Knob, Air Control WPL 1126711 Contact Us For Availability
14
Tape WPL 991259 Contact Us For Availability
15
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
15
Relay WPL 946615 Contact Us For Availability
15
Screw WPL 489184 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
16
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
17
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
17
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
19
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Condenser, Stand-Off WPL 1100636 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Wiring Assembly, Control Box & WPL 1127674 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Screw (Repair) WPL 489297 Contact Us For Availability
23
Screw WPL 489179 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123915 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
25
Tap Plate (2) WPL 944813 Contact Us For Availability
25
Screw, 8-15 x 1-1/2 WPL 488678 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123880 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Seal, Gasket WPL 1106510 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110354 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
29
Shim, Bottom WPL 935737 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Exchanger, Heat WPL 1127560 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1119399 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1119401 Contact Us For Availability
33
Heater, Defrost WPL 1127660 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1123400 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
Hole Plug (3) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (3) (Almond) WPL 1129063 Contact Us For Availability
37
Hole Seal WPL 1129056 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118783 Contact Us For Availability
49
Plug Assembly WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
52
Clamp WPL 519405 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
