Model Whirlpool ET18SKRAW02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - LINER
04 - SHELF

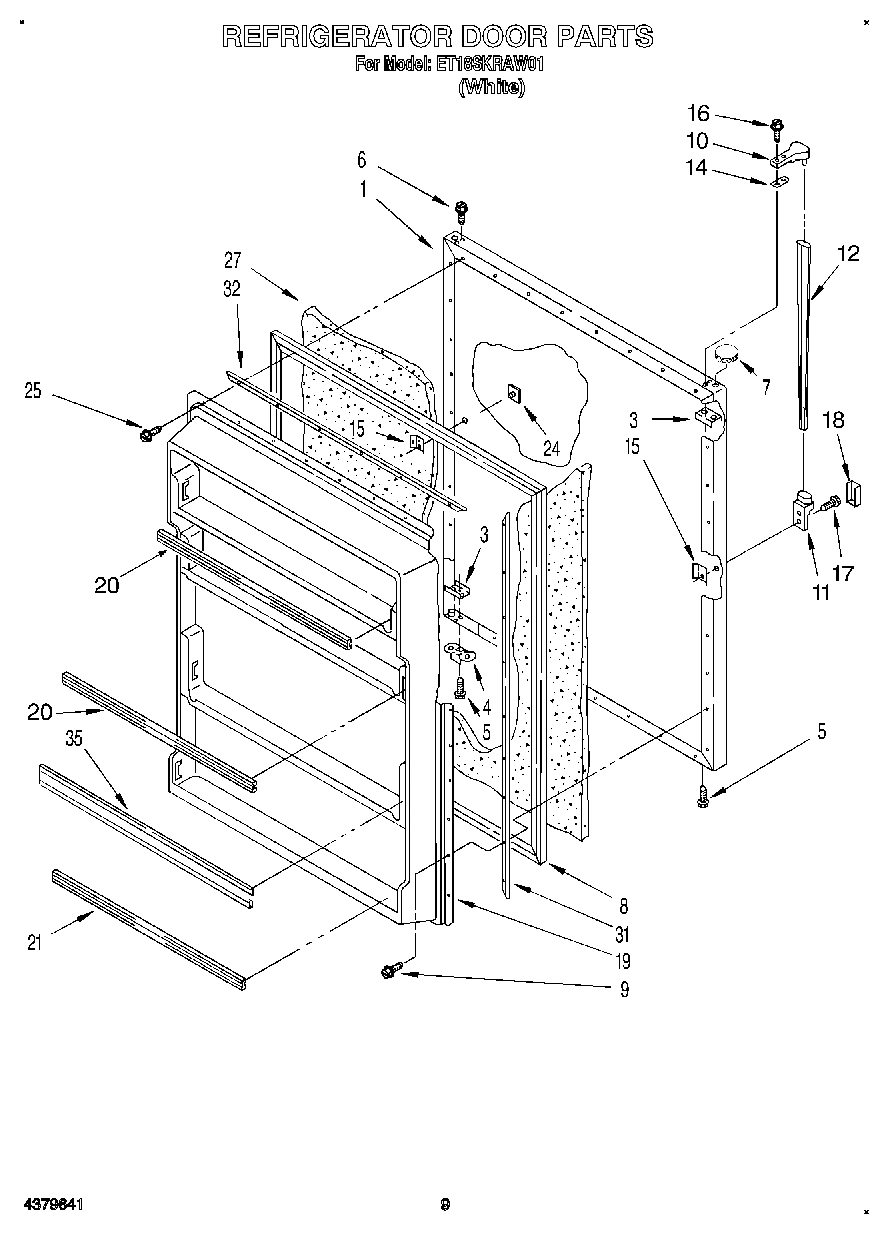

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

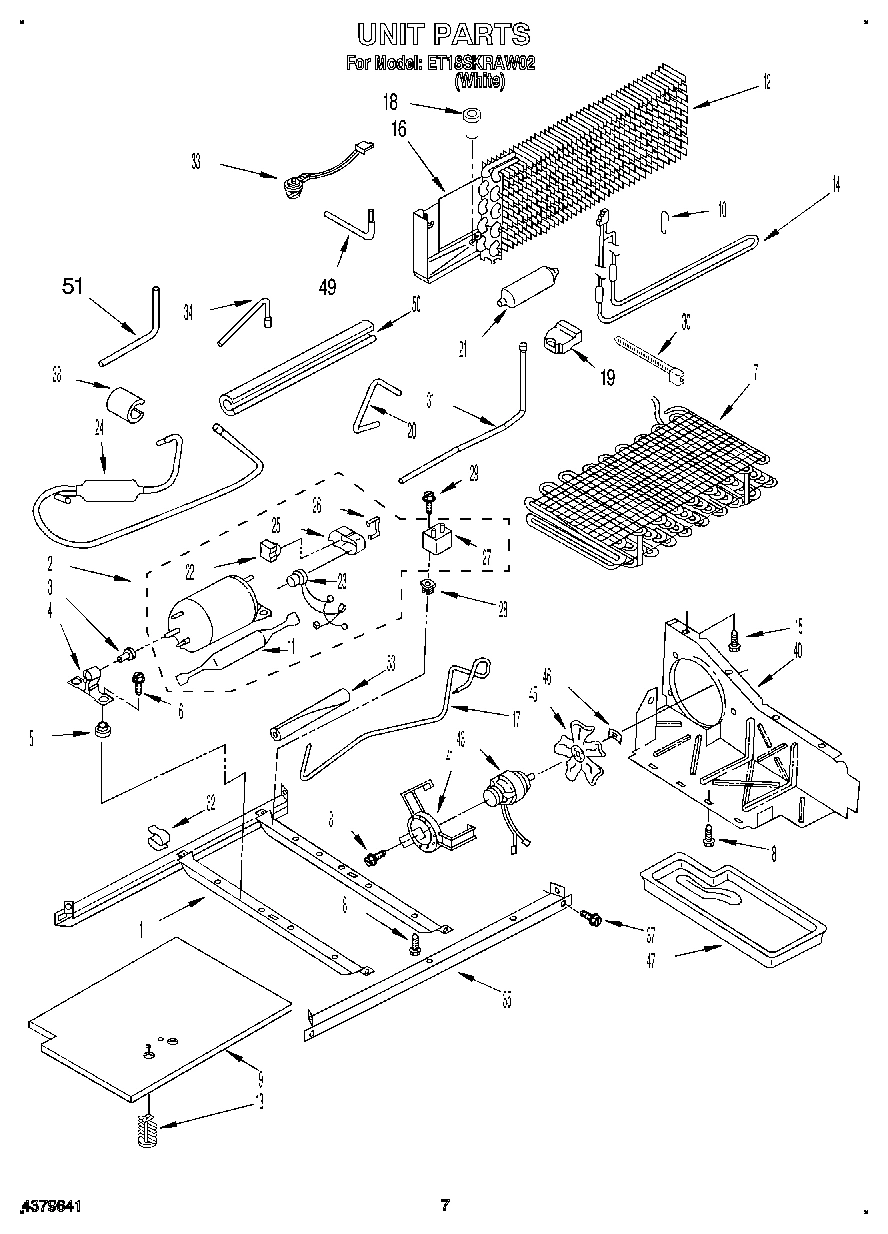

06 - UNIT

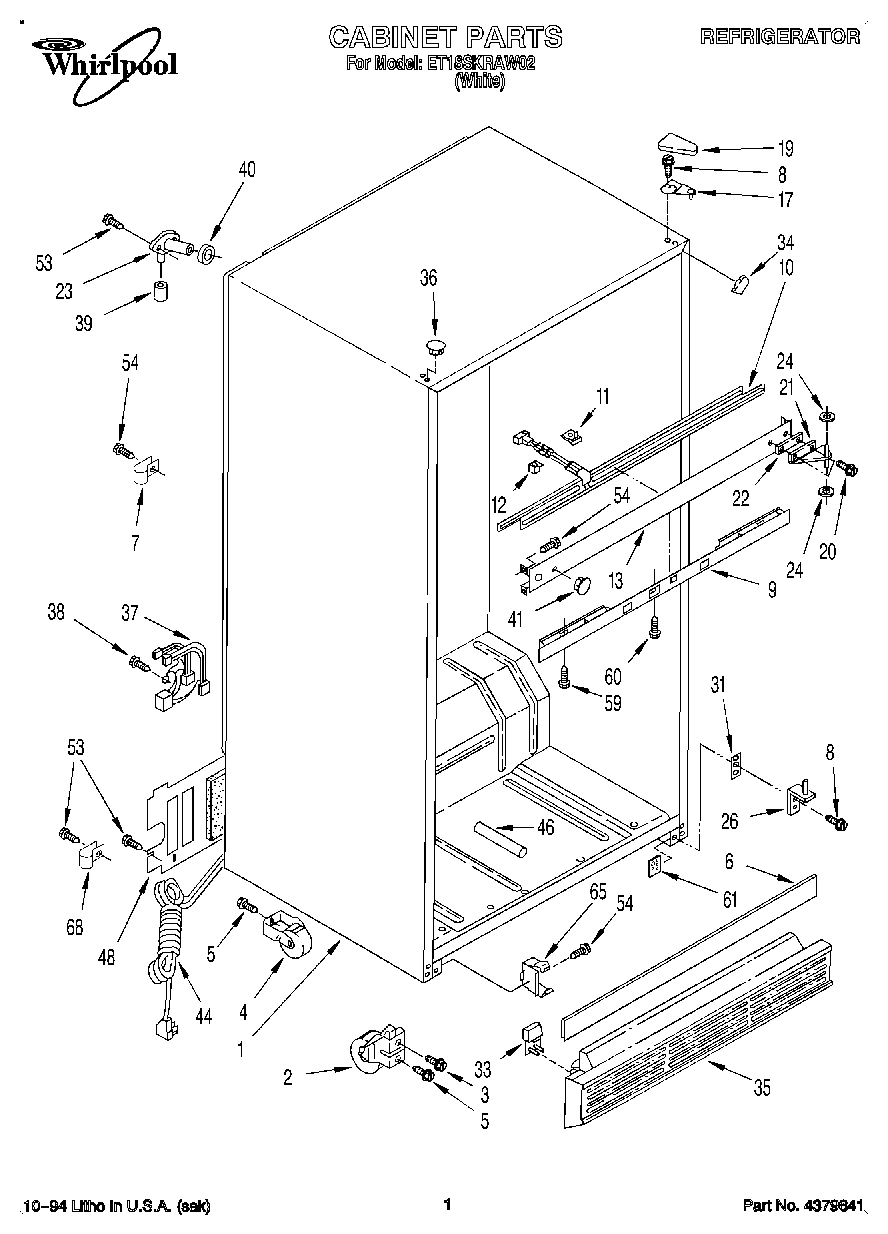

01 - CABINET

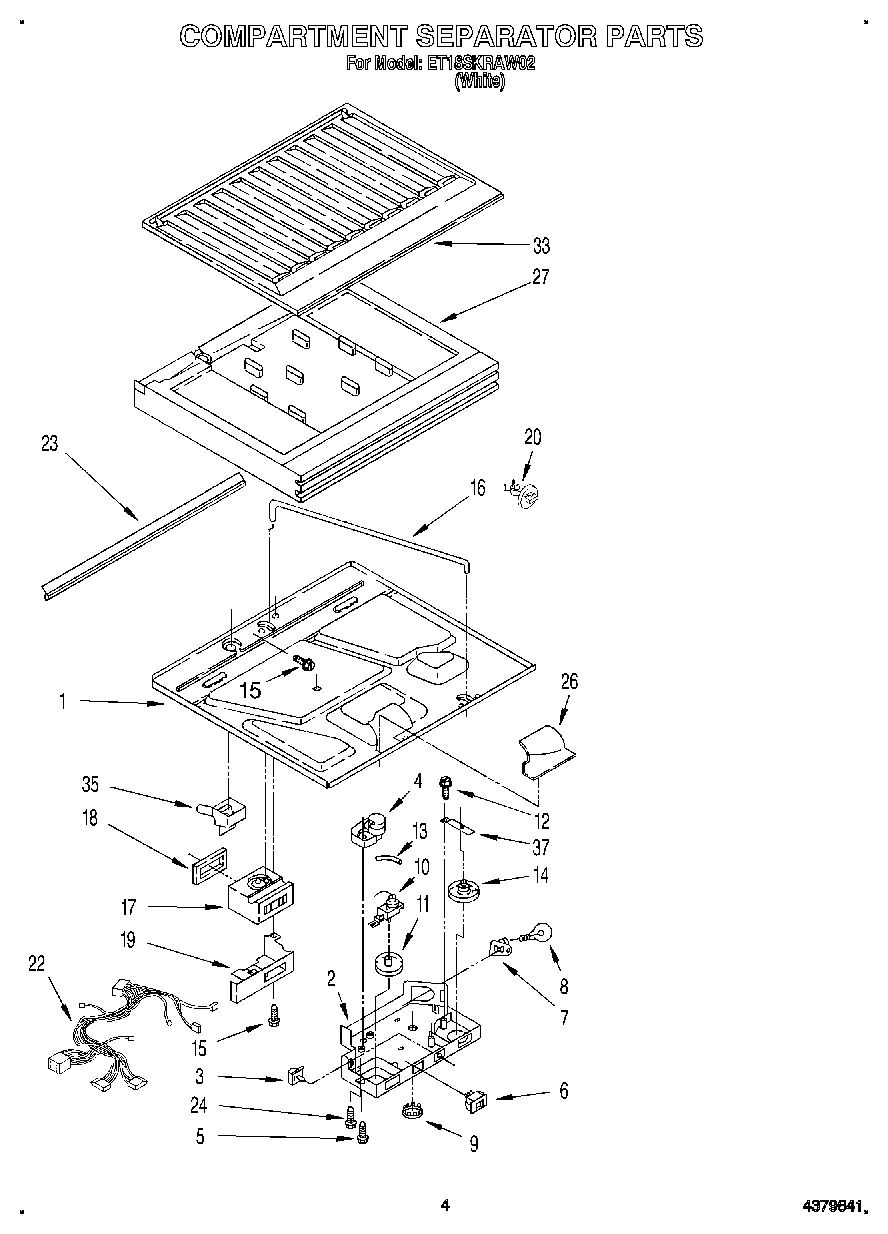

03 - COMPARTMENT SEPARATOR

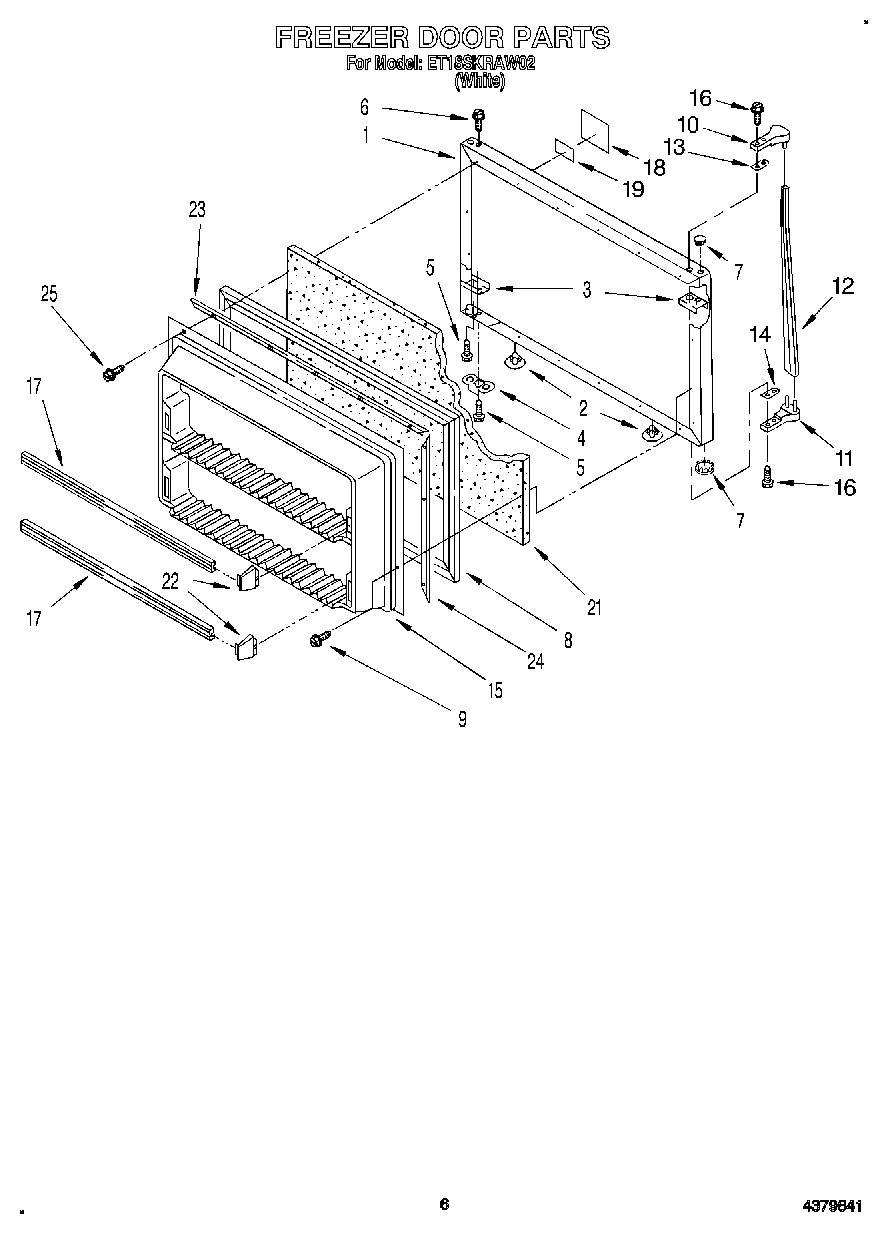

05 - FREEZER DOOR
Common parts from model Whirlpool ET18SKRAW02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45055A4 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172814 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 21) WPL 2157708 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Compressor Kit (Includes Items 11, 22, 23, 25 WPL 2154564 Contact Us For Availability
2
Roller, Front WPL 2174749 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Timer, Defrost WPL 2154982 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
6
Deck Rail Cover WPL 2172703 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket Magnetic WPL 1116735 Contact Us For Availability
9
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Evaporator WPL 2174757 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center WPL 2163255 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
17
Tube, Discharge WPL 2154028 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate WPL 2162781 Contact Us For Availability
19
Interior Door Panel WPL 2160167 Contact Us For Availability
19
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
19
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Trim, Door Shelf WPL 2163303 Contact Us For Availability
20
Tube, Muffler & Reservoir WPL 2169348 Contact Us For Availability
20
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
21
Trim, Door Shelf WPL 2163304 Contact Us For Availability
21
Reservoir WPL 2169343 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
EndCap, Trim (4) WPL 1106862 Contact Us For Availability
22
Relay (See Overload) WPL ARI45057A8 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
24
Muffler WPL 2159588 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Tube, Reservoir & Heat Exchanger WPL 2169346 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
34
Tube, Process WPL 2154090 Contact Us For Availability
34
Filler, Wrapper Corner (2) WPL 1118058 Contact Us For Availability
35
WPL 876029 WPL 876029 Contact Us For Availability
35
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
35
Trim, Door Shelf WPL 2163305 Contact Us For Availability
35
Door Reversal Instructions WPL 2172761 Contact Us For Availability
35
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
35
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
35
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
35
WPL 799833 WPL 799833 Contact Us For Availability
35
WPL 978883 WPL 978883 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
40
Air, Baffle WPL 2169432 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 2169191 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
49
Tube, Process WPL 2154040 Contact Us For Availability
51
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
Sleeve WPL 2159751 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
