Model Whirlpool ET18PKXXN00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2148071 WPL LIT2148071 Contact Us For Availability

WPL LIT2152340 WPL LIT2152340 Contact Us For Availability

WPL LIT2154422 WPL LIT2154422 Contact Us For Availability

WPL LIT4316154 WPL LIT4316154 Contact Us For Availability

1

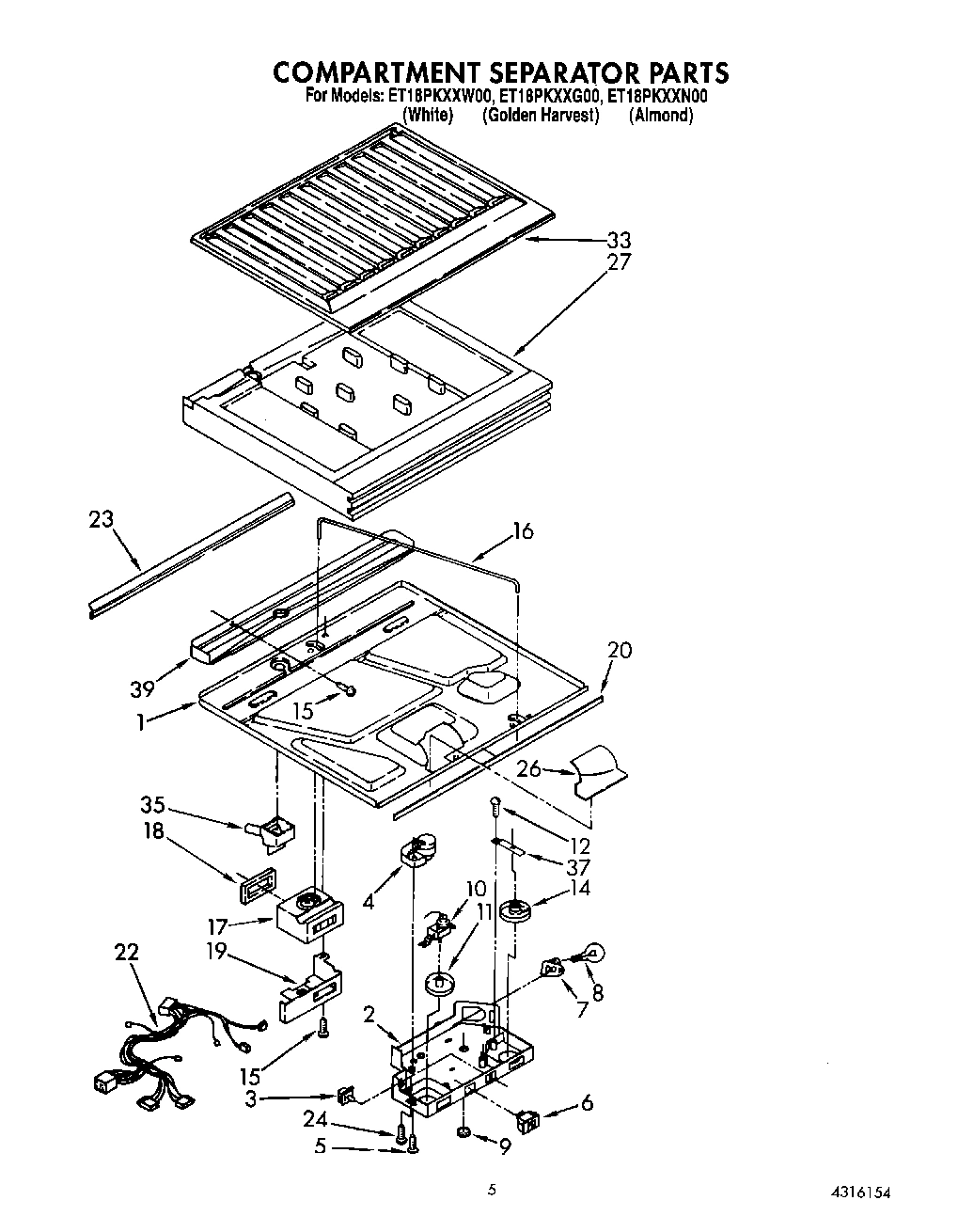

Bottom, Compartment Separator WPL 1116561 Contact Us For Availability

1

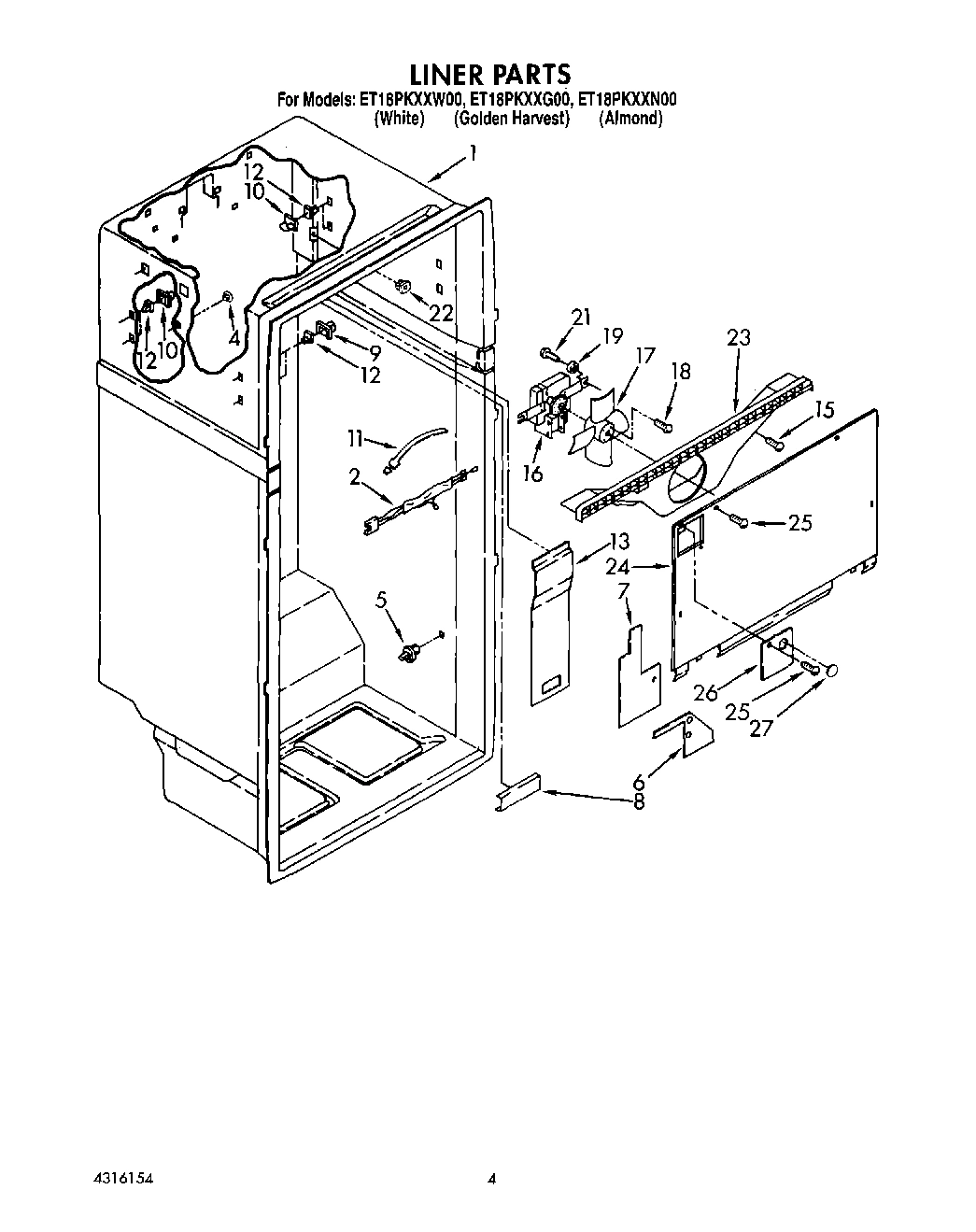

Liner (Not A Serviceable Part) WPL ARI44969A2 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

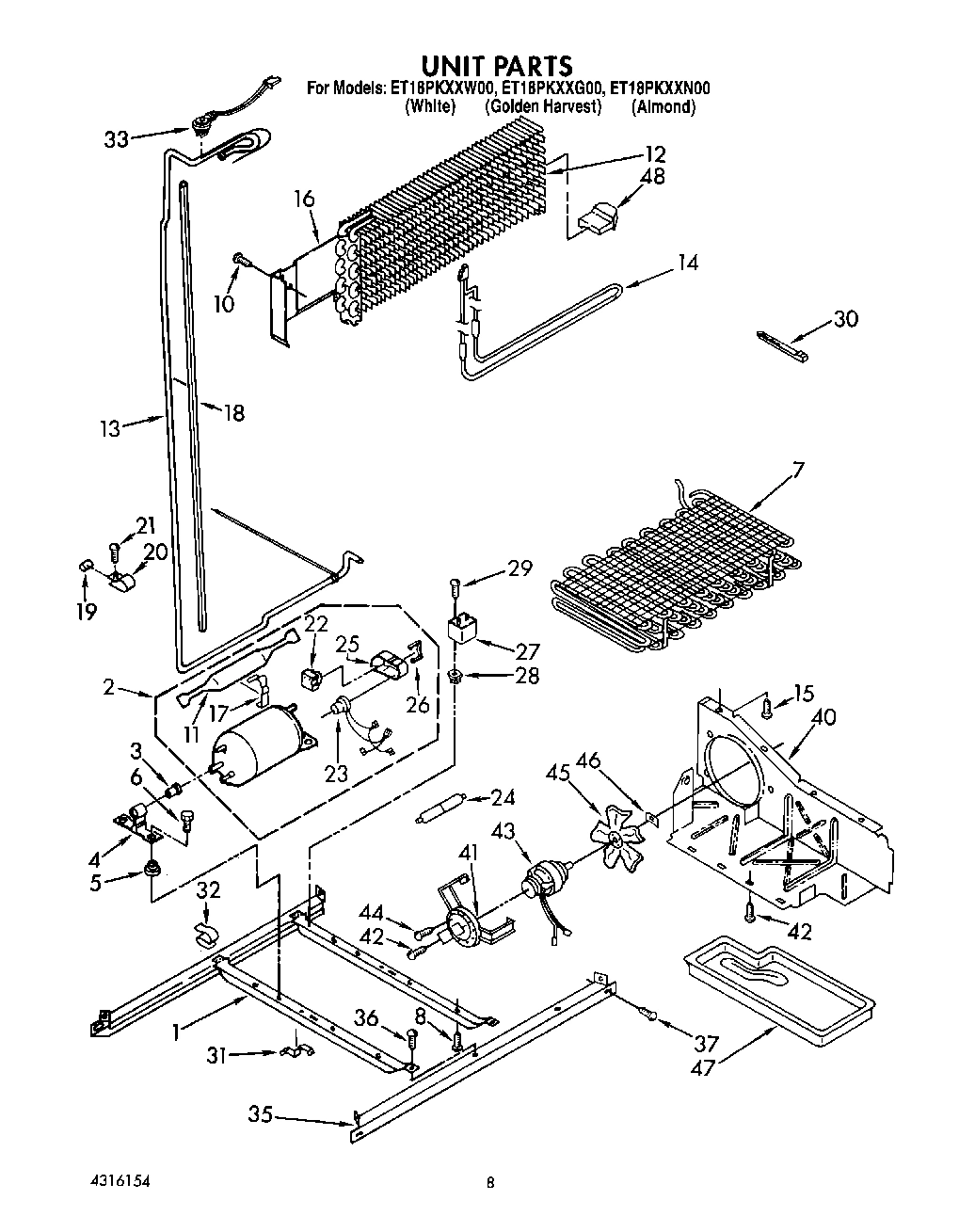

Unit, Frame WPL 1116619 Contact Us For Availability

1

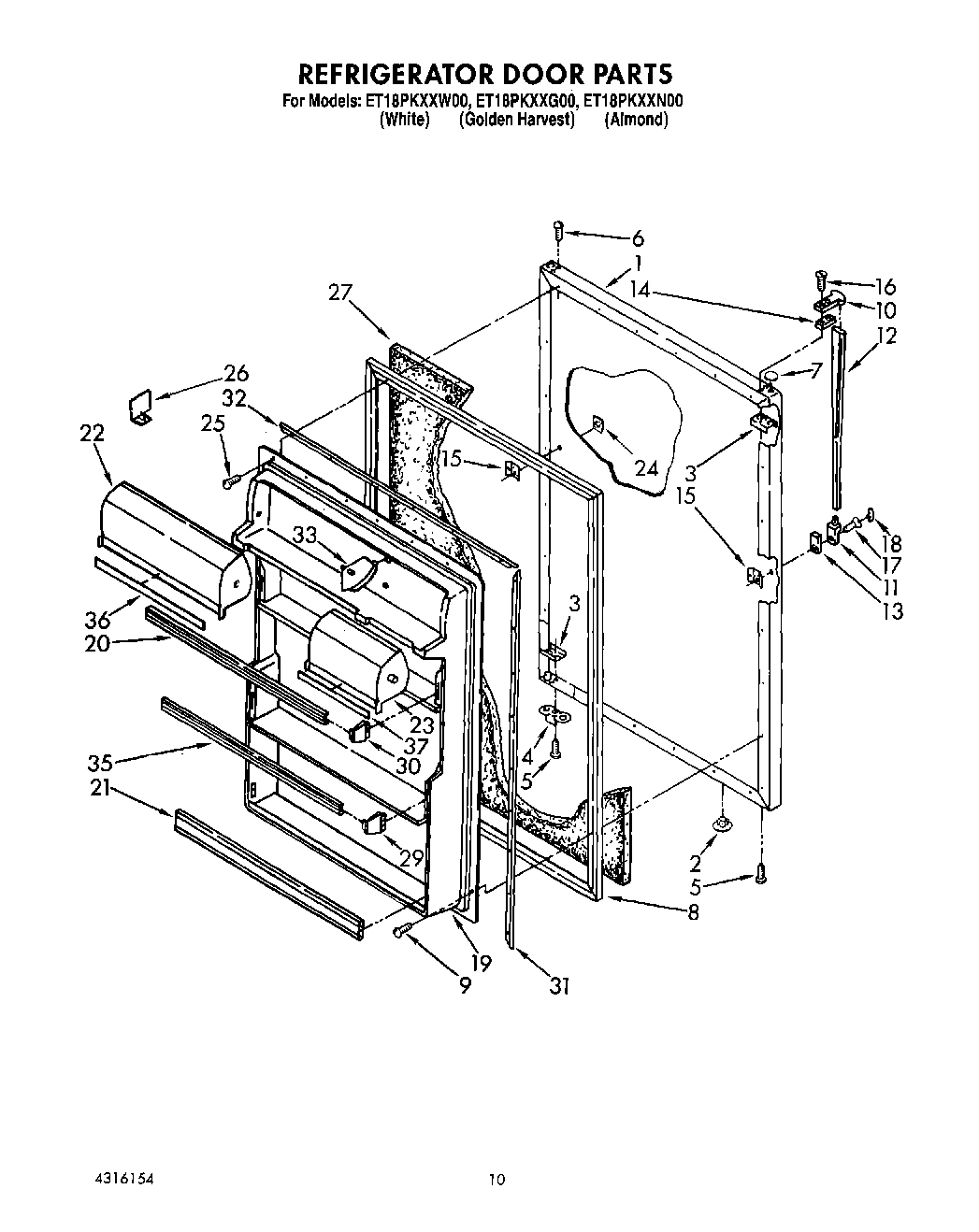

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116577 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

1

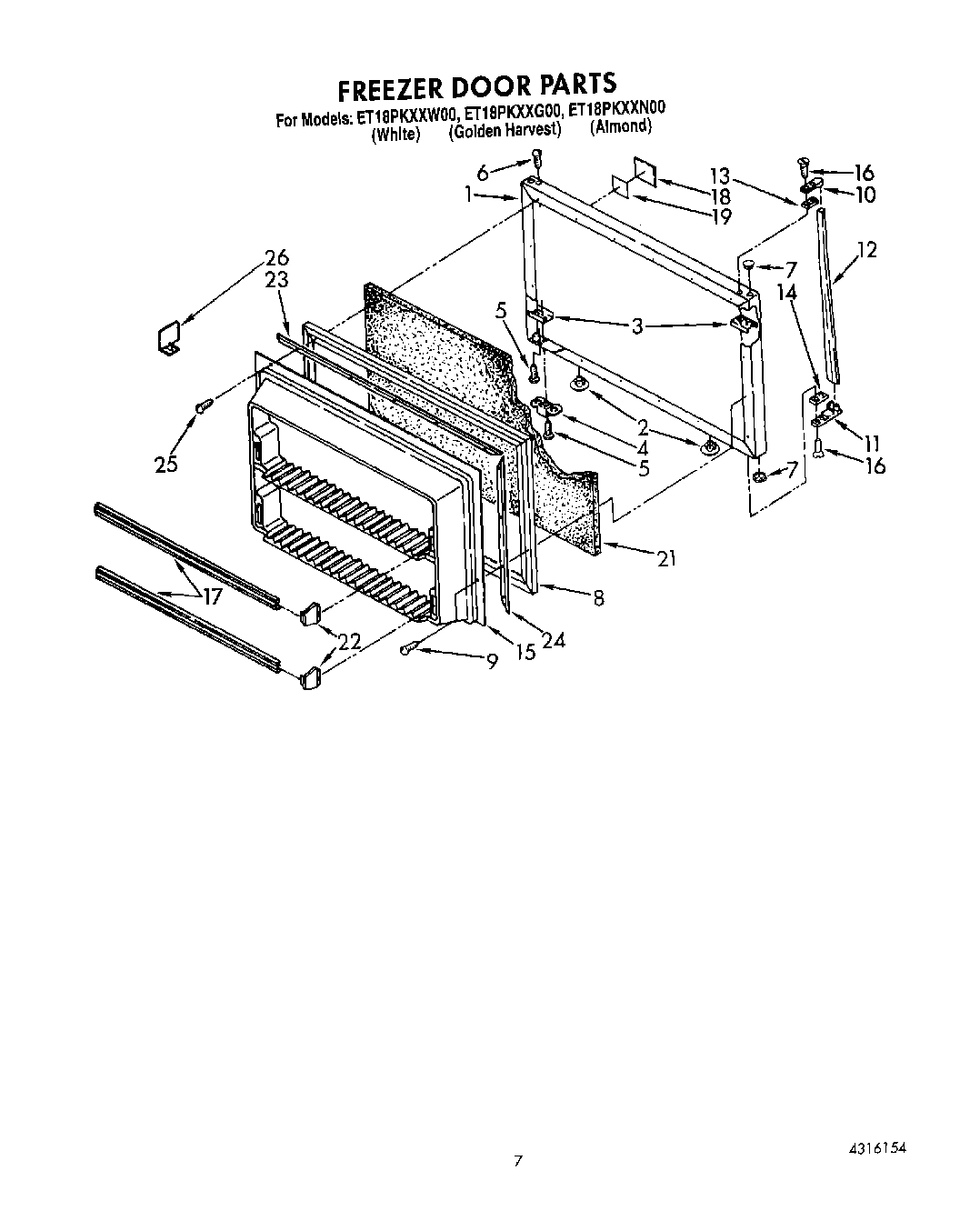

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1116586 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1116588 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1116589 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Box, Control WPL 1105455 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Compressor KIt Includes Items (11, 17, 22, 23 WPL 4318241 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

6

Switch, Toggle WPL 1106601 Contact Us For Availability

6

Electrical Shield WPL 2151583 Contact Us For Availability

6

Screw (4) WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

7

Electrical, Shield WPL 1123211 Contact Us For Availability

7

Shelf, Cantilever WPL 1116693 Contact Us For Availability

7

Condenser Assembly WPL 1116624 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Trim, Shelf WPL 1118121 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1116582 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1116592 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

NLA:SCREW Backorder WPL WPW10141645 $3.70

9

Stud, Front (2) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 2148047 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $13.89

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $33.31

Trim, Crisper Cover WPL 1116712 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $25.33

Knob, Thermostat WPL 2148150 Contact Us For Availability

Clip, Strap WPL 1123230 Contact Us For Availability

Glass, Crisper Cover WPL 1116715 Contact Us For Availability

WP2162555 Whirlpool Refrigerator White Door H In Stock WPL WP2162555 $101.12

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

support stud (8) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability

Evaporator Assembly WPL 1118034 Contact Us For Availability

Handle, Center (Golden Harvest) WPL 1106189 Contact Us For Availability

Handle, Center (Almond) WPL 2148036 Contact Us For Availability

Handle, Center (Golden Harvest) WPL 1108729 Contact Us For Availability

Handle, Center (Almond) WPL 2148069 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Cover, Air Duct WPL 1116558 Contact Us For Availability

Reflector, Glass WPL 1116701 Contact Us For Availability

Heat, Exchanger WPL 1116630 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Knob, Air Control WPL 2148151 Contact Us For Availability

Glass, Shelf WPL 1116699 Contact Us For Availability

Heater, Defrost WPL 2149646 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1116610 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Rod, Connecting WPL 1116565 Contact Us For Availability

Shelf, Full Cantilever WPL 1116688 Contact Us For Availability

Heat Shield WPL 1116636 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Air Diffuser Assembly WPL 1123221 Contact Us For Availability

Shelf, Freezer WPL 1116722 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

Trim, Door Shelf (2) WPL 2148178 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Nameplate WPL 2152334 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Trim, Shelf Front WPL 1118112 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Pan, Crisper WPL 2148048 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Interior Door Panel WPL 1118123 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

20

Seal, Center Rail WPL 1116567 Contact Us For Availability

20

Pan, Meat WPL 2148052 Contact Us For Availability

20

Tube Clamp (2) WPL 510716 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Trim, Full Shelf WPL 2148050 Contact Us For Availability

Trim, Door Shelf WPL 2148177 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Wiring Assembly, Control Box WPL 2154411 Contact Us For Availability

Grommet WPL 983604 Contact Us For Availability

Relay (See Overload) WPL ARI44970A1 Contact Us For Availability

Compartment Door, Utility WPL 2148222 Contact Us For Availability

Gasket, Bottom Separator WPL 1116566 Contact Us For Availability

Scroll, Fan WPL 1116598 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2149982 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Compartment, Butter Door WPL 2148220 Contact Us For Availability

Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Evaporator Cover WPL 2151668 Contact Us For Availability

Reflector, Shelf WPL 1116691 Contact Us For Availability

Muffler WPL 1121121 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

25

Glass, Full Shelf WPL 1116690 Contact Us For Availability

25

Terminal Cover (Production) WPL 1105221 Contact Us For Availability

25

Terminal Cover (Service) WPL 2154452 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Insulation, Filler WPL 942817 Contact Us For Availability

Strap, Cover WPL 1105222 Contact Us For Availability

Divider, Door Shelf WPL 1114380 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Running, Capacitor (Service) WPL 1118756 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

Washer, 7/32 WPL 489200 Contact Us For Availability

30

Strap WPL 851095 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

33

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

33

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

33

Separator, Compartment (Top) WPL 1116570 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

35

Unit, Rail WPL 1116622 Contact Us For Availability

35

Trim, Door Shelf WPL 2148179 Contact Us For Availability

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Trim, Compartment Door WPL 1118006 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 479502 WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Bracket, Control Knob WPL 1105457 Contact Us For Availability

Trim, WPL 1118014 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

39

Drain Pan WPL 1116602 Contact Us For Availability

40

Air, Baffle WPL 1114768 Contact Us For Availability

41

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

41

Fan, Mounting Bracket WPL 1115132 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

56

Gasket, Cover WPL 1114548 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hi WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

67

WPL 1105607 WPL 1105607 Contact Us For Availability

68

WPL 1110564 WPL 1110564 Contact Us For Availability
