Model Whirlpool ET18PKXWW10 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
06 - UNIT
07 - REFRIGERATOR DOOR, LIT/OPTIONAL

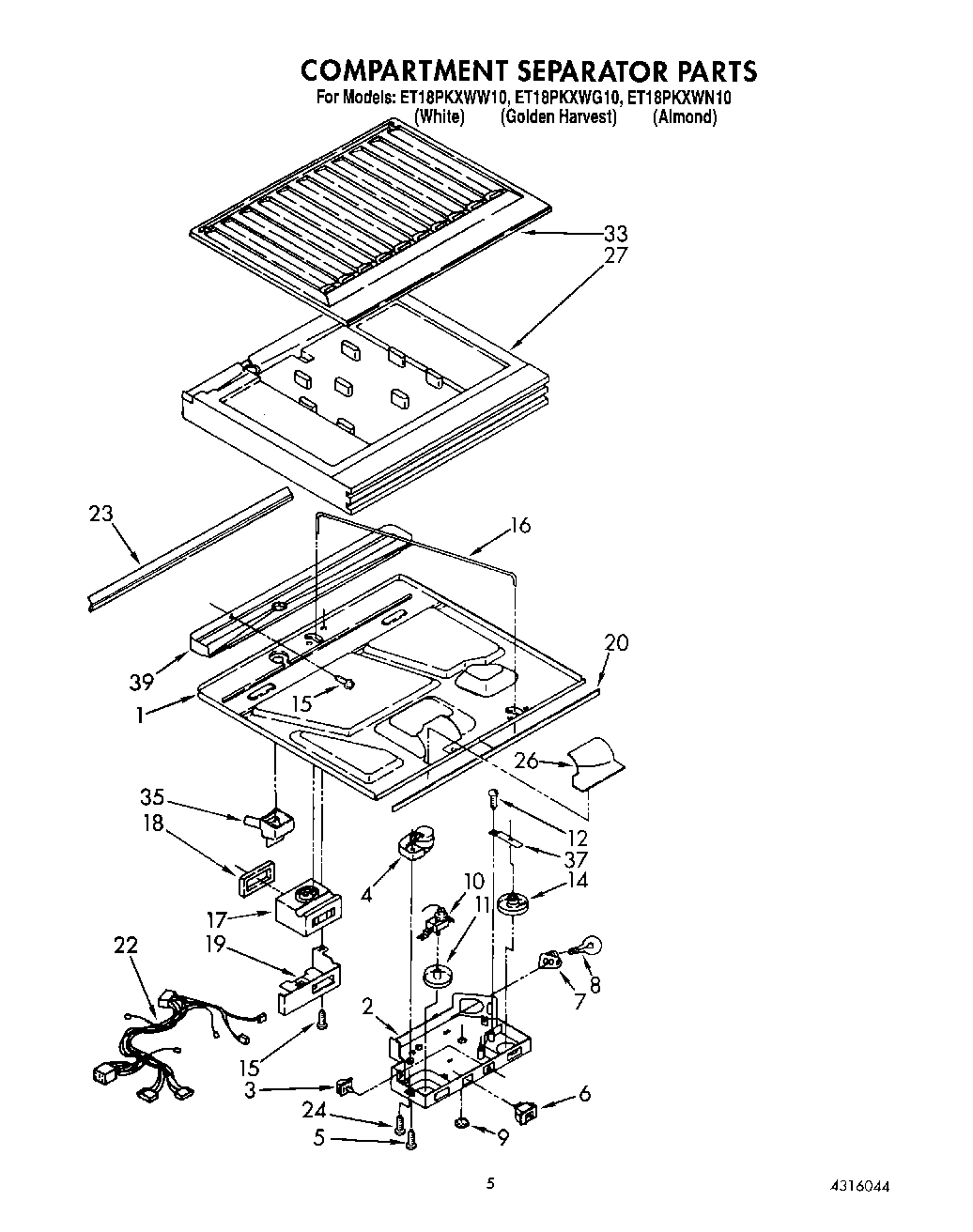

03 - COMPARTMENT SEPARATOR

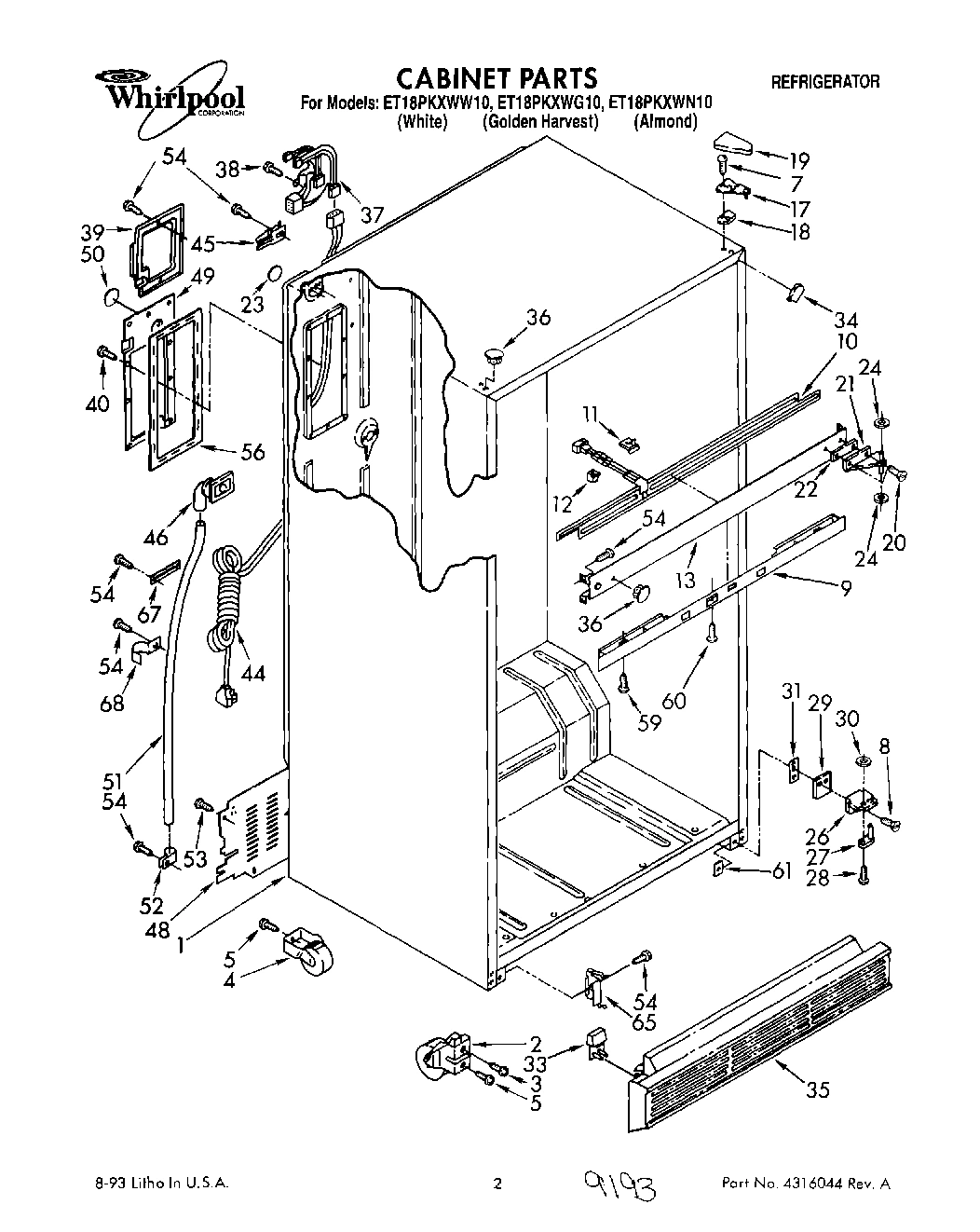

01 - CABINET
05 - FREEZER DOOR

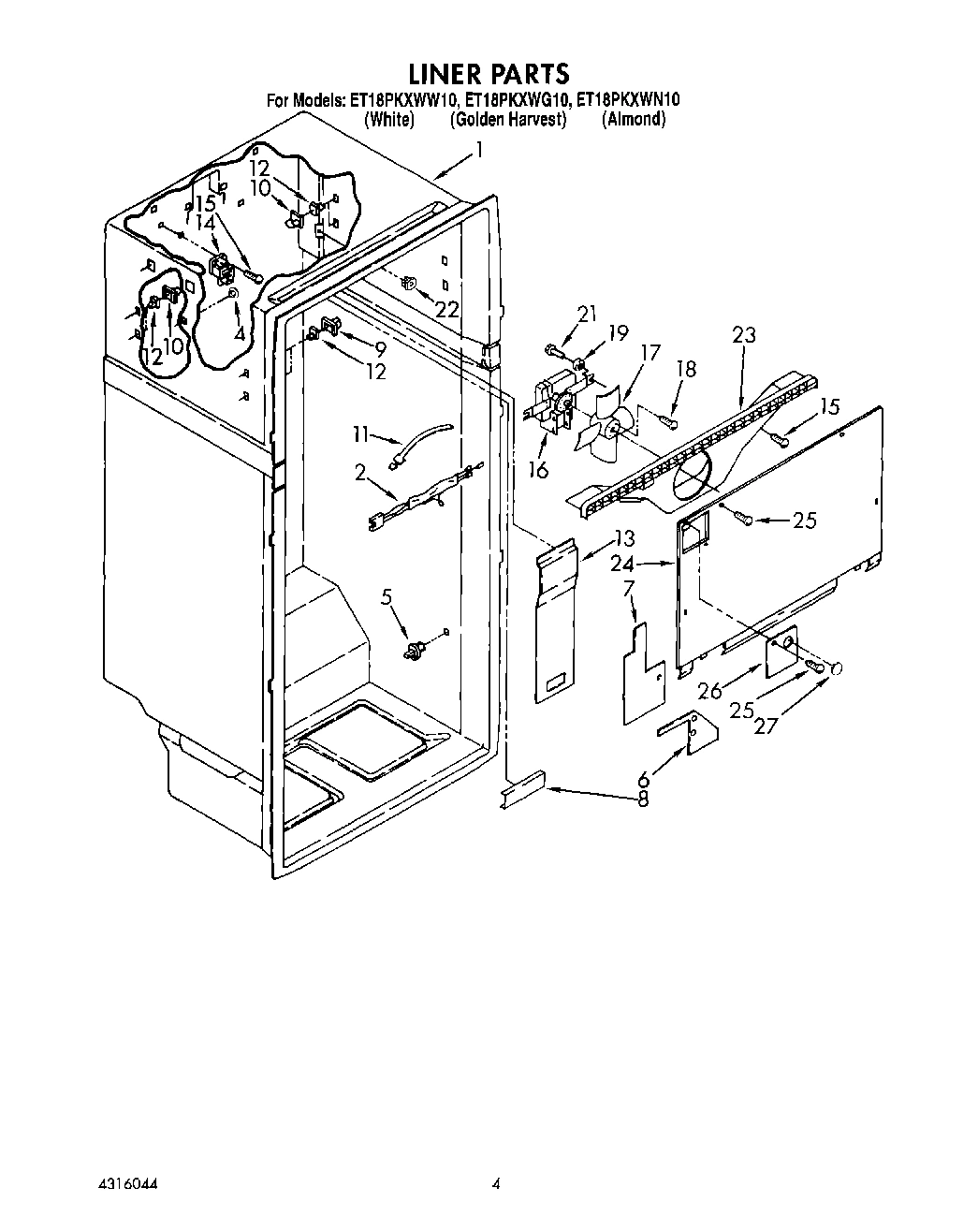

02 - LINER

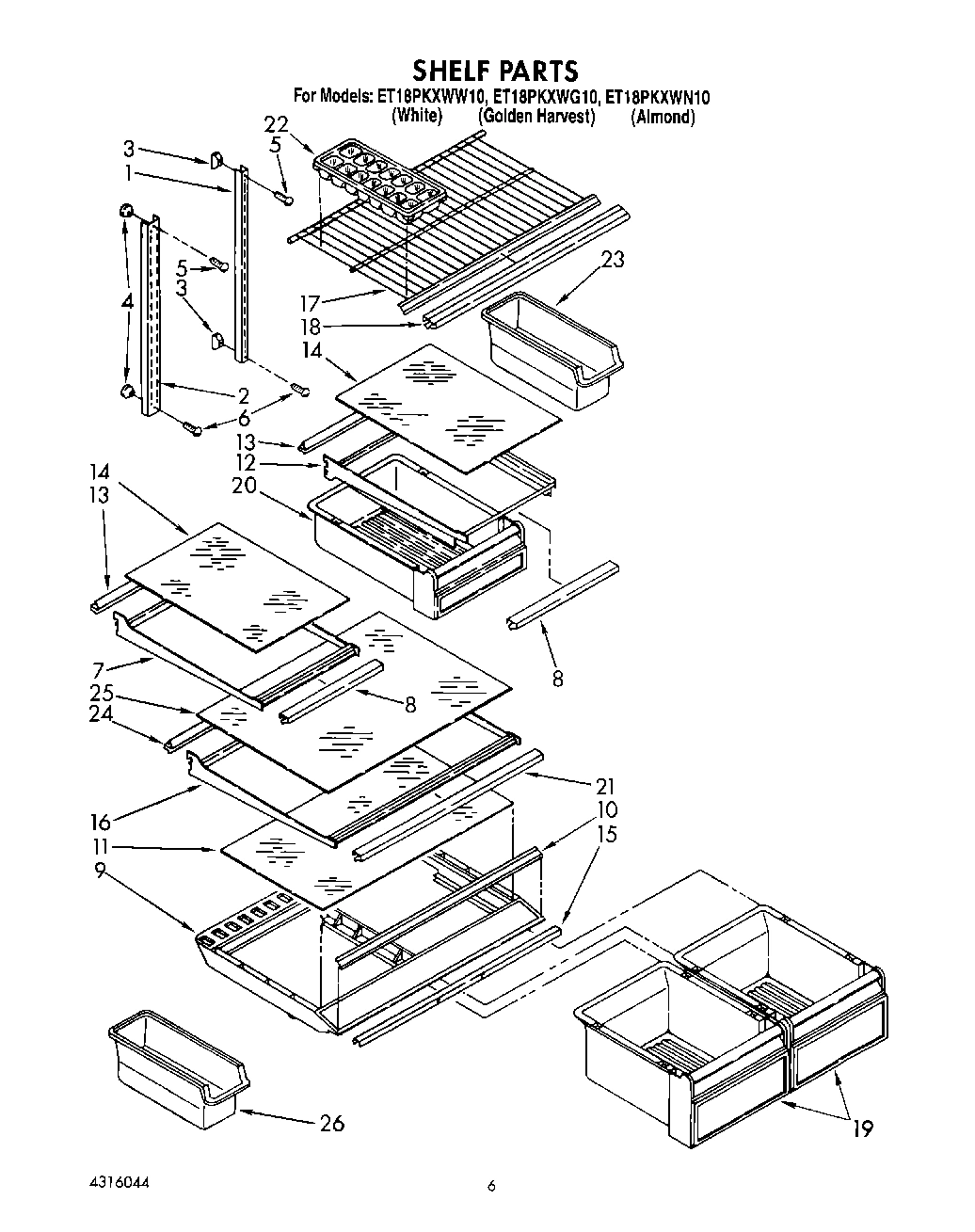

04 - SHELF
Common parts from model Whirlpool ET18PKXWW10 TOP MOUNT REFRIGERATOR
WPL LIT1127854 WPL LIT1127854 Contact Us For Availability
WPL LIT2148071 WPL LIT2148071 Contact Us For Availability
WPL LIT2148352 WPL LIT2148352 Contact Us For Availability
WPL LIT4316044 WPL LIT4316044 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116577 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44962A8 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1116586 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1116588 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1116589 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44963A7 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Box, Control WPL 1105455 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Wiring, Fan Motor WPL 1114721 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489148 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Electrical, Shield WPL 1116559 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Electrical, Shield WPL 1123211 Contact Us For Availability
7
Shelf, Cantilever WPL 1116693 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116582 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116592 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Trim, Shelf WPL 1118121 Contact Us For Availability
9
Control, Front Cover WPL 2148055 Contact Us For Availability
9
Stud, Front (2) WPL 946356 Contact Us For Availability
9
Crisper Cover WPL 2148047 Contact Us For Availability
10
Heater, Mullion WPL 1116548 Contact Us For Availability
10
Trim, Crisper Cover WPL 1116712 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1106189 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1108729 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148069 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1116542 Contact Us For Availability
13
Center Rail (Almond) WPL 1116543 Contact Us For Availability
13
Cover, Air Duct WPL 1116558 Contact Us For Availability
13
Reflector, Glass WPL 1116701 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
14
Glass, Shelf WPL 1116699 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Shelf, Full Cantilever WPL 1116688 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2148178 Contact Us For Availability
17
Air Diffuser Assembly WPL 1123221 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Nameplate WPL 945114 Contact Us For Availability
18
Trim, Shelf Front WPL 1118112 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2148048 Contact Us For Availability
20
Seal, Center Rail WPL 1116567 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Pan, Meat WPL 2148052 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Trim, Door Shelf WPL 2148177 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Full Shelf WPL 2148050 Contact Us For Availability
22
Compartment Door, Utility WPL 2148222 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 1127762 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Grommet WPL 848445 Contact Us For Availability
23
Compartment, Butter Door WPL 2148220 Contact Us For Availability
23
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1116566 Contact Us For Availability
23
Hole Seal WPL 1129056 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Evaporator Cover WPL 1116599 Contact Us For Availability
24
Reflector, Shelf WPL 1116691 Contact Us For Availability
25
Glass, Full Shelf WPL 1116690 Contact Us For Availability
26
Divider, Door Shelf WPL 1114380 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Golden Harvest) WPL 1118060 Contact Us For Availability
35
T WPL 2148179 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
36
WPL 1118006 WPL 1118006 Contact Us For Availability
36
Hole Plug (4) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (4) (Almond) WPL 989195 Contact Us For Availability
36
Hole Plug (4) (Golden Harvest) WPL 989876 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
WPL 1117510 WPL 1117510 Contact Us For Availability
37
WPL 1118014 WPL 1118014 Contact Us For Availability
37
WPL 261890 WPL 261890 Contact Us For Availability
37
WPL 261891 WPL 261891 Contact Us For Availability
37
WPL 350941 WPL 350941 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 1118814 Contact Us For Availability
39
Drain Pan WPL 1116602 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
Cover, Unit WPL 1116613 Contact Us For Availability
49
Cover, Plug WPL 2147326 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
52
Clamp WPL 836077 Contact Us For Availability
56
Gasket, Cover WPL 1114548 Contact Us For Availability
61
Tap-Plate, Bot WPL 2147310 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
× ![]()
