Model Whirlpool ET18PKXWN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - LINER
04 - SHELF

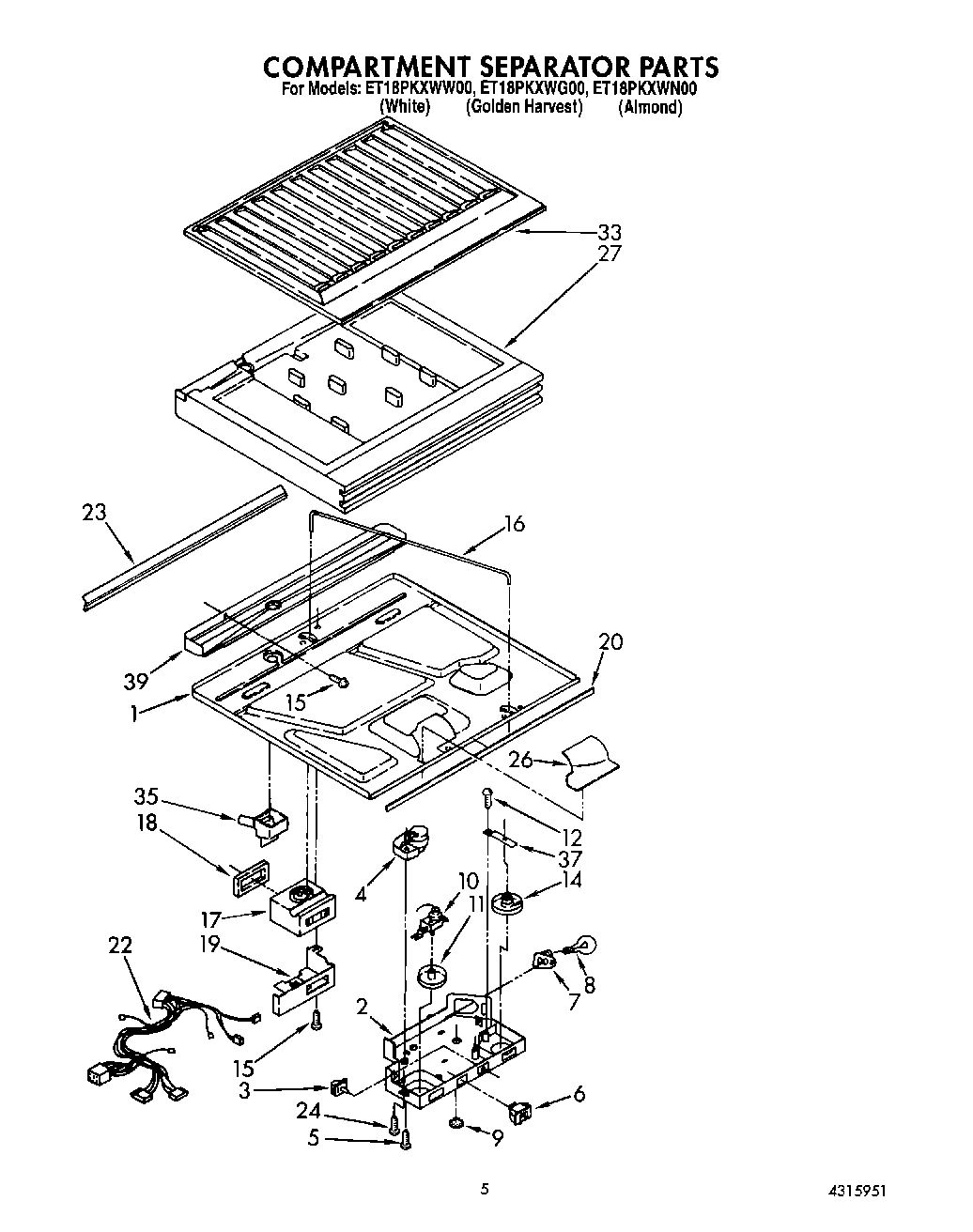

03 - COMPARTMENT SEPARATOR

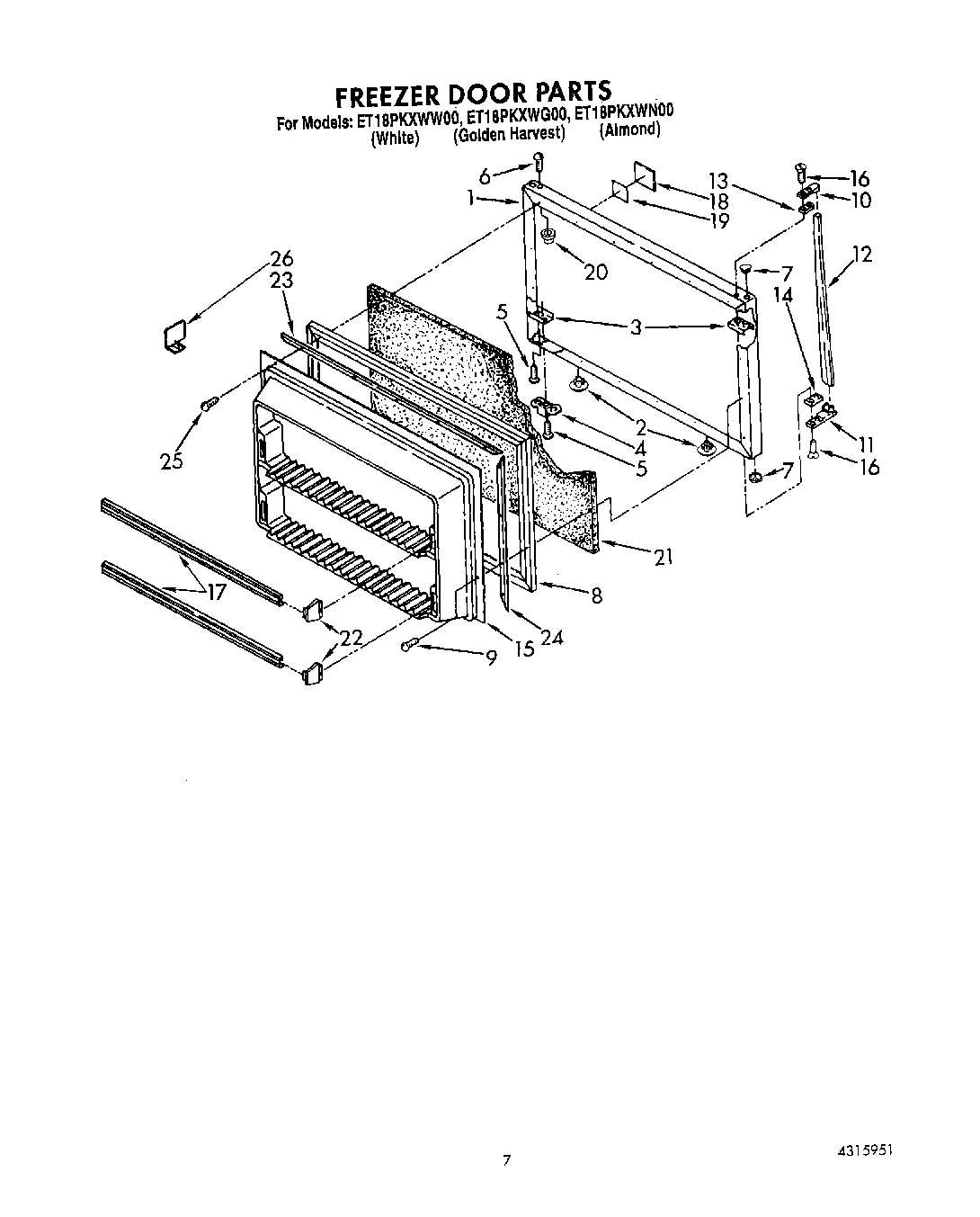

05 - FREEZER DOOR

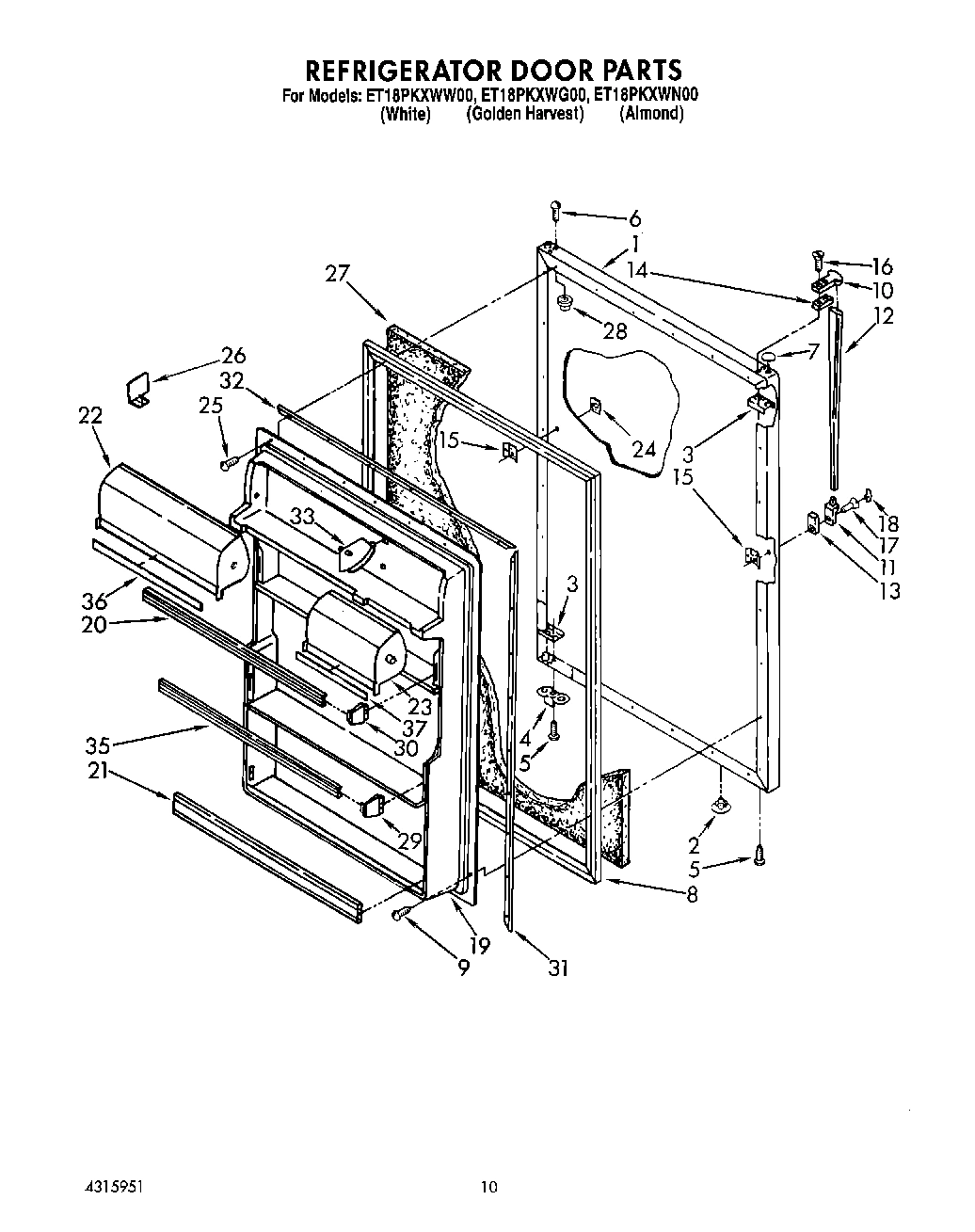

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

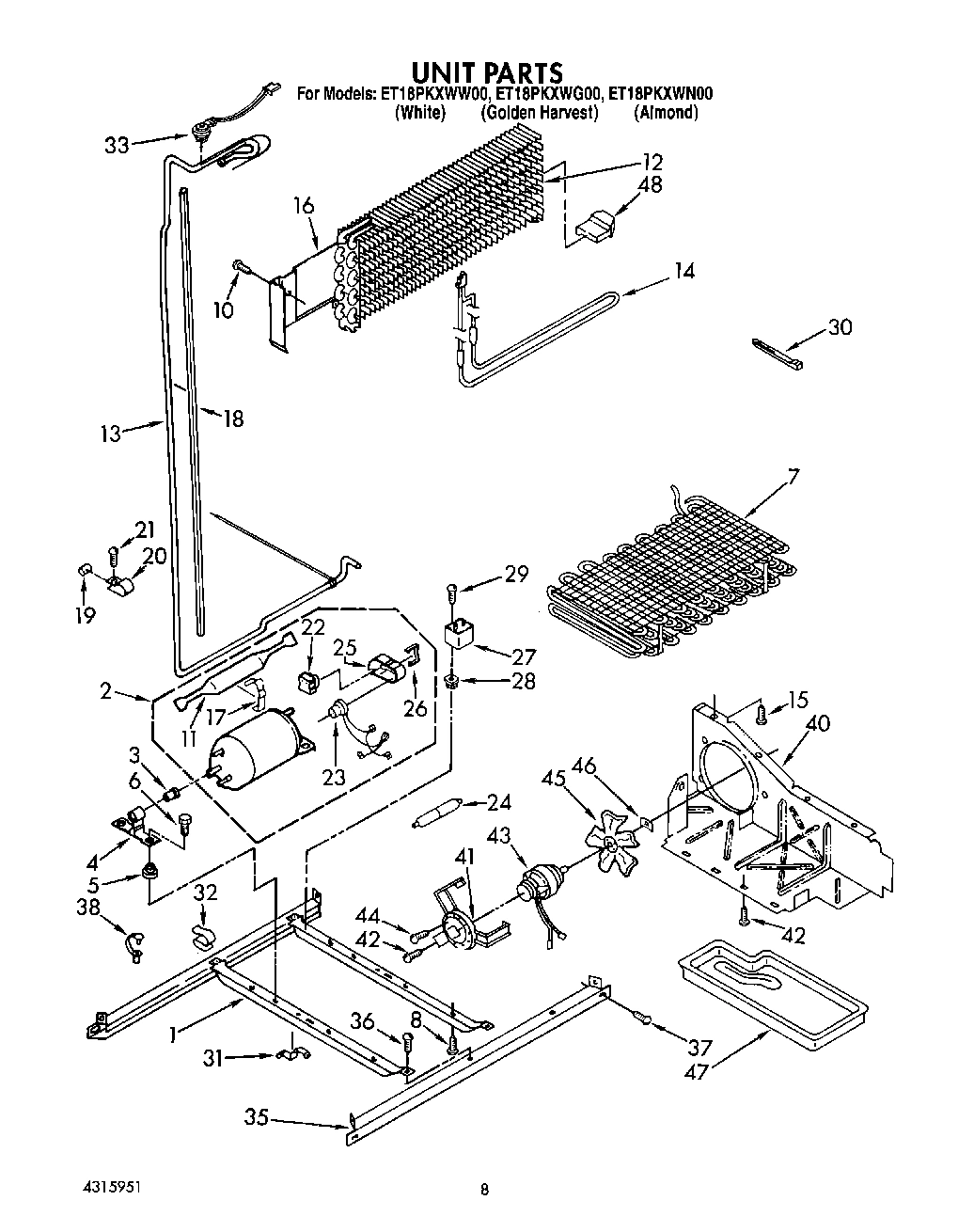

06 - UNIT

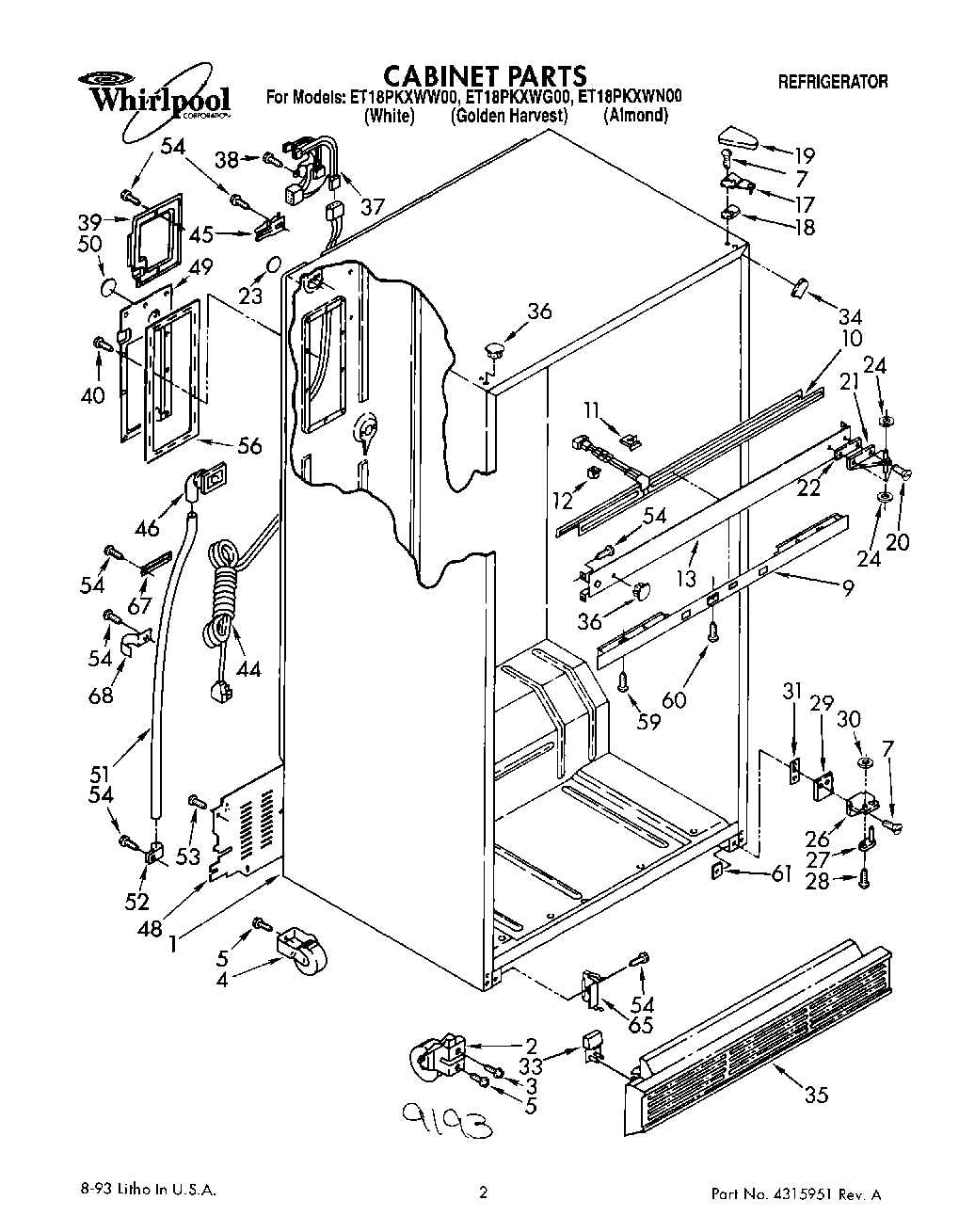

01 - CABINET
Common parts from model Whirlpool ET18PKXWN00 TOP MOUNT REFRIGERATOR
WPL LIT1124893 WPL LIT1124893 Contact Us For Availability
WPL LIT1127854 WPL LIT1127854 Contact Us For Availability
WPL LIT2148071 WPL LIT2148071 Contact Us For Availability
WPL LIT4315951 WPL LIT4315951 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1116586 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1116588 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1116589 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116577 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Unit, Frame WPL 1116619 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44953A1 Contact Us For Availability
2
Box, Control WPL 1105455 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability
2
Roller, Front WPL 981128 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1105267 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Condenser Assembly WPL 1116624 Contact Us For Availability
7
Screw WPL 489327 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116592 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116582 Contact Us For Availability
9
Control, Front Cover WPL 2148055 Contact Us For Availability
10
Heater, Mullion WPL 1116548 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Clip, Mullion (3) WPL 1106779 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1108729 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148069 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1106189 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Evaporator Assembly WPL 1118034 Contact Us For Availability
12
Spacer (3) WPL 940024 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Heat, Exchanger WPL 1116630 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1116542 Contact Us For Availability
13
Center Rail (Almond) WPL 1116543 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
14
Heater, Defrost WPL 1127759 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
16
Heat Shield WPL 1116636 Contact Us For Availability
17
Air Diffuser Assembly WPL 1123221 Contact Us For Availability
17
Clamp, Dryer WPL 1127590 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 945114 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
19
Dampener (2) WPL 510769 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
20
Seal, Center Rail WPL 1116567 Contact Us For Availability
20
Trim, Door Shelf WPL 2148178 Contact Us For Availability
20
Tube Clamp (2) WPL 510716 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Screw WPL 489179 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Trim, Door Shelf WPL 2148177 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 1127762 Contact Us For Availability
22
Compartment Door, Utility WPL 2148222 Contact Us For Availability
22
Relay (See Overload) WPL ARI44955A3 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1116566 Contact Us For Availability
23
Compartment, Butter Door WPL 2148220 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 1118946 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Hole Seal WPL 1129056 Contact Us For Availability
24
Reflector, Shelf WPL 1116691 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
24
Muffler WPL 1121121 Contact Us For Availability
25
Glass, Full Shelf WPL 1116690 Contact Us For Availability
25
Terminal Cover (Production) WPL 1105221 Contact Us For Availability
25
Terminal Cover (Service) WPL 2154452 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Divider, Door Shelf WPL 1114380 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
30
Strap WPL 851095 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Retainer, Gasket Top & Bott WPL 1115137 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Golden Harvest) WPL 1118060 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
WPL 2148179 WPL 2148179 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
36
WPL 1118006 WPL 1118006 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
36
Hole Plug (5) (Golden Harvest) WPL 1129064 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
WPL 1117510 WPL 1117510 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
WPL 1118014 WPL 1118014 Contact Us For Availability
37
WPL 261890 WPL 261890 Contact Us For Availability
37
WPL 261891 WPL 261891 Contact Us For Availability
37
WPL 350941 WPL 350941 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 1118814 Contact Us For Availability
38
Clip, Wire (2) WPL 1115141 Contact Us For Availability
39
Drain Pan WPL 1116602 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
40
Air, Baffle WPL 1114768 Contact Us For Availability
41
Fan, Mounting Bracket WPL 1115132 Contact Us For Availability
42
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
48
Cover, Unit WPL 1116613 Contact Us For Availability
49
Cover, Plug WPL 2147326 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
52
Clamp WPL 836077 Contact Us For Availability
56
Gasket, Cover WPL 1114548 Contact Us For Availability
61
Tap-Plate, Bot WPL 2147310 Contact Us For Availability
67
WPL 1105607 WPL 1105607 Contact Us For Availability
68
WPL 1110564 WPL 1110564 Contact Us For Availability
× ![]()
