Model Whirlpool ET18OKXWN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

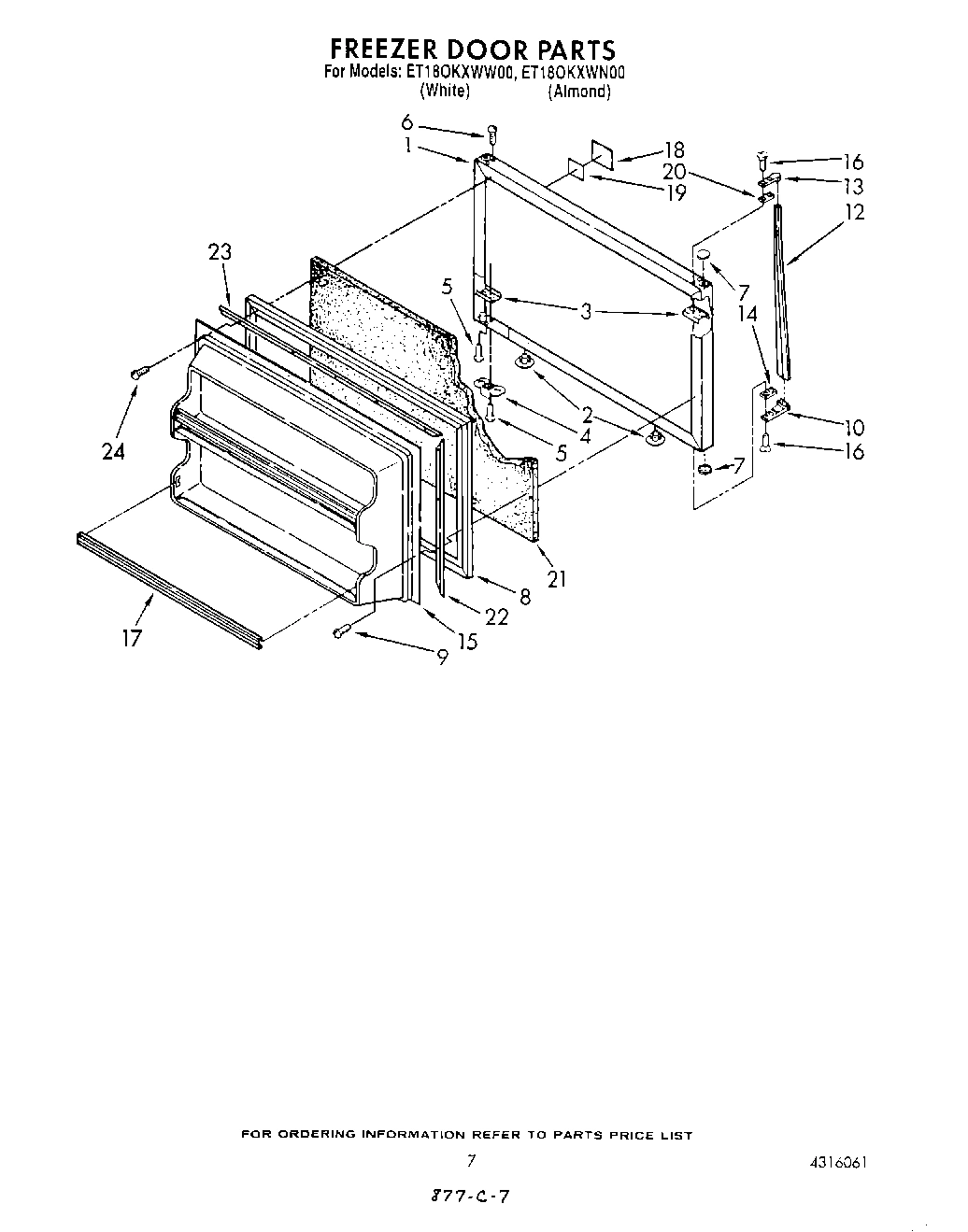

06 - FREEZER DOOR

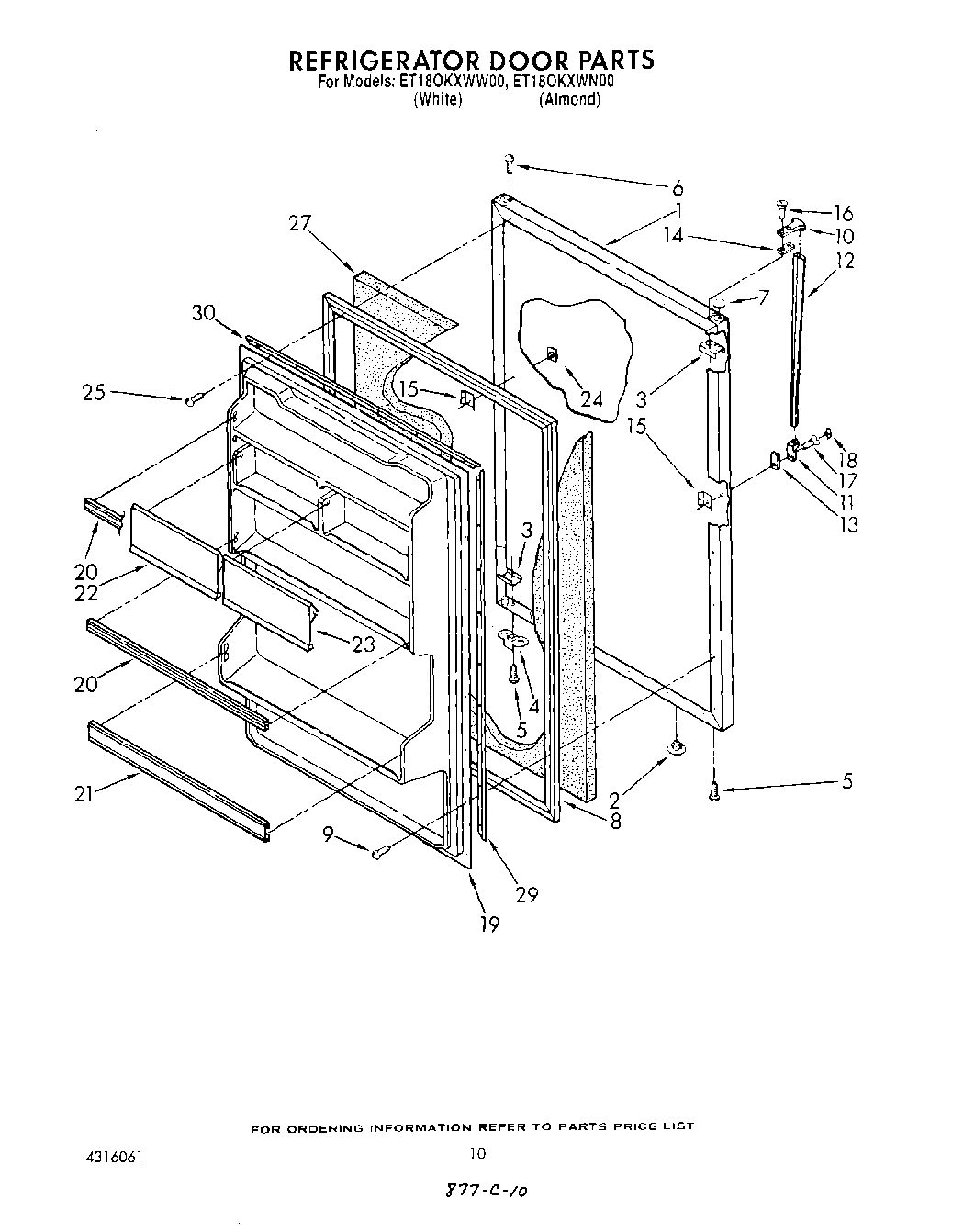

08 - REFRIGERATOR DOOR , LIT/OPTIONAL
02 - CABINET
05 - SHELF
07 - UNIT
03 - LINER
04 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool ET18OKXWN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44787A2 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1111807 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44788A9 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 942774 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
3
Screw WPL 488681 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1127615 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
5
Roller, Rear WPL 937216 Contact Us For Availability
5
Screw (3) WPL 489345 Contact Us For Availability
6
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
6
Glass, Shelf WPL 1111831 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
7
Heater, Mullion WPL 1108139 Contact Us For Availability
7
Shelf, Frame WPL 1111845 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
7
Top, Electric Shield WPL 1129068 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Trim, Shelf WPL 1111808 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
9
Crisper Cover WPL 2150111 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Trim, Crisper Cover WPL 946436 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability
11
Glass, Crisper Cover WPL 1111829 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
12
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
12
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Center Rail (White) WPL 1120501 Contact Us For Availability
13
Center Rail (Almond) WPL 1120503 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Center, Rail Shim (2) WPL 2151428 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
15
Support, Crisper Cover WPL 1103731 Contact Us For Availability
16
Post, Cripser Cover WPL 836410 Contact Us For Availability
16
Tap Plate (2) WPL 2147312 Contact Us For Availability
16
Screw WPL 489050 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Shelf, Freezer WPL 944734 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Trim, Shelf Front WPL 1111814 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Pan, Crisper WPL 1111863 Contact Us For Availability
19
Tube, Clamp WPL 489151 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Shim (Top) WPL 943187 Contact Us For Availability
20
Trim, Door (2) WPL 1111816 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
20
Pan, Meat WPL 1111866 Contact Us For Availability
20
Clip, Stand Off Assembly WPL 1100636 Contact Us For Availability
21
Trim, Door WPL 1111817 Contact Us For Availability
21
Hinge, Center WPL 2147358 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Compartment Door, Utility WPL 2148435 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2149659 Contact Us For Availability
23
Compartment Door, Butter WPL 2148434 Contact Us For Availability
23
Reflector, Shelf WPL 1111844 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123915 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Glass, Shelf WPL 1111919 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
25
Spacer WPL 2149077 Contact Us For Availability
25
Shelf, Frame Full WPL 1111848 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
26
Trim, Shelf WPL 1111834 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Reflector, Shelf WPL 1111850 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123391 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Glass, Cantilever Shelf Full WPL 1111849 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
30
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
30
WPL 542639 WPL 542639 Contact Us For Availability
30
WPL 799833 WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
30
Pan Shelf, Cantilever WPL 1111843 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
31
Exchanger, Heat WPL 1127721 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1119399 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1119401 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Heater, Defrost WPL 1127660 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1123400 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
37
Hole Seal WPL 1129056 Contact Us For Availability
38
Screw (Repair) WPL 489297 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Seal, Gaske WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118783 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
WPL 1120224 WPL 1120224 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
55
Support, Heater WPL 1108172 Contact Us For Availability
62
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
