Model Whirlpool ET18NKXSW05 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - UNIT
08 - REFRIGERATOR DOOR , NOT ILLUSTRATED

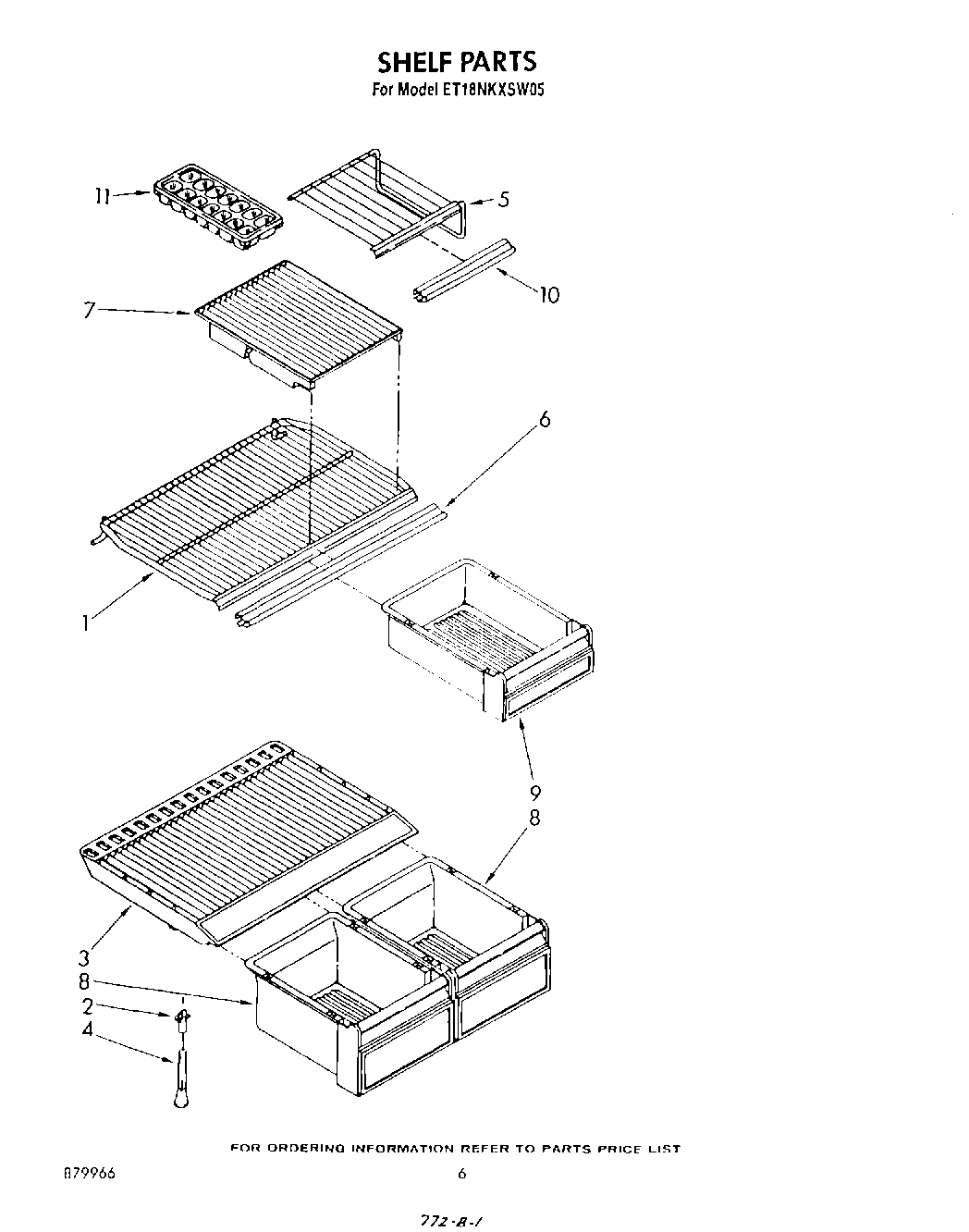

05 - SHELF
06 - FREEZER DOOR

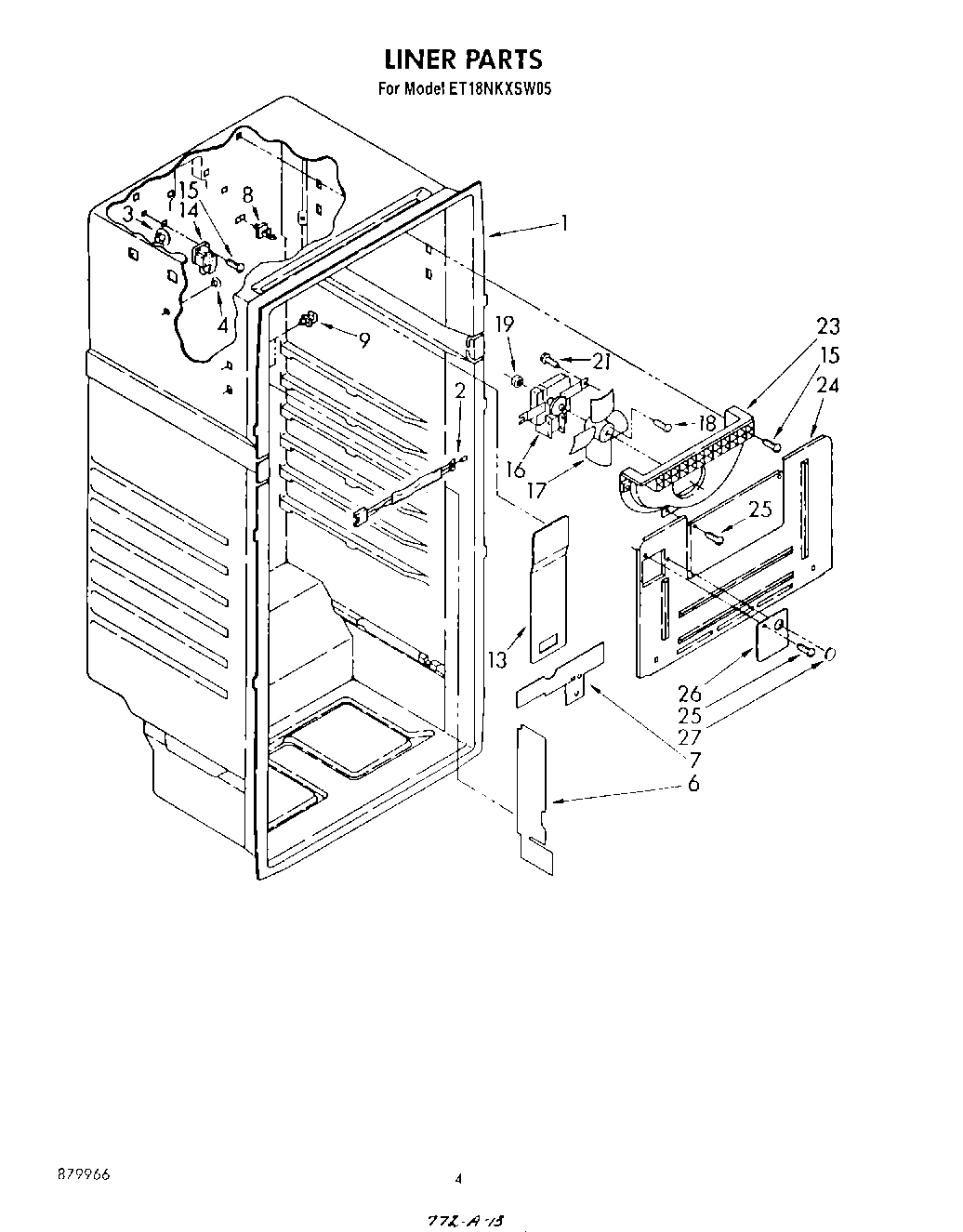

03 - LINER
04 - COMPARTMENT SEPARATOR
02 - CABINET
Common parts from model Whirlpool ET18NKXSW05 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1104634 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1104636 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1104637 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1104638 Contact Us For Availability
1
Shelf, Pullout (3) WPL 943719 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1104642 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1104645 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1104646 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44500A6 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44499A4 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Wiring, Fan Motor WPL 943796 Contact Us For Availability
2
Box, Control WPL 1119597 Contact Us For Availability
2
Leveler WPL 944766 Contact Us For Availability
3
Cover, Crisper WPL 1110144 Contact Us For Availability
3
Hole Plug (2) WPL 944795 Contact Us For Availability
3
Roller, Front & Rear (4) WPL 937216 Contact Us For Availability
4
Post, Cripser Cover WPL 836410 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1114283 Contact Us For Availability
4
Screw WPL 489179 Contact Us For Availability
5
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
5
Spacer WPL 940024 Contact Us For Availability
6
Screw (Repair) WPL 489221 Contact Us For Availability
6
Trim, Shelf (3) WPL 943718 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Breaker, Trim Clip (3) WPL 534365 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Cover, Meat Pan WPL 1110145 Contact Us For Availability
7
Top, Electric Shield WPL 946351 Contact Us For Availability
7
Heater, Mullion WPL 1108139 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122827 Contact Us For Availability
8
Pan, Crisper WPL 1111863 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122830 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud Hook WPL 939065 Contact Us For Availability
9
Pan, Meat WPL 1116012 Contact Us For Availability
9
Ferrule, Center Rail (2) WPL 942737 Contact Us For Availability
10
Trim, Shelf WPL 1100125 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
11
Screw (2) WPL 489277 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability
12
Handle, Center WPL 1106194 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1109171 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
12
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
12
Hole Plug (2) (Platinum) WPL 1126568 Contact Us For Availability
12
Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability
12
Hole Plug (2) (Toast) WPL 1126570 Contact Us For Availability
12
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
13
Center Rail (White) WPL 1110343 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1110344 Contact Us For Availability
13
Center Rail (Almond) WPL 1110345 Contact Us For Availability
13
Center Rail (Toast) WPL 1110346 Contact Us For Availability
13
Center Rail (Platinum) WPL 1110347 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
14
Knob, Air Control WPL 1111737 Contact Us For Availability
14
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120631 Contact Us For Availability
15
Gasket, Drain Pan WPL 1108357 Contact Us For Availability
15
Screw WPL 489184 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1111822 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Nameplate WPL 1116206 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
19
Interior Door Panel WPL 1120630 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 1114354 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
20
Trim, Door (2) WPL 1116017 Contact Us For Availability
20
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1118848 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Compartment, Butter Door WPL 1116018 Contact Us For Availability
23
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123915 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
24
Screw (Repair) WPL 488949 Contact Us For Availability
25
Screw, 8-15 x 1-3/8 WPL 488678 Contact Us For Availability
25
Tap Plate (2) WPL 944813 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110354 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Screw WPL 489218 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
WPL 479502 WPL 479502 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
29
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
29
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
29
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
29
WPL 350941 WPL 350941 Contact Us For Availability
29
WPL 542639 WPL 542639 Contact Us For Availability
29
WPL 72112 WPL 72112 Contact Us For Availability
29
WPL 799832 WPL 799832 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 799908 WPL 799908 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Shim, Bottom WPL 942812 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Cover, WPL 1109364 Contact Us For Availability
32
WPL 1109366 WPL 1109366 Contact Us For Availability
32
WPL 1109368 WPL 1109368 Contact Us For Availability
32
WPL 1109373 WPL 1109373 Contact Us For Availability
32
WPL 1109374 WPL 1109374 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119325 Contact Us For Availability
33
WPL 1100681 WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
35
WPL 1119710 WPL 1119710 Contact Us For Availability
35
WPL 1119711 WPL 1119711 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
WPL 488428 WPL 488428 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
WPL 1120224 WPL 1120224 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
61
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
