Model Whirlpool ET18HKXTF00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

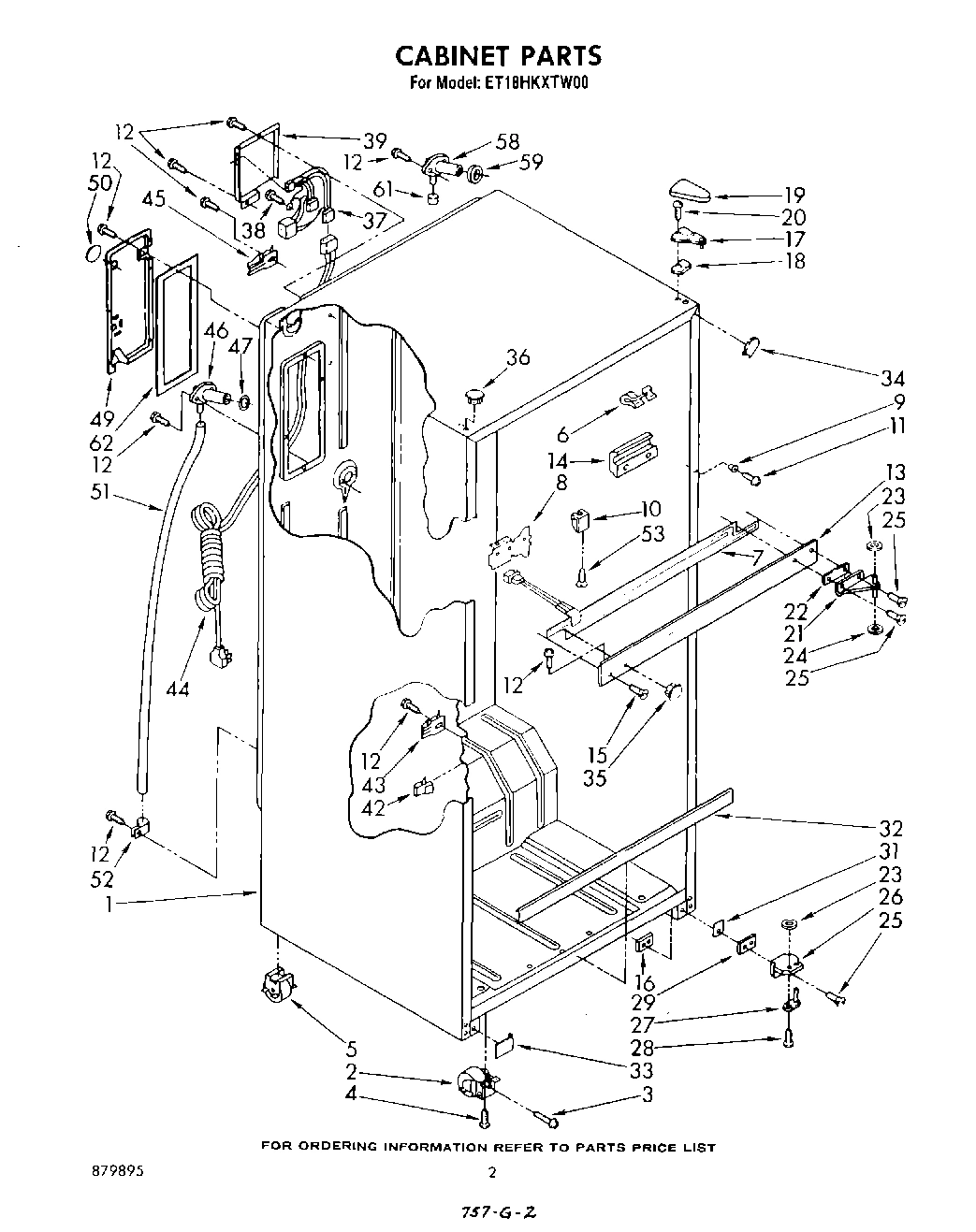

02 - CABINET

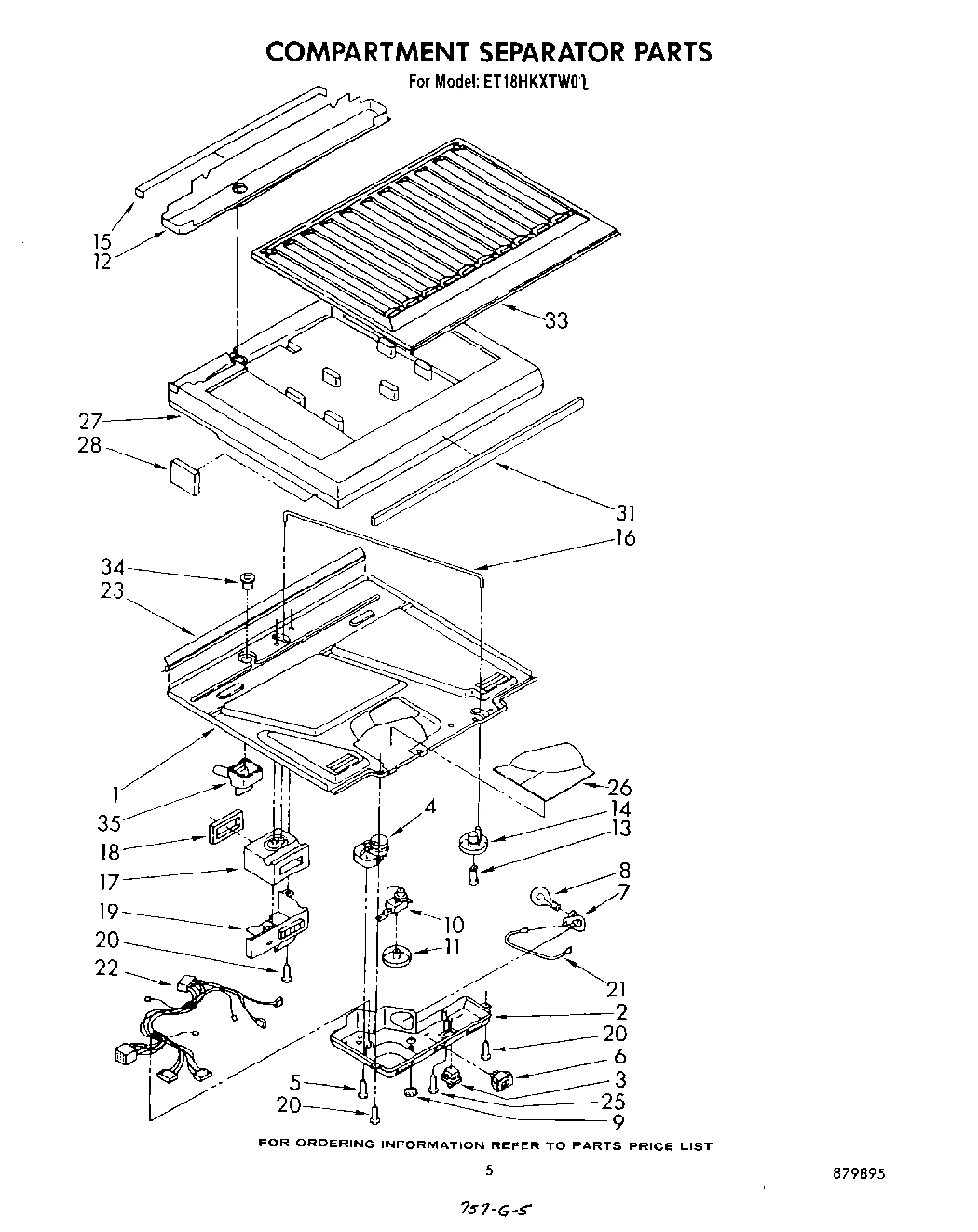

04 - COMPARTMENT AND SEPARATOR
06 - FREEZER DOOR
08 - REFRIGERATOR, LIT/OPTIONAL
05 - SHELF
07 - UNIT
03 - LINER
Common parts from model Whirlpool ET18HKXTF00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1118877 WPL LIT1118877 Contact Us For Availability
WPL LIT1120592 WPL LIT1120592 Contact Us For Availability
WPL LIT1120687 WPL LIT1120687 Contact Us For Availability
WPL LIT879895 WPL LIT879895 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1104642 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1104645 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1104646 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1104634 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1104636 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1104637 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) (Also Ord WPL 1104638 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1111807 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43657A8 Contact Us For Availability
2
Box, Control WPL 1119597 Contact Us For Availability
2
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Bumper (2) WPL 1120596 Contact Us For Availability
2
Wiring, Fan Motor WPL 943796 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1118699 Contact Us For Availability
3
Hole Plug WPL 944795 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1105267 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
4
Clip, Tube (2) WPL 938232 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (6) WPL 489148 Contact Us For Availability
6
Screw (Repair) WPL 489221 Contact Us For Availability
6
Shelf, Wire Cantilever Full Shelf WPL 1111783 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 1111782 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
7
Top, Electric Shield WPL 946351 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1106180 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1109186 Contact Us For Availability
8
Trim, Shelf WPL 1111808 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
9
Crisper Cover WPL 1111861 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Trim, Crisper Cover WPL 946436 Contact Us For Availability
10
Overload Spring WPL 1114190 Contact Us For Availability
11
Knob, Thermostat WPL 1111759 Contact Us For Availability
11
Glass, Crisper Cover WPL 1111862 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
12
Handle, Center WPL 1106194 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1109171 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1111789 Contact Us For Availability
12
Case, Relay WPL 1108144 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Retainer, Knob Control WPL 1111792 Contact Us For Availability
13
Glass, Shelf WPL 1111864 Contact Us For Availability
13
Overload WPL 1115426 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1111760 Contact Us For Availability
14
Trim, Shelf WPL 1111834 Contact Us For Availability
14
Muffler WPL 1118739 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Gasket, Drain Pan WPL 1108357 Contact Us For Availability
15
Interior Door Panel WPL 1100280 Contact Us For Availability
15
Support, Crisper Cover WPL 1103731 Contact Us For Availability
16
Post, Cripser Cover WPL 836410 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
16
Screw (Repair) WPL 489250 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 946987 Contact Us For Availability
17
Shelf, Freezer WPL 943725 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 945115 Contact Us For Availability
18
Trim, Shelf Front WPL 1111814 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Tape Strip WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1111825 Contact Us For Availability
19
Pan, Crisper WPL 1111863 Contact Us For Availability
19
Tube, Clamp WPL 489151 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Shim, Handle WPL 943187 Contact Us For Availability
20
Trim, Door (2) WPL 946986 Contact Us For Availability
20
Pan, Meat WPL 1111866 Contact Us For Availability
20
Clip, Stand Off Assembly WPL 941359 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Trim, Door WPL 946989 Contact Us For Availability
21
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1118721 Contact Us For Availability
22
Compartment Door, Utility WPL 1111872 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943734 Contact Us For Availability
23
Compartment, Butter Door WPL 1111871 Contact Us For Availability
23
Retainer, Glass Shelf WPL 1111865 Contact Us For Availability
23
Clip, Condenser Mounting (2) WPL 935788 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110354 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
WPL 479502 WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
29
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
29
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
29
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
29
WPL 350941 WPL 350941 Contact Us For Availability
29
WPL 542639 WPL 542639 Contact Us For Availability
29
WPL 72112 WPL 72112 Contact Us For Availability
29
WPL 799832 WPL 799832 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 799908 WPL 799908 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
31
Exchanger, Heat WPL 1108092 Contact Us For Availability
32
Clip, Stand Off WPL 941363 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119325 Contact Us For Availability
33
Heater, Defrost WPL 1105165 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
35
WPL 1119710 WPL 1119710 Contact Us For Availability
35
WPL 1119711 WPL 1119711 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
42
Cover, Capacitor WPL 1118525 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Rail, Unit Mounting WPL 943755 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
WPL 1120224 WPL 1120224 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
51
Evaporator Tray WPL 1101002 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
55
Support, Heater WPL 1108172 Contact Us For Availability
62
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
