Model Whirlpool ET18GKXSW06 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1118800 WPL LIT1118800 Contact Us For Availability

WPL LIT1120605 WPL LIT1120605 Contact Us For Availability

WPL LIT1124890 WPL LIT1124890 Contact Us For Availability

WPL LIT4315846 WPL LIT4315846 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1104642 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Toa WPL 1104645 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Pla WPL 1104646 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1104632 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1104634 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1104636 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1104637 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1104638 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI43573A7 Contact Us For Availability

1

Bottom, Compartment Separator WPL 1111796 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1111807 Contact Us For Availability

2

Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability

2

Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability

2

Roller, Front WPL 942774 Contact Us For Availability

2

Box, Control WPL 1119597 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

3

Screw WPL 489333 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability

4

Timer, Defrost (8 Hour) WPL 1114283 Contact Us For Availability

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Roller, Rear WPL 937216 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489148 Contact Us For Availability

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw (Repair) WPL 488930 Contact Us For Availability

6

Breaker, Trim Clip (3) WPL 534365 Contact Us For Availability

6

Shelf, Frame Cantilever Full WPL 1111787 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

7

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Heater, Mullion WPL 1108139 Contact Us For Availability

7

Shelf, Cantilever WPL 1111785 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Door Gasket, Magnetic WPL 1122830 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1122827 Contact Us For Availability

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

8

Trim, Shelf WPL 1111808 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Crisper Cover WPL 1111861 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $31.71

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $30.73

Spacer (2) WPL 940024 Contact Us For Availability

Trim, Crisper Cover WPL 946436 Contact Us For Availability

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $24.12

Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability

Knob, Thermostat WPL 1111759 Contact Us For Availability

Glass, Crisper Cover WPL 1111862 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Handle, Center WPL 1106194 Contact Us For Availability

Handle, Center (For Platinum Model Only) WPL 1109171 Contact Us For Availability

Handle, Center WPL 1106189 Contact Us For Availability

Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability

Hole Plug (2) (White) WPL 1122929 Contact Us For Availability

Hole Plug (2) (Platinum) WPL 1126568 Contact Us For Availability

Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability

Hole Plug (2) (Toast) WPL 1126570 Contact Us For Availability

Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability

Drain Pan WPL 1108358 Contact Us For Availability

Pan Shelf, Cantilever WPL 1111789 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

Center Rail (White) WPL 1120501 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1120502 Contact Us For Availability

Center Rail (Almond) WPL 1120503 Contact Us For Availability

Center Rail (Toast) WPL 1120504 Contact Us For Availability

Center Rail (Platinum) WPL 1120505 Contact Us For Availability

Retainer, Knob Control WPL 1111792 Contact Us For Availability

Glass, Shelf WPL 1111864 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Terminal Block, Multiple WPL 942842 Contact Us For Availability

Center, Rail Shim (2) WPL 939034 Contact Us For Availability

Knob, Air Control WPL 1111760 Contact Us For Availability

Trim, Shelf WPL 1111834 Contact Us For Availability

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1120635 Contact Us For Availability

Screw WPL 489319 Contact Us For Availability

Support, Crisper Cover WPL 1103731 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Post, Cripser Cover WPL 836410 Contact Us For Availability

Screw (Repair) WPL 488923 Contact Us For Availability

Tap Plate (2) WPL 2147312 Contact Us For Availability

Rod, Connecting WPL 1111272 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Trim, Door Shelf (2) WPL 946987 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

Air Diffuser Assembly WPL 1118774 Contact Us For Availability

Shelf, Freezer WPL 943725 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Nameplate WPL 945121 Contact Us For Availability

Shim, Hinge Top WPL 1123517 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Trim, Shelf Front WPL 1111814 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Grommet (2) WPL 531933 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

Interior Door Panel WPL 1120634 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Pan, Crisper WPL 1111863 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Shim, Handle WPL 943187 Contact Us For Availability

Trim, Door (2) WPL 946986 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Pan, Meat WPL 1111866 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Kit, Foam Slab WPL 876029 Contact Us For Availability

Hinge, Center WPL 944788 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Trim, Door WPL 946989 Contact Us For Availability

Wiring Assembly WPL 937078 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

Compartment Door, Utility WPL 1111872 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

Wiring, Assembly Control Box WPL 1118848 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Scroll, Fan WPL 1122814 Contact Us For Availability

Compartment, Butter Door WPL 1111871 Contact Us For Availability

Gasket, Bottom Separator WPL 1123915 Contact Us For Availability

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Evaporator Cover WPL 943741 Contact Us For Availability

Clip, Medallion WPL 1107329 Contact Us For Availability

Reflector, Shelf WPL 1111844 Contact Us For Availability

Screw (Repair) WPL 489297 Contact Us For Availability

Screw WPL 489179 Contact Us For Availability

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

Glass, Shelf Cantilever WPL 1111922 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Medallion WPL 1111705 Contact Us For Availability

Hinge Butt, Bottom WPL 1123882 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Reflector, Shelf Full Cantilever WPL 1111850 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Insulation, Compartment Separator WPL 1123391 Contact Us For Availability

Glass, Shelf Full Cantilever WPL 1111903 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

28

Pad (2) WPL 946367 Contact Us For Availability

29

Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability

29

Shim, Bottom WPL 942812 Contact Us For Availability

30

Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability

30

Washer, 7/64 WPL 489201 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 479502 WPL 479502 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability

Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

Insulation, Center Rail WPL 1111503 Contact Us For Availability

Cover, Deck Rail (White) WPL 1119399 Contact Us For Availability

Cover, Deck Rail (Golden Harvest) WPL 1119400 Contact Us For Availability

Cove WPL 1119401 Contact Us For Availability

WPL 1119402 WPL 1119402 Contact Us For Availability

WPL 1119403 WPL 1119403 Contact Us For Availability

WPL 1100681 WPL 1100681 Contact Us For Availability

WPL 1100682 WPL 1100682 Contact Us For Availability

WPL 943552 WPL 943552 Contact Us For Availability

WPL 944831 WPL 944831 Contact Us For Availability

WPL 944833 WPL 944833 Contact Us For Availability

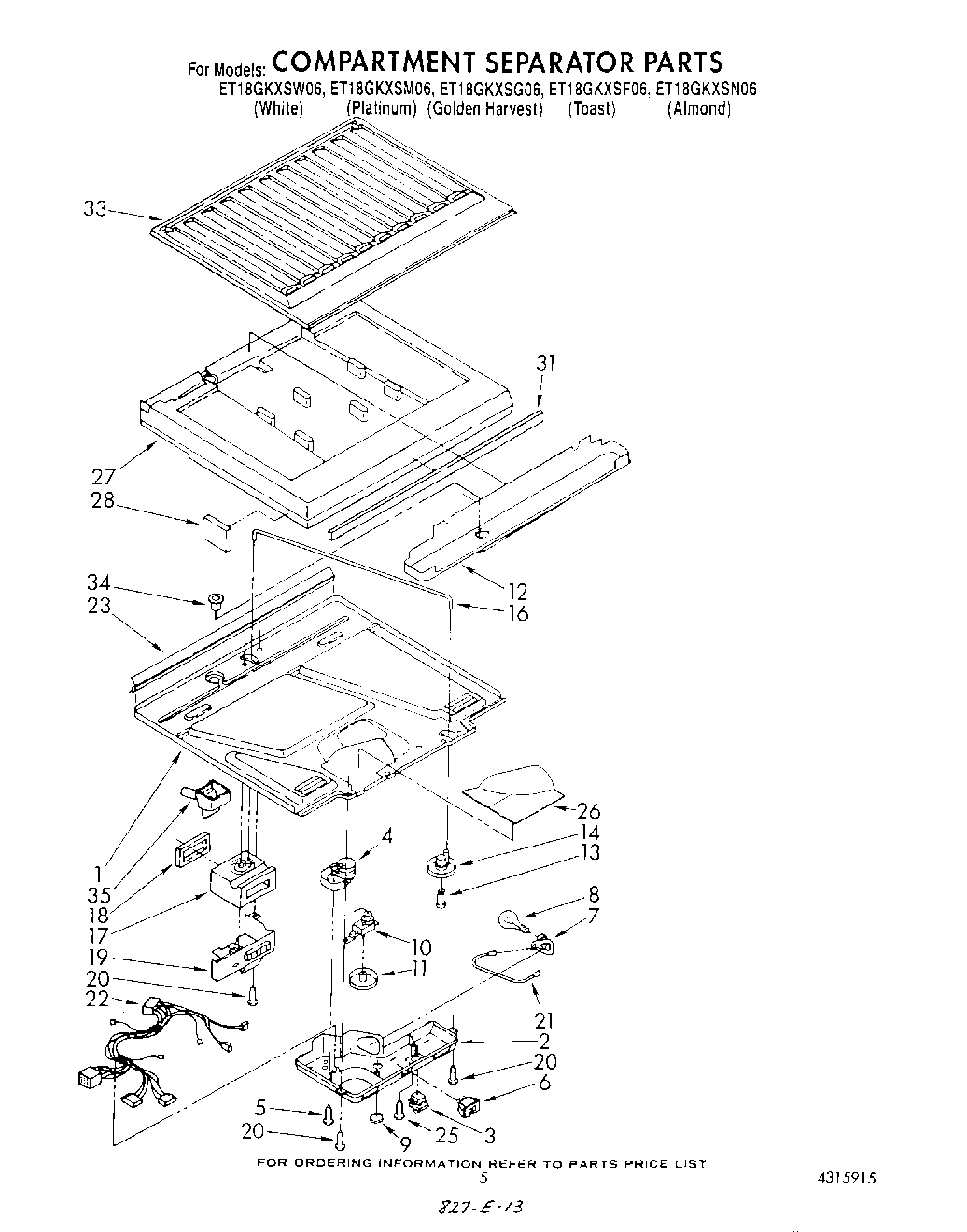

Separator, Compartment (Top) WPL 1123400 Contact Us For Availability

WPL 1118058 WPL 1118058 Contact Us For Availability

WPL 1118059 WPL 1118059 Contact Us For Availability

WPL 1118060 WPL 1118060 Contact Us For Availability

WPL 1118061 WPL 1118061 Contact Us For Availability

WPL 1118062 WPL 1118062 Contact Us For Availability

Drain Insert, Separator WPL 942849 Contact Us For Availability

Cup, Drain WPL 939191 Contact Us For Availability

WPL 1119707 WPL 1119707 Contact Us For Availability

WPL 1119708 WPL 1119708 Contact Us For Availability

WPL 1119709 WPL 1119709 Contact Us For Availability

WPL 1119710 WPL 1119710 Contact Us For Availability

WPL 1119711 WPL 1119711 Contact Us For Availability

WPL 1129062 WPL 1129062 Contact Us For Availability

WPL 1129063 WPL 1129063 Contact Us For Availability

WPL 1129064 WPL 1129064 Contact Us For Availability

WPL 1129065 WPL 1129065 Contact Us For Availability

WPL 1129066 WPL 1129066 Contact Us For Availability

37

WPL 942844 WPL 942844 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

39

WPL 942845 WPL 942845 Contact Us For Availability

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

44

WPL 937360 WPL 937360 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

49

WPL 1106511 WPL 1106511 Contact Us For Availability

50

WPL 1120224 WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

WPL 519405 WPL 519405 Contact Us For Availability

53

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

58

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

59

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

61

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

62

WPL 1106510 WPL 1106510 Contact Us For Availability

70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

70

Install Kit WPL 482801 Contact Us For Availability

71

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

74

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
