Model Whirlpool ET18DKXTG02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1116617 WPL LIT1116617 Contact Us For Availability

WPL LIT1121114 WPL LIT1121114 Contact Us For Availability

WPL LIT1121290 WPL LIT1121290 Contact Us For Availability

WPL LIT4315845 WPL LIT4315845 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116577 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116579 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116580 Contact Us For Availability

1

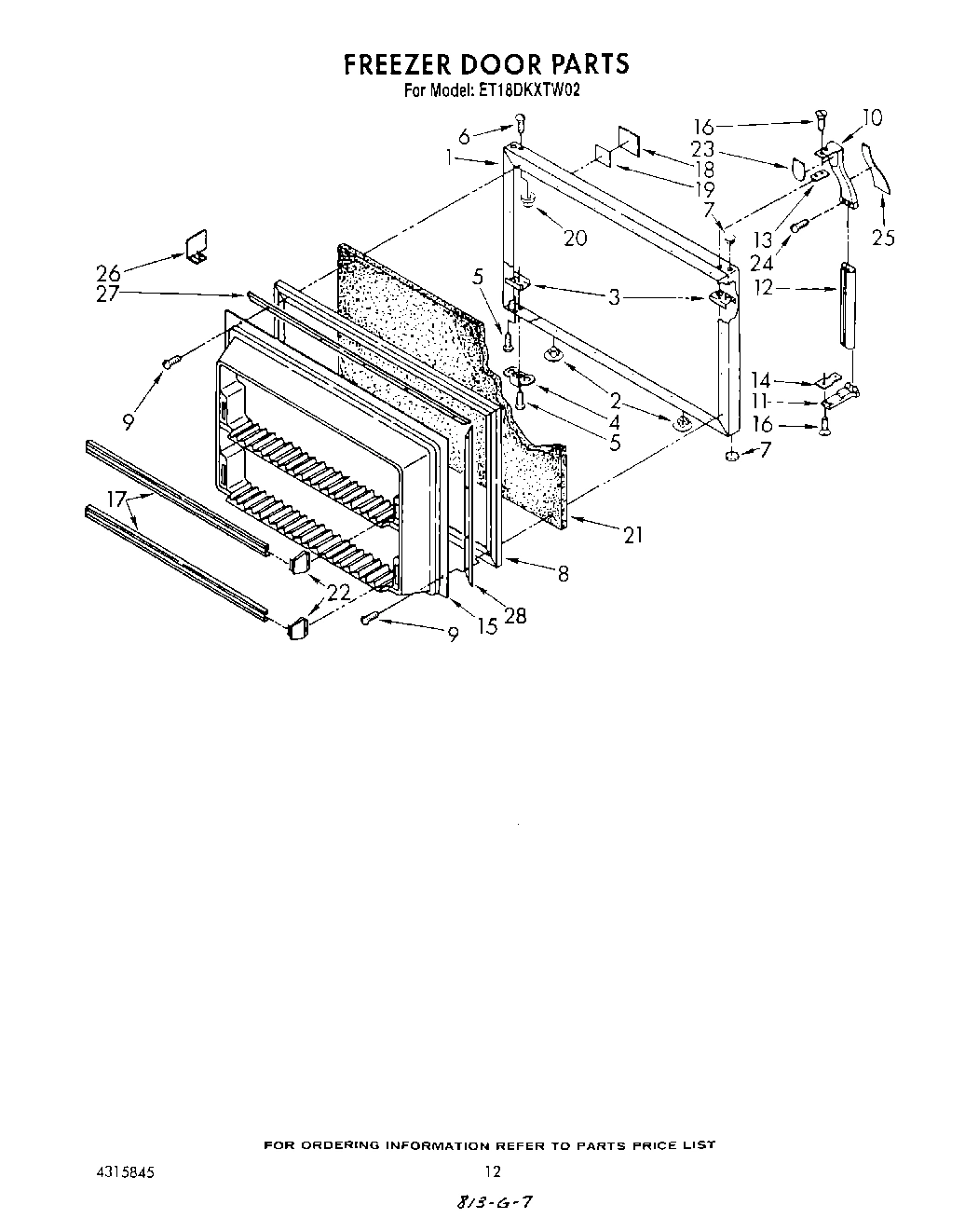

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1116586 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1116588 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1116589 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Toa WPL 1116590 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Pla WPL 1116591 Contact Us For Availability

1

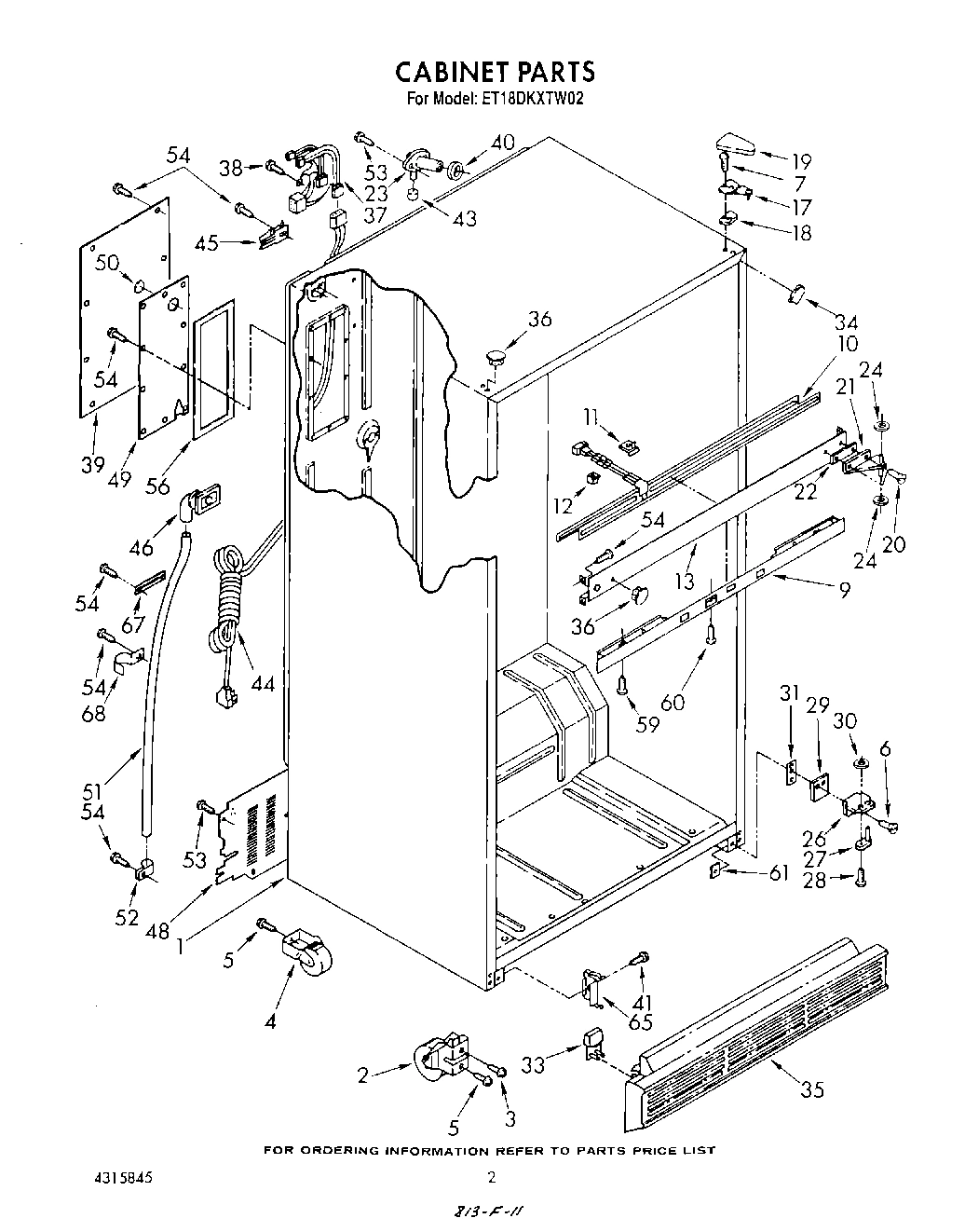

Cabinet (Not A Serviceable Part) WPL ARI146381A Contact Us For Availability

1

Bottom, Compartment Separator WPL 1116561 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI146382A Contact Us For Availability

1

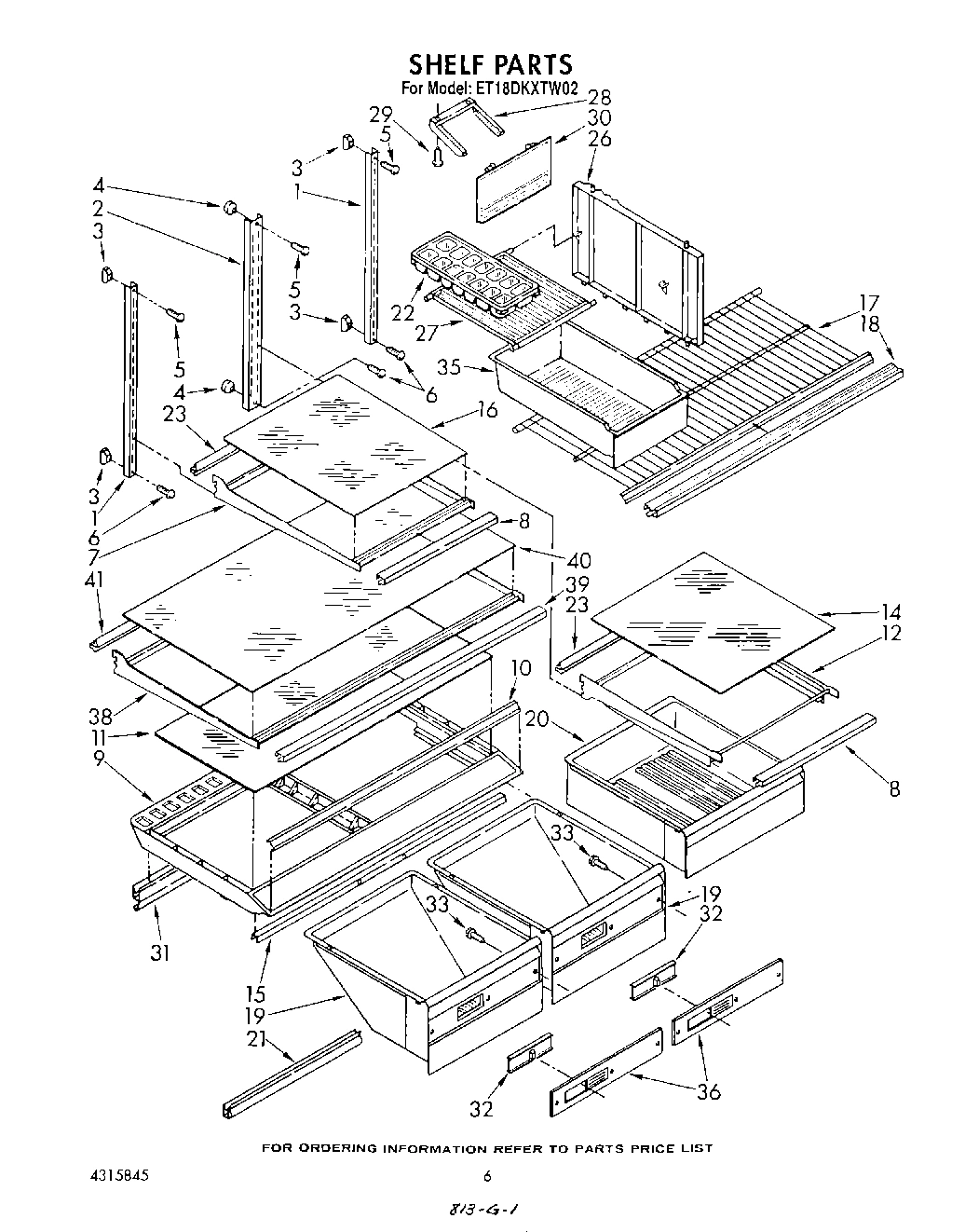

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability

2

Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability

2

Roller, Front WPL 981128 Contact Us For Availability

2

Box, Control WPL 1106805 Contact Us For Availability

2

Wiring, Fan Motor WPL 1114721 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability

3

Hole Plug (2) WPL 944795 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 1105267 Contact Us For Availability

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489148 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw (Repair) WPL 489221 Contact Us For Availability

6

Electrical, Shield WPL 1116559 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

7

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

7

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Electrical, Shield WPL 1123211 Contact Us For Availability

7

Shelf, Cantilever WPL 1116693 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Door Gasket, Magnetic WPL 1116582 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1116592 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Trim, Shelf WPL 1116700 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Control, Front Cover WPL 1116571 Contact Us For Availability

9

Stud, Front (2) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 1116711 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Handle End, Top WPL 944163 Contact Us For Availability

Heater, Mullion WPL 1116548 Contact Us For Availability

Trim, Crisper Cover WPL 1116712 Contact Us For Availability

Handle End, Side WPL 1109189 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Clip, Mullion (3) WPL 1106779 Contact Us For Availability

Knob, Thermostat WPL 1114315 Contact Us For Availability

Grommet, (6) WPL 1110779 Contact Us For Availability

Glass, Crisper Cover WPL 1116715 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle, Center WPL 1106054 Contact Us For Availability

Handle, Center (For Platinum Model Only) WPL 1110378 Contact Us For Availability

Handle, Center WPL 1106079 Contact Us For Availability

Handle, Center (For Platinum Model Only) WPL 1110382 Contact Us For Availability

Spacer (3) WPL 940024 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Center Rail (White) WPL 1116540 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1116542 Contact Us For Availability

Center Rail (Almond) WPL 1116543 Contact Us For Availability

Center Rail (Toast) WPL 1116544 Contact Us For Availability

Center Rail (Platinum) WPL 1116545 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Cover, Air Duct WPL 1116558 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Knob, Air Control WPL 1114314 Contact Us For Availability

Terminal Block, Multiple WPL 942842 Contact Us For Availability

Glass, Meat Cover WPL 1116706 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1116610 Contact Us For Availability

Light, Bar WPL 1105476 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Screw (Repair) WPL 489250 Contact Us For Availability

Rod, Connecting WPL 1116565 Contact Us For Availability

Shelf, Glass WPL 1116699 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Trim, Door Shelf (2) WPL 1118132 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

Air Diffuser Assembly WPL 1123221 Contact Us For Availability

Shelf, Freezer WPL 1116722 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Insert, Handle WPL 1118081 Contact Us For Availability

Insert, Handle (For Platinum Model Only) WPL 1118082 Contact Us For Availability

Nameplate WPL 1111555 Contact Us For Availability

Shim, Hinge Top WPL 1123517 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Trim, Shelf Front WPL 1116723 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Interior Door Panel WPL 1114792 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 1114354 Contact Us For Availability

Pan, Crisper WPL 1124669 Contact Us For Availability

Trim, Door Compartment WPL 1118006 Contact Us For Availability

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Stud, Hook WPL 529850 Contact Us For Availability

Clip, Strap WPL 1123230 Contact Us For Availability

Pan, Meat WPL 1116724 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Hinge, Center WPL 836153 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Crisper, Gasket Front (2) WPL 1116713 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Compartment Door WPL 1118005 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

Wiring, Assembly Control Box WPL 1121091 Contact Us For Availability

Grommet WPL 848445 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Compartment Door WPL 1118013 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

Gasket, Bottom Separator WPL 1116566 Contact Us For Availability

Scroll, Fan WPL 1116598 Contact Us For Availability

Reflector, Shelf WPL 1116701 Contact Us For Availability

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

Clip, Medallion WPL 1107329 Contact Us For Availability

Evaporator Cover WPL 1116599 Contact Us For Availability

25

Pin Plate (8) WPL 1116986 Contact Us For Availability

25

Insert, Handle WPL 1106059 Contact Us For Availability

25

Insert, Handle (For Platinum Model Only) WPL 1114390 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Medallion WPL 1111705 Contact Us For Availability

Divider, Door WPL 1114380 Contact Us For Availability

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

Insulation, Filler WPL 942817 Contact Us For Availability

Divider WPL 1118054 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

WPL 1115137 WPL 1115137 Contact Us For Availability

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability

WPL 1115138 WPL 1115138 Contact Us For Availability

Screw WPL 489218 Contact Us For Availability

Seal, Center Rail WPL 1116567 Contact Us For Availability

Slide, Ice Compartment WPL 1106817 Contact Us For Availability

29

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

29

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

Door, Ice Compartment WPL 1114355 Contact Us For Availability

31

WPL 1118080 WPL 1118080 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

31

Crisper, Gasket Rear (2) WPL 1116714 Contact Us For Availability

32

WPL 1118014 WPL 1118014 Contact Us For Availability

32

Slide, Crisper WPL 1116718 Contact Us For Availability

WPL 1105804 WPL 1105804 Contact Us For Availability

Corner Filler, Grille WPL 1118078 Contact Us For Availability

Separator, Compartment (Top) WPL 1116570 Contact Us For Availability

Screw (6) WPL 489226 Contact Us For Availability

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Filler, Wrapper Corner (2) (Golden Harvest) WPL 1118060 Contact Us For Availability

Filler, Wrapper Corner (2) (Toast) WPL 1118061 Contact Us For Availability

Filler, Wrapper Corner (2) (Platinum) WPL 1118062 Contact Us For Availability

Drain Insert, Separator WPL 942849 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

WPL 1118064 WPL 1118064 Contact Us For Availability

Grille WPL 1118079 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

WPL 1118008 WPL 1118008 Contact Us For Availability

Hole Plug (4) (Toast) WPL 1100176 Contact Us For Availability

Hole Plug (4) (Platinum) WPL 1100177 Contact Us For Availability

Hole Plug (4) (White) WPL 842031 Contact Us For Availability

Hole Plug (4) (Almond) WPL 989195 Contact Us For Availability

Hole Plug (4) (Golden WPL 989876 Contact Us For Availability

Crisper, Pan Front WPL 1116719 Contact Us For Availability

37

WPL 1118007 WPL 1118007 Contact Us For Availability

37

WPL 1121298 WPL 1121298 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

Shelf, Full Cantilever WPL 1116688 Contact Us For Availability

WPL 1118009 WPL 1118009 Contact Us For Availability

WPL 1116595 WPL 1116595 Contact Us For Availability

Drain Pan WPL 1116602 Contact Us For Availability

Trim, Shelf WPL 1116689 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

WPL 1118010 WPL 1118010 Contact Us For Availability

40

Glass, Shelf WPL 1116690 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 1118011 WPL 1118011 Contact Us For Availability

Reflector, Shelf WPL 1116691 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

42

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

43

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

44

WPL 937360 WPL 937360 Contact Us For Availability

45

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

WPL 937062 WPL 937062 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

WPL 1116613 WPL 1116613 Contact Us For Availability

49

WPL 1116607 WPL 1116607 Contact Us For Availability

50

WPL 1120224 WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

WPL 836077 WPL 836077 Contact Us For Availability

56

WPL 1123404 WPL 1123404 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

WPL 836162 WPL 836162 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

67

WPL 1105607 WPL 1105607 Contact Us For Availability

68

WPL 1110564 WPL 1110564 Contact Us For Availability
