Model Whirlpool ET17SCXLWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

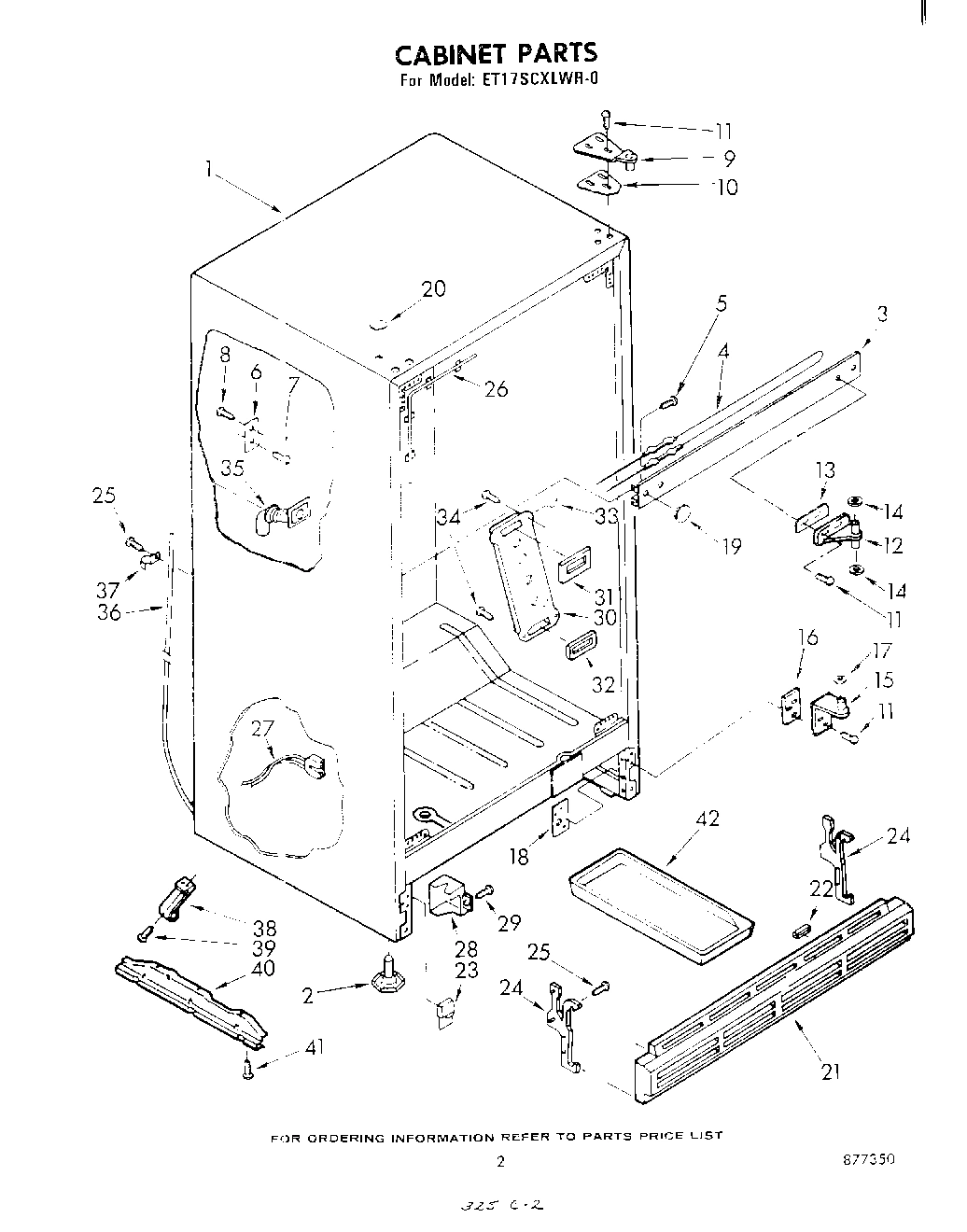

02 - CABINET

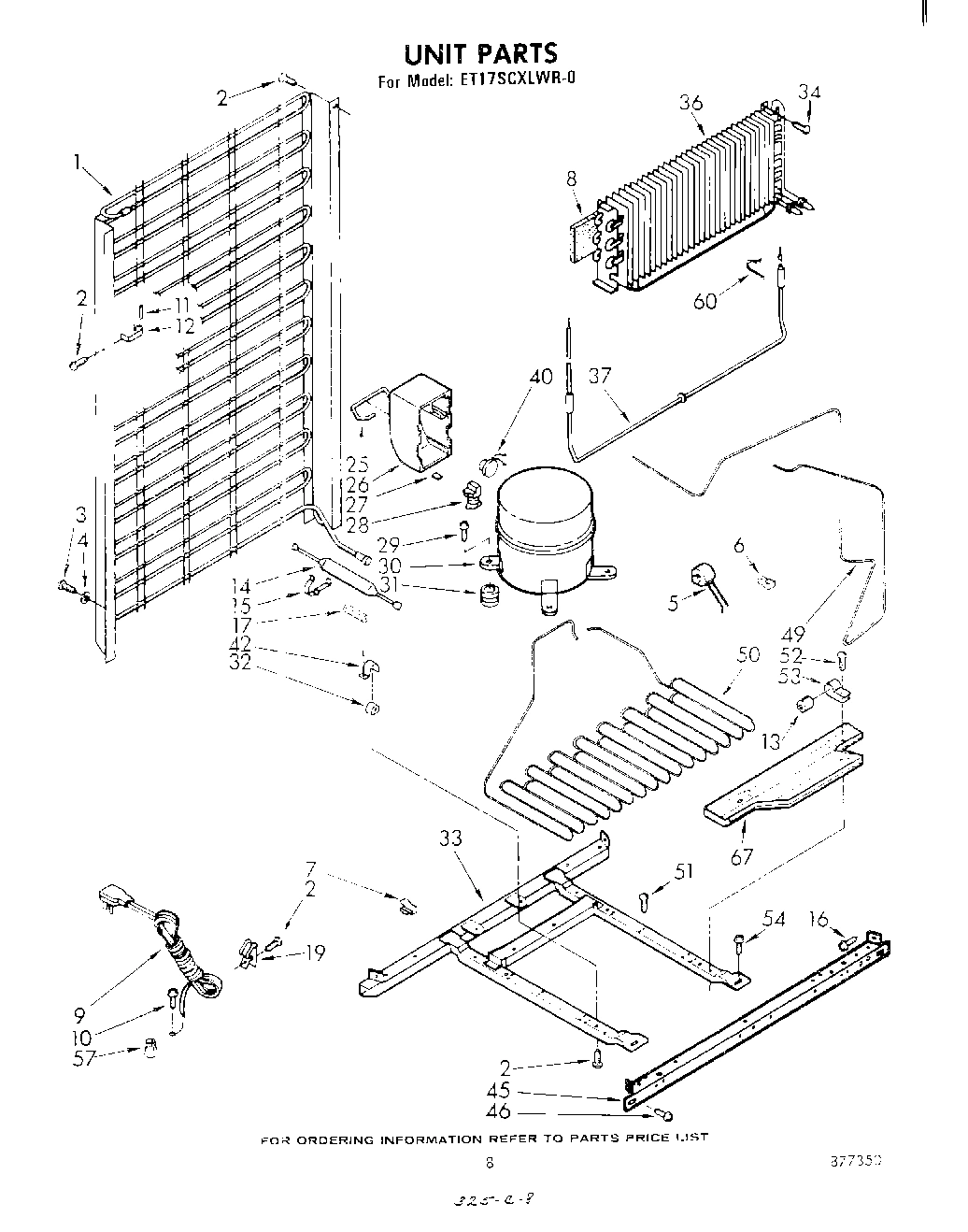

05 - UNIT

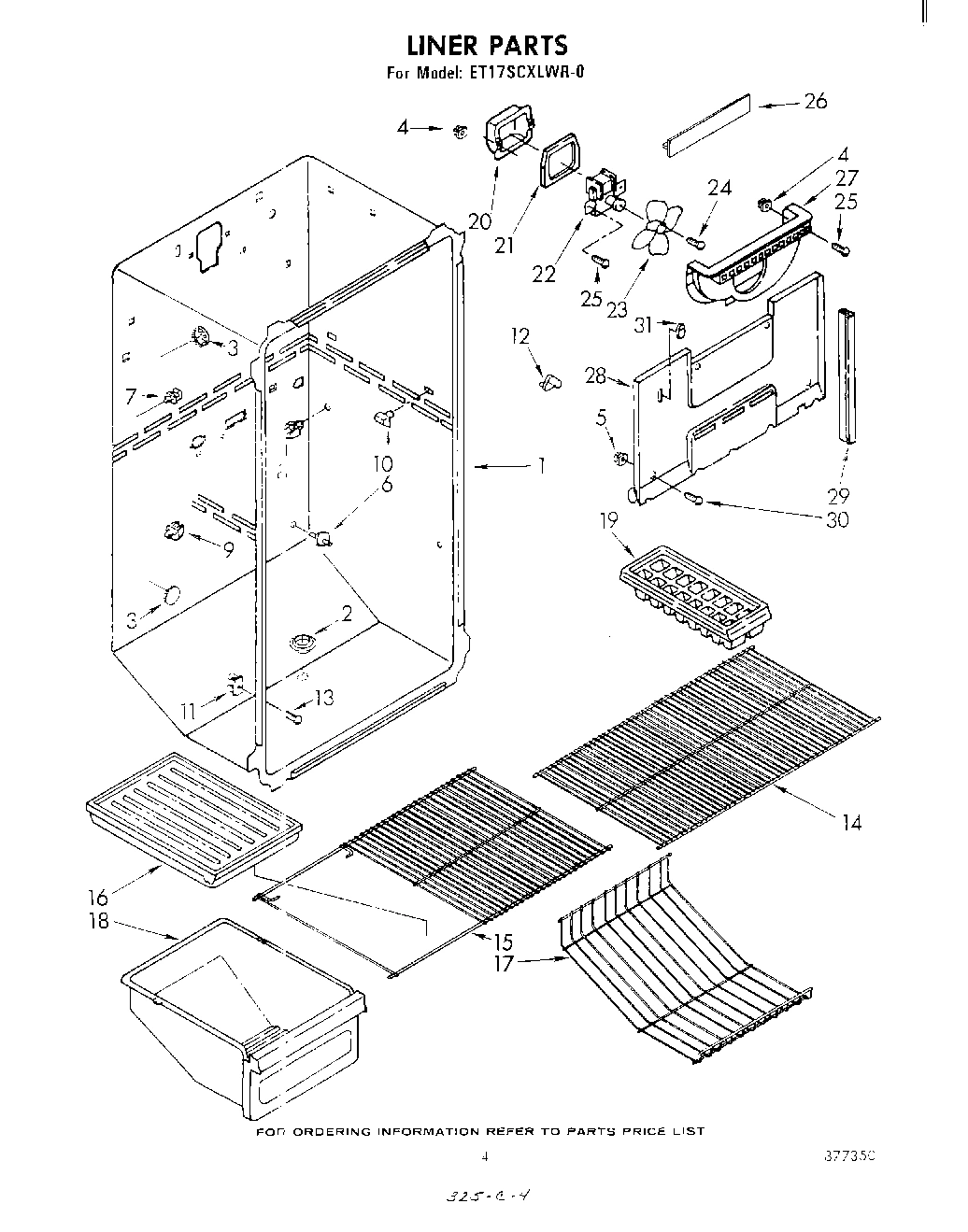

03 - LINER

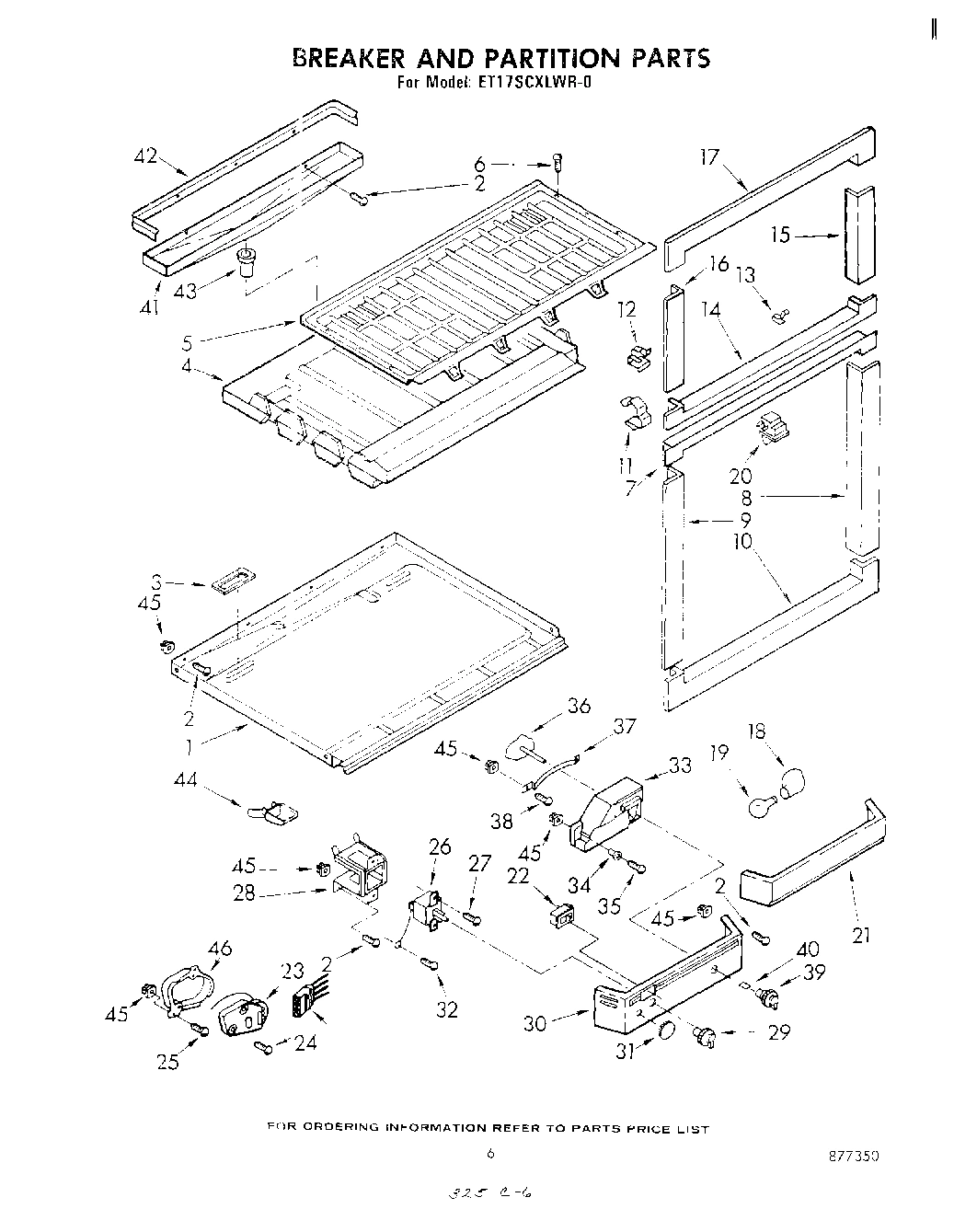

04 - BREAKER AND PARTITION

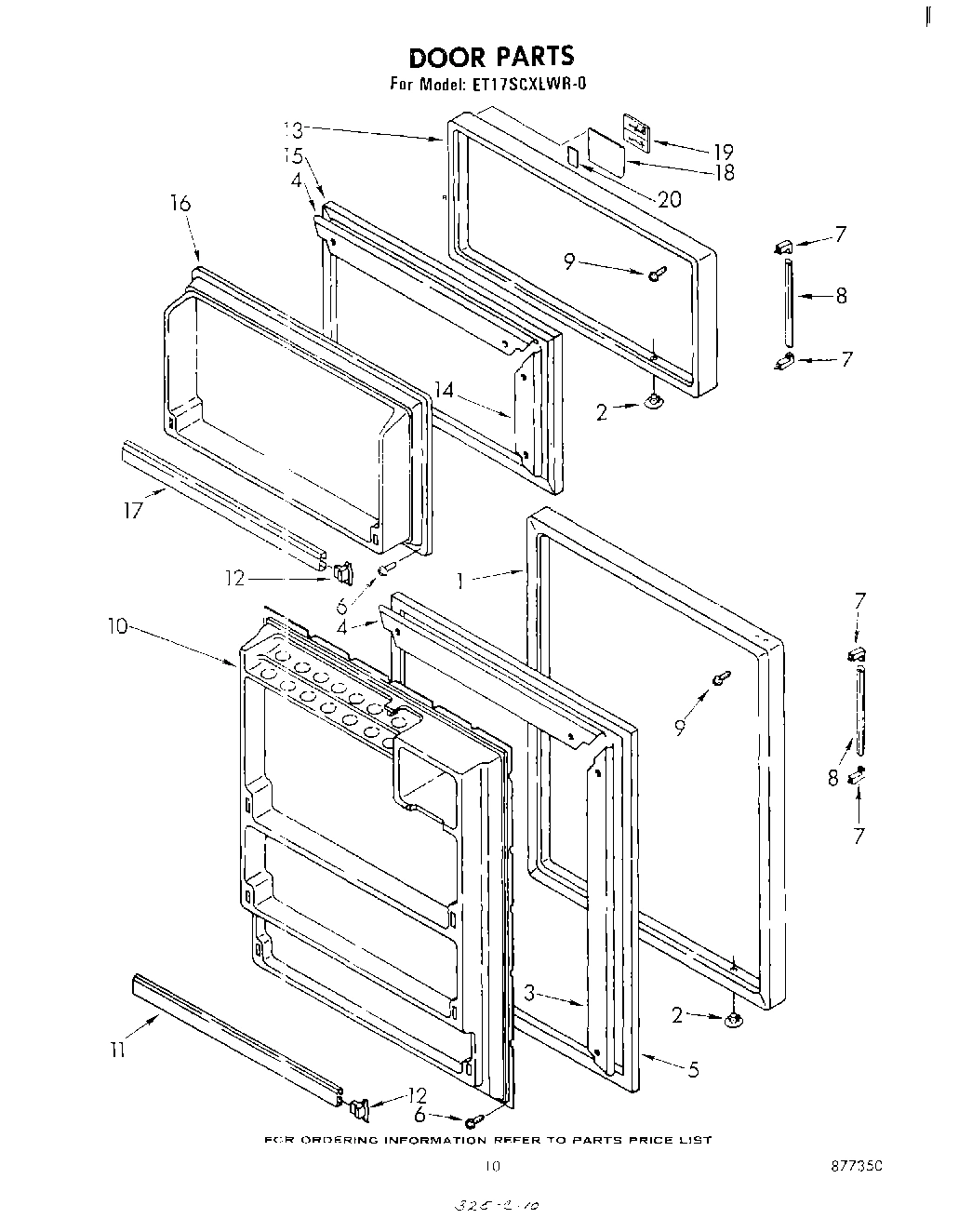

06 - DOOR , NOT ILLUSTRATED AND OPTIONAL
Common parts from model Whirlpool ET17SCXLWR0 TOP MOUNT REFRIGERATOR
1
Condenser WPL 941603 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43170A7 Contact Us For Availability
1
Bottom, Compartment Separator WPL 981727 Contact Us For Availability
1
Refrigerator Door (White) WPL 992828 Contact Us For Availability
2
Drain Hole Cover WPL 835370 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Hole Plug (2) WPL 519890 Contact Us For Availability
3
Gasket, Air Return WPL 981725 Contact Us For Availability
3
Retainer, Gasket Side (2) WPL 836117 Contact Us For Availability
4
Bumper WPL 204349 Contact Us For Availability
4
Insulation, Separator WPL 991172 Contact Us For Availability
4
Retainer, Gasket Top & Bottom (4) WPL 836118 Contact Us For Availability
5
Grommet WPL 848445 Contact Us For Availability
5
Compartment, Separator Top WPL 848422 Contact Us For Availability
6
Clamp WPL 513584 Contact Us For Availability
6
Shelf Stud (2) WPL 652581 Contact Us For Availability
7
Clip, Wire (2) WPL 548745 Contact Us For Availability
7
Shelf Stud (6) WPL 942219 Contact Us For Availability
7
Breaker, Mullion (Bottom) WPL 836025 Contact Us For Availability
7
End, Door Handle (2) WPL 845793 Contact Us For Availability
8
Baffle, Evaporator WPL 981726 Contact Us For Availability
8
Shelf, Stud R.S. (2) WPL 523263 Contact Us For Availability
8
Breaker Trim R.S. WPL 836028 Contact Us For Availability
8
Door, Handle Center WPL 845792 Contact Us For Availability
9
Cord, Service WPL 850626 Contact Us For Availability
9
Shelf, Stud L.S. (3) WPL 523264 Contact Us For Availability
9
Breaker Trim L.S. WPL 836032 Contact Us For Availability
9
Screw, .190 x 3/4 (2) WPL 488818 Contact Us For Availability
10
Screw, Ground WPL 488474 Contact Us For Availability
10
Retainer, Stud (4) WPL 836374 Contact Us For Availability
10
Breaker Trim Bottom WPL 836026 Contact Us For Availability
10
Interior Door Panel WPL 984169 Contact Us For Availability
11
Dampener WPL 850194 Contact Us For Availability
11
Insulator, Spacer (8) WPL 539760 Contact Us For Availability
11
Clip WPL 845807 Contact Us For Availability
11
Door Shelf Trim (2) WPL 982341 Contact Us For Availability
12
Retainer, Door Trim (4) WPL 839975 Contact Us For Availability
12
Clip WPL 515268 Contact Us For Availability
12
Insulator, Spacer (2) WPL 836040 Contact Us For Availability
12
Clip (2) WPL 836090 Contact Us For Availability
13
Dampener (2) WPL 510769 Contact Us For Availability
13
Clip (8) WPL 534365 Contact Us For Availability
13
Freezer Door (White) WPL 935154 Contact Us For Availability
14
Shelf Wire (2) WPL 942203 Contact Us For Availability
14
Breaker, Mullion (Top) WPL 836223 Contact Us For Availability
14
Retainer, Gasket Side (2) WPL 836119 Contact Us For Availability
15
Clamp, Drier WPL 547637 Contact Us For Availability
15
Pan, Shelf Wire WPL 942204 Contact Us For Availability
15
Breaker Trim, R.S. WPL 836027 Contact Us For Availability
16
Pan, Cover WPL 836448 Contact Us For Availability
16
Breaker Trim, L.S. WPL 836031 Contact Us For Availability
16
Interior Door Panel F.C. WPL 983155 Contact Us For Availability
17
Sleeve, Restrictor WPL 510446 Contact Us For Availability
17
Trivet WPL 942218 Contact Us For Availability
17
Breaker Trim (Freezer Top) WPL 836078 Contact Us For Availability
17
Trim, Door Shelf WPL 843707 Contact Us For Availability
18
Tap-Plate, Bottom Hinge WPL 836162 Contact Us For Availability
18
Pan, Plastic WPL 942205 Contact Us For Availability
18
Escutcheon, Nameplate WPL 849310 Contact Us For Availability
19
Hole, Plug (2) (White) WPL 835974 Contact Us For Availability
19
Insert, Nameplate WPL 848308 Contact Us For Availability
20
WPL 876029 WPL 876029 Contact Us For Availability
20
Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability
20
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
20
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
20
Fan, Motor Cover WPL 836474 Contact Us For Availability
20
Leveler (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
20
Lacquer, Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability
20
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
20
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
20
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
20
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
20
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
20
KIT, EVAPORATOR REPAIR (ALU WPL 799833 Contact Us For Availability
20
WPL 877350 WPL 877350 Contact Us For Availability
20
WPL 941676 WPL 941676 Contact Us For Availability
20
WPL 942207 WPL 942207 Contact Us For Availability
20
WPL 942208 WPL 942208 Contact Us For Availability
20
WPL 942209 WPL 942209 Contact Us For Availability
20
WPL 991259 WPL 991259 Contact Us For Availability
21
Exterior, Grille WPL 934568 Contact Us For Availability
21
Gasket, Fan Cover WPL 836475 Contact Us For Availability
21
Light Lens WPL 983910 Contact Us For Availability
22
Bumper, Grille (2) WPL 546131 Contact Us For Availability
23
Filler, Grille WPL 934569 Contact Us For Availability
23
Defrost, Timer WPL 851161 Contact Us For Availability
24
Support, Grille (2) WPL 844614 Contact Us For Availability
24
Screw, 8 x 1-1/8 (2) WPL 488678 Contact Us For Availability
25
Spring WPL 531318 Contact Us For Availability
26
Stile, Heater WPL 531670 Contact Us For Availability
26
Case WPL 549945 Contact Us For Availability
26
Gasket, Sealing WPL 935068 Contact Us For Availability
27
Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability
27
Bumper WPL 547272 Contact Us For Availability
27
Scroll, Fan WPL 935067 Contact Us For Availability
28
Box, Junction WPL 549947 Contact Us For Availability
28
Relay (Alternate) WPL 989661 Contact Us For Availability
28
Relay WPL 989662 Contact Us For Availability
28
Cover, Evaporator WPL 986628 Contact Us For Availability
28
Bracket, Thermostat WPL 848446 Contact Us For Availability
29
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
29
Gasket, Evaporator WPL 981749 Contact Us For Availability
29
Knob, Temperature Control WPL 836482 Contact Us For Availability
30
Duct, Air WPL 934057 Contact Us For Availability
30
Compressor WPL 464063 Contact Us For Availability
30
Panel, Control WPL 942214 Contact Us For Availability
31
Gasket Inlet WPL 836565 Contact Us For Availability
31
Grommet (4) WPL 547283 Contact Us For Availability
31
Hole, Plug WPL 659776 Contact Us For Availability
32
Gasket Outlet WPL 934058 Contact Us For Availability
32
Grommet (4) WPL 513646 Contact Us For Availability
33
Speednut (4) WPL 488564 Contact Us For Availability
33
Frame WPL 548654 Contact Us For Availability
33
Air Diffuser WPL 836487 Contact Us For Availability
35
Drain Fitting WPL 836096 Contact Us For Availability
35
Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability
36
Evaporator WPL 989650 Contact Us For Availability
36
Damper, Air WPL 836247 Contact Us For Availability
37
Tube Clamp WPL 836077 Contact Us For Availability
37
Heater, Defrost WPL 992942 Contact Us For Availability
37
Retainer, Damper WPL 836493 Contact Us For Availability
38
Drain, Clamp Deck WPL 840239 Contact Us For Availability
38
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
39
Screw, 8-32 x 1/2 (2) WPL 488845 Contact Us For Availability
39
Control Knob WPL 837445 Contact Us For Availability
40
Drain Pan Slide WPL 843164 Contact Us For Availability
40
Overload WPL 549041 Contact Us For Availability
40
Knob, Retainer WPL 837444 Contact Us For Availability
41
Screw, 8-32 x 1/2 (6) WPL 489050 Contact Us For Availability
41
Drain Pan WPL 836199 Contact Us For Availability
42
Tray, Evaporator WPL 836205 Contact Us For Availability
42
Clamp, Tube (4) WPL 531086 Contact Us For Availability
42
Gasket, Drain Pan WPL 843290 Contact Us For Availability
43
Fitting, Drain Pan WPL 841770 Contact Us For Availability
44
Cup, Drain WPL 836095 Contact Us For Availability
45
Rail, Front WPL 941697 Contact Us For Availability
45
Grommet WPL 842339 Contact Us For Availability
46
Container Timer WPL 983079 Contact Us For Availability
49
Exchanger, Heat WPL 943360 Contact Us For Availability
50
Precooler WPL 851113 Contact Us For Availability
53
Clamp (2) WPL 510716 Contact Us For Availability
54
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
57
Nut, Wire WPL 227991 Contact Us For Availability
60
Clip, Heater (2) WPL 850721 Contact Us For Availability
67
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
67
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
67
Pan, Drip WPL 989269 Contact Us For Availability
× ![]()
