Model Whirlpool ET17HKXRNR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

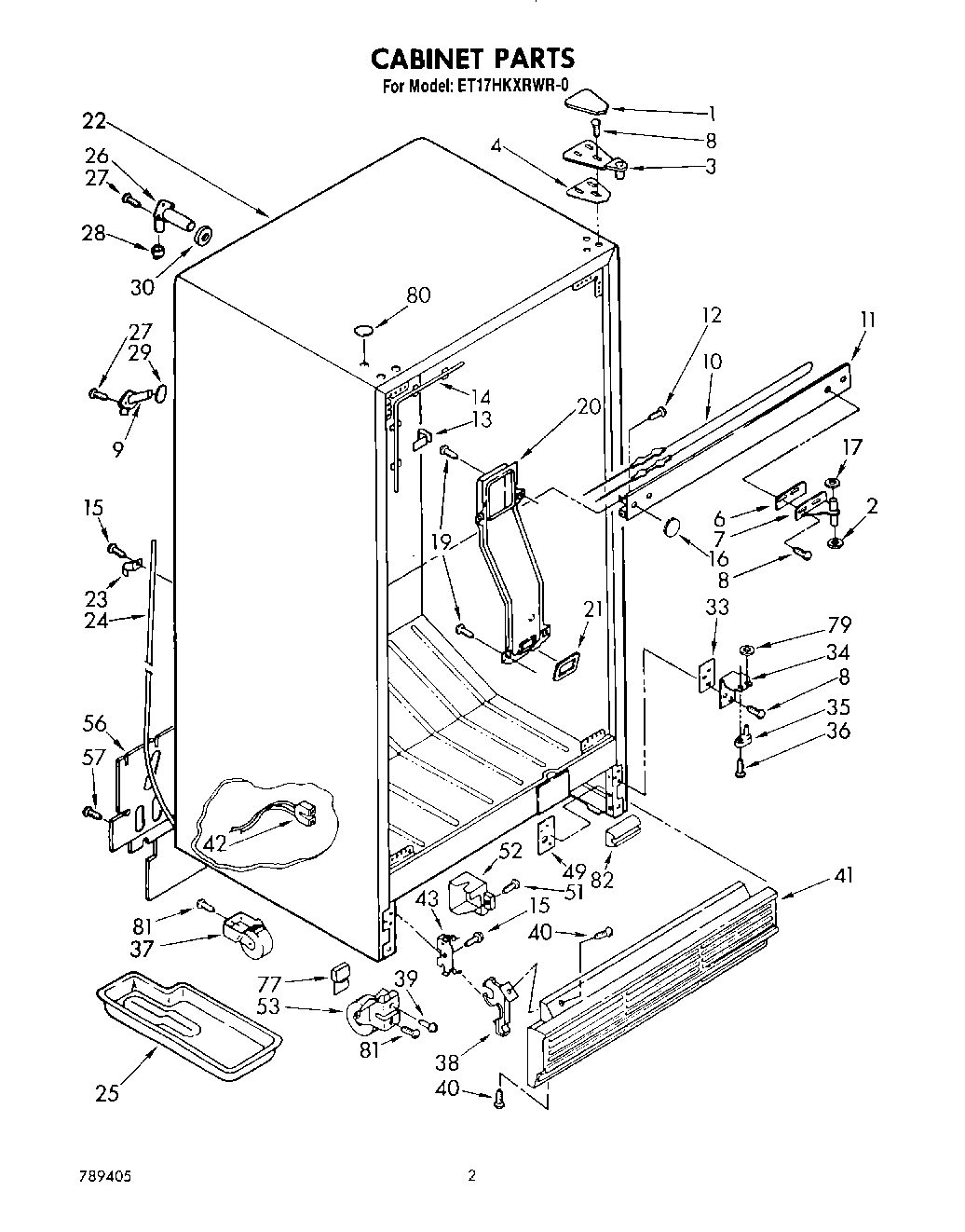

02 - CABINET

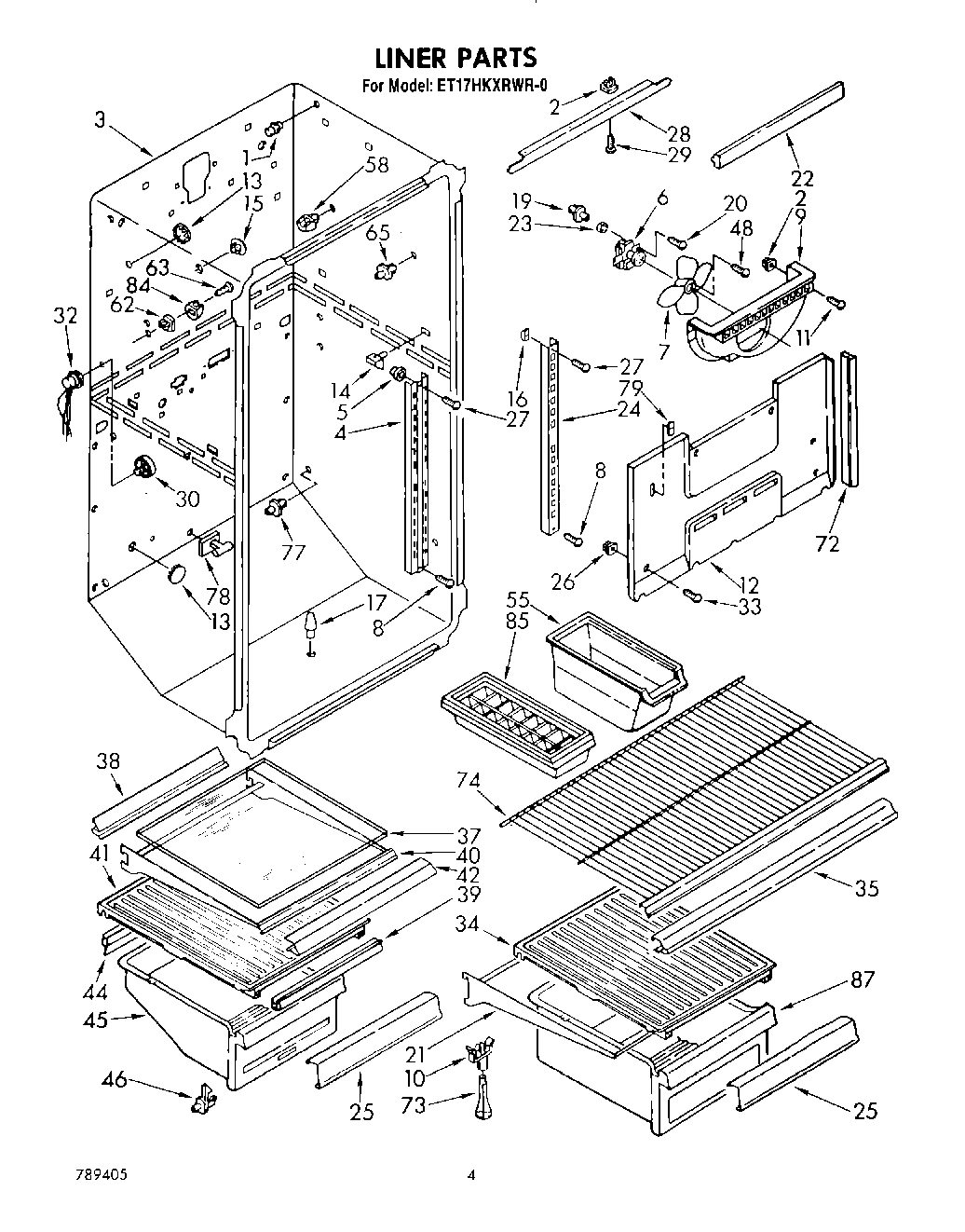

03 - LINER

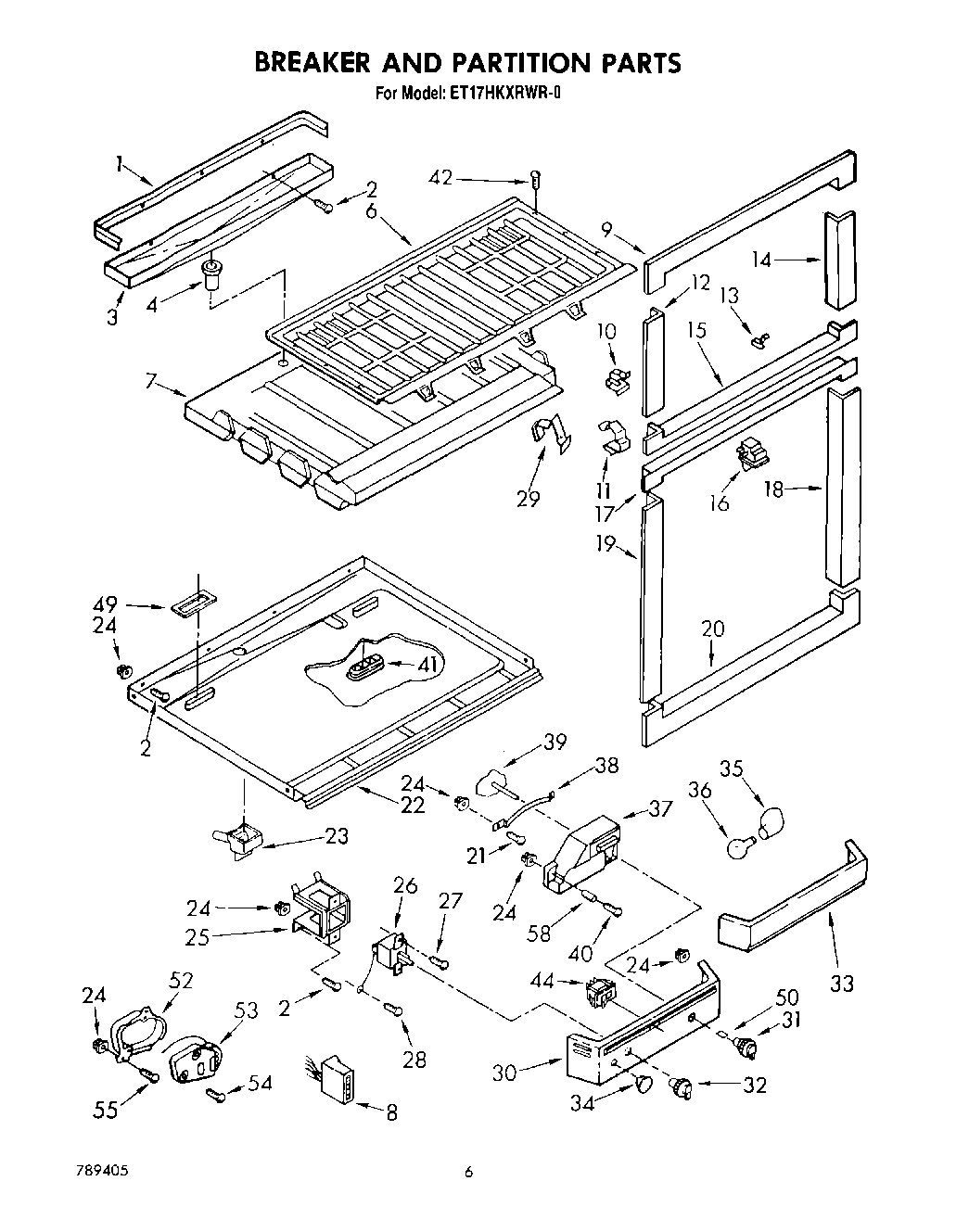

04 - BREAKER AND PARTITION

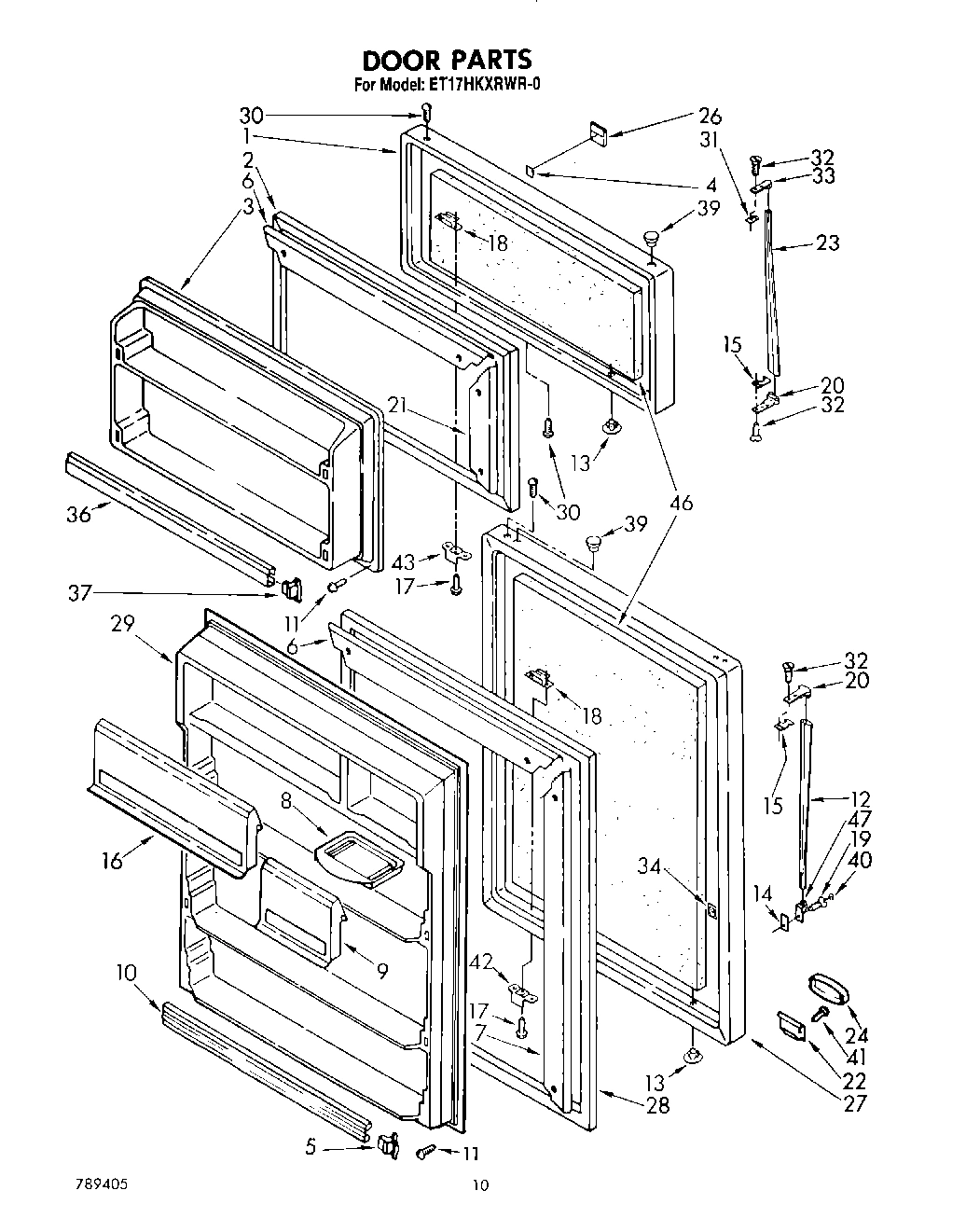

06 - DOOR, LIT/OPTIONAL

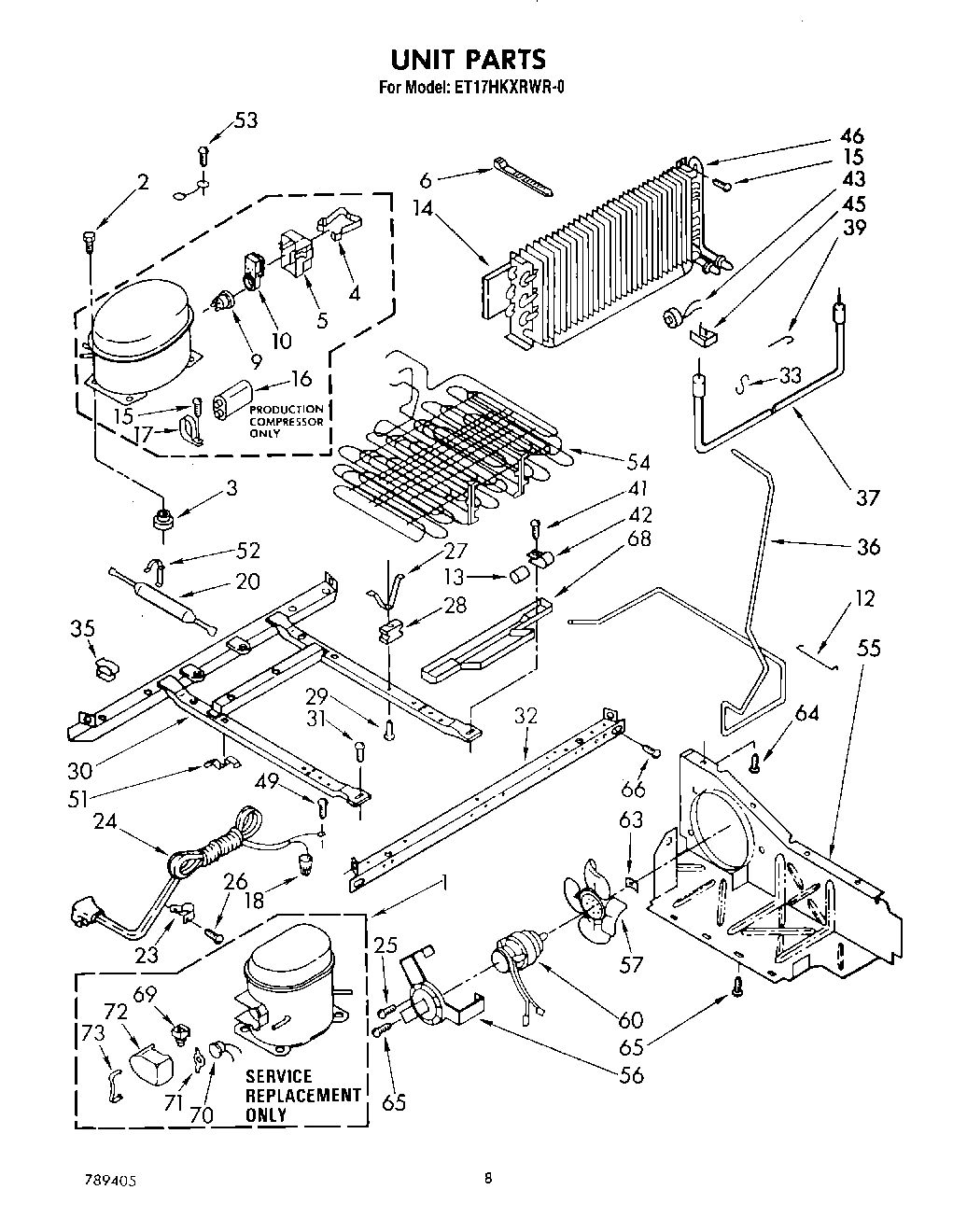

05 - UNIT
Common parts from model Whirlpool ET17HKXRNR0 TOP MOUNT REFRIGERATOR
WPL 677813 WPL 677813 Contact Us For Availability
WPL 677818 WPL 677818 Contact Us For Availability
WPL 677821 WPL 677821 Contact Us For Availability
WPL 677967 WPL 677967 Contact Us For Availability
WPL 677971 WPL 677971 Contact Us For Availability
WPL LIT1100859 WPL LIT1100859 Contact Us For Availability
WPL LIT1109026 WPL LIT1109026 Contact Us For Availability
WPL LIT1109123 WPL LIT1109123 Contact Us For Availability
WPL LIT789405 WPL LIT789405 Contact Us For Availability
1
Stud, Evaporator Cover WPL 526383 Contact Us For Availability
1
Gasket, Drain Pan WPL 843290 Contact Us For Availability
1
Door, Freezer (Also Order Item 46) (Toast) WPL 1100311 Contact Us For Availability
1
Door, Freezer (Also Order Item 46) (Platinum) WPL 1100312 Contact Us For Availability
1
Door, Freezer (Also Order Item 46) (White) WPL 943175 Contact Us For Availability
1
Door, Freezer (Also Order Item 46) (Coffee) WPL 943176 Contact Us For Availability
1
Door, Freezer (Also Order Item 46) (Golden Ha WPL 943177 Contact Us For Availability
1
Door, Freezer (Also Order Item 46) (Almond) WPL 943179 Contact Us For Availability
3
Liner (Not A Serviceable Part) WPL ARI43094A7 Contact Us For Availability
3
Pan, Evaporator Drain WPL 836199 Contact Us For Availability
3
Panel, Interior WPL 481966 Contact Us For Availability
4
Ladder, Shelf WPL 936230 Contact Us For Availability
4
Fitting, Drain Pan WPL 841770 Contact Us For Availability
4
Tape WPL 991259 Contact Us For Availability
4
Spring, Case WPL 938384 Contact Us For Availability
5
Support, Ladder (2) WPL 520959 Contact Us For Availability
5
Case, Relay WPL 1105015 Contact Us For Availability
6
Separator (Top) WPL 848422 Contact Us For Availability
6
Retainer, Top & Bottom (2) WPL 836118 Contact Us For Availability
6
Strap WPL 851095 Contact Us For Availability
7
Insulation, Separator WPL 991172 Contact Us For Availability
7
Retainer, Side (2) WPL 836117 Contact Us For Availability
8
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
8
Screw (Repair) WPL 488980 Contact Us For Availability
8
Wiring, Liner (Defrost Timer) WPL 481782 Contact Us For Availability
9
Scroll, Fan WPL 935067 Contact Us For Availability
9
Breaker, Freezer (Top) WPL 940921 Contact Us For Availability
9
Door, Butter WPL 1109021 Contact Us For Availability
9
Overload WPL 1100807 Contact Us For Availability
10
Support, Cover WPL 848562 Contact Us For Availability
10
Clip (2) WPL 836090 Contact Us For Availability
10
Trim, Shelf (2) WPL 1109019 Contact Us For Availability
10
Relay WPL 1100806 Contact Us For Availability
11
Clip (13) WPL 845807 Contact Us For Availability
12
Cover, Evaporator WPL 986628 Contact Us For Availability
12
Breaker, Freezer (L.S.) WPL 836031 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104738 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Guard, Fan WPL 850156 Contact Us For Availability
13
Plug, Hole (4) WPL 519890 Contact Us For Availability
13
Clip (8) WPL 534365 Contact Us For Availability
13
Plug, Hole WPL 534927 Contact Us For Availability
13
Dampener (2) WPL 510769 Contact Us For Availability
14
Shim, Handle WPL 992872 Contact Us For Availability
14
Stud, Retainer (4) WPL 836374 Contact Us For Availability
14
Breaker, Freezer (R.S.) WPL 836027 Contact Us For Availability
14
Baffle, Evaporator WPL 981726 Contact Us For Availability
15
Spacer, Handle WPL 943188 Contact Us For Availability
15
Plug, Hole (2) WPL 659598 Contact Us For Availability
15
Breaker, Mullion (Top) WPL 836223 Contact Us For Availability
16
Door, Utility WPL 1109022 Contact Us For Availability
16
Running Capacitor WPL 1101182 Contact Us For Availability
17
Grommet WPL 836409 Contact Us For Availability
17
Breaker, Mullion (Bottom) WPL 836025 Contact Us For Availability
17
Clamp, Capacitor WPL 1101184 Contact Us For Availability
18
Breaker, Refrigerator R.S. WPL 836028 Contact Us For Availability
18
Wire Connector WPL 227991 Contact Us For Availability
19
Grommet (2) WPL 845722 Contact Us For Availability
19
Breaker, Refrigerator L.S. WPL 836032 Contact Us For Availability
20
Breaker, Refrigerator (Bottom) WPL 836026 Contact Us For Availability
21
Pan Cantilever, Shelf WPL 936284 Contact Us For Availability
21
Retainer, Side (2) WPL 836119 Contact Us For Availability
22
Gasket, Sealing WPL 935068 Contact Us For Availability
22
Separator WPL 981727 Contact Us For Availability
22
Clip, Medallion WPL 843213 Contact Us For Availability
23
Grommet (2) WPL 531933 Contact Us For Availability
23
Cup, Drain WPL 943918 Contact Us For Availability
23
Handle, Center (For Platinum Model Only) WPL 1104739 Contact Us For Availability
23
Handle, Center WPL 1108729 Contact Us For Availability
24
Grommet WPL 842339 Contact Us For Availability
24
Ladder, Shelf (2) WPL 934267 Contact Us For Availability
24
Medallion (Toast) WPL 1100194 Contact Us For Availability
24
Medallion (Platinum) WPL 1100195 Contact Us For Availability
24
Medallion (White) WPL 848382 Contact Us For Availability
24
Medallion (Coffee) WPL 989901 Contact Us For Availability
24
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
24
Medallion (Almond) WPL 989904 Contact Us For Availability
24
Cord, Service WPL 850626 Contact Us For Availability
25
Tray, Evaporating WPL 842041 Contact Us For Availability
25
Overlay, Pan WPL 986968 Contact Us For Availability
25
Bracket, Thermostat WPL 848446 Contact Us For Availability
26
Grommet (4) WPL 848445 Contact Us For Availability
26
Insert, Nameplate WPL 945107 Contact Us For Availability
27
Door, Refrigerator (Also Order Item 46) (Toas WPL 1100309 Contact Us For Availability
27
Door, Refrigerator (Also Order Item 46) (Plat WPL 1100310 Contact Us For Availability
27
Door, Refrigerator (Also Order Item 46) (Whit WPL 943169 Contact Us For Availability
27
Door, Refr WPL 943170 Contact Us For Availability
27
WPL 943171 WPL 943171 Contact Us For Availability
27
WPL 943173 WPL 943173 Contact Us For Availability
27
Clamp (4) WPL 548738 Contact Us For Availability
28
Baffle, Liner Top WPL 984147 Contact Us For Availability
28
Grommet (4) WPL 943447 Contact Us For Availability
29
Clip, Retainer (2) WPL 939139 Contact Us For Availability
29
WPL 482374 WPL 482374 Contact Us For Availability
30
Cap, Receptacle WPL 850738 Contact Us For Availability
30
Panel, Control WPL 942214 Contact Us For Availability
30
WPL 488930 WPL 488930 Contact Us For Availability
30
Frame WPL 945457 Contact Us For Availability
31
WPL 943187 WPL 943187 Contact Us For Availability
31
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
31
Knob, Control (Includes Illus. 50) WPL 837445 Contact Us For Availability
32
Wiring, Liner (Ice Maker) WPL 481658 Contact Us For Availability
32
Knob, Thermostat WPL 836482 Contact Us For Availability
32
WPL 488923 WPL 488923 Contact Us For Availability
32
Rail, Front WPL 548662 Contact Us For Availability
33
Lens, Light WPL 983910 Contact Us For Availability
33
Support, Heater WPL 851358 Contact Us For Availability
34
Cover, Meat Pan WPL 1109013 Contact Us For Availability
35
Pin, Hinge WPL 654366 Contact Us For Availability
35
Trim, Shelf Front WPL 849261 Contact Us For Availability
35
Clip, Wire (2) WPL 548745 Contact Us For Availability
36
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
36
WPL 837789 WPL 837789 Contact Us For Availability
36
Exchanger, Heat WPL 1100820 Contact Us For Availability
37
Glass, Shelf WPL 1109017 Contact Us For Availability
37
Air Diffuser WPL 836487 Contact Us For Availability
37
Heater, Defrost WPL 992942 Contact Us For Availability
38
Retainer, Glass Shelf WPL 942183 Contact Us For Availability
38
Retainer WPL 836493 Contact Us For Availability
39
Gasket, Front (2) WPL 982160 Contact Us For Availability
39
Damper, Air WPL 1101149 Contact Us For Availability
39
WPL 1100188 WPL 1100188 Contact Us For Availability
39
WPL 1100189 WPL 1100189 Contact Us For Availability
39
WPL 989196 WPL 989196 Contact Us For Availability
39
WPL 989892 WPL 989892 Contact Us For Availability
39
Clip, Heater (2) WPL 850721 Contact Us For Availability
40
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
40
Shelf, Cantilever (3) WPL 936794 Contact Us For Availability
41
WPL 944233 WPL 944233 Contact Us For Availability
41
WPL 944234 WPL 944234 Contact Us For Availability
41
WPL 944235 WPL 944235 Contact Us For Availability
41
WPL 944237 WPL 944237 Contact Us For Availability
41
Pan, Slide & Cover (2) WPL 1109010 Contact Us For Availability
41
Air Return, Grommet WPL 946683 Contact Us For Availability
42
WPL 548734 WPL 548734 Contact Us For Availability
42
Trim, Shelf Front WPL 935215 Contact Us For Availability
42
WPL 944036 WPL 944036 Contact Us For Availability
42
Clamp (2) WPL 510716 Contact Us For Availability
43
WPL 989068 WPL 989068 Contact Us For Availability
43
WPL 944035 WPL 944035 Contact Us For Availability
44
Gasket, Rear (2) WPL 982158 Contact Us For Availability
45
Pan, Crisper (2) WPL 1109012 Contact Us For Availability
45
Clamp WPL 513584 Contact Us For Availability
46
Stud (2) WPL 836423 Contact Us For Availability
46
Evaporator WPL 1105115 Contact Us For Availability
47
WPL 876029 WPL 876029 Contact Us For Availability
47
WPL 479502 WPL 479502 Contact Us For Availability
47
WPL 261886 WPL 261886 Contact Us For Availability
47
WPL 261887 WPL 261887 Contact Us For Availability
47
WPL 261890 WPL 261890 Contact Us For Availability
47
WPL 261891 WPL 261891 Contact Us For Availability
47
WPL 285365 WPL 285365 Contact Us For Availability
47
WPL 285366 WPL 285366 Contact Us For Availability
47
WPL 285367 WPL 285367 Contact Us For Availability
47
WPL 285368 WPL 285368 Contact Us For Availability
47
WPL 350941 WPL 350941 Contact Us For Availability
47
WPL 542639 WPL 542639 Contact Us For Availability
47
WPL 72108 WPL 72108 Contact Us For Availability
47
WPL 72112 WPL 72112 Contact Us For Availability
47
WPL 799340 WPL 799340 Contact Us For Availability
47
WPL 799832 WPL 799832 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 799908 WPL 799908 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
49
WPL 836162 WPL 836162 Contact Us For Availability
49
Gasket, Air Return (2) WPL 981725 Contact Us For Availability
49
Screw WPL 488474 Contact Us For Availability
50
Knob, Retainer WPL 837444 Contact Us For Availability
51
Clip (2) WPL 548744 Contact Us For Availability
52
WPL 549947 WPL 549947 Contact Us For Availability
52
Container Timer WPL 983079 Contact Us For Availability
52
Clamp WPL 548508 Contact Us For Availability
53
WPL 981127 WPL 981127 Contact Us For Availability
53
Timer, Defrost WPL 943428 Contact Us For Availability
54
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
54
Condenser & Precooler WPL 943480 Contact Us For Availability
55
Baffle WPL 850764 Contact Us For Availability
56
WPL 850459 WPL 850459 Contact Us For Availability
56
Bracket WPL 548695 Contact Us For Availability
57
Fan WPL 989524 Contact Us For Availability
58
Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability
62
Grommet WPL 538449 Contact Us For Availability
64
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
65
Stud, Shelf (2) WPL 529758 Contact Us For Availability
65
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
68
Pan, Drip WPL 945572 Contact Us For Availability
69
Relay WPL 549500 Contact Us For Availability
70
Overload WPL 936073 Contact Us For Availability
71
Overload Spring WPL 549086 Contact Us For Availability
72
Gasket, Evaporator Cover (2) WPL 981749 Contact Us For Availability
72
cover WPL 549336 Contact Us For Availability
73
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
73
Post, Crisper WPL 836410 Contact Us For Availability
73
Strap WPL 549342 Contact Us For Availability
73
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
74
Shelf, Freezer WPL 981496 Contact Us For Availability
77
Stud (2) WPL 536475 Contact Us For Availability
77
WPL 1100182 WPL 1100182 Contact Us For Availability
77
WPL 1100183 WPL 1100183 Contact Us For Availability
77
WPL 838535 WPL 838535 Contact Us For Availability
77
WPL 989928 WPL 989928 Contact Us For Availability
77
WPL 989929 WPL 989929 Contact Us For Availability
77
WPL 989931 WPL 989931 Contact Us For Availability
78
Stud WPL 836412 Contact Us For Availability
79
Hole, Plug WPL 659776 Contact Us For Availability
80
WPL 1100176 WPL 1100176 Contact Us For Availability
80
WPL 1100177 WPL 1100177 Contact Us For Availability
80
WPL 842031 WPL 842031 Contact Us For Availability
80
WPL 989195 WPL 989195 Contact Us For Availability
80
WPL 989875 WPL 989875 Contact Us For Availability
80
WPL 989876 WPL 989876 Contact Us For Availability
82
WPL 546131 WPL 546131 Contact Us For Availability
84
Stud, Saddle Shelf (L.S.) WPL 836492 Contact Us For Availability
87
Pan, Meat WPL 1109015 Contact Us For Availability
× ![]()
