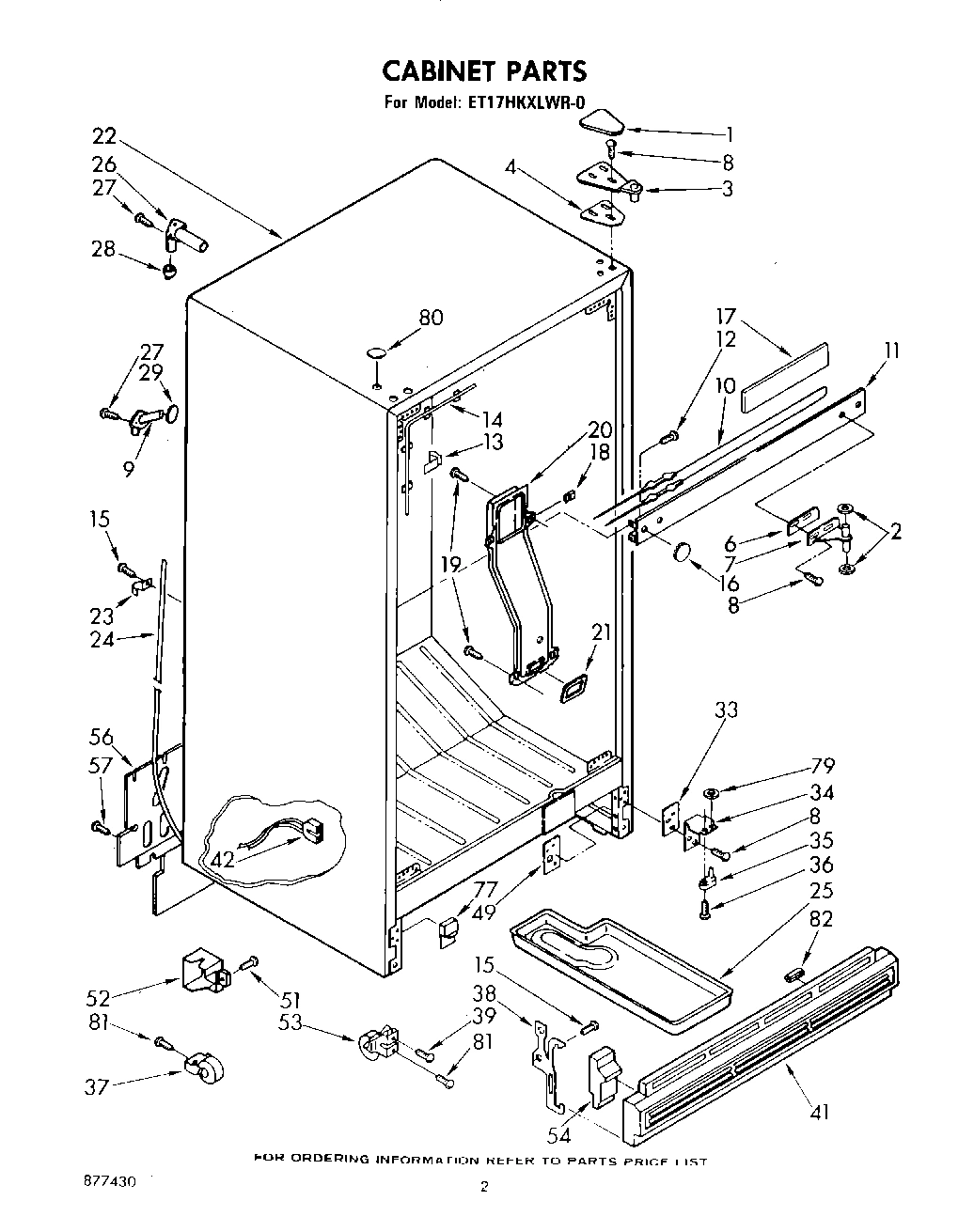

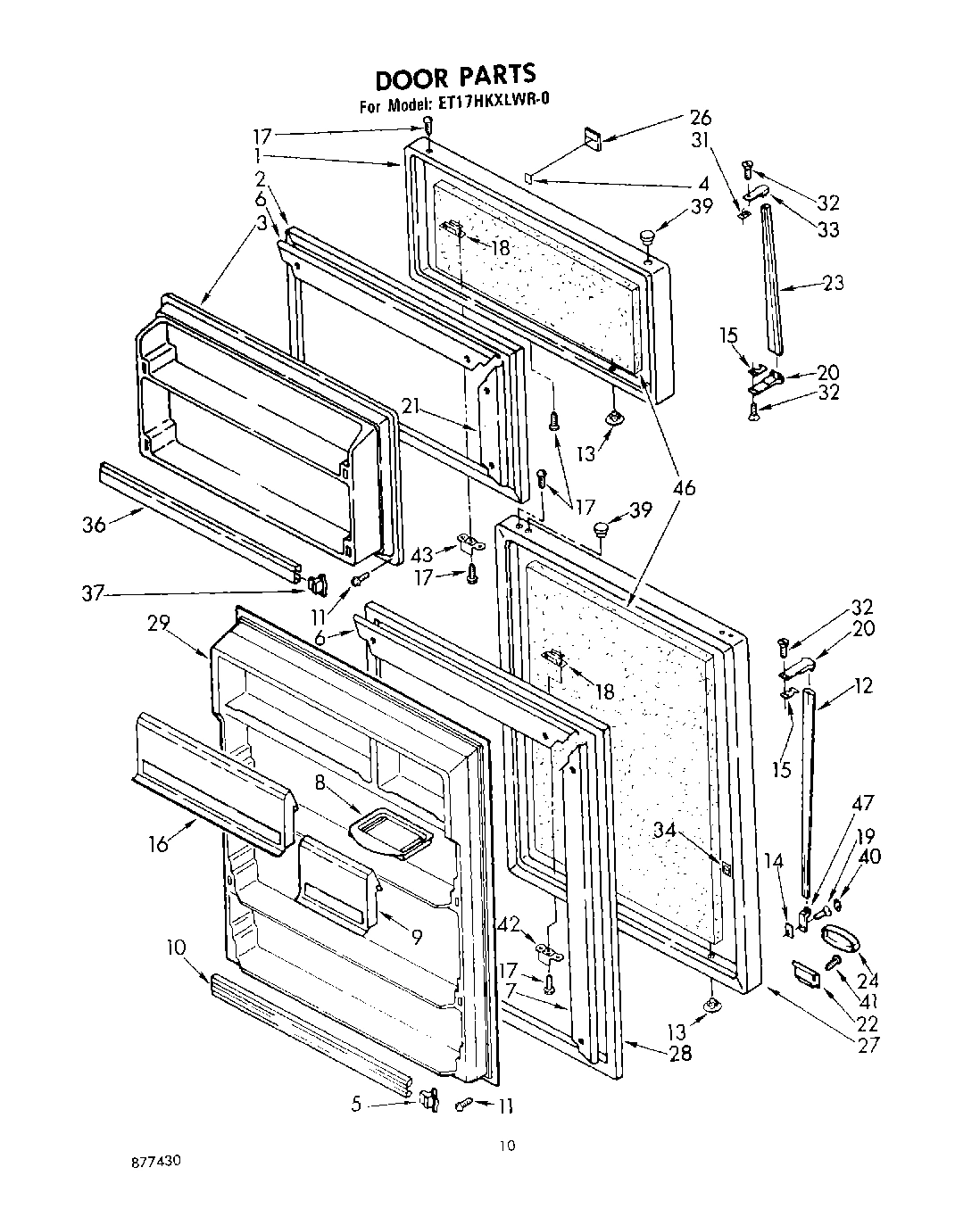

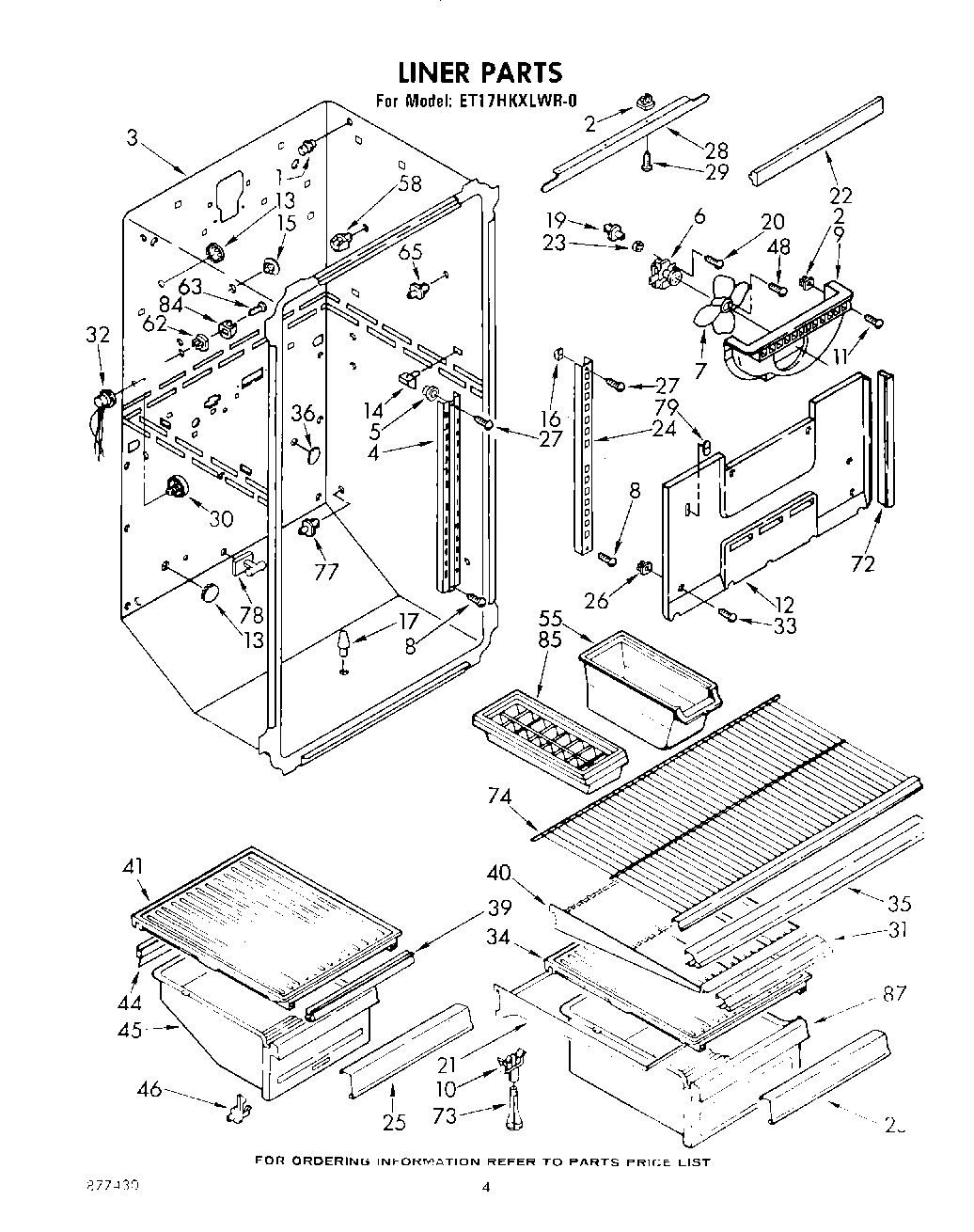

Model Whirlpool ET17HKXLWR0 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Gasket, Drain Pan WPL 843290 Contact Us For Availability

1

Door, Freezer (Also Order Item 46) (White) WPL 943175 Contact Us For Availability

1

Door, Freezer (Also Order Item 46) (Coffee) WPL 943176 Contact Us For Availability

1

Door, Freezer (Also Order Item 46) (Golden Ha WPL 943177 Contact Us For Availability

1

Door, Freezer (Also Order Item 46) (New Avoca WPL 943178 Contact Us For Availability

1

Door, Freezer (Also Order Item 46) (Almond) WPL 943179 Contact Us For Availability

1

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

1

Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability

1

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

1

Stud, Evaporator Cover WPL 526383 Contact Us For Availability

2

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $93.54

2

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

2

Grommet WPL 842339 Contact Us For Availability

3

Pan, Evaporator Drain WPL 836199 Contact Us For Availability

3

Panel, Interior WPL 943126 Contact Us For Availability

3

Hinge & Shim (Top) WPL 842039 Contact Us For Availability

3

Liner (Not A Serviceable Part) WPL ARI43076A1 Contact Us For Availability

4

Fitting, Drain Pan WPL 841770 Contact Us For Availability

4

Tape WPL 991259 Contact Us For Availability

4

Shim, Top Hinge (.030) WPL 836151 Contact Us For Availability

4

Ladder, Shelf WPL 936230 Contact Us For Availability

5

WP839904 Whirlpool Refrigerator Endcap Trim In Stock WPL WP839904 $3.70

5

Support, Ladder (2) WPL 520959 Contact Us For Availability

6

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

6

Separator (Top) WPL 848422 Contact Us For Availability

6

Retainer, Top & Bottom (2) WPL 836118 Contact Us For Availability

6

Shim (.030) WPL 836155 Contact Us For Availability

7

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

7

Insulation, Separator WPL 991172 Contact Us For Availability

7

Retainer, Side (2) WPL 836117 Contact Us For Availability

7

Hinge & Shim (Center) WPL 836153 Contact Us For Availability

8

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

8

Wiring, Liner (Defrost Timer) WPL 481782 Contact Us For Availability

8

Screw, 12-14 x 3/4 WPL 488949 Contact Us For Availability

8

Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability

8

Screw (Repair) WPL 488980 Contact Us For Availability

9

Breaker, Freezer (Top) WPL 940921 Contact Us For Availability

9

Door, Butter WPL 935142 Contact Us For Availability

9

Fitting, Drain WPL 942546 Contact Us For Availability

9

Scroll, Fan WPL 935067 Contact Us For Availability

Support, Cover WPL 848562 No Longer Available

Clip (2) WPL 836090 Contact Us For Availability

Trim, Shelf (2) WPL 936881 Contact Us For Availability

Heater, Mullion WPL 989256 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Clip (13) WPL 845807 Contact Us For Availability

Rail, Center (White) WPL 836067 Contact Us For Availability

Rail, Center (Coffee) WPL 989908 Contact Us For Availability

Rail, Center (Golden Harvest) WPL 989909 Contact Us For Availability

Rail, Center (New Avocado) WPL 989910 Contact Us For Availability

Rail, Center (Almond) WPL 989911 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Breaker, Freezer (L.S.) WPL 836031 Contact Us For Availability

Handle, Center WPL 982946 Contact Us For Availability

Screw (Repair) WPL 487470 Contact Us For Availability

Cover, Evaporator WPL 986628 Contact Us For Availability

Clip (8) WPL 534365 Contact Us For Availability

Plug, Hole WPL 534927 Contact Us For Availability

Clip, Heater (6) WPL 935663 Contact Us For Availability

Plug, Hole (4) WPL 519890 Contact Us For Availability

Shim, Handle WPL 992872 Contact Us For Availability

Breaker, Freezer (R.S.) WPL 836027 Contact Us For Availability

Heater, Stile WPL 936075 Contact Us For Availability

Stud, Retainer (4) WPL 836374 Contact Us For Availability

15

Spacer, Handle WPL 943188 Contact Us For Availability

15

Breaker, Mullion (Top) WPL 836223 Contact Us For Availability

15

Plug, Hole (2) WPL 659598 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Door, Utility WPL 935166 Contact Us For Availability

Plug, Hole (2) (White) WPL 835974 Contact Us For Availability

Plug, Hole (2) (Almond) WPL 989193 Contact Us For Availability

Plug, Hole (2) (Coffee) WPL 989881 Contact Us For Availability

Plug, Hole (2) (Golden Harvest) WPL 989882 Contact Us For Availability

Plug, Hole (2) (New Avocado) WPL 989883 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Grommet WPL 836409 Contact Us For Availability

Breaker, Mullion (Bottom) WPL 836025 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

Seal, Strip WPL 985316 Contact Us For Availability

18

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

18

Breaker, Refrigerator R.S. WPL 836028 Contact Us For Availability

18

Nut, Speed (4) WPL 488516 Contact Us For Availability

19

Breaker, Refrigerator L.S. WPL 836032 Contact Us For Availability

19

Grommet (2) WPL 845722 Contact Us For Availability

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $32.26

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Breaker, Refrigerator (Bottom) WPL 836026 Contact Us For Availability

Duct, Air WPL 983520 Contact Us For Availability

21

Retainer, Side (2) WPL 836119 Contact Us For Availability

21

Spacer, Air Duct WPL 984565 Contact Us For Availability

21

Pan Cantilever, Shelf WPL 936284 Contact Us For Availability

Separator WPL 981727 Contact Us For Availability

Clip, Medallion WPL 843213 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI43075A7 Contact Us For Availability

Gasket, Sealing WPL 935068 Contact Us For Availability

Cup, Drain WPL 943918 Contact Us For Availability

Handle, Center WPL 982944 Contact Us For Availability

Clamp WPL 836077 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $38.47

Medallion (White) WPL 848382 Contact Us For Availability

Medallion (Coffee) WPL 989901 Contact Us For Availability

Medallion (New Avocado) WPL 989902 Contact Us For Availability

Medallion (Golden Harvest) WPL 989903 Contact Us For Availability

Medallion (Almond) WPL 989904 Contact Us For Availability

Ladder, Shelf (2) WPL 934267 Contact Us For Availability

25

Tray, Evaporating WPL 842041 Contact Us For Availability

25

Bracket, Thermostat WPL 848446 Contact Us For Availability

25

Overlay, Pan WPL 986968 Contact Us For Availability

851285 Whirlpool Refrigerator Thermostat Backorder WPL 851285 $101.11

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

Insert, Nameplate WPL 945107 Contact Us For Availability

Grommet (4) WPL 848445 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

Door, Refrigerator (Also Order Item 46) (Whit WPL 943169 Contact Us For Availability

Door, Refrigerator (Also Order Item 46) (Coff WPL 943170 Contact Us For Availability

Door, Refrigerator (Also Order Item 46) (Gold WPL 943171 Contact Us For Availability

Door, Refrigerator (Also Order Item 46) (New WPL 943172 Contact Us For Availability

Door, Refrigerator (Also Order Item 46) (Almo WPL 943173 Contact Us For Availability

2188450A Whirlpool Refrigerator Door Gasket In Stock WPL 2188450A $112.07

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Baffle, Liner Top WPL 984147 Contact Us For Availability

Clip, Retainer (2) WPL 939139 Contact Us For Availability

Panel, Inte WPL 943124 Contact Us For Availability

Gasket, Seal WPL 940121 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

30

Panel, Control WPL 942214 Contact Us For Availability

30

Cap, Receptacle WPL 850738 Contact Us For Availability

31

WPL 943187 WPL 943187 Contact Us For Availability

31

Knob, Control (Includes Illus. 50) WPL 837445 Contact Us For Availability

31

Trim, Shelf Front WPL 935215 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Knob, Thermostat WPL 836482 Contact Us For Availability

WPL 488923 WPL 488923 Contact Us For Availability

Wiring, Liner (Ice Maker) WPL 481658 Contact Us For Availability

33

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $33.31

33

Lens, Light WPL 983910 Contact Us For Availability

33

Shim (Bottom) (.030) WPL 836196 Contact Us For Availability

34

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

34

Butt, Hinge WPL 836159 Contact Us For Availability

34

Cover, Meat Pan WPL 935385 Contact Us For Availability

35

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

35

Pin, Hinge WPL 654366 Contact Us For Availability

35

Trim, Shelf Front WPL 849261 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

WPL 837789 WPL 837789 Contact Us For Availability

Drain Fitting Grommet WPL 943920 Contact Us For Availability

37

WP839975 Whirlpool Refrigerator Endcap Trim In Stock WPL WP839975 $3.70

37

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

37

Air Diffuser WPL 836487 Contact Us For Availability

38

Retainer WPL 836493 Contact Us For Availability

38

Support, Grille (3) WPL 844614 Contact Us For Availability

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

Damper, Air WPL 984658 Contact Us For Availability

WPL 989196 WPL 989196 Contact Us For Availability

WPL 989892 WPL 989892 Contact Us For Availability

WPL 989894 WPL 989894 Contact Us For Availability

Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability

Gasket, Front (2) WPL 982160 Contact Us For Availability

40

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

40

Shelf, Cantilever (3) WPL 936396 Contact Us For Availability

Grille, Exterior (White) WPL 841670 Contact Us For Availability

Grille, Exterior (Coffee) WPL 989941 Contact Us For Availability

Grille, Exterior (New Avocado) WPL 989943 Contact Us For Availability

G WPL 989945 Contact Us For Availability

WPL 989947 WPL 989947 Contact Us For Availability

Pan, Slide & Cover (2) WPL 936582 Contact Us For Availability

42

WPL 944036 WPL 944036 Contact Us For Availability

42

WPL 548734 WPL 548734 Contact Us For Availability

43

WPL 944035 WPL 944035 Contact Us For Availability

44

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

44

Gasket, Rear (2) WPL 982158 Contact Us For Availability

45

Pan, Crisper (2) WPL 935160 Contact Us For Availability

46

Stud (2) WPL 836423 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly Backorder WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $25.33

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 877430 WPL 877430 Contact Us For Availability

WPL 942935 WPL 942935 Contact Us For Availability

WPL 942936 WPL 942936 Contact Us For Availability

WPL 943004 WPL 943004 Contact Us For Availability

WPL 943387 WPL 943387 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

48

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

49

Gasket, Air Return (2) WPL 981725 Contact Us For Availability

49

WPL 836162 WPL 836162 Contact Us For Availability

50

Knob, Retainer WPL 837444 Contact Us For Availability

51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

52

Container Timer WPL 983079 Contact Us For Availability

52

WPL 549947 WPL 549947 Contact Us For Availability

53

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

53

Timer, Defrost WPL 943434 Contact Us For Availability

53

WPL 981127 WPL 981127 Contact Us For Availability

54

Condenser & Precooler WPL 481846 Contact Us For Availability

54

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

54

WPL 836372 WPL 836372 Contact Us For Availability

55

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

55

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

55

Baffle WPL 850764 Contact Us For Availability

56

Bracket WPL 548695 Contact Us For Availability

56

WPL 850459 WPL 850459 Contact Us For Availability

57

Fan WPL 989524 Contact Us For Availability

58

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

58

Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability

60

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

62

Screw (Use With Motor) (3) WPL 488868 Contact Us For Availability

62

Grommet WPL 538449 Contact Us For Availability

63

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

64

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

65

Stud, Shelf (2) WPL 529758 Contact Us For Availability

66

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Valve, Access (1/4``) WPL 97802 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Pan, Drip WPL 989269 Contact Us For Availability

72

Gasket, Evaporator Cover (2) WPL 981749 Contact Us For Availability

73

Post, Crisper WPL 836410 Contact Us For Availability

74

Shelf, Freezer WPL 981496 Contact Us For Availability

Stud (2) WPL 536475 Contact Us For Availability

WPL 838535 WPL 838535 Contact Us For Availability

WPL 989928 WPL 989928 Contact Us For Availability

WPL 989929 WPL 989929 Contact Us For Availability

WPL 989930 WPL 989930 Contact Us For Availability

WPL 989931 WPL 989931 Contact Us For Availability

78

Stud WPL 836412 Contact Us For Availability

79

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

79

Hole, Plug WPL 659776 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989875 WPL 989875 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

WPL 989877 WPL 989877 Contact Us For Availability

81

WPL 488454 WPL 488454 Contact Us For Availability

82

WPL 546131 WPL 546131 Contact Us For Availability

84

Stud, Saddle Shelf (L.S.) WPL 836492 Contact Us For Availability

85

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

87

Pan, Meat WPL 935162 Contact Us For Availability
