Model Whirlpool ET16TKXMWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
08 - REFRIGERATOR DOOR , MISCELLANEOUS
02 - CABINET

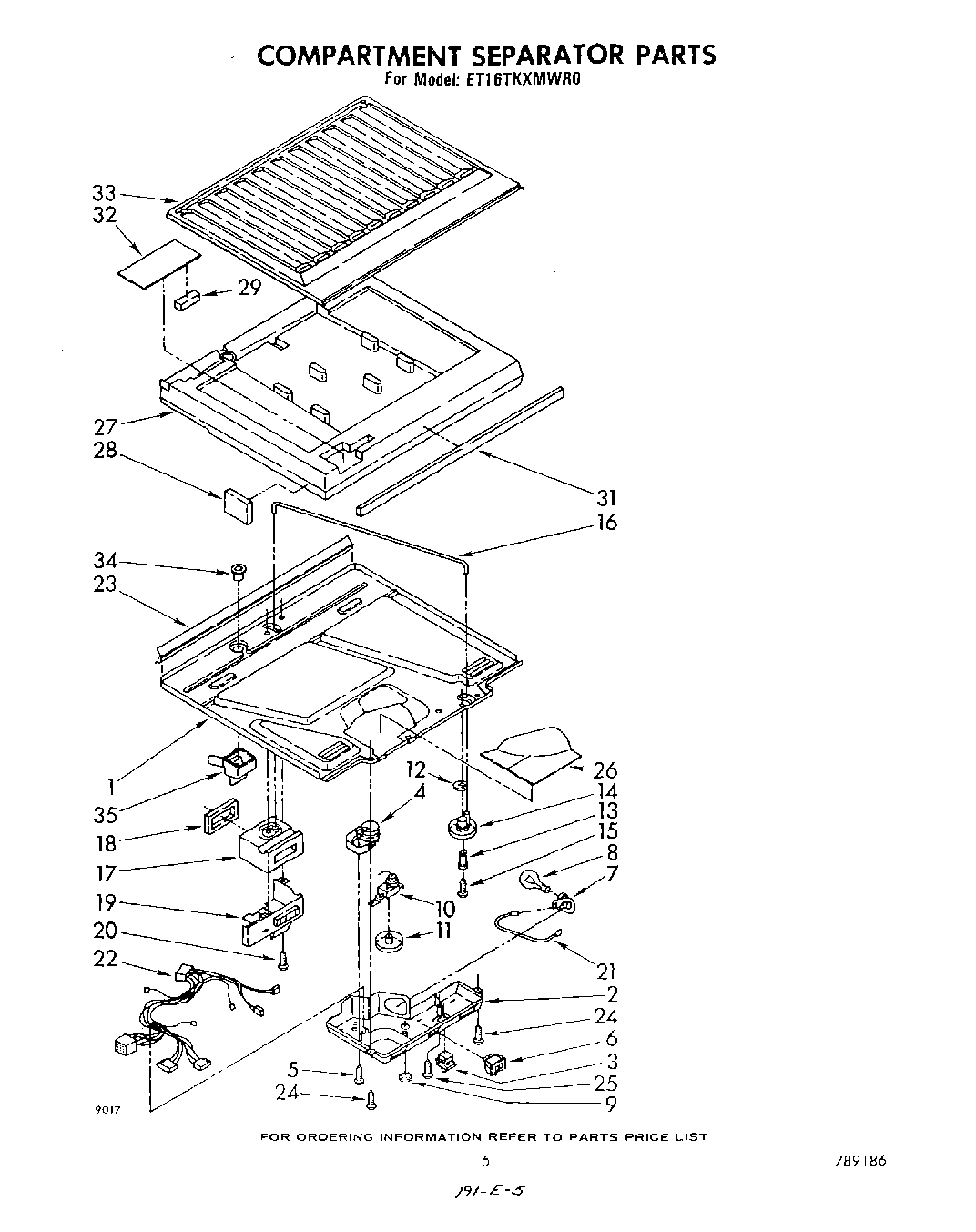

04 - COMPARTMENT SEPARATOR

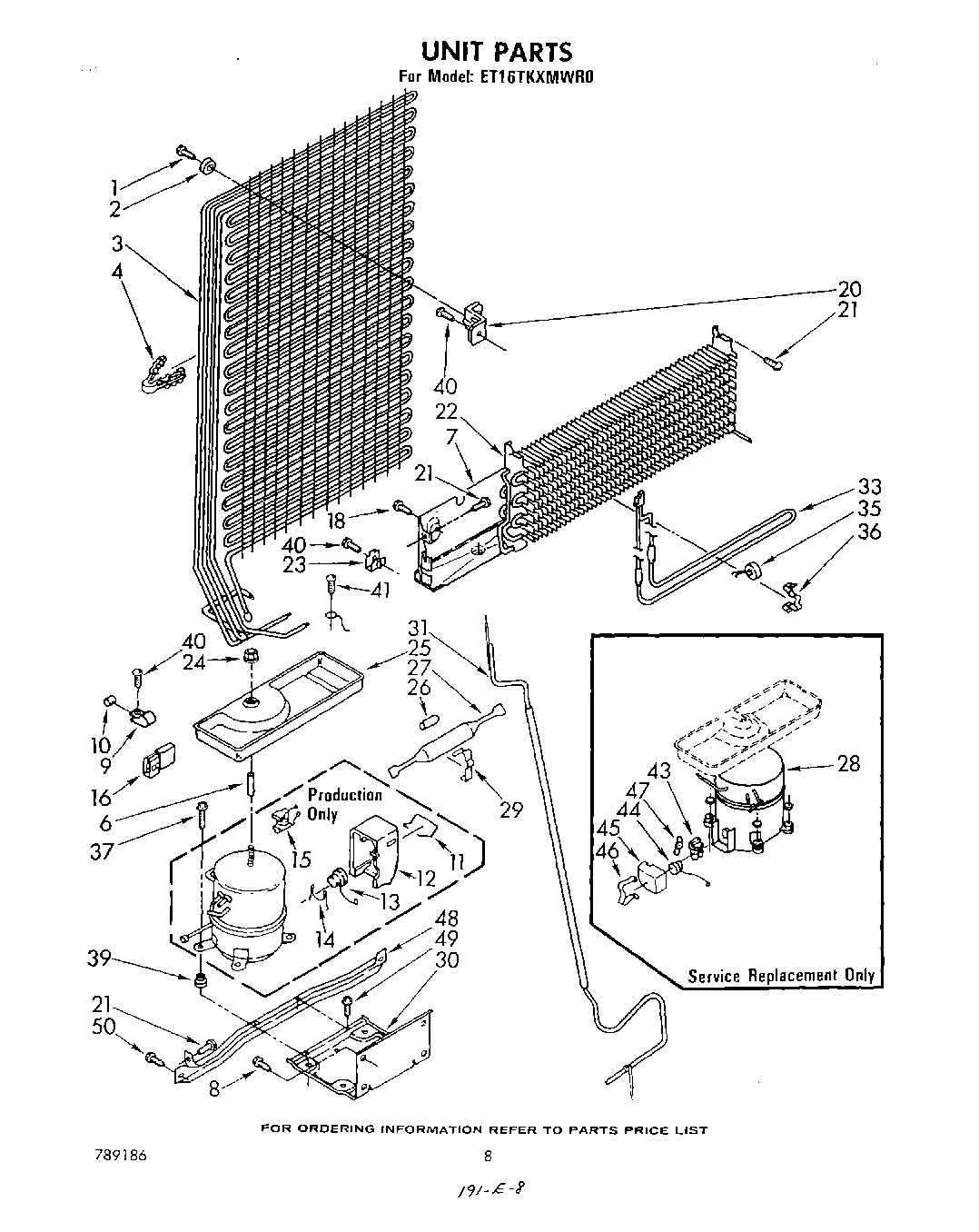

07 - UNIT

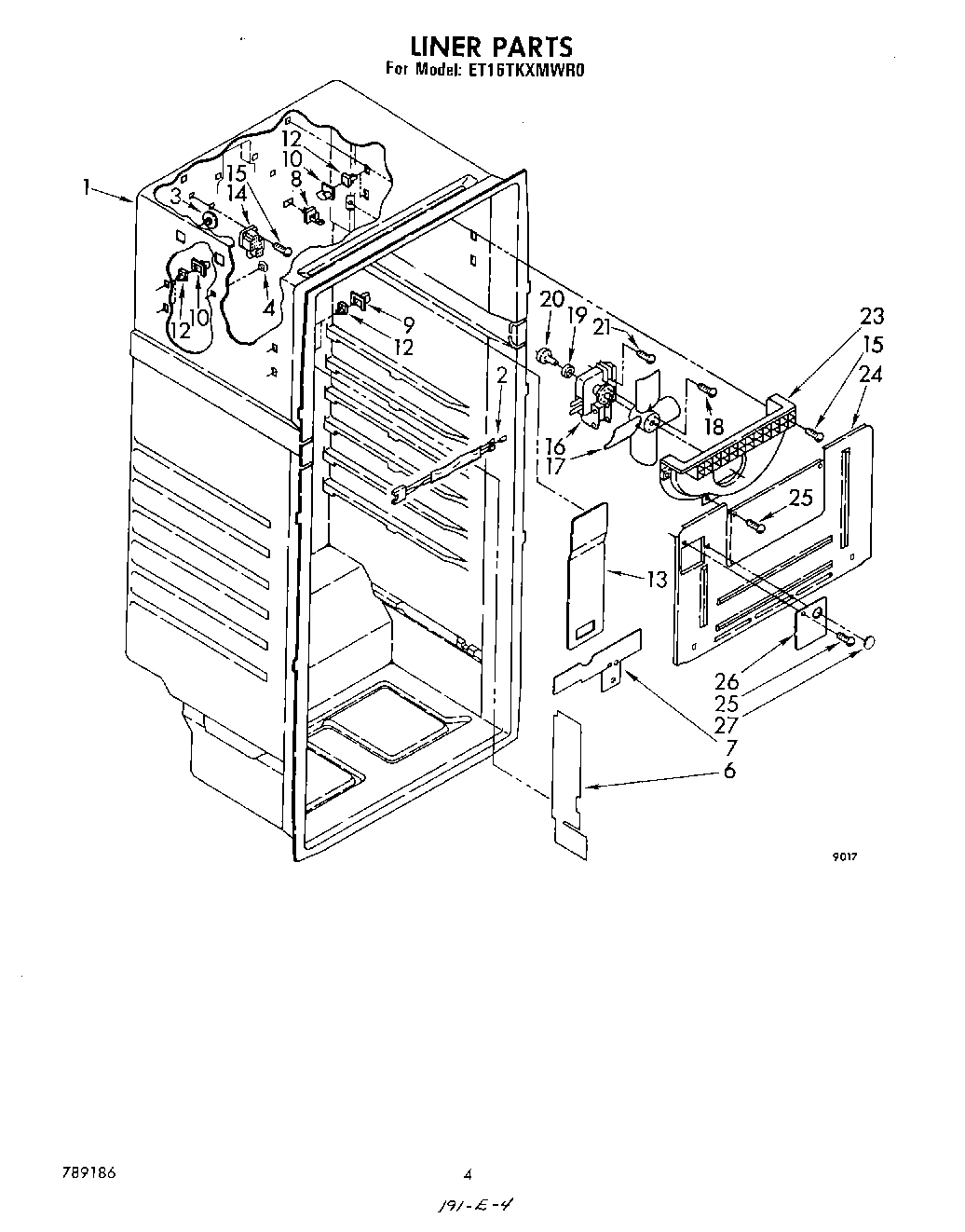

03 - LINER

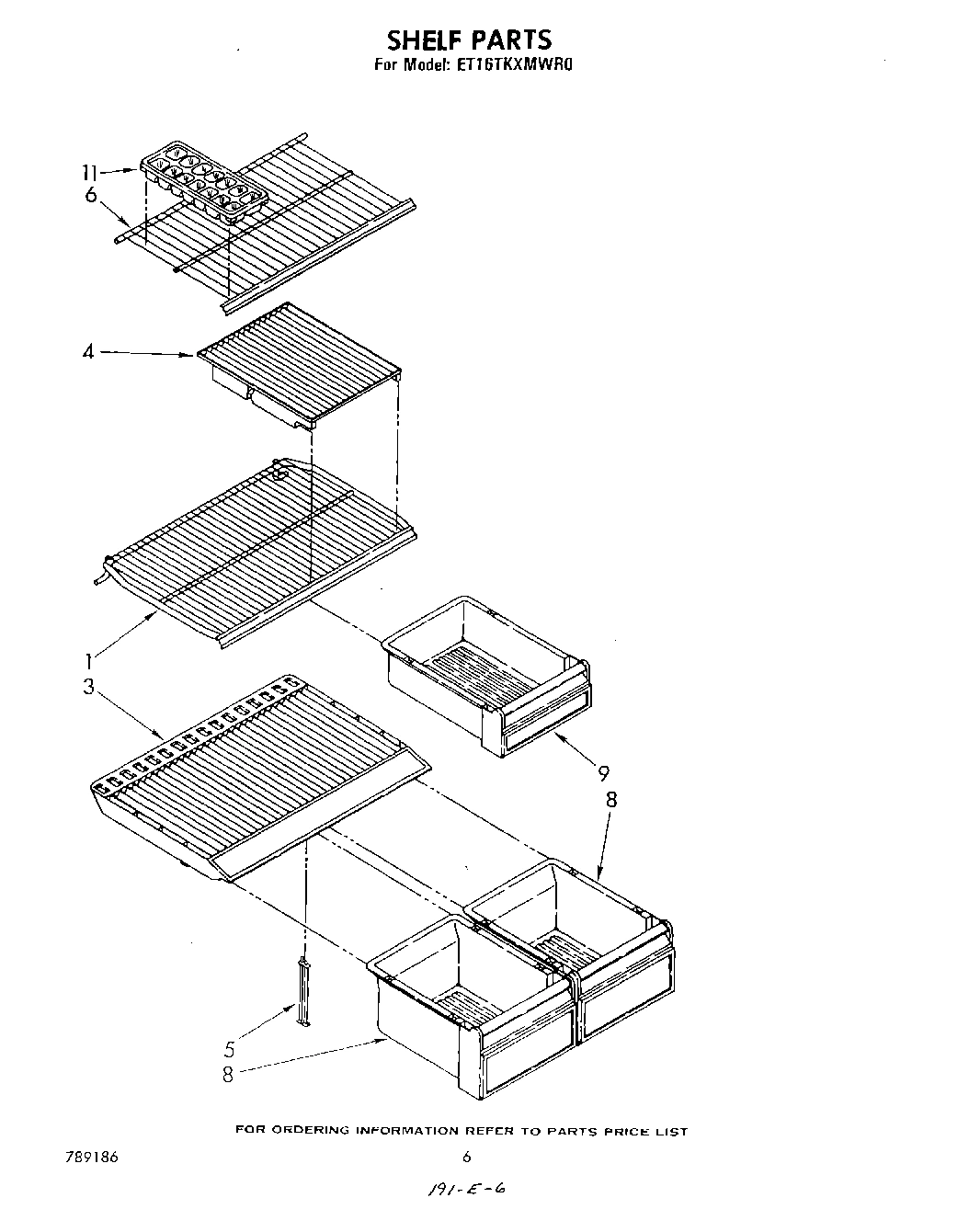

05 - SHELF

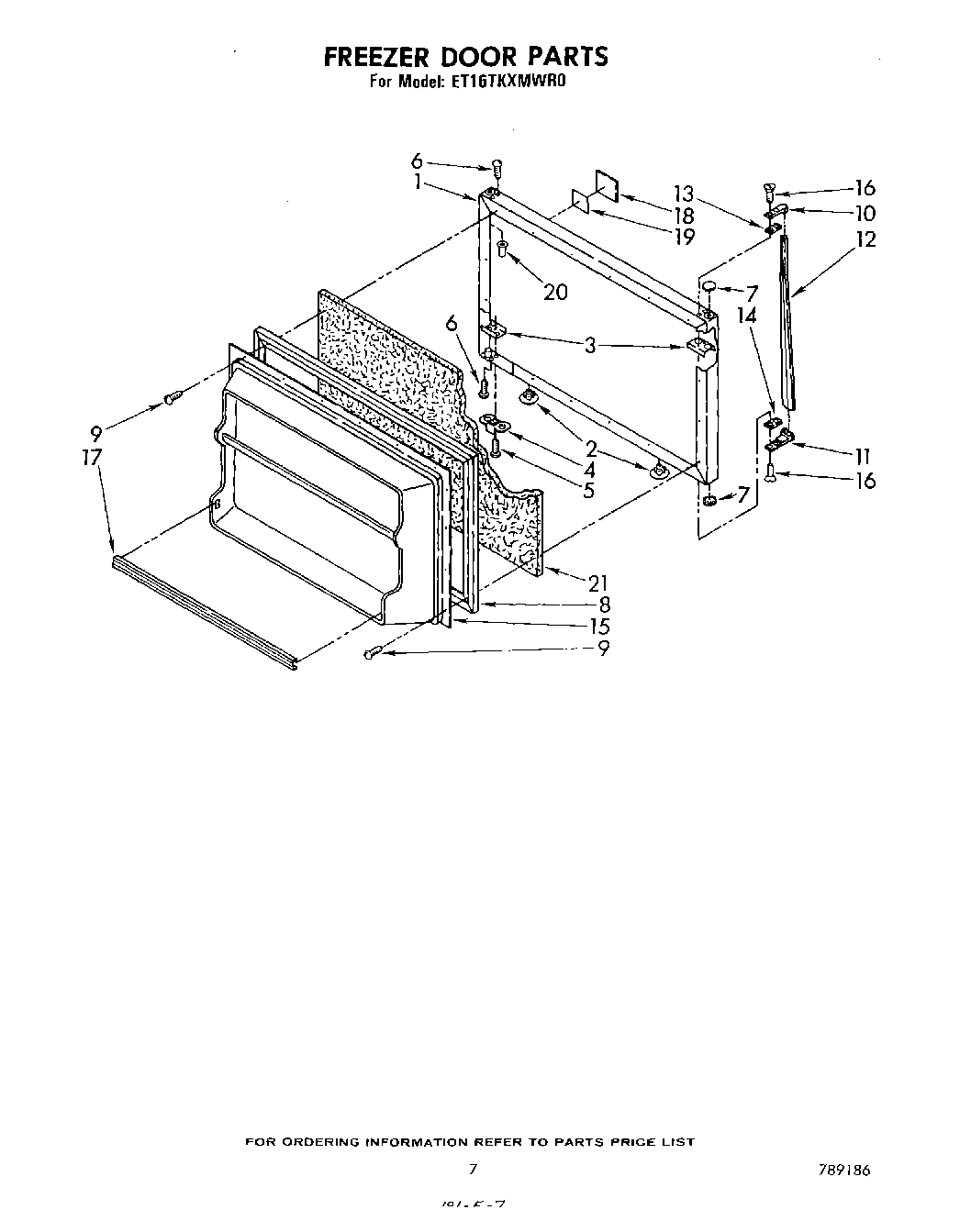

06 - FREEZER DOOR
Common parts from model Whirlpool ET16TKXMWR0 TOP MOUNT REFRIGERATOR
1
Cabinet (Not A Serviceable Part) WPL ARI42995A8 Contact Us For Availability
1
Bottom, Compartment Separator WPL 942754 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42996A4 Contact Us For Availability
1
Shelf, Pullout (3) WPL 946452 Contact Us For Availability
1
Panel, Freezer Door (Al\so Ord\er Item 21) (T WPL 1100259 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1100260 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 945286 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Cof WPL 945287 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 945288 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (New WPL 945289 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 945290 Contact Us For Availability
2
Roller, Front (2) WPL 942774 Contact Us For Availability
2
Box, Control WPL 942757 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Wiring, Fan Motor WPL 943722 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/2 WPL 488681 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 942862 Contact Us For Availability
3
Hole Plug WPL 944795 Contact Us For Availability
3
Crisper Cover WPL 1100603 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 945486 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
4
Cover, Meat Pan WPL 944739 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Roller, Rear (2) WPL 937216 Contact Us For Availability
5
Support Post WPL 1100462 Contact Us For Availability
6
Frame, Center Rail WPL 942738 Contact Us For Availability
6
Spacer WPL 942816 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Shelf, Freezer WPL 1100460 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Heater, Mullion WPL 942730 Contact Us For Availability
7
Heat Shield Evaporator WPL 942874 Contact Us For Availability
7
Top, Electric Shield WPL 946350 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Hole Plug (Coffee) WPL 989892 Contact Us For Availability
7
Hole Plug (New Avocado) WPL 989894 Contact Us For Availability
8
Center Rail, Bracket WPL 942740 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Crisper Pan (2) WPL 946437 Contact Us For Availability
9
Ferrule, Center Rail WPL 942737 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Meat Pan WPL 946426 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 489113 Contact Us For Availability
12
Lockwasher WPL 489053 Contact Us For Availability
12
Case, Relay WPL 943321 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Handle, Center WPL 982978 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Center Rail (Platinum) WPL 1100675 Contact Us For Availability
13
Center Rail (Toast) WPL 1100676 Contact Us For Availability
13
Center Rail (White) WPL 942731 Contact Us For Availability
13
Center Rail (Coffee) WPL 942733 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 942734 Contact Us For Availability
13
Center Rail (New Avocado) WPL 942735 Contact Us For Availability
13
Center Rail (Almond) WPL 942736 Contact Us For Availability
13
Spacer, Knob WPL 937105 Contact Us For Availability
13
Overload WPL 943770 Contact Us For Availability
13
Cover, Air Duct WPL 942749 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Filler, Center Rail (2) (Platinum) WPL 1100679 Contact Us For Availability
14
Filler, Center Rail (2) (Toast) WPL 1100680 Contact Us For Availability
14
Filler, Center Rail (2) (White) WPL 946320 Contact Us For Availability
14
Filler, Center Rail (2) (Almond) WPL 946321 Contact Us For Availability
14
Filler, Center Rail (2) (Coffee) WPL 946322 Contact Us For Availability
14
Filler, Center Rail (2) (Golden Harvest) WPL 946323 Contact Us For Availability
14
Filler, Center Rail (2) (New Avocado) WPL 946324 Contact Us For Availability
14
Knob, Air Control WPL 935727 Contact Us For Availability
14
Spring, Overload WPL 943320 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Screw, 10-32 x 3/8 WPL 489097 Contact Us For Availability
15
Relay WPL 943772 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 945701 Contact Us For Availability
16
Rod, Connecting WPL 942761 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Air Diffuser Assembly WPL 942762 Contact Us For Availability
17
Trim, Door Shelf WPL 946823 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Gasket, Air Diffuser WPL 942765 Contact Us For Availability
18
Nameplate WPL 945117 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability
19
Cover, Air Diffuser WPL 942767 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Screw, 8 x 1-1/4 (2) WPL 489042 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 942769 Contact Us For Availability
22
Evaporator WPL 942866 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943733 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
24
Evaporator Cover WPL 942847 Contact Us For Availability
25
Screw, 8-15 x 1-1/2 WPL 488864 Contact Us For Availability
25
Tray, Evaporator WPL 942875 Contact Us For Availability
26
Hinge Butt, Bottom WPL 944783 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 942770 Contact Us For Availability
27
Hole Plug WPL 939283 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
WPL 479502 WPL 479502 Contact Us For Availability
28
WPL 799344 WPL 799344 Contact Us For Availability
28
Screw 1 WPL 488714 Contact Us For Availability
28
WPL 261890 WPL 261890 Contact Us For Availability
28
WPL 261891 WPL 261891 Contact Us For Availability
28
WPL 285365 WPL 285365 Contact Us For Availability
28
WPL 285366 WPL 285366 Contact Us For Availability
28
WPL 285367 WPL 285367 Contact Us For Availability
28
WPL 285368 WPL 285368 Contact Us For Availability
28
WPL 350941 WPL 350941 Contact Us For Availability
28
WPL 542639 WPL 542639 Contact Us For Availability
28
WPL 72108 WPL 72108 Contact Us For Availability
28
WPL 72112 WPL 72112 Contact Us For Availability
28
WPL 789186 WPL 789186 Contact Us For Availability
28
WPL 799340 WPL 799340 Contact Us For Availability
28
WPL 799351 WPL 799351 Contact Us For Availability
28
WPL 799832 WPL 799832 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 946413 WPL 946413 Contact Us For Availability
28
WPL 946420 WPL 946420 Contact Us For Availability
28
WPL 946604 WPL 946604 Contact Us For Availability
28
WPL 946814 WPL 946814 Contact Us For Availability
28
WPL 978241 WPL 978241 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
WPL 1100778 WPL 1100778 Contact Us For Availability
29
WPL 1100779 WPL 1100779 Contact Us For Availability
29
WPL 1100780 WPL 1100780 Contact Us For Availability
29
WPL 1100781 WPL 1100781 Contact Us For Availability
29
WPL 1100782 WPL 1100782 Contact Us For Availability
29
WPL 1100783 WPL 1100783 Contact Us For Availability
29
WPL 1100784 WPL 1100784 Contact Us For Availability
29
Protector, Wiring WPL 944998 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
WPL 1100685 WPL 1100685 Contact Us For Availability
31
WPL 1100686 WPL 1100686 Contact Us For Availability
31
WPL 942818 WPL 942818 Contact Us For Availability
31
WPL 942819 WPL 942819 Contact Us For Availability
31
WPL 942820 WPL 942820 Contact Us For Availability
31
WPL 942821 WPL 942821 Contact Us For Availability
31
WPL 942822 WPL 942822 Contact Us For Availability
31
Insulation, Center Rail WPL 942771 Contact Us For Availability
31
Exchanger, Heat WPL 942877 Contact Us For Availability
32
WPL 1100667 WPL 1100667 Contact Us For Availability
32
WPL 1100668 WPL 1100668 Contact Us For Availability
32
WPL 942723 WPL 942723 Contact Us For Availability
32
WPL 942724 WPL 942724 Contact Us For Availability
32
WPL 942725 WPL 942725 Contact Us For Availability
32
WPL 942726 WPL 942726 Contact Us For Availability
32
WPL 942727 WPL 942727 Contact Us For Availability
32
Shield, Compartment Separator WPL 942772 Contact Us For Availability
33
WPL 1100681 WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944832 WPL 944832 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
WPL 944834 WPL 944834 Contact Us For Availability
33
Separator, Compartment (Top) WPL 942773 Contact Us For Availability
33
Heater, Defrost WPL 942870 Contact Us For Availability
34
WPL 1100683 WPL 1100683 Contact Us For Availability
34
WPL 1100684 WPL 1100684 Contact Us For Availability
34
WPL 942807 WPL 942807 Contact Us For Availability
34
WPL 942808 WPL 942808 Contact Us For Availability
34
WPL 942809 WPL 942809 Contact Us For Availability
34
WPL 942810 WPL 942810 Contact Us For Availability
34
WPL 942811 WPL 942811 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1100687 WPL 1100687 Contact Us For Availability
35
WPL 1100688 WPL 1100688 Contact Us For Availability
35
WPL 940086 WPL 940086 Contact Us For Availability
35
WPL 940087 WPL 940087 Contact Us For Availability
35
WPL 940088 WPL 940088 Contact Us For Availability
35
WPL 940089 WPL 940089 Contact Us For Availability
35
WPL 940090 WPL 940090 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989875 WPL 989875 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
WPL 989877 WPL 989877 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
WPL 944741 WPL 944741 Contact Us For Availability
43
Relay WPL 549500 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
44
Overload WPL 936073 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
45
cover WPL 549336 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
46
Strap WPL 549342 Contact Us For Availability
47
WPL 940121 WPL 940121 Contact Us For Availability
47
Overload Spring WPL 549086 Contact Us For Availability
48
Unit Mounting Rail WPL 942859 Contact Us For Availability
49
WPL 942853 WPL 942853 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
55
WPL 1100671 WPL 1100671 Contact Us For Availability
55
WPL 1100672 WPL 1100672 Contact Us For Availability
55
WPL 944700 WPL 944700 Contact Us For Availability
55
WPL 944701 WPL 944701 Contact Us For Availability
55
WPL 944702 WPL 944702 Contact Us For Availability
55
WPL 944703 WPL 944703 Contact Us For Availability
55
WPL 944704 WPL 944704 Contact Us For Availability
56
WPL 1100673 WPL 1100673 Contact Us For Availability
56
WPL 1100674 WPL 1100674 Contact Us For Availability
56
WPL 944705 WPL 944705 Contact Us For Availability
56
WPL 944706 WPL 944706 Contact Us For Availability
56
WPL 944707 WPL 944707 Contact Us For Availability
56
WPL 944708 WPL 944708 Contact Us For Availability
56
WPL 944709 WPL 944709 Contact Us For Availability
57
WPL 655411 WPL 655411 Contact Us For Availability
× ![]()
