Model Whirlpool ET14LCRWW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

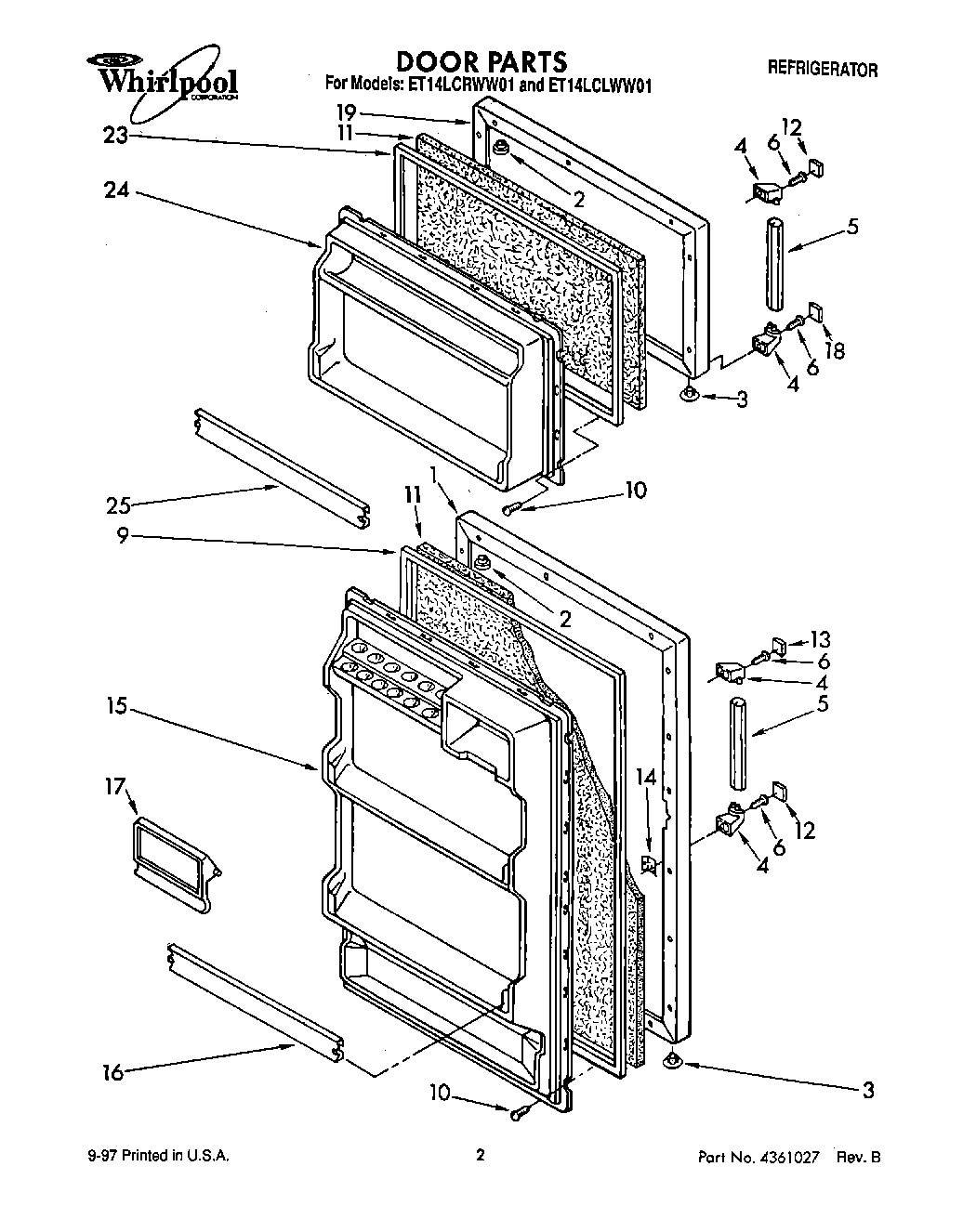

01 - DOOR

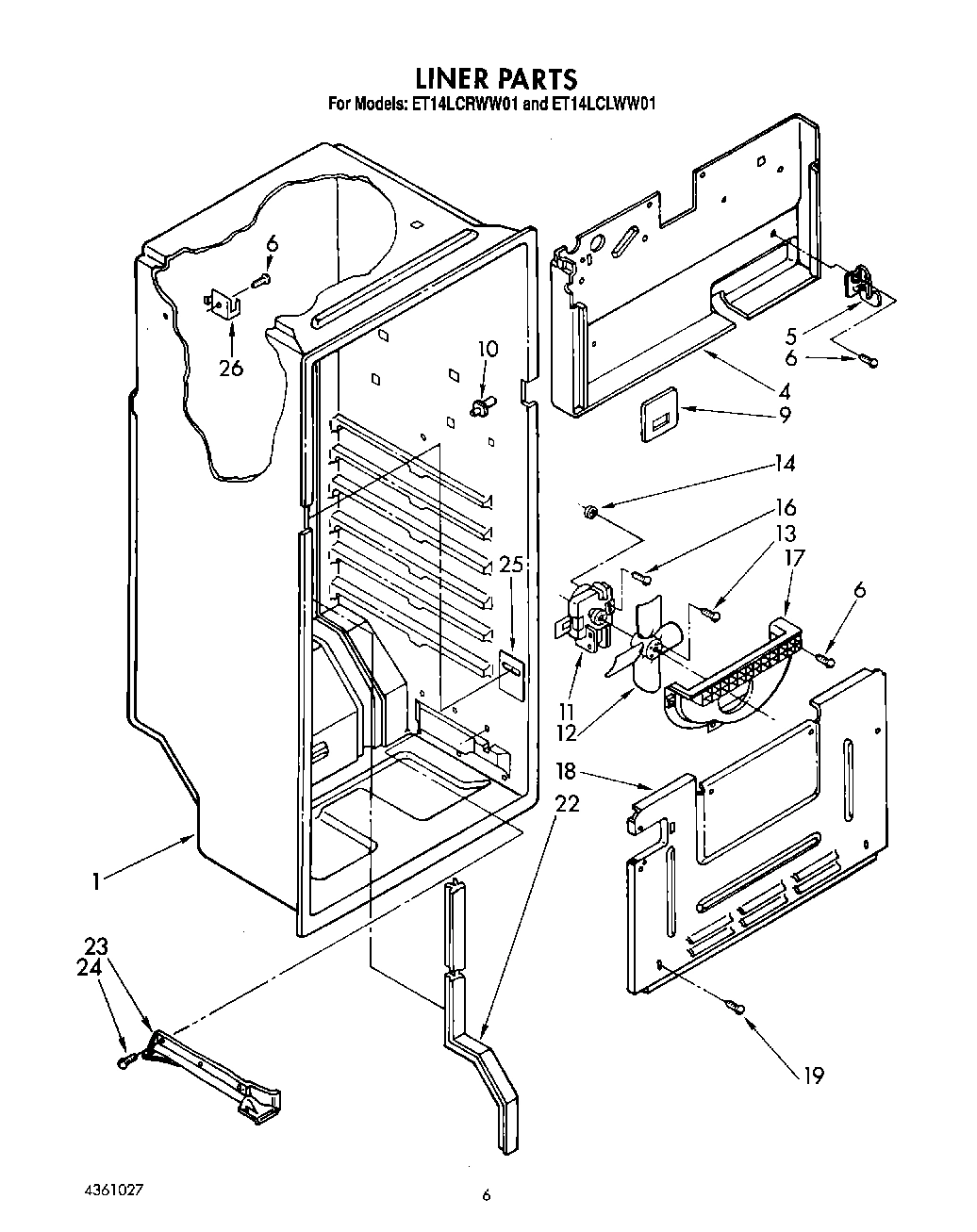

03 - LINER, LIT/OPTIONAL

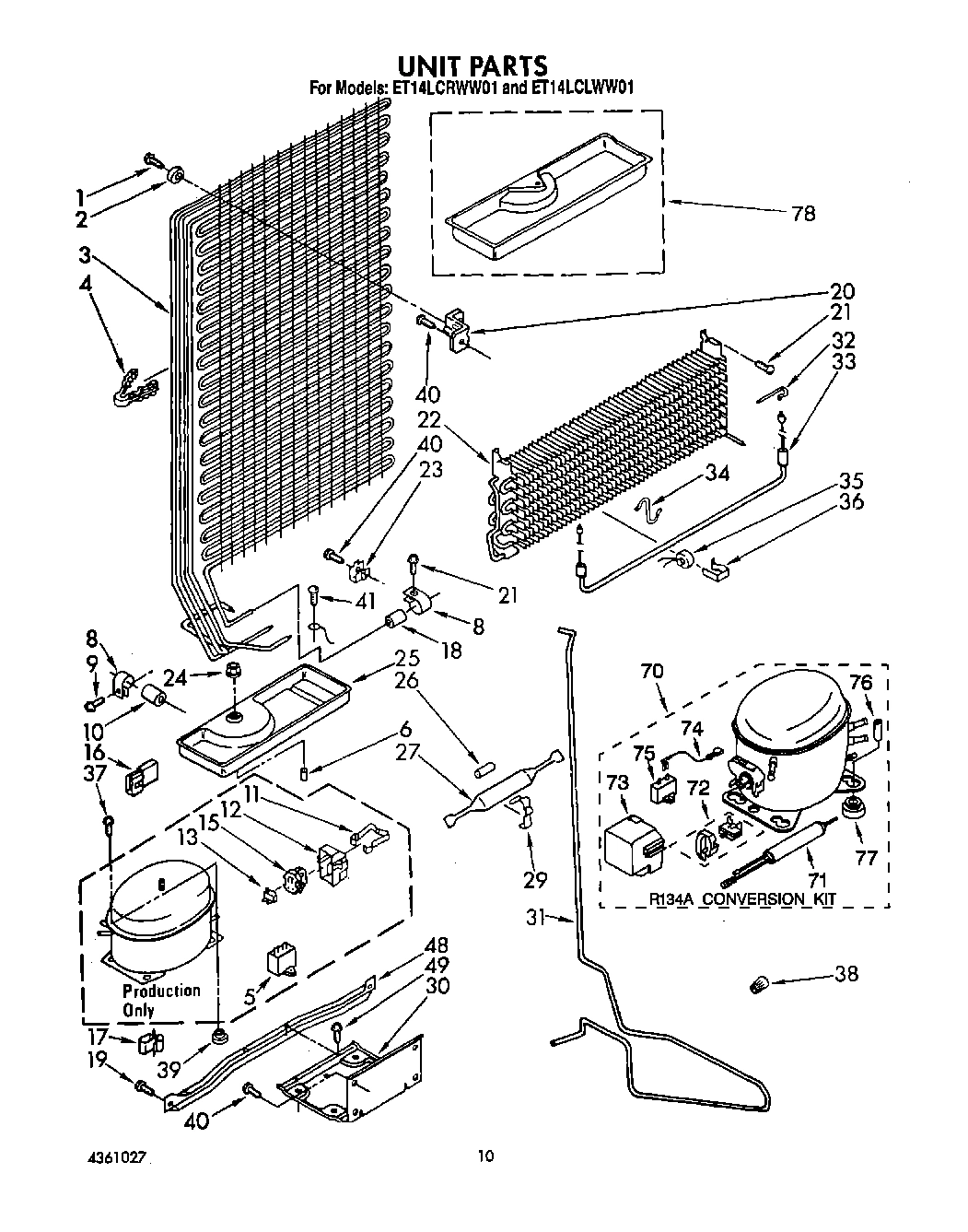

05 - UNIT

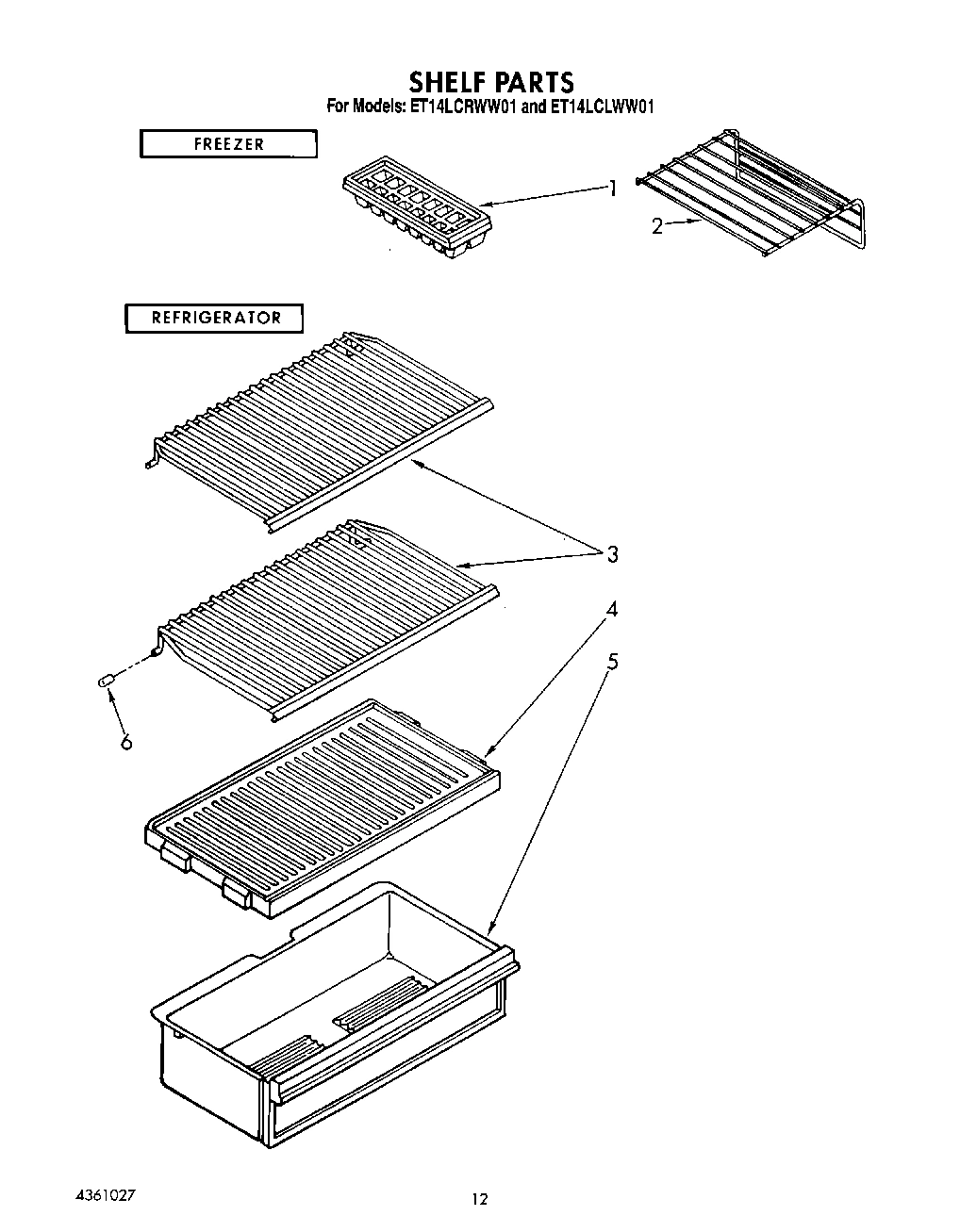

06 - SHELF

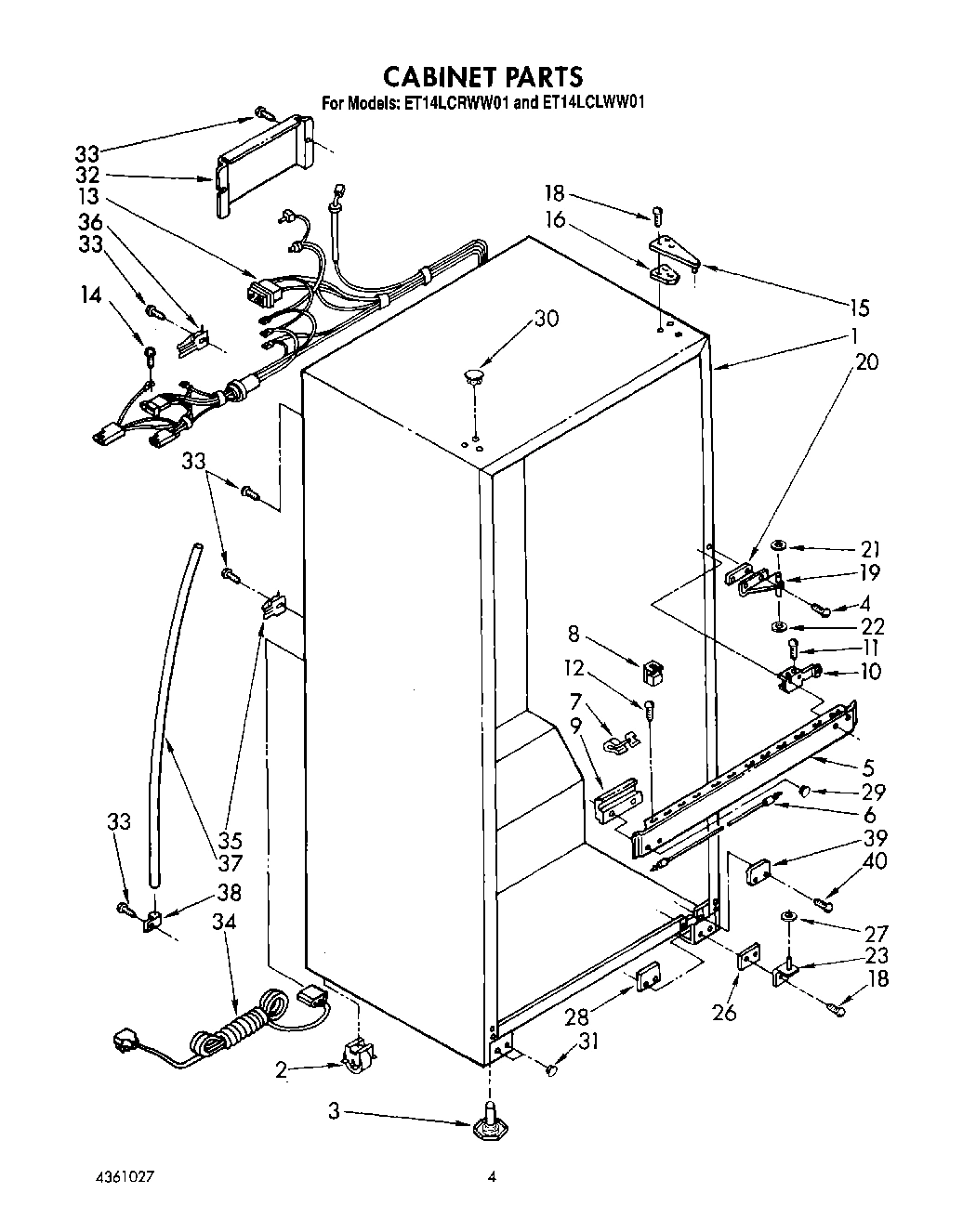

02 - CABINET

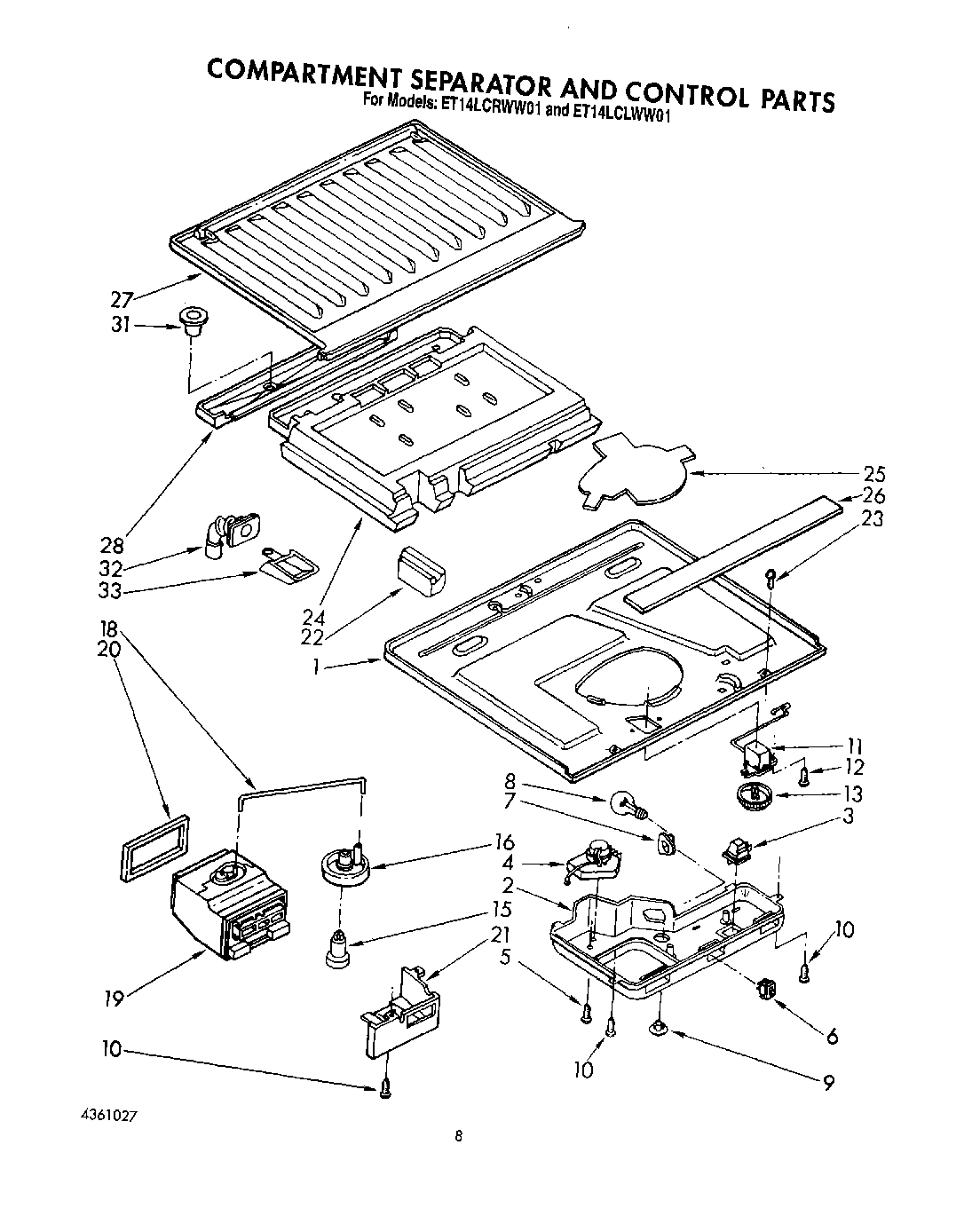

04 - COMPARTMENT SEPARATOR & CONTROL
Common parts from model Whirlpool ET14LCRWW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42441A2 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116091 Contact Us For Availability
2
Roller, Front & Rear (4) WPL 2152014 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Cover, Ice Cube Pan WPL 946979 Contact Us For Availability
2
Box, Control WPL 935726 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1128113 Contact Us For Availability
3
Pullout Shelf (2) WPL 940006 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
4
Crisper Cover WPL 935744 Contact Us For Availability
4
Screw WPL 489179 Contact Us For Availability
4
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
5
Pan, Crisper WPL 1124690 Contact Us For Availability
5
Center Rail (White) WPL 935685 Contact Us For Availability
5
Center Rail (Almond) WPL 935689 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
6
Bumper, Shelf WPL 845287 Contact Us For Availability
6
Heater, Mullion WPL 938278 Contact Us For Availability
7
Breaker, Trim Cup WPL 534365 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Spacer WPL 1116484 Contact Us For Availability
9
Center, Rail Shim WPL 939034 Contact Us For Availability
10
Stud-Shelf WPL 939065 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
10
Bracket, Center Rail WPL 935692 Contact Us For Availability
11
Relay Case Spring WPL 938384 Contact Us For Availability
12
Relay Case WPL 1108115 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Cabinet Wiring Assembly WPL 1127559 Contact Us For Availability
13
Knob, Thermostat WPL 937144 Contact Us For Availability
14
Grommet WPL 531933 Contact Us For Availability
15
Shim, Hinge Top WPL 1100513 Contact Us For Availability
15
Retainer, Knob WPL 1111792 Contact Us For Availability
16
Screw, 8 x 1-1/4 WPL 489168 Contact Us For Availability
16
Shim, Top Hinge WPL 1100509 Contact Us For Availability
16
Knob, Air Control WPL 1111737 Contact Us For Availability
17
Scroll, Fan WPL 1122814 Contact Us For Availability
18
Evaporator Cover WPL 1124692 Contact Us For Availability
18
Dampener WPL 945593 Contact Us For Availability
18
Rod, Connecting WPL 1111438 Contact Us For Availability
19
Hinge, Center WPL 836153 Contact Us For Availability
19
Air Diffuser WPL 1118973 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
20
Shim, Hinge Center WPL 836155 Contact Us For Availability
20
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
21
Cover, Air Diffuser WPL 937226 Contact Us For Availability
22
Cover Tube, Rear WPL 935704 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
22
Rear Corner, Block WPL 939056 Contact Us For Availability
23
Cover Tube, Bottom WPL 941776 Contact Us For Availability
23
Hinge Butt (Bottom R.H.) WPL 943668 Contact Us For Availability
23
Hinge, Bottom L.H. WPL 943670 Contact Us For Availability
24
Insulation, Compartment Separator WPL 939272 Contact Us For Availability
25
Shield, Wiring WPL 946207 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
25
Heat Shield WPL 937227 Contact Us For Availability
26
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
26
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
26
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
26
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
26
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
26
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
26
Bracket, Wire Receptacle WPL 939050 Contact Us For Availability
26
Enamel, Al WPL 978883 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Shim, Bottom WPL 935737 Contact Us For Availability
26
Center Rail, Seal Strip WPL 937086 Contact Us For Availability
27
Top, Compartment Separator WPL 935717 Contact Us For Availability
28
Tap Plate, Bottom WPL 935743 Contact Us For Availability
28
Drain Pan WPL 935718 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Hole Plug (White) WPL 1119707 Contact Us For Availability
29
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
30
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
30
Hole Plug (3) (Almond) WPL 842032 Contact Us For Availability
31
Exchanger, Heat WPL 1115429 Contact Us For Availability
31
Hole Plug (White) WPL 941416 Contact Us For Availability
31
Hole Plug (Almond) WPL 941417 Contact Us For Availability
31
Separator, Drain Insert WPL 937359 Contact Us For Availability
32
Heater Clip WPL 850721 Contact Us For Availability
32
Cover Wiring WPL 1124738 Contact Us For Availability
32
Fitting, Drain WPL 937062 Contact Us For Availability
33
Heater, Defrost WPL 935798 Contact Us For Availability
33
Cup, Drain WPL 937065 Contact Us For Availability
34
Support, Heater WPL 851358 Contact Us For Availability
34
Cord, Service WPL 937360 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Clamp WPL 937357 Contact Us For Availability
38
Wire Connector WPL 227991 Contact Us For Availability
39
Rail Cover Tube (White) WPL 935707 Contact Us For Availability
39
Rail Cover Tube (Almond) WPL 935711 Contact Us For Availability
40
Screw WPL 488895 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
