Model Whirlpool ET14LCRWW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
06 - SHELF
02 - CABINET

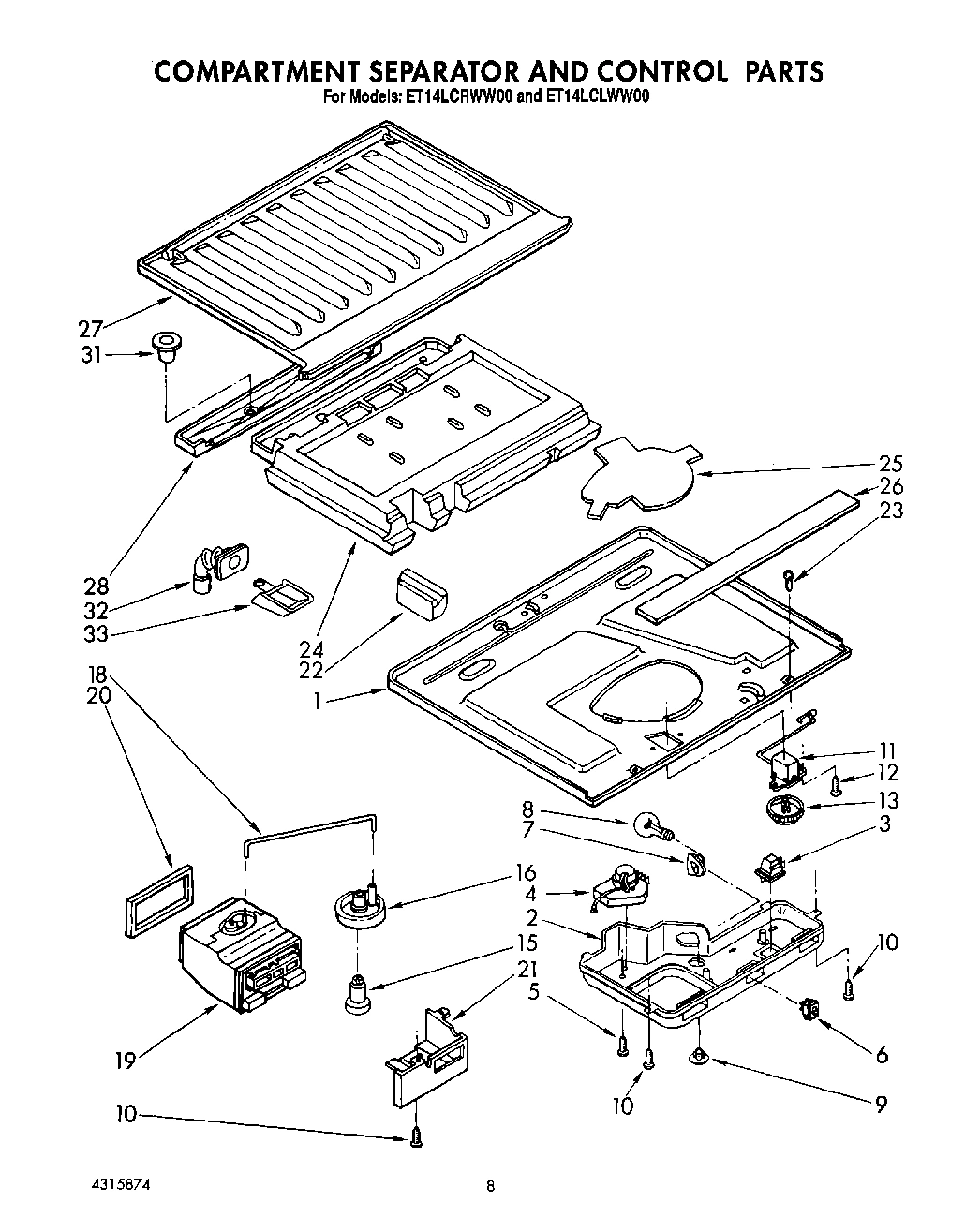

04 - COMPARTMENT SEPARATOR & CONTROL

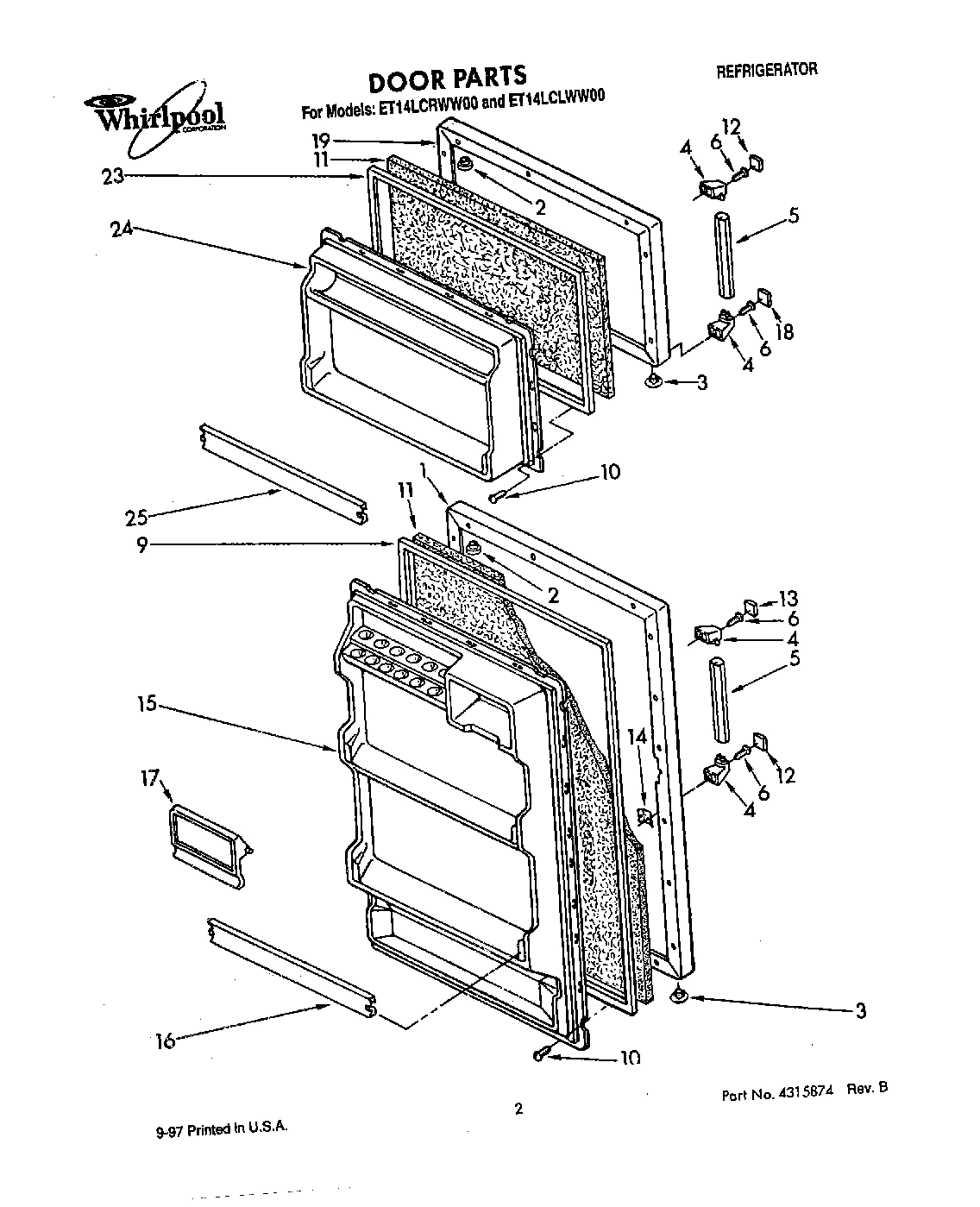

01 - DOOR

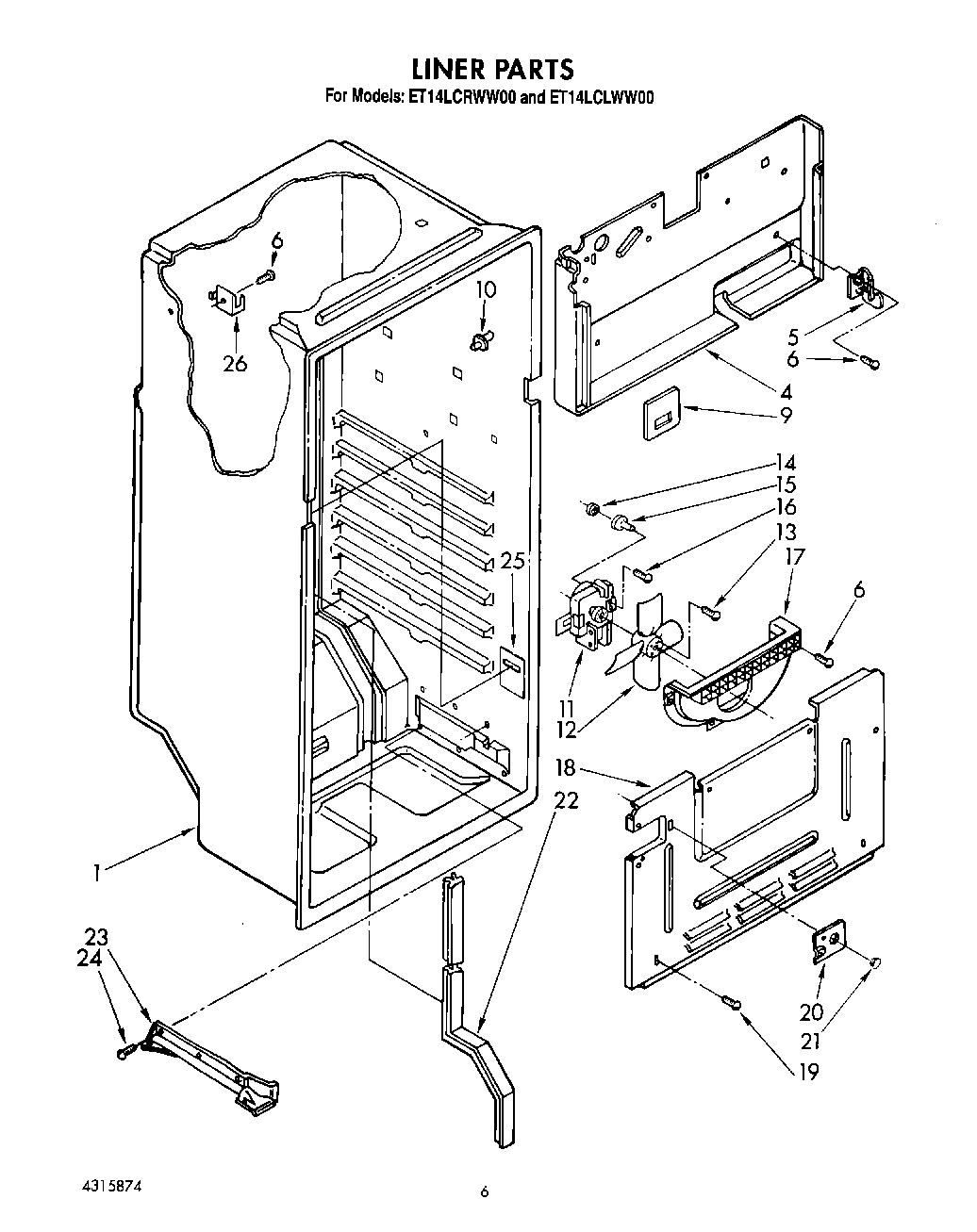

03 - LINER, LIT/OPTIONAL
05 - UNIT
Common parts from model Whirlpool ET14LCRWW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124661 WPL LIT1124661 Contact Us For Availability
WPL LIT1124704 WPL LIT1124704 Contact Us For Availability
WPL LIT1127556 WPL LIT1127556 Contact Us For Availability
WPL LIT4315874 WPL LIT4315874 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116091 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124620 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124621 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124623 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124624 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42440A2 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
2
Box, Control WPL 935726 Contact Us For Availability
2
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1115428 Contact Us For Availability
4
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
4
End Cap, Handle WPL 1124591 Contact Us For Availability
4
Heat Shield WPL 935699 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
5
Handle, Center WPL 1124592 Contact Us For Availability
5
Evaporator, Support WPL 935700 Contact Us For Availability
6
Screw WPL 489246 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Cover, Capacitor WPL 1118525 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Cover, Air Duct WPL 935696 Contact Us For Availability
10
Stud-Shelf WPL 939065 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
11
Relay Case Spring WPL 938384 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
12
Cover, Screw WPL 934724 Contact Us For Availability
12
Relay Case WPL 1108115 Contact Us For Availability
13
Knob, Thermostat WPL 937144 Contact Us For Availability
13
Cover, Screw WPL 1124593 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
14
Grommet WPL 531933 Contact Us For Availability
15
Retainer, Knob WPL 1111792 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1100244 Contact Us For Availability
15
Spacer, Fan Motor WPL 935701 Contact Us For Availability
16
Knob, Air Control WPL 1111737 Contact Us For Availability
16
Trim, Door Shelf WPL 1116076 Contact Us For Availability
16
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
17
Compartment Door WPL 1124589 Contact Us For Availability
17
Scroll Fan WPL 836179 Contact Us For Availability
18
Rod, Connecting WPL 1111438 Contact Us For Availability
18
Cover, Screw WPL 1124617 Contact Us For Availability
18
Evaporator Cover WPL 1124692 Contact Us For Availability
18
Dampener WPL 945593 Contact Us For Availability
19
Air Diffuser WPL 935721 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 1124626 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 1124627 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 1124629 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 1124630 Contact Us For Availability
20
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
21
Cover, Air Diffuser WPL 937226 Contact Us For Availability
21
Hole Plug WPL 1103725 Contact Us For Availability
22
Rear Corner, Block WPL 939056 Contact Us For Availability
22
Cover Tube, Rear WPL 935704 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
23
Cover Tube, Bottom WPL 941776 Contact Us For Availability
24
Insulation, Compartment Separator WPL 939272 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 1100247 Contact Us For Availability
25
Heat Shield WPL 937227 Contact Us For Availability
25
Trim, Door Shelf WPL 1116080 Contact Us For Availability
25
Shield, Wiring WPL 946207 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
26
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
26
Center Rail, Seal Strip WPL 937086 Contact Us For Availability
26
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
26
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
26
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
26
WPL 939050 WPL 939050 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Top, Compartment Separator WPL 935717 Contact Us For Availability
28
Drain Pan WPL 935718 Contact Us For Availability
29
Drier Clamp WPL 547637 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Hole Plug (Almond) WPL 941417 Contact Us For Availability
31
Separator, Drain Insert WPL 937359 Contact Us For Availability
31
Exchanger, Heat WPL 1115429 Contact Us For Availability
32
Cover Wiring WPL 1124738 Contact Us For Availability
32
Fitting, Drain WPL 937062 Contact Us For Availability
32
Heater Clip WPL 850721 Contact Us For Availability
33
Cup, Drain WPL 937065 Contact Us For Availability
33
Heater, Defrost WPL 935798 Contact Us For Availability
34
Cord, Service WPL 937360 Contact Us For Availability
34
Support, Heater WPL 851358 Contact Us For Availability
36
Clamp WPL 937357 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
39
Rail Cover Tube (White) WPL 935707 Contact Us For Availability
39
Rail Cover Tube (Almond) WPL 935711 Contact Us For Availability
40
Screw WPL 488895 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
