Model Whirlpool ET14LCLWW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - COMPARTMENT SEPARATOR & CONTROL
05 - UNIT

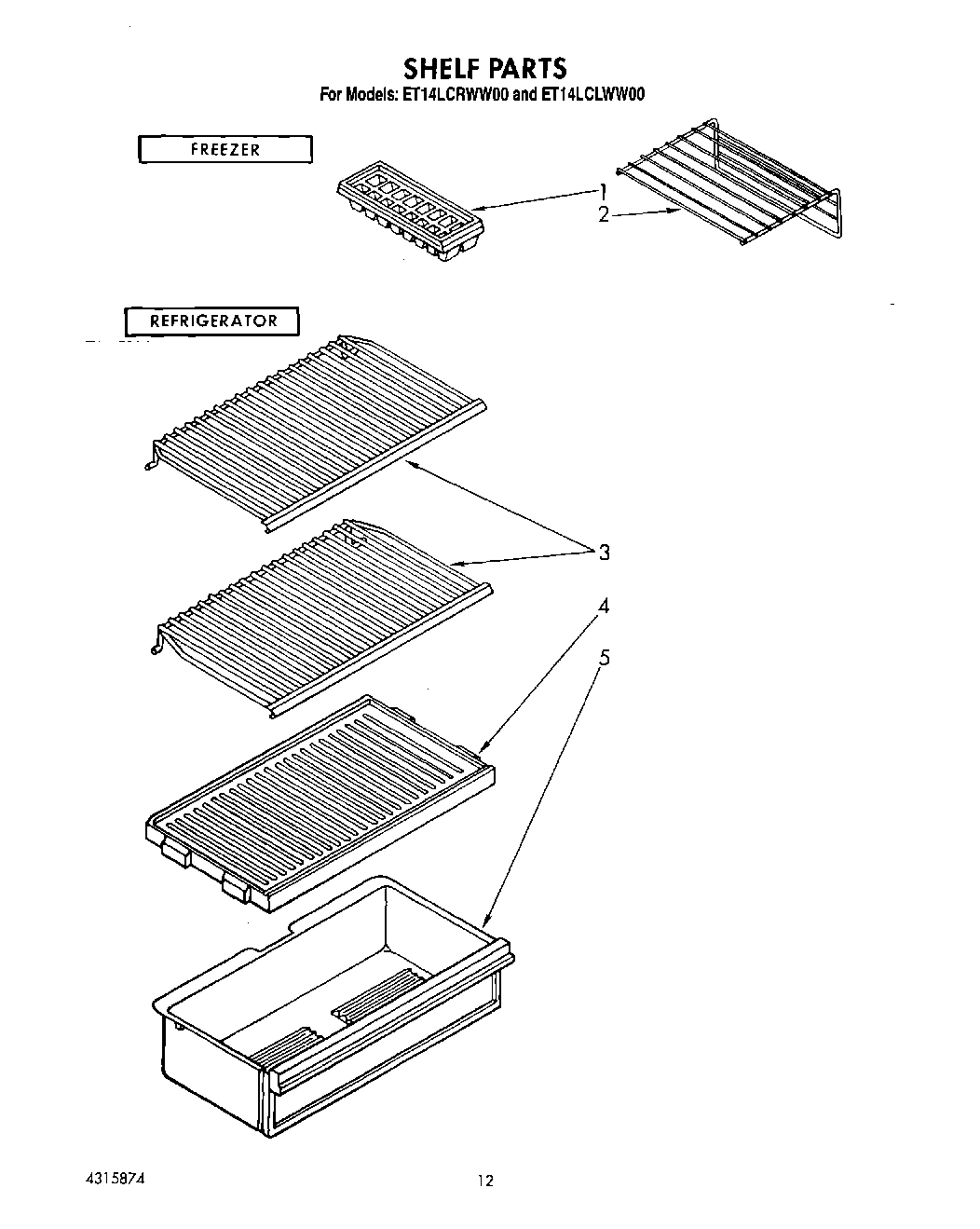

06 - SHELF

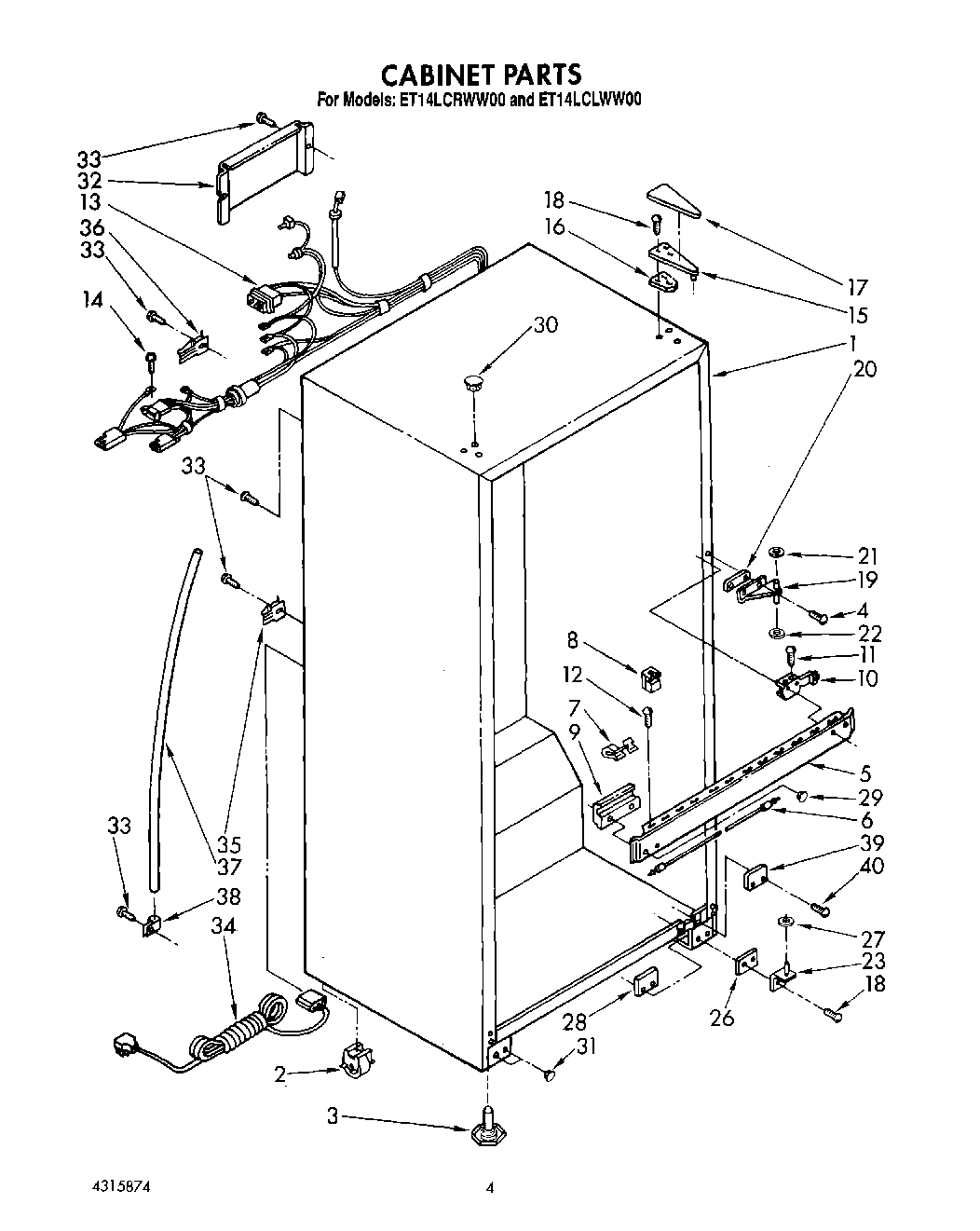

02 - CABINET

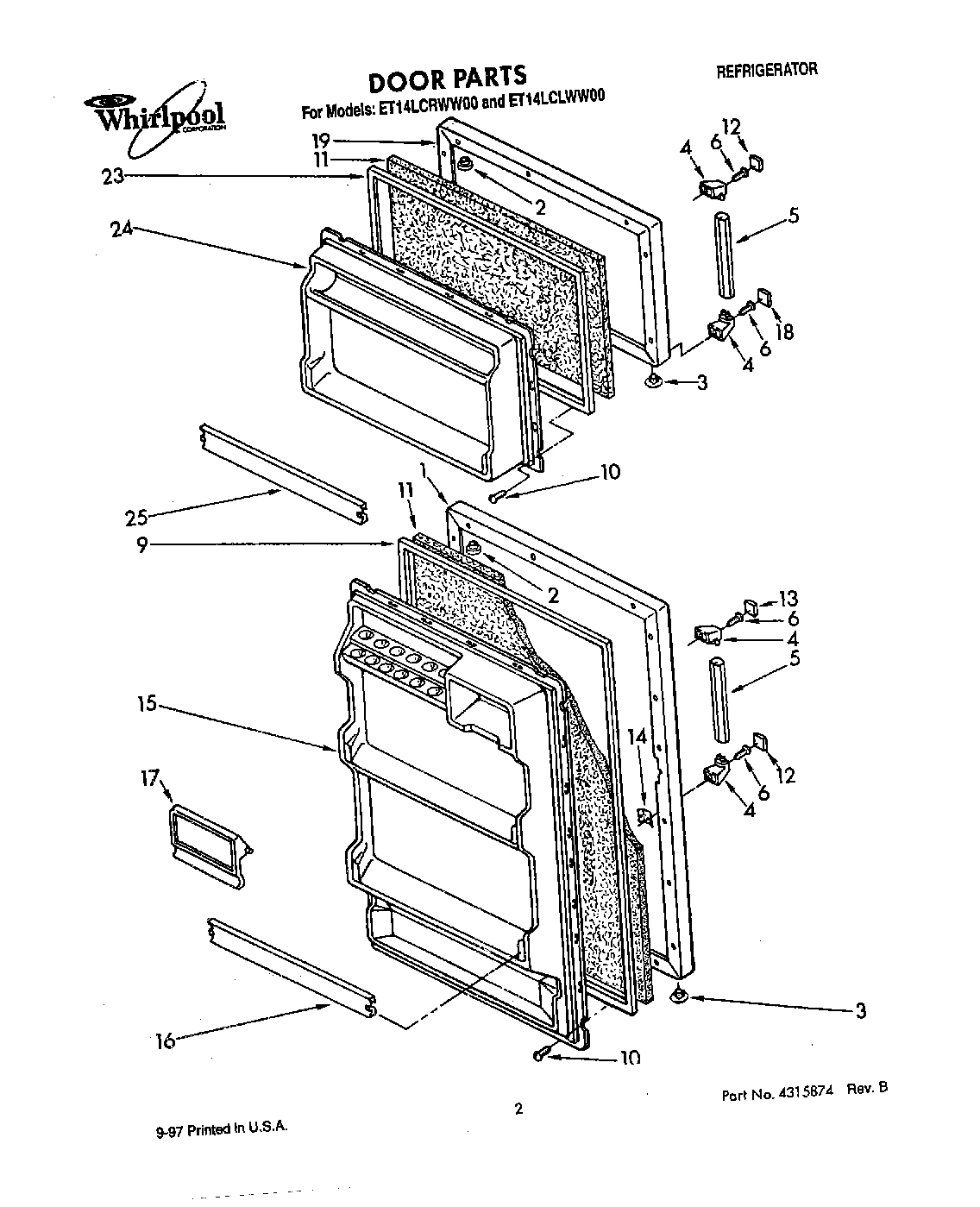

01 - DOOR

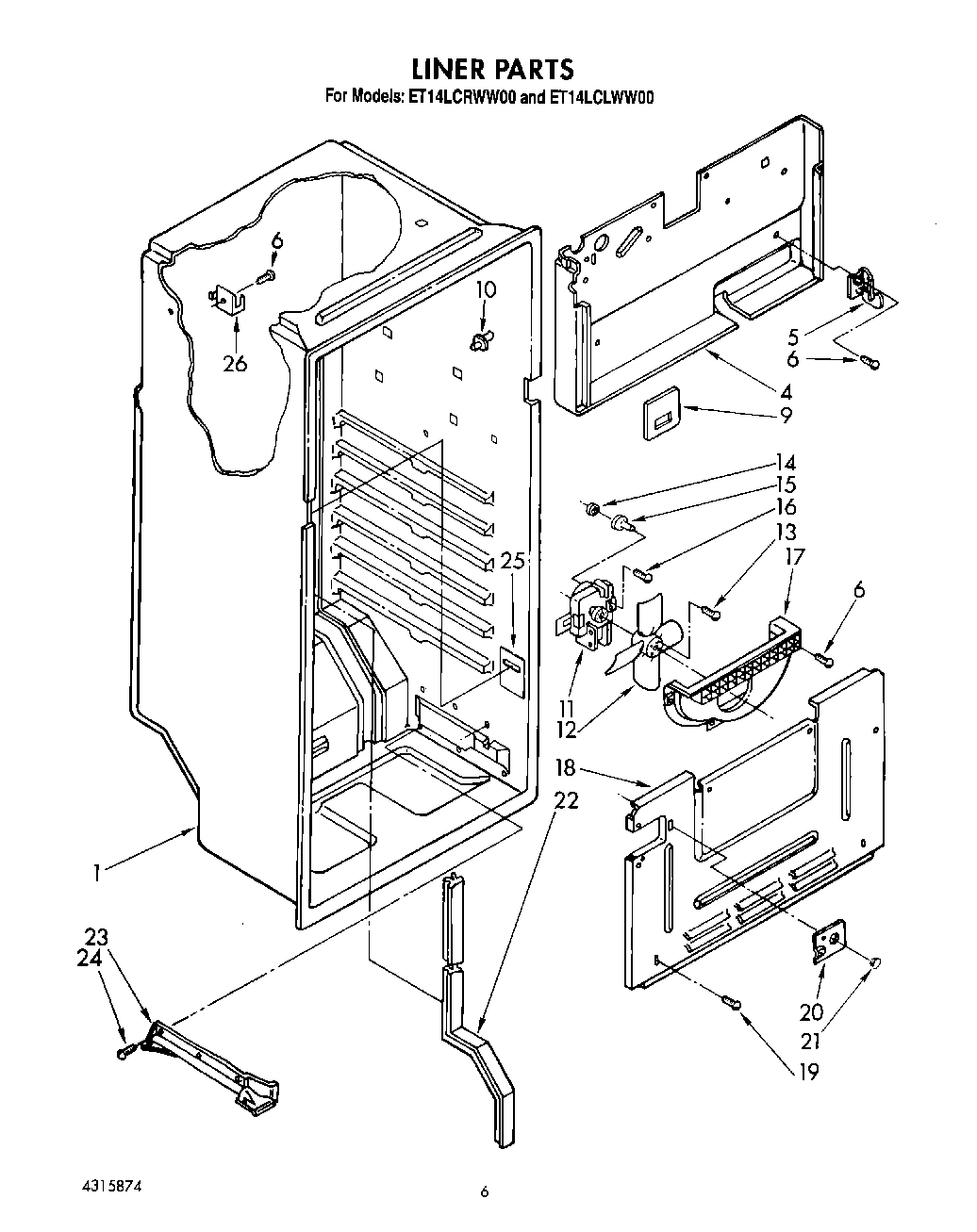

03 - LINER, LIT/OPTIONAL
Common parts from model Whirlpool ET14LCLWW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124661 WPL LIT1124661 Contact Us For Availability
WPL LIT1124704 WPL LIT1124704 Contact Us For Availability
WPL LIT1127556 WPL LIT1127556 Contact Us For Availability
WPL LIT4315874 WPL LIT4315874 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42435A3 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124620 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124621 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124623 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124624 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42436A7 Contact Us For Availability
2
Cover, Ice Cube Pan WPL 946979 Contact Us For Availability
2
Roller, Front & Rear (4) WPL 937216 Contact Us For Availability
2
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
3
Pullout Shelf (2) WPL 935750 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Crisper Cover WPL 935744 Contact Us For Availability
4
Screw WPL 489179 Contact Us For Availability
4
End Cap, Handle WPL 1124591 Contact Us For Availability
4
Heat Shield WPL 935699 Contact Us For Availability
5
Pan, Crisper WPL 1124690 Contact Us For Availability
5
Center Rail (White) WPL 935685 Contact Us For Availability
5
Center Rail (Almond) WPL 935689 Contact Us For Availability
5
Handle, Center WPL 1124592 Contact Us For Availability
5
Evaporator, Support WPL 935700 Contact Us For Availability
6
Heater, Mullion WPL 938278 Contact Us For Availability
6
Screw WPL 489246 Contact Us For Availability
7
Cover, Capacitor WPL 1118525 Contact Us For Availability
7
Breaker, Trim Cup WPL 534365 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Spacer WPL 1116484 Contact Us For Availability
9
Center, Rail Shim WPL 939034 Contact Us For Availability
9
Cover, Air Duct WPL 935696 Contact Us For Availability
10
Stud-Shelf WPL 939065 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
10
Bracket, Center Rail WPL 935692 Contact Us For Availability
11
Relay Case Spring WPL 938384 Contact Us For Availability
12
Relay Case WPL 1108115 Contact Us For Availability
12
Cover, Screw WPL 934724 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Cabinet Wiring Assembly WPL 1127559 Contact Us For Availability
13
Cover, Screw WPL 1124593 Contact Us For Availability
14
Grommet WPL 531933 Contact Us For Availability
15
Hinge, Top WPL 842039 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1100244 Contact Us For Availability
15
Spacer, Fan Motor WPL 935701 Contact Us For Availability
16
Shim, Hinge Top WPL 836192 Contact Us For Availability
16
Trim, Door Shelf WPL 1116076 Contact Us For Availability
16
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
17
Compartment Door WPL 1124589 Contact Us For Availability
17
Scroll Fan WPL 836179 Contact Us For Availability
18
Dampener WPL 945593 Contact Us For Availability
18
Screw (Repair) WPL 489297 Contact Us For Availability
18
Cover, Screw WPL 1124617 Contact Us For Availability
18
Evaporator Cover WPL 1124692 Contact Us For Availability
19
Hinge, Center WPL 836153 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 1124626 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 1124627 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 1124629 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 1124630 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
20
Shim, Hinge Center WPL 836155 Contact Us For Availability
21
Hole Plug WPL 1103725 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
22
Cover Tube, Rear WPL 935704 Contact Us For Availability
23
Hinge Butt (Bottom R.H.) WPL 943668 Contact Us For Availability
23
Hinge, Bottom L.H. WPL 943670 Contact Us For Availability
23
Cover Tube, Bottom WPL 941776 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 1100247 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
25
Trim, Door Shelf WPL 1116080 Contact Us For Availability
25
Shield, Wiring WPL 946207 Contact Us For Availability
26
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
26
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Shim, Bottom WPL 935737 Contact Us For Availability
26
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
26
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
26
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
26
WPL 939050 WPL 939050 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
28
Tap Plate, Bottom WPL 935743 Contact Us For Availability
29
Drier Clamp WPL 547637 Contact Us For Availability
29
Hole Plug (White) WPL 1119707 Contact Us For Availability
29
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
30
Hole Plug (3) (White) WPL 1129062 Contact Us For Availability
30
Hole Plug (3) (Almond) WPL 1129063 Contact Us For Availability
31
Exchanger, Heat WPL 1115429 Contact Us For Availability
31
Hole Plug (White) WPL 941416 Contact Us For Availability
31
Hole Plug (Almond) WPL 941417 Contact Us For Availability
32
Heater Clip WPL 850721 Contact Us For Availability
32
Cover Wiring WPL 1124738 Contact Us For Availability
33
Heater, Defrost WPL 935798 Contact Us For Availability
34
Support, Heater WPL 851358 Contact Us For Availability
34
Cord, Service WPL 937360 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Clamp WPL 937357 Contact Us For Availability
39
Rail Cover Tube (White) WPL 935707 Contact Us For Availability
39
Rail Cover Tube (Almond) WPL 935711 Contact Us For Availability
40
Screw WPL 488895 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
