Model Whirlpool ET14EPXRWR1 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

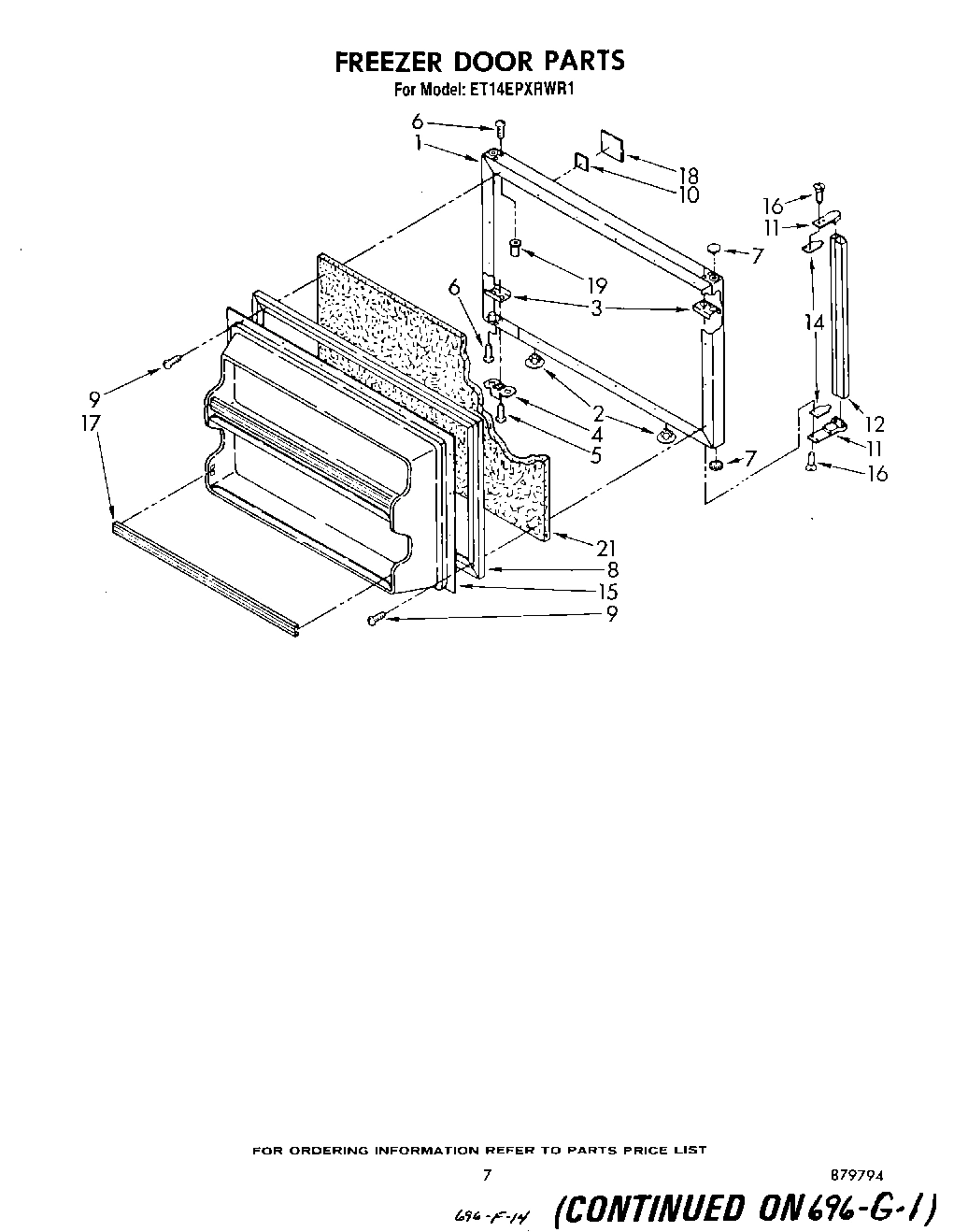

06 - FREEZER DOOR

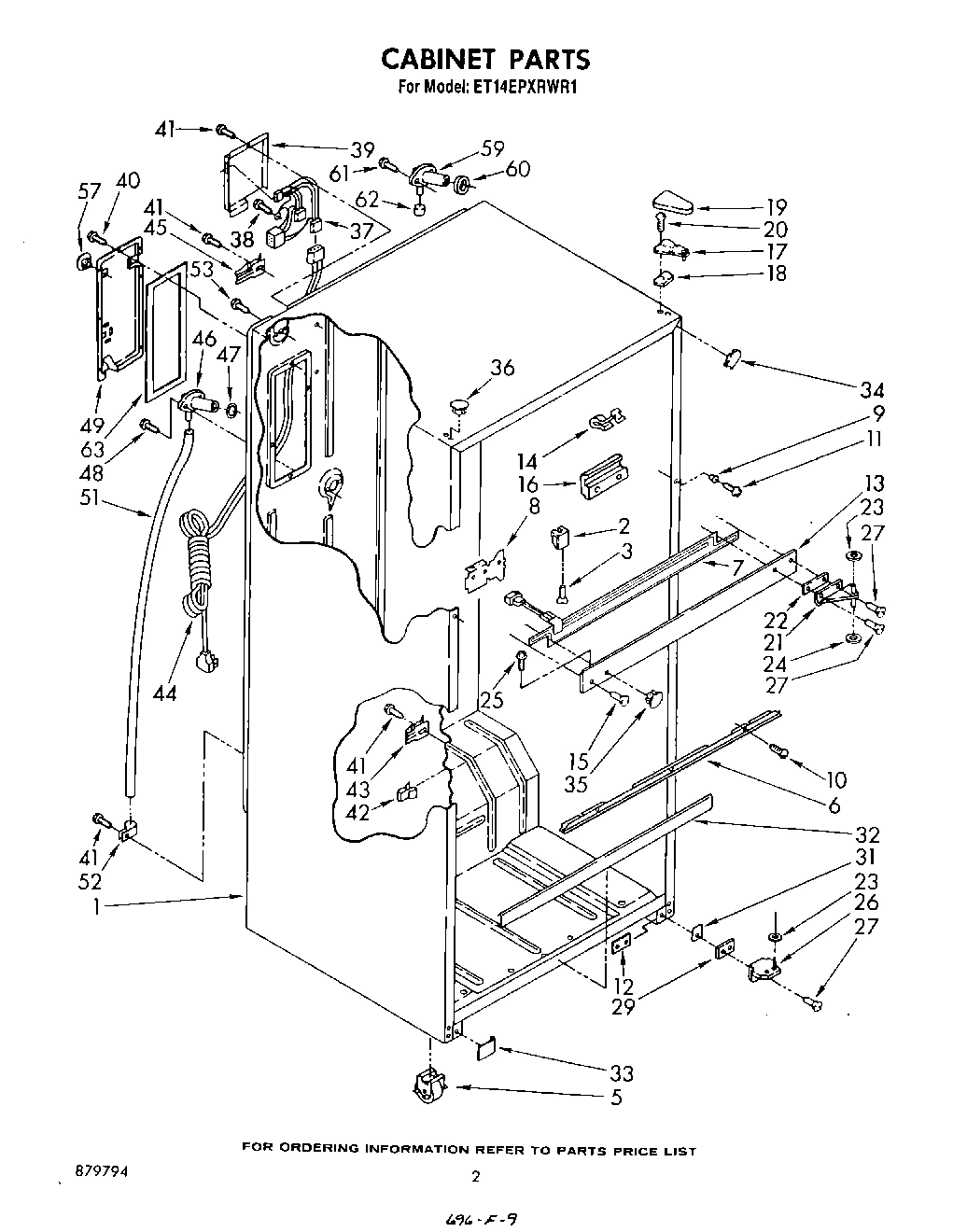

02 - CABINET
04 - COMPARTMENT SEPARATOR
07 - UNIT
03 - LINER
05 - SHELF
08 - REFRIGERATOR DOOR , LIT/OPTIONAL
Common parts from model Whirlpool ET14EPXRWR1 TOP MOUNT REFRIGERATOR
WPL LIT1114148 WPL LIT1114148 Contact Us For Availability
WPL LIT1116265 WPL LIT1116265 Contact Us For Availability
WPL LIT1116285 WPL LIT1116285 Contact Us For Availability
WPL LIT879794 WPL LIT879794 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111798 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI41831A1 Contact Us For Availability
1
Shelf, Pullout (2) WPL 1105974 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1103919 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1103920 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) (Use 9789 WPL 1103921 Contact Us For Availability
2
Box, Control WPL 942757 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Wiring, Fan Motor WPL 943722 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability
3
Hole Plug WPL 944795 Contact Us For Availability
3
Cover, Crisper WPL 1104580 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 850608 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Top, Electric Shield WPL 946350 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Pan, Crisper (2) WPL 1105813 Contact Us For Availability
9
Stud (2) WPL 939065 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Handle End, Side WPL 935105 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
12
Case, Relay WPL 1108144 Contact Us For Availability
12
Handle, Center WPL 1104936 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Cover, Air Duct WPL 1108079 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935076 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1111737 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
15
Screw WPL 489184 Contact Us For Availability
15
Gasket, Drain Pan WPL 1108171 Contact Us For Availability
16
Center, Rail Shim WPL 939034 Contact Us For Availability
16
Rod, Connecting WPL 1111270 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Air Diffuser Assembly WPL 935721 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
18
End Cap Cover WPL 987873 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 945849 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1116277 Contact Us For Availability
21
Insulation Foam (Required When Replacing Exte WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Screw, 8 x 1-1/4 (2) WPL 489042 Contact Us For Availability
21
Trim, Door (Bottom) WPL 1116278 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1118580 Contact Us For Availability
22
Evaporator WPL 1108180 Contact Us For Availability
22
Compartment, Utility Door WPL 1116281 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943733 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
23
Compartment, Butter Door WPL 1116280 Contact Us For Availability
24
Evaporator Cover WPL 942847 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Hinge (R.H) WPL 944776 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
27
Screw (Repair) 12-14 x 3/4 WPL 488949 Contact Us For Availability
27
Screw WPL 489179 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110242 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
WPL 479502 WPL 479502 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
28
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
28
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
28
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
28
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
28
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
28
WPL 350941 WPL 350941 Contact Us For Availability
28
WPL 509929 WPL 509929 Contact Us For Availability
28
WPL 542639 WPL 542639 Contact Us For Availability
28
WPL 72112 WPL 72112 Contact Us For Availability
28
WPL 799340 WPL 799340 Contact Us For Availability
28
WPL 799832 WPL 799832 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 799908 WPL 799908 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
29
Shim, Bottom WPL 942812 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
31
Exchanger, Heat WPL 1105103 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
32
Cover, Deck Rail (Toast) WPL 1109371 Contact Us For Availability
32
Cover, Deck Rail (Platinum) WPL 1109372 Contact Us For Availability
32
Running Capacitor WPL 1118519 Contact Us For Availability
33
Cover, Glider Rail (Platinum) WPL 1100681 Contact Us For Availability
33
Cover, Glider Rail (Toast) WPL 1100682 Contact Us For Availability
33
Cove WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119323 Contact Us For Availability
33
Heater, Defrost WPL 1105164 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1100687 WPL 1100687 Contact Us For Availability
35
WPL 1100688 WPL 1100688 Contact Us For Availability
35
WPL 940086 WPL 940086 Contact Us For Availability
35
WPL 940087 WPL 940087 Contact Us For Availability
35
WPL 940089 WPL 940089 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
41
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
42
Muffler WPL 1105136 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 942859 Contact Us For Availability
49
WPL 942854 WPL 942854 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
51
Clamp WPL 489151 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
54
Support, Heater WPL 1108172 Contact Us For Availability
57
WPL 655411 WPL 655411 Contact Us For Availability
63
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
