Model Whirlpool ET14CCRWW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - UNIT
02 - DOOR

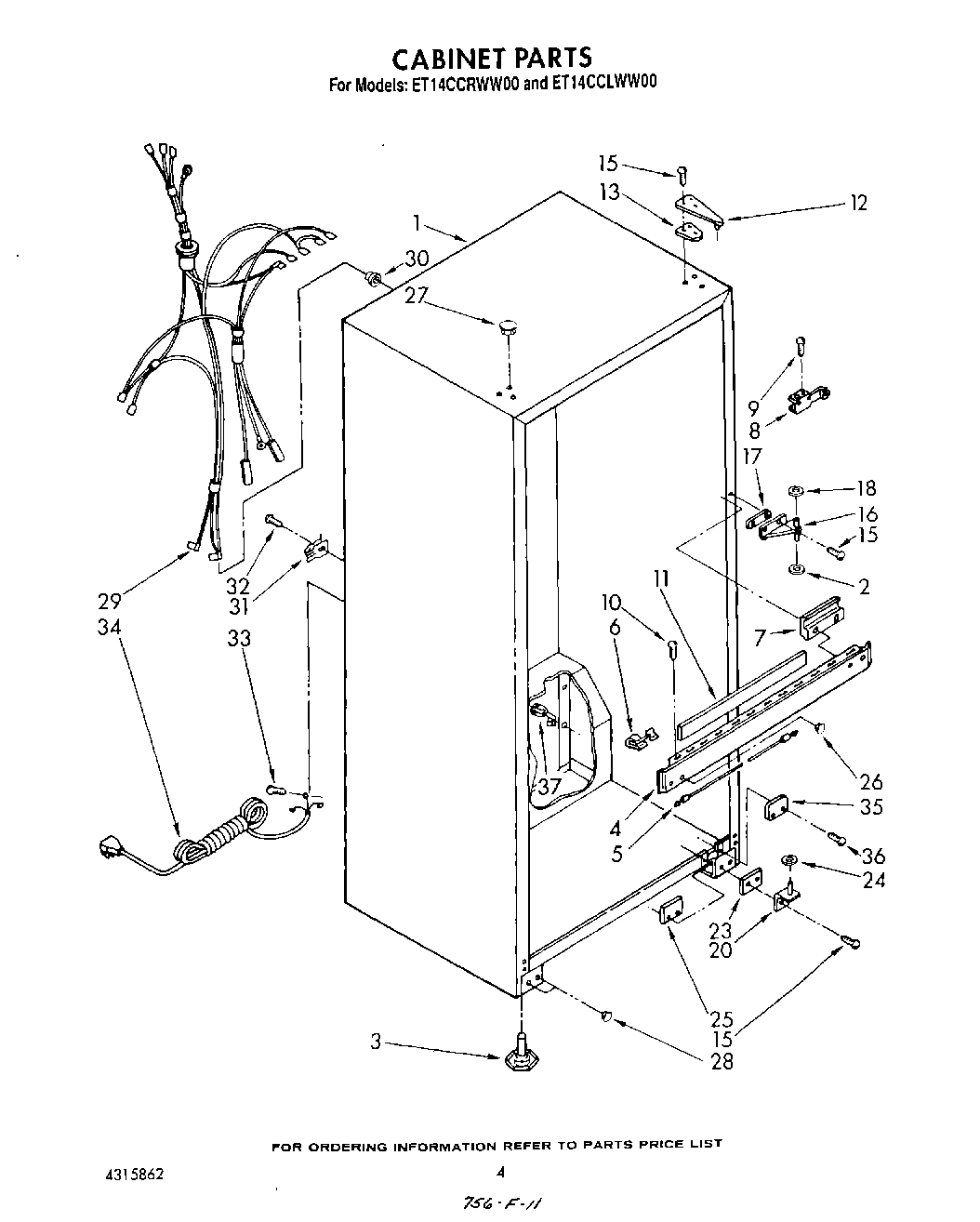

03 - CABINET

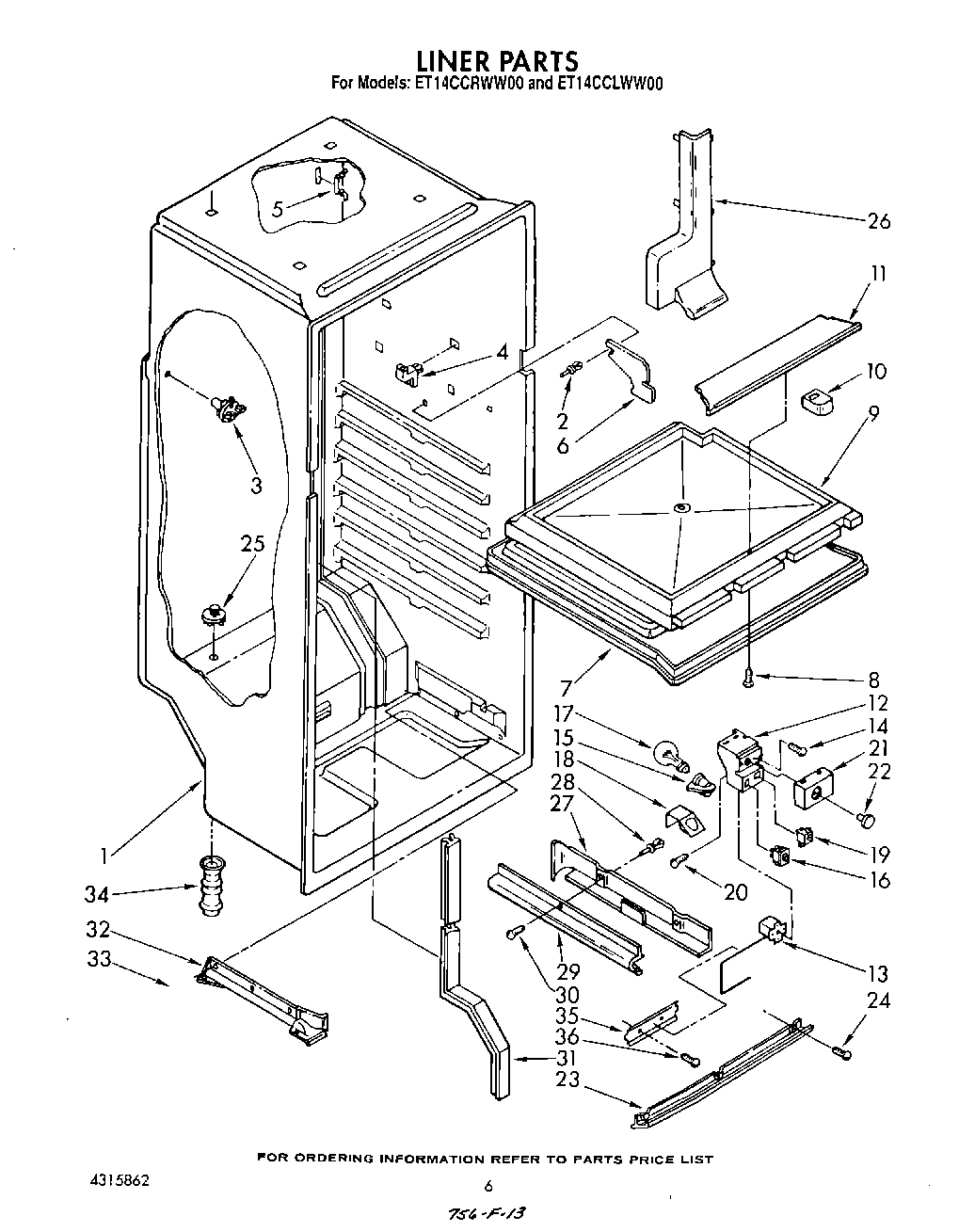

04 - LINER , LIT/OPTIONAL

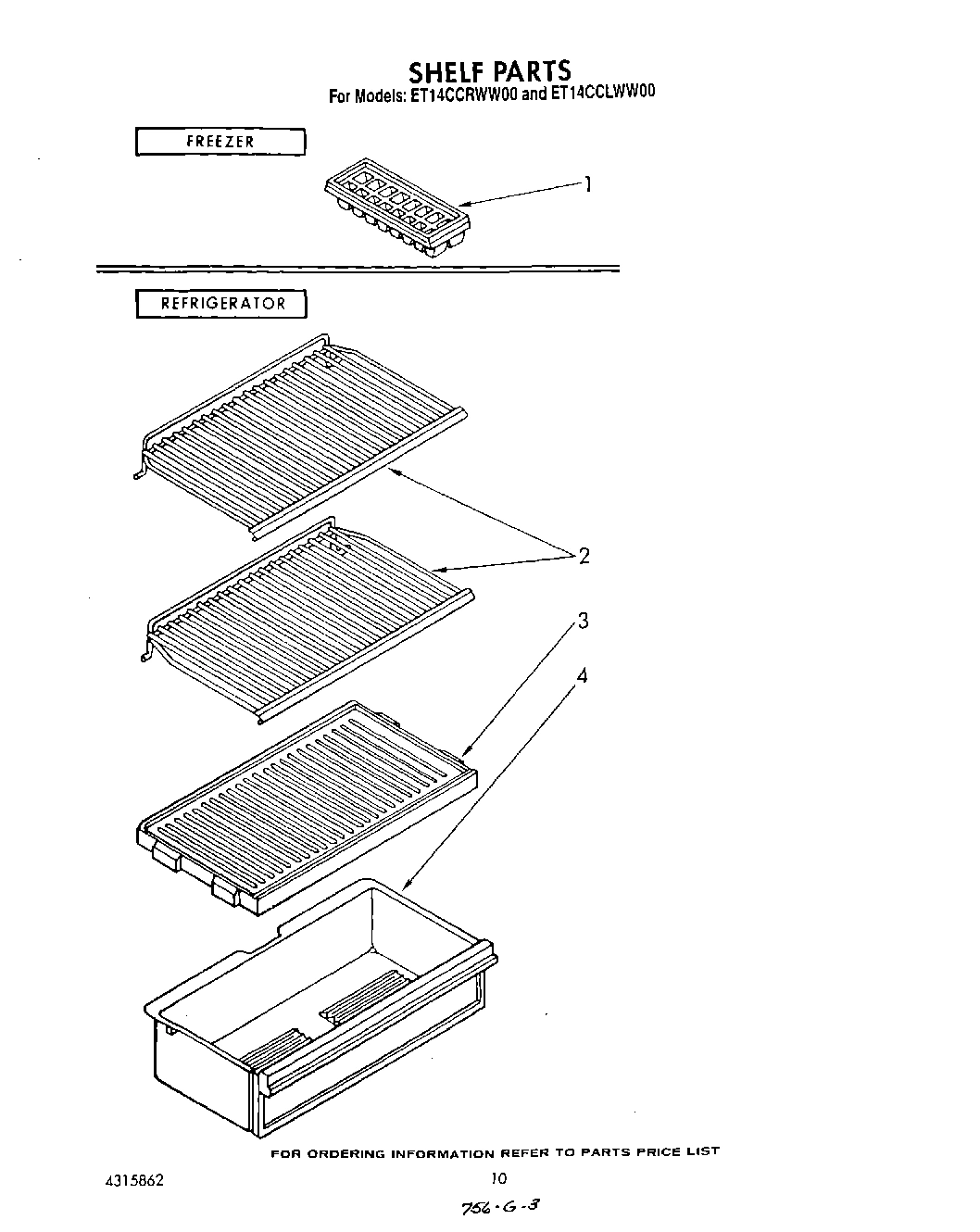

06 - SHELF
Common parts from model Whirlpool ET14CCRWW00 TOP MOUNT REFRIGERATOR
WPL LIT1101091 WPL LIT1101091 Contact Us For Availability
WPL LIT1124598 WPL LIT1124598 Contact Us For Availability
WPL LIT1124618 WPL LIT1124618 Contact Us For Availability
WPL LIT4315862 WPL LIT4315862 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124620 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124621 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124623 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 1124624 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI41716A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI41717A5 Contact Us For Availability
2
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
2
Pullout Shelf (2) WPL 937017 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw Anchor (4) WPL 939989 Contact Us For Availability
3
Crisper Cover WPL 935744 Contact Us For Availability
4
End Cap, Handle WPL 1124591 Contact Us For Availability
4
Center Rail (White) WPL 935685 Contact Us For Availability
4
Center Rail (Almond) WPL 935689 Contact Us For Availability
4
Pan, Crisper WPL 939053 Contact Us For Availability
5
Handle, Center WPL 1124592 Contact Us For Availability
5
Heater, Mullion WPL 935691 Contact Us For Availability
5
Speed Clip (3) WPL 533998 Contact Us For Availability
6
Screw WPL 489246 Contact Us For Availability
6
Clip, Mullion (3) WPL 534365 Contact Us For Availability
6
Electric Shield WPL 937228 Contact Us For Availability
7
Retainer Gasket, Top & Bottom (2) WPL 935759 Contact Us For Availability
7
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
7
Bottom, Compartment Separator WPL 937014 Contact Us For Availability
8
Retainer, Gasket Side (2) WPL 935760 Contact Us For Availability
8
Bracket, Center Rail (2) WPL 935692 Contact Us For Availability
9
Insulation, Compartment Separator WPL 937015 Contact Us For Availability
10
Insulation, Crossover Tube WPL 1100975 Contact Us For Availability
11
Seal, Strip WPL 940092 Contact Us For Availability
11
Breaker Trim, Mullion WPL 937016 Contact Us For Availability
12
Cover, Screw WPL 934724 Contact Us For Availability
12
Hinge, Top WPL 842039 Contact Us For Availability
12
Control Box WPL 939089 Contact Us For Availability
13
Cover, Screw WPL 1124593 Contact Us For Availability
13
Shim, Hinge WPL 836192 Contact Us For Availability
13
Thermostat WPL 1118984 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1100233 Contact Us For Availability
15
Screw (Repair) WPL 488949 Contact Us For Availability
16
Trim, Door Shelf WPL 1116076 Contact Us For Availability
16
Hinge, Center WPL 836153 Contact Us For Availability
17
Compartment Door WPL 1124589 Contact Us For Availability
17
Shim, Hinge Center WPL 836155 Contact Us For Availability
18
Cover, Screw WPL 1124617 Contact Us For Availability
18
Light Shield WPL 937230 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 1124626 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 1124627 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 1124629 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 1124630 Contact Us For Availability
20
Hinge Butt (Bottom R.H.) WPL 943668 Contact Us For Availability
20
Hinge, Bottom L.H. WPL 943670 Contact Us For Availability
21
Cover, Control Box WPL 1124586 Contact Us For Availability
22
Retainer, Gasket Side (Freezer) WPL 935775 Contact Us For Availability
22
Control Knob WPL 845233 Contact Us For Availability
23
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
23
Drain Trough WPL 1105059 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 1100131 Contact Us For Availability
25
Trim, Door Shelf WPL 1116080 Contact Us For Availability
25
Tap Plate WPL 935743 Contact Us For Availability
25
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
26
Hole Plug (2) (White) WPL 1119707 Contact Us For Availability
26
Hole Plug (2) (Almond) WPL 1119709 Contact Us For Availability
26
Tube Cover WPL 937021 Contact Us For Availability
27
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability
27
Wire Cover (Rear) WPL 939957 Contact Us For Availability
28
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
28
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
28
Plastic, Rivet WPL 939961 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 937011 Contact Us For Availability
29
Wire Cover (Front) WPL 939960 Contact Us For Availability
30
Grommet, Wiring WPL 938284 Contact Us For Availability
30
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
31
Clamp WPL 939009 Contact Us For Availability
31
Tube Entry Cover (Rear) WPL 937032 Contact Us For Availability
32
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
33
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
34
Cord, Service WPL 850626 Contact Us For Availability
34
Fitting, Drain WPL 842256 Contact Us For Availability
35
Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability
35
Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability
35
Clip, Thermostat WPL 510714 Contact Us For Availability
36
WPL 876029 WPL 876029 Contact Us For Availability
36
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
36
Screw (2) WPL 488895 Contact Us For Availability
36
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
36
CEMENT, ALUMILASTIC (1 1/4 OZ WPL 542639 Contact Us For Availability
36
WPL 799832 WPL 799832 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
37
Bushing, Strain Relief WPL 544108 Contact Us For Availability
41
Unit, Rail WPL 945448 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388008 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
Start Kit WPL 482278 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
