Model Whirlpool ET14AKXRWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
07 - UNIT
03 - LINER

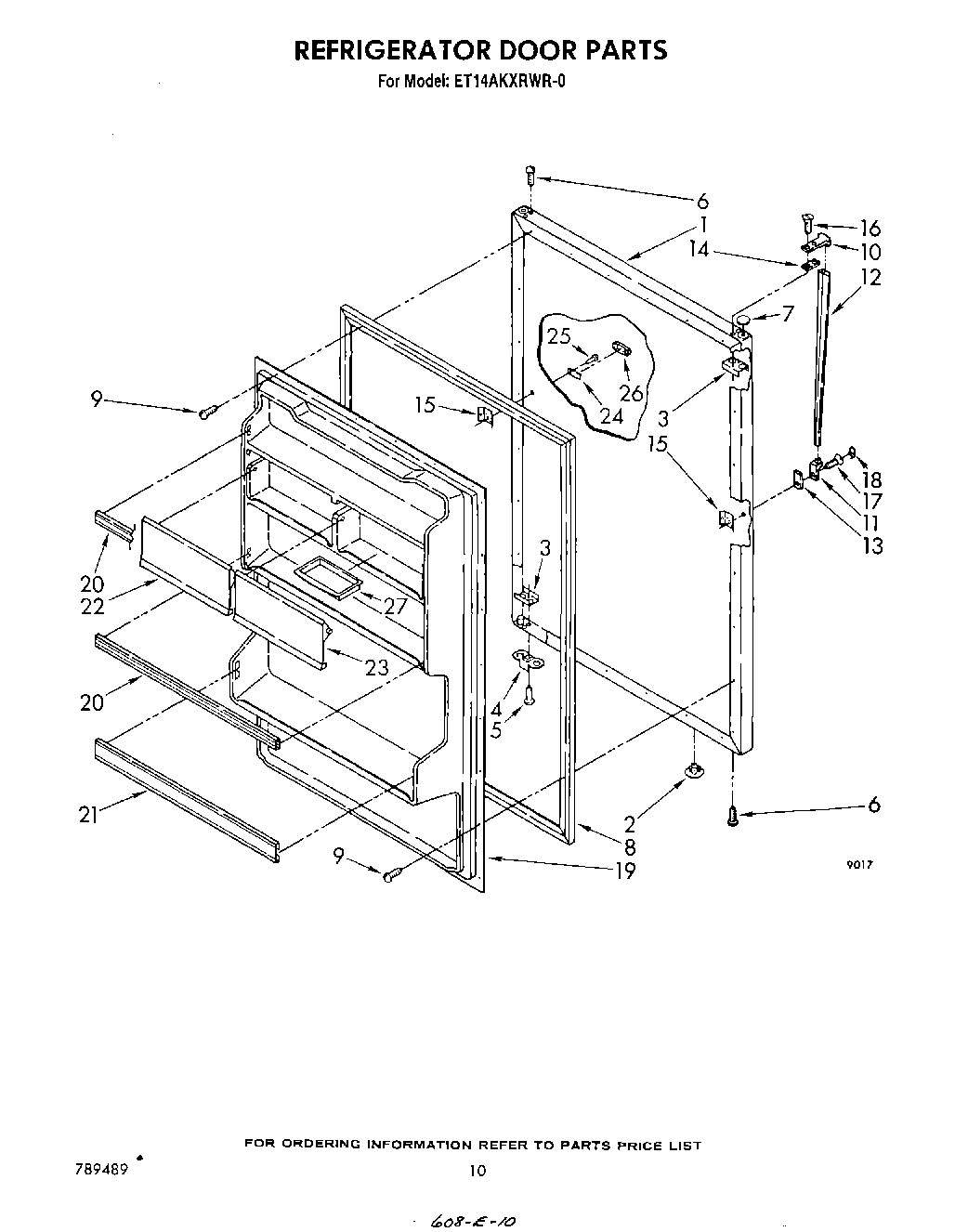

08 - REFRIGERATOR DOOR , LIT/OPTIONAL

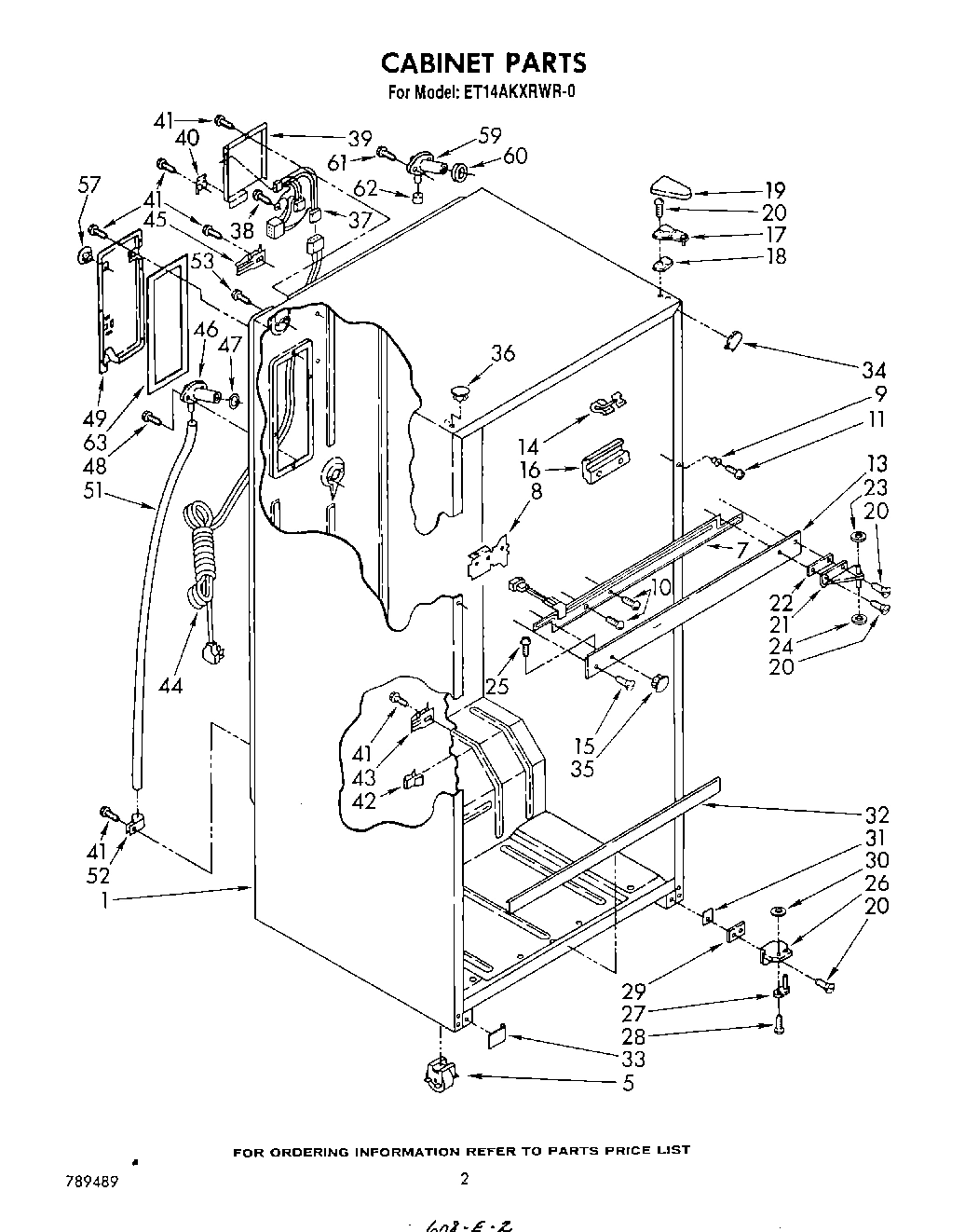

02 - CABINET

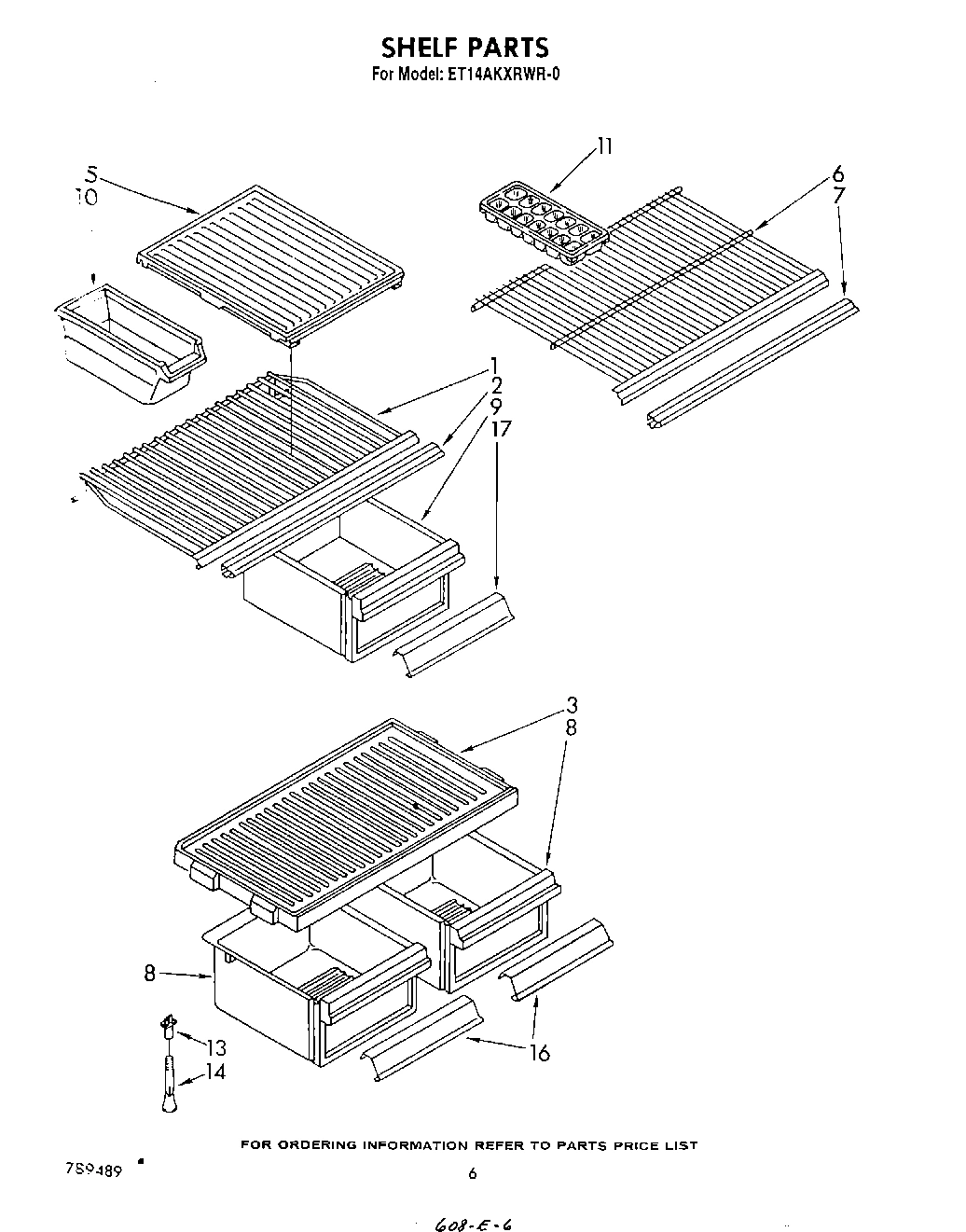

05 - SHELF

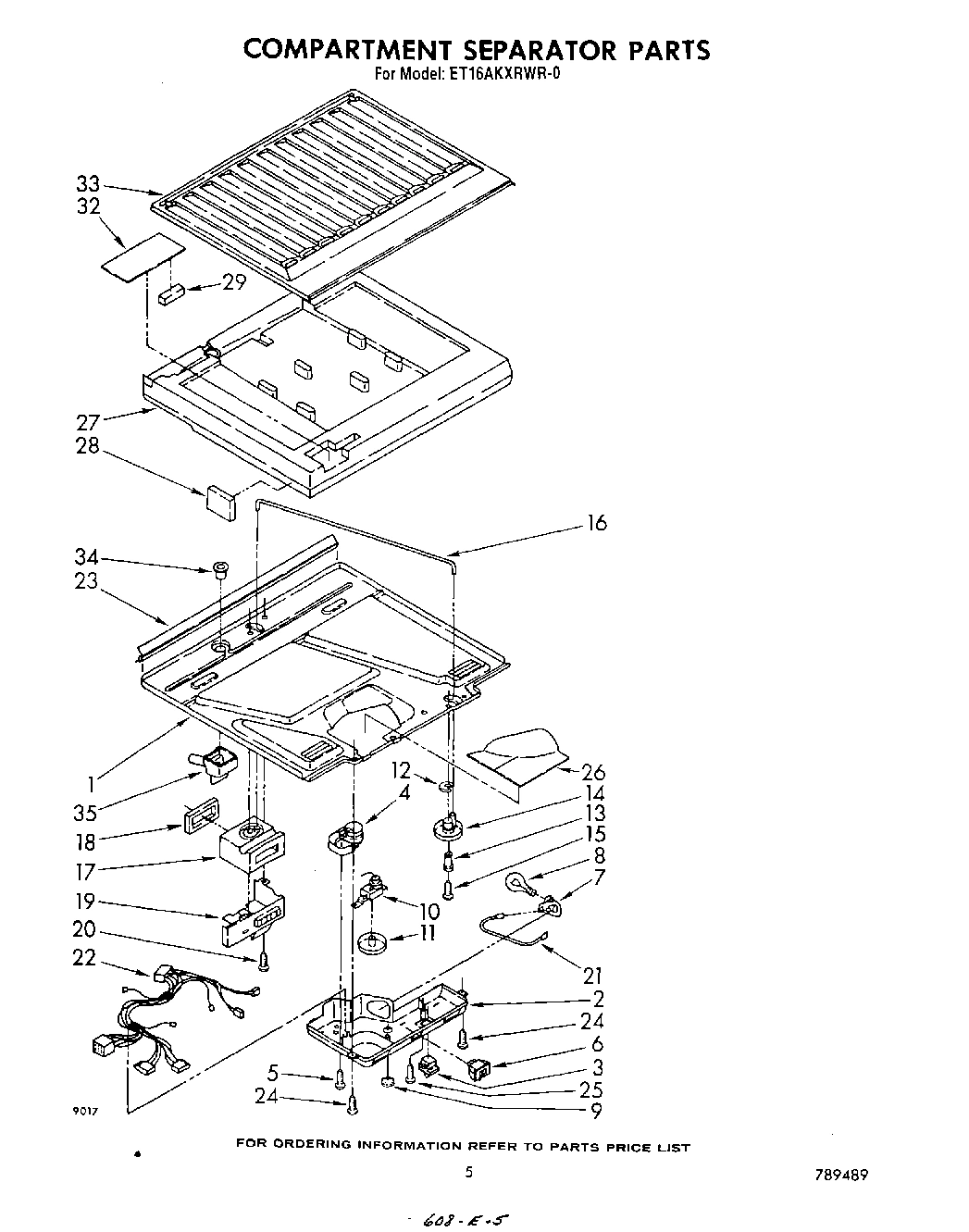

04 - COMPARTMENT SEPARATOR

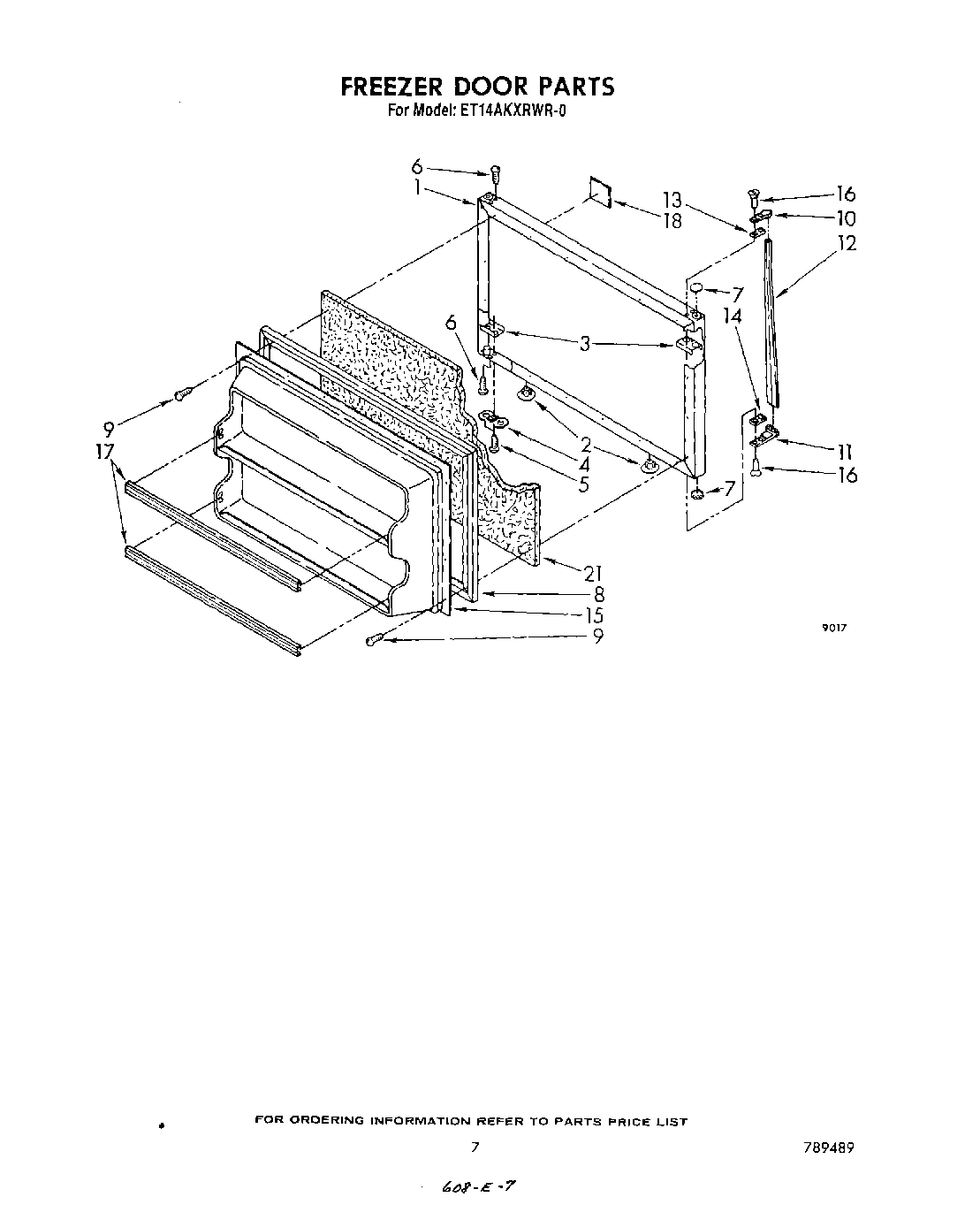

06 - FREEZER DOOR
Common parts from model Whirlpool ET14AKXRWR0 TOP MOUNT REFRIGERATOR
WPL LIT1105961 WPL LIT1105961 Contact Us For Availability
WPL LIT1105963 WPL LIT1105963 Contact Us For Availability
WPL LIT1108007 WPL LIT1108007 Contact Us For Availability
WPL LIT789489 WPL LIT789489 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1103919 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1103920 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1103921 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI41694A5 Contact Us For Availability
1
Shelf, Pullout (3) WPL 1104455 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1110241 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1103943 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1103944 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Trim, Shelf (Front) WPL 935749 Contact Us For Availability
2
Box, Control WPL 1100492 Contact Us For Availability
3
Cover, Crisper WPL 1104558 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 850608 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Roller (4) WPL 937216 Contact Us For Availability
5
Cover, Meat Pan WPL 1105927 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Shelf, Freezer WPL 1104560 Contact Us For Availability
7
Top, Electric Shield WPL 946350 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heater, Mullion WPL 1108140 Contact Us For Availability
7
Trim, Shelf (Front) WPL 942840 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Pan, Crisper (2) WPL 1108702 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Ferrule, Center Rail WPL 942737 Contact Us For Availability
9
Pan, Meat WPL 1108704 Contact Us For Availability
10
Screw, 8-32 x 1/2 WPL 489129 Contact Us For Availability
11
Screw WPL 488428 Contact Us For Availability
11
Knob, Thermostat WPL 943798 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104738 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Lockwasher WPL 489053 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1104740 Contact Us For Availability
12
Handle, Center WPL 1106194 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 1108079 Contact Us For Availability
13
Center Rail (White) WPL 1110233 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1110234 Contact Us For Availability
13
Center Rail (Almond) WPL 1110235 Contact Us For Availability
13
Center Rail (Toast) WPL 1110236 Contact Us For Availability
13
Center Rail (Platinum) WPL 1110237 Contact Us For Availability
13
Support, Crisper Cover WPL 1103731 Contact Us For Availability
13
Spacer, Knob WPL 937105 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Post, Cripser Cover WPL 836410 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
14
Breaker, Trim Clip WPL 534365 Contact Us For Availability
14
Knob, Air Control WPL 935727 Contact Us For Availability
15
Screw, 10-32 x 3/8 WPL 489164 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1100263 Contact Us For Availability
16
Center, Rail Shim WPL 939034 Contact Us For Availability
16
Overlay, Pan (2) WPL 937154 Contact Us For Availability
16
Rod, Connecting WPL 1104579 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Overlay, Pan WPL 937155 Contact Us For Availability
17
Air Diffuser Assembly WPL 935721 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 946985 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
18
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
18
Nameplate WPL 945118 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 945849 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 946984 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
21
Insulation Foam (Required When Replacing Exte WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw, 8 x 1-1/4 (2) WPL 489042 Contact Us For Availability
21
Trim, Door (Bottom) WPL 946988 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
22
Compartment, Utility Door WPL 1108708 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1103898 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
23
Compartment, Butter Door WPL 1108707 Contact Us For Availability
23
Gasket, Bottom Separator WPL 943733 Contact Us For Availability
24
Evaporator Cover WPL 942847 Contact Us For Availability
24
Clip, Medallion WPL 843213 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Medallion (Toast) WPL 1100194 Contact Us For Availability
26
Medallion (Platinum) WPL 1100195 Contact Us For Availability
26
Medallion (White) WPL 848382 Contact Us For Availability
26
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
26
Medallion (Almond) WPL 989904 Contact Us For Availability
26
Hinge Butt, Bottom WPL 944783 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
WPL 479502 WPL 479502 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
27
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
27
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
27
P WPL 285366 Contact Us For Availability
27
WPL 285367 WPL 285367 Contact Us For Availability
27
WPL 285368 WPL 285368 Contact Us For Availability
27
WPL 350941 WPL 350941 Contact Us For Availability
27
WPL 542639 WPL 542639 Contact Us For Availability
27
WPL 72112 WPL 72112 Contact Us For Availability
27
WPL 799340 WPL 799340 Contact Us For Availability
27
WPL 799832 WPL 799832 Contact Us For Availability
27
WPL 799833 WPL 799833 Contact Us For Availability
27
WPL 799908 WPL 799908 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110242 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Shim, Bottom WPL 942812 Contact Us For Availability
29
Protector, Wiring WPL 944998 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
32
Cover, Deck Rail (Toast) WPL 1109371 Contact Us For Availability
32
Cover, Deck Rail (Platinum) WPL 1109372 Contact Us For Availability
32
Shield, Compartment Separator WPL 942772 Contact Us For Availability
33
Cover, Glider Rail (Platinum) WPL 1100681 Contact Us For Availability
33
Cover, Glider Rail (Toast) WPL 1100682 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cov WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1110243 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1100687 WPL 1100687 Contact Us For Availability
35
WPL 1100688 WPL 1100688 Contact Us For Availability
35
WPL 940086 WPL 940086 Contact Us For Availability
35
WPL 940087 WPL 940087 Contact Us For Availability
35
WPL 940089 WPL 940089 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
WPL 944741 WPL 944741 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
49
WPL 942854 WPL 942854 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
57
WPL 655411 WPL 655411 Contact Us For Availability
63
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
