Model Whirlpool ET14AKXMWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - LINER , LIT/OPTIONAL
05 - COMPARTMENT SEPARATOR AND CONTROL

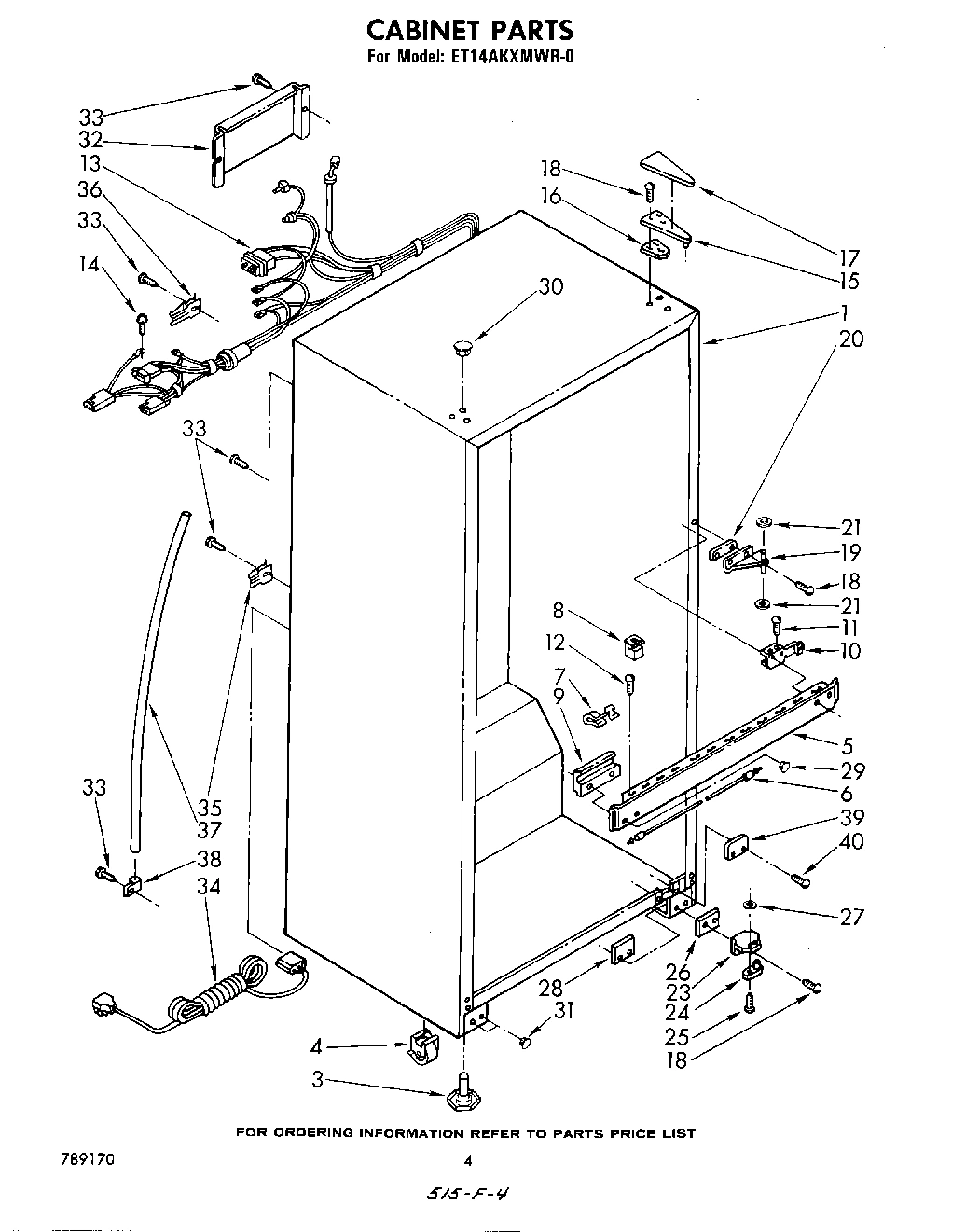

03 - CABINET

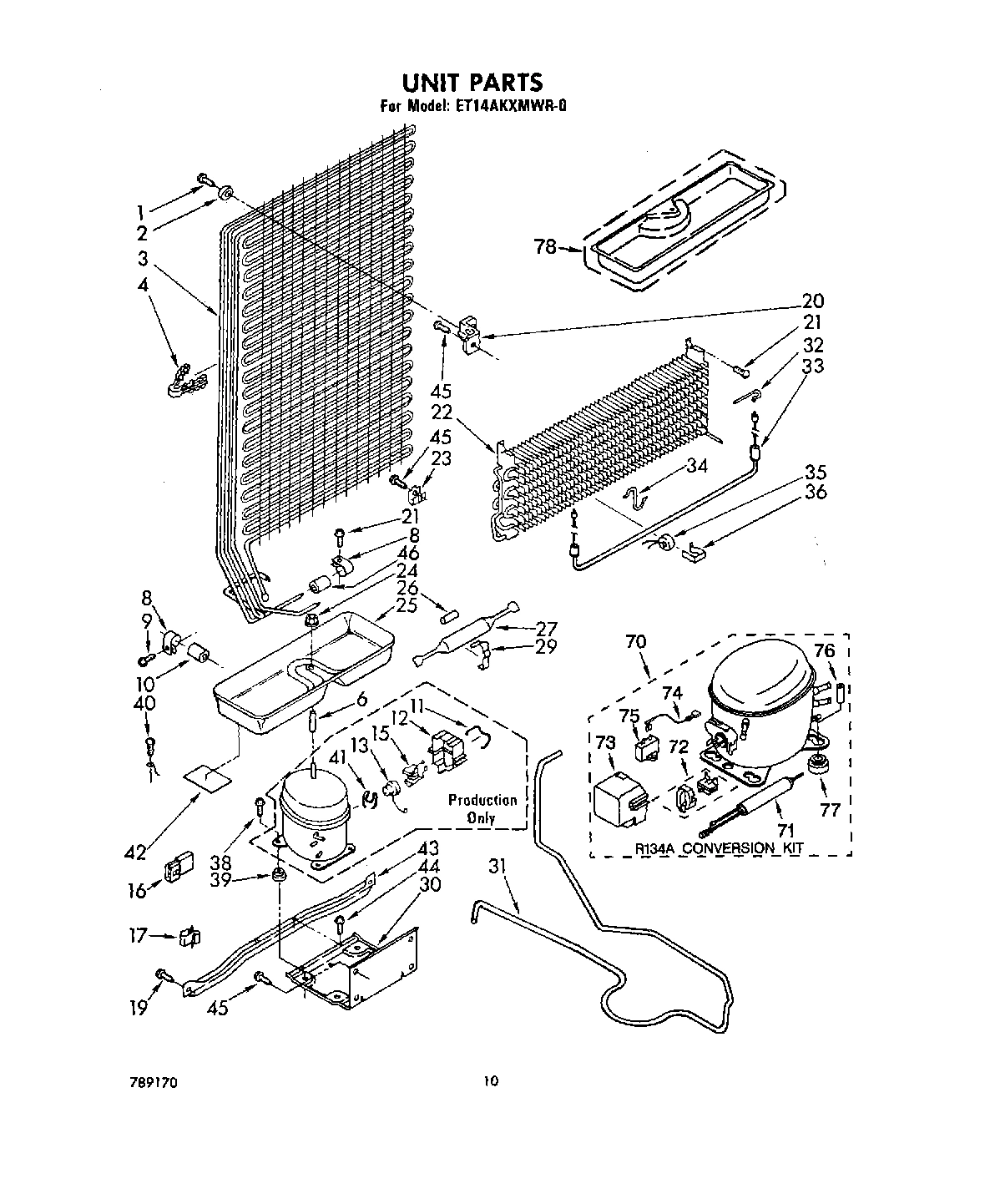

06 - UNIT

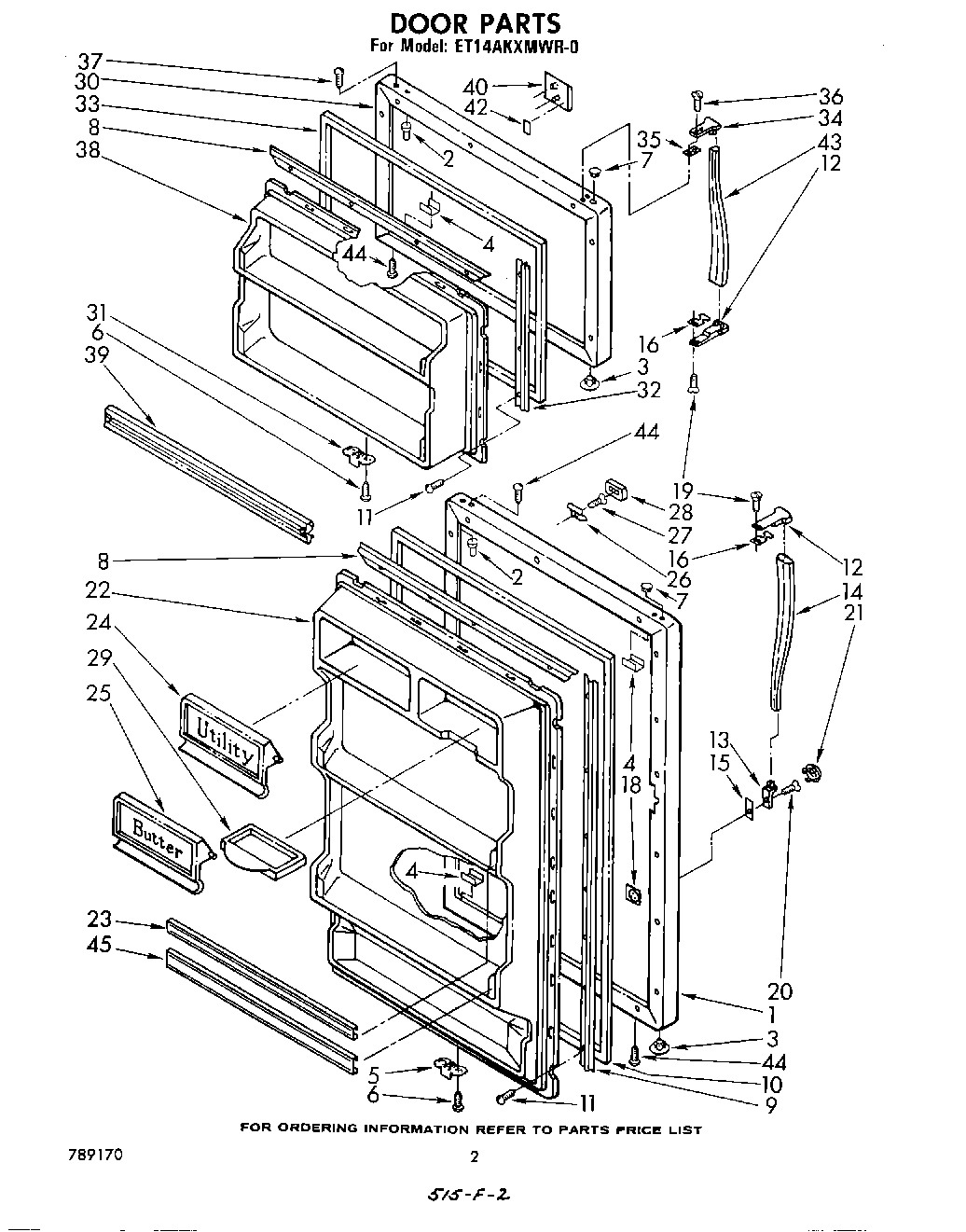

02 - DOOR

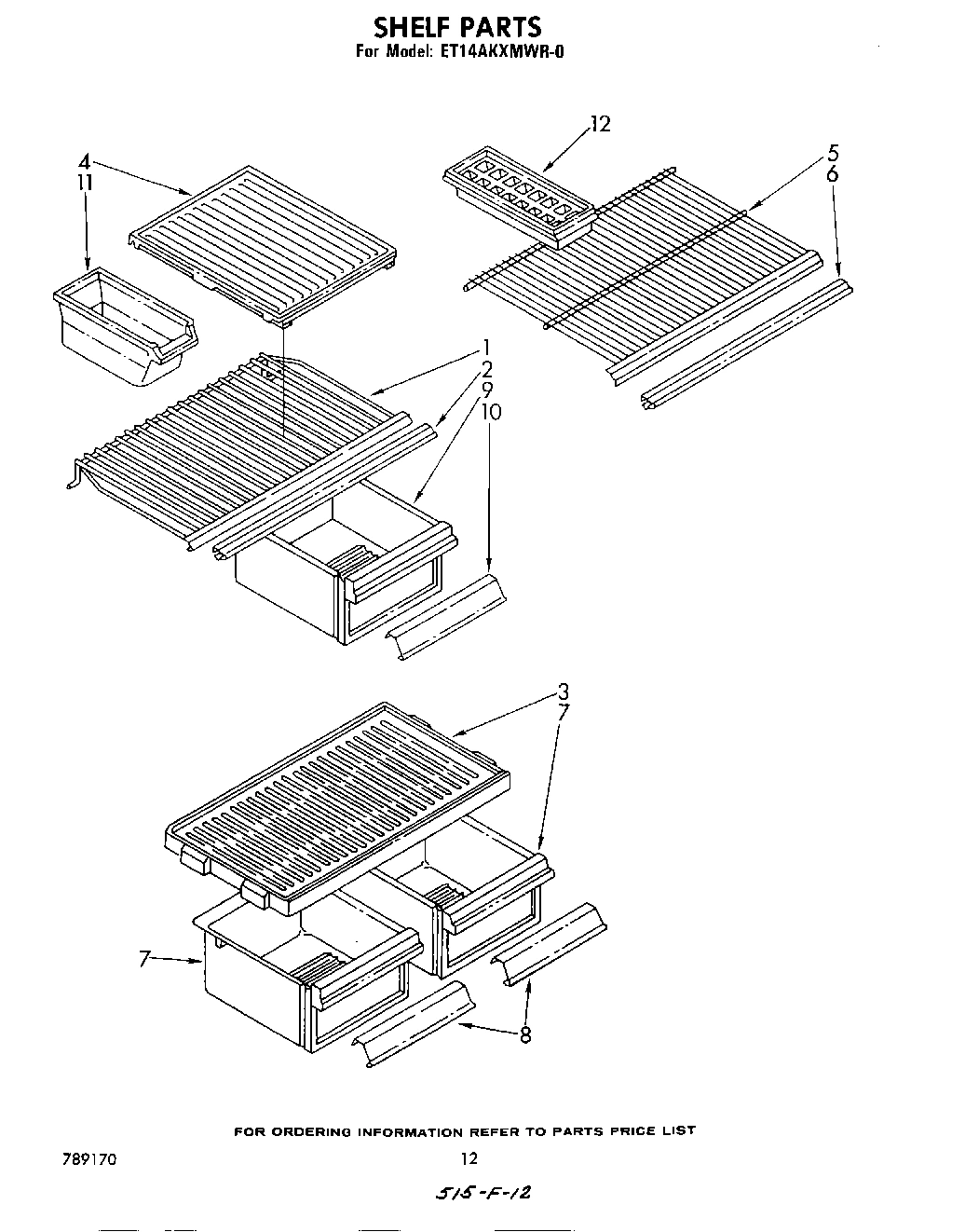

07 - SHELF
Common parts from model Whirlpool ET14AKXMWR0 TOP MOUNT REFRIGERATOR
1
Bottom, Compartment Separator WPL 935714 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI41690A7 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Exterior, Door Panel (Toast) WPL 1100225 Contact Us For Availability
1
Exterior, Door Panel (Platinum) WPL 1100226 Contact Us For Availability
1
Exterior, Door Panel (White) WPL 944095 Contact Us For Availability
1
Exterior, Door Panel (Coffee) WPL 944096 Contact Us For Availability
1
Exterior, Door Panel (Golden Harvest) WPL 944097 Contact Us For Availability
1
Exterior, Door Panel (New Avocado) WPL 944098 Contact Us For Availability
1
Exterior, Door Panel (Almond) WPL 944099 Contact Us For Availability
1
Shelf, Pullout WPL 940006 Contact Us For Availability
2
Control Box WPL 1100111 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
2
Trim, Shelf WPL 849260 Contact Us For Availability
3
condenser & precooler assembly WPL 943305 Contact Us For Availability
3
Hole Plug WPL 534927 Contact Us For Availability
3
Crisper Cover WPL 942282 Contact Us For Availability
4
Defrost Timer WPL 943435 Contact Us For Availability
4
Roller, Front & Rear (4) WPL 937216 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
4
Cover, Meat Pan WPL 942283 Contact Us For Availability
5
Center Rail (Toast) WPL 1100221 Contact Us For Availability
5
Center Rail (Platinum) WPL 1100222 Contact Us For Availability
5
Center Rail (White) WPL 935685 Contact Us For Availability
5
Center Rail (Coffee) WPL 935686 Contact Us For Availability
5
Center Rail (Golden Harvest) WPL 935687 Contact Us For Availability
5
Center Rail (New Avocado) WPL 935688 Contact Us For Availability
5
Center Rail (Almond) WPL 935689 Contact Us For Availability
5
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf, Freezer WPL 940003 Contact Us For Availability
6
Heater, Mullion WPL 938278 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
6
Shelf, Trim WPL 935749 Contact Us For Availability
7
Breaker, Trim Cup WPL 534365 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Hole Plug (Coffee) WPL 989892 Contact Us For Availability
7
Hole Plug (New Avocado) WPL 989894 Contact Us For Availability
7
Crisper, Pan WPL 1100097 Contact Us For Availability
7
Crisper Pan (For Platinum Model Only) WPL 1100251 Contact Us For Availability
8
Spacer WPL 940024 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Retainer Gasket Top & Bottom WPL 935759 Contact Us For Availability
8
Overlay, Pan WPL 937154 Contact Us For Availability
9
Center, Rail Shim WPL 939034 Contact Us For Availability
9
Retainer Gasket Side WPL 935760 Contact Us For Availability
9
Meat, Pan WPL 1100099 Contact Us For Availability
9
Meat Pan (For Platinum Model Only) WPL 1100253 Contact Us For Availability
10
Bracket, Center Rail WPL 935692 Contact Us For Availability
10
dampener WPL 938368 Contact Us For Availability
10
Overlay, Pan WPL 937155 Contact Us For Availability
11
case spring WPL 943322 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
12
relay case WPL 943321 Contact Us For Availability
13
Knob, Thermostat WPL 937144 Contact Us For Availability
13
Cabinet, Wiring Assembly WPL 946681 Contact Us For Availability
13
overload protector WPL 943318 Contact Us For Availability
14
Lockwasher WPL 489053 Contact Us For Availability
14
Handle, Center WPL 982946 Contact Us For Availability
15
Shim, Handle End WPL 992872 Contact Us For Availability
15
Spacer, Knob WPL 937105 Contact Us For Availability
15
Hinge, Top WPL 842039 Contact Us For Availability
15
Relay WPL 943317 Contact Us For Availability
16
Spacer, Handle End WPL 943188 Contact Us For Availability
16
Knob, Air Control WPL 935727 Contact Us For Availability
16
Shim, Hinge Top WPL 836192 Contact Us For Availability
17
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
17
Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability
17
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
17
Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability
18
Connecting Rod WPL 937142 Contact Us For Availability
18
Screw (Repair) WPL 488949 Contact Us For Availability
19
Air Diffuser WPL 935721 Contact Us For Availability
19
Hinge, Center WPL 836153 Contact Us For Availability
19
Screw (Repair) WPL 488923 Contact Us For Availability
20
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
20
Shim, Hinge Center WPL 836155 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
21
Cover, Air Diffuser WPL 937226 Contact Us For Availability
22
Rear Corner, Block WPL 939056 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
22
Interior Door Panel WPL 1100101 Contact Us For Availability
22
Interior Door Panel (For Platinum Model Only) WPL 1100127 Contact Us For Availability
23
Hinge, Bottom WPL 935735 Contact Us For Availability
23
Trim, Interior Door WPL 1100102 Contact Us For Availability
24
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
24
Insulation, Compartment Separator WPL 939272 Contact Us For Availability
24
Door, Utility WPL 1100105 Contact Us For Availability
25
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
25
Heat Shield WPL 937227 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
25
Door, Butter WPL 1100104 Contact Us For Availability
26
Center Rail, Seal Strip WPL 937086 Contact Us For Availability
26
Shim, Bottom WPL 935737 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Clip, Medallion WPL 843213 Contact Us For Availability
27
Top, Compartment Separator WPL 935717 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
TAPE, VINYL (3/4 X WPL 479502 Contact Us For Availability
28
WPL 799344 WPL 799344 Contact Us For Availability
28
WPL 542639 WPL 542639 Contact Us For Availability
28
WPL 72108 WPL 72108 Contact Us For Availability
28
WPL 72112 WPL 72112 Contact Us For Availability
28
WPL 789170 WPL 789170 Contact Us For Availability
28
WPL 799340 WPL 799340 Contact Us For Availability
28
WPL 799351 WPL 799351 Contact Us For Availability
28
WPL 799832 WPL 799832 Contact Us For Availability
28
WPL 942291 WPL 942291 Contact Us For Availability
28
WPL 946207 WPL 946207 Contact Us For Availability
28
WPL 946685 WPL 946685 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Drain Pan WPL 935718 Contact Us For Availability
28
Tap Plate, Bottom WPL 935743 Contact Us For Availability
28
Medallion (Toast) WPL 1100194 Contact Us For Availability
28
Medallion (Platinum) WPL 1100195 Contact Us For Availability
28
Medallion (White) WPL 848382 Contact Us For Availability
28
Medallion (Coffee) WPL 989901 Contact Us For Availability
28
Medallion (New Avocado) WPL 989902 Contact Us For Availability
28
Medallion (Golde WPL 989903 Contact Us For Availability
28
WPL 989904 WPL 989904 Contact Us For Availability
29
Gasket, Drain Pan WPL 937064 Contact Us For Availability
29
Hole Plug (Platinum) WPL 1100687 Contact Us For Availability
29
Hole Plug (Toast) WPL 1100688 Contact Us For Availability
29
Hole Plug (White) WPL 940086 Contact Us For Availability
29
Hole Plug (Almond) WPL 940087 Contact Us For Availability
29
Hole Plug (Coffee) WPL 940088 Contact Us For Availability
29
Hole Plug (Golden Harvest) WPL 940089 Contact Us For Availability
29
Hole Plug (New Avocado) WPL 940090 Contact Us For Availability
29
Drier Clamp WPL 547637 Contact Us For Availability
30
Hole Plug (Toast) WPL 1100176 Contact Us For Availability
30
Hole Plug (Platinum) WPL 1100177 Contact Us For Availability
30
Hole Plug (White) WPL 842031 Contact Us For Availability
30
Hole Plug (Almond) WPL 989195 Contact Us For Availability
30
Hole Plug (Coffee) WPL 989875 Contact Us For Availability
30
Hole Plug (Golden Harvest) WPL 989876 Contact Us For Availability
30
Hole Pl WPL 989877 Contact Us For Availability
30
Unit, Frame WPL 942860 Contact Us For Availability
30
WPL 1100227 WPL 1100227 Contact Us For Availability
30
WPL 1100228 WPL 1100228 Contact Us For Availability
30
WPL 944101 WPL 944101 Contact Us For Availability
30
WPL 944102 WPL 944102 Contact Us For Availability
30
WPL 944103 WPL 944103 Contact Us For Availability
30
WPL 944104 WPL 944104 Contact Us For Availability
30
WPL 944105 WPL 944105 Contact Us For Availability
31
Separator, Drain Insert WPL 937359 Contact Us For Availability
31
WPL 1100223 WPL 1100223 Contact Us For Availability
31
WPL 1100224 WPL 1100224 Contact Us For Availability
31
WPL 941416 WPL 941416 Contact Us For Availability
31
WPL 941417 WPL 941417 Contact Us For Availability
31
WPL 941418 WPL 941418 Contact Us For Availability
31
WPL 941419 WPL 941419 Contact Us For Availability
31
WPL 941420 WPL 941420 Contact Us For Availability
31
Heat Exchanger WPL 945554 Contact Us For Availability
31
WPL 944035 WPL 944035 Contact Us For Availability
32
Fitting, Drain WPL 937062 Contact Us For Availability
32
WPL 946218 WPL 946218 Contact Us For Availability
32
Heater Clip WPL 850721 Contact Us For Availability
32
WPL 935775 WPL 935775 Contact Us For Availability
33
Cup, Drain WPL 937065 Contact Us For Availability
33
Heater, Defrost WPL 935798 Contact Us For Availability
34
WPL 937360 WPL 937360 Contact Us For Availability
34
Support, Heater WPL 851358 Contact Us For Availability
35
WPL 943187 WPL 943187 Contact Us For Availability
36
WPL 937357 WPL 937357 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
WPL 489112 WPL 489112 Contact Us For Availability
38
WPL 1100107 WPL 1100107 Contact Us For Availability
38
WPL 1100256 WPL 1100256 Contact Us For Availability
39
WPL 1100697 WPL 1100697 Contact Us For Availability
39
WPL 1100698 WPL 1100698 Contact Us For Availability
39
WPL 935707 WPL 935707 Contact Us For Availability
39
WPL 935708 WPL 935708 Contact Us For Availability
39
WPL 935709 WPL 935709 Contact Us For Availability
39
WPL 935710 WPL 935710 Contact Us For Availability
39
WPL 935711 WPL 935711 Contact Us For Availability
39
WPL 1100116 WPL 1100116 Contact Us For Availability
40
WPL 488895 WPL 488895 Contact Us For Availability
40
WPL 945118 WPL 945118 Contact Us For Availability
41
Spring, Overload WPL 943320 Contact Us For Availability
42
Pad, Sound WPL 301774 Contact Us For Availability
42
WPL 991259 WPL 991259 Contact Us For Availability
43
Unit, Rail WPL 945448 Contact Us For Availability
43
WPL 982978 WPL 982978 Contact Us For Availability
44
WPL 488930 WPL 488930 Contact Us For Availability
45
WPL 1100103 WPL 1100103 Contact Us For Availability
46
Dampener WPL 945593 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388007 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
