Model Whirlpool ET12PCXLWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

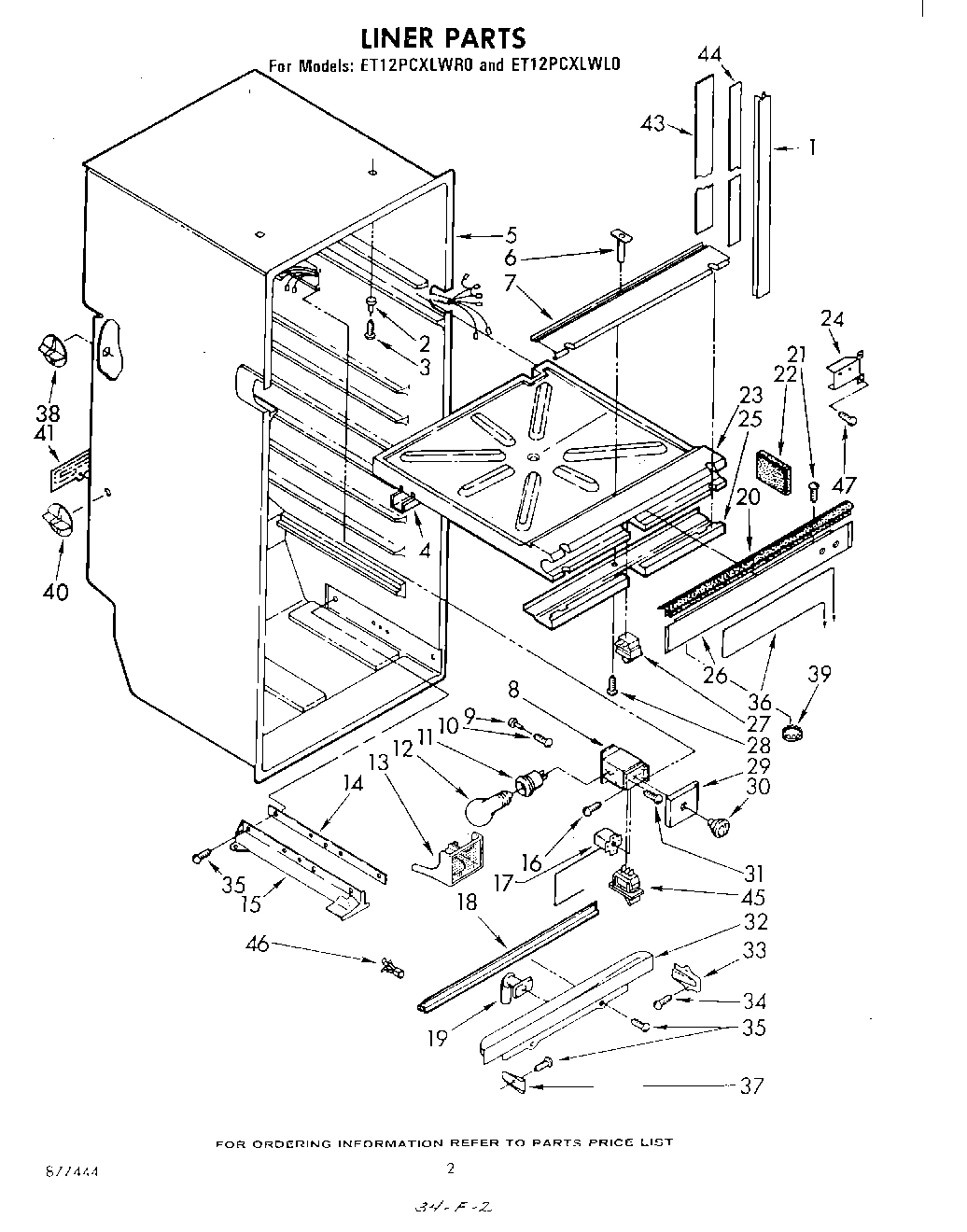

02 - LINER , LIT/OPTIONAL

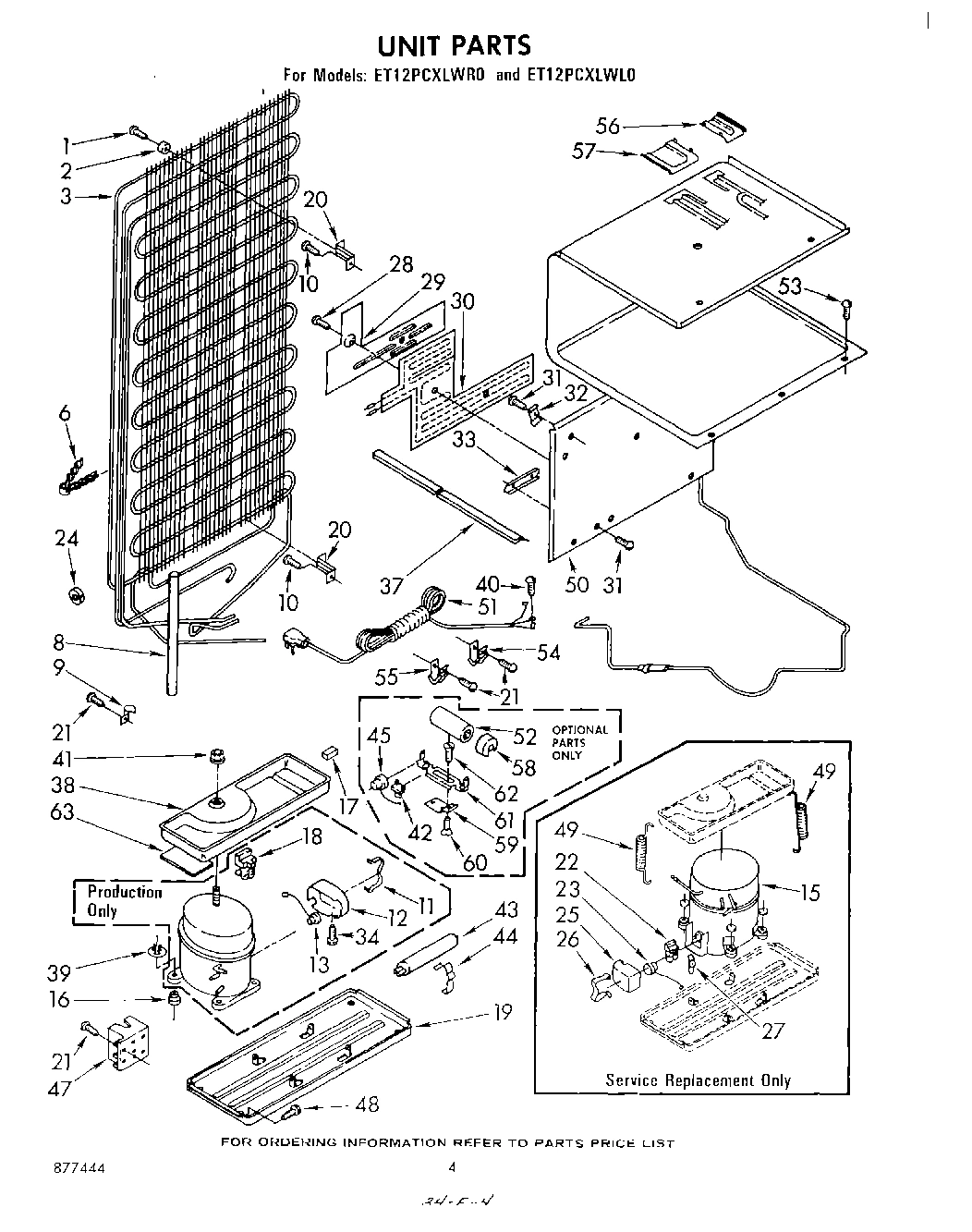

03 - UNIT
05 - SHELF
01 - CABINET
04 - DOOR
Common parts from model Whirlpool ET12PCXLWR0 TOP MOUNT REFRIGERATOR
1
Screw, 8 x 3/4 WPL 488280 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI41680A4 Contact Us For Availability
1
Stud, Anchor WPL 938889 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 912547 Contact Us For Availability
3
Tray, Ice (2) WPL 912545 Contact Us For Availability
3
Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability
3
Nameplate Assembly WPL 945119 Contact Us For Availability
4
Shelf WPL 845252 Contact Us For Availability
4
Clip, Tubular (2) WPL 659676 Contact Us For Availability
5
Bumper (4) WPL 845287 Contact Us For Availability
5
Hinge, Top WPL 842039 Contact Us For Availability
5
Retainer, Top & Bottom (2) WPL 912351 Contact Us For Availability
6
Clip, Tube (2) WPL 938232 Contact Us For Availability
6
Shelf WPL 844609 Contact Us For Availability
6
Shim WPL 836151 Contact Us For Availability
6
Screw, 3/16 x 34 (2) WPL 488818 Contact Us For Availability
7
Cover, Pan WPL 848768 Contact Us For Availability
7
Center, Handle WPL 912393 Contact Us For Availability
8
Pan, Crisper (2) WPL 912586 Contact Us For Availability
8
Leveler (4) WPL 912411 Contact Us For Availability
8
Handle End (2) WPL 912394 Contact Us For Availability
9
Clamp, Drain Tube WPL 519405 Contact Us For Availability
9
Shim, Hinge WPL 912422 Contact Us For Availability
9
Door, Freezer R.H. (White) WPL 912431 Contact Us For Availability
9
Door, Freezer R.H. (White) WPL 912432 Contact Us For Availability
9
Door, Freezer R.H. (Golden Harvest) WPL 912433 Contact Us For Availability
9
Door, Freezer R.H. (Golden Harvest) WPL 912434 Contact Us For Availability
9
Door, Freezer R.H. (Almond) WPL 912435 Contact Us For Availability
9
Door, Freezer R.H. (Almond Door, Freezer L.H. WPL 912436 Contact Us For Availability
10
Hinge, Center WPL 912421 Contact Us For Availability
10
Plug, Hole (White) WPL 534927 Contact Us For Availability
10
Plug, Hole (Almond) WPL 989197 Contact Us For Availability
10
Plug, Hole (Golden Harvest) WPL 989879 Contact Us For Availability
11
Stamp, Cover WPL 938384 Contact Us For Availability
11
Gasket, Freezer Door WPL 912565 Contact Us For Availability
12
Cover, Terminal WPL 938383 Contact Us For Availability
12
Shim, Hinge (R.H.) WPL 912419 Contact Us For Availability
12
Shim, Hinge (L.H.) WPL 912420 Contact Us For Availability
12
Retainer, Side (2) WPL 912352 Contact Us For Availability
13
Overload Assembly WPL 941605 Contact Us For Availability
13
Panel, Interior WPL 912585 Contact Us For Availability
14
Hinge, Bottom L.H. WPL 912375 Contact Us For Availability
14
Hinge, Bottom R.H. WPL 912376 Contact Us For Availability
14
Door, Refrigerator R.H. (White) WPL 912425 Contact Us For Availability
14
Door, Refrigerator R.H. (White) WPL 912426 Contact Us For Availability
14
Door, Refrigerator R.H. (Golden Harvest) WPL 912427 Contact Us For Availability
14
Door, Refrigerator R.H. (Golden Harvest) WPL 912428 Contact Us For Availability
14
Door, Refrigerator R.H. (Almond) WPL 912429 Contact Us For Availability
14
Door, Refrigerator R.H. (Almond Door, Refrige WPL 912430 Contact Us For Availability
15
Compressor (Also Order 482331 Installation Ki WPL 482055 Contact Us For Availability
15
Gasket, Refrigerator Door WPL 912564 Contact Us For Availability
16
Grommet (4) WPL 912415 Contact Us For Availability
16
Panel, Interior WPL 912582 Contact Us For Availability
17
Insert, Air Baffle (2) WPL 912485 Contact Us For Availability
17
Door, Butter WPL 912584 Contact Us For Availability
18
Relay WPL 938385 Contact Us For Availability
19
Mounting Plate, Compressor WPL 912413 Contact Us For Availability
19
Trim, Shelf (2) WPL 848506 Contact Us For Availability
20
Bracket (2) WPL 912412 Contact Us For Availability
21
Screw, 8-32 x 1/2 WPL 488845 Contact Us For Availability
21
Retainer, Side (2) WPL 912353 Contact Us For Availability
22
Relay WPL 989646 Contact Us For Availability
22
Retainer, Shelf (4) WPL 912583 Contact Us For Availability
23
Overload WPL 549478 Contact Us For Availability
24
Spacer (2) WPL 850044 Contact Us For Availability
24
Trim, Shelf WPL 845507 Contact Us For Availability
25
Trim, Bottom WPL 845213 Contact Us For Availability
25
cover WPL 549336 Contact Us For Availability
26
Rail, Center (Golden Harvest) WPL 912319 Contact Us For Availability
26
Rail, Center (Almond) WPL 912320 Contact Us For Availability
26
Rail, Center (White) WPL 912322 Contact Us For Availability
26
Strap WPL 549342 Contact Us For Availability
27
Spring, Overload WPL 549086 Contact Us For Availability
29
Cover, Control Box WPL 845138 Contact Us For Availability
29
Clamp, Heater WPL 912405 Contact Us For Availability
30
Knob WPL 845233 Contact Us For Availability
30
Heater, Storage Plate WPL 850016 Contact Us For Availability
32
Rail, Drip WPL 982821 Contact Us For Availability
32
Clamp, Heater WPL 40843 Contact Us For Availability
33
Cover, Splice Box WPL 845237 Contact Us For Availability
33
Clip, Thermostat WPL 510714 Contact Us For Availability
36
Heater, Mullion WPL 549891 Contact Us For Availability
37
Retainer, Drip Rail WPL 845746 Contact Us For Availability
37
Gasket, Evaporator (2) WPL 848368 Contact Us For Availability
38
Anchor, Screw (4) WPL 845737 Contact Us For Availability
38
Tray WPL 912408 Contact Us For Availability
39
Plug, Hole (2) WPL 845734 Contact Us For Availability
39
Clip (4) WPL 912414 Contact Us For Availability
40
Anchor, Screw (11) WPL 845717 Contact Us For Availability
41
Heater, Drain WPL 851116 Contact Us For Availability
42
Relay (Used On Start Kit 482278) WPL 482279 Contact Us For Availability
43
Insulation, Heat Exchanger (1/4`` x 1-1/4`` x WPL 851574 Contact Us For Availability
43
Drier WPL 912416 Contact Us For Availability
44
Insulation, Heat Exchanger (5/16`` x 3/4`` x WPL 851575 Contact Us For Availability
45
Overload (Used On Start Kit 482278) WPL 482280 Contact Us For Availability
46
Clip, Tubular (2) WPL 843945 Contact Us For Availability
47
WPL 876029 WPL 876029 Contact Us For Availability
47
WPL 479502 WPL 479502 Contact Us For Availability
47
WPL 799344 WPL 799344 Contact Us For Availability
47
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
47
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
47
WPL 350941 WPL 350941 Contact Us For Availability
47
WPL 484310 WPL 484310 Contact Us For Availability
47
WPL 488624 WPL 488624 Contact Us For Availability
47
WPL 511881 WPL 511881 Contact Us For Availability
47
WPL 542639 WPL 542639 Contact Us For Availability
47
WPL 799340 WPL 799340 Contact Us For Availability
47
WPL 799351 WPL 799351 Contact Us For Availability
47
WPL 799832 WPL 799832 Contact Us For Availability
47
WPL 877444 WPL 877444 Contact Us For Availability
47
WPL 912555 WPL 912555 Contact Us For Availability
47
WPL 912560 WPL 912560 Contact Us For Availability
47
WPL 912567 WPL 912567 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
47
Box, Junction WPL 549961 Contact Us For Availability
49
Spring, Bale Clip (2) (Service Compressor Onl WPL 912406 Contact Us For Availability
50
Evaporator & Heat Exchanger WPL 912572 Contact Us For Availability
51
Cord, Service WPL 912418 Contact Us For Availability
55
Cleat, Cord WPL 653037 Contact Us For Availability
56
Cover, Evaporator Tube (Single) WPL 912398 Contact Us For Availability
57
Cover, Evaporator Tube (Double) WPL 912397 Contact Us For Availability
58
Cap, Capacitor (Used On Start Kit 482278) WPL 482157 Contact Us For Availability
59
Bracket, Mounting (Used On Start Kit 482278) WPL 549939 Contact Us For Availability
60
Screw (Used WPL 488487 Contact Us For Availability
61
WPL 482158 WPL 482158 Contact Us For Availability
62
WPL 487631 WPL 487631 Contact Us For Availability
63
WPL 978029 WPL 978029 Contact Us For Availability
63
WPL 301774 WPL 301774 Contact Us For Availability
63
WPL 482278 WPL 482278 Contact Us For Availability
63
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
