Model Whirlpool ET12CCRWW00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1124598 WPL LIT1124598 Contact Us For Availability

WPL LIT1124599 WPL LIT1124599 Contact Us For Availability

WPL LIT1127523 WPL LIT1127523 Contact Us For Availability

WPL LIT4315861 WPL LIT4315861 Contact Us For Availability

1

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

1

Screw, 8 x 3/4 (2) WPL 487888 Contact Us For Availability

1

Freezer Door Panel (Also Order Item 30) (Whit WPL 944932 Contact Us For Availability

1

Freezer Door Panel (Also Order Item 30) (Almo WPL 944937 Contact Us For Availability

1

Freezer Door Panel (Also Order Item 30) (Whit WPL 944938 Contact Us For Availability

1

Freezer Door Panel (Also Order Item 30) (Almo WPL 944943 Contact Us For Availability

1

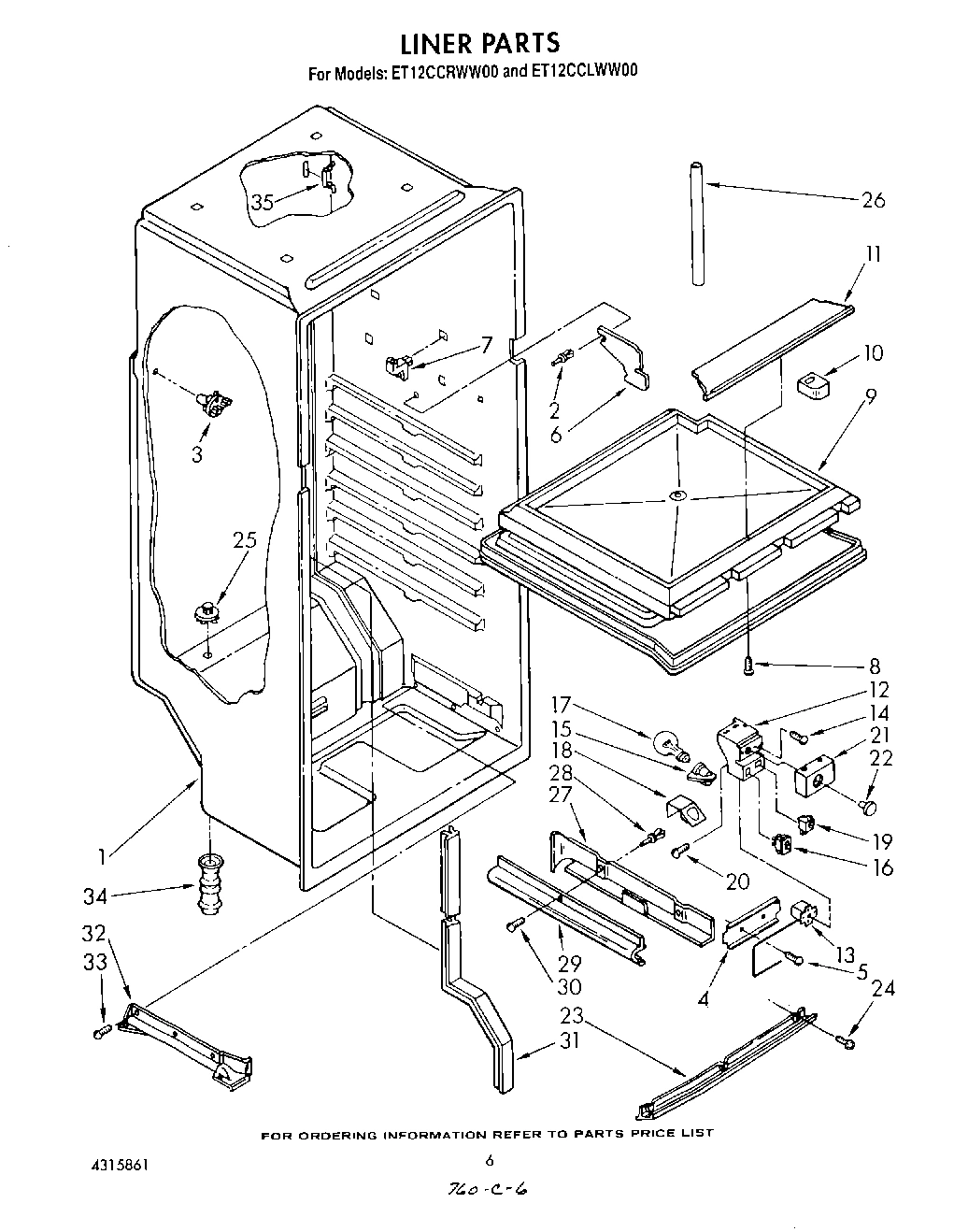

Liner (Not A Serviceable Part) WPL ARI41631A3 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

2

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

2

Bumper (2) WPL 204349 Contact Us For Availability

2

Freezer Door Gasket WPL 1110568 Contact Us For Availability

2

Pullout Shelf (2) WPL 944892 Contact Us For Availability

3

Condenser & Precooler Assembly WPL 943635 Contact Us For Availability

3

Screw Anchor WPL 939989 Contact Us For Availability

3

Cover, Crisper WPL 944897 Contact Us For Availability

4

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

4

Panel, Interior Door (Freezer) WPL 1104910 Contact Us For Availability

4

Clip, Thermostat WPL 510714 Contact Us For Availability

4

Pan, Crisper WPL 1126583 Contact Us For Availability

5

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

5

Tube Clamp WPL 510716 Contact Us For Availability

5

Trim, Door Shelf WPL 1116120 Contact Us For Availability

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Refrigerator Door Gasket WPL 1104905 Contact Us For Availability

6

Electric Shield WPL 937228 Contact Us For Availability

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

Dampener WPL 1108064 Contact Us For Availability

7

Panel, Interior Door WPL 1104904 Contact Us For Availability

8

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

8

Butter Door WPL 1124589 Contact Us For Availability

9

Terminal Cover WPL 1108115 Contact Us For Availability

9

Cover, Screw WPL 1124596 Contact Us For Availability

9

Insulation, Compartment Separator Assembly WPL 944883 Contact Us For Availability

10

Dampener WPL 945593 Contact Us For Availability

10

Trim, Door WPL 1116116 Contact Us For Availability

10

Insulation, Crossover Tube WPL 944886 Contact Us For Availability

11

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

11

Overload WPL 1127502 Contact Us For Availability

11

Breaker Trim, Mullion WPL 944890 Contact Us For Availability

12

Control Box WPL 939089 Contact Us For Availability

13

Thermostat WPL 1100623 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

14

Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability

15

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

15

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

15

Cover, Screw WPL 1124593 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

16

Hinge, Center WPL 944788 Contact Us For Availability

17

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

17

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Defrost Heater WPL 944971 Contact Us For Availability

Cover, Screw WPL 934724 Contact Us For Availability

Light Shield WPL 937230 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Strap (2) WPL 851095 Contact Us For Availability

19

Screw WPL 489246 Contact Us For Availability

20

Condenser Bracket (2) WPL 510721 Contact Us For Availability

20

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

20

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

21

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

21

Cover, Control Box WPL 1124586 Contact Us For Availability

Refrigerator Door Panel (Also Order Item 30) WPL 944910 Contact Us For Availability

Refrigerator Door Panel (Also Order Item 30) WPL 944915 Contact Us For Availability

Refrigerator Door Panel (Also Order Item 30) WPL 944916 Contact Us For Availability

Refrigerator Door Panel (Also Order Item 30) WPL 944921 Contact Us For Availability

Control Knob WPL 845233 Contact Us For Availability

23

Drain Trough WPL 944978 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

24

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

25

Drain, Ferrule Cap WPL 934607 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

26

Handle, End WPL 1124591 Contact Us For Availability

26

Tube Cover WPL 946459 Contact Us For Availability

27

Handle, Center WPL 1124592 Contact Us For Availability

27

Wire Cover (Rear) WPL 939957 Contact Us For Availability

28

Compressor (Includes Illus. 51, 52, 53, 54, 5 WPL 482980 Contact Us For Availability

28

Plastic, Rivet WPL 939961 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Wire Cover (Front) WPL 939960 Contact Us For Availability

30

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

30

Clamp WPL 547637 Contact Us For Availability

30

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

31

Unit, Frame WPL 942860 Contact Us For Availability

31

Tube Entry Cover (Rear) WPL 937032 Contact Us For Availability

32

Evaporator Assembly WPL 944991 Contact Us For Availability

32

Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability

33

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

34

Cord, Service WPL 850626 Contact Us For Availability

34

Fitting, Drain WPL 842256 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Rail Cover, Tube Entry (White) WPL 935707 Contact Us For Availability

Rail Cover, Tube Entry (Almond) WPL 935711 Contact Us For Availability

Gasket, Evaporator WPL 946364 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability

Speed Clip (3) WPL 533998 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

36

Screw (2) WPL 488895 Contact Us For Availability

36

Heat Exchanger WPL 946307 Contact Us For Availability

37

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

37

Bushing, Strain Relief WPL 544108 Contact Us For Availability

38

Box, Junction WPL 937068 Contact Us For Availability

39

Tray, Evaporator WPL 935781 Contact Us For Availability

40

Spacer WPL 941517 Contact Us For Availability

41

Unit Rail WPL 945449 Contact Us For Availability

42

Cover, Capacitor WPL 1118525 Contact Us For Availability

43

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

51

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

52

Overload WPL 483036 Contact Us For Availability

53

Cover, Terminal WPL 1105015 Contact Us For Availability

54

Strap WPL 938384 Contact Us For Availability

55

Capacitor WPL 482996 Contact Us For Availability

56

Nut WPL 489142 Contact Us For Availability

57

Washer WPL 489143 Contact Us For Availability

58

Overload Spring WPL 1114190 Contact Us For Availability

59

Clip, Tube WPL 942739 Contact Us For Availability

60

Pad, Sound WPL 301774 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
