Model Whirlpool ESUF14C-G FREEZER – Common Parts & Diagrams

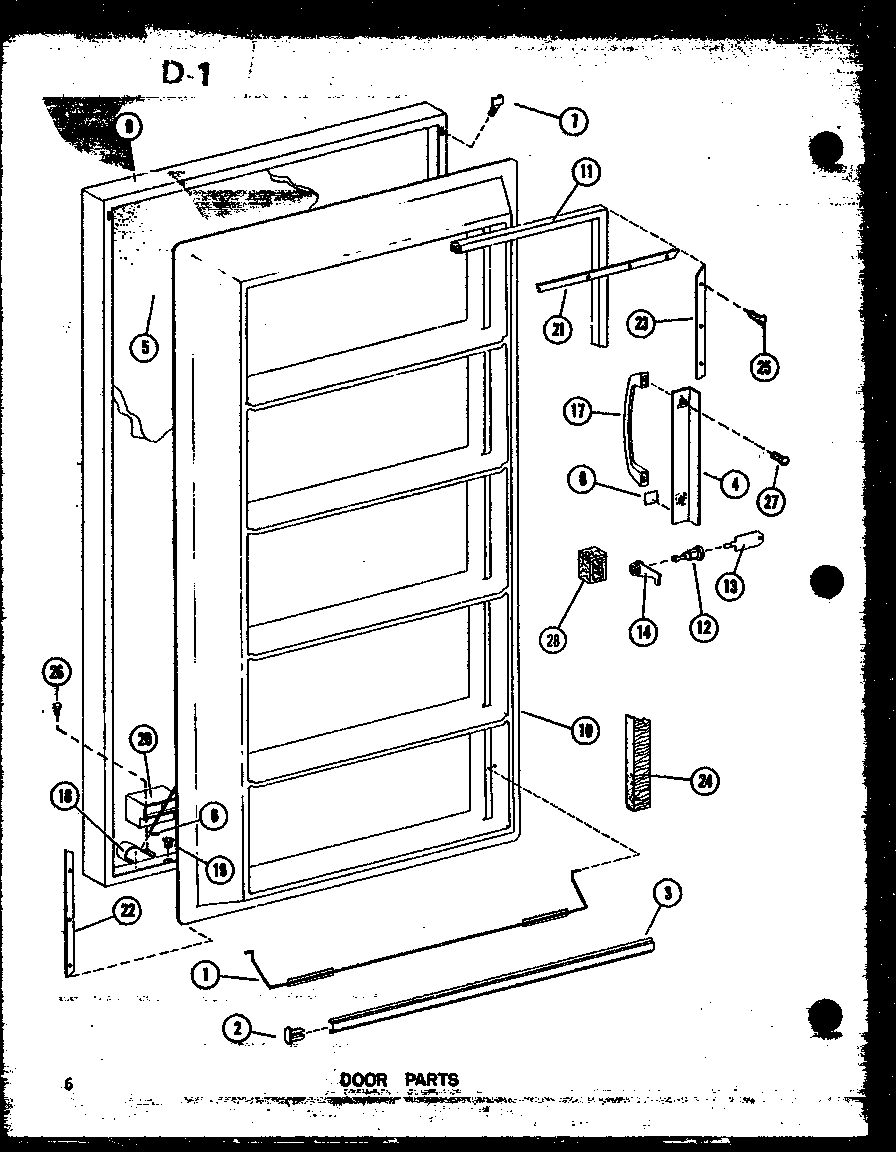

02 - DOOR PARTS

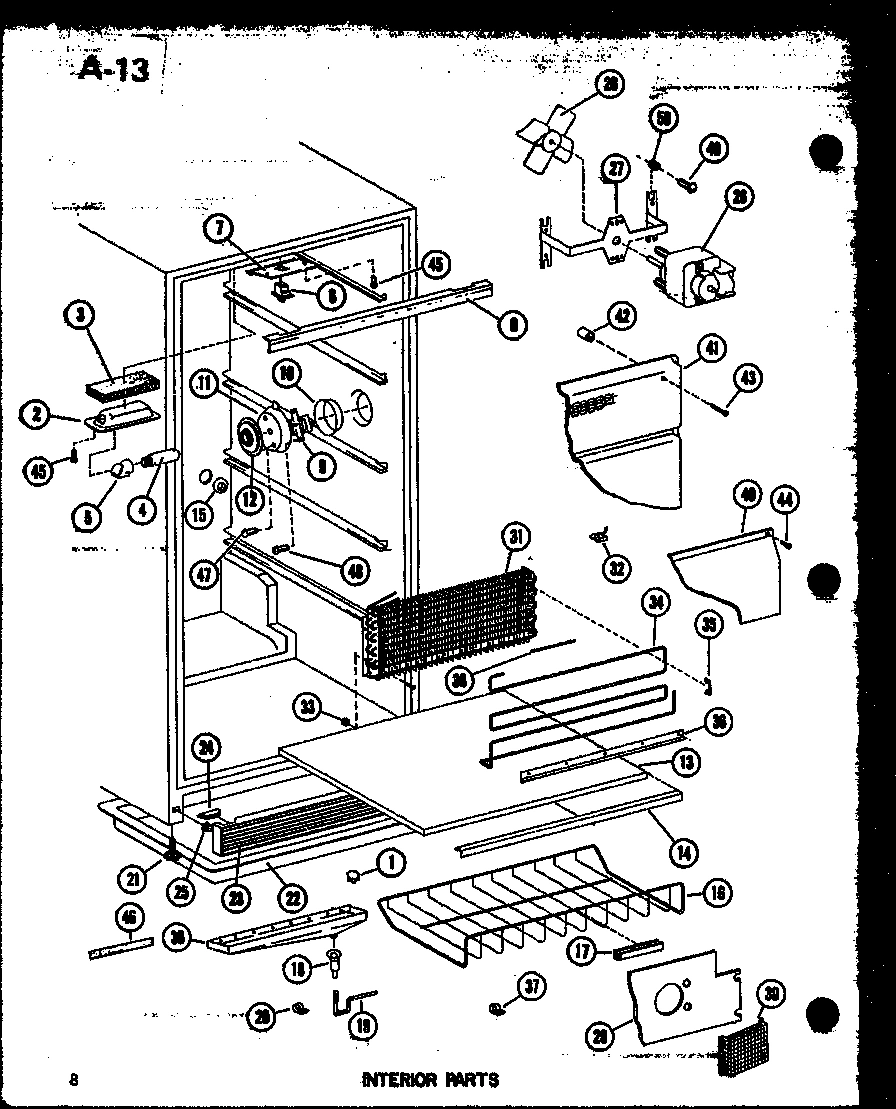

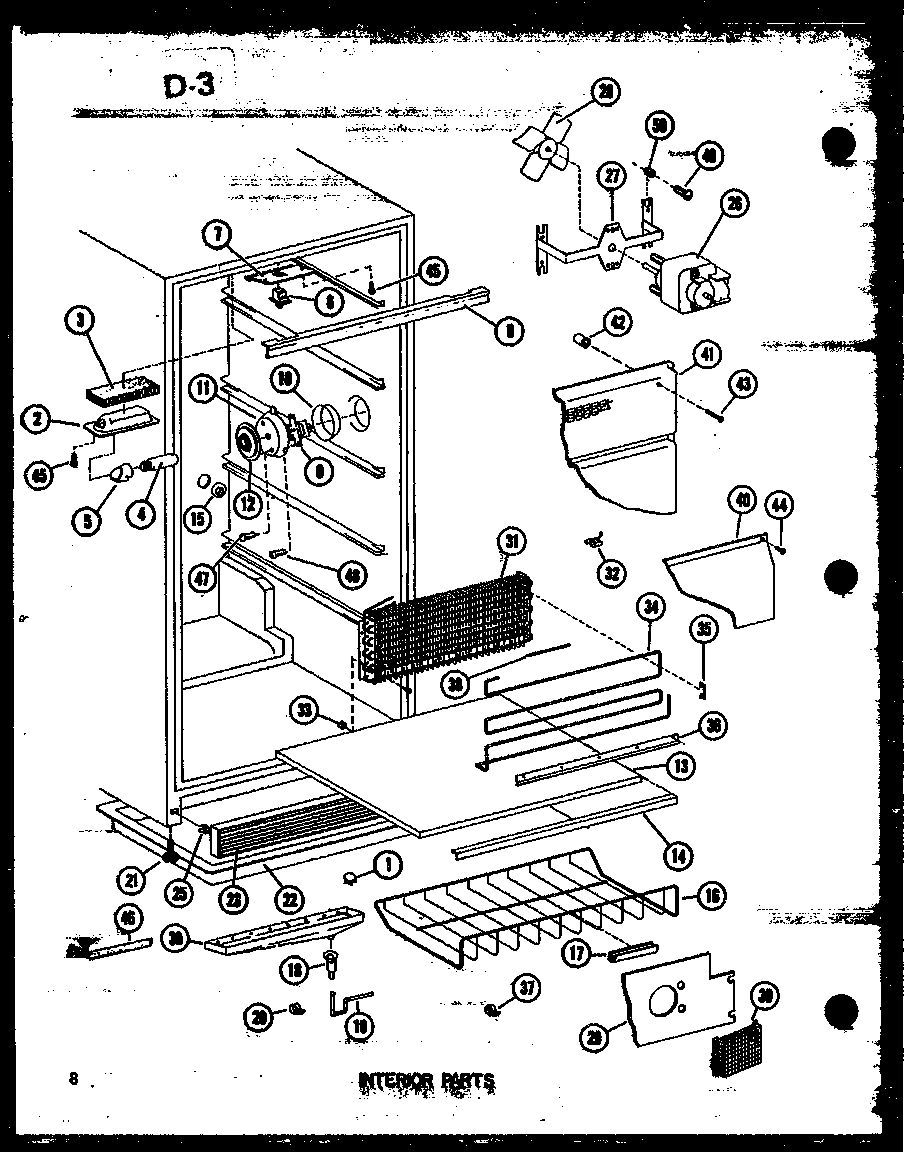

04 - INTERIOR PARTS

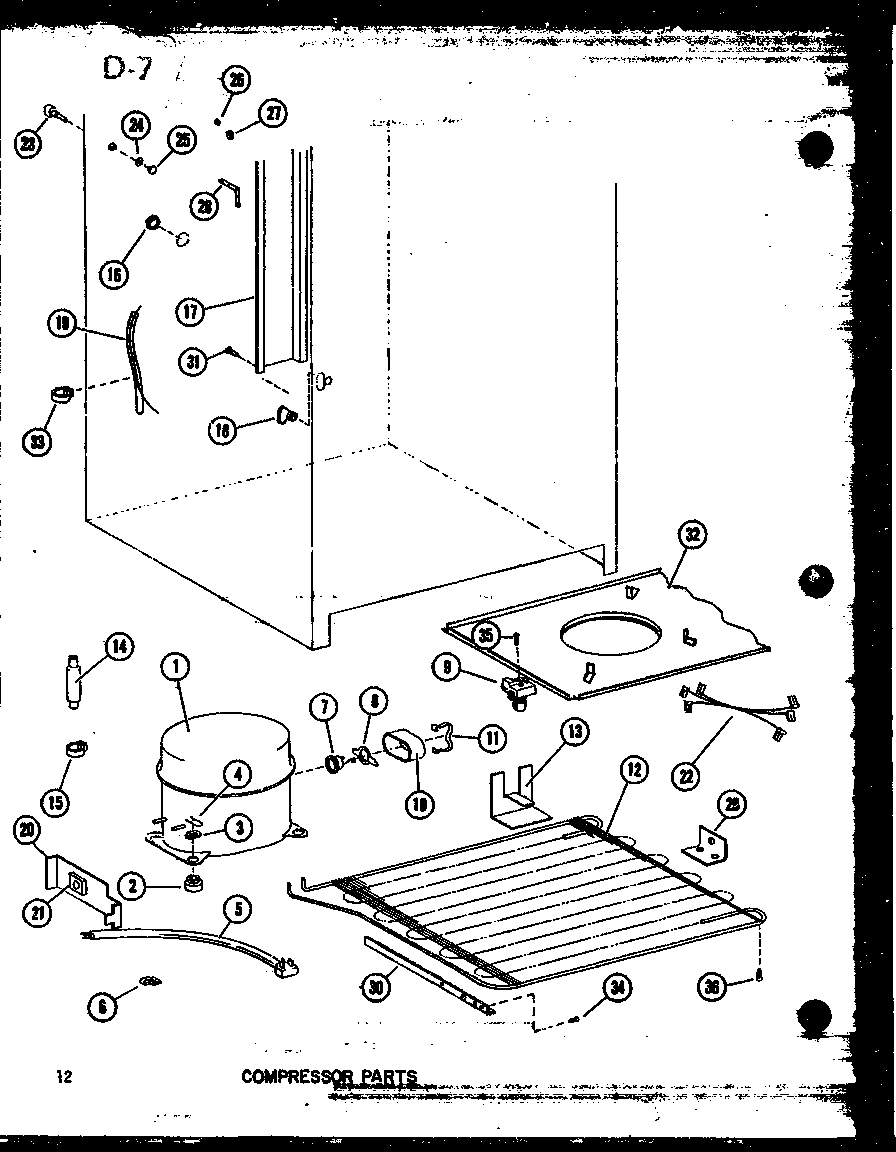

01 - COMPRESSOR PARTS

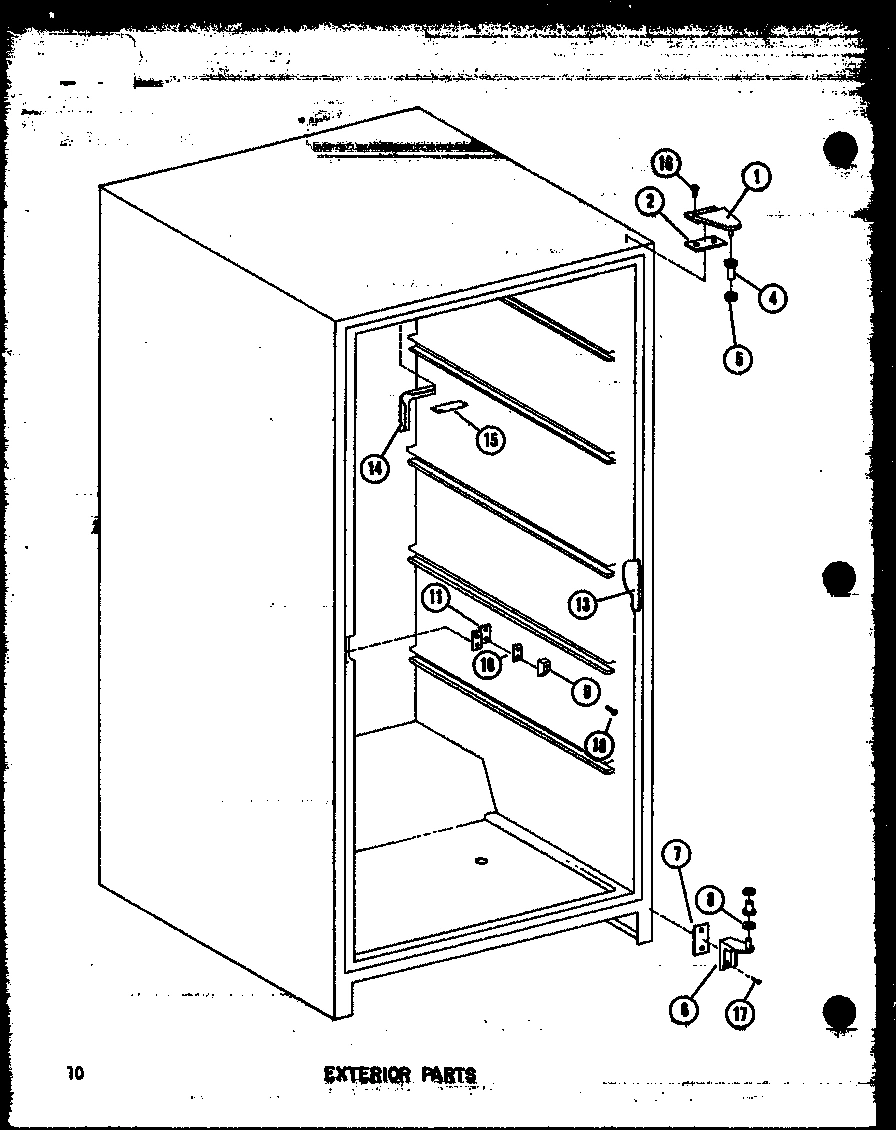

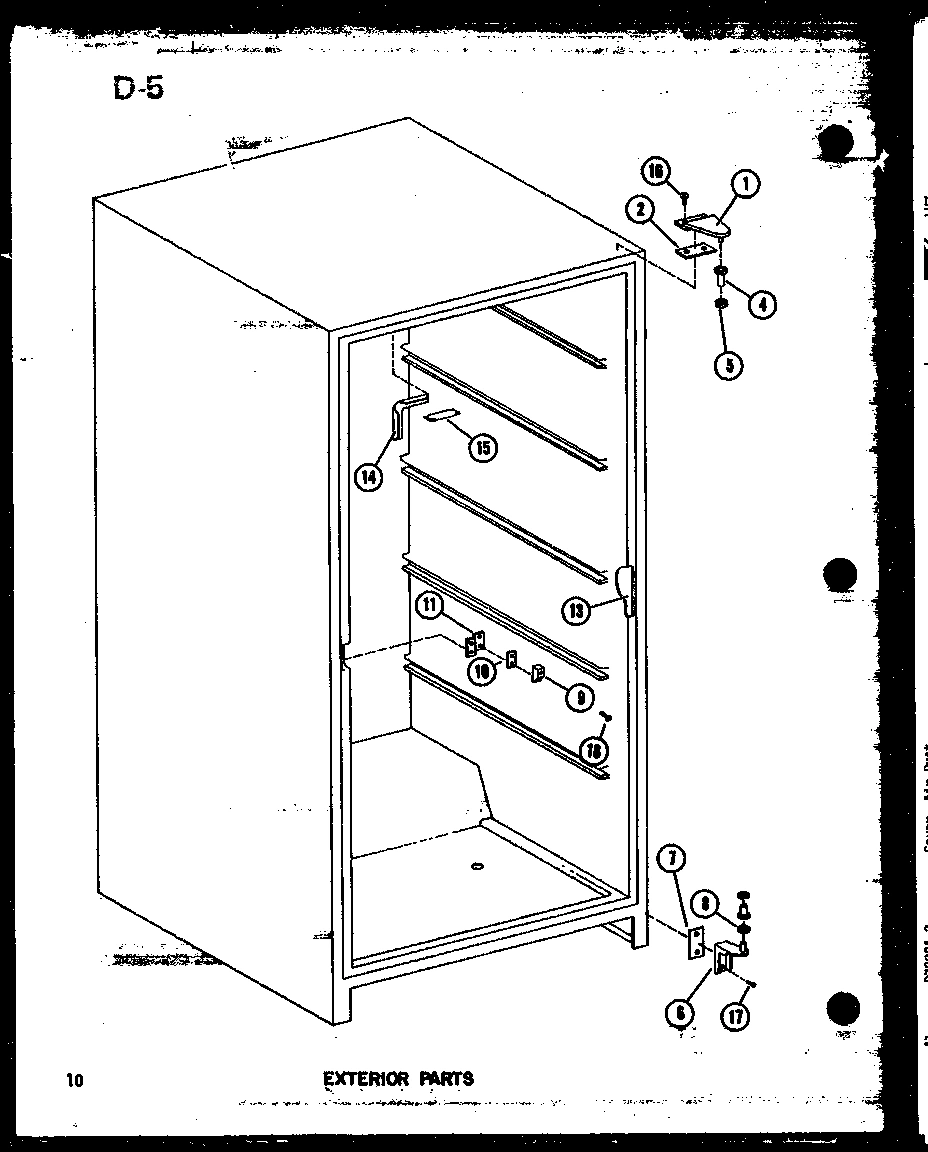

03 - EXTERIOR PARTS
Common parts from model Whirlpool ESUF14C-G FREEZER
1
RETAINER WPL C3683103 Contact Us For Availability
1
DRAIN SCREEN WPL A3113701 Contact Us For Availability
1
KIT, COMPRESSOR (DAN NF7AK) WPL D7289601 Contact Us For Availability
1
HINGE-TOP WPL B5721501 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
2
HOUSING-LIGHT WPL C8758501 Contact Us For Availability
2
GROMMET K WPL A3026101 Contact Us For Availability
2
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
2
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
2
SHIM KIT WPL A3270303 Contact Us For Availability
3
RETAINER WPL B5632011 Contact Us For Availability
3
INSULATION WPL B5766901 Contact Us For Availability
3
WASHER, NYLON K WPL M0590101 Contact Us For Availability
4
PAD-HANDLE WPL D7344401 Contact Us For Availability
4
CLIP K WPL A3140801 Contact Us For Availability
4
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
5
INSULATION WPL B0566712 Contact Us For Availability
5
INSULATION WPL B0566713 Contact Us For Availability
5
INSULATION WPL B0566714 Contact Us For Availability
5
INSULATION WPL B0566718 Contact Us For Availability
5
INSULATION WPL B0566719 Contact Us For Availability
5
FOAM SLAB WPL B5612023 Contact Us For Availability
5
SOCKET-LIGHT WPL C8708801 Contact Us For Availability
5
WIRING HARNESS WPL D7287101 Contact Us For Availability
5
WASHER K WPL M0274014 Contact Us For Availability
6
TIE ROD WPL B0569812 Contact Us For Availability
6
SWITCH WPL C3680306 Contact Us For Availability
6
CLIP-CABLE WPL M0110505 Contact Us For Availability
6
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
7
CLIP-TIE ROD WPL A3282201 Contact Us For Availability
7
COVER-LIGHT SWITCH WPL D7286601 Contact Us For Availability
7
OVERLOAD K WPL C3590101 Contact Us For Availability
7
SHIM WPL A3143601 Contact Us For Availability
7
SHIM WPL A3143602 Contact Us For Availability
7
SHIM WPL A3143603 Contact Us For Availability
8
NAMEPLATE WPL B5758804 Contact Us For Availability
8
SHIELD-LIGHT WPL D7288101 Contact Us For Availability
8
SPRING K WPL A3043601 Contact Us For Availability
8
WASHER K WPL M0274013 Contact Us For Availability
9
OUTER DOOR SHELL, WHITE WPL D7388129 Contact Us For Availability
9
DOOR ESU15D C WPL D7388130 Contact Us For Availability
9
DOOR A-T-ESU15C WPL D7388131 Contact Us For Availability
9
DOOR ESU15D G WPL D7388132 Contact Us For Availability
9
OUTER DOOR SHELL, ALMOND WPL D7388133 Contact Us For Availability
9
TEMP CONTROL WPL C8764901 Contact Us For Availability
9
RELAY WPL C3553401 Contact Us For Availability
9
STRIKE-LOCK WPL B5728001 Contact Us For Availability
10
INNER DR PANEL WPL D7280801 Contact Us For Availability
10
SHIELD-CONTROL WPL C8764801 Contact Us For Availability
10
COVER K WPL B0559501 Contact Us For Availability
10
SHIM WPL A3063201 Contact Us For Availability
10
SHIM WPL A3063202 Contact Us For Availability
11
GASKET DOOR WPL D7158706 Contact Us For Availability
11
COVER-CONTROL WPL C8762901 Contact Us For Availability
11
STRAP K WPL A3041801 Contact Us For Availability
11
TAP PLATE-STRIKE WPL B5756901 Contact Us For Availability
12
BARREL-LOCK WPL B5775401 Contact Us For Availability
12
KNOB-CONTROL WPL C3577903 Contact Us For Availability
12
PRE-COOLER WPL C8860801 Contact Us For Availability
13
KEY, LOCK WPL B5775301 Contact Us For Availability
13
SHELF WPL D7335702 Contact Us For Availability
13
SHELF WPL D7335707 Contact Us For Availability
13
BRACKET WPL B5747001 Contact Us For Availability
13
GASKET WPL A3189315 Contact Us For Availability
14
BOLT-LOCK WPL C3685302 Contact Us For Availability
14
TRIM-SHELF WPL B5688804 Contact Us For Availability
14
CORNER BRKT WPL B5757401 Contact Us For Availability
15
PLUG BUTTON WPL B5766401 Contact Us For Availability
15
CLAMP-DRIER WPL M0104002 Contact Us For Availability
15
CLIP-FLANGE WPL B5770501 Contact Us For Availability
16
BASKET WPL D7258602 Contact Us For Availability
16
PLUG, BUTTON (WHT) WPL A3080002 Contact Us For Availability
17
HANDLE WPL C8787101 Contact Us For Availability
17
HANDLE BASKET WPL B0571806 Contact Us For Availability
17
COVER HEAT EX. WPL C8807006 Contact Us For Availability
17
COVER-HX C WPL C8807007 Contact Us For Availability
17
COVER HEAT EX. WPL C8807008 Contact Us For Availability
17
COVER-HX G WPL C8807009 Contact Us For Availability
17
COVER-HX L WPL C8807010 Contact Us For Availability
17
SCREW WPL M0246159 Contact Us For Availability
18
SPRING CLIP WPL B0544001 Contact Us For Availability
18
DRAIN TUBE WPL B5758502 Contact Us For Availability
18
TUNNEL-HEAT EX WPL B5749501 Contact Us For Availability
18
SCREW WPL M0228532 Contact Us For Availability
19
VENT ASSY WPL A3101901 Contact Us For Availability
19
TUBE CLAMP WPL B5760801 Contact Us For Availability
19
HEAT EX WPL D7290001 Contact Us For Availability
20
BLOCK-AIR VENT WPL C3684702 Contact Us For Availability
20
CLAMP WPL M0102303 Contact Us For Availability
20
BRACKET-TIMER WPL C8821701 Contact Us For Availability
21
RETAINER-GASKET WPL D3928118 Contact Us For Availability
21
GLIDER BOLT WPL M0266510 Contact Us For Availability
21
TIMER WPL D7004107 Contact Us For Availability
22
RETAINER-GASKET WPL D7158608 Contact Us For Availability
22
DRAIN PAN WPL D3920001 Contact Us For Availability
22
WIRING HARNESS WPL D7287001 Contact Us For Availability
23
RETAINER-GASKET WPL D7158609 Contact Us For Availability
23
GRILLE TOE WPL D7263302 Contact Us For Availability
24
INSULATION FT. K WPL B0523563 Contact Us For Availability
24
GROMMET-HEAT EX WPL A3091303 Contact Us For Availability
25
SCREW-SM WPL M0241118 Contact Us For Availability
25
CLIP, GRILLE WPL M0117301 Contact Us For Availability
26
SEMS FASTNER WPL M0243037 Contact Us For Availability
26
MOTOR KIT WPL D7289701 Contact Us For Availability
27
SCREW WPL M0218331 Contact Us For Availability
27
MOTOR MOUNT WPL C8722501 Contact Us For Availability
28
INSULATION-DOOR BLOCK WPL C8799901 Contact Us For Availability
28
FAN BLADE WPL B5739301 Contact Us For Availability
29
PLATE-AIR INLET WPL D7279501 Contact Us For Availability
29
BRACKET WPL B5709102 Contact Us For Availability
30
GRILL-AIR INLET WPL C8758901 Contact Us For Availability
30
SUPPORT WPL D7308201 Contact Us For Availability
31
EVAPORATOR WPL D7289901 Contact Us For Availability
32
TERMINATOR WPL C8765001 Contact Us For Availability
32
SUPPORT WPL D7262802 Contact Us For Availability
33
GROMMET WPL M0580003 Contact Us For Availability
33
CLAMP WPL B5794201 Contact Us For Availability
34
HEATER-EVAP WPL D7291601 Contact Us For Availability
35
CLIP WPL M0110301 Contact Us For Availability
36
CLAMP, EVAPORATOR HEATER WPL B5760101 Contact Us For Availability
36
SCREW, T F WPL M0233844 Contact Us For Availability
37
TUBE CLAMP WPL A3253802 Contact Us For Availability
38
CONTROL WELL WPL A3030903 Contact Us For Availability
39
DRIP TRAY WPL D7289801 Contact Us For Availability
40
COVER EVAP WPL D7346001 Contact Us For Availability
41
COVER-AIR DUCT WPL D7280402 Contact Us For Availability
42
SPACER WPL A3268101 Contact Us For Availability
43
SCREW WPL M0230923 Contact Us For Availability
46
SEAL-DRIP TRAY WPL B5758701 Contact Us For Availability
47
SCREW WPL M0230926 Contact Us For Availability
48
SCREW WPL M0204716 Contact Us For Availability
50
NUT-WELL WPL M0292002 Contact Us For Availability
× ![]()
