Model Maytag ESR16E REFRIGERATOR – Common Parts & Diagrams

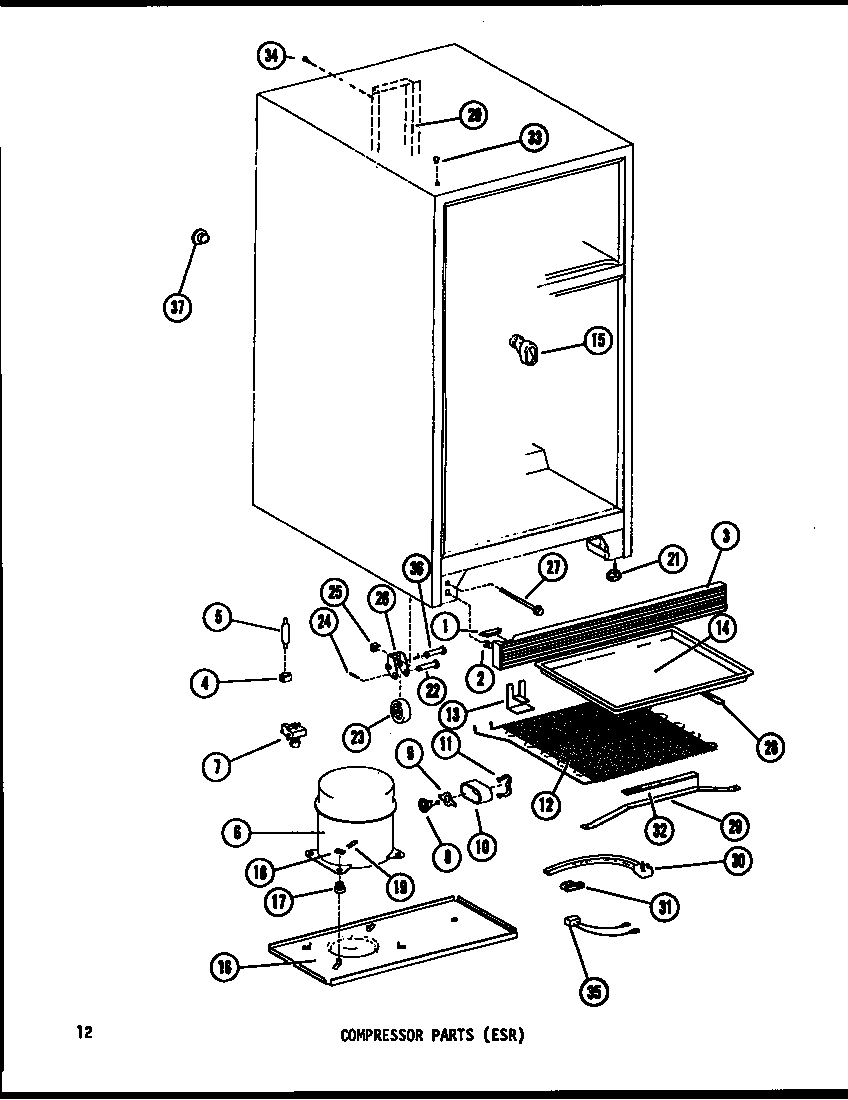

01 - COMPRESSOR PARTS

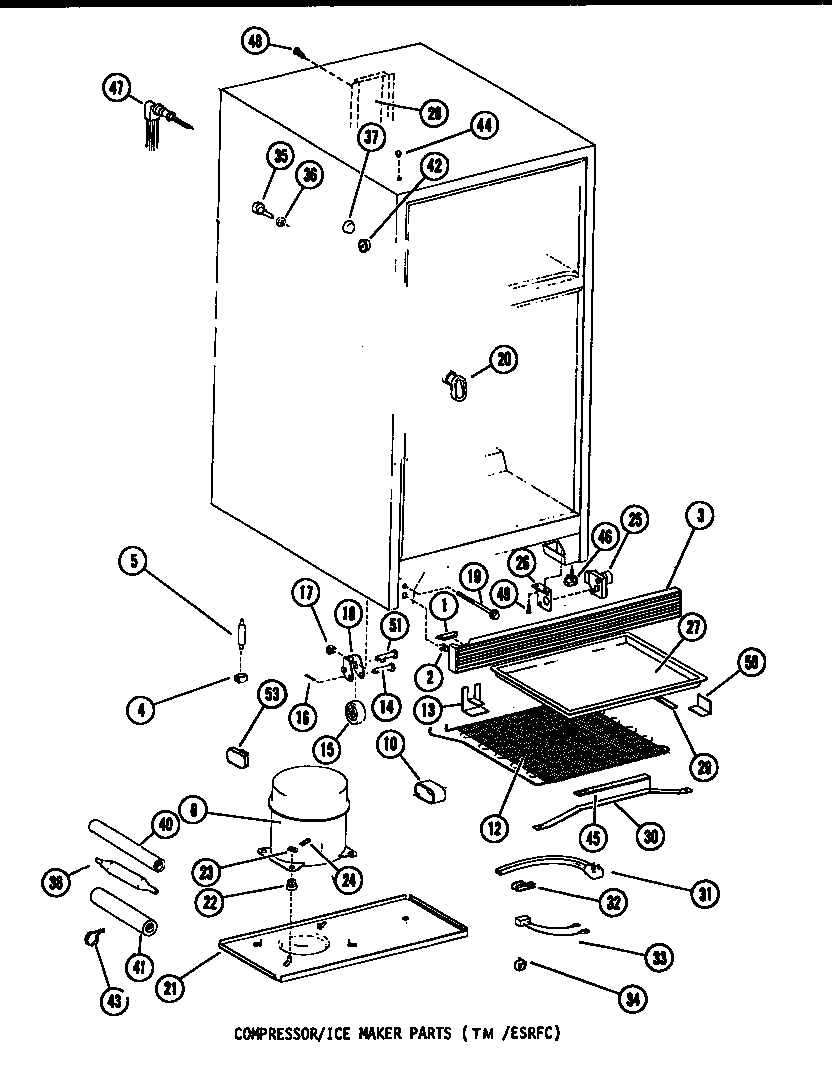

02 - COMPRESSOR/ICE MAKER PARTS

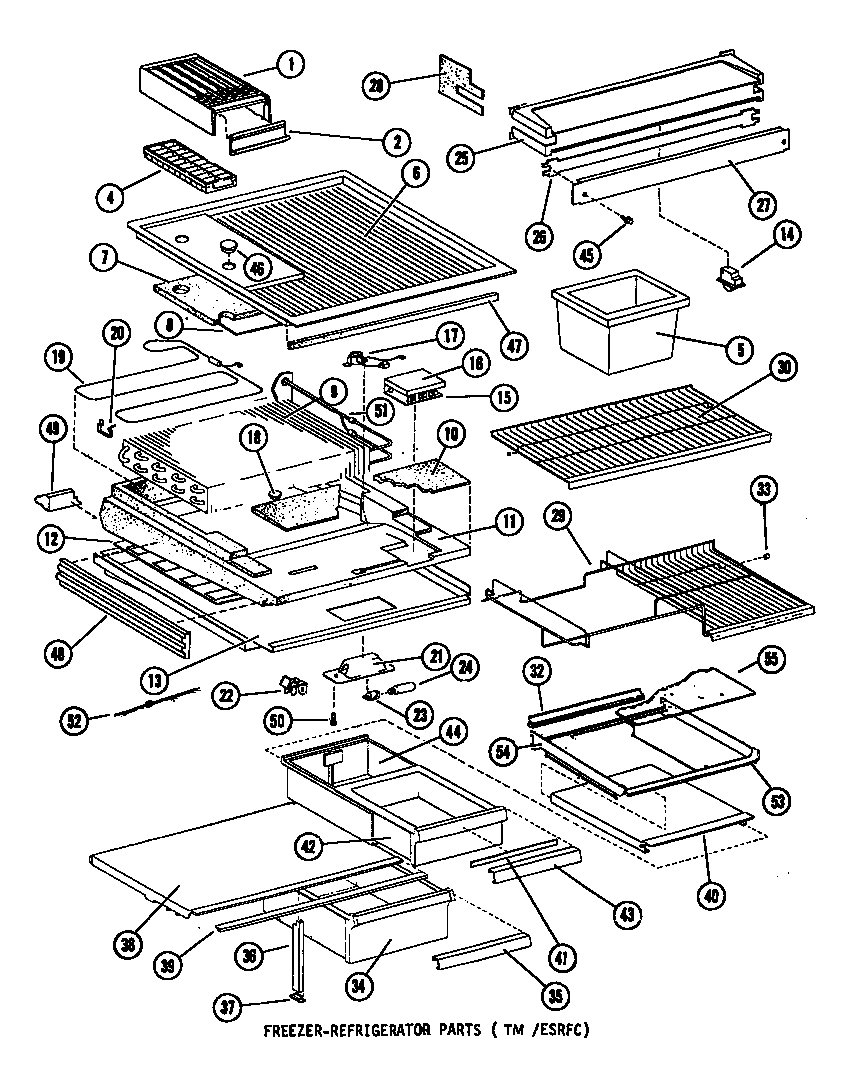

03 - FZ -REF PARTS

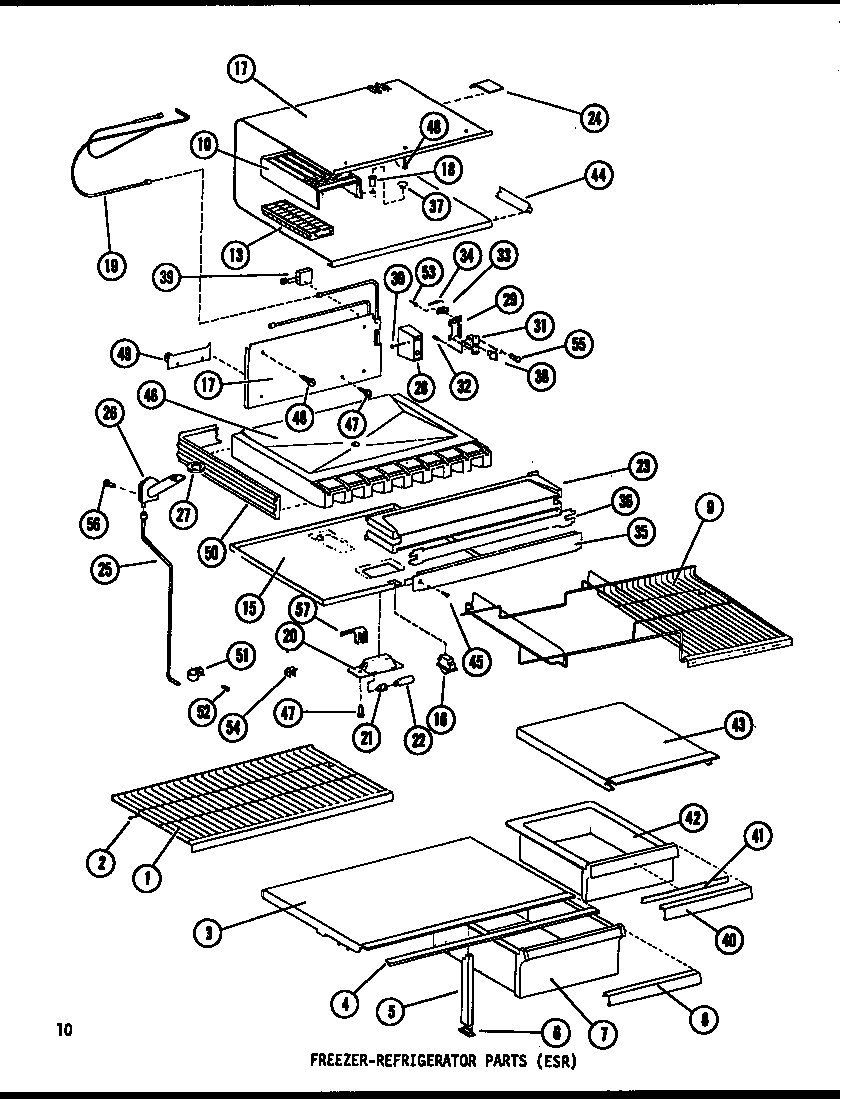

04 - FZ-REF PARTS

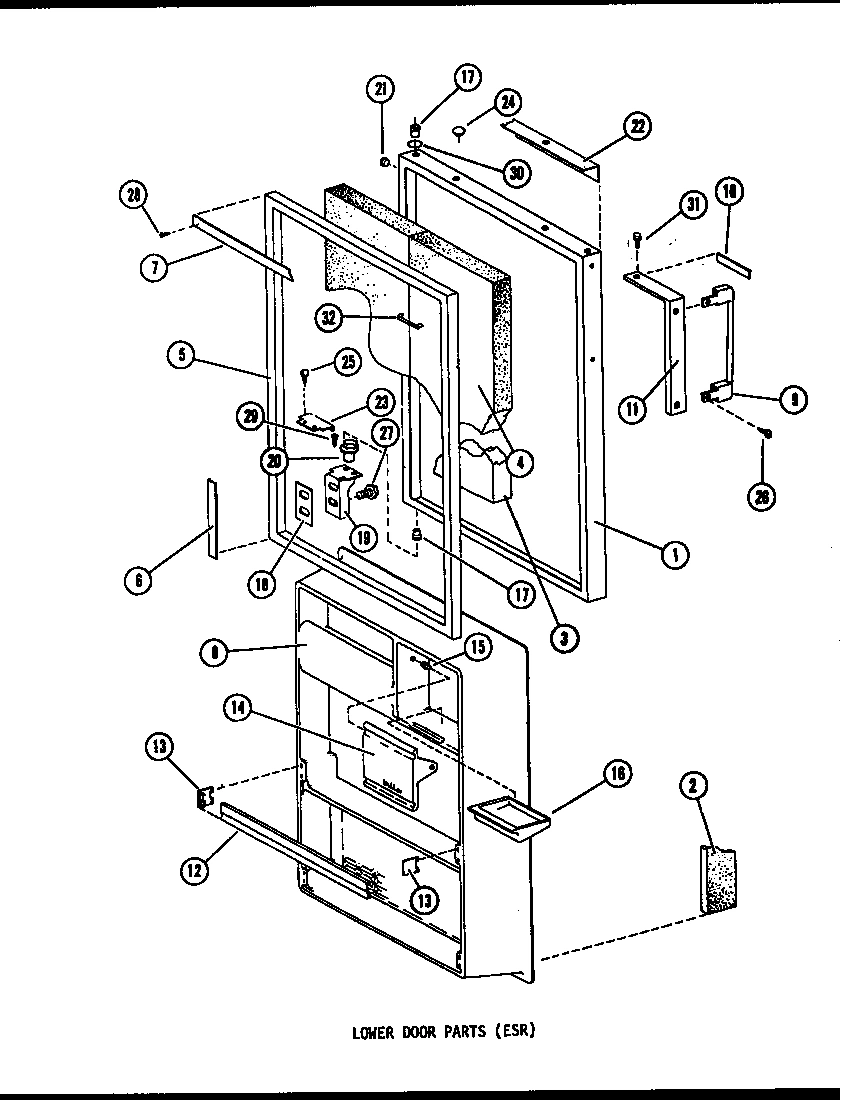

05 - LOWER DOOR PARTS

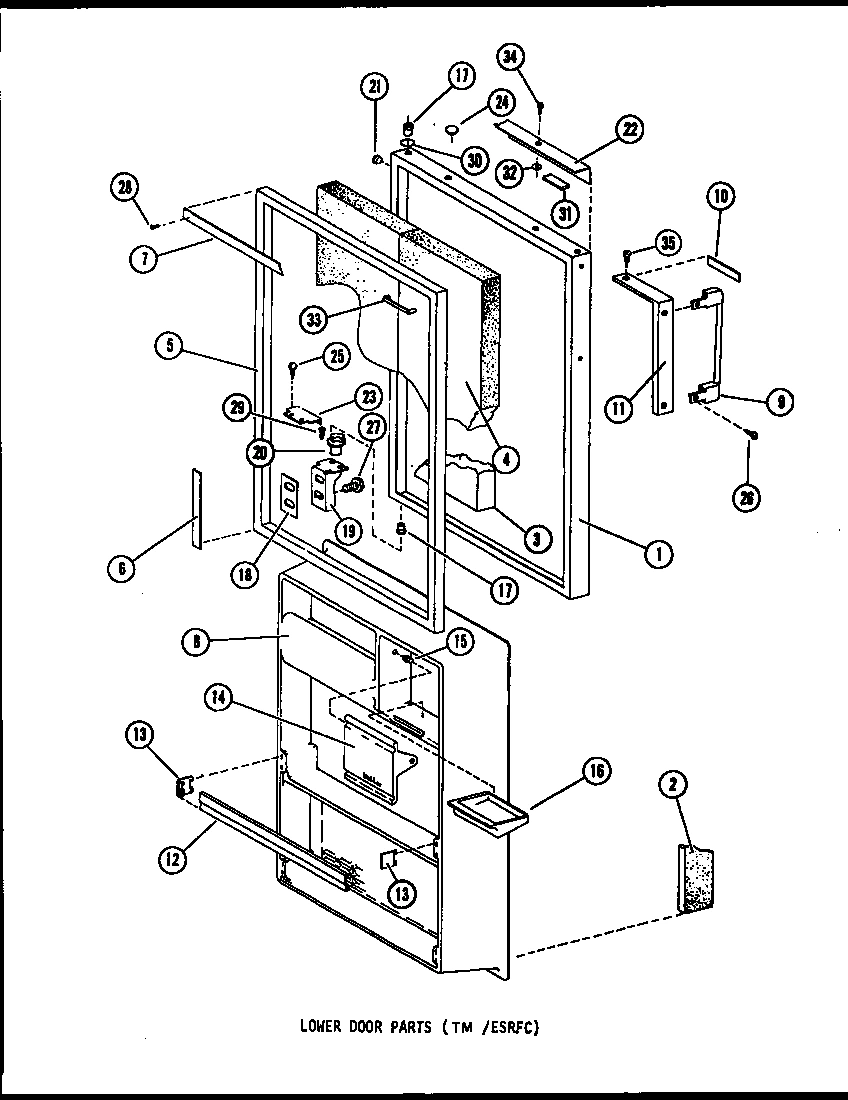

06 - LOWER DOOR PARTS

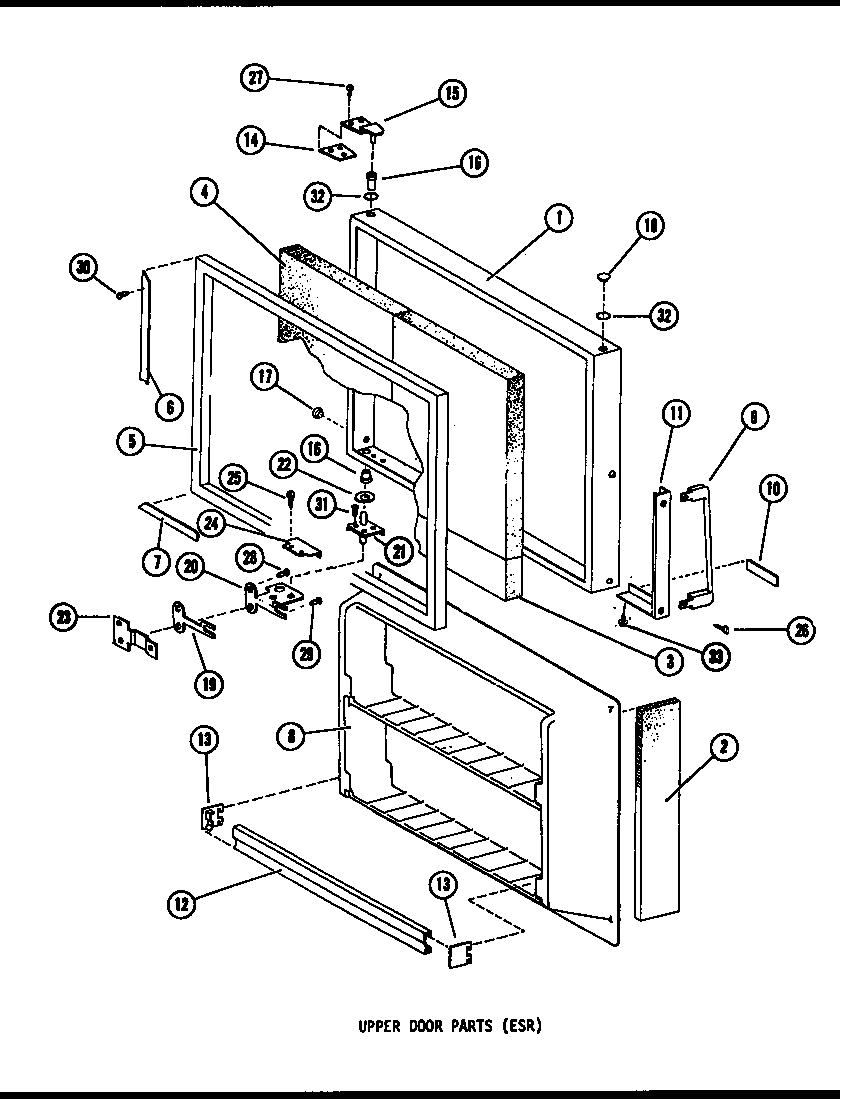

07 - UPPER DOOR PARTS
Common parts from model Maytag ESR16E REFRIGERATOR
1
MAY B5641302 MAY B5641302 Contact Us For Availability
1
MAY D7256611 MAY D7256611 Contact Us For Availability
1
MAY D7395726 MAY D7395726 Contact Us For Availability
1
MAY D7395727 MAY D7395727 Contact Us For Availability
1
MAY D7395728 MAY D7395728 Contact Us For Availability
1
MAY D7395729 MAY D7395729 Contact Us For Availability
1
MAY D7395730 MAY D7395730 Contact Us For Availability
1
MAY D7395705 MAY D7395705 Contact Us For Availability
1
MAY D7395706 MAY D7395706 Contact Us For Availability
1
MAY D7395707 MAY D7395707 Contact Us For Availability
1
MAY D7395708 MAY D7395708 Contact Us For Availability
1
MAY D7395709 MAY D7395709 Contact Us For Availability
1
MAY D7395710 MAY D7395710 Contact Us For Availability
2
MAY M0117301 MAY M0117301 Contact Us For Availability
2
MAY B5753501 MAY B5753501 Contact Us For Availability
2
MAY B5753502 MAY B5753502 Contact Us For Availability
2
SEE NOTE INSULATION, 1 X 3 MAY Y00000000 Contact Us For Availability
3
MAY D7263305 MAY D7263305 Contact Us For Availability
3
MAY D7261306 MAY D7261306 Contact Us For Availability
3
MAY B5629037 MAY B5629037 Contact Us For Availability
4
MAY M0104002 MAY M0104002 Contact Us For Availability
4
MAY B5709-5 MAY B5709-5 Contact Us For Availability
4
MAY YD7293702 MAY YD7293702 Contact Us For Availability
4
MAY C8767002 MAY C8767002 Contact Us For Availability
5
MAY B5715001 MAY B5715001 Contact Us For Availability
5
MAY B5710-2 MAY B5710-2 Contact Us For Availability
5
MAY D7431906 MAY D7431906 Contact Us For Availability
5
MAY D7431905 MAY D7431905 Contact Us For Availability
6
MAY D7275502 MAY D7275502 Contact Us For Availability
6
MAY B5749401 MAY B5749401 Contact Us For Availability
6
MAY D3928117 MAY D3928117 Contact Us For Availability
6
MAY D3928116 MAY D3928116 Contact Us For Availability
7
MAY C3561701 MAY C3561701 Contact Us For Availability
7
MAY D7418601 MAY D7418601 Contact Us For Availability
7
MAY D3928118 MAY D3928118 Contact Us For Availability
8
MAY C8768901 MAY C8768901 Contact Us For Availability
8
MAY C8831703 MAY C8831703 Contact Us For Availability
8
MAY D7263204 MAY D7263204 Contact Us For Availability
8
MAY D7263104 MAY D7263104 Contact Us For Availability
9
MAY A3043601 MAY A3043601 Contact Us For Availability
9
MAY D7381504 MAY D7381504 Contact Us For Availability
9
MAY D7254202 MAY D7254202 Contact Us For Availability
9
MAY D7254201 MAY D7254201 Contact Us For Availability
10
MAY B5595-1 MAY B5595-1 Contact Us For Availability
10
MAY D7552902 MAY D7552902 Contact Us For Availability
10
MAY C8894401 MAY C8894401 Contact Us For Availability
10
MAY C8894004 MAY C8894004 Contact Us For Availability
11
MAY A3041801 MAY A3041801 Contact Us For Availability
11
MAY D7566601 MAY D7566601 Contact Us For Availability
11
MAY D7566602 MAY D7566602 Contact Us For Availability
12
MAY D7455001 MAY D7455001 Contact Us For Availability
12
MAY D7415710 MAY D7415710 Contact Us For Availability
12
MAY D7415711 MAY D7415711 Contact Us For Availability
13
MAY B5747001 MAY B5747001 Contact Us For Availability
13
MAY C8717801 MAY C8717801 Contact Us For Availability
13
MAY B5631705 MAY B5631705 Contact Us For Availability
13
MAY B5631706 MAY B5631706 Contact Us For Availability
13
MAY C3680907 MAY C3680907 Contact Us For Availability
13
MAY C3680908 MAY C3680908 Contact Us For Availability
14
MAY D3920001 MAY D3920001 Contact Us For Availability
14
MAY D7417701 MAY D7417701 Contact Us For Availability
14
MAY A3270301 MAY A3270301 Contact Us For Availability
14
MAY A3270302 MAY A3270302 Contact Us For Availability
14
MAY A3270303 MAY A3270303 Contact Us For Availability
15
MAY B5749501 MAY B5749501 Contact Us For Availability
15
MAY D7272803 MAY D7272803 Contact Us For Availability
15
MAY A3084701 MAY A3084701 Contact Us For Availability
15
MAY B5744301 MAY B5744301 Contact Us For Availability
16
MAY D7262802 MAY D7262802 Contact Us For Availability
16
MAY C3680304 MAY C3680304 Contact Us For Availability
16
MAY D3799801 MAY D3799801 Contact Us For Availability
16
MAY C3652902 MAY C3652902 Contact Us For Availability
16
MAY C3652901 MAY C3652901 Contact Us For Availability
17
MAY A3026101 MAY A3026101 Contact Us For Availability
17
MAY D7492903 MAY D7492903 Contact Us For Availability
17
BEARING, HINGE MAY C8852202 Contact Us For Availability
17
MAY M3107-15 MAY M3107-15 Contact Us For Availability
17
MAY M3107-17 MAY M3107-17 Contact Us For Availability
17
MAY M3107-19 MAY M3107-19 Contact Us For Availability
17
MAY M3107-25 MAY M3107-25 Contact Us For Availability
17
MAY M3107-5 MAY M3107-5 Contact Us For Availability
18
MAY M5901-1 MAY M5901-1 Contact Us For Availability
18
MAY C8819601 MAY C8819601 Contact Us For Availability
18
MAY B5744801 MAY B5744801 Contact Us For Availability
18
MAY B5744802 MAY B5744802 Contact Us For Availability
18
MAY B5744803 MAY B5744803 Contact Us For Availability
18
MAY M3106-1 MAY M3106-1 Contact Us For Availability
18
MAY M3106-6 MAY M3106-6 Contact Us For Availability
18
MAY M3106-7 MAY M3106-7 Contact Us For Availability
18
MAY M3106-8 MAY M3106-8 Contact Us For Availability
18
MAY M3106-9 MAY M3106-9 Contact Us For Availability
19
MAY A3140801 MAY A3140801 Contact Us For Availability
19
MAY D7278102 MAY D7278102 Contact Us For Availability
19
MAY C8814801 MAY C8814801 Contact Us For Availability
19
MAY A3143501 MAY A3143501 Contact Us For Availability
19
MAY A3143502 MAY A3143502 Contact Us For Availability
19
MAY A3143503 MAY A3143503 Contact Us For Availability
20
MAY C8807001 MAY C8807001 Contact Us For Availability
20
MAY C8807003 MAY C8807003 Contact Us For Availability
20
MAY C8807004 MAY C8807004 Contact Us For Availability
20
MAY C8807005 MAY C8807005 Contact Us For Availability
20
MAY C8730101 MAY C8730101 Contact Us For Availability
20
MAY C8814901 MAY C8814901 Contact Us For Availability
20
MAY C8800201 MAY C8800201 Contact Us For Availability
21
MAY C8708801 MAY C8708801 Contact Us For Availability
21
MAY B5750901 MAY B5750901 Contact Us For Availability
22
MAY M1200201 MAY M1200201 Contact Us For Availability
22
MAY A2828-3 MAY A2828-3 Contact Us For Availability
22
MAY A3139801 MAY A3139801 Contact Us For Availability
22
MAY B5779601 MAY B5779601 Contact Us For Availability
23
MAY M5201-2 MAY M5201-2 Contact Us For Availability
23
MAY D7276501 MAY D7276501 Contact Us For Availability
23
MAY B5740902 MAY B5740902 Contact Us For Availability
24
MAY M1200004 MAY M1200004 Contact Us For Availability
24
MAY C8759301 MAY C8759301 Contact Us For Availability
24
MAY C8833701 MAY C8833701 Contact Us For Availability
24
MAY C8894801 MAY C8894801 Contact Us For Availability
25
MAY M0286708 MAY M0286708 Contact Us For Availability
25
MAY C8756901 MAY C8756901 Contact Us For Availability
25
MAY C8756902 MAY C8756902 Contact Us For Availability
25
MAY M0205631 MAY M0205631 Contact Us For Availability
26
MAY C8742401 MAY C8742401 Contact Us For Availability
26
MAY C3630903 MAY C3630903 Contact Us For Availability
26
MAY M0222317 MAY M0222317 Contact Us For Availability
27
MAY M0204339 MAY M0204339 Contact Us For Availability
27
MAY A3132301 MAY A3132301 Contact Us For Availability
27
MAY M0246159 MAY M0246159 Contact Us For Availability
27
MAY M0257244 MAY M0257244 Contact Us For Availability
28
MAY C8807002 MAY C8807002 Contact Us For Availability
28
MAY A3030327 MAY A3030327 Contact Us For Availability
28
MAY D7278008 MAY D7278008 Contact Us For Availability
28
MAY M0210018 MAY M0210018 Contact Us For Availability
28
MAY M0226831 MAY M0226831 Contact Us For Availability
29
MAY D7308201 MAY D7308201 Contact Us For Availability
29
MAY C8850501 MAY C8850501 Contact Us For Availability
30
MAY D7276701 MAY D7276701 Contact Us For Availability
30
MAY M0230926 MAY M0230926 Contact Us For Availability
30
MAY M0211018 MAY M0211018 Contact Us For Availability
31
MAY M0103901 MAY M0103901 Contact Us For Availability
31
MAY C3615020 MAY C3615020 Contact Us For Availability
31
MAY M0205441 MAY M0205441 Contact Us For Availability
32
MAY A9008324 MAY A9008324 Contact Us For Availability
32
MAY A3012526 MAY A3012526 Contact Us For Availability
32
MAY M5009-2 MAY M5009-2 Contact Us For Availability
32
MAY A3195601 MAY A3195601 Contact Us For Availability
33
MAY M3107-16 MAY M3107-16 Contact Us For Availability
33
MAY M3107-18 MAY M3107-18 Contact Us For Availability
33
MAY M3107-20 MAY M3107-20 Contact Us For Availability
33
MAY M3107-21 MAY M3107-21 Contact Us For Availability
33
MAY M3107-9 MAY M3107-9 Contact Us For Availability
33
MAY M3412-2 MAY M3412-2 Contact Us For Availability
33
MAY M0207431 MAY M0207431 Contact Us For Availability
34
MAY M3053-1 MAY M3053-1 Contact Us For Availability
35
MAY C8755901 MAY C8755901 Contact Us For Availability
35
MAY C8807101 MAY C8807101 Contact Us For Availability
35
MAY C8807102 MAY C8807102 Contact Us For Availability
35
MAY C8807103 MAY C8807103 Contact Us For Availability
35
MAY C8807104 MAY C8807104 Contact Us For Availability
35
MAY C8807105 MAY C8807105 Contact Us For Availability
36
MAY M1205302 MAY M1205302 Contact Us For Availability
36
MAY C8777701 MAY C8777701 Contact Us For Availability
37
MAY A3080002 MAY A3080002 Contact Us For Availability
37
MAY B5721101 MAY B5721101 Contact Us For Availability
38
MAY D7009801 MAY D7009801 Contact Us For Availability
39
MAY C8769101 MAY C8769101 Contact Us For Availability
40
MAY C8831704 MAY C8831704 Contact Us For Availability
41
GASKET (PER FOOT) MAY A3030313 Contact Us For Availability
42
MAY D7425301 MAY D7425301 Contact Us For Availability
43
MAY D7343603 MAY D7343603 Contact Us For Availability
44
MAY C8842603 MAY C8842603 Contact Us For Availability
45
MAY M0245159 MAY M0245159 Contact Us For Availability
46
MAY D7358703 MAY D7358703 Contact Us For Availability
47
MAY M0236717 MAY M0236717 Contact Us For Availability
48
MAY M0236721 MAY M0236721 Contact Us For Availability
49
MAY B5754001 MAY B5754001 Contact Us For Availability
50
MAY B5757802 MAY B5757802 Contact Us For Availability
51
MAY M0102303 MAY M0102303 Contact Us For Availability
52
MAY M0210916 MAY M0210916 Contact Us For Availability
53
MAY M0102-2 MAY M0102-2 Contact Us For Availability
54
MAY 85733302 MAY 85733302 Contact Us For Availability
55
MAY M0211016 MAY M0211016 Contact Us For Availability
56
MAY M0214931 MAY M0214931 Contact Us For Availability
57
MAY A3286301 MAY A3286301 Contact Us For Availability
× ![]()
