Electrolux ERFG2393AS7 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/INTERNAL DISPENSER Parts List

1

242220131 Frigidaire Refrigerator Tube Backorder WCI 242220131 $9.13

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $51.94

1A

241862904 Frigidaire Condenser Assembly In Stock WCI 241862904 $109.01

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $62.39

2

242220132 Frigidaire Refrigerator Tube In Stock WCI 242220132 $9.13

2

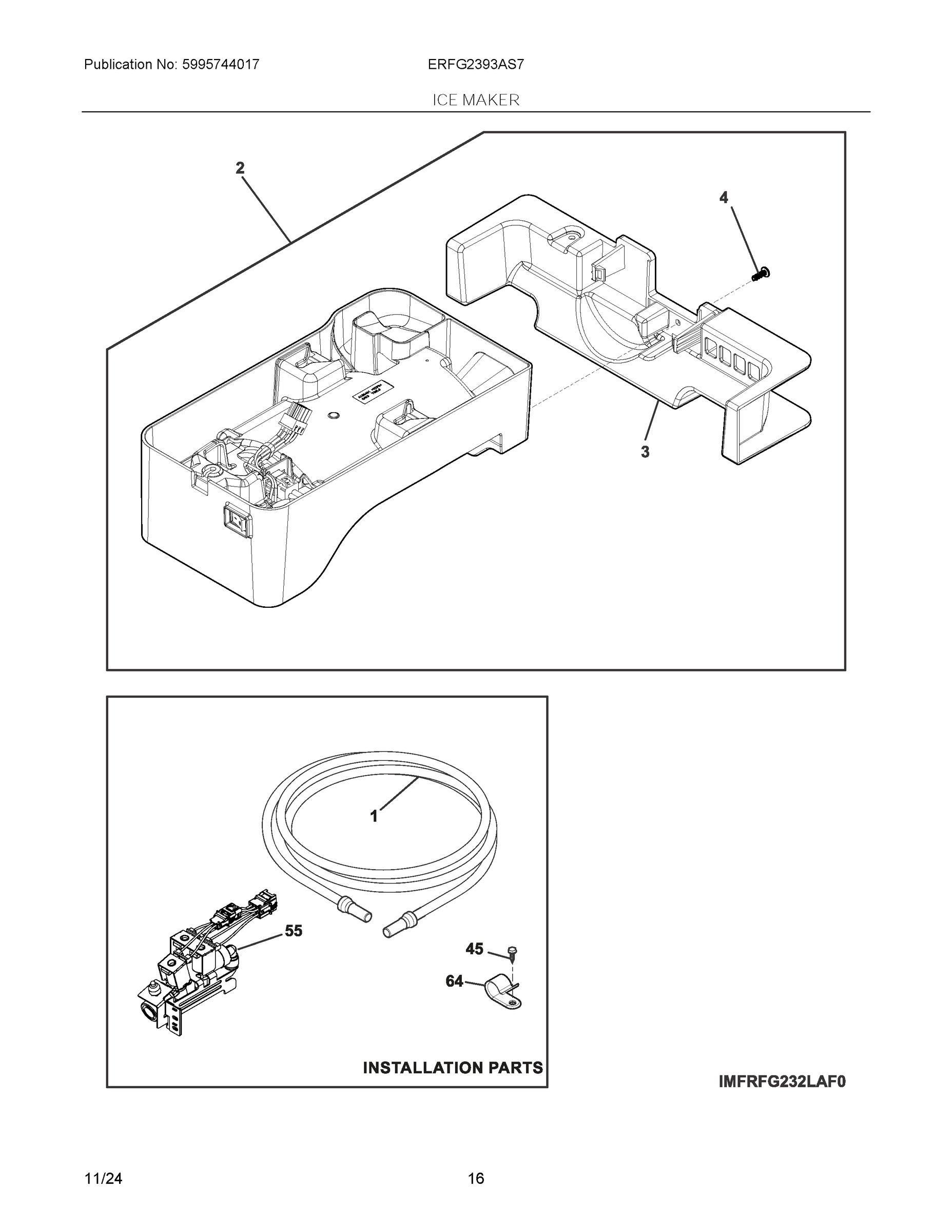

5304532932 Frigidaire Ice Maker Backorder WCI 5304532932 $128.42

3

5304531114 Frigidaire Insulation Backorder WCI 5304531114 $3.53

3

BRACKET, ICE MAKER BLOCK, GRAY, FREEZER WCI 5304532931 Contact Us For Availability

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

4

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

4

FACIA, WATER FILTER WCI 5304532902 Contact Us For Availability

5

5304530726 Frigidaire Refrigerator Harness Backorder WCI 5304530726 $16.12

5

5304532903 Frigidaire Cover Assembly Backorder WCI 5304532903 $5.42

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6

CLAMP, WATER TUBE WCI 5304531203 Contact Us For Availability

7

5304531689 Frigidaire Refrigerator Support Backorder WCI 5304531689 $6.97

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

9

5304508006 Frigidaire Refrigerator Bushing Backorder WCI 5304508006 $7.67

10

241872205 Frigidaire Beam Backorder WCI 241872205 $24.91

11

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $19.03

11

USER INTERFACE, ASSEMBLY, DRAWER, TEMP CONTRO WCI 5304532851 Contact Us For Availability

12

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $10.85

12

GASKET, CENTER SUPPORT, CRISPER WCI 5304532933 Contact Us For Availability

13

5304508039 Frigidaire Refrigerator Door Stop Backorder WCI 5304508039 $13.61

13

SUPPORT Backorder WCI 5304532879 $88.18

13A

5304508038 Frigidaire Refrigerator Door Stop Backorder WCI 5304508038 $13.57

14

5304519044 Frigidaire Magnet In Stock WCI 5304519044 $11.30

14

5304520495 Frigidaire Refrigerator Switch In Stock WCI 5304520495 $12.20

14

5304531011 Frigidaire Refrigerator Heater In Stock WCI 5304531011 $107.26

15

242044505 Frigidaire Refrigerator Evaporator Backorder WCI 242044505 $24.50

15

5304524656 Frigidaire Refrigerator Assembly-L Backorder WCI 5304524656 $34.87

15B

5304536788 Frigidaire Lamp Backorder WCI 5304536788 $31.97

15C

5304524658 Frigidaire Refrigerator Light Asse Backorder WCI 5304524658 $71.26

16

BRACKET Backorder WCI 5304530897 $5.03

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $69.03

18

GASKET Backorder WCI 241860131 $3.53

20

5303918645 Frigidaire Refrigerator Thermistor In Stock WCI 5303918645 $52.27

21

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

21

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

21C

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

22

5304530908 Frigidaire Base Assembly Backorder WCI 5304530908 $49.01

22

SHELF ASSEMBLY Backorder WCI 5304532846 $86.24

22B

241760403 Frigidaire Refrigerator Bearing Backorder WCI 241760403 $12.22

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $12.20

23

BUFFER Backorder WCI 5304532845 $6.82

24

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $7.30

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

24

5304532847 Frigidaire Shelf Assembly Backorder WCI 5304532847 $94.86

24B

5304538775 Frigidaire Crisper Cover Assembly Backorder WCI 5304538775 $75.85

25

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

25

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $5.42

25

5304532850 Frigidaire Cover Assembly Backorder WCI 5304532850 $82.43

26

241920608 Frigidaire Defrost Pan Backorder WCI 241920608 $80.76

26

CRISPER PAN ASSY - CD, 26 WCI 5304535539 Contact Us For Availability

28

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

29

5304530707 Frigidaire Compressor Backorder WCI 5304530707 $162.71

29A

811978901 Frigidaire Refrigerator Grommet Backorder WCI 811978901 $4.97

30

241778702 Frigidaire Refrigerator Anti-Tip Br Backorder WCI 241778702 $12.18

30

5304530678 Frigidaire Refrigerator Inverter Backorder WCI 5304530678 $94.27

34

241929901 Frigidaire Grommet Condenser Mounti Backorder WCI 241929901 $5.88

34A

241929902 Frigidaire Condenser Mounting Gromm Backorder WCI 241929902 $5.88

37

5304519618 Frigidaire Refrigerator Cabinet Co In Stock WCI 5304519618 $7.25

38

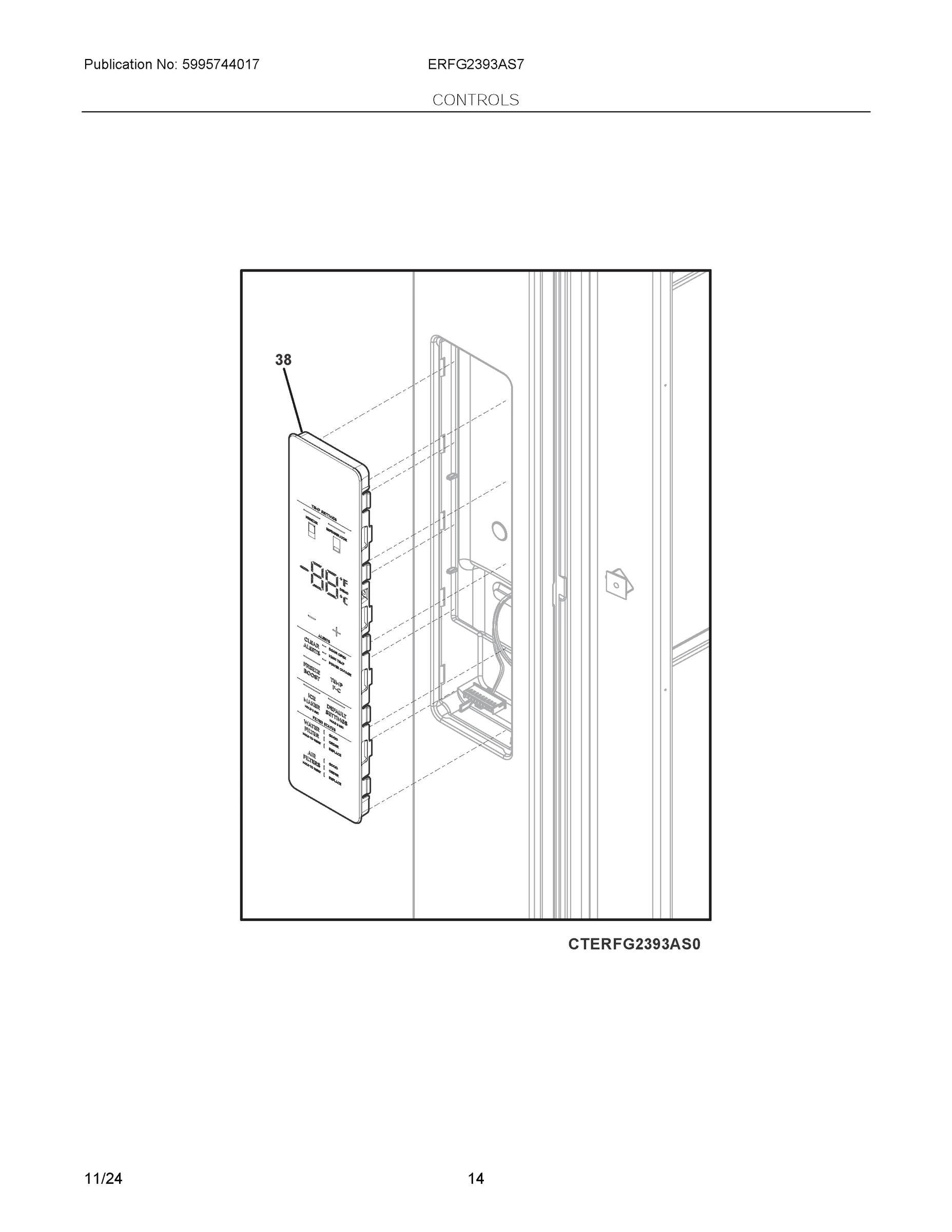

USER INTERFACE, ASSEMBLY, GRAY WCI 5304532860 Contact Us For Availability

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42

SUPPORT, CRISPER, GRAY, RH WCI 5304532906 Contact Us For Availability

42A

SUPPORT, CRISPER, GRAY, LH WCI 5304532905 Contact Us For Availability

44

5304456288 Frigidaire Refrigerator Clamp Backorder WCI 5304456288 $4.99

44

ELUX FRESHNESS BOOSTER REFILL WCI ELPAPKRF Contact Us For Availability

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45

5303307980 Frigidaire Oven Screw Backorder WCI 5303307980 $9.06

45

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

48

CHANNEL, SHELF MTG., GRAY, CENTER WCI 242122103 Contact Us For Availability

49

CHANNEL Backorder WCI 242122206 $22.76

49B

CHANNEL Backorder WCI 242122304 $38.46

55

SOLENOID, ASSEMBLY In Stock WCI 140137975102 $56.75

58

240569202 Frigidaire Refrigerator Screw In Stock WCI 240569202 $1.35

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

5304531260 Frigidaire Refrigerator Motor In Stock WCI 5304531260 $100.13

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

62

DELI PAN, ASSY, 62 WCI 5304535547 Contact Us For Availability

64

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

65

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $45.70

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $14.94

85

5304530251 Frigidaire Tube Assembly Backorder WCI 5304530251 $13.15

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

86

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.41

89

215346903 Frigidaire Process Tube Backorder WCI 215346903 $6.05

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

90

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.79

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

94

5303918775 Frigidaire Refrigerator Thermistor In Stock WCI 5303918775 $11.89

123

5304508007 Frigidaire Refrigerator Bracket Backorder WCI 5304508007 $8.58

137

EPPWFU01 Frigidaire Refrigerator ELX Pureadva In Stock WCI EPPWFU01 $77.31

139A

MANIFOLD In Stock WCI 140156010054 $19.53

145

SUPPORT ASSEMBLY, DELI, GRAY, RH, W/ROLLER WCI 5304532866 Contact Us For Availability

145A

SUPPORT, DELI, GRAY, LH WCI 5304532877 Contact Us For Availability

210

5304530987 Frigidaire Refrigerator Housing Backorder WCI 5304530987 $7.23

211

5304508077 Frigidaire Refrigerator Bumper Backorder WCI 5304508077 $7.25

212

5304508016 Frigidaire Refrigerator Roller In Stock WCI 5304508016 $3.44

213

ROLLER ASSY, GRAY, DELI PAN WCI 242010904 Contact Us For Availability

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.09

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.32

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $9.12

5304527119 Frigidaire Screw Backorder WCI 5304527119 $5.88

5304531023 Frigidaire Harness Assembly Backorder WCI 5304531023 $16.81

218976830 Frigidaire Refrigerator Tube Backorder WCI 218976830 $7.69

240346721 Frigidaire Tape Backorder WCI 240346721 $5.88

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.83

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

242039702 Frigidaire Refrigerator Screw Backorder WCI 242039702 $2.72

5304508776 Frigidaire Refrigerator Lock Backorder WCI 5304508776 $2.63

5304530898 Frigidaire Harness Backorder WCI 5304530898 $95.05

5304532916 Frigidaire Harness Backorder WCI 5304532916 $16.68

CAP, THERMISTOR, GRAY WCI 241842302 Contact Us For Availability

NIB

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

NIB

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.60

NIC

241969001 Frigidaire Refrigerator Cap Backorder WCI 241969001 $9.95
