Model Maytag EMT8002S00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

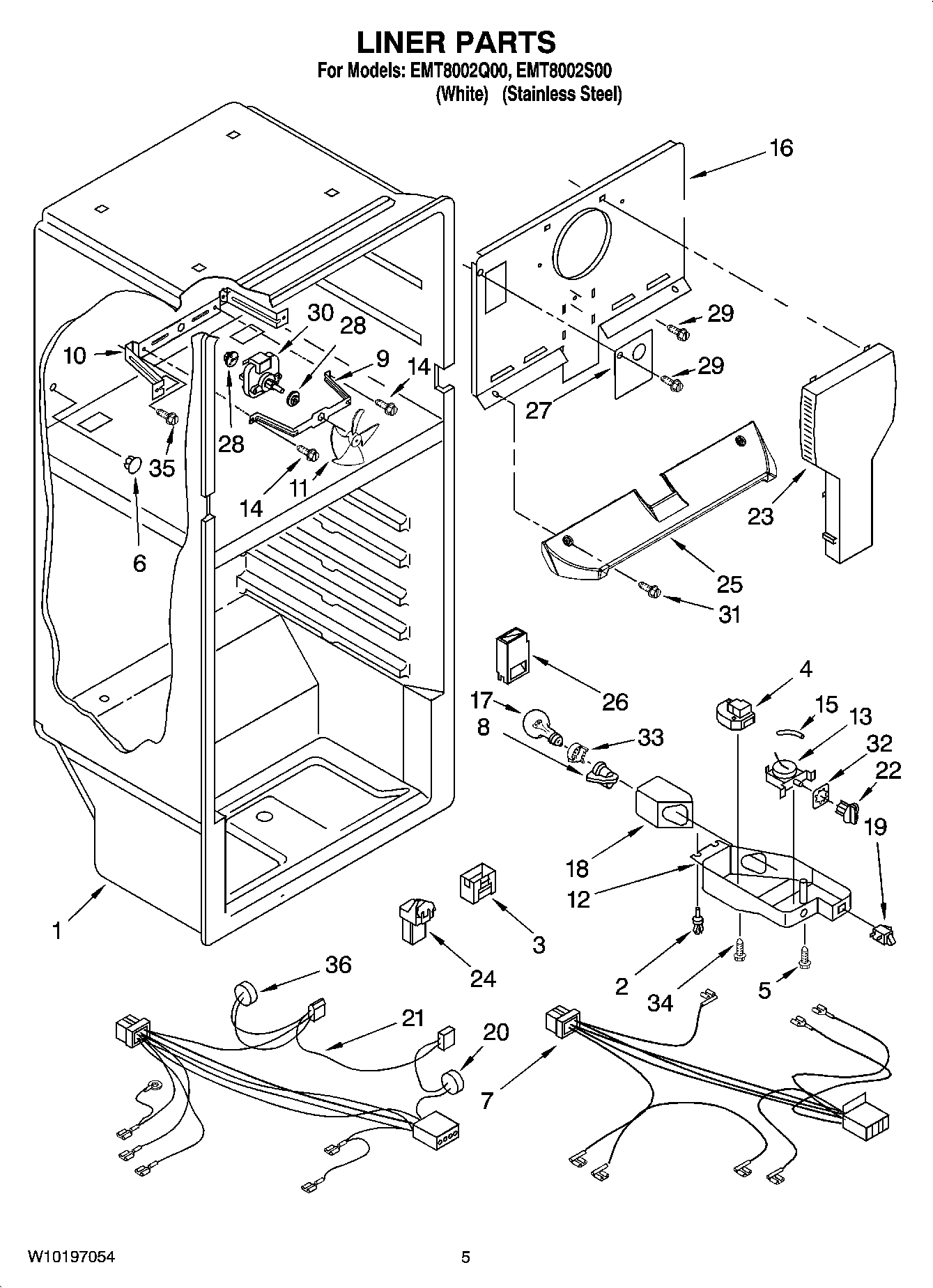

03 - LINER PARTS

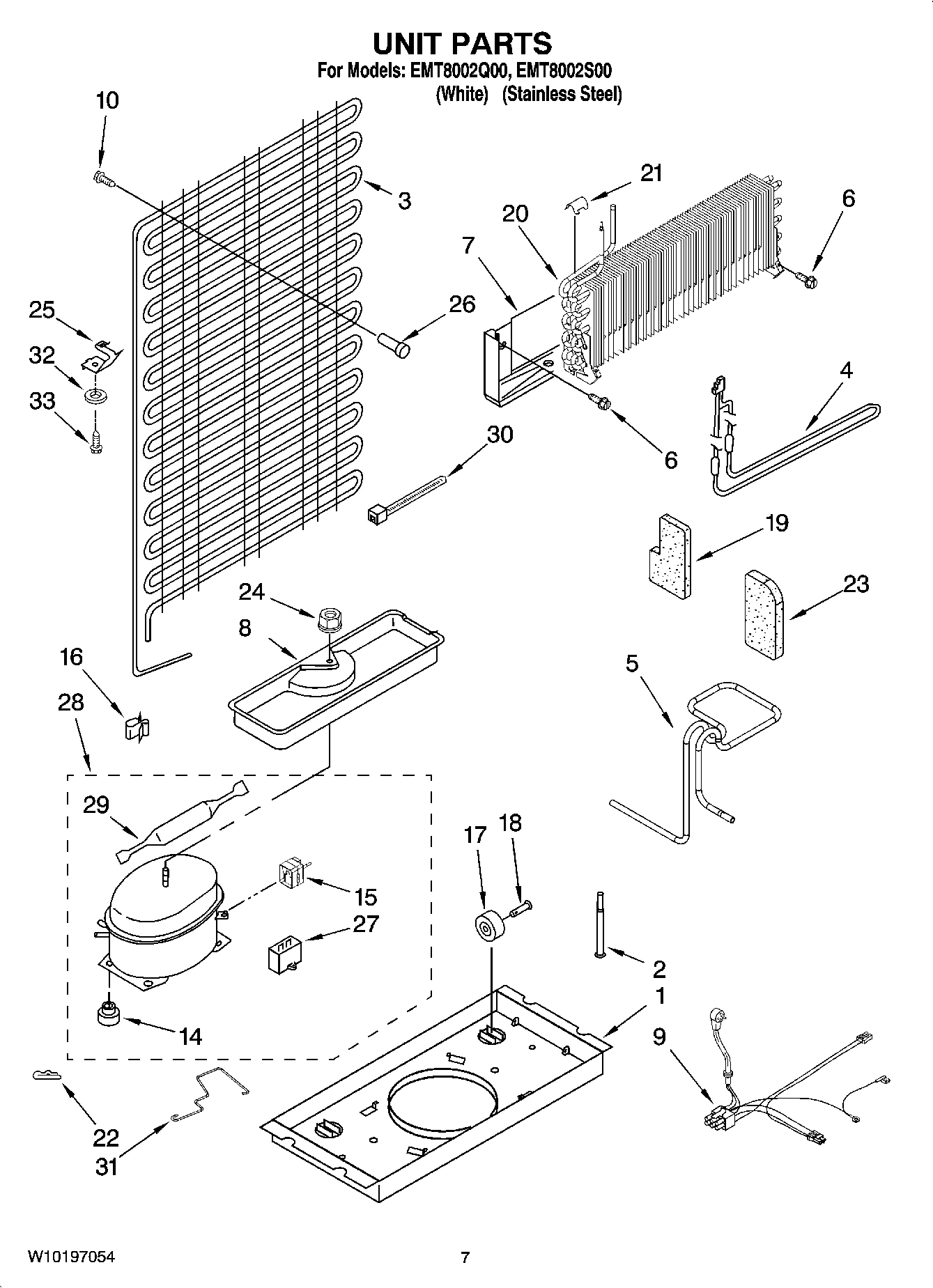

04 - UNIT PARTS

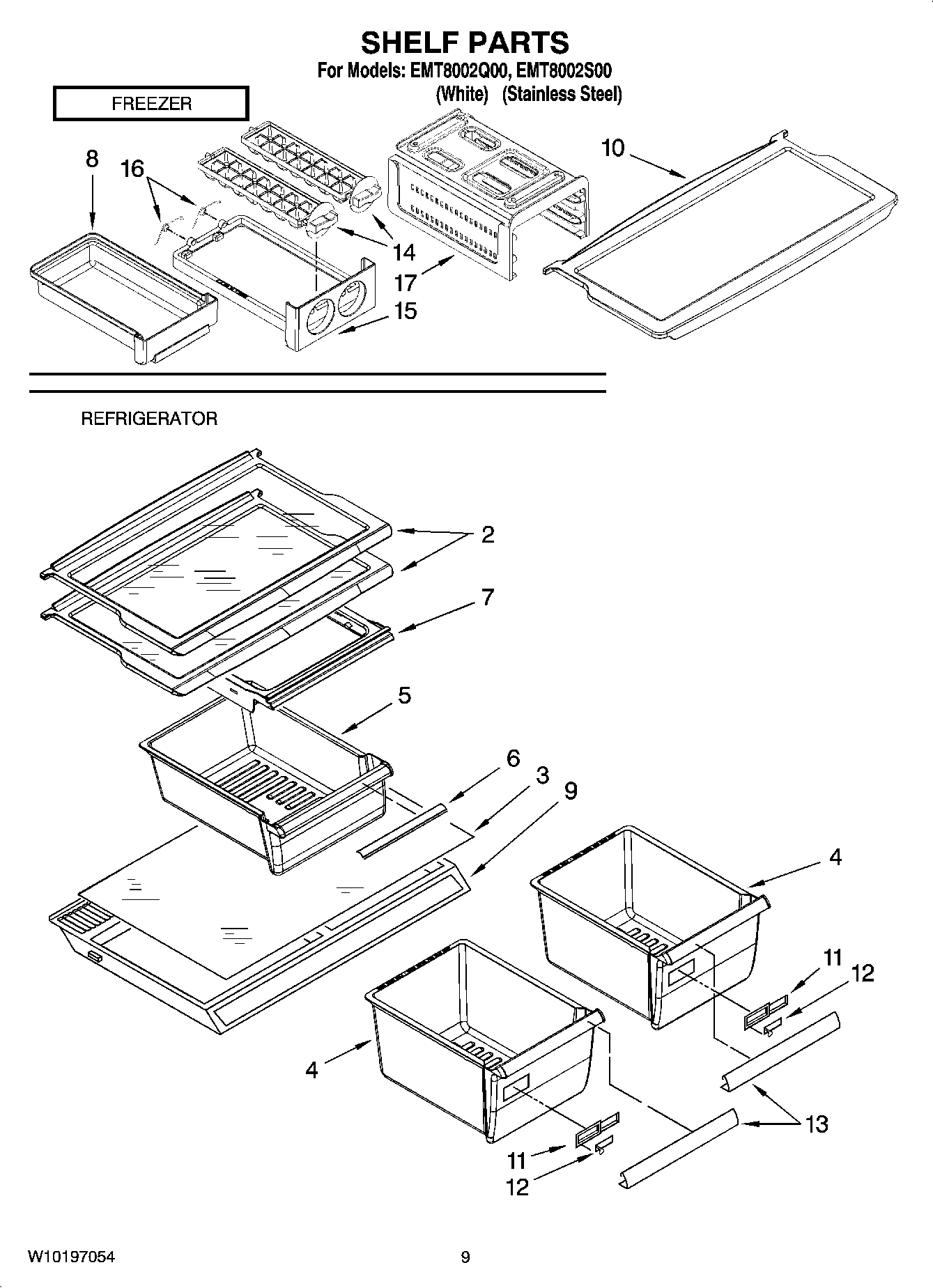

05 - SHELF PARTS, OPTIONAL PARTS
Common parts from model Maytag EMT8002S00 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
Refrigerator Door (Includes Items 6 & 7) (Sta MAY 2325620S Contact Us For Availability
1
Refrigerator Door (Includes Items 6 & 7) (Whi MAY 2325620W Contact Us For Availability
1
MAY W10127453 MAY W10127453 Contact Us For Availability
2
Hinge Butt, Top MAY 2261963 Contact Us For Availability
2
Utility Comprtmnt. MAY 2266057 Contact Us For Availability
2
Rivet MAY 939962 Contact Us For Availability
2
MAY 2174739 MAY 2174739 Contact Us For Availability
2
MAY 2324065 MAY 2324065 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
MAY 2258681W MAY 2258681W Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2252730 MAY 2252730 Contact Us For Availability
3
MAY 2324035 MAY 2324035 Contact Us For Availability
4
Clamp, Tube MAY 489348 Contact Us For Availability
4
MAY 2188379 MAY 2188379 Contact Us For Availability
4
MAY 2167357 MAY 2167357 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
5
MAY 2213363 MAY 2213363 Contact Us For Availability
5
MAY 2324026 MAY 2324026 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY W10164849 MAY W10164849 Contact Us For Availability
5
Pan, Meat (Includes Item 6) MAY 2261934 Contact Us For Availability
6
Leveler MAY W10142551 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
Endcap, Bottom-RC (Black) MAY 2222048 Contact Us For Availability
6
Endcap, Bottom-RC (White) MAY 2265647W Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
6
MAY 2324034 MAY 2324034 Contact Us For Availability
7
Door Gasket,RC (Black) MAY 2264723 Contact Us For Availability
7
Door Gasket,RC (White) MAY 2264727 Contact Us For Availability
7
MAY 2265965 MAY 2265965 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
Cover, Pan MAY 2256601 Contact Us For Availability
8
MAY 2166086 MAY 2166086 Contact Us For Availability
8
MAY 2324028 MAY 2324028 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
Evaporator Tray MAY 2201801 Contact Us For Availability
8
MAY 2265627 MAY 2265627 Contact Us For Availability
9
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
9
SHIM HINGE, CENTER (BLACK) MAY 2215385 Contact Us For Availability
9
MAY 2324038 MAY 2324038 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
MAY W10183887 MAY W10183887 Contact Us For Availability
9
MAY 2222031 MAY 2222031 Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
Trim, Door Shelf MAY 2316061 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
Shelf Assy-Frzr. MAY 2264803 Contact Us For Availability
11
Hinge Butt, Btm MAY 2325482 Contact Us For Availability
11
MAY 2324027 MAY 2324027 Contact Us For Availability
11
MAY 2169141 MAY 2169141 Contact Us For Availability
11
MAY 2212446 MAY 2212446 Contact Us For Availability
12
Hinge-Pin, Btm MAY 2325483 Contact Us For Availability
12
Freezer Door (Includes Items 13 & 19) (Stainl MAY 2325621S Contact Us For Availability
12
Freezer Door (Includes Items 13 & 19) (White) MAY 2325621W Contact Us For Availability
12
MAY 2266382 MAY 2266382 Contact Us For Availability
12
Slide, Humidity Control MAY 2176222 Contact Us For Availability
13
MAY 2201567 MAY 2201567 Contact Us For Availability
13
Door Gasket, FC (Black) MAY 2264722 Contact Us For Availability
13
Door Gasket, FC (White) MAY 2264726 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY 2324031 MAY 2324031 Contact Us For Availability
14
MAY 487576 MAY 487576 Contact Us For Availability
14
MAY 2189202 MAY 2189202 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
Grommet (Production) MAY 1100826 Contact Us For Availability
14
Grommet (Service) MAY 4387558 Contact Us For Availability
14
MAY 2265738 MAY 2265738 Contact Us For Availability
15
MAY 2183998 MAY 2183998 Contact Us For Availability
15
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
15
MAY 8533904 MAY 8533904 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
Start Combo Device MAY 2321301 Contact Us For Availability
15
MAY 2265368 MAY 2265368 Contact Us For Availability
16
Hole Plug (White) MAY 2212648 Contact Us For Availability
16
Hole Plug (Black) MAY 2212651 Contact Us For Availability
16
MAY 2264669 MAY 2264669 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
16
MAY 2265629 MAY 2265629 Contact Us For Availability
17
MAY 2166003 MAY 2166003 Contact Us For Availability
17
Corner Filler (Black) MAY 2215384 Contact Us For Availability
17
Plug-Trim MAY 2156007 Contact Us For Availability
17
Light Bulb MAY 851682 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
17
MAY 2265367 MAY 2265367 Contact Us For Availability
18
MAY 489341 MAY 489341 Contact Us For Availability
18
MAY 2324037 MAY 2324037 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
Washer (7/64) MAY 487802 Contact Us For Availability
19
Endcap, Top (FC) (Black) MAY 2252863 Contact Us For Availability
19
Endcap, Top (FC) (White) MAY 2265644W Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
Cover, Unit MAY 2213762 Contact Us For Availability
20
End Cap-Handle-RC (Black) MAY 2263293B Contact Us For Availability
20
End Cap-Handle-RC (White) MAY 2319201W Contact Us For Availability
20
MAY 4387500 MAY 4387500 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
End Cap-Handle-FC (Black) MAY 2263292B Contact Us For Availability
21
End Cap-Handle-FC (White) MAY 2319200W Contact Us For Availability
21
Wiring, Freezer (Includes Item 36) MAY 2266642 Contact Us For Availability
21
Clip, Evaporator Tube MAY 9791833 Contact Us For Availability
22
Handle-RC & FC (Black) MAY 2325603B Contact Us For Availability
22
Handle-RC & FC (White) MAY 2325603W Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
Cilp, Compressor MAY 24364001 Contact Us For Availability
23
MAY 2221885 MAY 2221885 Contact Us For Availability
23
MAY 2325605B MAY 2325605B Contact Us For Availability
23
Collar-Handle (FC), White MAY 2325605W Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
MAY 2325607B MAY 2325607B Contact Us For Availability
24
Collar-Handle (RC), White MAY 2325607W Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 489153 MAY 489153 Contact Us For Availability
25
MAY W10122125 MAY W10122125 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2172892 MAY 2172892 Contact Us For Availability
26
Clip-Handle-Mtng. MAY 2255411 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
MAY 2258452 MAY 2258452 Contact Us For Availability
27
MAY 8534058 MAY 8534058 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
27
MAY 2254217 MAY 2254217 Contact Us For Availability
27
MAY 4387874 MAY 4387874 Contact Us For Availability
28
Egg Rack MAY 2219124 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
Compressor (Includes Items 14, 27 & 29) (Also MAY 2321299 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY 2320731 MAY 2320731 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
30
MAY 2201215 MAY 2201215 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2262178 MAY 2262178 Contact Us For Availability
31
Clip-Retainer MAY 2263628 Contact Us For Availability
32
MAY W10169510 MAY W10169510 Contact Us For Availability
32
MAY VS611 MAY VS611 Contact Us For Availability
33
MAY 2175210 MAY 2175210 Contact Us For Availability
33
MAY 8533892 MAY 8533892 Contact Us For Availability
34
Screw MAY 488693 Contact Us For Availability
35
MAY 2256637 MAY 2256637 Contact Us For Availability
36
Defrost, BI-Metal MAY 2183073 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
FIELD INSTALLABLE ICE MAKER (4ECKMF87) MAY 2155304 Contact Us For Availability
NI
Enamel, White (12 Oz. Spray Can) MAY 350930 Contact Us For Availability
NI
Enamel, Black (12 Oz. Spray Can) MAY 350939 Contact Us For Availability
NI
Primer, White (12 Oz. Spray Can) MAY 350942 Contact Us For Availability
NI
Brush Touch-Up Kit (Biscuit) MAY 4392899 Contact Us For Availability
NI
Enamel, Biscuit (1 Qt. Uncut) MAY 4392900 Contact Us For Availability
NI
Enamel, Biscuit (12 Oz. Spray Can) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
NI
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
