Model Whirlpool EL8ATRRRS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

1

Energy Guide/Tag WPL 8210378 Contact Us For Availability

1

Owners Manual WPL 8210433 Contact Us For Availability

1

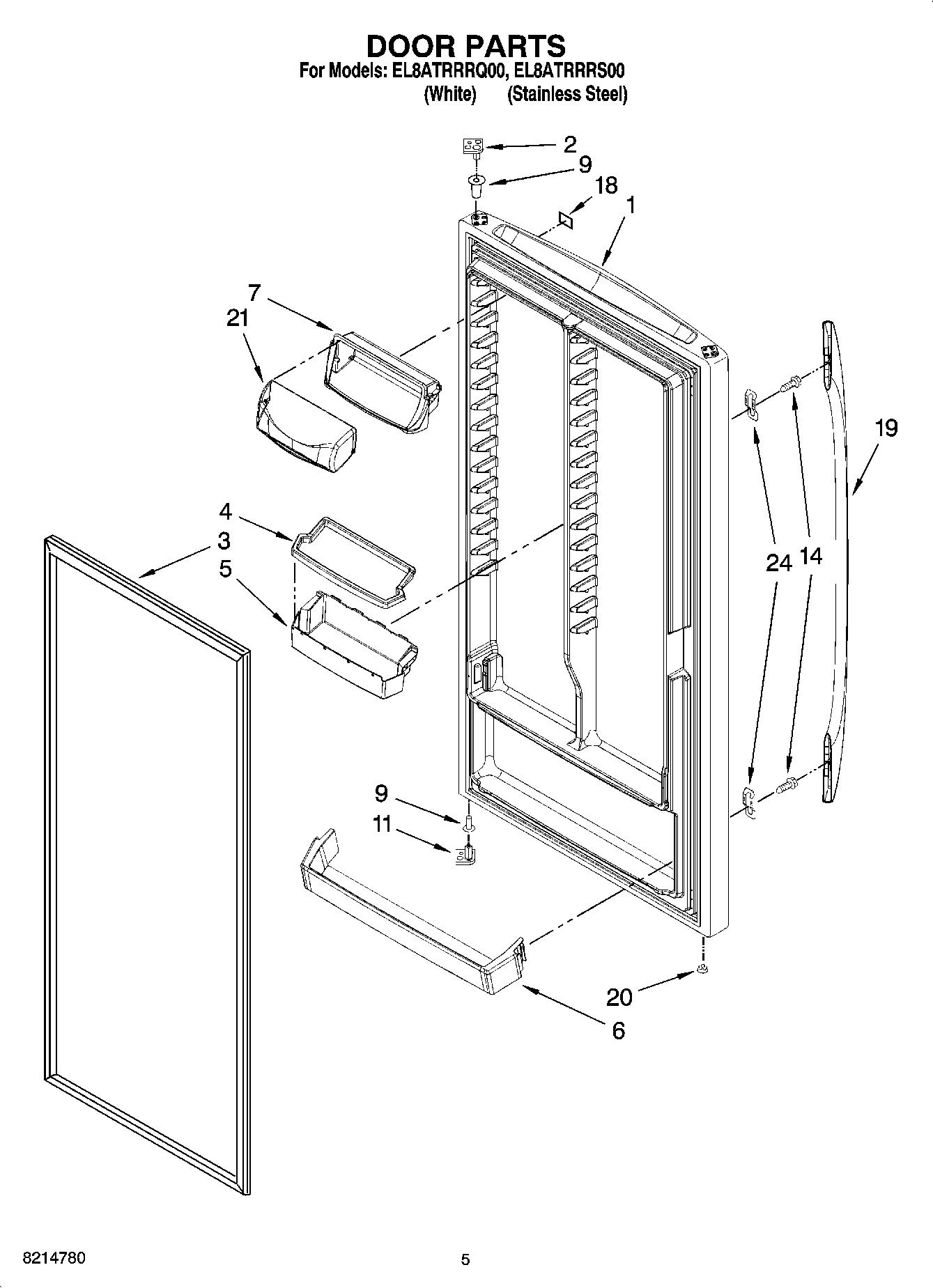

Exterior Door (Includes Interior liner) (Whit WPL 8210413 Contact Us For Availability

1

Exterior Door (Includes Interior liner) (Stai WPL 8210414 Contact Us For Availability

1

Pan, Crisper WPL 8210342 Contact Us For Availability

2

8210251 Whirlpool Refrigerator Door Hinge Backorder WPL 8210251 $56.83

2

8210402 Whirlpool Door Stop Backorder WPL 8210402 $53.27

2

Top Hinge (White) WPL 4390885 Contact Us For Availability

2

Shelf, Crisper (Upper) WPL 4390770 Contact Us For Availability

3

8210343 Whirlpool Refrigerator Door Gasket Backorder WPL 8210343 $183.23

3

WP4-65151-002 Whirlpool Refrigerator Door Gas Backorder WPL WP4-65151-002 $208.44

3

Bottom Hinge (White) WPL 8210223 Contact Us For Availability

3

Bottom Hinge (Black) WPL 8210268 Contact Us For Availability

3

Shelf, Crisper (Lower) WPL 8210384 Contact Us For Availability

4

2-33516-003 Whirlpool Refrigerator Center Rai Backorder WPL 2-33516-003 $52.28

4

WP4-60461-005 Whirlpool Refrigerator Grille Backorder WPL WP4-60461-005 $40.88

4

Grille (Includes 6 & 7) (Black) WPL 8210294 Contact Us For Availability

4

Cover, Bin WPL 8210383 Contact Us For Availability

5

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.51

5

WPW10424991 Whirlpool Refrigerator Thermostat In Stock WPL WPW10424991 $89.43

5

Bin, Door WPL 8210380 Contact Us For Availability

6

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $4.63

6

4-65449-001 Whirlpool Refrigerator Door Trim Backorder WPL 4-65449-001 $45.97

6

Knob, Thermostat WPL 4357292 Contact Us For Availability

7

WP3-81329 Whirlpool Refrigerator Defrost Time In Stock WPL WP3-81329 $67.95

7

WP4-65430-001 Whirlpool Refrigerator Housing Backorder WPL WP4-65430-001 $43.13

7

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

7

Screw (Black) WPL 8210262 Contact Us For Availability

8

W10851331 Whirlpool Refrigerator Washer Backorder WPL W10851331 $4.26

8

Lamp, Socket WPL 4390644 Contact Us For Availability

9

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $3.70

9

4390731 Whirlpool Refrigerator Hinge Bushing Backorder WPL 4390731 $7.39

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

9

Bushing, Lower Hinge (Black) WPL 4390869 Contact Us For Availability

3-80838-003 Whirlpool Refrigerator Cover Backorder WPL 3-80838-003 $26.21

8210239 Whirlpool Refrigerator Capacitor Backorder WPL 8210239 $52.78

Hinge Cover (Black) WPL 4390763 Contact Us For Availability

Light Shield WPL 4390743 Contact Us For Availability

1-81154 Whirlpool Plate Backorder WPL 1-81154 $6.39

2-81124-001 Whirlpool Refrigerator Door Stop Backorder WPL 2-81124-001 $13.05

8210227 Whirlpool Refrigerator Filler Backorder WPL 8210227 $5.20

Filler, Corner (Black) WPL 8210228 Contact Us For Availability

12

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

12

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

13

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

13

Grommet, Drain WPL 4357268 Contact Us For Availability

14

WP3-80414-103 Whirlpool Refrigerator Vent Plu Backorder WPL WP3-80414-103 $5.84

14

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

15

Relay WPL 4356738 Contact Us For Availability

15

Shelf, Middle WPL 4390768 Contact Us For Availability

16

Power Cord WPL 8210302 Contact Us For Availability

16

Shelf, Top WPL 4390767 Contact Us For Availability

18

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

18

WP4-60040-004 Whirlpool Refrigerator Crisper Backorder WPL WP4-60040-004 $83.48

18

Nameplate (White) WPL 4390656 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

W10187086 Whirlpool Refrigerator Handle Backorder WPL W10187086 $233.11

Overload WPL 8210241 Contact Us For Availability

Cabinet, (Not A Serviceable Part) WPL ARI39789A8 Contact Us For Availability

Handle (White) WPL 2313345W Contact Us For Availability

20

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

20

Bracket, Roller WPL 8210265 Contact Us For Availability

20

Bracket, Light WPL 4390744 Contact Us For Availability

3-34715-004 Whirlpool Refrigerator Support Backorder WPL 3-34715-004 $41.50

WP4-65429-001 Whirlpool Refrigerator Door Com Backorder WPL WP4-65429-001 $34.06

Grommet, Compressor WPL 4356335 Contact Us For Availability

Axle WPL 8210211 Contact Us For Availability

22

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

22

Washer WPL 4356847 Contact Us For Availability

22

SCREW WPL 8210266 Contact Us For Availability

23

8210220 Whirlpool Bolt Backorder WPL 8210220 $42.60

23

Roller, Front WPL 8210210 Contact Us For Availability

24

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

24

CONDENSER WPL 8210300 Contact Us For Availability

25

WP4357245 Whirlpool Refrigerator Exchanger Backorder WPL WP4357245 $120.99

26

Compressor Pan (White) WPL 4390753 Contact Us For Availability

26

Compressor Pan (Black) WPL 8210202 Contact Us For Availability

27

Thermostat, Clip WPL 4356952 Contact Us For Availability

28

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

29

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $2.51

31

8210301 Whirlpool Wire Harness Backorder WPL 8210301 $83.98

32

3-60315-001 Whirlpool Refrigerator CAB Roller Backorder WPL 3-60315-001 $11.03

34

Shield Heater WPL 4356924 Contact Us For Availability

35

Grommet WPL 4357020 Contact Us For Availability

36

4357128 Whirlpool Refrigerator Motor Bracket Backorder WPL 4357128 $40.53

36

REFRIGERANT CHARGE 4.107 oz. (R-134A) WPL ARI39790A3 Contact Us For Availability
