Model Whirlpool EL15SCRSW00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1100411 WPL LIT1100411 Contact Us For Availability

WPL LIT1114009 WPL LIT1114009 Contact Us For Availability

WPL LIT1116305 WPL LIT1116305 Contact Us For Availability

WPL LIT879774 WPL LIT879774 Contact Us For Availability

WPL LIT943633 WPL LIT943633 Contact Us For Availability

1

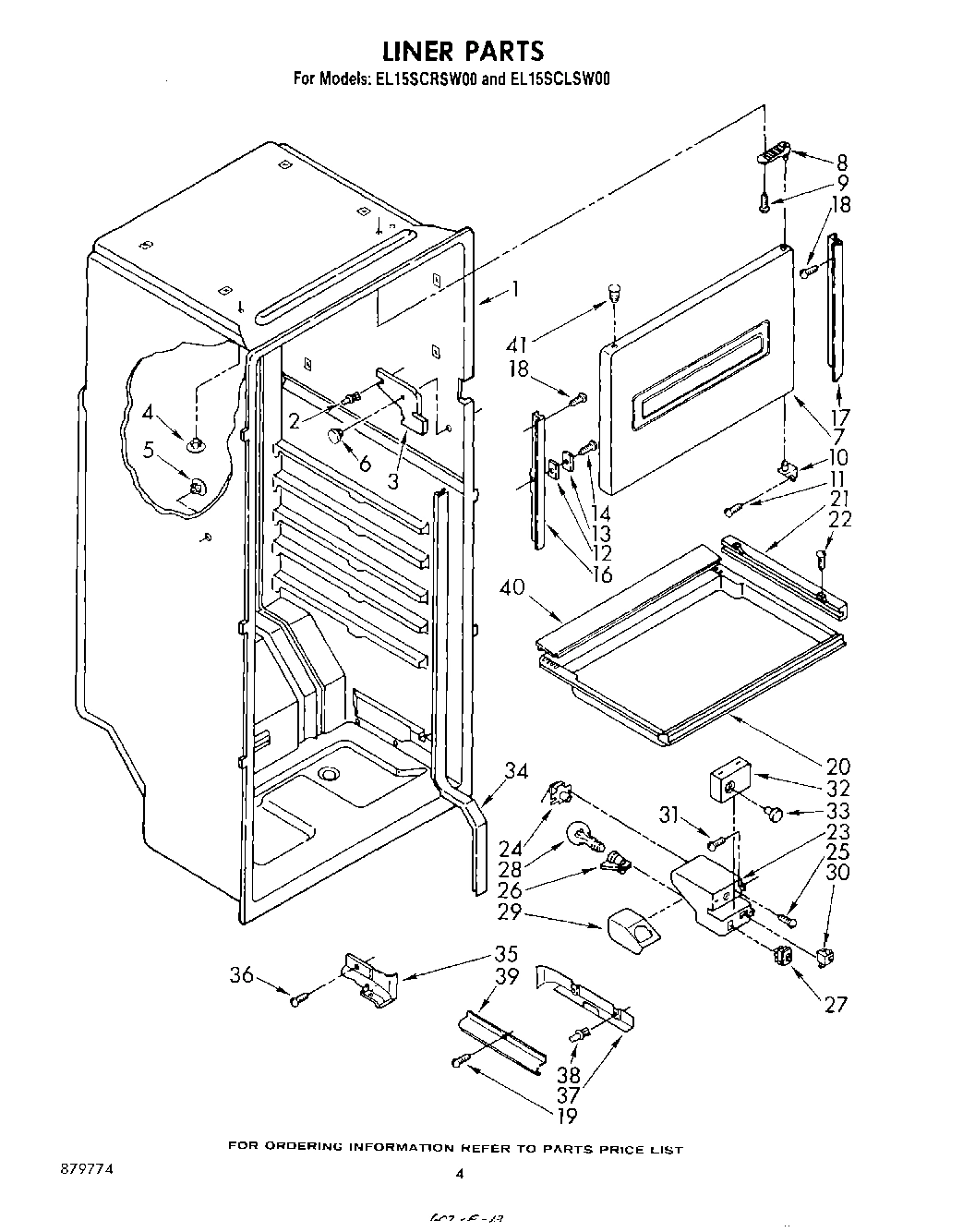

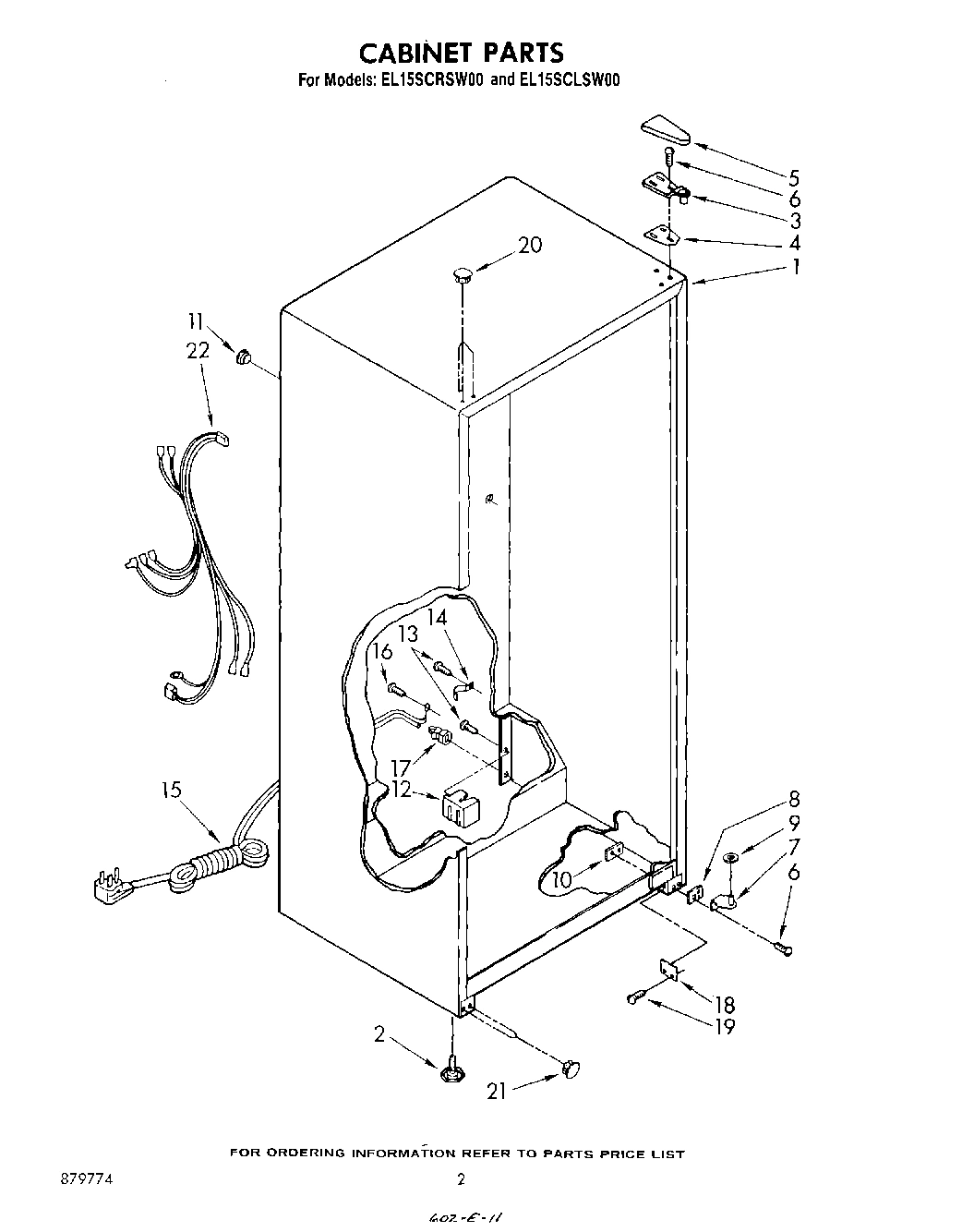

Liner (Not A Serviceable Part) WPL ARI146332A Contact Us For Availability

1

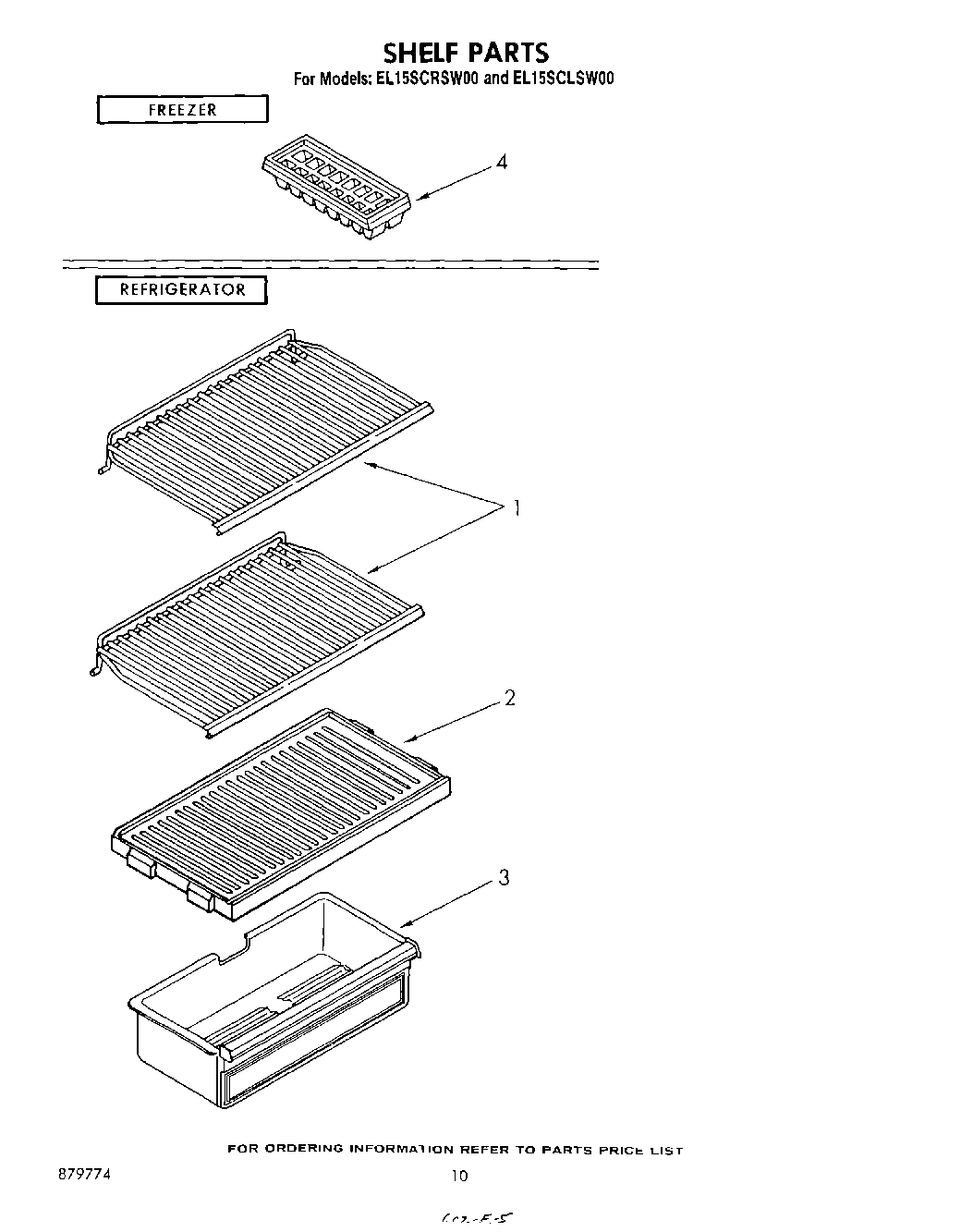

Shelf, Pullout WPL 935750 Contact Us For Availability

1

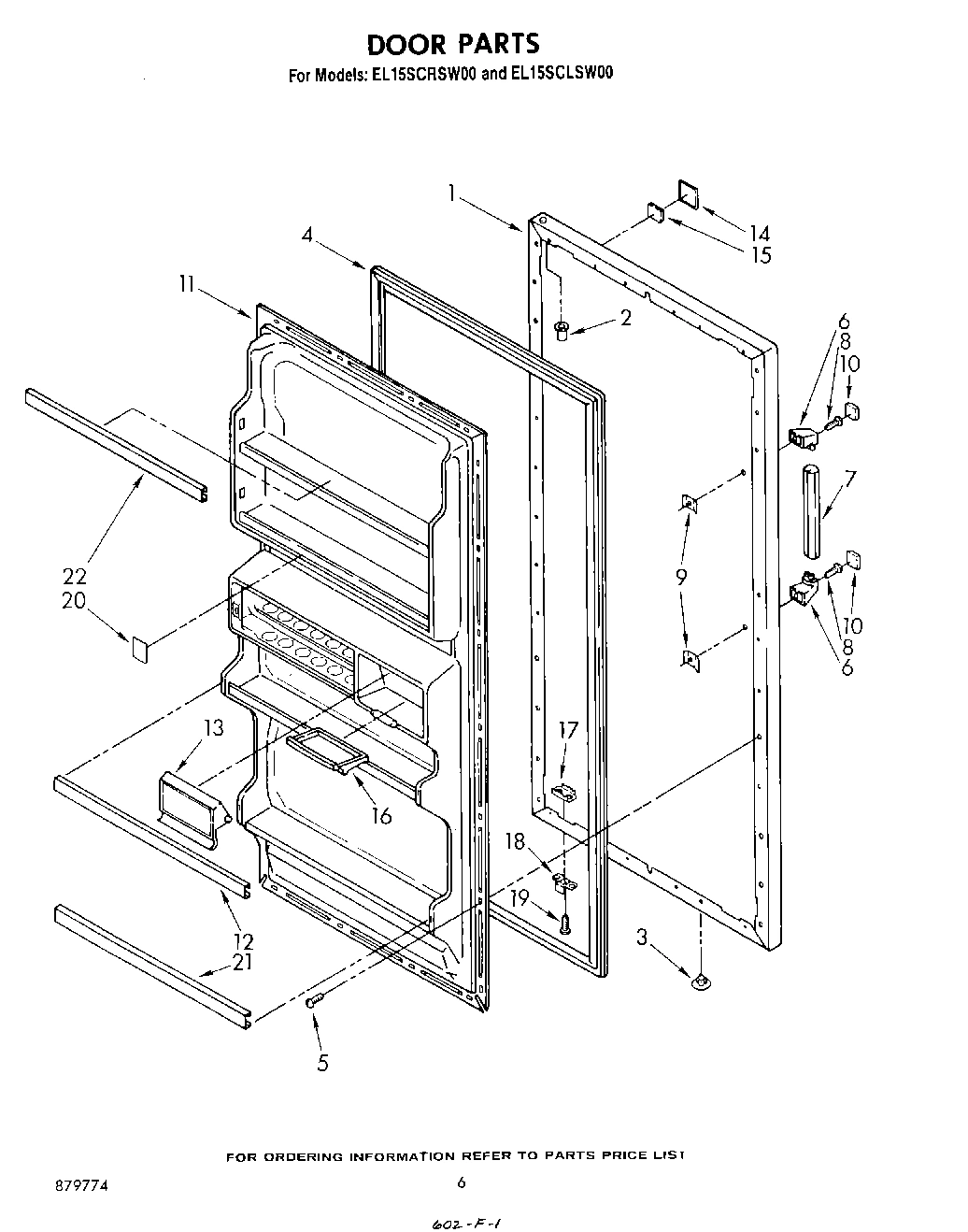

Refrigerator Door Panel R.H. (Platinum) WPL 1100693 Contact Us For Availability

1

Refrigerator Door Panel R.H. (Toast) WPL 1100694 Contact Us For Availability

1

Refrigerator Door Panel R.H. (Platinum) WPL 1100695 Contact Us For Availability

1

Refrigerator Door Panel R.H. (Toast) WPL 1100696 Contact Us For Availability

1

Refrigerator Door Panel R.H. (White) WPL 943618 Contact Us For Availability

1

Refrigerator Door Panel R.H. (White) WPL 943620 Contact Us For Availability

1

Refrigerator Door Panel R.H. (Golden Harvest) WPL 946371 Contact Us For Availability

1

Refrigerator Door Panel R.H. (Almond) WPL 946372 Contact Us For Availability

1

Refrigerator Door Panel R.H. (Golden Harvest) WPL 946375 Contact Us For Availability

1

Refrigerator Door Panel R.H. (Almond) WPL 946376 Contact Us For Availability

1

Unit Mounting Plate WPL 942860 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

2

Crisper Cover WPL 935744 Contact Us For Availability

2

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

2

Unit Mounting Rail WPL 945448 Contact Us For Availability

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Shield, Electrical WPL 944815 Contact Us For Availability

3

Pan, Crisper WPL 1116028 Contact Us For Availability

3

Hole Plug (2) WPL 534927 Contact Us For Availability

4

2188436A Whirlpool Refrigerator Door Gasket Backorder WPL 2188436A $145.07

4

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

4

Hole Plug WPL 845294 Contact Us For Availability

4

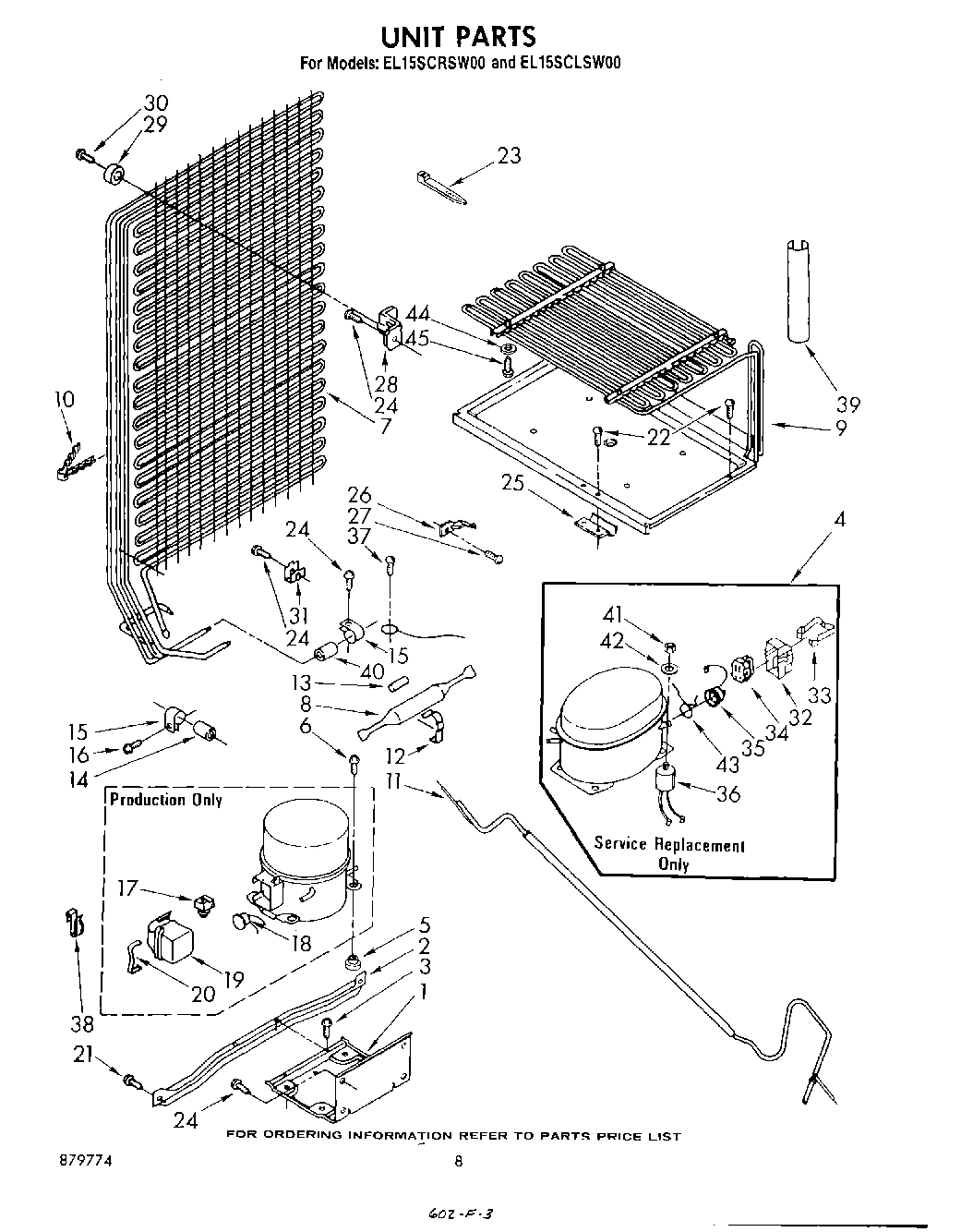

Compressor (Includes Items 32, 33, 34, 35, 36 WPL 482980 Contact Us For Availability

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

5

Hole Plug WPL 845646 Contact Us For Availability

6

Grommet, Wiring WPL 944818 Contact Us For Availability

6

End, Door Handle (2) (For Platinum Model Only WPL 1110068 Contact Us For Availability

6

End, Door Handle (2) WPL 946737 Contact Us For Availability

7

Door, Evaporator WPL 943605 Contact Us For Availability

7

Door Handle, Center WPL 1110069 Contact Us For Availability

7

Door Handle, Center (For Platinum Model Only) WPL 1110133 Contact Us For Availability

7

Condenser & Precooler Assembly (Formed) WPL 943635 Contact Us For Availability

8

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

8

Hinge, Evaporator Door WPL 992778 Contact Us For Availability

8

Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability

9

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

9

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

9

Evaporator Assembly WPL 943640 Contact Us For Availability

Support, Evaporator Door WPL 1103729 Contact Us For Availability

End Cover, Door Handle (2) (For Platinum Mode WPL 1116382 Contact Us For Availability

End Cover, Door Handle (2) WPL 946742 Contact Us For Availability

Clip, Tube WPL 942739 Contact Us For Availability

11

Panel, Interior Door WPL 1106141 Contact Us For Availability

11

Heat Exchanger WPL 943652 Contact Us For Availability

12

Plate, Magnet (2) WPL 839328 Contact Us For Availability

12

Trim, Door Shelf WPL 1116301 Contact Us For Availability

12

Drier Clamp WPL 547637 Contact Us For Availability

13

Magnet WPL 944829 Contact Us For Availability

13

Compartment Door, Butter WPL 1110148 Contact Us For Availability

13

Restrictor Sleeve WPL 510446 Contact Us For Availability

14

Screw, 8 x 1-9/16 WPL 488740 Contact Us For Availability

14

Nameplate WPL 945119 Contact Us For Availability

14

Dampener WPL 1108064 Contact Us For Availability

15

Tape Strip WPL 991259 Contact Us For Availability

15

Clamp Tube WPL 510716 Contact Us For Availability

16

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

16

Evaporator Door, Baffle Magnet WPL 943609 Contact Us For Availability

17

Evaporator Door, Baffle Side WPL 943610 Contact Us For Availability

17

Relay WPL 938385 Contact Us For Availability

18

Bracket, Door Stop WPL 944036 Contact Us For Availability

18

Overload WPL 941605 Contact Us For Availability

19

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

19

Screw (Repair) WPL 488930 Contact Us For Availability

19

Terminal Cover WPL 1108144 Contact Us For Availability

Hole Plug (3) (Toast) WPL 1100176 Contact Us For Availability

Hole Plug (3) (Platinum) WPL 1100177 Contact Us For Availability

Hole Plug (3) (White) WPL 842031 Contact Us For Availability

Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability

Hole Plug (3) (Golden Harvest) WPL 989876 Contact Us For Availability

Chiller Tray Assembly WPL 1116296 Contact Us For Availability

Use & Care Label WPL 1100411 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Hole Plug (2) (Platinum) WPL 1100687 Contact Us For Availability

Hole Plug (2) (Toast) WPL 1100688 Contact Us For Availability

Hole Plug (2) (White) WPL 940086 Contact Us For Availability

Hole Plug (2) (Almond) WPL 940087 Contact Us For Availability

Hole Plug (2) (Golden Harvest) WPL 940089 Contact Us For Availability

Chiller Slide (2) WPL 943615 Contact Us For Availability

Trim, Door Shelf WPL 1116302 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Cabinet Wiring Assembly WPL 943626 Contact Us For Availability

Screw, 8-15 x 1/2 (4) WPL 486214 Contact Us For Availability

Trim, Door (2) WPL 1116300 Contact Us For Availability

Screw (Repair) WPL 488839 Contact Us For Availability

23

Box, Control WPL 1116149 Contact Us For Availability

23

Strap WPL 851095 Contact Us For Availability

24

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

24

Thermostat & Barrier Assembly WPL 944822 Contact Us For Availability

25

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

25

Clamp, Capillary Tube WPL 944817 Contact Us For Availability

26

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

26

Hold Down Heat Exchanger WPL 944839 Contact Us For Availability

27

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

28

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

28

Condenser Bracket (Top) WPL 510721 Contact Us For Availability

29

Light Shield WPL 937230 Contact Us For Availability

29

Bumper, Rubber WPL 204349 Contact Us For Availability

30

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

30

Screw, 8 x 7/8 WPL 487888 Contact Us For Availability

31

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

32

Cover, Control Box WPL 1116150 Contact Us For Availability

32

Cover, Terminal WPL 1105015 Contact Us For Availability

33

Knob, Control WPL 845233 Contact Us For Availability

33

Strap WPL 938384 Contact Us For Availability

34

WP2262181 Whirlpool Refrigerator Start Relay Backorder WPL WP2262181 $53.03

34

Cover, Tube (Rear) WPL 937032 Contact Us For Availability

35

Cover Tube, Bottom WPL 941776 Contact Us For Availability

35

Overload WPL 483036 Contact Us For Availability

36

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

36

screw (repair) WPL 488706 Contact Us For Availability

36

Capacitor WPL 482996 Contact Us For Availability

37

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

37

Wire Cover (Rear) WPL 939957 Contact Us For Availability

38

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

38

Rivet, Plastic (2) WPL 939961 Contact Us For Availability

39

Wire Cover (Front) WPL 939960 Contact Us For Availability

39

Cover, Connecting Lines WPL 946459 Contact Us For Availability

40

Damper, Chiller WPL 943614 Contact Us For Availability

40

Dampener WPL 945593 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 945958 WPL 945958 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 983735 WPL 983735 Contact Us For Availability

Nut WPL 489142 Contact Us For Availability

42

Washer WPL 489143 Contact Us For Availability

43

Overload Spring WPL 1114190 Contact Us For Availability

44

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
