Model Whirlpool EL15CCXMWR0 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

1

Unit Mounting Plate WPL 942860 Contact Us For Availability

1

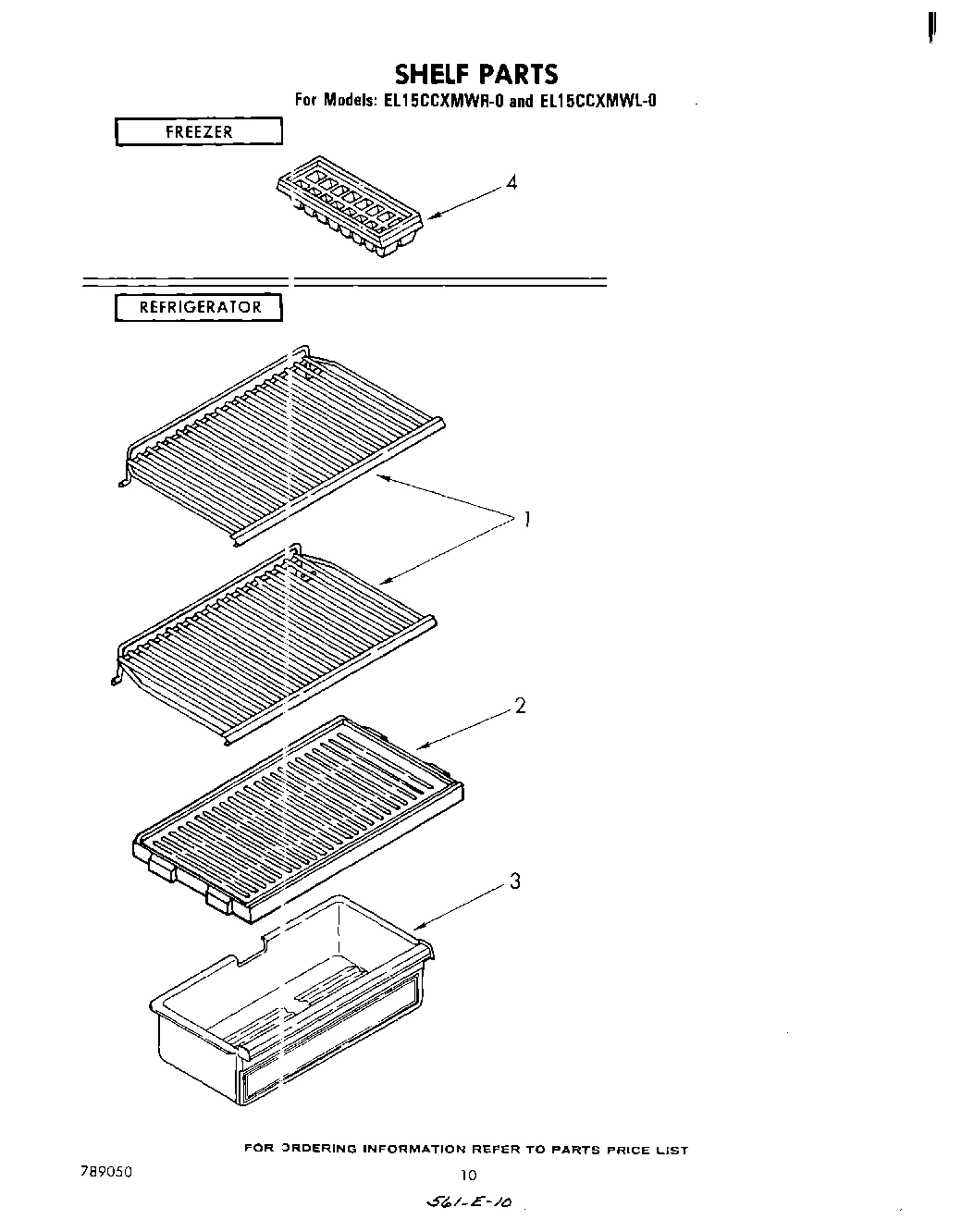

Shelf, Pullout WPL 935750 Contact Us For Availability

1

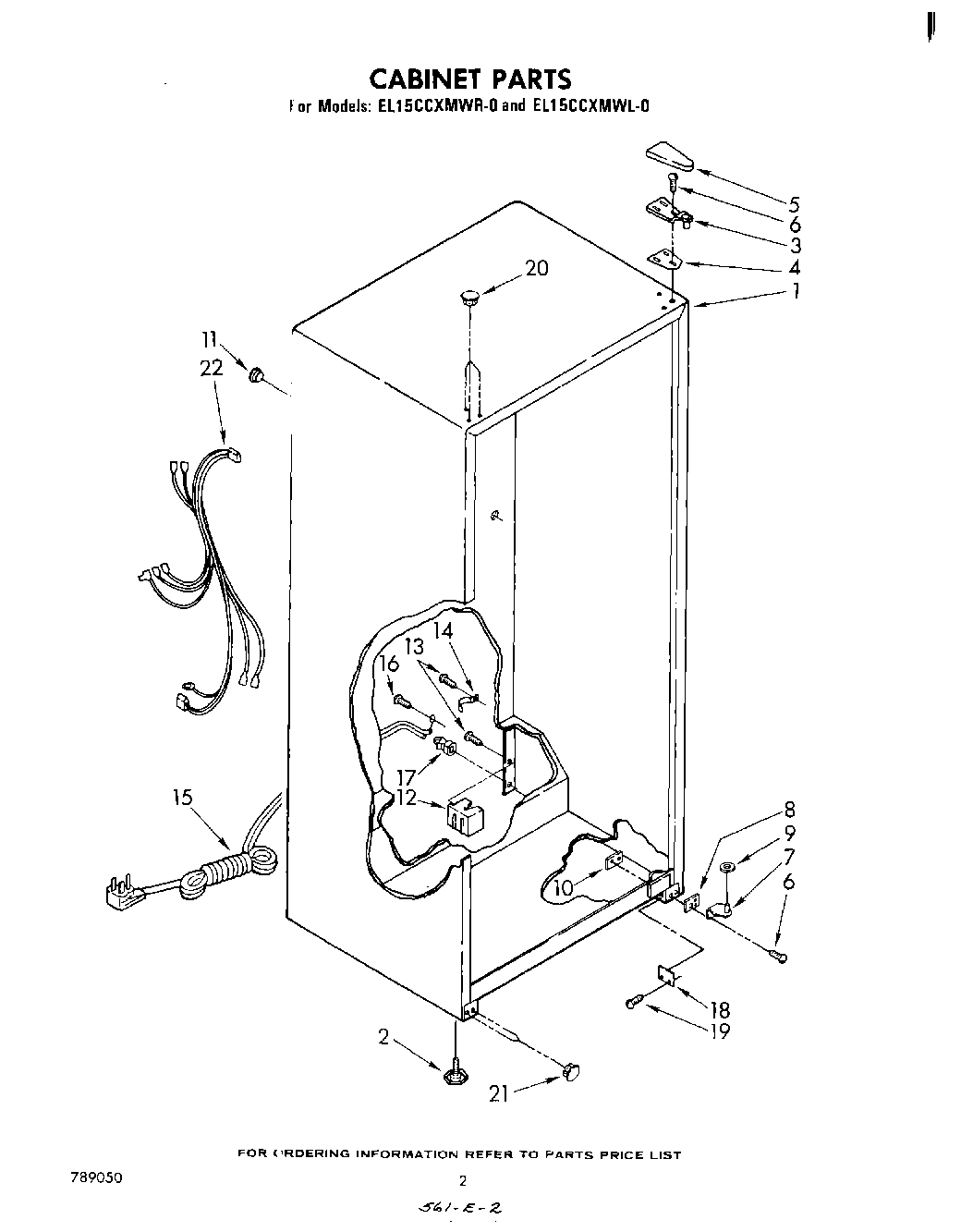

Cabinet (Not A Serviceable Part) WPL ARI39546A3 Contact Us For Availability

1

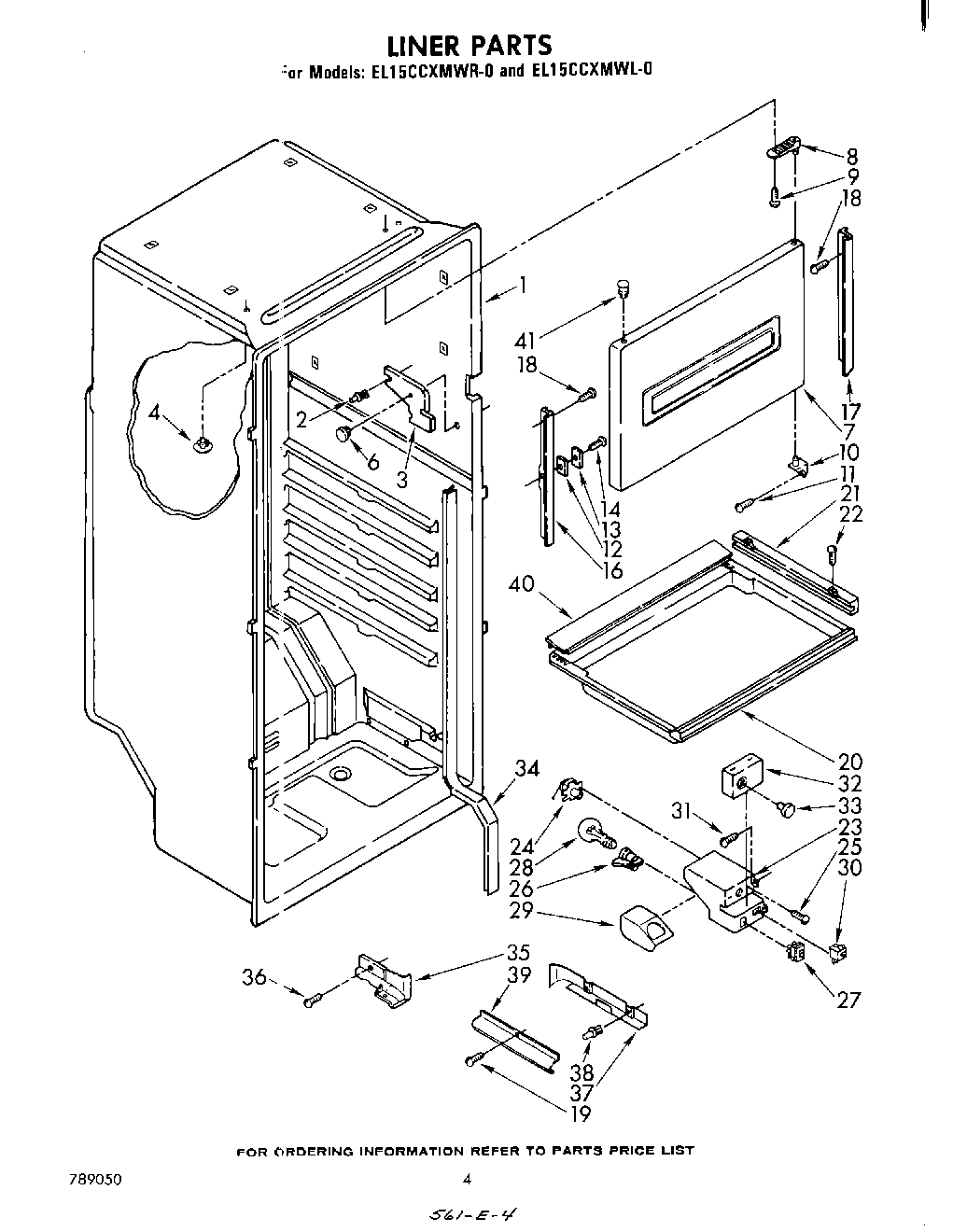

Liner (Not A Serviceable Part) WPL ARI39547A7 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

2

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

2

Unit Mounting Rail WPL 945448 Contact Us For Availability

2

Crisper Cover WPL 935744 Contact Us For Availability

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Pan, Crisper WPL 1100039 Contact Us For Availability

3

Crisper Pan (Platinum Model Only) WPL 1100230 Contact Us For Availability

3

Hinge, Top WPL 842039 Contact Us For Availability

3

Shield, Electrical WPL 944815 Contact Us For Availability

4

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

4

Compressor (Includes Items 32, 33, 34, 35 & 3 WPL 482736 Contact Us For Availability

4

Shim, Hinge WPL 836192 Contact Us For Availability

4

Hole Plug WPL 845294 Contact Us For Availability

5

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

5

Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability

5

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

5

Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability

6

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

6

Screw (Repair) WPL 488949 Contact Us For Availability

6

Grommet, Wiring WPL 944818 Contact Us For Availability

7

Condenser & Precooler Assembly (Formed) WPL 943635 Contact Us For Availability

7

Hinge, Bottom R.H. WPL 943668 Contact Us For Availability

7

Hinge, Bottom L.H. WPL 993670 Contact Us For Availability

7

Door, Evaporator WPL 943605 Contact Us For Availability

8

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

8

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

8

Shim (Repair) WPL 935738 Contact Us For Availability

8

Hinge, Evaporator Door WPL 992778 Contact Us For Availability

9

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

9

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

9

Evaporator Assembly WPL 943640 Contact Us For Availability

10

Clip, Tube WPL 942739 Contact Us For Availability

10

Tap Plate, Bottom WPL 935743 Contact Us For Availability

10

Support, Evaporator Door WPL 1103729 Contact Us For Availability

Panel, Interior Door (For Platinum Model Only WPL 1100692 Contact Us For Availability

Panel, Interior Door WPL 943624 Contact Us For Availability

Heat Exchanger WPL 943652 Contact Us For Availability

Grommet, Wiring WPL 938284 Contact Us For Availability

Trim, Door Shelf WPL 944751 Contact Us For Availability

Drier Clamp WPL 547637 Contact Us For Availability

Box, Junction WPL 937068 Contact Us For Availability

Plate, Magnet (2) WPL 839328 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

Compartment Door, Butter WPL 946998 Contact Us For Availability

Restrictor Sleeve WPL 510446 Contact Us For Availability

Magnet WPL 944829 Contact Us For Availability

Nameplate WPL 945119 Contact Us For Availability

dampener WPL 938368 Contact Us For Availability

Clamp WPL 939009 Contact Us For Availability

Screw, 8 x 1-9/16 WPL 488740 Contact Us For Availability

15

WPL 991259 WPL 991259 Contact Us For Availability

15

Clamp Tube WPL 510716 Contact Us For Availability

15

Cord, Service WPL 850626 Contact Us For Availability

16

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

16

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

16

Evaporator Door, Baffle Magnet WPL 943609 Contact Us For Availability

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

Relay WPL 938385 Contact Us For Availability

Bushing, Strain Relief WPL 544108 Contact Us For Availability

Evaporator Door, Baffle Side WPL 943610 Contact Us For Availability

WPL 944036 WPL 944036 Contact Us For Availability

Overload WPL 941605 Contact Us For Availability

Tube, Rail Cover (Platinum) WPL 1100697 Contact Us For Availability

Tube, Rail Cover (Toast) WPL 1100698 Contact Us For Availability

Tube, Rail Cover (White) WPL 935707 Contact Us For Availability

Tube, Rail Cover (Coffee) WPL 935708 Contact Us For Availability

Tube, Rail Cover (Golden Harvest) WPL 935709 Contact Us For Availability

Tube, Rail Cover (New Avocado) WPL 935710 Contact Us For Availability

Tube, Rail Cover (Almond) WPL 935711 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WPL 488930 WPL 488930 Contact Us For Availability

Terminal Cover WPL 938383 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

Screw WPL 488895 Contact Us For Availability

WPL 1100411 WPL 1100411 Contact Us For Availability

Strap, Cover WPL 938384 Contact Us For Availability

Hole Plug (3) (Toast) WPL 1100176 Contact Us For Availability

Hole Plug (3) (Platinum) WPL 1100177 Contact Us For Availability

Hole Plug (3) (White) WPL 842031 Contact Us For Availability

Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability

Hole Plug (3) (Coffee) WPL 989875 Contact Us For Availability

Hole Plug (3) (Golden Harvest) WPL 989876 Contact Us For Availability

Hole Plug (3) (New Avocado) WPL 989877 Contact Us For Availability

Chiller Tray Assembly WPL 943611 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WPL 946428 WPL 946428 Contact Us For Availability

Hole Plug (2) (Platinum) WPL 1100687 Contact Us For Availability

Hole Plug (2) (Toast) WPL 1100688 Contact Us For Availability

Hole Plug (2) (White) WPL 940086 Contact Us For Availability

Hole Plug (2) (Almond) WPL 940087 Contact Us For Availability

Hole Plug (2) (Coffee) WPL 940088 Contact Us For Availability

Hole Plug (2) (Golden Harvest) WPL 940089 Contact Us For Availability

Hole Plug (2) (New Avocado) WPL 940090 Contact Us For Availability

Chiller Slide (2) WPL 943615 Contact Us For Availability

22

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

22

Screw (Repair) WPL 488839 Contact Us For Availability

22

Cabinet WPL 943626 Contact Us For Availability

23

Box, Control WPL 943628 Contact Us For Availability

24

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

24

Thermostat & Barrier Assembly WPL 944822 Contact Us For Availability

25

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

25

Clamp, Capillary Tube WPL 944817 Contact Us For Availability

26

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

26

Hold Down Heat Exchanger WPL 944839 Contact Us For Availability

27

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

28

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

28

Condenser Bracket (Top) WPL 510721 Contact Us For Availability

29

Bumper, Rubber WPL 204349 Contact Us For Availability

29

Light Shield WPL 937230 Contact Us For Availability

30

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

30

Screw, 8 x 7/8 WPL 487888 Contact Us For Availability

31

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

32

cover WPL 549336 Contact Us For Availability

32

Cover, Control Box WPL 944840 Contact Us For Availability

33

Strap WPL 549342 Contact Us For Availability

33

Knob, Control WPL 845233 Contact Us For Availability

34

Relay WPL 989646 Contact Us For Availability

34

Cover, Tube (Rear) WPL 937032 Contact Us For Availability

35

overload WPL 941778 Contact Us For Availability

35

Cover Tube, Bottom WPL 941776 Contact Us For Availability

36

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

36

Spring WPL 549086 Contact Us For Availability

36

screw (repair) WPL 488706 Contact Us For Availability

37

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

37

Wire Cover (Rear) WPL 939957 Contact Us For Availability

38

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

38

Rivet, Plastic (2) WPL 939961 Contact Us For Availability

39

Cover, Connecting Lines WPL 946459 Contact Us For Availability

39

Wire Cover (Front) WPL 939960 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Dampener WPL 945593 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Damper, Chiller WPL 943614 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability

Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 789050 WPL 789050 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 943633 WPL 943633 Contact Us For Availability

WPL 945957 WPL 945957 Contact Us For Availability

WPL 945958 WPL 945958 Contact Us For Availability

WPL 946952 WPL 946952 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 983735 WPL 983735 Contact Us For Availability
