Model Whirlpool EL13PCXRWR0 REFRIGERATOR – Common Parts & Diagrams
03 - LINER, LIT/OPTIONAL
02 - CABINET

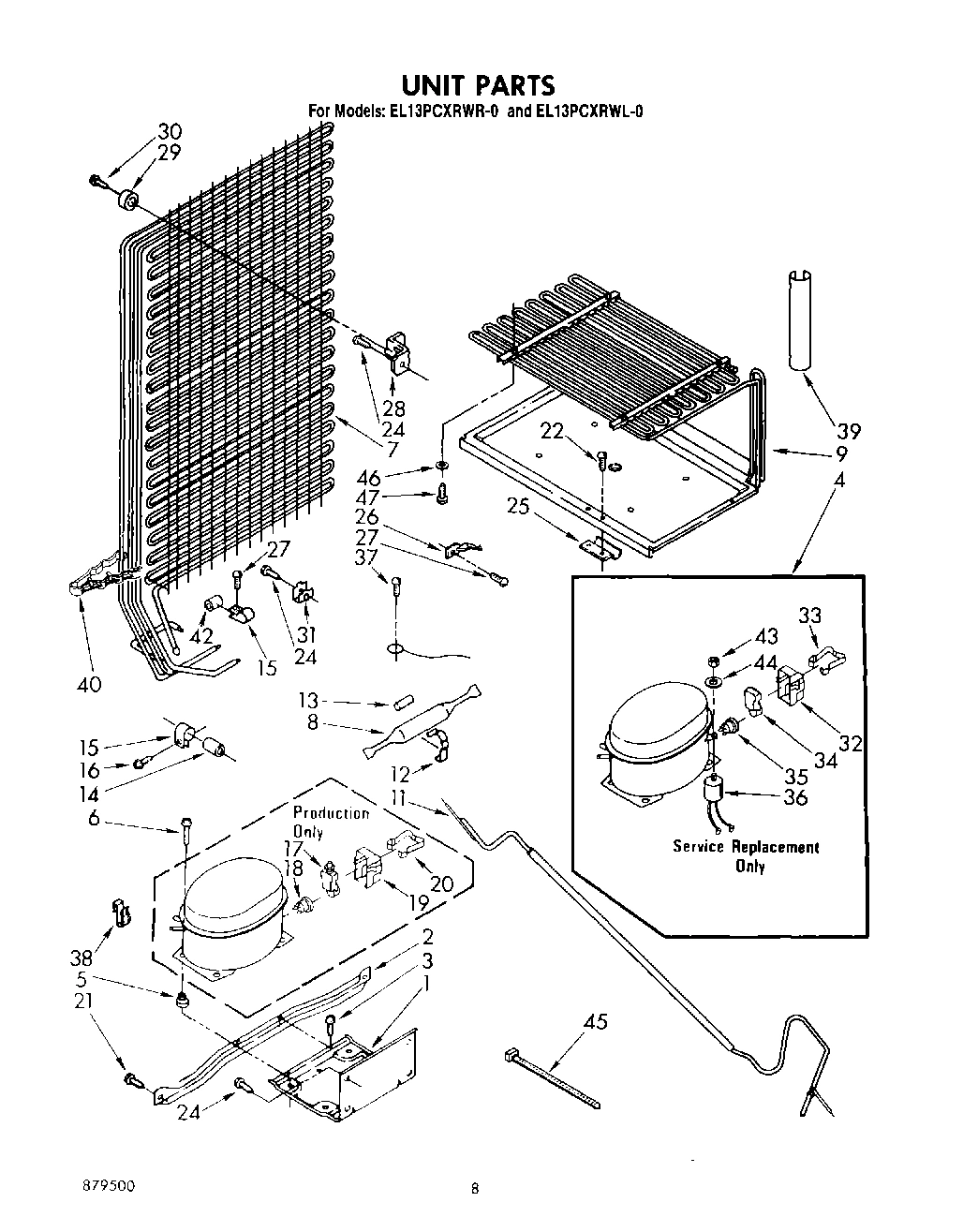

05 - UNIT

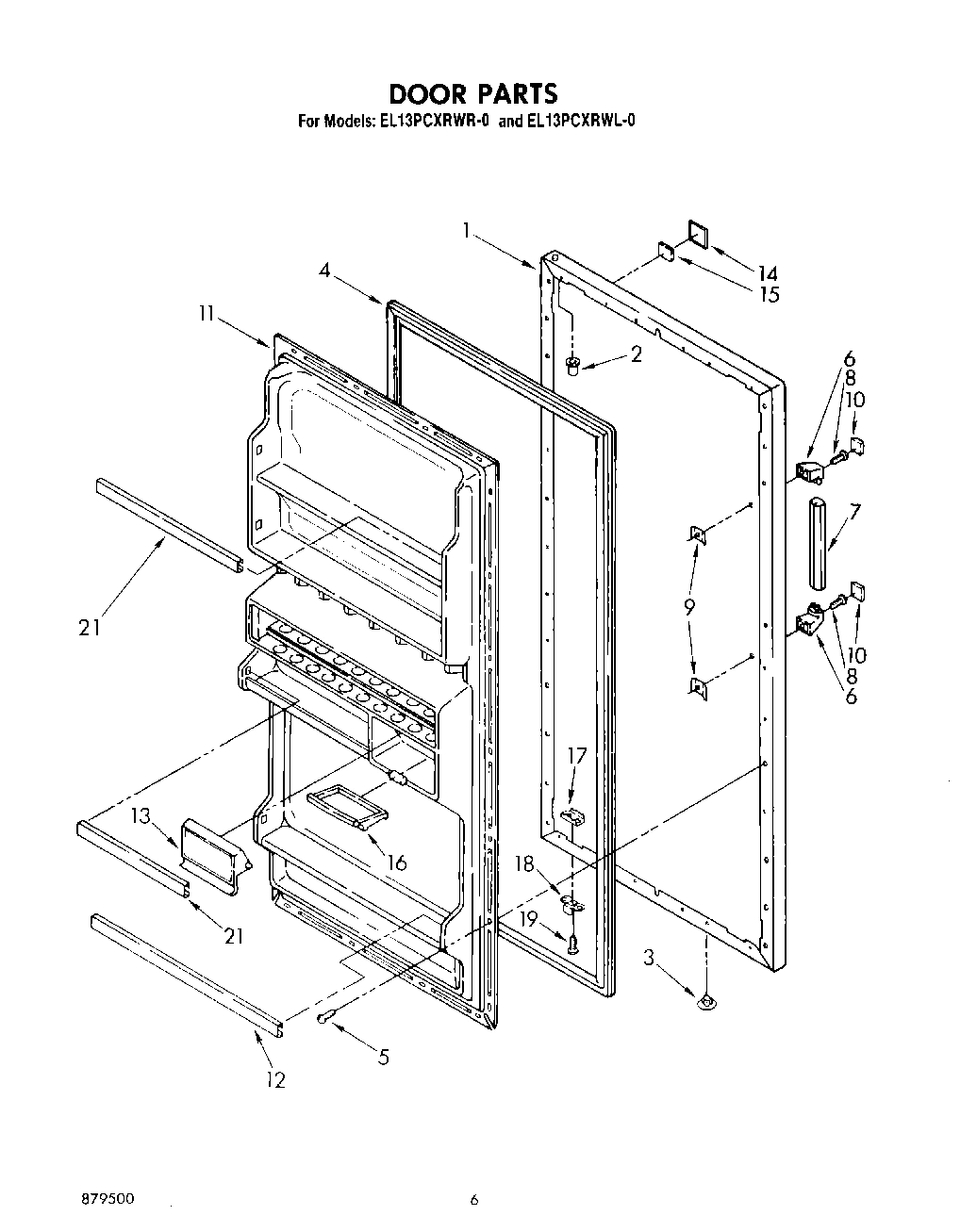

04 - DOOR

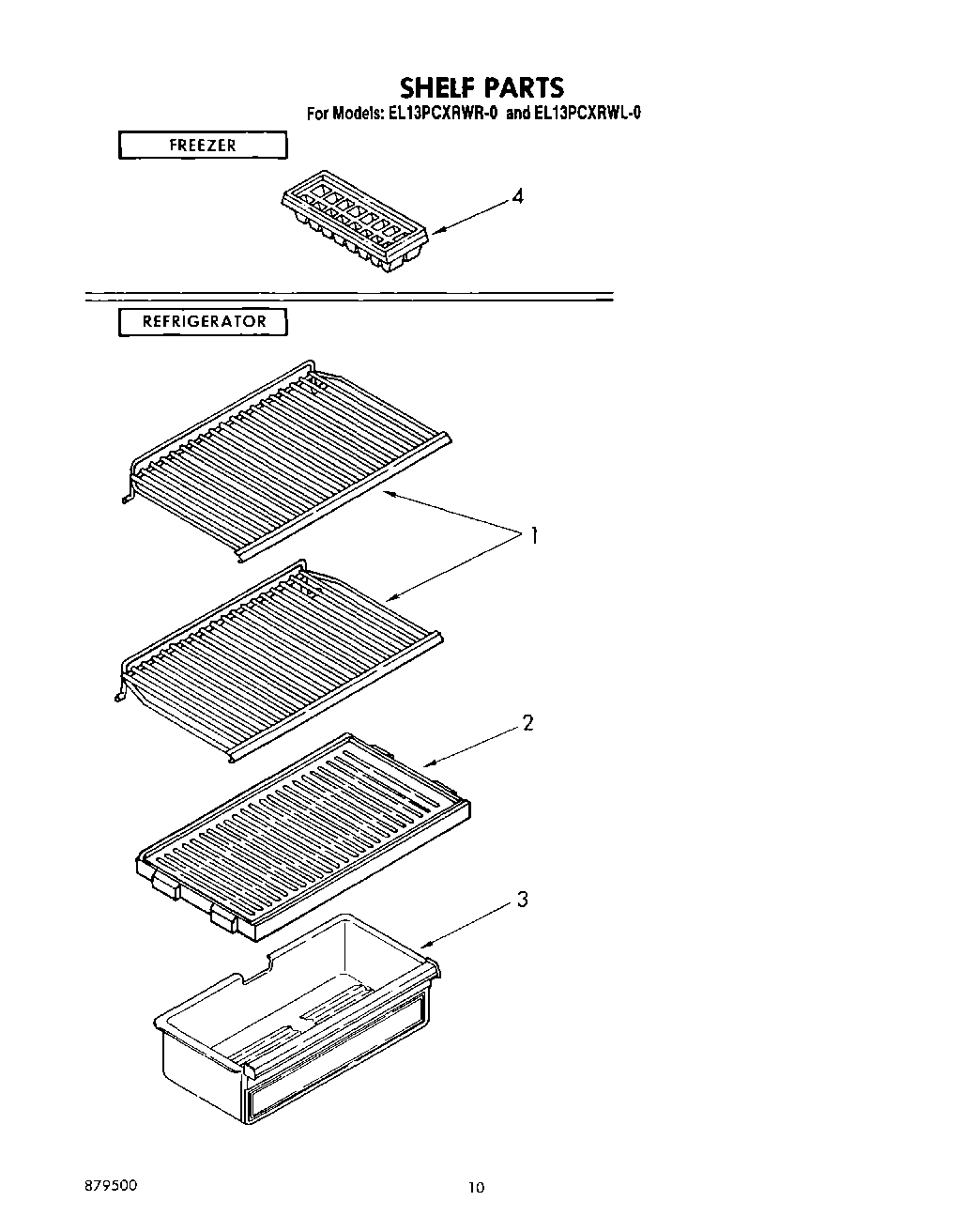

06 - SHELF
Common parts from model Whirlpool EL13PCXRWR0 REFRIGERATOR
1
Cabinet (Not A Serviceable Part) WPL ARI146325A Contact Us For Availability
1
Unit Mounting Plate WPL 942860 Contact Us For Availability
1
Refrigerator Door Panel R.H. (White) WPL 1100495 Contact Us For Availability
1
Refrigerator Door Panel R.H. (White) WPL 1100497 Contact Us For Availability
1
Refrigerator Door Panel R.H. (Golden Harvest) WPL 1100500 Contact Us For Availability
1
Refrigerator Door Panel R.H. (Almond Refriger WPL 1100502 Contact Us For Availability
1
Refrigerator Door Panel R.H. (Golden Harvest) WPL 1100505 Contact Us For Availability
1
Refrigerator Door Panel R.H. (Almond) WPL 1100506 Contact Us For Availability
1
Shelf, Pullout WPL 944895 Contact Us For Availability
2
Unit Mounting Rail WPL 945449 Contact Us For Availability
2
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
2
Cover, Crisper WPL 944897 Contact Us For Availability
3
Shim, Hinge Top WPL 1100513 Contact Us For Availability
3
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Pan, Crisper WPL 1108571 Contact Us For Availability
4
Shim, Hinge WPL 1100509 Contact Us For Availability
4
Compressor (Includes Items 32, 33, 34, 35, 36 WPL 482980 Contact Us For Availability
4
Door, Gasket Magnetic WPL 1106542 Contact Us For Availability
5
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
6
Screw (Repair) WPL 488949 Contact Us For Availability
6
End, Door Handle WPL 1110068 Contact Us For Availability
7
Hinge, Bottom R.H. WPL 944776 Contact Us For Availability
7
Hinge, Bottom L.H. WPL 944778 Contact Us For Availability
7
Condenser & Precooler Assembly (Formed) WPL 943635 Contact Us For Availability
7
Door Handle, Center WPL 1110069 Contact Us For Availability
7
Door Handle, Center (For Platinum Model Only) WPL 1110133 Contact Us For Availability
8
Shim, Bottom Hinge WPL 935737 Contact Us For Availability
8
Shim (Repair) WPL 935738 Contact Us For Availability
8
Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability
9
Evaporator Assembly WPL 946301 Contact Us For Availability
10
Tap Plate, Bottom WPL 935743 Contact Us For Availability
10
End Cover, Door Handle (2) WPL 1110070 Contact Us For Availability
11
Grommet, Wiring WPL 938284 Contact Us For Availability
11
Heat Exchanger WPL 946307 Contact Us For Availability
11
Panel, Interior Door WPL 1111535 Contact Us For Availability
12
Box, Junction WPL 937068 Contact Us For Availability
12
Drier Clamp WPL 547637 Contact Us For Availability
12
Trim, Door Shelf (2) WPL 1110066 Contact Us For Availability
13
Restrictor Sleeve WPL 510446 Contact Us For Availability
13
Compartment Door, Butter WPL 1106187 Contact Us For Availability
14
Clamp WPL 939009 Contact Us For Availability
14
Dampener WPL 1108064 Contact Us For Availability
14
Nameplate WPL 945119 Contact Us For Availability
15
Cord, Service WPL 850626 Contact Us For Availability
15
Clamp Tube WPL 510716 Contact Us For Availability
15
Tape Strip WPL 991259 Contact Us For Availability
16
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
17
Bushing, Strain Relief WPL 544108 Contact Us For Availability
17
Relay WPL 938385 Contact Us For Availability
18
Tube, Rail Cover (White) WPL 935707 Contact Us For Availability
18
Tube, Rail Cover (Golden Harvest) WPL 935709 Contact Us For Availability
18
Tube, Rail Cover (Almond) WPL 935711 Contact Us For Availability
18
Overload WPL 941605 Contact Us For Availability
18
Bracket, Door Stop WPL 944036 Contact Us For Availability
19
Screw WPL 488895 Contact Us For Availability
19
Screw (Repair) WPL 488930 Contact Us For Availability
20
Hole Plug (2) (White) WPL 842031 Contact Us For Availability
20
Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability
20
Hole Plug (2) (Golden Harvest) WPL 989876 Contact Us For Availability
21
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
21
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
21
Hole Plug (2) (Golden Harvest) WPL 941419 Contact Us For Availability
21
Trim, Door Shelf (2) WPL 1111536 Contact Us For Availability
22
Cabinet Wiring Assembly WPL 943626 Contact Us For Availability
22
Screw, 8-15 x 1/2 (4) WPL 486214 Contact Us For Availability
22
Screw (Repair) WPL 488839 Contact Us For Availability
25
Clamp, Capillary Tube WPL 944817 Contact Us For Availability
26
Hold Down Heat Exchanger WPL 944839 Contact Us For Availability
28
Condenser Bracket (Top) WPL 510721 Contact Us For Availability
29
Light Shield WPL 937230 Contact Us For Availability
29
Bumper, Rubber WPL 204349 Contact Us For Availability
30
Screw, 8 x 7/8 WPL 487888 Contact Us For Availability
32
Cover, Control Box WPL 944840 Contact Us For Availability
32
Cover, Terminal WPL 1105015 Contact Us For Availability
33
Knob, Control WPL 845233 Contact Us For Availability
33
Strap WPL 938384 Contact Us For Availability
34
Cover, Tube (Rear) WPL 937032 Contact Us For Availability
34
Relay WPL 1100806 Contact Us For Availability
35
Cover Tube, Bottom WPL 941776 Contact Us For Availability
35
Overload WPL 1105077 Contact Us For Availability
36
screw (repair) WPL 488706 Contact Us For Availability
36
Capacitor WPL 482996 Contact Us For Availability
37
Wire Cover (Rear) WPL 939957 Contact Us For Availability
38
Rivet, Plastic (2) WPL 939961 Contact Us For Availability
39
Wire Cover (Front) WPL 939960 Contact Us For Availability
39
Cover, Connecting Lines WPL 946459 Contact Us For Availability
40
Damper, Chiller WPL 944906 Contact Us For Availability
40
Clip, Tube WPL 942739 Contact Us For Availability
41
WPL 876029 WPL 876029 Contact Us For Availability
41
Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability
41
WPL 799344 WPL 799344 Contact Us For Availability
41
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
41
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
41
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
41
WPL 542639 WPL 542639 Contact Us For Availability
41
WPL 799340 WPL 799340 Contact Us For Availability
41
WPL 799351 WPL 799351 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
42
Dampener WPL 945593 Contact Us For Availability
43
Nut WPL 489142 Contact Us For Availability
44
Washer WPL 489143 Contact Us For Availability
45
Strap WPL 851095 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
