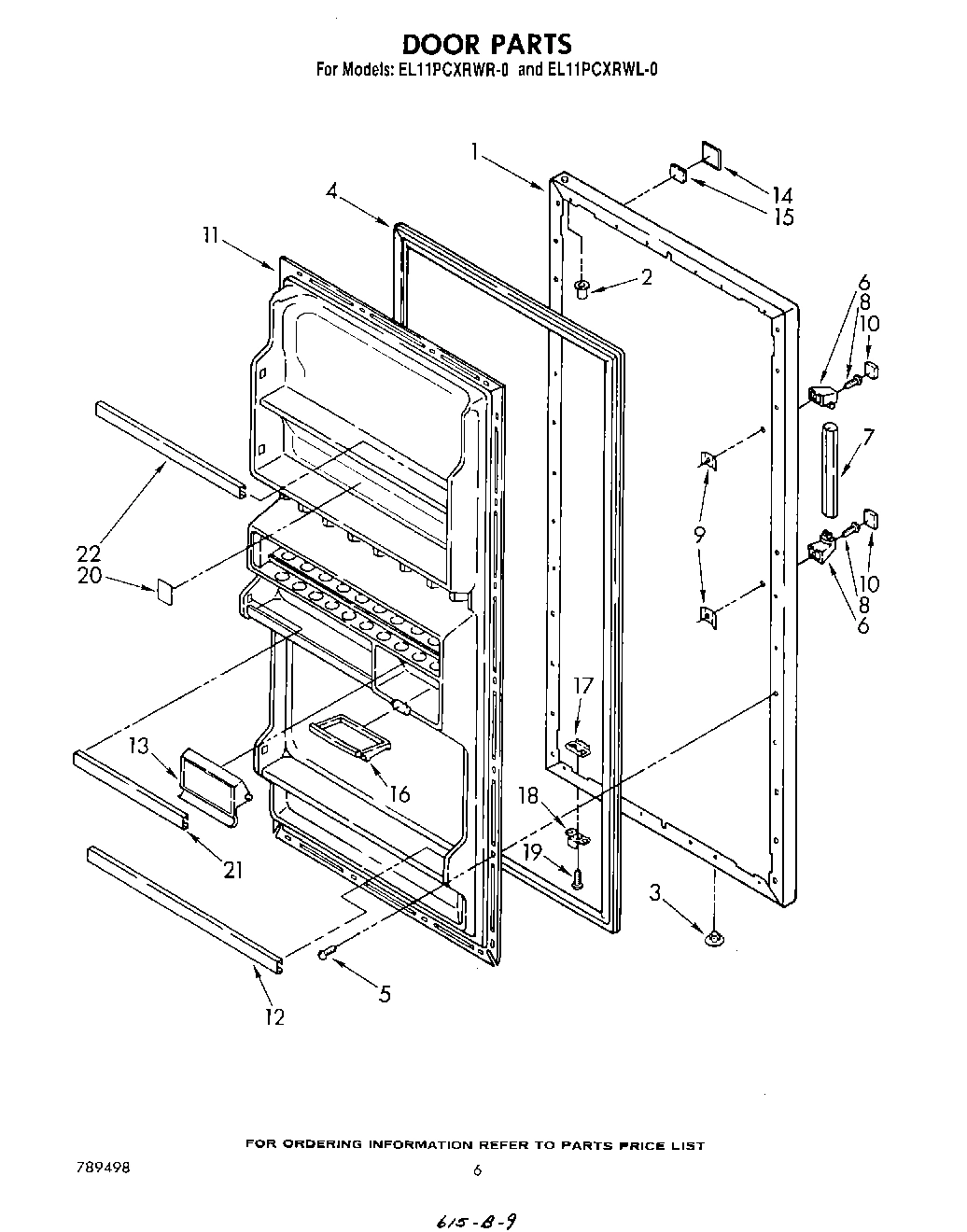

Model Whirlpool EL11PCXRWL0 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

xLeveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Care & Use Guide WPL LIT1106976 Contact Us For Availability

Energy Label WPL LIT1110376 Contact Us For Availability

Parts List WPL LIT789498 Contact Us For Availability

Service & Wiring Sheet WPL LIT943633 Contact Us For Availability

1

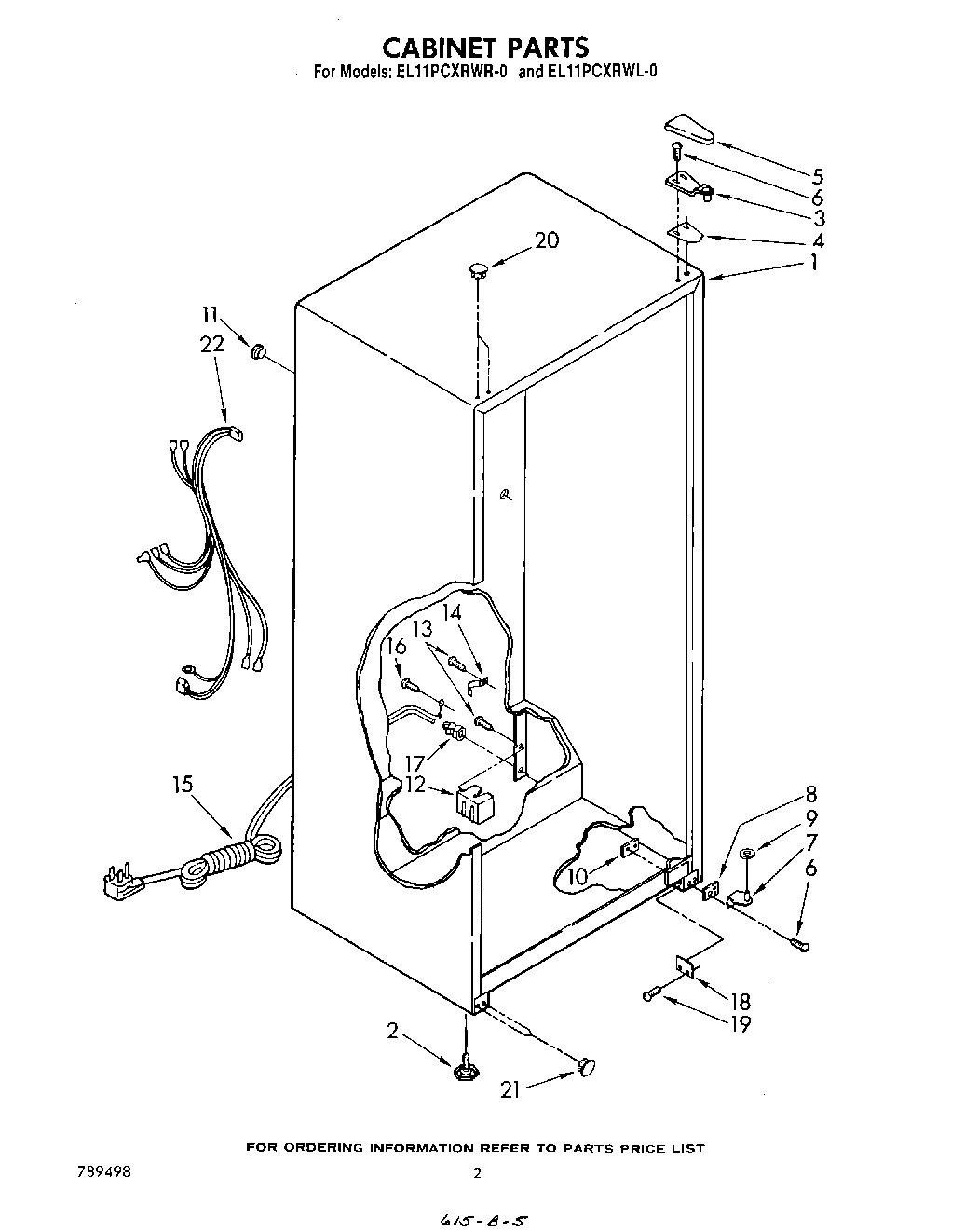

Cabinet (Not A Serviceable Part) WPL ARI146319A Contact Us For Availability

1

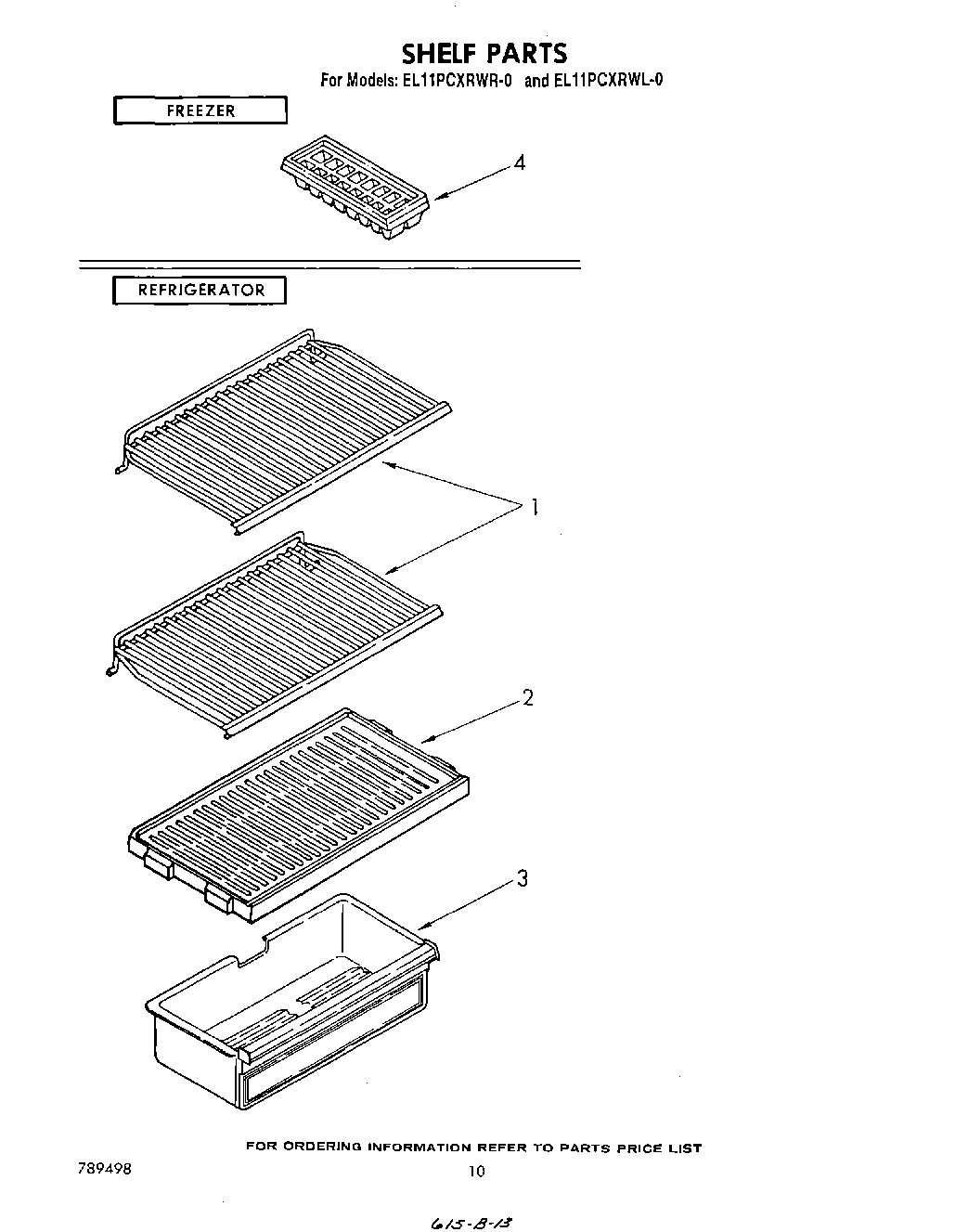

Shelf, Pullout WPL 944895 Contact Us For Availability

1

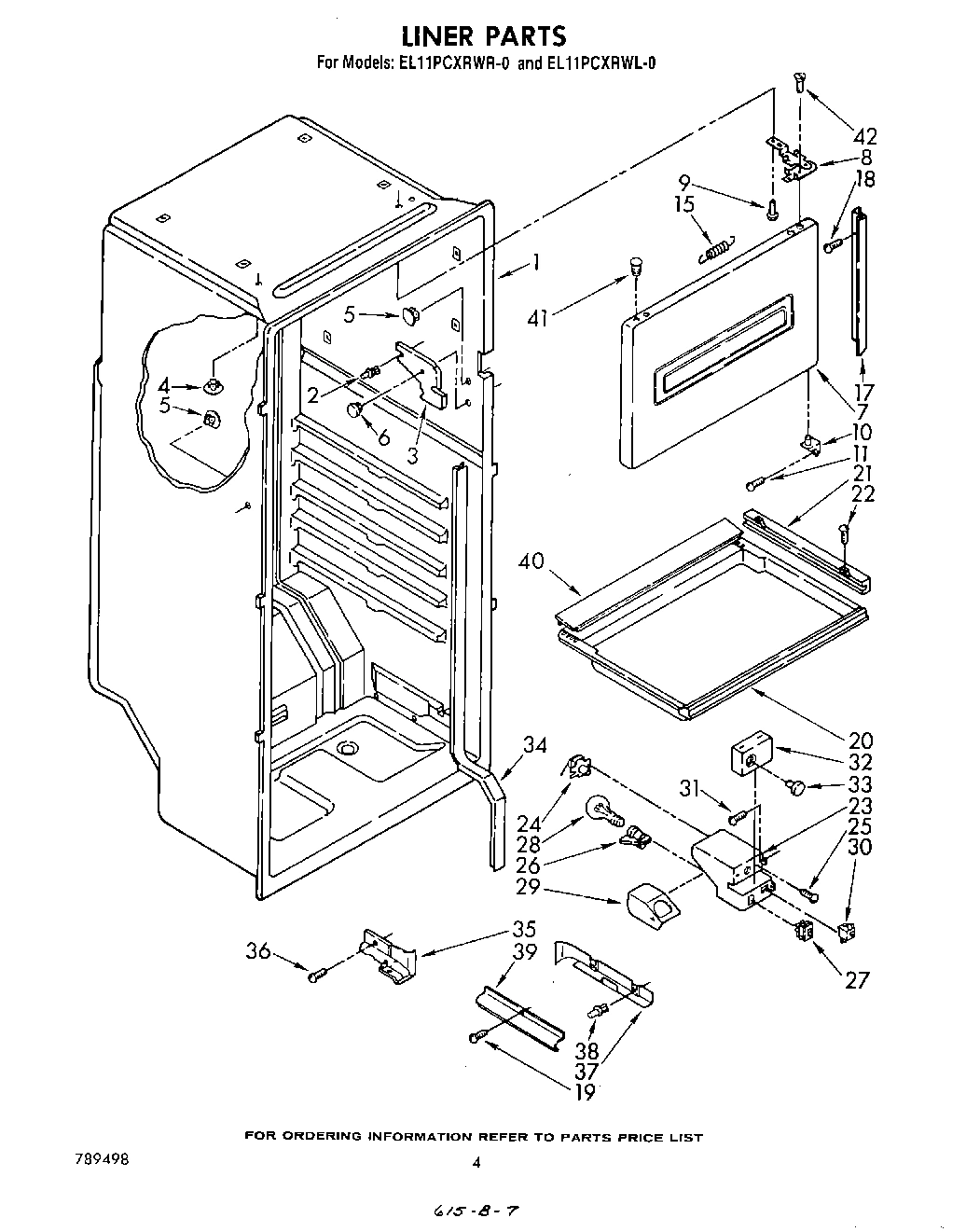

Liner (Not A Serviceable Part) WPL ARI146320A Contact Us For Availability

1

Unit Mounting Plate WPL 942860 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

2

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

2

Cover, Crisper WPL 944897 Contact Us For Availability

2

Unit Mounting Rail WPL 945449 Contact Us For Availability

3

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

3

Shim, Hinge Top WPL 1100513 Contact Us For Availability

3

Pan, Crisper WPL 1108571 Contact Us For Availability

3

Shield, Electrical WPL 944815 Contact Us For Availability

4

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

4

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

4

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

4

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

4

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

4

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

4

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

4

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

4

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

4

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

4

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

4

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

4

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

4

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

4

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

4

Shim, Hinge WPL 1100509 Contact Us For Availability

4

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

4

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

4

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

4

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

4

Silicone (Spray) WPL 799908 Contact Us For Availability

4

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

4

Hole Plug WPL 845294 Contact Us For Availability

4

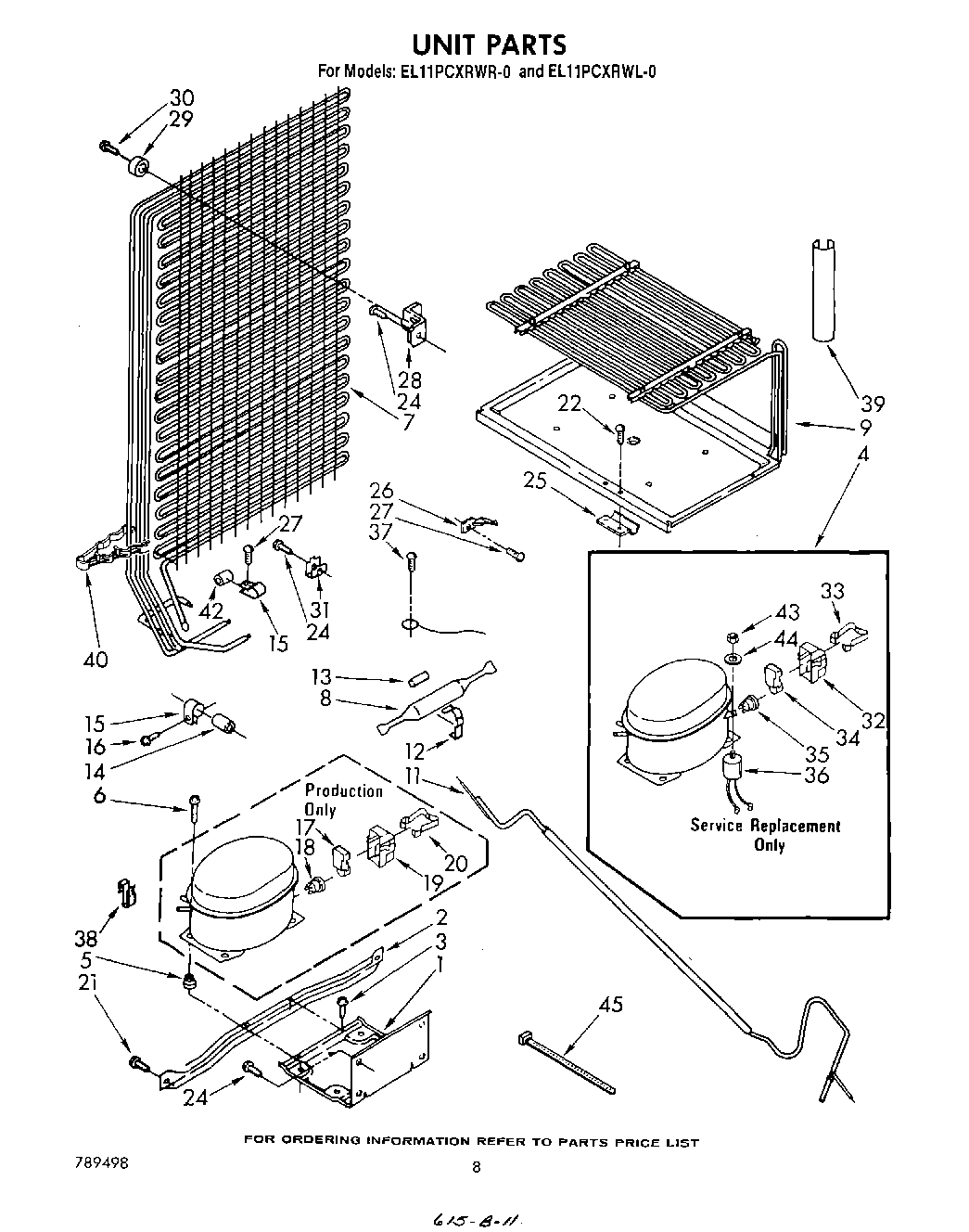

Compressor (Includes Items 32, 33, 34, 35, 36 WPL 482980 Contact Us For Availability

5

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

Hole Plug WPL 845646 Contact Us For Availability

6

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

6

Screw (Repair) WPL 488949 Contact Us For Availability

6

Grommet, Wiring WPL 944818 Contact Us For Availability

7

Hinge, Bottom R.H. WPL 944776 Contact Us For Availability

7

Hinge, Bottom L.H. WPL 944778 Contact Us For Availability

7

Door, Evaporator WPL 1106965 Contact Us For Availability

7

Condenser & Precooler Assembly (Formed) WPL 943635 Contact Us For Availability

8

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

8

Shim, Bottom Hinge WPL 935737 Contact Us For Availability

8

Shim (Repair) WPL 935738 Contact Us For Availability

8

Hinge, Evaporator Door Top WPL 1106968 Contact Us For Availability

9

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

9

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

9

Evaporator Assembly WPL 1103795 Contact Us For Availability

10

Tap Plate, Bottom WPL 935743 Contact Us For Availability

10

Support, Evaporator Door WPL 1103729 Contact Us For Availability

11

Grommet, Wiring WPL 938284 Contact Us For Availability

11

Heat Exchanger WPL 1103798 Contact Us For Availability

12

Box, Junction WPL 937068 Contact Us For Availability

12

Drier Clamp WPL 547637 Contact Us For Availability

13

Restrictor Sleeve WPL 510446 Contact Us For Availability

14

Clamp WPL 939009 Contact Us For Availability

14

Dampener WPL 1108064 Contact Us For Availability

15

Cord, Service WPL 850626 Contact Us For Availability

15

Spring WPL 1106973 Contact Us For Availability

15

Clamp Tube WPL 510716 Contact Us For Availability

16

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

16

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

17

Bushing, Strain Relief WPL 544108 Contact Us For Availability

17

Evaporator Door, Baffle Side WPL 1103779 Contact Us For Availability

17

Relay WPL 938385 Contact Us For Availability

18

Tube, Rail Cover (White) WPL 935707 Contact Us For Availability

18

Tube, Rail Cover (Almond) WPL 935711 Contact Us For Availability

18

Overload WPL 941605 Contact Us For Availability

19

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

19

Screw WPL 488895 Contact Us For Availability

20

Hole Plug (2) (White) WPL 842031 Contact Us For Availability

20

Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability

20

Chiller Tray Assembly WPL 944904 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Hole, Plug (2) (White) WPL 941416 Contact Us For Availability

Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability

Chiller Slide (2) WPL 943615 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Cabinet Wiring Assembly WPL 1103791 Contact Us For Availability

Screw, 8-15 x 1/2 (4) WPL 486214 Contact Us For Availability

Screw (Repair) WPL 488839 Contact Us For Availability

23

Box, Control WPL 943628 Contact Us For Availability

24

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

24

Thermostat & Barrier Assembly WPL 944822 Contact Us For Availability

25

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

25

Clamp, Capillary Tube WPL 944817 Contact Us For Availability

26

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

26

Hold Down Heat Exchanger WPL 944839 Contact Us For Availability

27

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

27

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

28

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

28

Condenser Bracket (Top) WPL 510721 Contact Us For Availability

29

Light Shield WPL 937230 Contact Us For Availability

29

Bumper, Rubber WPL 204349 Contact Us For Availability

30

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

30

Screw, 8 x 7/8 WPL 487888 Contact Us For Availability

31

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

32

Cover, Control Box WPL 944840 Contact Us For Availability

32

Cover, Terminal WPL 1105015 Contact Us For Availability

33

Knob, Control WPL 845233 Contact Us For Availability

33

Strap WPL 938384 Contact Us For Availability

34

Cover, Tube (Rear) WPL 1106925 Contact Us For Availability

34

Relay WPL 1100806 Contact Us For Availability

35

Cover Tube, Bottom WPL 941776 Contact Us For Availability

35

Overload WPL 1100807 Contact Us For Availability

36

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

36

screw (repair) WPL 488706 Contact Us For Availability

36

Capacitor WPL 482996 Contact Us For Availability

37

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

37

Wire Cover (Rear) WPL 939957 Contact Us For Availability

38

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

38

Rivet, Plastic (2) WPL 939961 Contact Us For Availability

39

Wire Cover (Front) WPL 939960 Contact Us For Availability

39

Cover, Connecting Lines WPL 1103781 Contact Us For Availability

40

Damper, Chiller WPL 944906 Contact Us For Availability

40

Clip, Tube WPL 942739 Contact Us For Availability

41

Hole Plug (2) WPL 940086 Contact Us For Availability

42

Screw WPL 489149 Contact Us For Availability

42

Dampener WPL 945593 Contact Us For Availability

43

Nut WPL 489142 Contact Us For Availability

44

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
