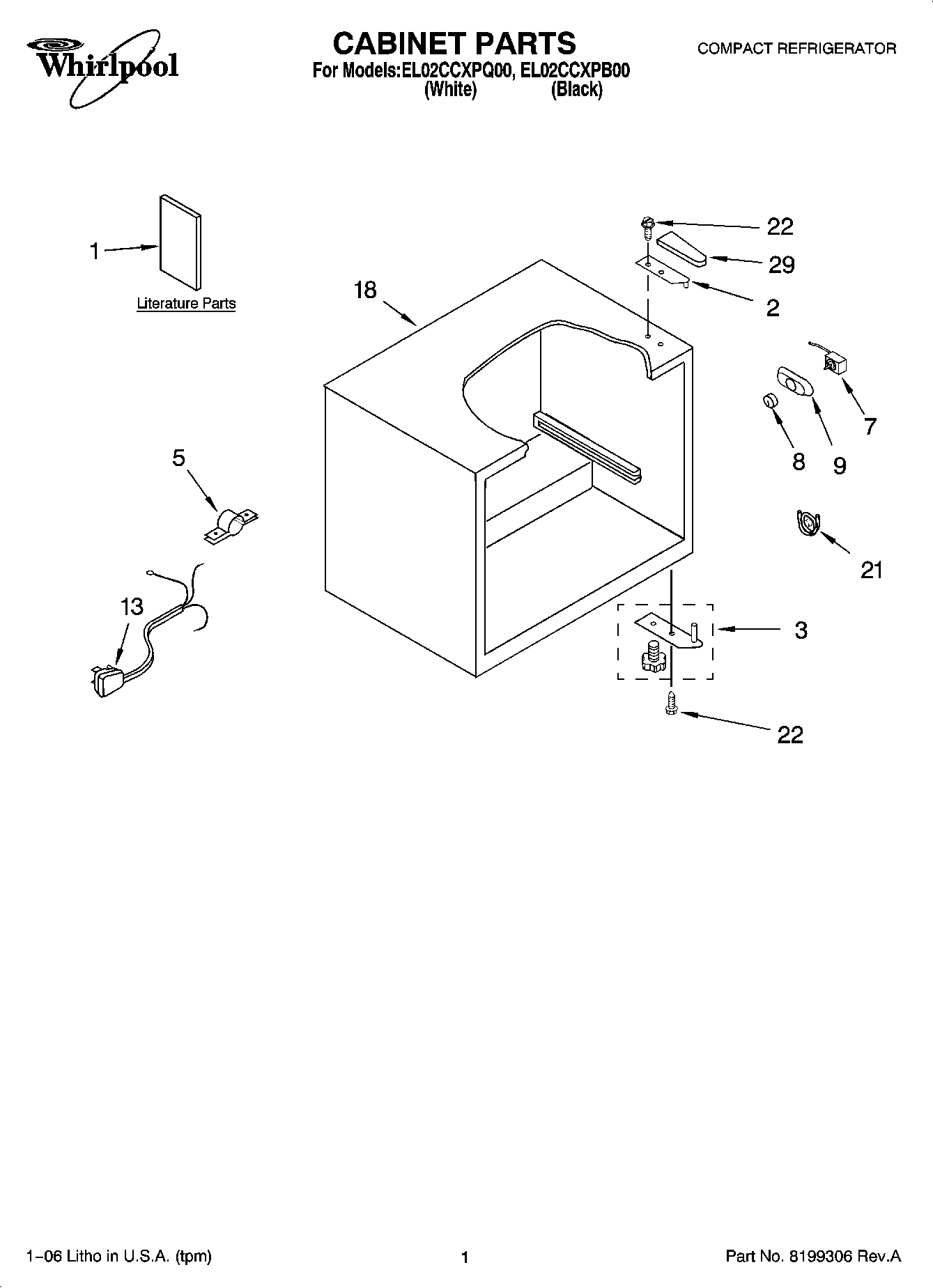

Model Whirlpool EL02CCXPQ00 COMPACT REFRIGERATOR – Common Parts & Diagrams

1
Door, Freezer
Door, Freezer WPL 8199905 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 2300242 Contact Us For Availability
View on Model
2
Base, Compressor
Base, Compressor WPL 8199897 Contact Us For Availability
View on Model
2
Tray, Freezer
Tray, Freezer WPL 8199916 Contact Us For Availability
View on Model
2
Hinge, Top (White)
Hinge, Top (White) WPL 8199902 Contact Us For Availability
View on Model
2
Hinge, Top (Black)
Hinge, Top (Black) WPL 8199950 Contact Us For Availability
View on Model
3
Evaporator
Evaporator WPL 8199893 Contact Us For Availability
View on Model
3
Shelf, Wire
Shelf, Wire WPL 8199915 Contact Us For Availability
View on Model
3
Hinge, Bottom (Includes foot leveler) (White)
Hinge, Bottom (Includes foot leveler) (White) WPL 8214467 Contact Us For Availability
View on Model
3
Hinge, Bottom (Includes foot leveler) (Black)
Hinge, Bottom (Includes foot leveler) (Black) WPL 8214468 Contact Us For Availability
View on Model
4
Clamp, Drier
Clamp, Drier WPL 8199900 Contact Us For Availability
View on Model
4
Tray, Ice Cube
Tray, Ice Cube WPL 8199917 Contact Us For Availability
View on Model
5
Hinge, Freezer Door
Hinge, Freezer Door WPL 8199904 Contact Us For Availability
View on Model
5
Clamp, Power Cord (Upper)
Clamp, Power Cord (Upper) WPL 8199898 Contact Us For Availability
View on Model
5
Clamp, Power Cord (Lower)
Clamp, Power Cord (Lower) WPL 8199899 Contact Us For Availability
View on Model
6
Cover, Terminal
Cover, Terminal WPL 8199920 Contact Us For Availability
View on Model
6
Spring, Door Hinge
Spring, Door Hinge WPL 8199903 Contact Us For Availability
View on Model
6
DOOR PARTS
DOOR PARTS WPL ARI39451A4 Contact Us For Availability
View on Model
7
Thermostat
Thermostat WPL 8199911 Contact Us For Availability
View on Model
7
Relay
Relay WPL 8199919 Contact Us For Availability
View on Model
7
Panel, Door (White)
Panel, Door (White) WPL 8199886 Contact Us For Availability
View on Model
7
Panel, Door (Black)
Panel, Door (Black) WPL 8199922 Contact Us For Availability
View on Model
8
Overload
Overload WPL 8199918 Contact Us For Availability
View on Model
8
Nameplate
Nameplate WPL 8199887 Contact Us For Availability
View on Model
8
Knob, Thermostat
Knob, Thermostat WPL 8199914 Contact Us For Availability
View on Model
9
Grommet
Grommet WPL 8199921 Contact Us For Availability
View on Model
9
Gasket, Door (White)
Gasket, Door (White) WPL 8199888 Contact Us For Availability
View on Model
9
Gasket, Door (Black)
Gasket, Door (Black) WPL 8199949 Contact Us For Availability
View on Model
9
Housing, Thermostat
Housing, Thermostat WPL 8199913 Contact Us For Availability
View on Model
10
Liner, Door
Liner, Door WPL 8199889 Contact Us For Availability
View on Model
11
Trim, Door
Trim, Door WPL 8199890 Contact Us For Availability
View on Model
12
Gasket, Door (Liner Strip)
Gasket, Door (Liner Strip) WPL 8199891 Contact Us For Availability
View on Model
13
Washer
Washer WPL 8199894 Contact Us For Availability
View on Model
13
Power Cord
Power Cord WPL 8199908 Contact Us For Availability
View on Model
17
Cover, Sensor
Cover, Sensor WPL 8199895 Contact Us For Availability
View on Model
17
REFRIGERANT CHARGE 1.59 oz. (R-134A)
REFRIGERANT CHARGE 1.59 oz. (R-134A) WPL ARI39450A8 Contact Us For Availability
View on Model
18
Cabinet, (Not A Serviceable Part)
Cabinet, (Not A Serviceable Part) WPL ARI39449A5 Contact Us For Availability
View on Model
21
Clamp, Knob
Clamp, Knob WPL 8199912 Contact Us For Availability
View on Model
22
Screw
Screw WPL 8199909 Contact Us For Availability
View on Model
29
Cover, Hinge (White)
Cover, Hinge (White) WPL 8199901 Contact Us For Availability
View on Model
29
Cover, Hinge (Black)
Cover, Hinge (Black) WPL 8199948 Contact Us For Availability
View on Model
