Model Electrolux EI27EW45JS4 WALL OVEN, ELECTRIC, DOUBLE, 27 INCH – Common Parts & Diagrams

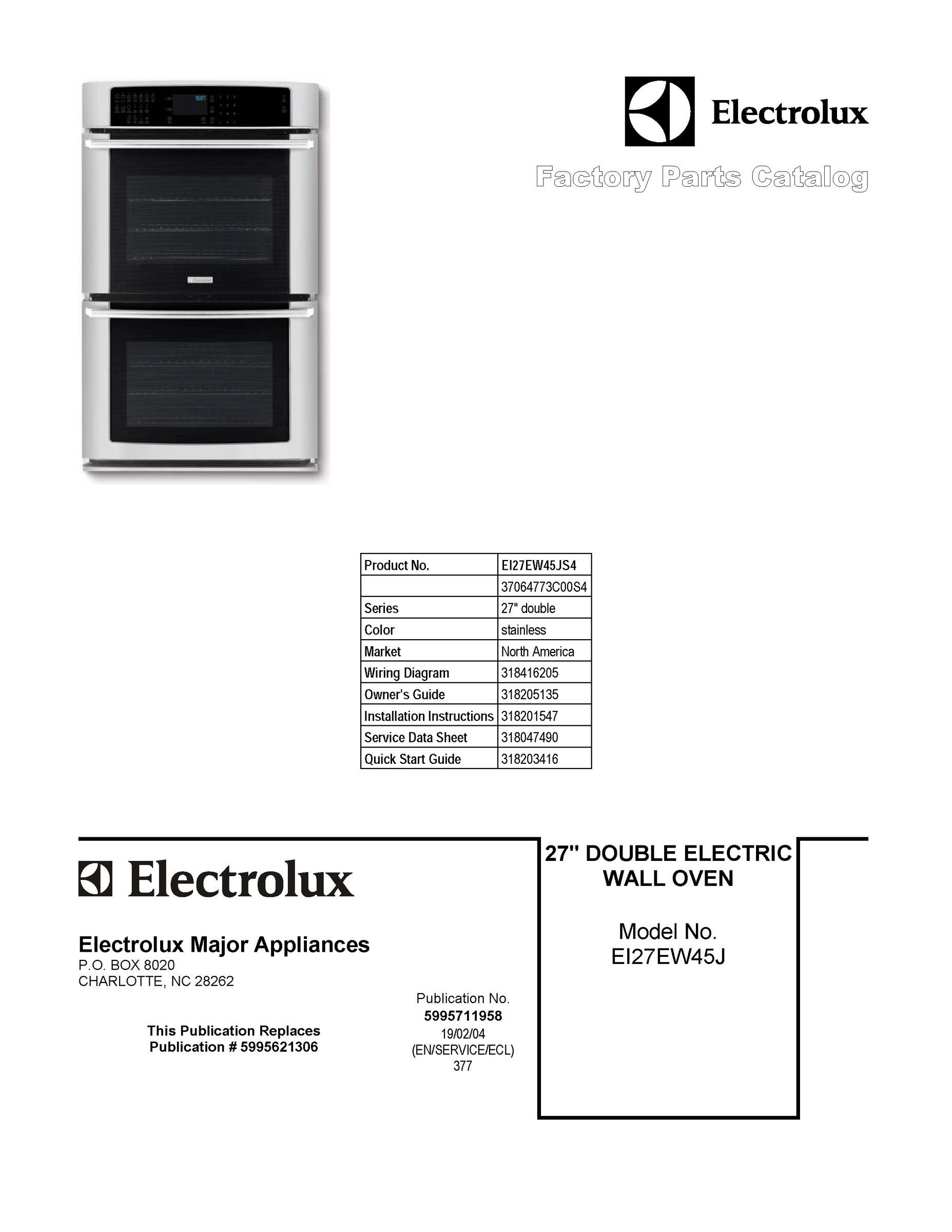

01 - COVER SHEET

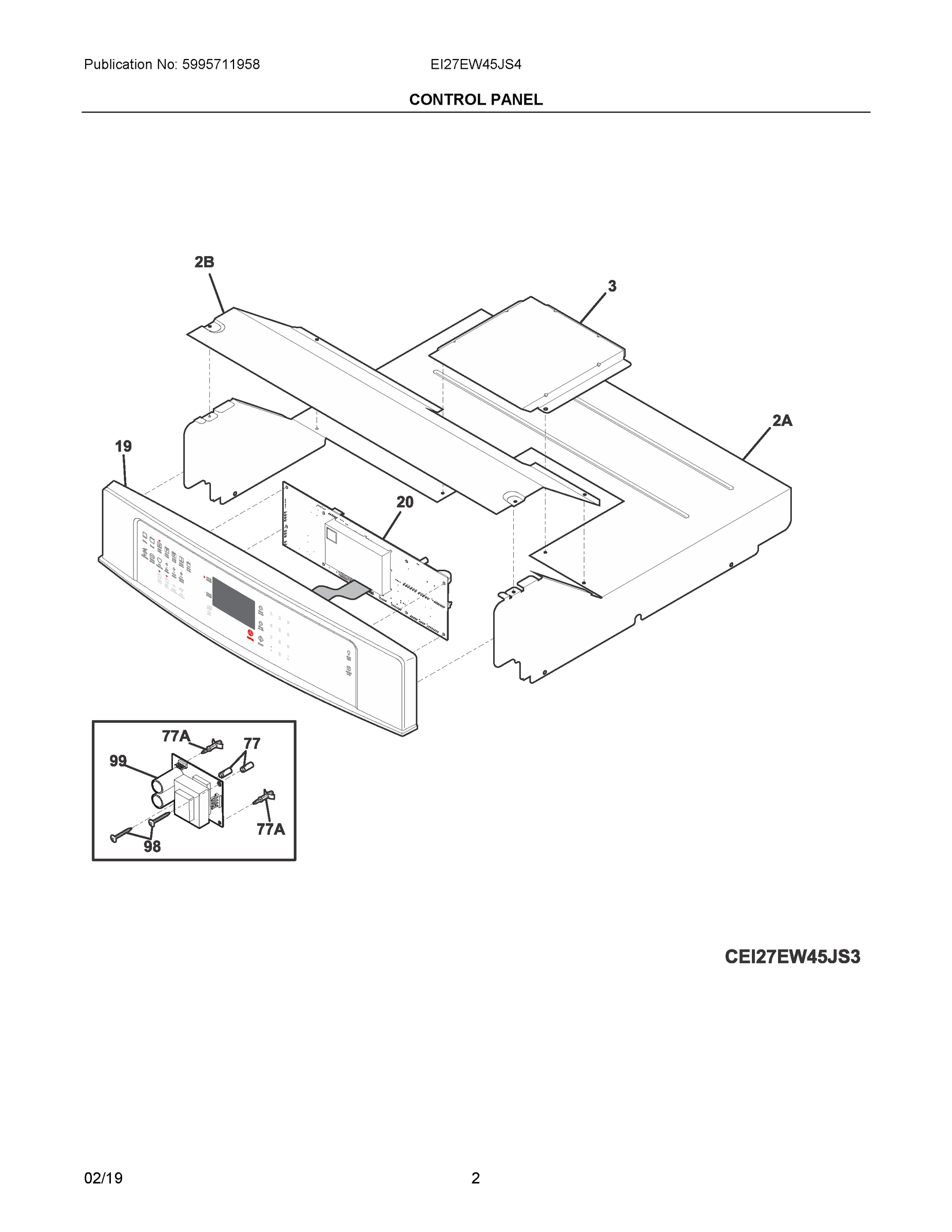

02 - CONTROL PANEL

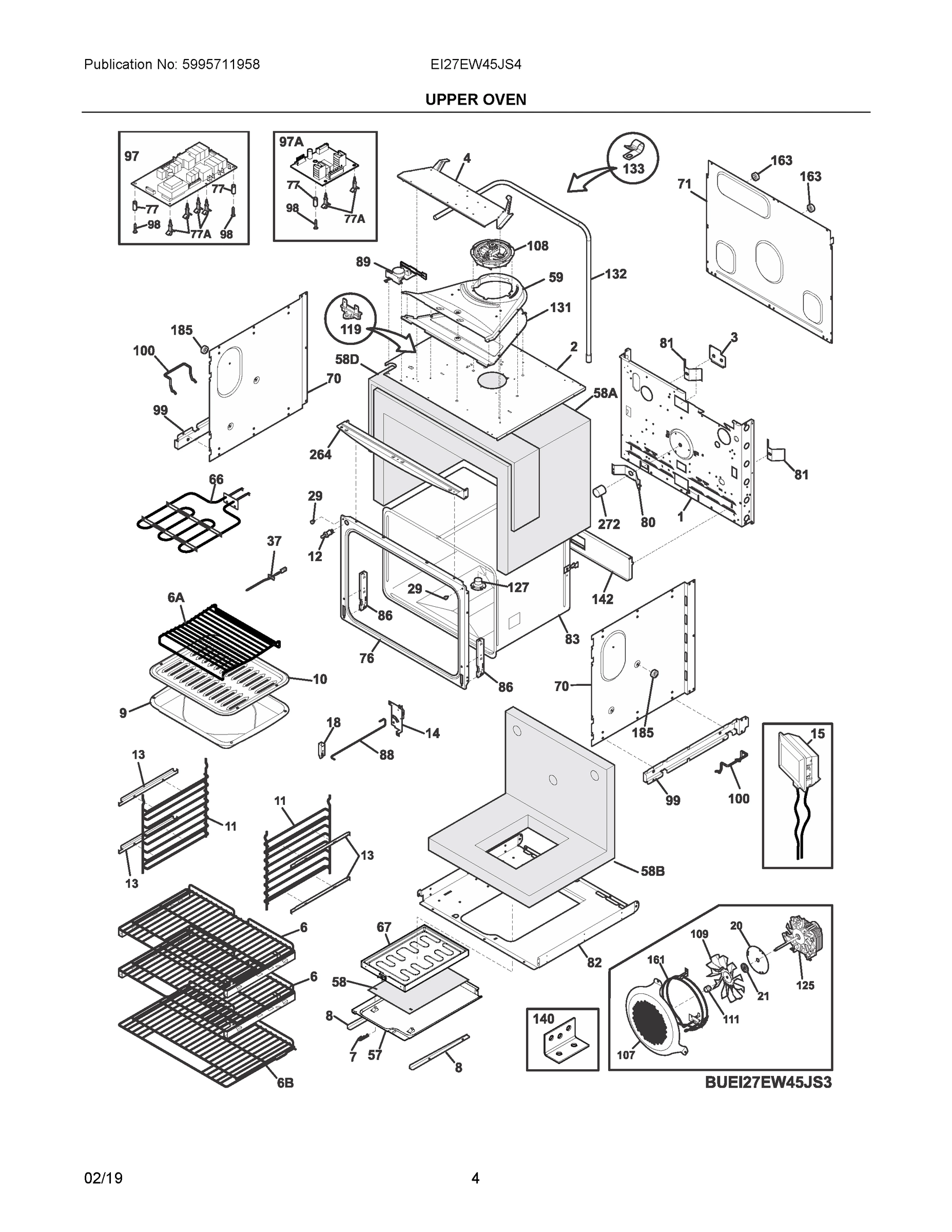

03 - UPPER OVEN

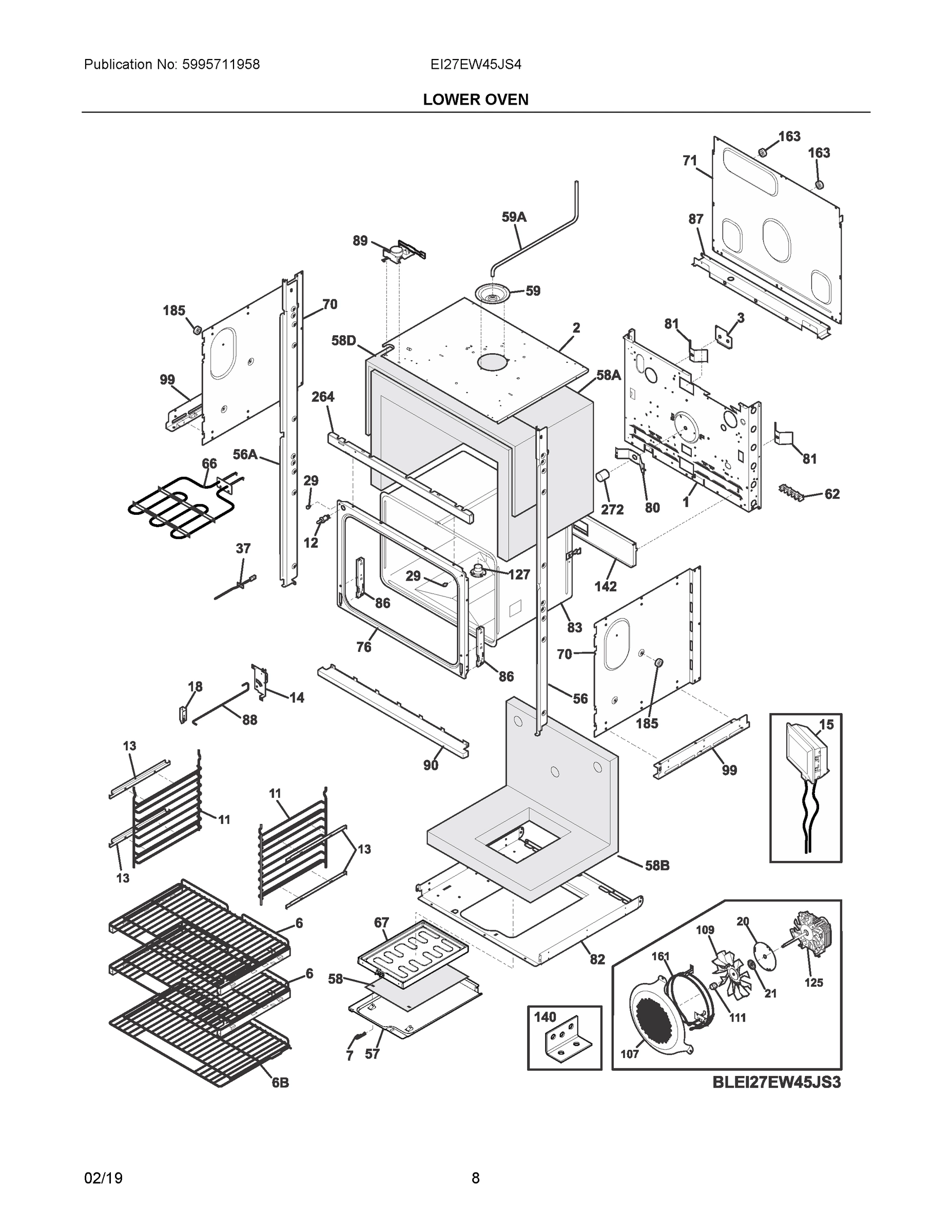

04 - LOWER OVEN

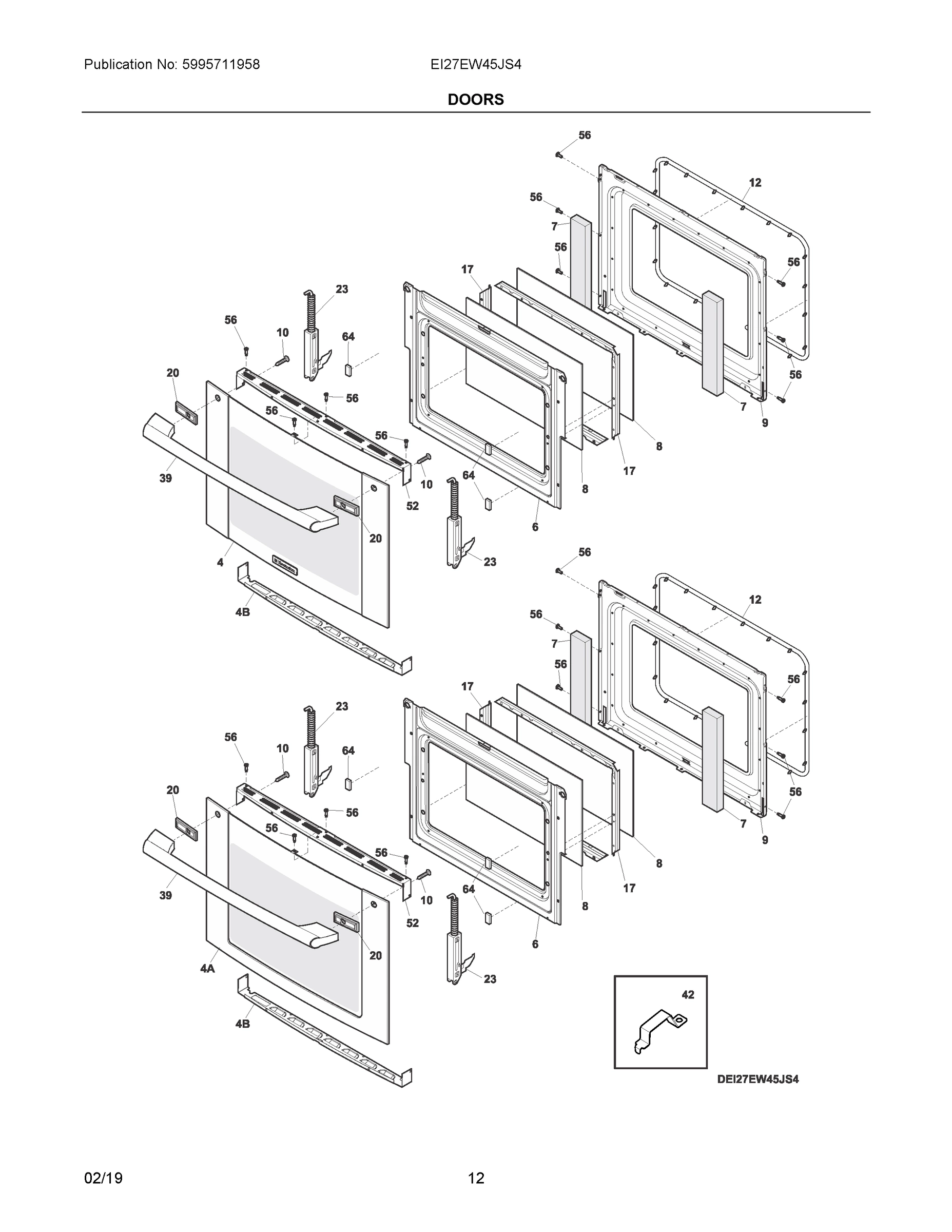

05 - DOORS

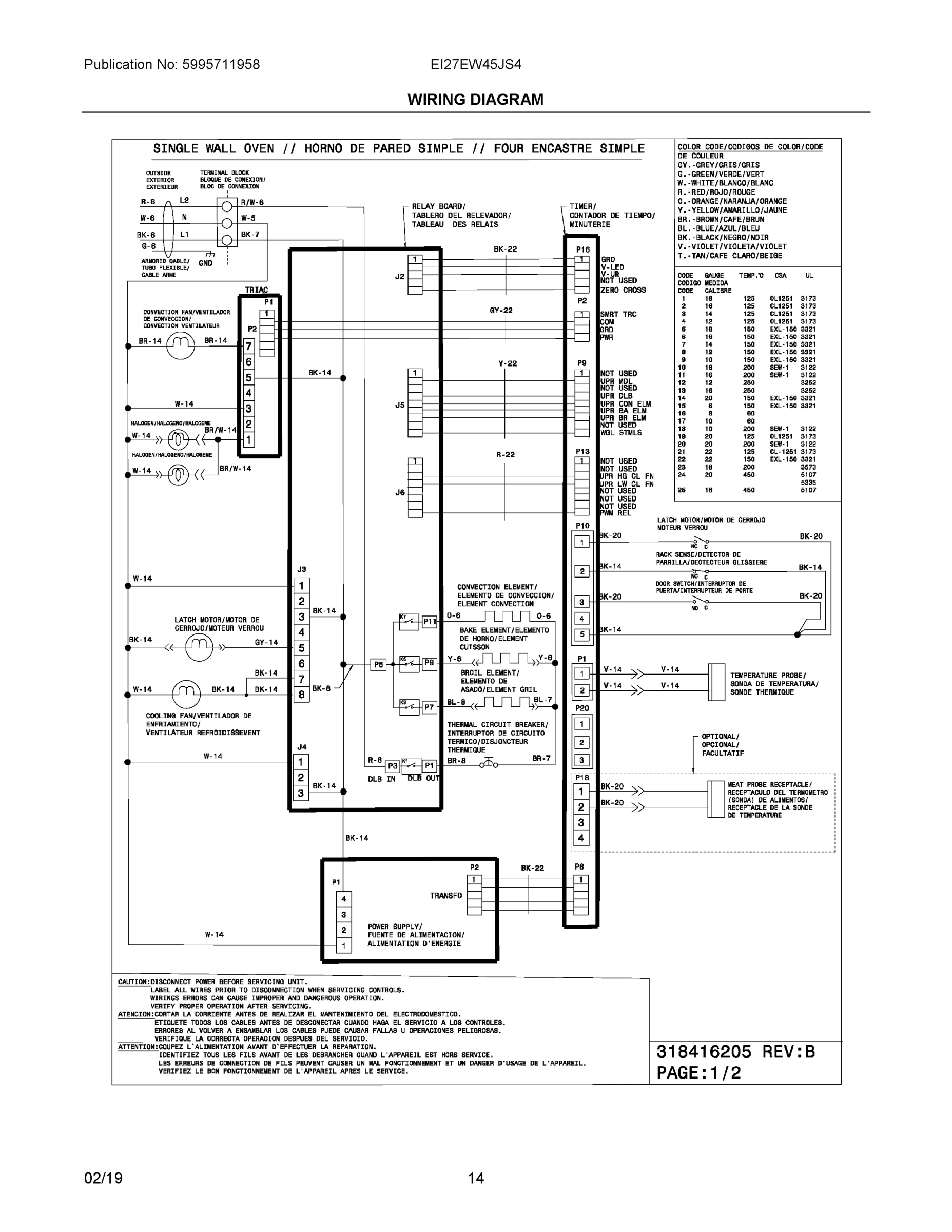

06 - WIRING DIAGRAM

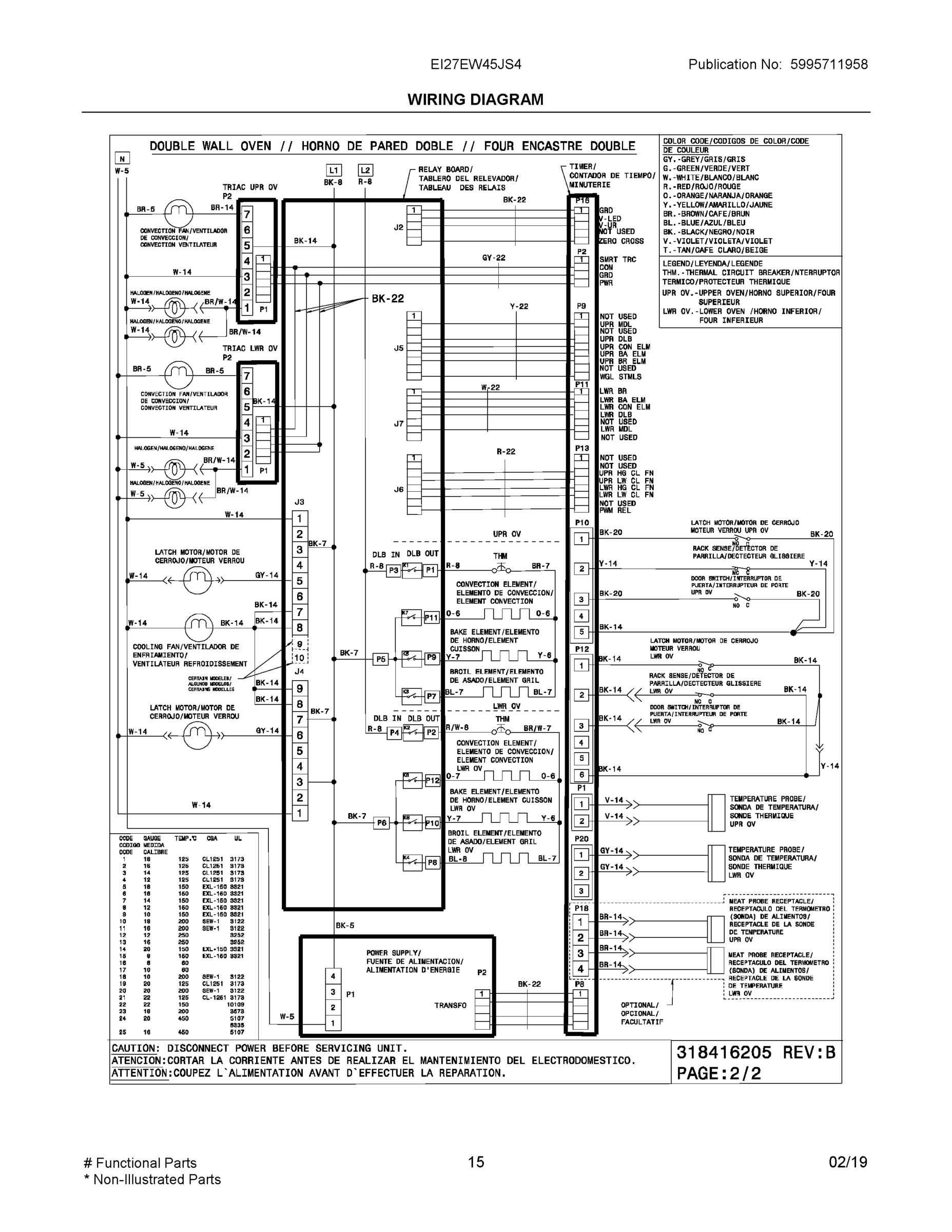

07 - WIRING DIAGRAM
Common parts from model Electrolux EI27EW45JS4 WALL OVEN, ELECTRIC, DOUBLE, 27 INCH
4
GLASS ASSY., UPPER DOOR, BLACK/STAINLESS, W/B WCI 318299507 Contact Us For Availability
4A
GLASS ASSY., LOWER DOOR, BLACK/STAINLESS WCI 318299508 Contact Us For Availability
4B
TRIM, DOOR, BLACK, BOTTOM WCI 318901803 Contact Us For Availability
6
DEFLECTOR, DOOR WCI 318901001 Contact Us For Availability
6A
RACK, BROILER PAN WCI 318365800 Contact Us For Availability
6B
SHELF, OVEN WCI 318908002 Contact Us For Availability
7
INSULATION, DOOR WCI 318372013 Contact Us For Availability
8
GLASS, OVEN DOOR, HEAT BARRIER WCI 318212200 Contact Us For Availability
9
LINER, OVEN DOOR WCI 318900816 Contact Us For Availability
10
SCREW, MACHINE, 10-24X29/32, (2) WCI 5304477736 Contact Us For Availability
11
RACK, OVEN SHELF, (2) WCI 318903300 Contact Us For Availability
12
GASKET, OVEN DOOR SEAL WCI 318053136 Contact Us For Availability
13
BRACKET, LADDER MTG., (4) WCI 318603913 Contact Us For Availability
15
LAMP, OVEN, (2), HALOGEN WCI 318241006 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264701 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, ES630 WCI 316576657 Contact Us For Availability
20
PLATE, RETAINER WCI 318389400 Contact Us For Availability
20
SPACER, HANDLE, GREY, (2) WCI 318902902 Contact Us For Availability
23
HINGE, OVEN DOOR WCI 318586004 Contact Us For Availability
39
HANDLE, DOOR, STAINLESS WCI 241881303 Contact Us For Availability
52
TRIM, DOOR, BLACK, UPPER WCI 318901603 Contact Us For Availability
56
SCREW, 8-18 X 3/8 WCI 5304476599 Contact Us For Availability
64
SPACER, PAD WCI 5304455945 Contact Us For Availability
80
PLATE, OVEN MTG WCI 5303320846 Contact Us For Availability
81
SPRING, OVEN WCI 318192400 Contact Us For Availability
82
SHIELD, INSULATION, LOWER WCI 318258774 Contact Us For Availability
83
LINER, OVEN ASSY WCI 318261510 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318241408 No Longer Available
87
BRACKET, CABLE MTG. WCI 318260623 Contact Us For Availability
88
ROD, LATCH WCI 318376505 Contact Us For Availability
90
TRIM, OVEN BOTTOM, STAINLESS WCI 318903504 Contact Us For Availability
99
BRACKET, SIDE, BOTTOM, (2) WCI 318256203 Contact Us For Availability
108
MOTOR, COOLING FAN WCI 318575604 Contact Us For Availability
127
ADAPTER ASSEMBLY, VENT TUBE, W/CONVERTER WCI 318317105 Contact Us For Availability
140
BRACKET, HOLDING WCI 318399310 Contact Us For Availability
142
DEFLECTOR WCI 318123910 Contact Us For Availability
163
SPACER WCI 318531703 Contact Us For Availability
264
WCI 318257851 WCI 318257851 Contact Us For Availability
272
WCI 318249409 WCI 318249409 Contact Us For Availability
NI
WCI 318231870 WCI 318231870 Contact Us For Availability
NI
WCI 5304417153 WCI 5304417153 Contact Us For Availability
NI
WCI 316095800 WCI 316095800 Contact Us For Availability
NI
WCI 318199787 WCI 318199787 Contact Us For Availability
NI
WCI 318268004 WCI 318268004 Contact Us For Availability
NI
WCI 318572779 WCI 318572779 Contact Us For Availability
NI
WCI 5304400192 WCI 5304400192 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL WCI 318163602 Contact Us For Availability
NI
INSULATION, .125 THICK, 3.125 X 8, (2) WCI 318346060 Contact Us For Availability
NIA
WCI 5304456367 WCI 5304456367 Contact Us For Availability
NIA
WCI 5304435874 WCI 5304435874 Contact Us For Availability
NIA
SCREW, HINGE/RECPT MTG WCI 5304481623 Contact Us For Availability
× ![]()
