Model Electrolux EI24ID81SS4A DISHWASHER, BUILT-IN, 24 INCH – Common Parts & Diagrams

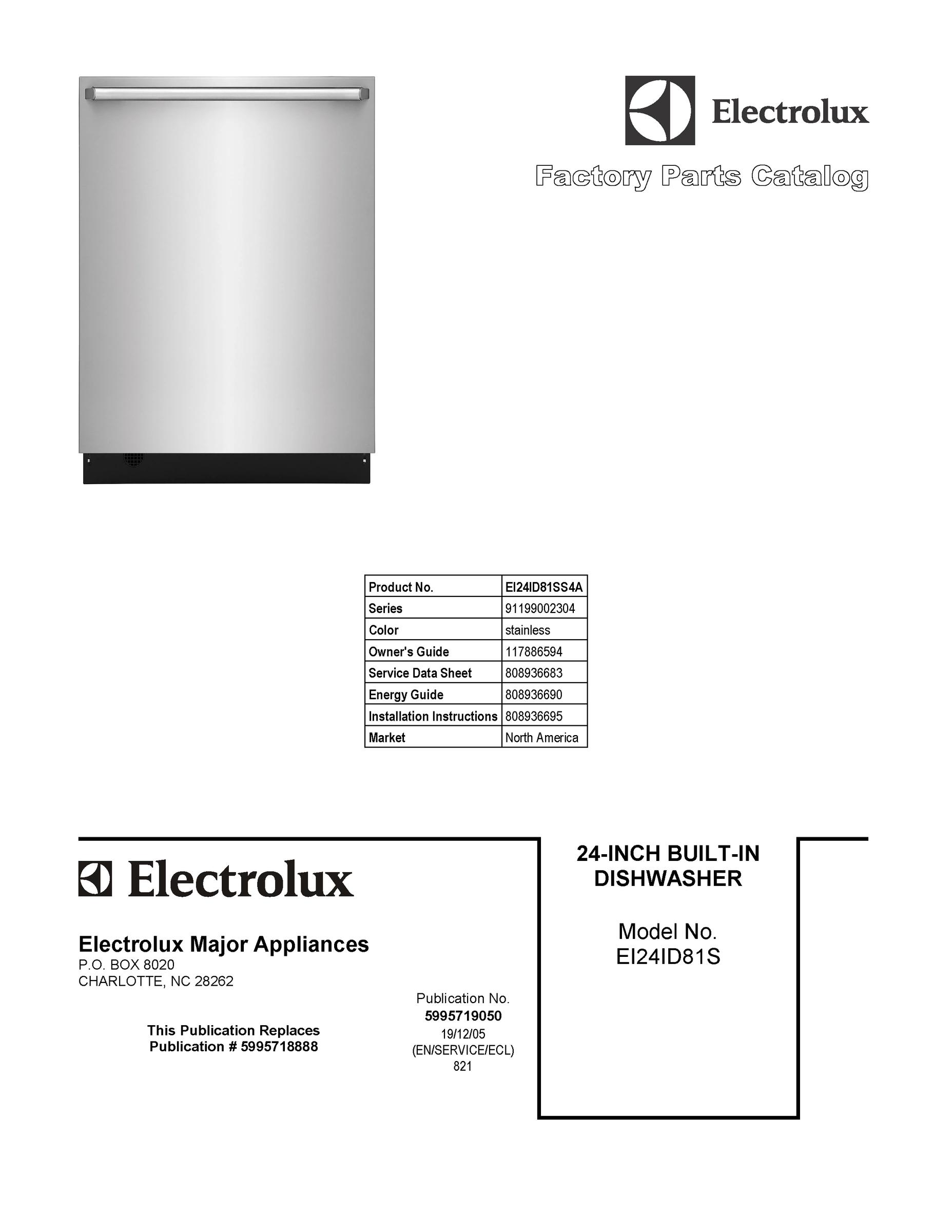

01 - COVER SHEET

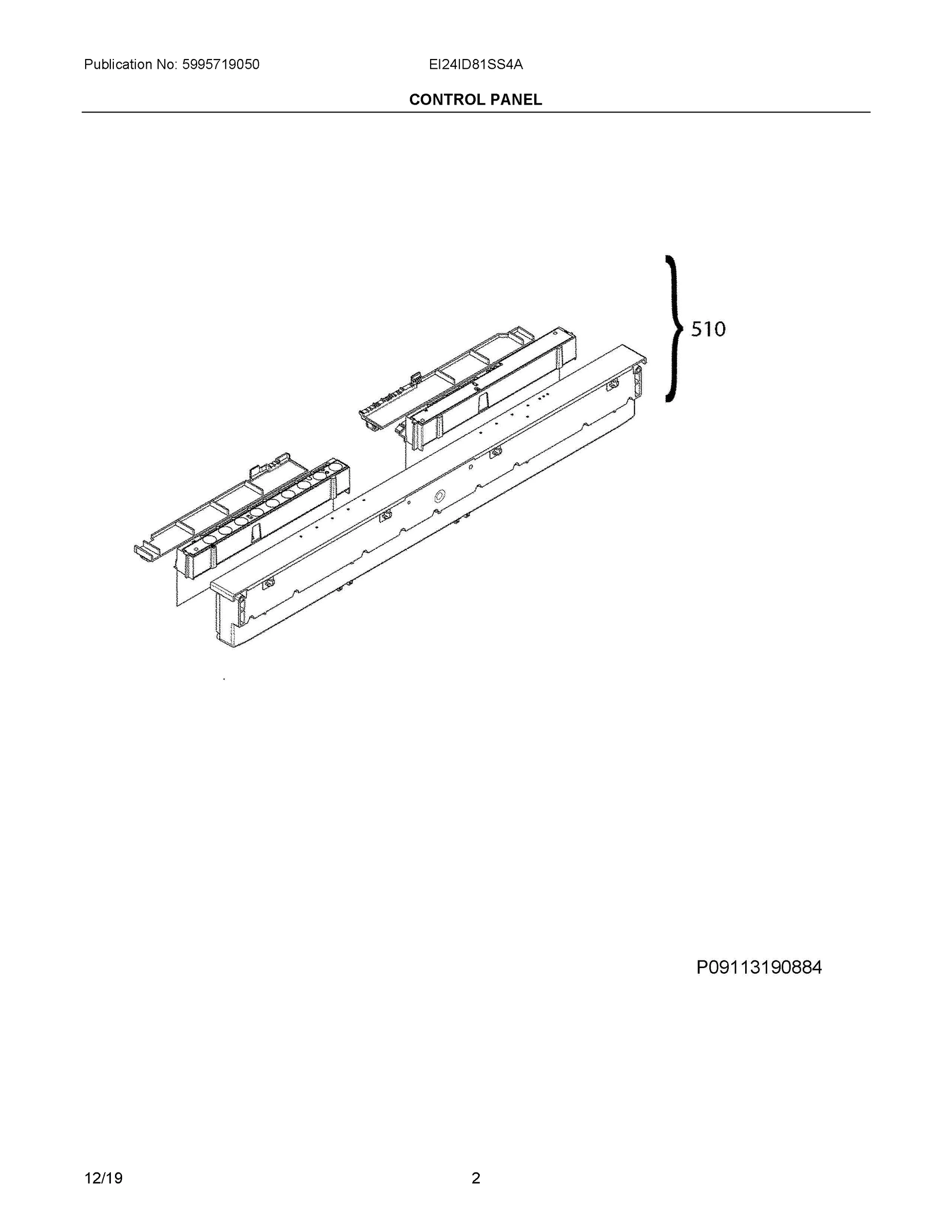

02 - CONTROL PANEL
03 - DOOR
04 - ELECTRICAL PARTS
05 - WASH SYSTEM
06 - TUB & FRAME
07 - RACKS
08 - WIRING DIAGRAM
Common parts from model Electrolux EI24ID81SS4A DISHWASHER, BUILT-IN, 24 INCH
6
PUMP ASSEMBLY, CIRCULATION, W/HEATER WCI A00223923 Contact Us For Availability
12
SWITCH, PRESSURE WCI A00055408 Contact Us For Availability
110A
TUBING, CONTAINER CUP, TO FILL VALVE WCI 807526501 Contact Us For Availability
110B
HOSE, WATER TANK, L=380 MM, BASEMENT WCI 117281425 Contact Us For Availability
110C
HOSE, SUMP, L=361 MM, WATER TANK WCI A01256402 Contact Us For Availability
111
HOUSING ASSEMBLY, VENTILATOR, COMPLETE WCI 5304509259 Contact Us For Availability
112
HOSE, DRAIN WCI 807032601 Contact Us For Availability
113
AIR DUCT, ASSEMBLY, DRYING WCI 405537600 Contact Us For Availability
113A
OUTLET, VENTILATION, DARK GREY, TUB WCI A06525801 Contact Us For Availability
115R
BRIDGE, LOWER BASKET, RH WCI A11462602 Contact Us For Availability
130
SEAL, DOOR WCI 117158011 Contact Us For Availability
130
O-RING, SUMP WCI 111918600 Contact Us For Availability
130A
SEAL, CHANNEL, DRAINAGE WCI A00045701 Contact Us For Availability
132
SUPPORT, SPRAY ARM, DARK GREY, LOWER WCI A11243702 Contact Us For Availability
135A
DUCT, GREY WCI A00060302 Contact Us For Availability
139A
SPRAY ARM, MIDDLE, DARK GREY WCI A05814602 Contact Us For Availability
139B
SPRAY ARM, GREY, UPPER WCI 807382106 Contact Us For Availability
139D
BEARING, SPRAY ARM, UPPER WCI 807035801 Contact Us For Availability
139E
NUT, SPRAY ARM, UPPER WCI 807240301 Contact Us For Availability
140
WATER TANK, SMALL WCI A01087405 Contact Us For Availability
143
ADJUSTMENT KIT, UPPER RACK, LH & RH WCI 405541617 Contact Us For Availability
145
MANIFOLD, DELIVERY TUBE, INNER WCI A00023201 Contact Us For Availability
146
ARM ASSEMBLY, BOTTLE WASH, 4 PLACE WCI 807008602 Contact Us For Availability
155A
FLAPPER, VALVE, D23, 2MM, WATER SUMP WCI A00053601 Contact Us For Availability
155B
SCREEN, SUMP WCI 111917701 Contact Us For Availability
160
REGULATOR, FLOW CONTROL WCI A00001202 Contact Us For Availability
170
INSULATION KIT, KICKPLATE WCI 405537597 Contact Us For Availability
170B
OUTLET, VENTILATION, KICKPLATE WCI A05936001 Contact Us For Availability
260A
CLAMP, PUMP, FLOW REGULATOR WCI 807868902 Contact Us For Availability
260C
CLAMP, PUMP, SUMP WCI 807868903 Contact Us For Availability
260J
CLAMP, DRAIN HOSE WCI 807868901 Contact Us For Availability
301
TRAY, BOTTOM WCI 807104203 Contact Us For Availability
302
COVER, ELECTRONICS WCI A00075002 Contact Us For Availability
303
BASE, LOWER, REAR WCI A01868606 Contact Us For Availability
305
WCI 117495162 WCI 117495162 Contact Us For Availability
311
LINER, DOOR WCI A00010702 Contact Us For Availability
319A
RACK ASSEMBLY, UPPER, SILVER WCI A00239833 Contact Us For Availability
319B
RACK, TOP, SILVER WCI A00004305 Contact Us For Availability
319C
RACK ASSEMBLY, COMPLETE, SILVER, UPPER, W/ADJ WCI 117492540 Contact Us For Availability
320
GRILL, VAPOR OUTLET, DARK GREY WCI 152627221 Contact Us For Availability
322
CROSSBAR, FRONT, ZINC, TOP WCI A00166801 Contact Us For Availability
327
CLIP, RIVET WCI 117427700 Contact Us For Availability
330
WCI 152661702 WCI 152661702 Contact Us For Availability
330A
FOOT, ADJUSTABLE, CENTRAL WCI 117363200 Contact Us For Availability
335
COG, WHEEL WCI 152714200 Contact Us For Availability
342D
BASKET, CUTTLERY, GREY, SHELF WCI A02899201 Contact Us For Availability
344
DOOR LOCK, ASSEMBLY WCI 111315040 Contact Us For Availability
344
LATCH WCI 152234405 Contact Us For Availability
502
BLOWER ASSEMBLY, RADIAL WCI A05660402 Contact Us For Availability
505A
TRIM, SIDE, L=648MM WCI 808470401 Contact Us For Availability
510
CONTROL PANEL, ASSEMBLY, BLACK, COMPLETE WCI 117512400 Contact Us For Availability
520
FLANGE, DISCHARGE HOSE WCI 807201901 Contact Us For Availability
523
ROLLER ASSEMBLY, KIT, TUB WCI 405526079 Contact Us For Availability
523B
HOLDER, ROLLER, STIFFENING WCI 152122010 Contact Us For Availability
523G
HOLDER, STIFFENING, TOP, ROLLER WCI A00204701 Contact Us For Availability
530
RACK ROLLER, KIT, LOWER WCI 405507213 Contact Us For Availability
530
HANDLE, DOOR, STAINLESS WCI 241881325 Contact Us For Availability
531
SCREW, FOOT ADJUSTING, CENTRAL WCI A00021003 Contact Us For Availability
531
SCREW, HANDLE MTG., (2) WCI 154633601 Contact Us For Availability
552
RAIL, UPPER RACK WCI A00212701 Contact Us For Availability
567
BRACKET, LATCH WCI 152323603 Contact Us For Availability
580A
FIXING CLAMP, PARTITION, UPPER WCI A00141702 Contact Us For Availability
580B
CLIP, PARTITION, LOWER RACK WCI 807282902 Contact Us For Availability
581A
PARTITION, UPPER RACK, LH WCI A00237001 Contact Us For Availability
581D
PARTITION, LOWER RACK WCI A06542001 Contact Us For Availability
582
BOX, JUNCTION WCI A03987801 Contact Us For Availability
582A
COVER, JUNCTION BOX WCI A03337103 Contact Us For Availability
587
CONTROL ASSEMBLY, CONFIGURED, PB100 WCI 117499402 Contact Us For Availability
597
STOP, RACK RAIL, DARK GREY, FRONT WCI 152047941 Contact Us For Availability
597A
STOP, RACK RAIL, DARK GREY, REAR WCI 646123406 Contact Us For Availability
597B
STOP, RACK, REAR, TOP RACK WCI 807070701 Contact Us For Availability
NI
MOUNTING KIT, BUILT-IN, W/SCREWS, & BRACKETS WCI 405531515 Contact Us For Availability
NI
HARNESS, WIRING, PCB, HEATER WCI 807555203 Contact Us For Availability
NI
HARNESS, WIRING, UI BOARD, CONNECTION WCI A02719801 Contact Us For Availability
NI
HARNESS, WIRING, PCB, MAIN WCI A04233303 Contact Us For Availability
× ![]()
