Model Electrolux EI24BC10QS0 REFRIGERATOR, BEVERAGE CENTER – Common Parts & Diagrams
01 - COVER SHEET

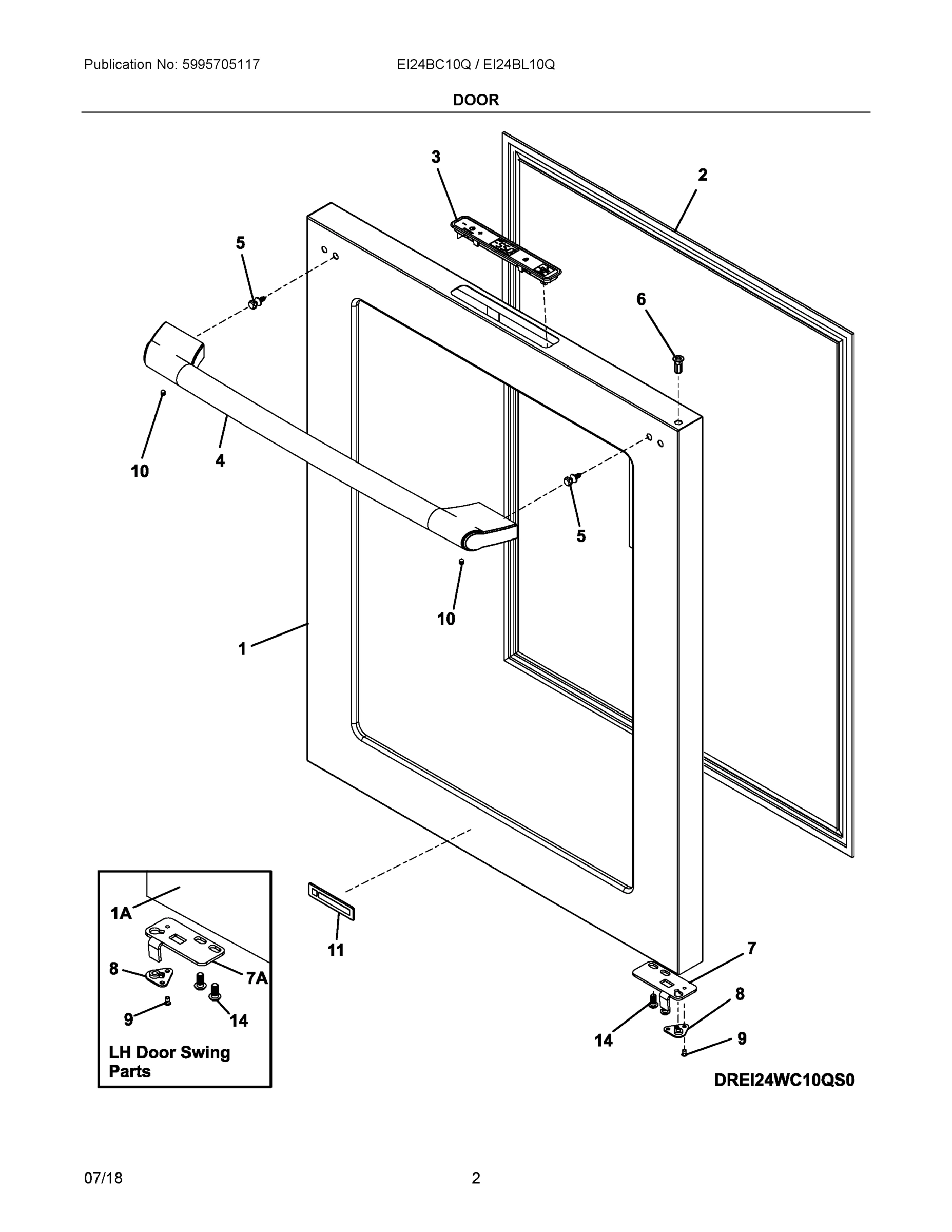

02 - DOOR

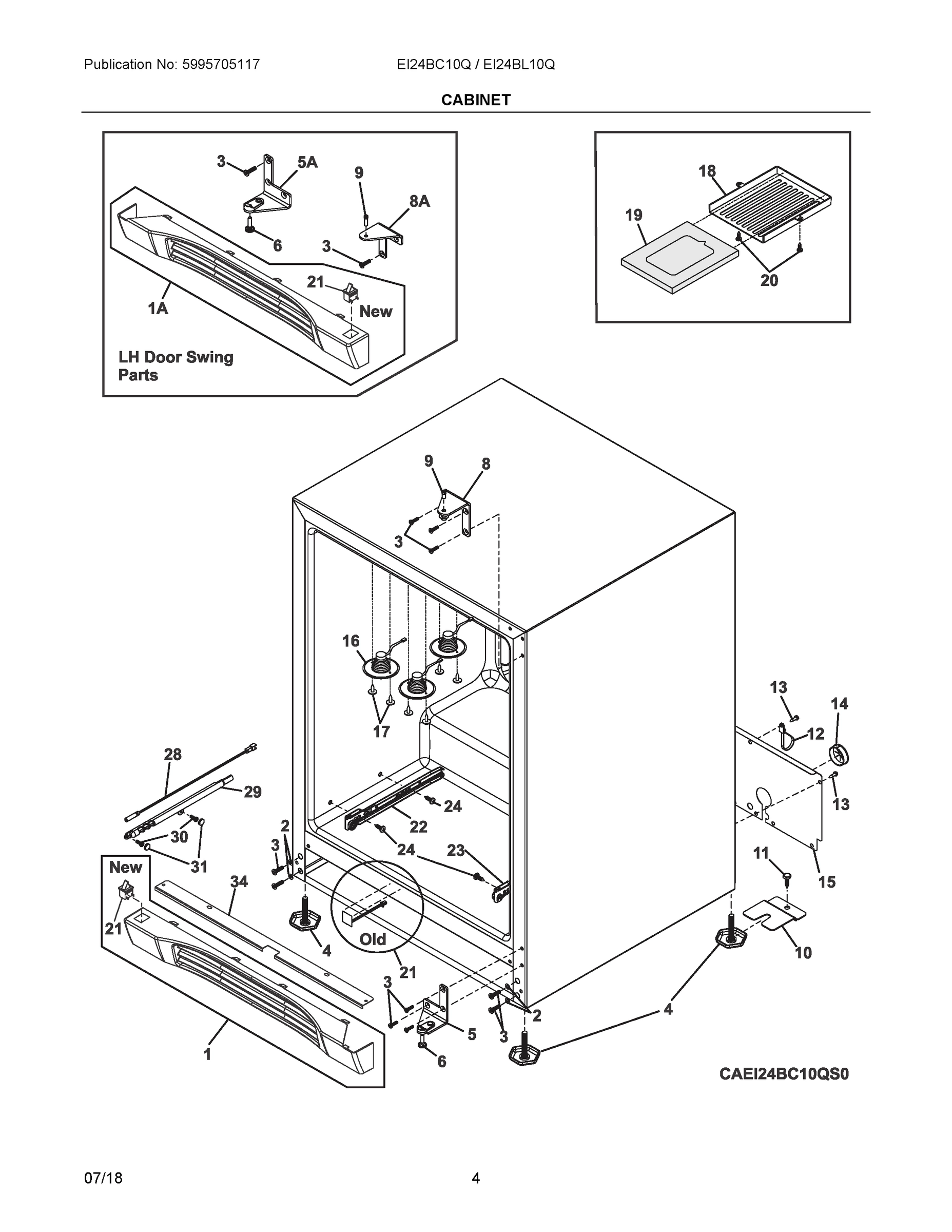

03 - CABINET

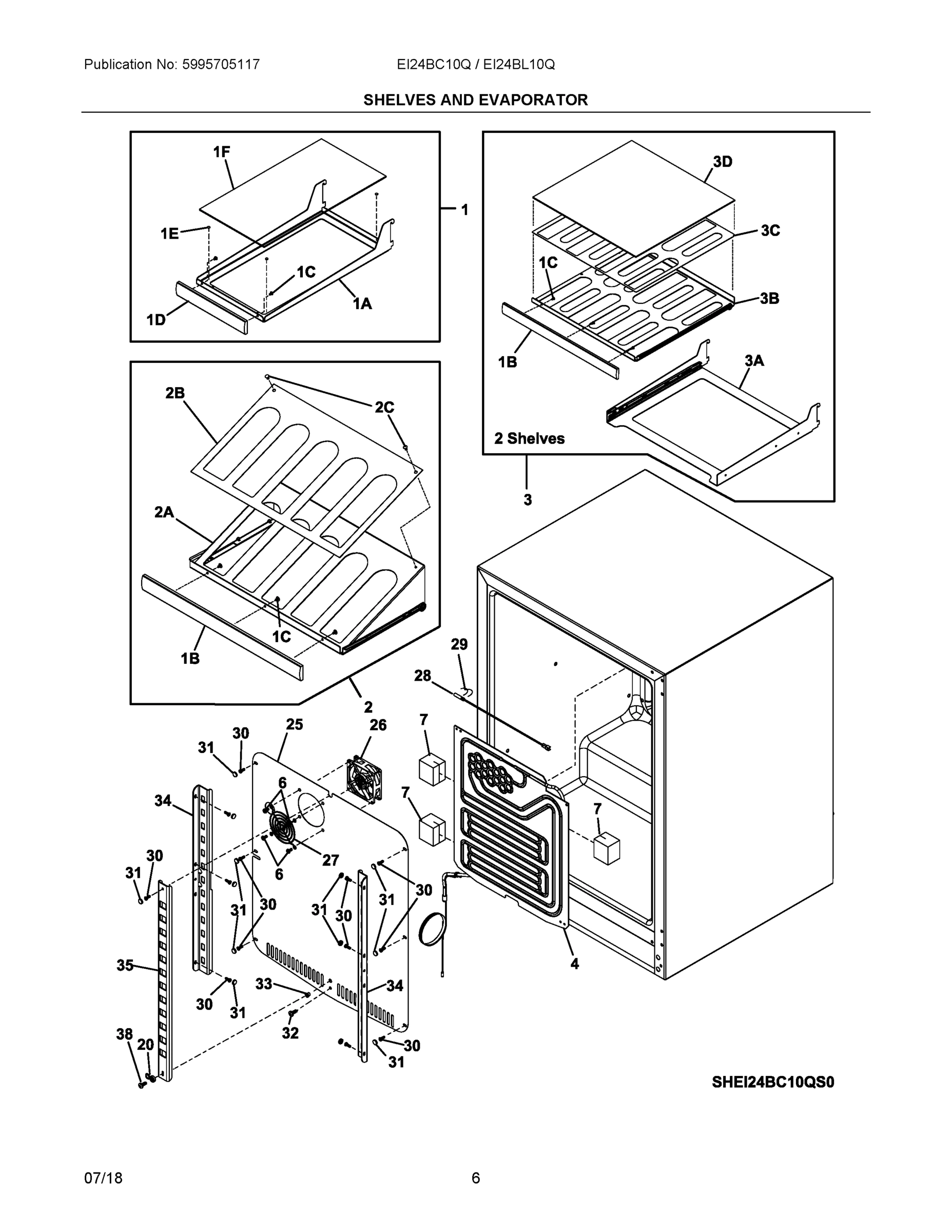

04 - SHELVES AND EVAPORATOR

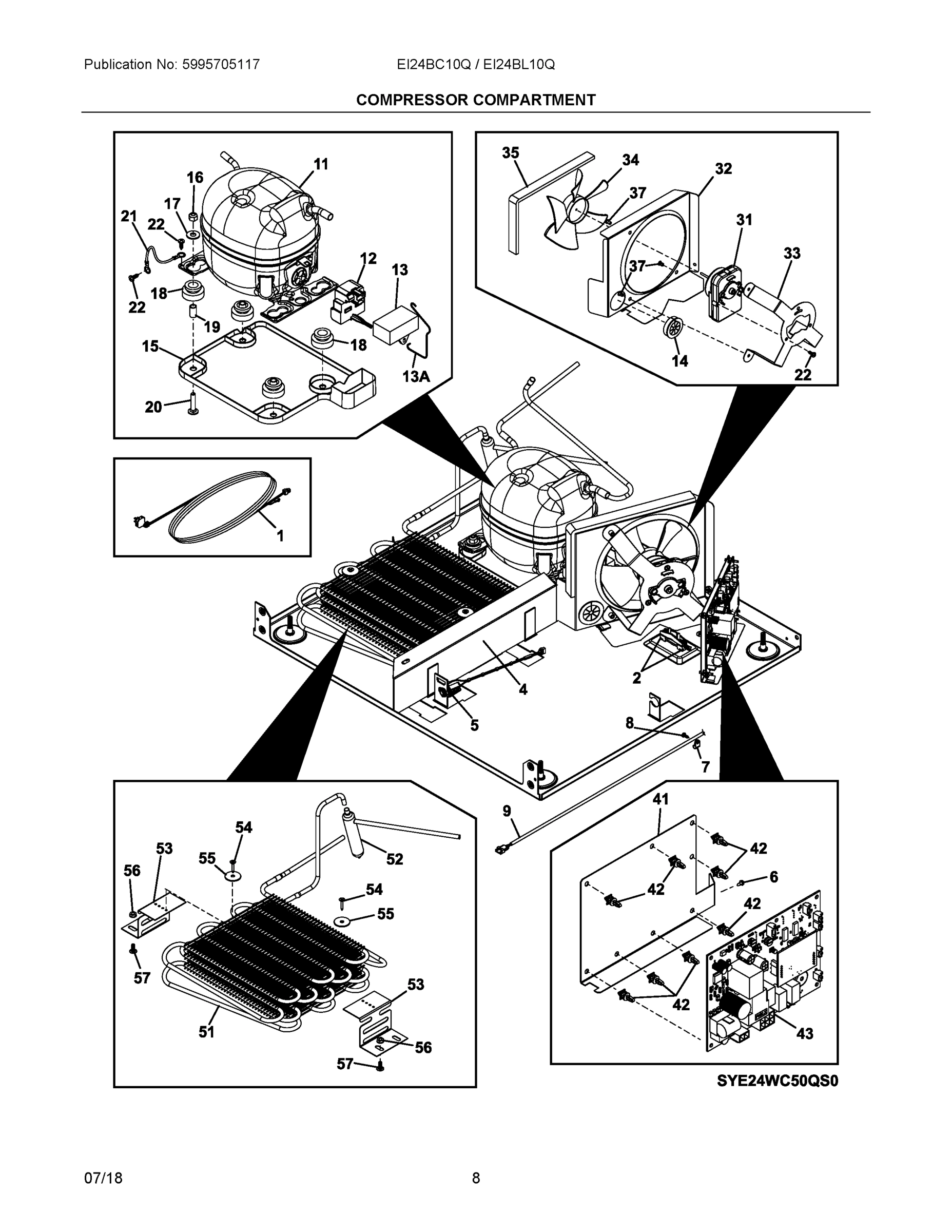

05 - COMPRESSOR COMPARTMENT

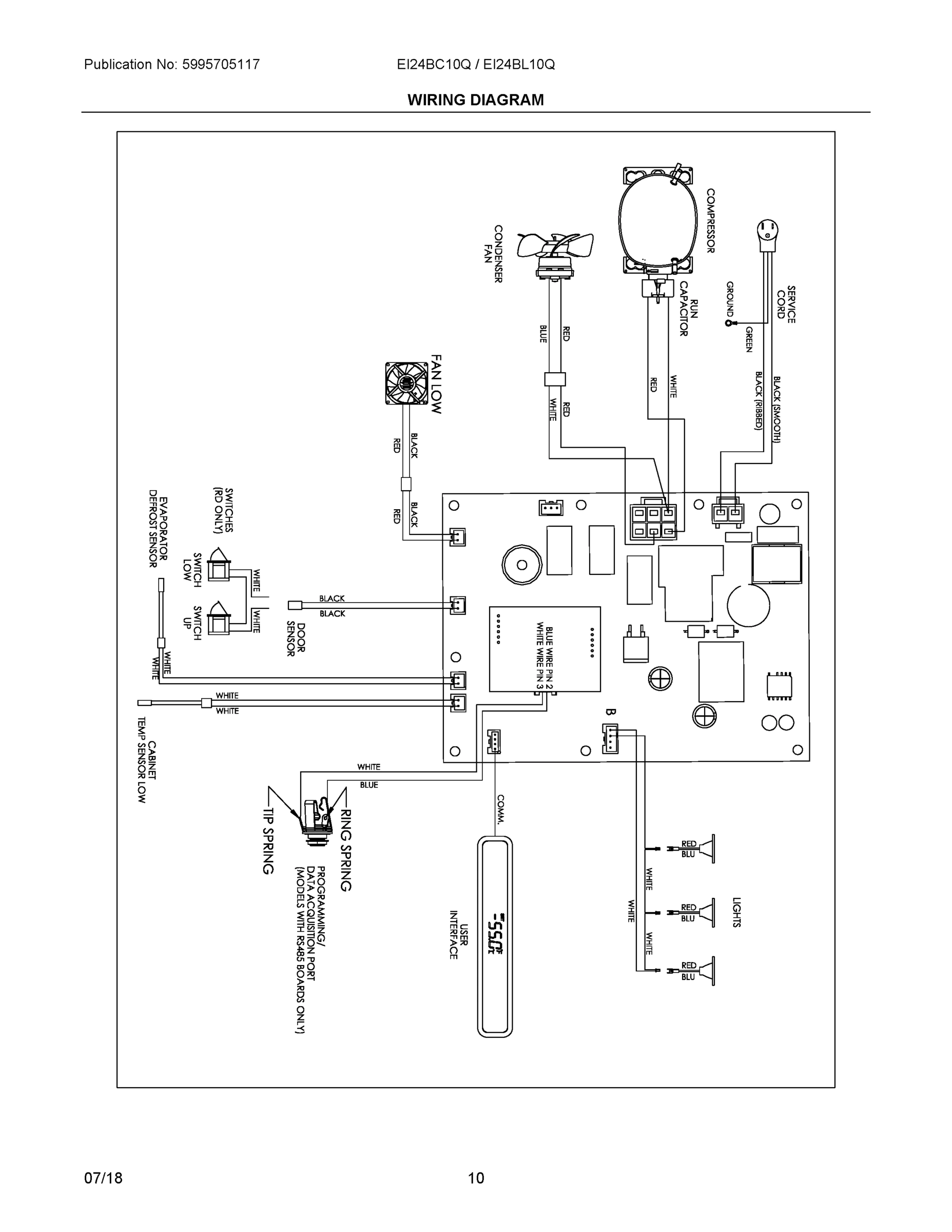

06 - WIRING DIAGRAM
Common parts from model Electrolux EI24BC10QS0 REFRIGERATOR, BEVERAGE CENTER
1
WCI 5304518412 WCI 5304518412 Contact Us For Availability
1
SHELF ASSEMBLY, HALF, COMPLETE, W/GLASS WCI 5304496861 Contact Us For Availability
1
CORD, POWER WCI 5304496763 Contact Us For Availability
1A
SHELF FRAME, HALF WCI 5304496862 Contact Us For Availability
1B
TRIM, SHELF WCI 5304496852 Contact Us For Availability
1D
TRIM, HALF SHELF WCI 5304496863 Contact Us For Availability
1E
BUMPER, SHELF WCI 5304496864 Contact Us For Availability
1F
GLASS, HALF SHELF WCI 5304496865 Contact Us For Availability
2
GASKET, MAGNETIC, BLACK WCI 5304496807 Contact Us For Availability
2
SHELF ASSEMBLY, DISPLAY, COMPLETE, W/MAT WCI 5304496854 Contact Us For Availability
2
CLAMP, POWER CORD, W/SCREWS WCI 5304496764 Contact Us For Availability
2A
FRAME ASSEMBLY, DISPLAY SHELF WCI 5304496855 Contact Us For Availability
2B
MAT, DISPLAY SHELF, BLACK WCI 5304496856 Contact Us For Availability
2C
PLUG, BUTTON WCI 5304496857 Contact Us For Availability
3
USER INTERFACE, ASSEMBLY WCI 5304496847 Contact Us For Availability
3
SHELF ASSEMBLY, FULL, COMPLETE, W/GLASS & MAT WCI 5304496866 Contact Us For Availability
3A
SHELF FRAME, FULL WCI 5304496867 Contact Us For Availability
3B
SHELF ASSEMBLY, FULL WCI 5304496868 Contact Us For Availability
3C
MAT, FULL SHELF, BLACK WCI 5304496869 Contact Us For Availability
3D
GLASS, FULL SHELF WCI 5304496870 Contact Us For Availability
4
HANDLE, DOOR/DRAWER, STAINLESS WCI 5304496717 Contact Us For Availability
4
BAFFLE, AIR WCI 5304496765 Contact Us For Availability
5
HINGE, DOOR BOTTOM, RH SWING WCI 5304496819 Contact Us For Availability
5
PORT, DATA AQUISITION WCI 5304496766 Contact Us For Availability
6
PIN, BOTTOM HINGE WCI 5304496821 Contact Us For Availability
6
SCREW, PH PAN HEAD, #10-24 X 3/8" WCI 5304496871 Contact Us For Availability
6
SCREW, HEX WASHER HEAD, #10 X 1/2" WCI 5304496732 Contact Us For Availability
7
SUPPORT, EVAPORATOR, FOAM BLOCK WCI 5304496757 Contact Us For Availability
7
CLAMP, "P" STYLE WCI 5304496748 Contact Us For Availability
8
CAM, FOLLOWER, DOOR CLOSER WCI 5304496812 Contact Us For Availability
8
SCREW, PH PAN HEAD, #8-21 X 1/4" WCI 5304496842 Contact Us For Availability
10
SCREW, SET, #10-32 X 1/4", CONE POINT WCI 5304496722 Contact Us For Availability
11
COMPRESSOR WCI 5304496767 Contact Us For Availability
13
CAPACITOR, RUN WCI 5304496769 Contact Us For Availability
13A
STRAP, BAIL WCI 5304496770 Contact Us For Availability
14
GROMMET, HEYCO WCI 5304496738 Contact Us For Availability
15
DRAIN PAN, DEFROST WCI 5304496771 Contact Us For Availability
16
NUT, LOCK, 1/4-20 HEX WCI 5304496772 Contact Us For Availability
17
SCREW, PH FLAT HEAD, #4 X 1/2" WCI 5304496740 Contact Us For Availability
17
WASHER, FLAT WCI 5304496773 Contact Us For Availability
18
HOUSING, AIR FILTER WCI 241904001 Contact Us For Availability
18
GROMMET WCI 5304496774 Contact Us For Availability
19
SLEEVE WCI 5304496775 Contact Us For Availability
20
SCREW, TP AB TRUSS HD, #8 X 5/8" WCI 5304496741 Contact Us For Availability
20
COVER, SCREW, PLASTIC, BLACK WCI 5304496839 Contact Us For Availability
20
BOLT, CARRIAGE, 1/4-20 X 1-1/4" WCI 5304496776 Contact Us For Availability
21
SENSOR, DOOR, OLD PART WCI 5304496827 Contact Us For Availability
21
WIRE, GROUND WCI 5304496777 Contact Us For Availability
21A
SWITCH, ROCKER, NEW PART OF KIT WCI 5304507946 Contact Us For Availability
22
SLIDE, OUTER, 250MM, LH WCI 5304496828 Contact Us For Availability
23
SLIDE, OUTER, 250MM, RH WCI 5304496829 Contact Us For Availability
25
COVER, EVAPORATOR COIL, BLACK WCI 5304496840 Contact Us For Availability
26
MOTOR, EVAPORATOR FAN WCI 5304496760 Contact Us For Availability
27
GUARD, FAN WCI 5304496761 Contact Us For Availability
29
COVER, SENSOR, BLACK WCI 5304496831 Contact Us For Availability
29
CABLE TIE WCI 5304496755 Contact Us For Availability
30
SCREW, KAPPET, #8-18 X 1" WCI 5304496762 Contact Us For Availability
31
MOTOR, FAN WCI 5304496779 Contact Us For Availability
31
CAP, SNAP, BLACK WCI 5304496832 Contact Us For Availability
32
SHROUND, FAN MOTOR WCI 5304496780 Contact Us For Availability
33
RIVNUT, HEX, #10-32 WCI 5304496841 Contact Us For Availability
33
BRACKET, FAN MOTOR MTG. WCI 5304496781 Contact Us For Availability
34
BRACKET, GRILLE, BLACK WCI 5304496742 Contact Us For Availability
34
LADDER, SHELF, BLACK, SIDES WCI 5304496872 Contact Us For Availability
34
BLADE, FAN MOTOR WCI 5304496782 Contact Us For Availability
35
PAD, FOAM WCI 5304496783 Contact Us For Availability
35
LADDER, SHELF, BLACK, CENTER WCI 5304496873 Contact Us For Availability
37
RIVET, POP, 3/16", STEEL WCI 5304496784 Contact Us For Availability
38
SCREW, MACHINE, #10-32 X 3/4" WCI 5304496874 Contact Us For Availability
41
BRACKET, PC BOARD MTG. WCI 5304496785 Contact Us For Availability
42
STANDOFF, CONTROL BOARD WCI 5304496786 Contact Us For Availability
43
CONTROL BOARD, ASSEMBLY, MAIN WCI 5304498729 Contact Us For Availability
51
CONDENSER, TUBE AND WIRE WCI 5304496788 Contact Us For Availability
52
DRIER, FILTER WCI 5304496789 Contact Us For Availability
53
BRACKET, CONDENSER MTG. WCI 5304496790 Contact Us For Availability
54
SCREW, TP AB FLAT HEAD, #8 X 3/4" WCI 5304496791 Contact Us For Availability
55
WASHER, FLAT, 7/32"ID X 1"OD WCI 5304496792 Contact Us For Availability
56
NUT, HEX, #10-24 WCI 5304496793 Contact Us For Availability
57
BOLT, CARRIAGE, #10-24 X 1/2" WCI 5304496794 Contact Us For Availability
× ![]()
