Model Electrolux EI12BF25US REFRIGERATOR, BOTTOM FREEZER – Common Parts & Diagrams

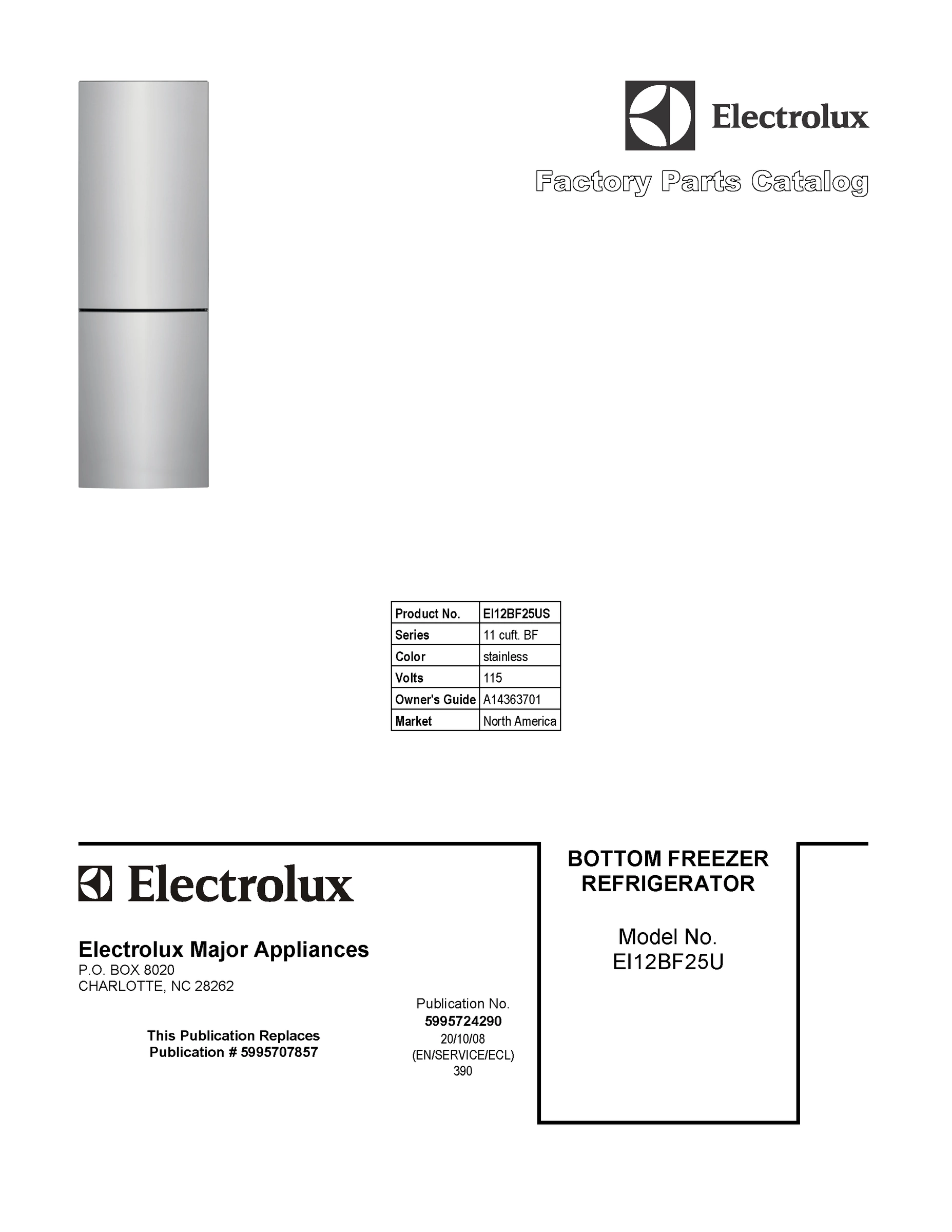

01 - COVER SHEET

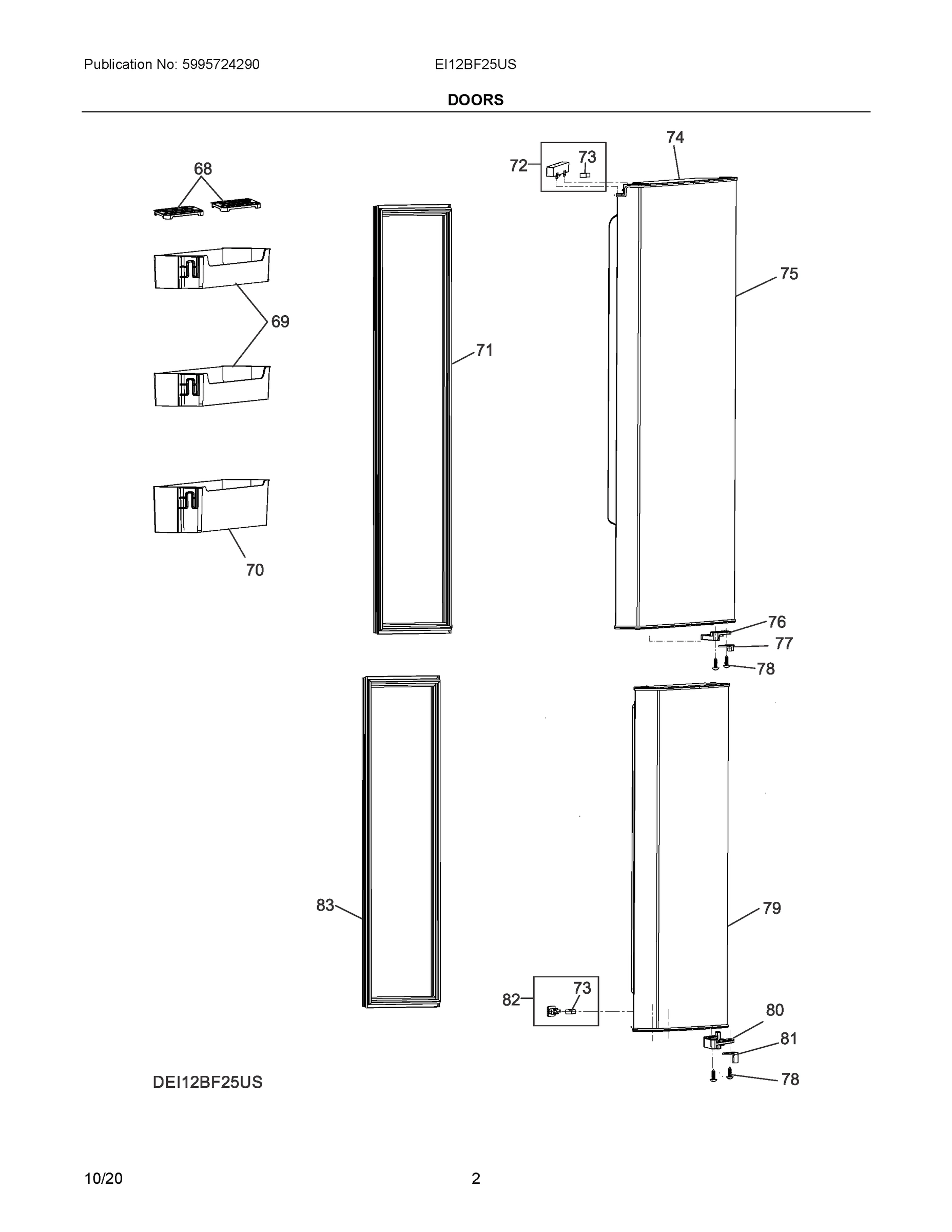

02 - DOORS

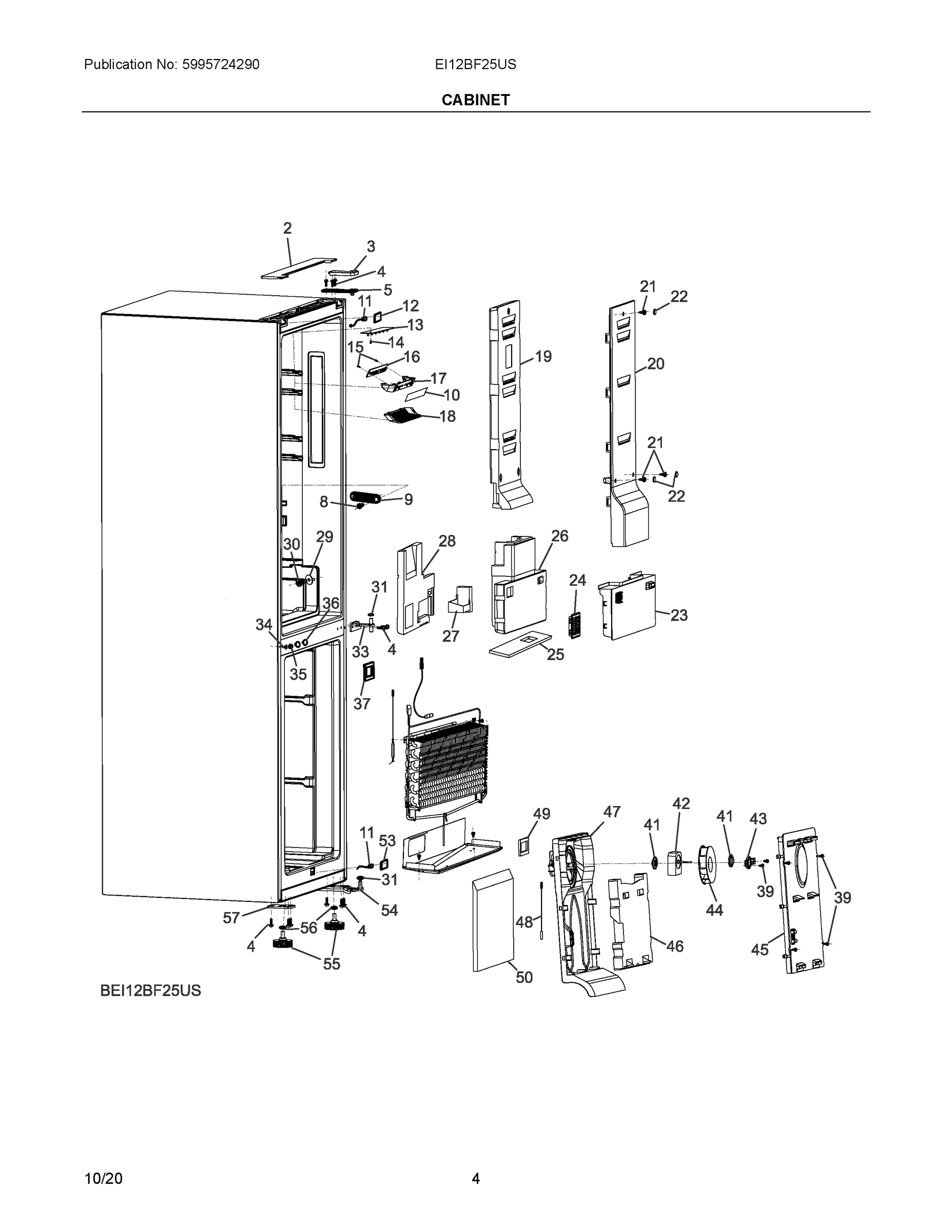

03 - CABINET

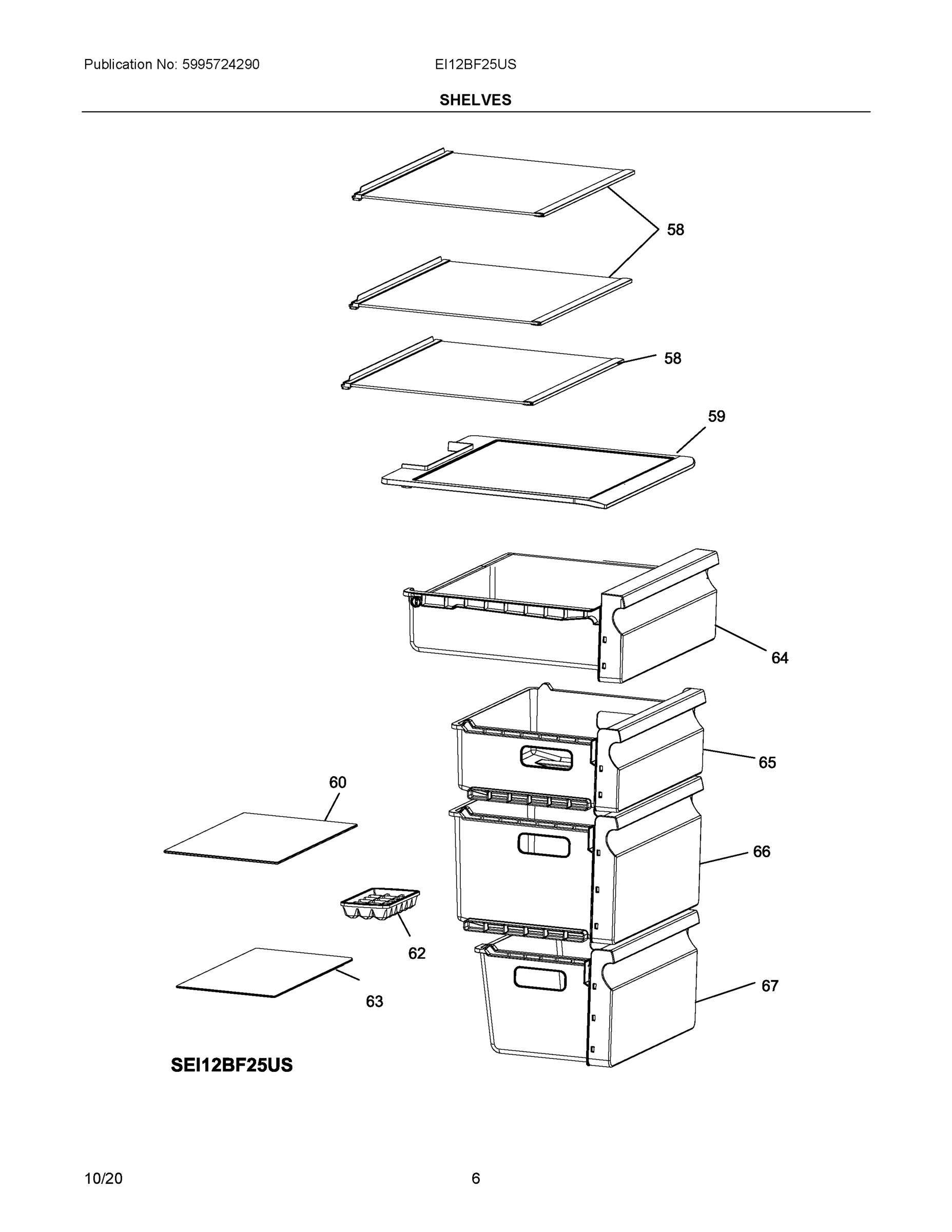

04 - SHELVES

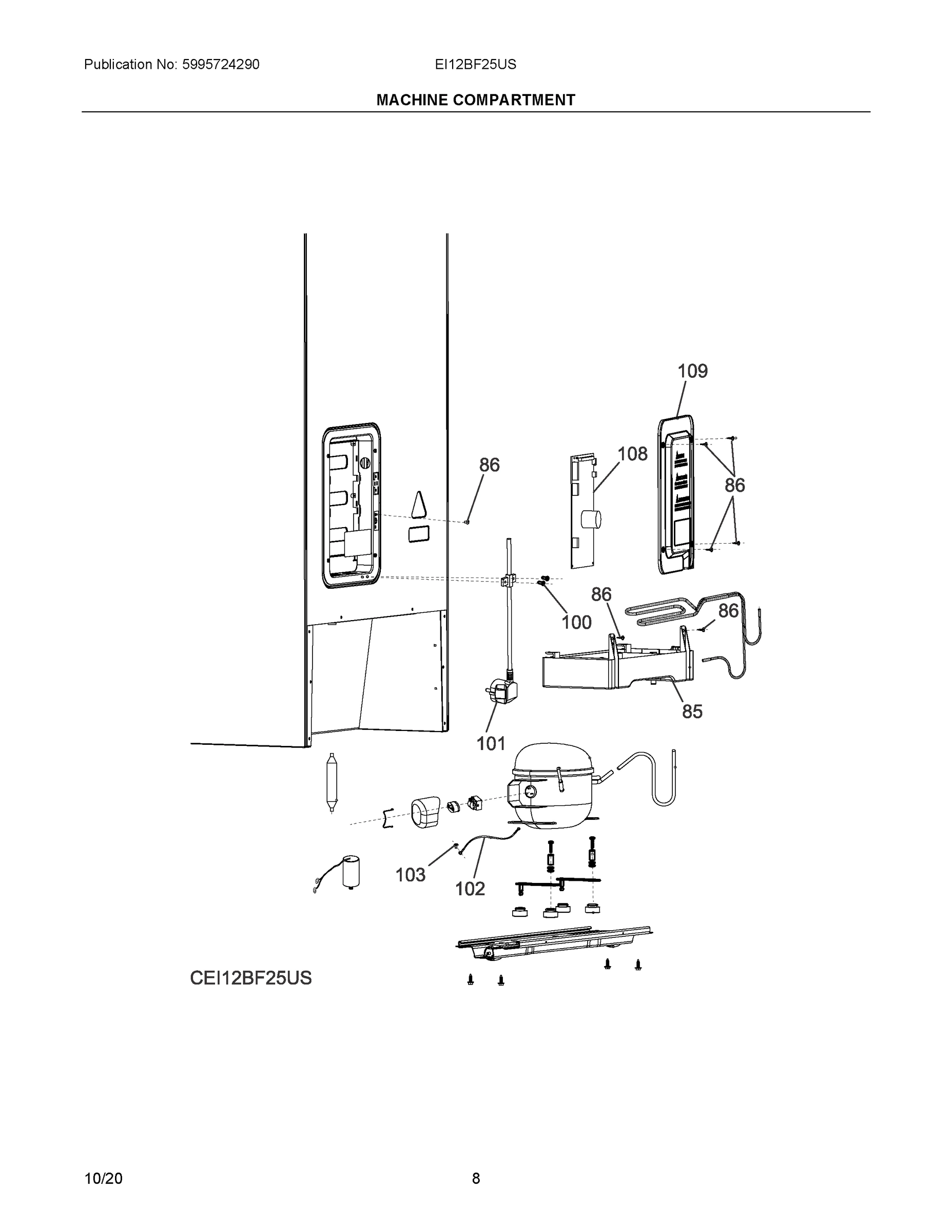

05 - MACHINE COMPARTMENT
Common parts from model Electrolux EI12BF25US REFRIGERATOR, BOTTOM FREEZER
2
COVER, CABINET, UPPER WCI 5304519529 Contact Us For Availability
3
COVER, UPPER HINGE, RH SWING WCI 5304519530 Contact Us For Availability
5
HINGE, DOOR, UPPER WCI 5304519533 Contact Us For Availability
8
SCREW, SELF TAPPING WCI 5304519534 Contact Us For Availability
10
OVERLAY, BUTTON DISPLAY WCI 5304519536 Contact Us For Availability
12
COVER, REED SWITCH, LH UPPER WCI 5304519538 Contact Us For Availability
13
LAMP, LED WCI 5304519540 Contact Us For Availability
17
HOUSING, DISPLAY BOARD WCI 5304519544 Contact Us For Availability
18
COVER, LAMP WCI 5304519545 Contact Us For Availability
19
INSULATION, AIR DUCT, UPPER WCI 5304519546 Contact Us For Availability
20
COVER, AIR DUCT, UPPER WCI 5304519547 Contact Us For Availability
21
SCREW, SELF TAPPING, (3) WCI 5304519548 Contact Us For Availability
22
COVER, SCREW HOLE, (3) WCI 5304519549 Contact Us For Availability
23
COVER, AIR DUCT, LOWER WCI 5304519550 Contact Us For Availability
24
COVER, AIR RETURN, FRESH FOOD WCI 5304519551 Contact Us For Availability
25
SEAL, AIR DUCT, LOWER WCI 5304519552 Contact Us For Availability
28
INSULATION, DAMPER WCI 5304519555 Contact Us For Availability
30
ROLLER, DRAWER, (2) WCI 5304519557 Contact Us For Availability
34
SCREW, SELF TAPPING WCI 5304519560 Contact Us For Availability
35
COVER, SCREW HOLE WCI 5304519561 Contact Us For Availability
36
COVER, SCREW HOLE, (2) WCI 5304519562 Contact Us For Availability
37
WASHER, SEALING WCI 5304519563 Contact Us For Availability
41
GROMMET, FAN MOTOR, (2) WCI 5304519565 Contact Us For Availability
43
SUPPORT, FAN MOTOR WCI 5304519567 Contact Us For Availability
44
BLADE, FAN WCI 5304519568 Contact Us For Availability
45
COVER, AIR DUCT, FREEZER WCI 5304519569 Contact Us For Availability
46
INSULATION, AIR DUCT, FREEZER WCI 5304519570 Contact Us For Availability
47
DUCT, AIR, FREEZER WCI 5304519571 Contact Us For Availability
48
SENSOR, TEMPERATURE WCI 5304519572 Contact Us For Availability
49
WASHER, SEALING WCI 5304519573 Contact Us For Availability
53
COVER, REED SWITCH, LOWER WCI 5304519575 Contact Us For Availability
54
HINGE, LOWER WCI 5304519576 Contact Us For Availability
56
CUSHION, LEVE WCI 5304519578 Contact Us For Availability
57
WCI 5304519579 WCI 5304519579 Contact Us For Availability
58
SHELF, ASSEMBLY, GLASS, (3) WCI 5304519580 Contact Us For Availability
59
COVER ASSEMBLY, CRISPER, GLASS WCI 5304519581 Contact Us For Availability
60
SHELF, FREEZER, GLASS, UPPER WCI 5304519582 Contact Us For Availability
62
TRAY, ICE WCI 5304519583 Contact Us For Availability
64
DRAWER, CRISPER WCI 5304519585 Contact Us For Availability
65
DRAWER, FREEZER, UPPER WCI 5304519586 Contact Us For Availability
66
DRAWER, FREEZER, MIDDLE WCI 5304519587 Contact Us For Availability
67
DRAWER, FREEZER, LOWER WCI 5304519588 Contact Us For Availability
73
MAGNET, DOOR, (2) WCI 5304519517 Contact Us For Availability
76
STOPPER, DOOR, FRESH FOOD, RH SWING WCI 5304519520 Contact Us For Availability
77
STOP, DOOR, FRESH FOOD WCI 5304519522 Contact Us For Availability
79
DOOR ASSEMBLY, FREEZER, STAINLESS WCI 5304519524 Contact Us For Availability
80
STOPPER, DOOR, FREEZER WCI 5304519525 Contact Us For Availability
82
MAGNET ASSEMBLY, LOWER DOOR, W/COVER WCI 5304526175 Contact Us For Availability
85
PAN, DRAIN WCI 5304519590 Contact Us For Availability
101
POWER CORD, ELECTRIC, SERVICE WCI 5304519593 Contact Us For Availability
103
SCREW, GROUND WCI 5304519595 Contact Us For Availability
109
COVER, CONTROL BOARD WCI 5304519597 Contact Us For Availability
NIA
STOPPER, DOOR, FRESH FOOD, LH SWING WCI 5304519521 Contact Us For Availability
NIA
WCI 5304519531 WCI 5304519531 Contact Us For Availability
× ![]()
