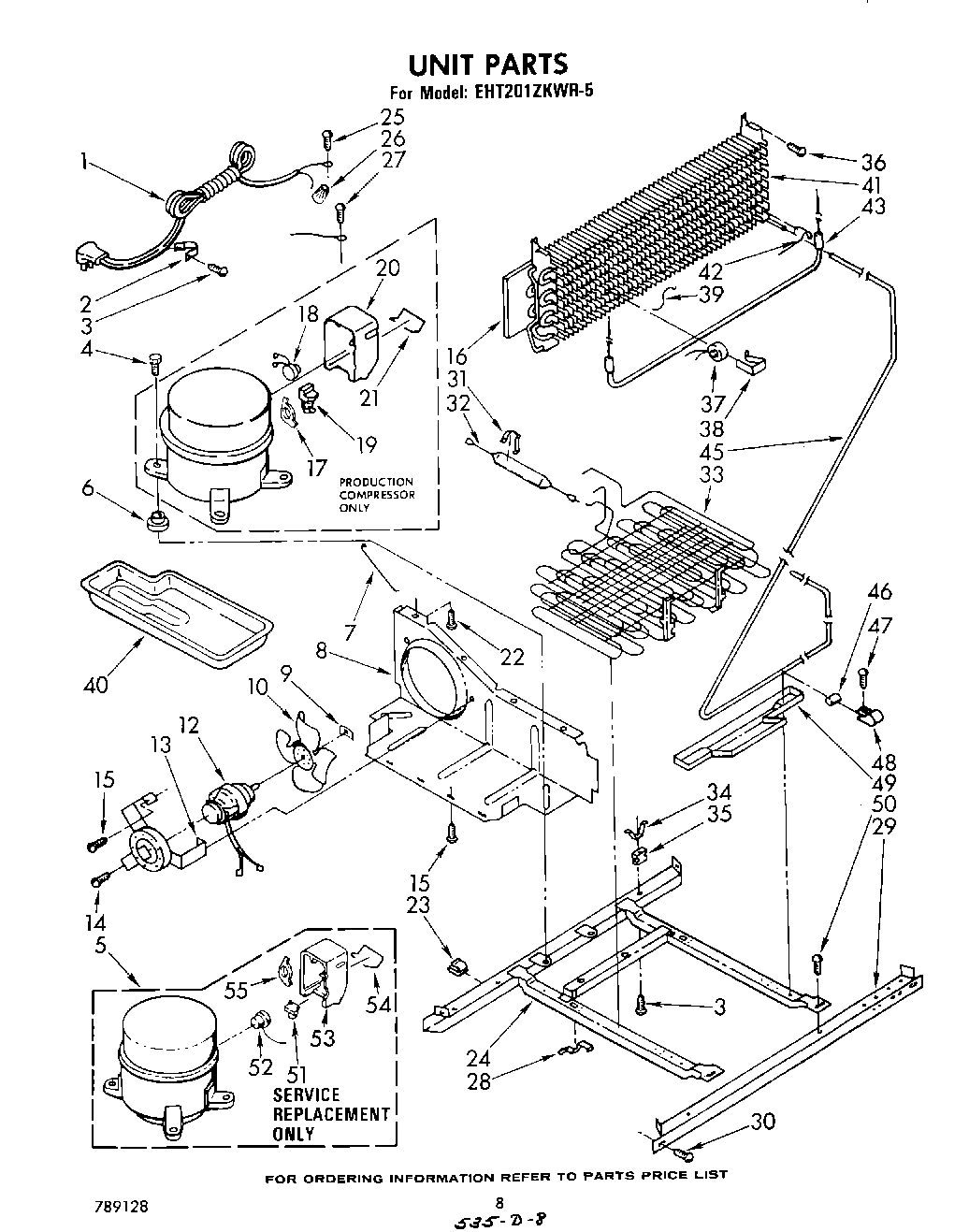

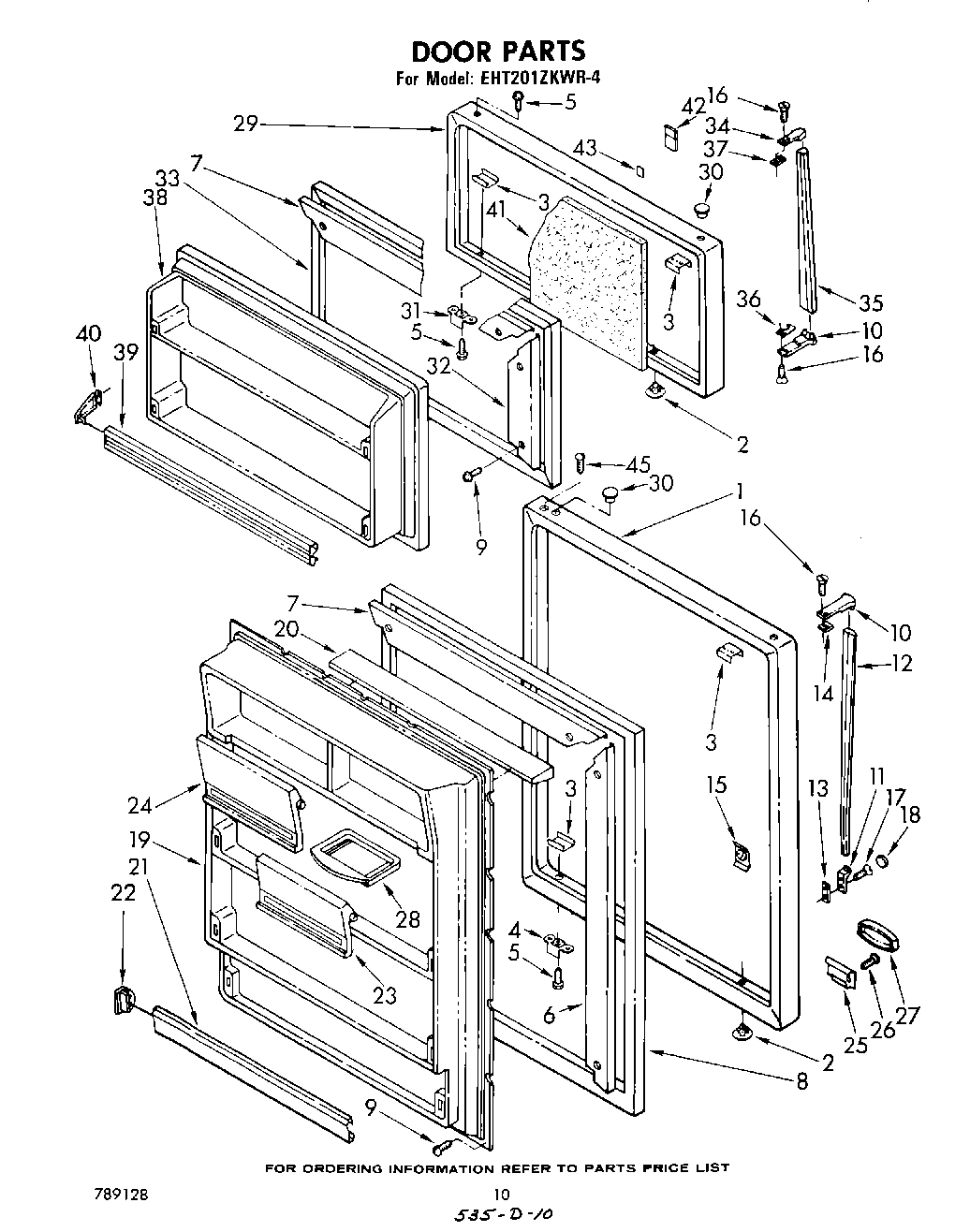

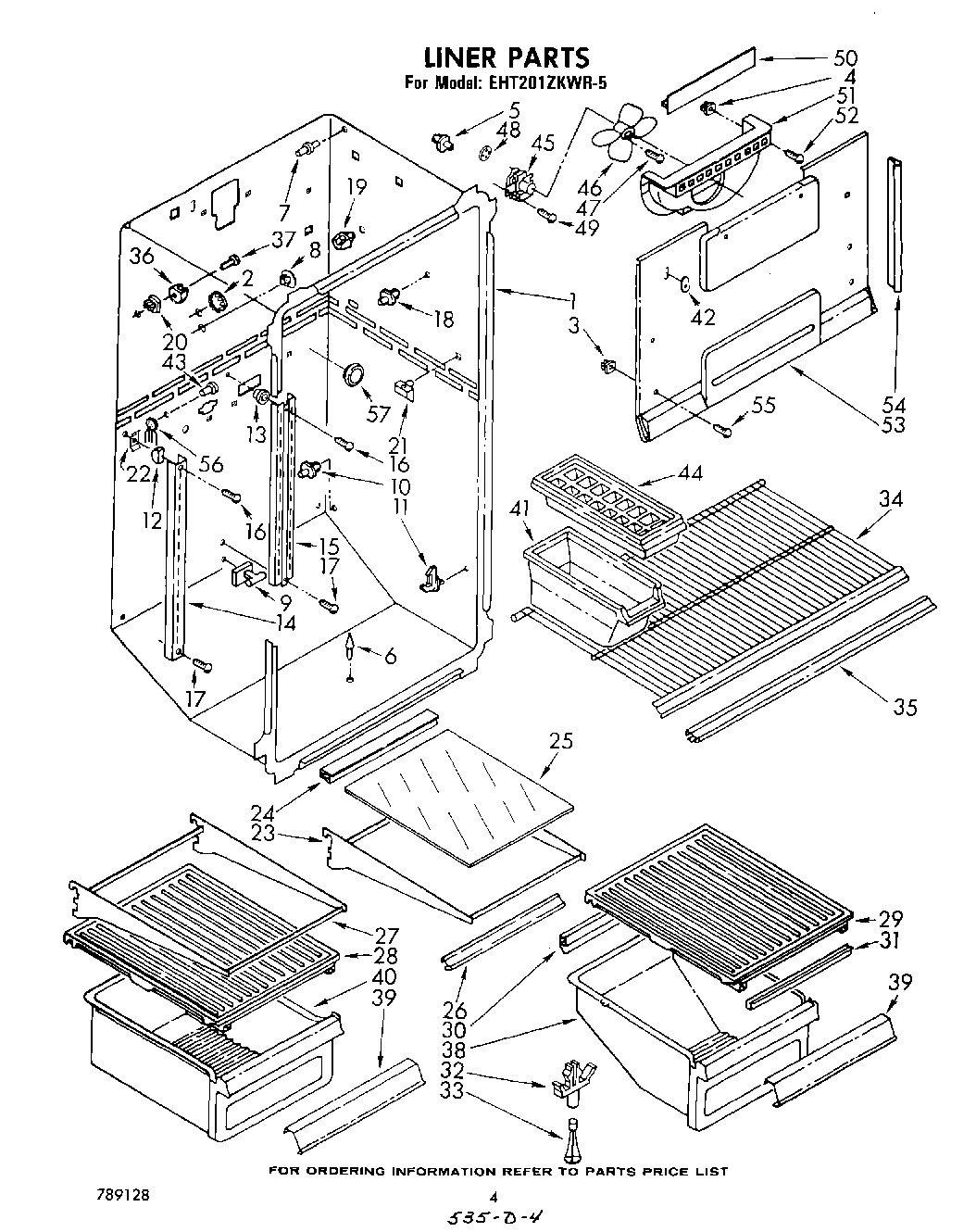

Model Whirlpool EHT201ZKWR5 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI39418A7 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI39419A7 Contact Us For Availability

1

Refrigerator Door (White) WPL 943169 Contact Us For Availability

1

Refrigerator Door (Coffee) WPL 943170 Contact Us For Availability

1

Refrigerator Door (Golden Harvest) WPL 943171 Contact Us For Availability

1

Refrigerator Door (New Avocado) WPL 943172 Contact Us For Availability

1

Refrigerator Door (Almond) WPL 943173 Contact Us For Availability

1

Cord, Service WPL 850626 Contact Us For Availability

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

2

Roller, Front WPL 981127 Contact Us For Availability

2

Hole, Plug WPL 519890 Contact Us For Availability

2

Hole Plug (White) WPL 534927 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability

3

Grommet WPL 848445 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 842339 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

5

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $276.71

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, Grommet WPL 845722 Contact Us For Availability

5

Screw (Repair) WPL 488931 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

Grommet, Crisper Cover WPL 836409 Contact Us For Availability

6

Center Rail (White) WPL 836067 Contact Us For Availability

6

Center Rail (Coffee) WPL 989908 Contact Us For Availability

6

Center Rail (Golden Harvest) WPL 989909 Contact Us For Availability

6

Center Rail (New Avocado) WPL 989910 Contact Us For Availability

6

Center Rail (Almond) WPL 989911 Contact Us For Availability

6

Retainer, Gasket Side WPL 836117 Contact Us For Availability

7

Heater, Mullion WPL 989256 Contact Us For Availability

7

Stud WPL 526383 Contact Us For Availability

7

Retainer, Gasket Top WPL 836118 Contact Us For Availability

7

Guard, Fan WPL 850156 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

Screw (Repair) WPL 487470 Contact Us For Availability

8

Hole, Plug WPL 659598 Contact Us For Availability

8

Baffle, Air WPL 850764 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Duct, Air WPL 841710 Contact Us For Availability

9

Stud, Support Rear WPL 836412 Contact Us For Availability

10

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $30.73

10

Shelf, Stud WPL 536475 Contact Us For Availability

10

Fan WPL 989524 Contact Us For Availability

11

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $24.12

11

Shelf, Stud WPL 836423 Contact Us For Availability

12

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

12

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

12

Handle, Center WPL 982946 Contact Us For Availability

Shim, Handle End WPL 992872 Contact Us For Availability

Hinge, Top WPL 842039 Contact Us For Availability

Screw Support, Center Ladder (2) WPL 520959 Contact Us For Availability

Bracket, Motor WPL 548695 Contact Us For Availability

14

Shim, Hinge WPL 836192 Contact Us For Availability

14

Shelf, Ladder (2) WPL 934267 Contact Us For Availability

14

Screw WPL 488868 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability

Shelf, Ladder Center WPL 936230 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Screw (Repair) WPL 488949 Contact Us For Availability

Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability

Screw (Repair) WPL 488923 Contact Us For Availability

Baffle, Evaporator WPL 981736 Contact Us For Availability

Hinge, Center WPL 836153 Contact Us For Availability

Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability

Screw (Repair) WPL 488980 Contact Us For Availability

Overload Spring WPL 943494 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

Shim, Hinge Center WPL 836155 Contact Us For Availability

Shelf, Stud (2) WPL 529758 Contact Us For Availability

Overload WPL 943492 Contact Us For Availability

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability

Panel, Interior WPL 943161 Contact Us For Availability

Relay WPL 945431 Contact Us For Availability

Hinge, Bottom WPL 836159 Contact Us For Availability

Screw Grommet WPL 538449 Contact Us For Availability

Support, Door Dike WPL 849802 Contact Us For Availability

Case, Relay WPL 943496 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Retainer, Stud (4) WPL 836374 Contact Us For Availability

Trim, Door Shelf WPL 935919 Contact Us For Availability

Spring, Case WPL 943497 Contact Us For Availability

WP839904 Whirlpool Refrigerator Endcap Trim Backorder WPL WP839904 $3.70

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Screw, Anchor (3) WPL 983604 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

Shim, Bottom Hinge WPL 836196 Contact Us For Availability

Shelf, Cantilever WPL 936795 Contact Us For Availability

Compartment, Door Butter WPL 942164 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Retainer, Glass Shelf WPL 942186 Contact Us For Availability

Compartment, Utility WPL 940708 Contact Us For Availability

Frame WPL 850751 Contact Us For Availability

Tap Plate WPL 836162 Contact Us For Availability

Glass, Shelf WPL 942185 Contact Us For Availability

Clip, Medallion WPL 843213 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Hole, Plug (White) WPL 835974 Contact Us For Availability

Hole, Plug (Almond) WPL 989193 Contact Us For Availability

Hole Plug (Coffee) WPL 989881 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 989882 Contact Us For Availability

Hole Plug (New Avocado) WPL 989883 Contact Us For Availability

Trim, Shelf WPL 935223 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

Hole Plug (White) WPL 842031 Contact Us For Availability

Hole Plug (Almond) WPL 989195 Contact Us For Availability

Hole Plug (Coffee) WPL 989875 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 989876 Contact Us For Availability

Hole Plug (New Avocado) WPL 989877 Contact Us For Availability

Pan Shelf, Cantilever WPL 936285 Contact Us For Availability

Medallion (White) WPL 848382 Contact Us For Availability

Medallion (Coffee) WPL 989901 Contact Us For Availability

Medallion (New Avocado) WPL 989902 Contact Us For Availability

Medallion (Golden Harvest) WPL 989903 Contact Us For Availability

Medallion (Almond) WPL 989904 Contact Us For Availability

Exterior, Grille (White) WPL 944233 Contact Us For Availability

Exterior, Grille (Coffee) WPL 944234 Contact Us For Availability

Exterior, Grille (Golden Harvest) WPL 944235 Contact Us For Availability

Exterior Grille (New Avocado) WPL 944236 Contact Us For Availability

Exterior, Grille (Almond) WPL 944237 Contact Us For Availability

Pan, Cover WPL 935123 Contact Us For Availability

Clip (2) WPL 548744 Contact Us For Availability

Bumper, Grille WPL 546131 Contact Us For Availability

Pan, Cover WPL 942190 Contact Us For Availability

Freezer Door (White) WPL 943175 Contact Us For Availability

Freezer Door (Coffee) WPL 943176 Contact Us For Availability

Freezer Door (Golden Harvest) WPL 943177 Contact Us For Availability

Freezer Door (New Avocado) WPL 943178 Contact Us For Availability

Freezer Door (Almond (Also Order Item 41 When WPL 943179 Contact Us For Availability

Rail, Front WPL 548662 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

Corner, Filler (White) WPL 838535 Contact Us For Availability

Corner, Filler WPL 989928 Contact Us For Availability

WPL 989929 WPL 989929 Contact Us For Availability

WPL 989930 WPL 989930 Contact Us For Availability

WPL 989931 WPL 989931 Contact Us For Availability

Crisper Gasket, Rear WPL 942027 Contact Us For Availability

Hole Plug (Almond) WPL 989196 Contact Us For Availability

Hole Plug (Coffee) WPL 989892 Contact Us For Availability

Hole Plug (New Avocado) WPL 989894 Contact Us For Availability

WPL 989068 WPL 989068 Contact Us For Availability

Crisper Gasket, Front WPL 942028 Contact Us For Availability

Bracket, Door Stop WPL 944035 Contact Us For Availability

Clamp WPL 548508 Contact Us For Availability

32

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

32

Support, Cover WPL 848562 Contact Us For Availability

32

WPL 836119 WPL 836119 Contact Us For Availability

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Post, Cover WPL 836410 Contact Us For Availability

Condenser & Precooler WPL 943480 Contact Us For Availability

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $31.71

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Shelf, F.C. WPL 935204 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

Trim, Shelf WPL 985070 Contact Us For Availability

WPL 982944 WPL 982944 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WPL 943188 WPL 943188 Contact Us For Availability

WPL 936075 WPL 936075 Contact Us For Availability

Shelf Stud, Saddle L.S. WPL 836492 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

37

WPL 943187 WPL 943187 Contact Us For Availability

37

WPL 935663 WPL 935663 Contact Us For Availability

WPL 548734 WPL 548734 Contact Us For Availability

Pan, Crisper WPL 940702 Contact Us For Availability

WPL 943946 WPL 943946 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

WPL 549947 WPL 549947 Contact Us For Availability

Overlay, Pan WPL 986316 Contact Us For Availability

WPL 986542 WPL 986542 Contact Us For Availability

Support, Heater WPL 851358 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP986540 Whirlpool Refrigerator Endcap Trim In Stock WPL WP986540 $3.70

Tray, Evaporating WPL 842041 Contact Us For Availability

Meat, Pan WPL 940704 Contact Us For Availability

41

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

41

WPL 943919 WPL 943919 Contact Us For Availability

41

Evaporator WPL 943498 Contact Us For Availability

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

Hole Plug, Evaporator WPL 659776 Contact Us For Availability

WPL 945117 WPL 945117 Contact Us For Availability

Clip, Heater (2) WPL 850721 Contact Us For Availability

WPL 836077 WPL 836077 Contact Us For Availability

Receptacle Cap WPL 850738 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

Heater, Defrost WPL 989612 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

44

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

WPL 940121 WPL 940121 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 789128 WPL 789128 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 942166 WPL 942166 Contact Us For Availability

WPL 942935 WPL 942935 Contact Us For Availability

WPL 946646 WPL 946646 Contact Us For Availability

WPL 946866 WPL 946866 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Exchanger, Heat WPL 943487 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

Drain Pan WPL 841686 Contact Us For Availability

WPL 836372 WPL 836372 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Gasket, Drain Pan WPL 843291 Contact Us For Availability

WPL 850459 WPL 850459 Contact Us For Availability

48

Fitting, Drain Pan WPL 841770 Contact Us For Availability

48

Grommet (2) WPL 531933 Contact Us For Availability

48

Clamp (2) WPL 510716 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

Cup, Drain WPL 943918 Contact Us For Availability

Pan, Drip WPL 989269 Contact Us For Availability

50

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

50

WPL 489085 WPL 489085 Contact Us For Availability

50

Gasket, Sealing WPL 935068 Contact Us For Availability

51

Liner Wiring (Defrost Timer) WPL 481782 Contact Us For Availability

51

Scroll, Fan WPL 935067 Contact Us For Availability

51

Relay WPL 549500 Contact Us For Availability

52

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

52

Overload WPL 936073 Contact Us For Availability

53

Cover, Evaporator WPL 986624 Contact Us For Availability

53

cover WPL 549336 Contact Us For Availability

54

Gasket, Evaporator WPL 981750 Contact Us For Availability

54

Strap WPL 549342 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 549086 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

56

Wiring, Ice Maker WPL 481658 Contact Us For Availability

57

Grommet, Drain WPL 943920 Contact Us For Availability
