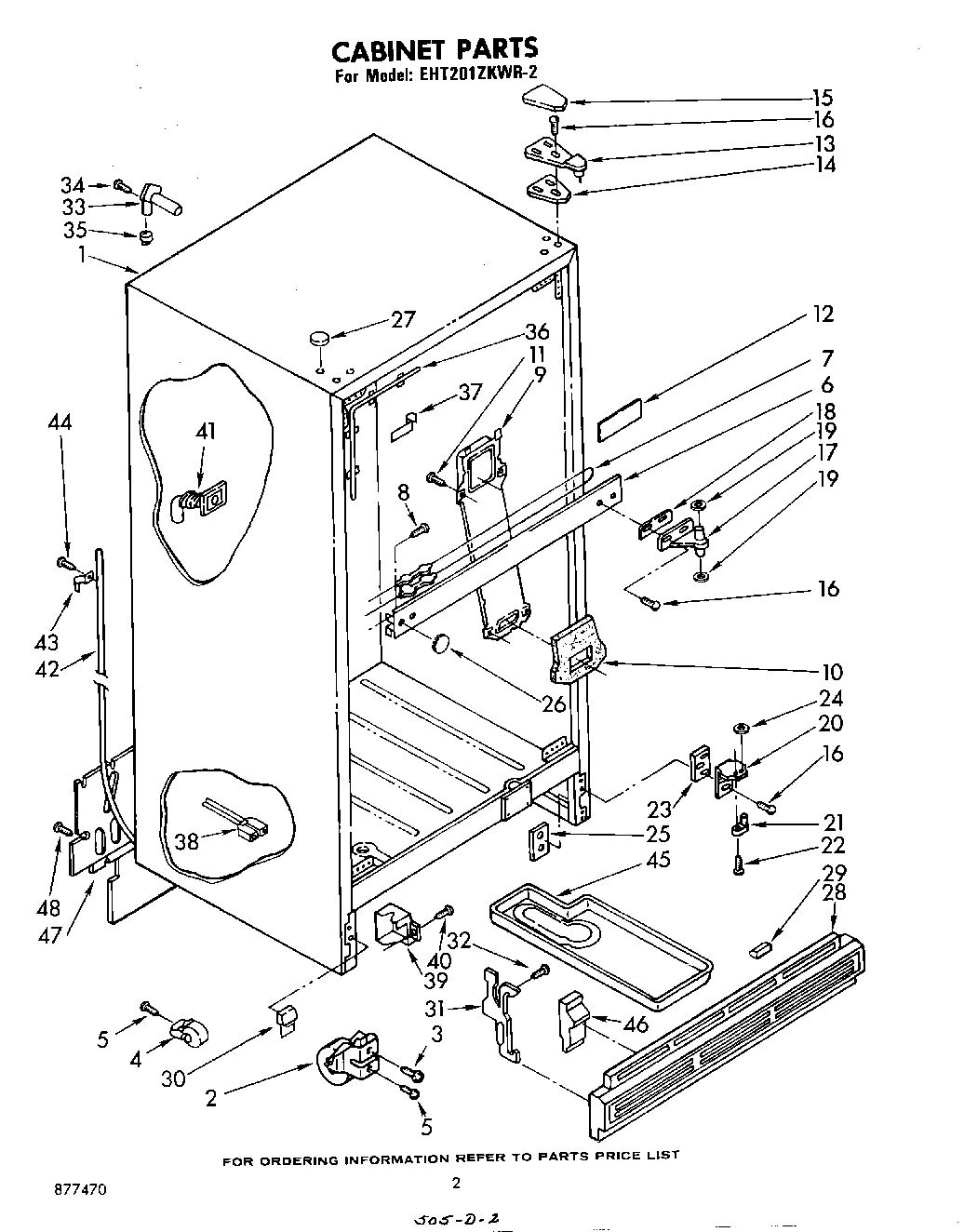

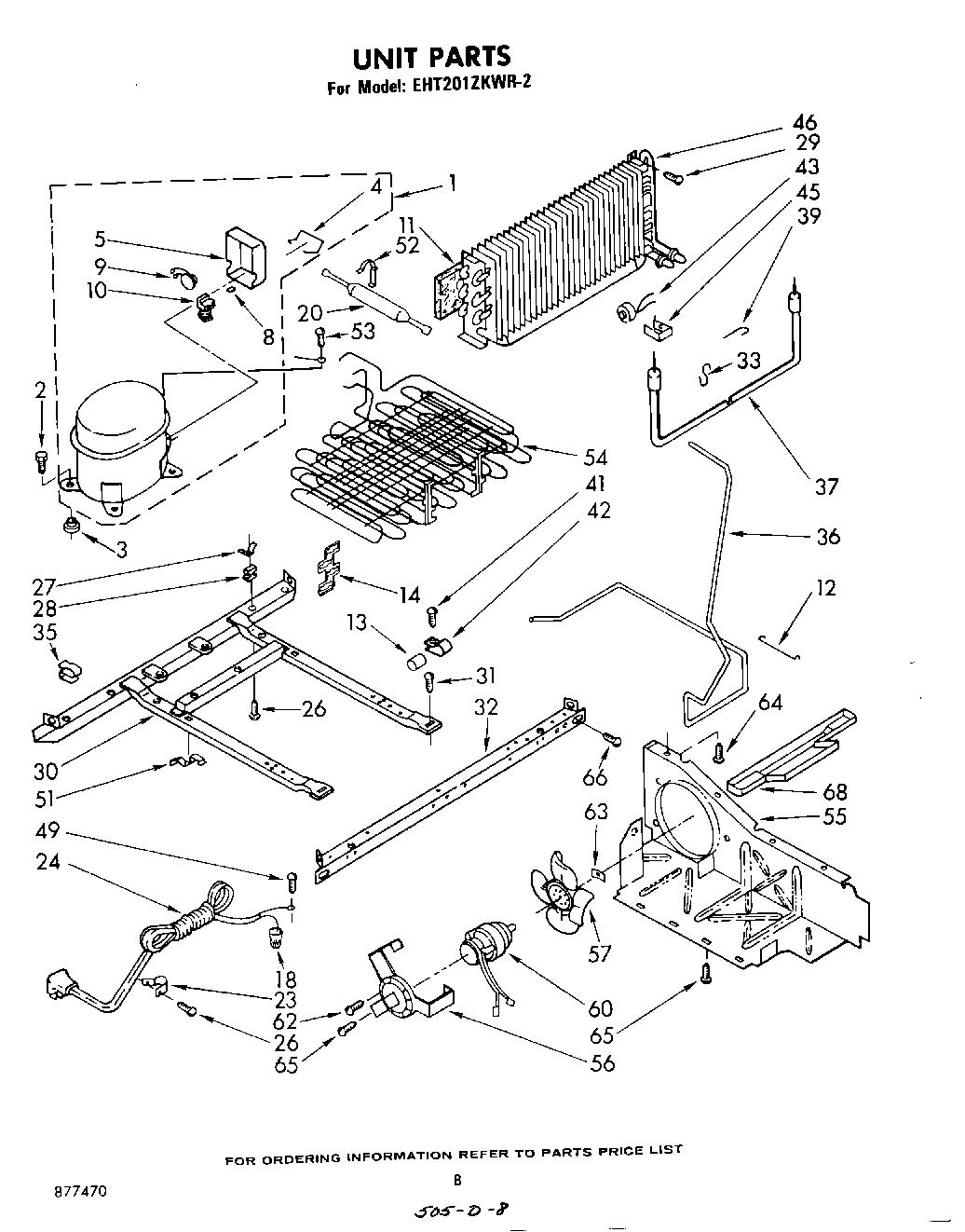

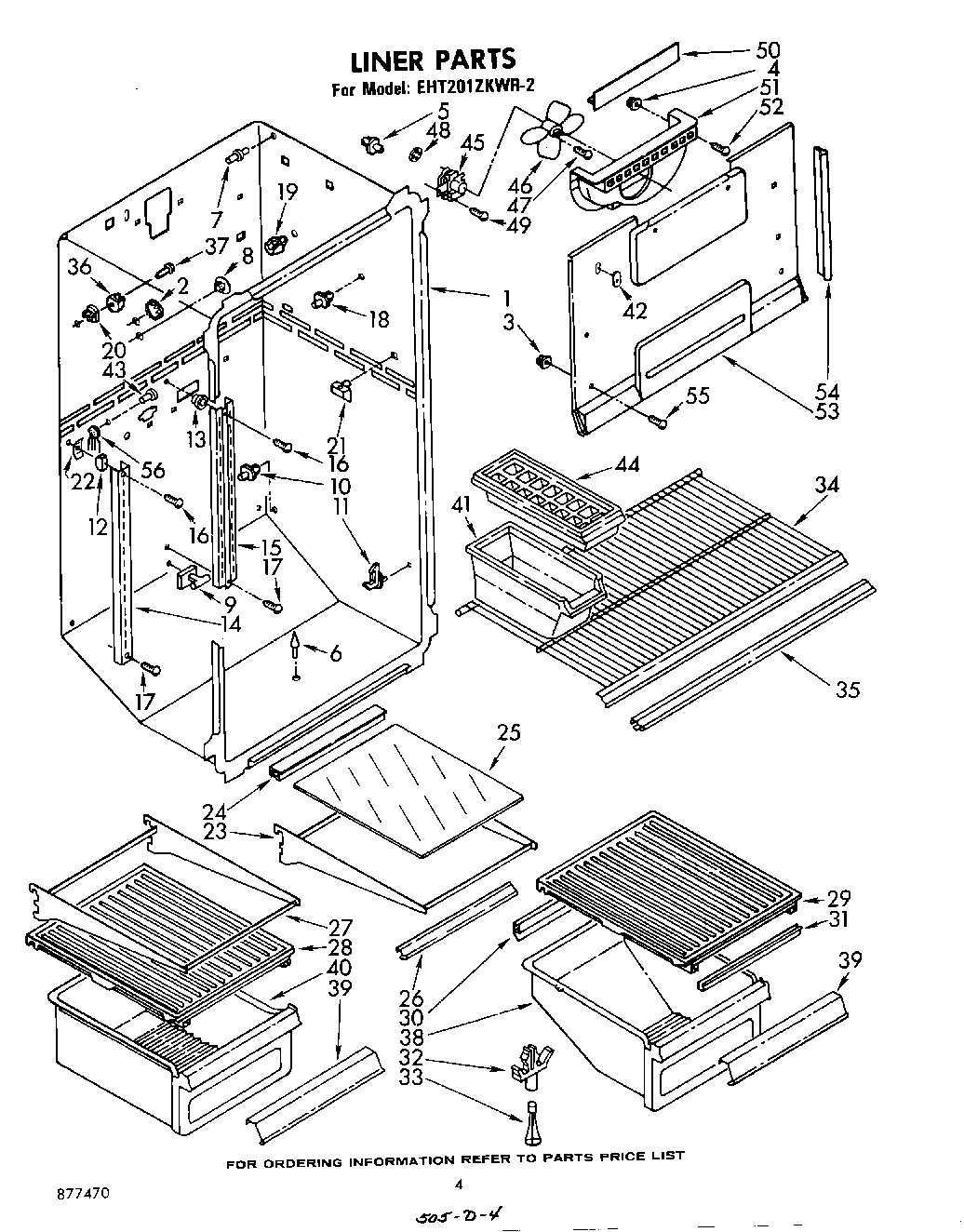

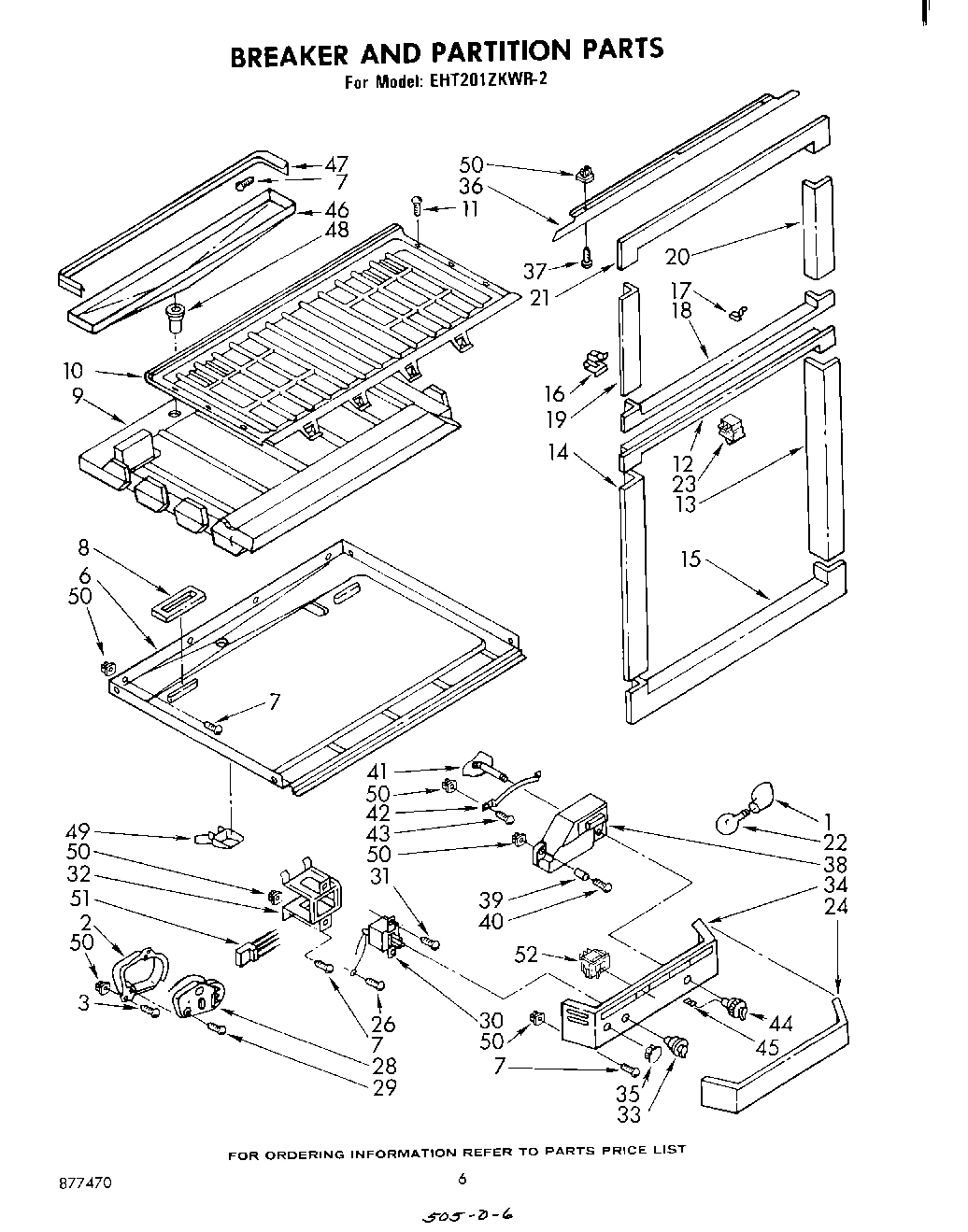

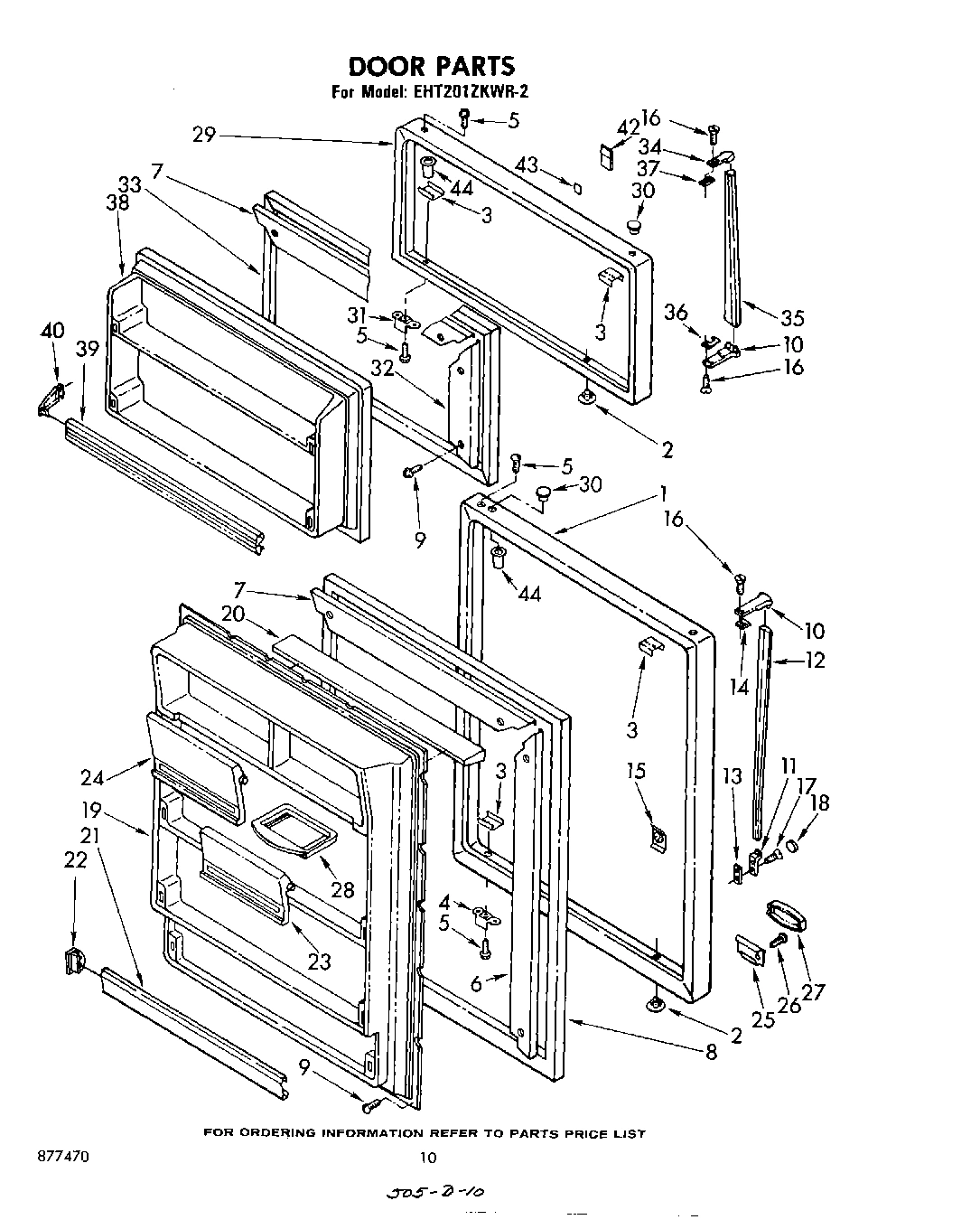

Model Whirlpool EHT201ZKWR2 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

1

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

1

Cabinet (Not A Serviceable Part) WPL ARI39412A8 Contact Us For Availability

1

Refrigerator Door (White) WPL 944308 Contact Us For Availability

1

Refrigerator Door (Coffee) WPL 944309 Contact Us For Availability

1

Refrigerator Door (Golden Harvest) WPL 944310 Contact Us For Availability

1

Door, Refrigerator (New Avocado) WPL 944311 Contact Us For Availability

1

Refrigerator Door (Almond) WPL 944312 Contact Us For Availability

1

Compressor Kit (Includes Items 4, 5, 8, 9 & 1 WPL 876638 Contact Us For Availability

2

Roller, Front WPL 981127 Contact Us For Availability

2

Timer, Container WPL 983079 Contact Us For Availability

2

Hole Plug (White) WPL 534927 Contact Us For Availability

2

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability

3

Grommet (4) WPL 547283 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Spring WPL 531318 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw (Repair) WPL 488931 Contact Us For Availability

5

Case, Relay WPL 549945 Contact Us For Availability

6

Grommet, Crisper Cover WPL 836409 Contact Us For Availability

6

Center Rail (White) WPL 836067 Contact Us For Availability

6

Center Rail (Coffee) WPL 989908 Contact Us For Availability

6

Center Rail (Golden Harvest) WPL 989909 Contact Us For Availability

6

Center Rail (New Avocado) WPL 989910 Contact Us For Availability

6

Center Rail (Almond) WPL 989911 Contact Us For Availability

6

Separator (Bottom) WPL 981738 Contact Us For Availability

6

Retainer, Gasket Side WPL 836117 Contact Us For Availability

7

Heater, Mullion WPL 989256 Contact Us For Availability

7

Retainer, Gasket Top WPL 836118 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $112.07

8

Screw (Repair) WPL 487470 Contact Us For Availability

8

Gasket, Air Return WPL 981725 Contact Us For Availability

8

Bumper WPL 547272 Contact Us For Availability

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Duct, Air WPL 841710 Contact Us For Availability

9

Insulation, Separator WPL 991173 Contact Us For Availability

9

Overload WPL 549041 Contact Us For Availability

Shelf, Stud WPL 536475 Contact Us For Availability

Air Duct Outlet WPL 984571 Contact Us For Availability

Separator (Top) WPL 848423 Contact Us For Availability

Relay (Alternate) WPL 989661 Contact Us For Availability

Relay WPL 989662 Contact Us For Availability

11

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $25.33

11

Shelf, Stud WPL 836423 Contact Us For Availability

11

Baffle, Air WPL 981736 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

Seal, Strip WPL 985316 Contact Us For Availability

Breaker, Mullion Bottom WPL 841643 Contact Us For Availability

Handle, Center WPL 982946 Contact Us For Availability

Guard, Fan WPL 850156 Contact Us For Availability

Shim, Handle End WPL 992872 Contact Us For Availability

Hinge, Top WPL 842039 Contact Us For Availability

Breaker, R.S. WPL 841724 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

14

Shim, Hinge WPL 836192 Contact Us For Availability

14

Breaker, L.S. WPL 841721 Contact Us For Availability

14

Spacer Condenser (4) WPL 987210 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability

Breaker, Bottom WPL 839829 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Screw (Repair) WPL 488949 Contact Us For Availability

Breaker, Clip WPL 836090 Contact Us For Availability

Screw (Repair) WPL 488923 Contact Us For Availability

17

Hinge, Center WPL 836153 Contact Us For Availability

17

Breaker, Trim Clip WPL 534365 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

Shim, Hinge Center WPL 836155 Contact Us For Availability

Breaker, Mullion (Top) WPL 841642 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

19

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

19

Breaker L.S. WPL 841719 Contact Us For Availability

19

Panel, Interior WPL 943161 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Hinge, Bottom WPL 836159 Contact Us For Availability

Breaker R.S. WPL 841722 Contact Us For Availability

Support, Door Dike WPL 849802 Contact Us For Availability

21

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

21

Breaker, Top WPL 839830 Contact Us For Availability

21

Trim, Door Shelf WPL 935919 Contact Us For Availability

22

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

22

WP839904 Whirlpool Refrigerator Endcap Trim In Stock WPL WP839904 $3.70

22

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Shim, Bottom Hinge WPL 836196 Contact Us For Availability

Compartment, Door Butter WPL 942164 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Light Lens WPL 983910 Contact Us For Availability

Compartment, Utility WPL 940708 Contact Us For Availability

Cord, Service WPL 850626 Contact Us For Availability

25

Tap Plate WPL 836162 Contact Us For Availability

25

Clip, Medallion WPL 843213 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Hole, Plug (White) WPL 835974 Contact Us For Availability

Hole, Plug (Almond) WPL 989193 Contact Us For Availability

Hole Plug (Coffee) WPL 989881 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 989882 Contact Us For Availability

Hole Plug (New Avocado) WPL 989883 Contact Us For Availability

Hole Plug (White) WPL 842031 Contact Us For Availability

Hole Plug (Almond) WPL 989195 Contact Us For Availability

Hole Plug (Coffee) WPL 989875 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 989876 Contact Us For Availability

Hole Plug (New Avocado) WPL 989877 Contact Us For Availability

Medallion (White) WPL 848382 Contact Us For Availability

Medallion (Coffee) WPL 989901 Contact Us For Availability

Medallion (New Avocado) WPL 989902 Contact Us For Availability

Medallion (Golden Harvest) WPL 989903 Contact Us For Availability

Medallion (Almond) WPL 989904 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Exterior Grille (White) WPL 841670 Contact Us For Availability

Exterior Grille (Coffee) WPL 989941 Contact Us For Availability

Exterior Grille (New Avocado) WPL 989943 Contact Us For Availability

Exterior Grille (Golden Harvest) WPL 989945 Contact Us For Availability

Exterior Grille (Almond) WPL 989947 Contact Us For Availability

Defrost, Timer WPL 851161 Contact Us For Availability

Grommet (4) WPL 548737 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Bumper, Grille WPL 546131 Contact Us For Availability

Screw, 8 x 3/8 (2) WPL 488678 Contact Us For Availability

Freezer Door (White) WPL 944314 Contact Us For Availability

Freezer Door (Coffee) WPL 944315 Contact Us For Availability

Freezer Door (Golden Harvest) WPL 944316 Contact Us For Availability

Freezer Door (New Avocado) WPL 944317 Contact Us For Availability

Freezer Door (Almond) WPL 944318 Contact Us For Availability

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WP819470 Whirlpool Refrigerator Thermostat In Stock WPL WP819470 $62.70

Corner, Filler ( WPL 838535 Contact Us For Availability

WPL 989928 WPL 989928 Contact Us For Availability

WPL 989929 WPL 989929 Contact Us For Availability

WPL 989930 WPL 989930 Contact Us For Availability

WPL 989931 WPL 989931 Contact Us For Availability

Hole Plug (Almond) WPL 989196 Contact Us For Availability

Hole Plug (Coffee) WPL 989892 Contact Us For Availability

Hole Plug (New Avocado) WPL 989894 Contact Us For Availability

Frame WPL 548654 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

WPL 844614 WPL 844614 Contact Us For Availability

Bracket, Door Stop WPL 944035 Contact Us For Availability

Support, Cover WPL 848562 No Longer Available

Bracket, Thermostat WPL 848446 Contact Us For Availability

Retainer Gasket Side WPL 836119 Contact Us For Availability

Rail, Front WPL 548662 Contact Us For Availability

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $93.54

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

Post, Cover WPL 836410 Contact Us For Availability

Knob, Temperature Control WPL 836482 Contact Us For Availability

Support, Heater WPL 851358 Contact Us For Availability

34

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $33.31

34

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

34

Panel, Control WPL 942214 Contact Us For Availability

35

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

35

WPL 982944 WPL 982944 Contact Us For Availability

35

Clip, Wire (2) WPL 548745 Contact Us For Availability

WPL 943188 WPL 943188 Contact Us For Availability

WPL 936075 WPL 936075 Contact Us For Availability

Air Baffle WPL 982582 Contact Us For Availability

Exchanger, Heat WPL 945432 Contact Us For Availability

WPL 943187 WPL 943187 Contact Us For Availability

WPL 935663 WPL 935663 Contact Us For Availability

Screw, 8-15 x 1/2 (3) WPL 486214 Contact Us For Availability

Heater, Defrost WPL 989612 Contact Us For Availability

38

WPL 548734 WPL 548734 Contact Us For Availability

38

Air Diffuser WPL 836487 Contact Us For Availability

38

WPL 943946 WPL 943946 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WPL 549947 WPL 549947 Contact Us For Availability

WPL 986542 WPL 986542 Contact Us For Availability

Clip, Heater (2) WPL 850721 Contact Us For Availability

40

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

40

WP986540 Whirlpool Refrigerator Endcap Trim In Stock WPL WP986540 $3.70

40

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

41

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

41

WPL 841687 WPL 841687 Contact Us For Availability

41

Damper, Air WPL 836247 Contact Us For Availability

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $38.47

Retrainer, Air Dampener WPL 836493 Contact Us For Availability

WPL 945117 WPL 945117 Contact Us For Availability

Clamp (2) WPL 510716 Contact Us For Availability

43

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

43

WPL 836077 WPL 836077 Contact Us For Availability

43

WPL 991259 WPL 991259 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

44

Control Knob WPL 837445 Contact Us For Availability

44

WPL 509929 WPL 509929 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WPL 842041 WPL 842041 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

WPL 836372 WPL 836372 Contact Us For Availability

Drain Pan WPL 841686 Contact Us For Availability

Evaporator WPL 851795 Contact Us For Availability

47

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

47

WPL 850459 WPL 850459 Contact Us For Availability

47

Gasket, Drain Pan WPL 843291 Contact Us For Availability

48

NLA:SCREW Backorder WPL WPW10141645 $3.70

48

Grommet (2) WPL 531933 Contact Us For Availability

48

Fitting, Drain Pan WPL 841770 Contact Us For Availability

49

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

49

Cup, Drain WPL 841708 Contact Us For Availability

49

Screw WPL 488474 Contact Us For Availability

50

Gasket, Sealing WPL 935068 Contact Us For Availability

50

Grommet WPL 842339 Contact Us For Availability

51

Scroll, Fan WPL 935067 Contact Us For Availability

51

Liner Wiring (Defrost Timer) WPL 481782 Contact Us For Availability

51

Clip (2) WPL 548744 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability

Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 877470 WPL 877470 Contact Us For Availability

WPL 934347 WPL 934347 Contact Us For Availability

WPL 942166 WPL 942166 Contact Us For Availability

WPL 942167 WPL 942167 Contact Us For Availability

WPL 942935 WPL 942935 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Clamp WPL 548508 Contact Us For Availability

53

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

53

Cover, Evaporator WPL 986624 Contact Us For Availability

54

Gasket, Evaporator WPL 981750 Contact Us For Availability

54

Condenser & Precooler WPL 481851 Contact Us For Availability

55

Baffle WPL 850764 Contact Us For Availability

56

Wiring, Ice Maker WPL 481658 Contact Us For Availability

56

Bracket, Motor WPL 548695 Contact Us For Availability

57

Fan, Blade WPL 989524 Contact Us For Availability

60

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

62

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

63

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

64

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

65

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

66

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Pan, Drip WPL 989269 Contact Us For Availability
