Model Whirlpool EHT201ZKWR1 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

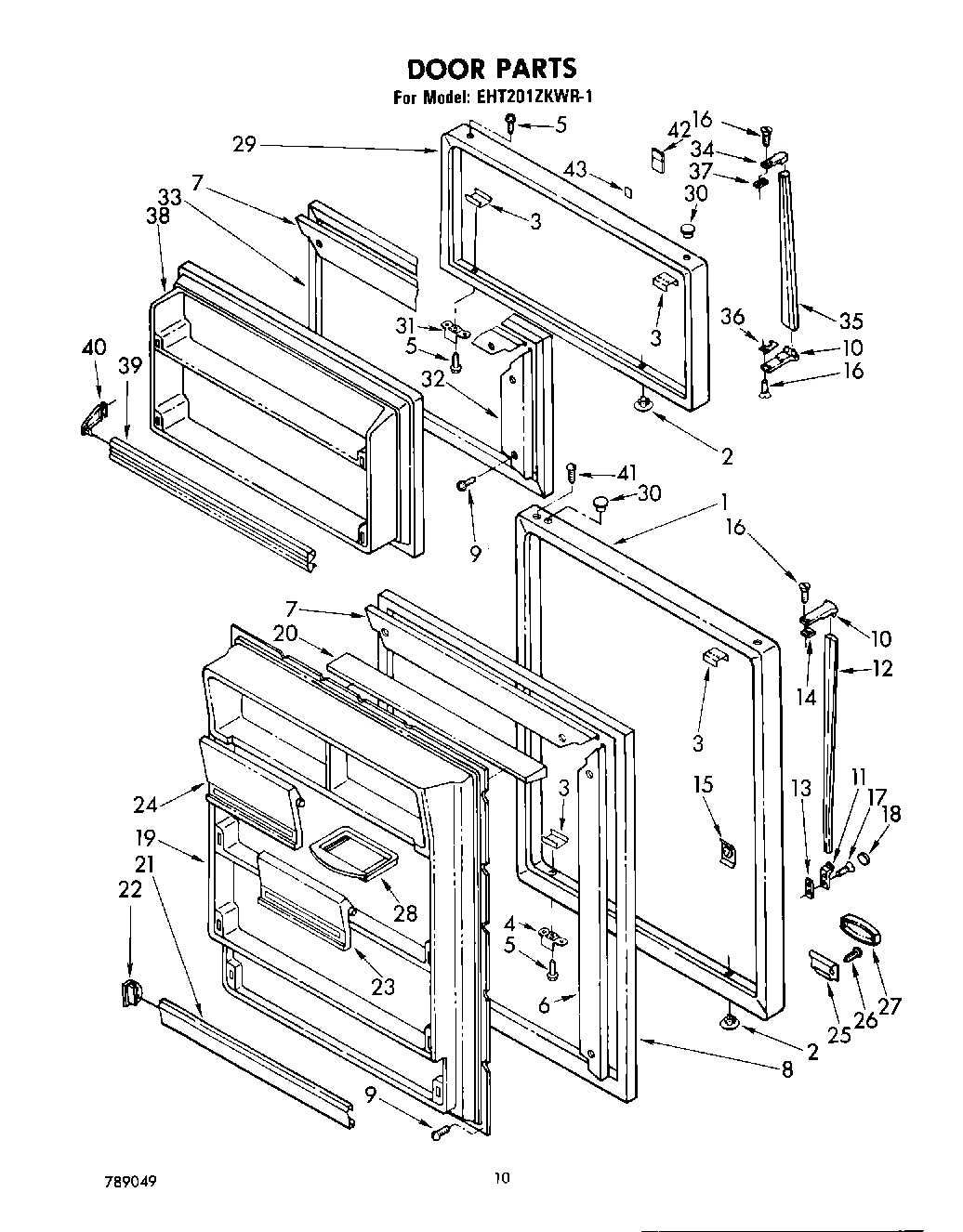

06 - DOOR

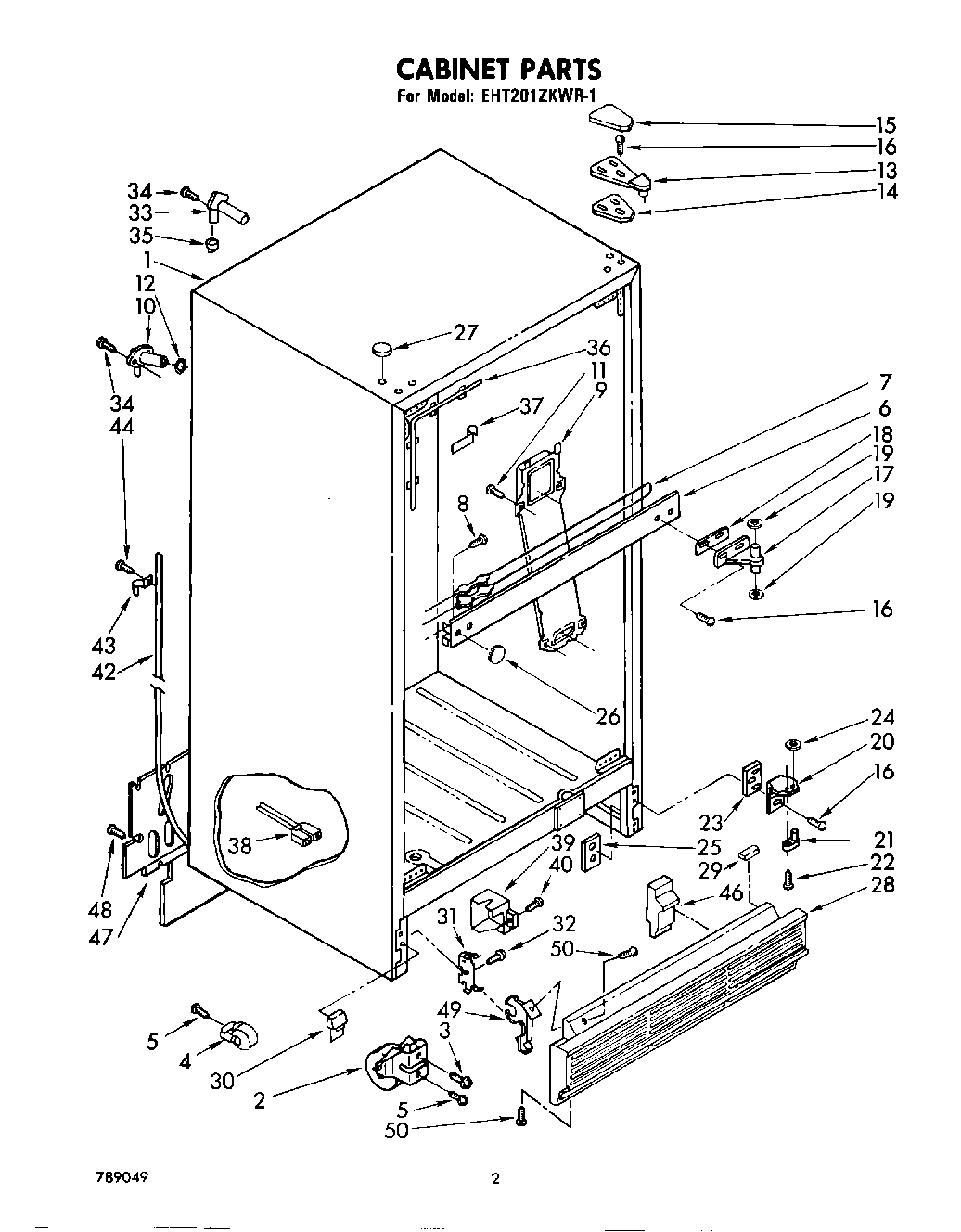

02 - CABINET

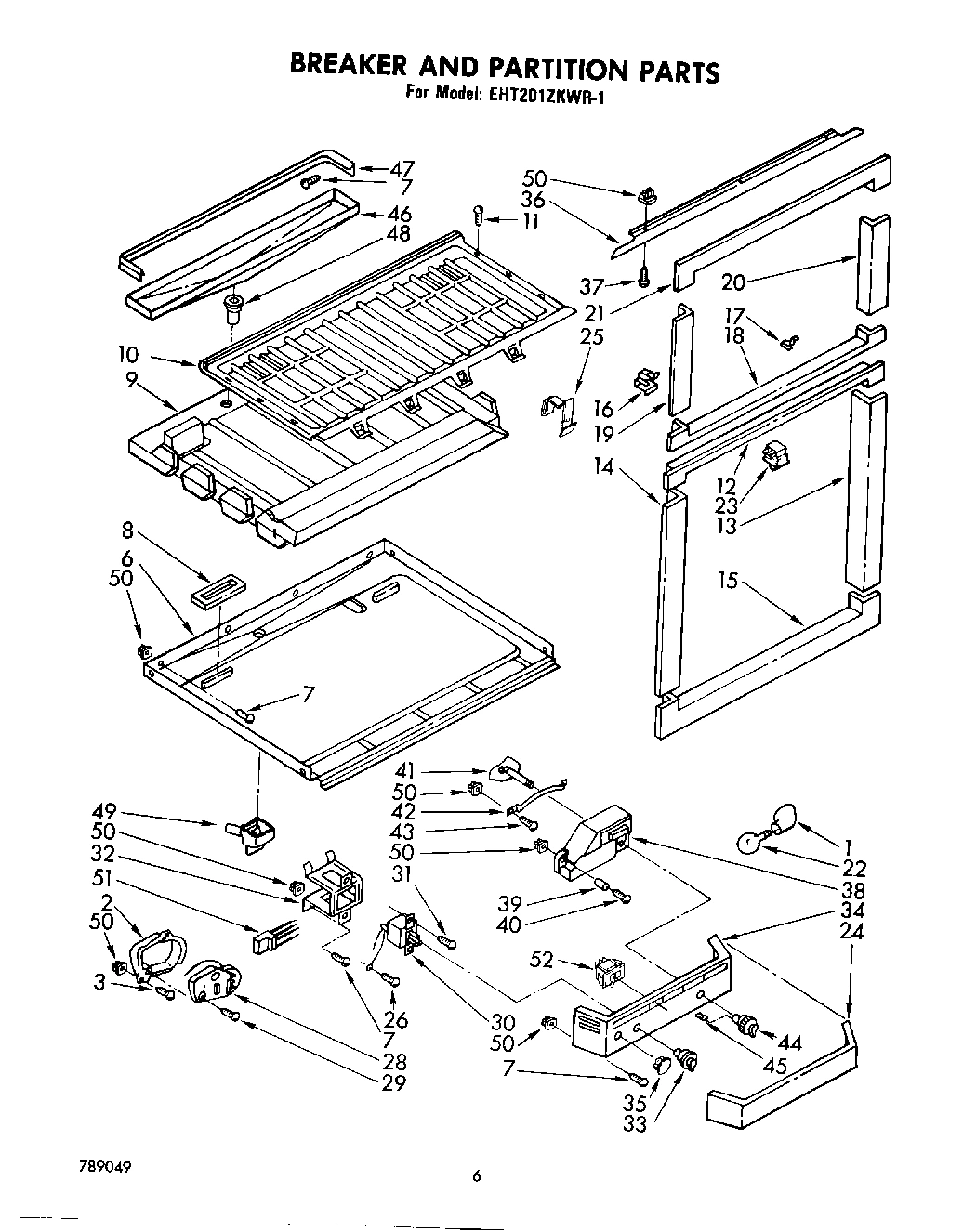

04 - BREAKER AND PARTITION , LIT/OPTIONAL

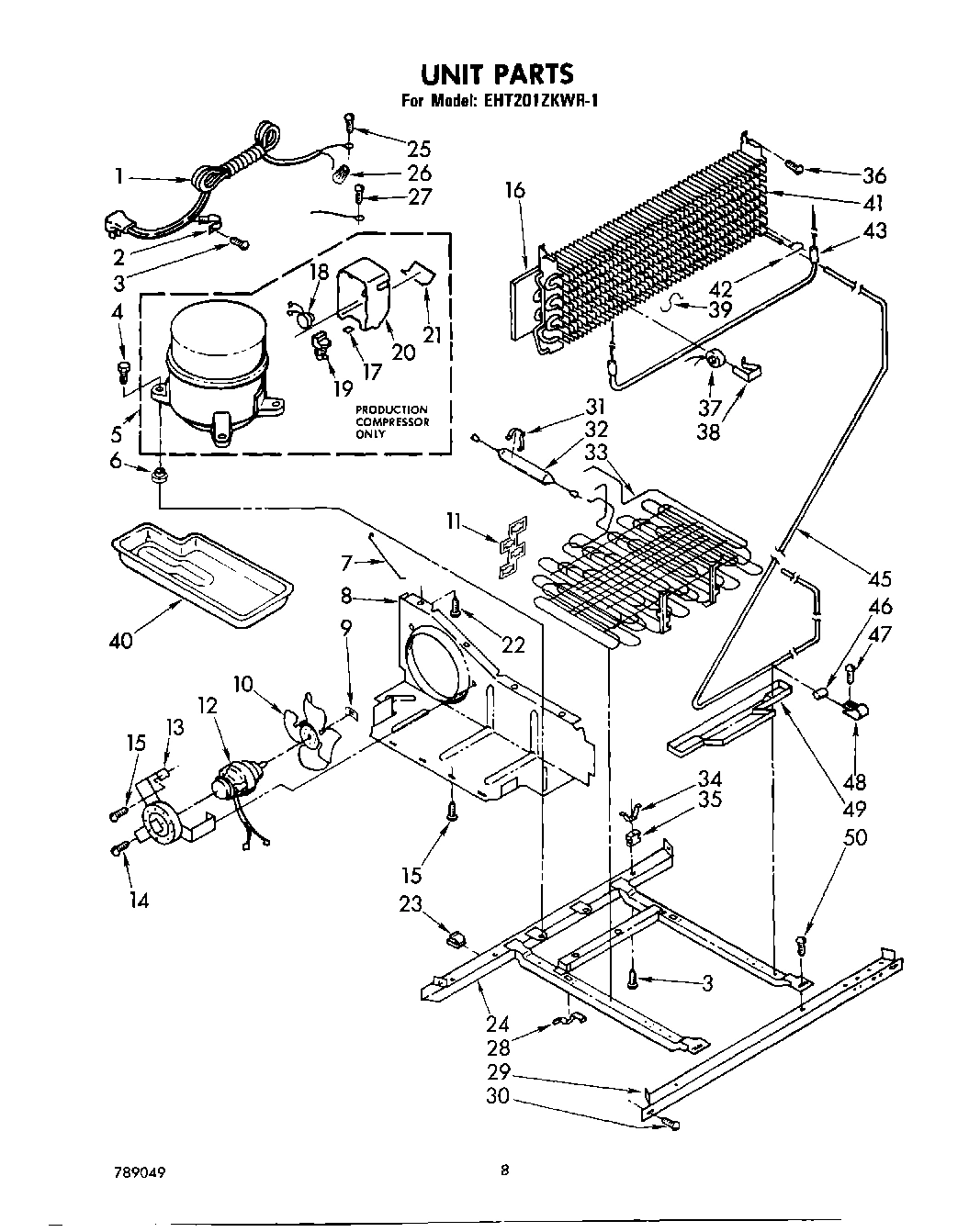

05 - UNIT

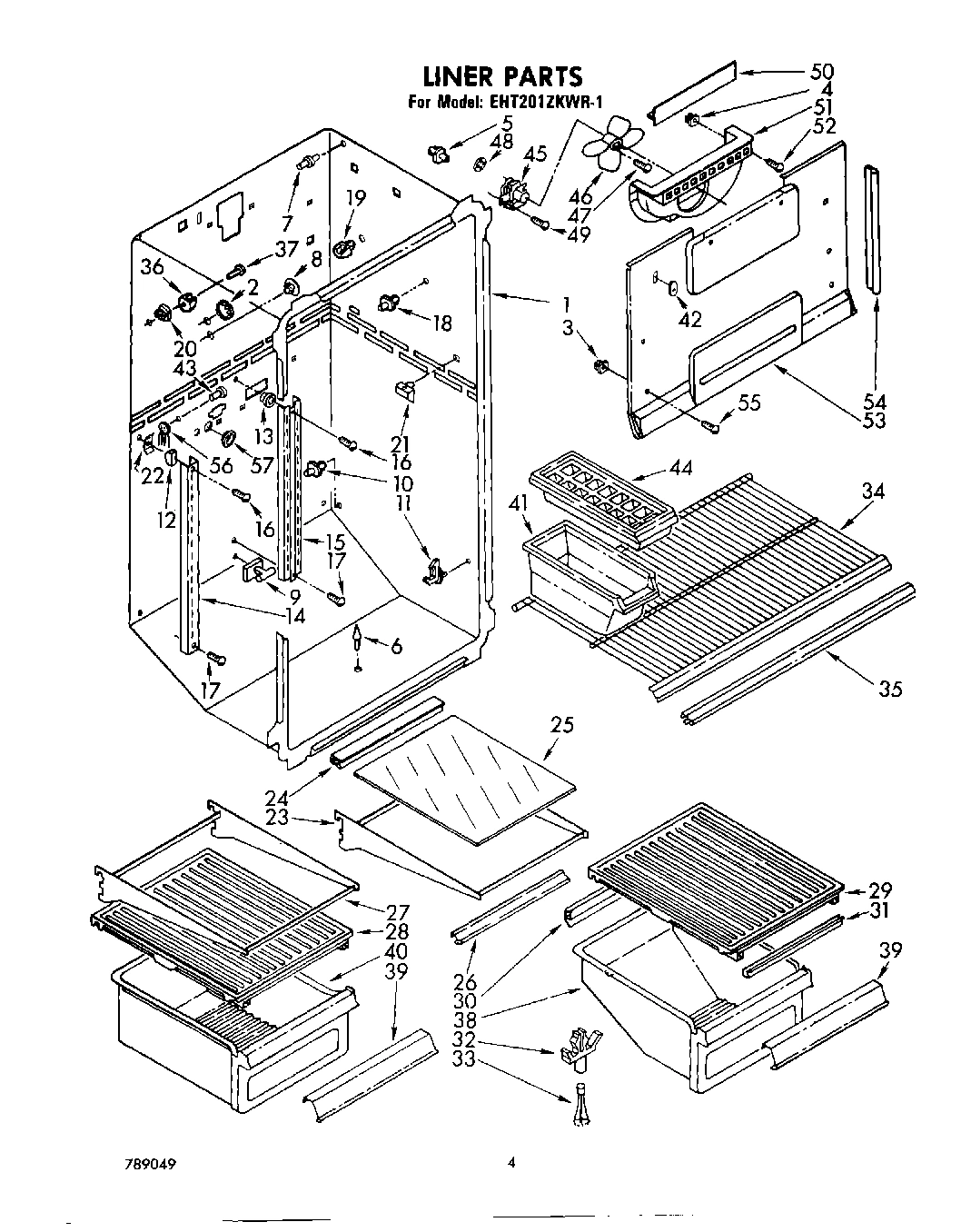

03 - LINER
Common parts from model Whirlpool EHT201ZKWR1 TOP MOUNT REFRIGERATOR
WPL LIT789049 WPL LIT789049 Contact Us For Availability
WPL LIT942166 WPL LIT942166 Contact Us For Availability
WPL LIT942935 WPL LIT942935 Contact Us For Availability
WPL LIT946654 WPL LIT946654 Contact Us For Availability
WPL LIT946866 WPL LIT946866 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI39410A4 Contact Us For Availability
1
Cord, Service WPL 850626 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI39411A5 Contact Us For Availability
2
Roller, Front WPL 981127 Contact Us For Availability
2
Timer, Container WPL 983079 Contact Us For Availability
2
Hole, Plug WPL 519890 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Grommet WPL 848445 Contact Us For Availability
4
Grommet WPL 842339 Contact Us For Availability
4
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
5
Compressor Kit (Includes Items 17, 18, 19, 20 WPL 876638 Contact Us For Availability
5
Screw, Grommet WPL 845722 Contact Us For Availability
6
Grommet, Crisper Cover WPL 836409 Contact Us For Availability
6
Center Rail (White) WPL 836067 Contact Us For Availability
6
Center Rail (Coffee) WPL 989908 Contact Us For Availability
6
Center Rail (Golden Harvest) WPL 989909 Contact Us For Availability
6
Center Rail (New Avocado) WPL 989910 Contact Us For Availability
6
Center Rail (Almond) WPL 989911 Contact Us For Availability
6
Separator (Bottom) WPL 981738 Contact Us For Availability
6
Grommet (4) WPL 547283 Contact Us For Availability
7
Heater, Mullion WPL 989256 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
7
Stud WPL 526383 Contact Us For Availability
8
Screw (Repair) WPL 487470 Contact Us For Availability
8
Gasket, Air Return WPL 981725 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
8
Hole, Plug WPL 659598 Contact Us For Availability
9
Duct, Air WPL 841710 Contact Us For Availability
9
Insulation, Separator WPL 991173 Contact Us For Availability
9
Stud, Support Rear WPL 836412 Contact Us For Availability
10
Shelf, Stud WPL 536475 Contact Us For Availability
10
Drain Fitting WPL 943919 Contact Us For Availability
10
Separator (Top) WPL 848423 Contact Us For Availability
10
Fan, Blade WPL 989524 Contact Us For Availability
11
Shelf, Stud WPL 836423 Contact Us For Availability
11
Spacer Condenser WPL 987210 Contact Us For Availability
12
Gasket, Seal WPL 940121 Contact Us For Availability
12
Breaker, Mullion Bottom WPL 841643 Contact Us For Availability
13
Shim, Handle End WPL 992872 Contact Us For Availability
13
Hinge, Top WPL 842039 Contact Us For Availability
13
Breaker, R.S. WPL 841724 Contact Us For Availability
13
Bracket, Motor WPL 548695 Contact Us For Availability
13
Screw Support, Center Ladder (2) WPL 520959 Contact Us For Availability
14
Shim, Hinge WPL 836192 Contact Us For Availability
14
Breaker, L.S. WPL 841721 Contact Us For Availability
14
Screw WPL 488868 Contact Us For Availability
14
Shelf, Ladder (2) WPL 934267 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
15
Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability
15
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
15
Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability
15
Breaker, Bottom WPL 839829 Contact Us For Availability
15
Shelf, Ladder Center WPL 936230 Contact Us For Availability
16
Screw (Repair) WPL 488949 Contact Us For Availability
16
Breaker, Clip WPL 836090 Contact Us For Availability
16
Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability
16
Baffle, Evaporator WPL 981736 Contact Us For Availability
17
Hinge, Center WPL 836153 Contact Us For Availability
17
Breaker, Trim Clip WPL 534365 Contact Us For Availability
17
Bumper WPL 547272 Contact Us For Availability
17
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
17
Screw (Repair) WPL 488980 Contact Us For Availability
18
Shim, Hinge Center WPL 836155 Contact Us For Availability
18
Breaker, Mullion (Top) WPL 841642 Contact Us For Availability
18
Overload WPL 549041 Contact Us For Availability
18
Shelf, Stud (2) WPL 529758 Contact Us For Availability
19
Breaker L.S. WPL 841719 Contact Us For Availability
19
Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability
20
Hinge, Bottom WPL 836159 Contact Us For Availability
20
Breaker R.S. WPL 841722 Contact Us For Availability
20
Relay WPL 989661 Contact Us For Availability
20
Screw Grommet WPL 538449 Contact Us For Availability
21
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
21
Breaker, Top WPL 940918 Contact Us For Availability
21
Spring WPL 531318 Contact Us For Availability
21
Case, Relay WPL 549945 Contact Us For Availability
21
Retainer, Stud (4) WPL 836374 Contact Us For Availability
22
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
22
Screw, Anchor (3) WPL 983604 Contact Us For Availability
23
Shim, Bottom Hinge WPL 836196 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
23
Shelf, Cantilever WPL 936795 Contact Us For Availability
24
Light Lens WPL 983910 Contact Us For Availability
24
Frame WPL 548654 Contact Us For Availability
24
Retainer, Glass Shelf WPL 942186 Contact Us For Availability
25
Tap Plate WPL 836162 Contact Us For Availability
25
Breaker Clip Wrap WPL 939139 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
25
Glass, Shelf WPL 942185 Contact Us For Availability
26
Hole, Plug (White) WPL 835974 Contact Us For Availability
26
Hole, Plug (Almond) WPL 989193 Contact Us For Availability
26
Hole Plug (Coffee) WPL 989881 Contact Us For Availability
26
Hole Plug (Golden Harvest) WPL 989882 Contact Us For Availability
26
Hole Plug (New Avocado) WPL 989883 Contact Us For Availability
26
Wire Connector WPL 227991 Contact Us For Availability
26
Trim, Shelf WPL 935223 Contact Us For Availability
27
Hole Plug (White) WPL 842031 Contact Us For Availability
27
Hole Plug (Almond) WPL 989195 Contact Us For Availability
27
Hole Plug (Coffee) WPL 989875 Contact Us For Availability
27
Hole Plug (Golden Harvest) WPL 989876 Contact Us For Availability
27
Hole Plug (New Avocado) WPL 989877 Contact Us For Availability
27
Pan Shelf, Cantilever WPL 936285 Contact Us For Availability
28
Exterior, Grille (White) WPL 944233 Contact Us For Availability
28
Exterior, Grille (Coffee) WPL 944234 Contact Us For Availability
28
Exterior, Grille (Golden Harvest) WPL 944235 Contact Us For Availability
28
Exterior Grille (New Avocado) WPL 944236 Contact Us For Availability
28
Exterior, Grille (Almond) WPL 944237 Contact Us For Availability
28
Timer, Defrost WPL 943434 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
28
Pan, Cover WPL 935123 Contact Us For Availability
29
Bumper, Grille WPL 546131 Contact Us For Availability
29
Screw, 8 x 3/8 (2) WPL 488678 Contact Us For Availability
29
Rail, Front WPL 548662 Contact Us For Availability
29
Pan, Cover WPL 942190 Contact Us For Availability
30
Hole Plug (New Avocado) WPL 989894 Contact Us For Availability
30
Corner, Fille WPL 838535 Contact Us For Availability
30
WPL 989928 WPL 989928 Contact Us For Availability
30
WPL 989929 WPL 989929 Contact Us For Availability
30
WPL 989930 WPL 989930 Contact Us For Availability
30
WPL 989931 WPL 989931 Contact Us For Availability
30
Crisper Gasket, Rear WPL 942027 Contact Us For Availability
31
Bracket, Door Stop WPL 944035 Contact Us For Availability
31
WPL 989068 WPL 989068 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
31
Crisper Gasket, Front WPL 942028 Contact Us For Availability
32
Support, Cover WPL 848562 Contact Us For Availability
32
Retainer Gasket Side WPL 836119 Contact Us For Availability
32
Bracket, Thermostat WPL 848446 Contact Us For Availability
33
Post, Cover WPL 836410 Contact Us For Availability
33
Knob, Temperature Control WPL 836482 Contact Us For Availability
33
Condenser & Precooler WPL 481851 Contact Us For Availability
34
Panel, Control WPL 942214 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
34
Shelf, F.C. WPL 935204 Contact Us For Availability
35
WPL 982944 WPL 982944 Contact Us For Availability
35
Hole Plug WPL 534927 Contact Us For Availability
35
Grommet (4) WPL 548737 Contact Us For Availability
35
Trim, Shelf WPL 985070 Contact Us For Availability
36
WPL 943188 WPL 943188 Contact Us For Availability
36
WPL 936075 WPL 936075 Contact Us For Availability
36
Air Baffle WPL 982582 Contact Us For Availability
36
Shelf Stud, Saddle L.S. WPL 836492 Contact Us For Availability
37
WPL 943187 WPL 943187 Contact Us For Availability
37
WPL 935663 WPL 935663 Contact Us For Availability
38
WPL 943946 WPL 943946 Contact Us For Availability
38
WPL 548734 WPL 548734 Contact Us For Availability
38
Air Diffuser WPL 836487 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
38
Pan, Crisper WPL 940702 Contact Us For Availability
39
WPL 986542 WPL 986542 Contact Us For Availability
39
WPL 549947 WPL 549947 Contact Us For Availability
39
Support, Heater WPL 851358 Contact Us For Availability
39
Overlay, Pan WPL 986316 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
Meat, Pan WPL 940704 Contact Us For Availability
41
Damper, Air WPL 836247 Contact Us For Availability
41
Evaporator WPL 938179 Contact Us For Availability
42
WPL 945117 WPL 945117 Contact Us For Availability
42
Retrainer, Air Dampener WPL 836493 Contact Us For Availability
42
Clip, Heater (2) WPL 850721 Contact Us For Availability
42
Hole Plug, Evaporator WPL 659776 Contact Us For Availability
43
WPL 991259 WPL 991259 Contact Us For Availability
43
WPL 836077 WPL 836077 Contact Us For Availability
43
Heater, Defrost WPL 989612 Contact Us For Availability
43
Receptacle Cap WPL 850738 Contact Us For Availability
44
Control Knob WPL 837445 Contact Us For Availability
45
Knob, Retainer WPL 837444 Contact Us For Availability
45
Exchanger, Heat WPL 943357 Contact Us For Availability
46
WPL 836372 WPL 836372 Contact Us For Availability
46
Drain Pan WPL 841686 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
47
WPL 850459 WPL 850459 Contact Us For Availability
47
Gasket, Drain Pan WPL 843291 Contact Us For Availability
48
Fitting, Drain Pan WPL 841770 Contact Us For Availability
48
Clamp (2) WPL 510716 Contact Us For Availability
48
Grommet (2) WPL 531933 Contact Us For Availability
49
Cup, Drain WPL 943918 Contact Us For Availability
49
Pan, Drip WPL 989269 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
50
WPL 489085 WPL 489085 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
50
Gasket, Sealing WPL 935068 Contact Us For Availability
51
Liner Wiring (Defrost Timer) WPL 481782 Contact Us For Availability
51
Scroll, Fan WPL 935067 Contact Us For Availability
52
WPL 876029 WPL 876029 Contact Us For Availability
52
WPL 479502 WPL 479502 Contact Us For Availability
52
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
52
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
52
Enamel, New Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
52
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
52
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
52
Enamel, Golden Harvest (1 Q WPL 261891 Contact Us For Availability
52
WPL 350941 WPL 350941 Contact Us For Availability
52
WPL 542639 WPL 542639 Contact Us For Availability
52
WPL 72108 WPL 72108 Contact Us For Availability
52
WPL 799340 WPL 799340 Contact Us For Availability
52
WPL 799351 WPL 799351 Contact Us For Availability
52
WPL 799833 WPL 799833 Contact Us For Availability
52
WPL 978883 WPL 978883 Contact Us For Availability
53
Cover, Evaporator WPL 986624 Contact Us For Availability
54
Gasket, Evaporator WPL 981750 Contact Us For Availability
56
Wiring, Ice Maker WPL 481658 Contact Us For Availability
57
Grommet Drain Fitting WPL 943920 Contact Us For Availability
× ![]()
