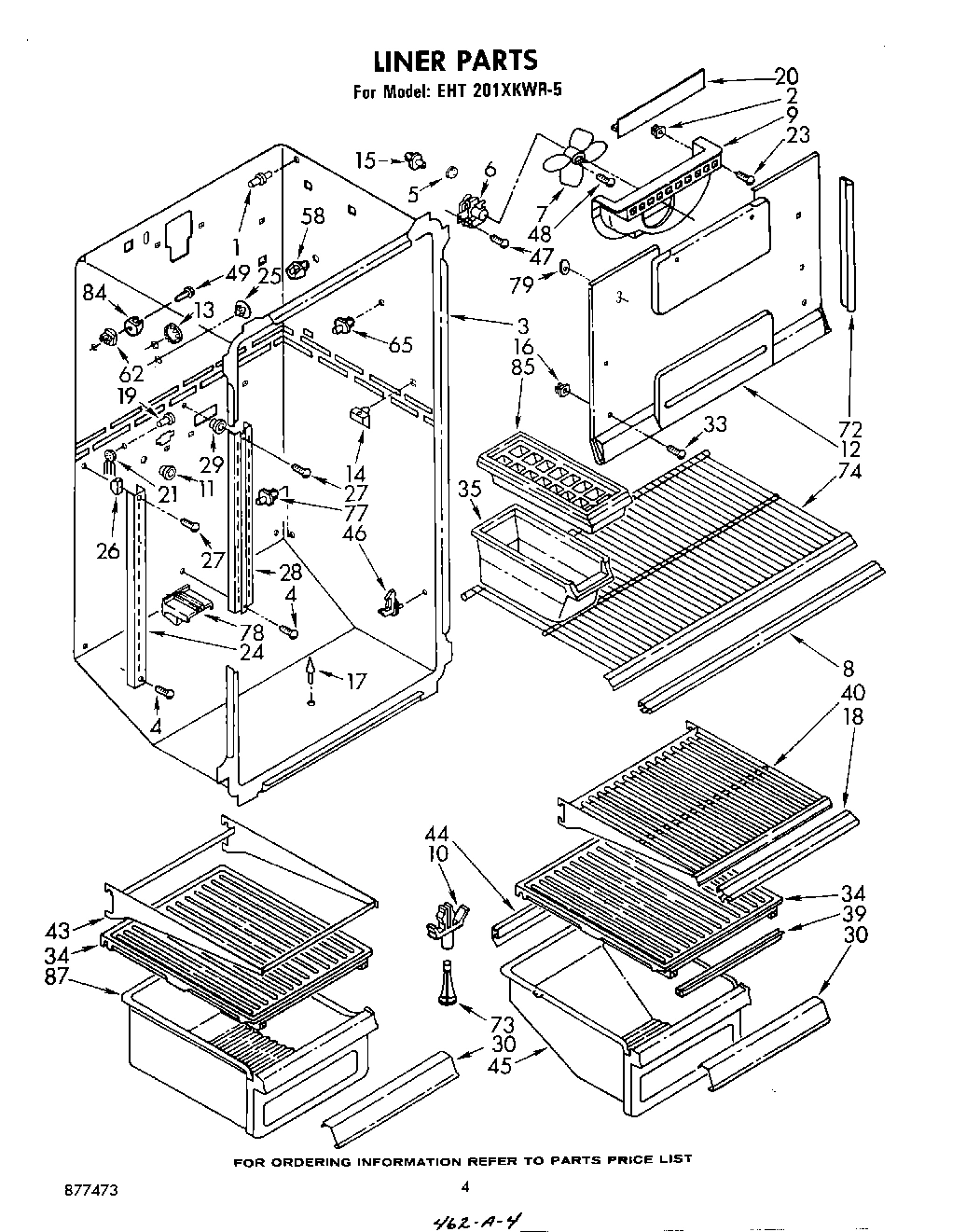

Model Whirlpool EHT201XKWR5 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

1

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

1

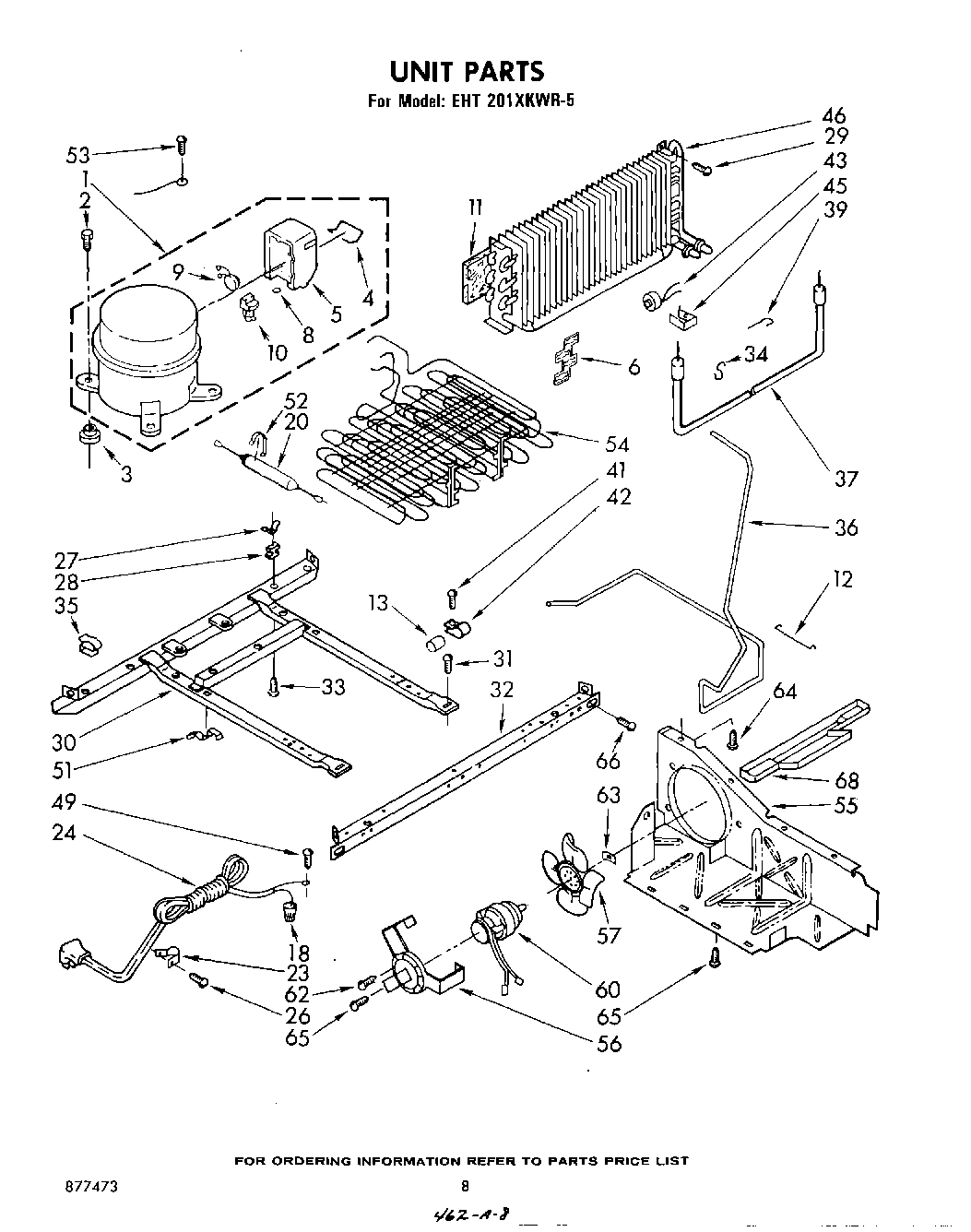

Compressor Kit (Includes Items 4, 5, 8, 9 & 1 WPL 876638 Contact Us For Availability

1

Gasket, Drain Pan WPL 843291 Contact Us For Availability

1

Door, Freezer (Also Order Item 36) (White) WPL 943175 Contact Us For Availability

1

Door, Freezer (Also Order Item 36) (Coffee) WPL 943176 Contact Us For Availability

1

Door, Freezer (Also Order Item 36) (Golden Ha WPL 943177 Contact Us For Availability

1

Door, Freezer (Also Order Item 36) (New Avoca WPL 943178 Contact Us For Availability

1

Door, Freezer (Also Order Item 36) (Almond) WPL 943179 Contact Us For Availability

1

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

1

Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability

1

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

2

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

2

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

2

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

3

Grommet (4) WPL 547283 Contact Us For Availability

3

Pan, Evaporator Drain WPL 841686 Contact Us For Availability

3

Panel, Interior WPL 945208 Contact Us For Availability

3

Hinge & Shim (Top) WPL 842039 Contact Us For Availability

4

Spring WPL 531318 Contact Us For Availability

4

Fitting, Drain Pan WPL 841770 Contact Us For Availability

4

Shim, Top Hinge WPL 836192 Contact Us For Availability

5

WP849996 Whirlpool Refrigerator Endcap Trim In Stock WPL WP849996 $3.70

5

Case, Relay WPL 549945 Contact Us For Availability

5

Baffle, Liner Top WPL 982582 Contact Us For Availability

5

Drain Fitting WPL 943919 Contact Us For Availability

6

Spacer, Condenser (3) WPL 987210 Contact Us For Availability

6

Separator (Top) WPL 848423 Contact Us For Availability

6

Shim (.030) WPL 836155 Contact Us For Availability

7

Insulation, Separator WPL 991173 Contact Us For Availability

7

Hinge, Center WPL 836153 Contact Us For Availability

8

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

8

Bumper WPL 547272 Contact Us For Availability

8

Liner Wiring (Defrost Timer) WPL 481782 Contact Us For Availability

8

Screw, 12-14 x 3/4 WPL 488949 Contact Us For Availability

9

Overload WPL 549041 Contact Us For Availability

9

Breaker, Freezer (Top) WPL 940918 Contact Us For Availability

9

Door, Butter WPL 985025 Contact Us For Availability

Support, Cover WPL 848562 Contact Us For Availability

Relay WPL 989661 Contact Us For Availability

Gasket, Air Return (2) WPL 981725 Contact Us For Availability

Trim, Shelf (3) WPL 936889 Contact Us For Availability

Heater, Mullion WPL 989256 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Baffle, Air WPL 981736 Contact Us For Availability

Screw, 8-15 x 1/2 (3) WPL 486214 Contact Us For Availability

Rail, Center (White) WPL 836067 Contact Us For Availability

Rail, Center (Coffee) WPL 989908 Contact Us For Availability

Rail, Center (Golden Harvest) WPL 989909 Contact Us For Availability

Rail, Center (New Avocado) WPL 989910 Contact Us For Availability

Rail, Center (Almond) WPL 989911 Contact Us For Availability

Guard, Fan WPL 850156 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Breaker, Freezer (L.S.) WPL 841719 Contact Us For Availability

Handle, Center WPL 982946 Contact Us For Availability

Screw (Repair) WPL 487470 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Clip (8) WPL 534365 Contact Us For Availability

Plug, Hole (2) WPL 534927 Contact Us For Availability

Clip, Heater (6) WPL 935663 Contact Us For Availability

14

Shim, Handle WPL 992872 Contact Us For Availability

14

Breaker, Freezer (R.S.) WPL 841722 Contact Us For Availability

14

Heater, Stile WPL 936075 Contact Us For Availability

15

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

15

Breaker, Mullion (Top) WPL 841642 Contact Us For Availability

15

Trim, Shelf (2) WPL 986542 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

Plug, Hole (2) (White) WPL 835974 Contact Us For Availability

Plug, Hole (2) (Almond) WPL 989193 Contact Us For Availability

Plug, Hole (2) (Coffee) WPL 989881 Contact Us For Availability

Plug, Hole (2) (Golden Harvest) WPL 989882 Contact Us For Availability

Plug, Hole (2) (New Avocado) WPL 989883 Contact Us For Availability

17

Grommet, Crisper Post WPL 836409 Contact Us For Availability

17

Breaker, Mullion Bottom WPL 841643 Contact Us For Availability

17

Wiring Assembly (Water Valve) WPL 548734 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

Breaker, Refrigerator (R.S.) WPL 841724 Contact Us For Availability

Nameplate WPL 945120 Contact Us For Availability

Nut, Speed (4) WPL 488516 Contact Us For Availability

19

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

19

Breaker, Refrigerator (L.S.) WPL 841721 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $30.73

Breaker, Refrigerator (Bottom) WPL 839829 Contact Us For Availability

Duct, Air WPL 841710 Contact Us For Availability

22

Separator (Bottom) WPL 981738 Contact Us For Availability

22

Clip, Medallion WPL 843213 Contact Us For Availability

22

Cabinet (Not A Serviceable Part) WPL ARI39406A8 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Cup, Drain WPL 943918 Contact Us For Availability

Handle, Center WPL 982944 Contact Us For Availability

Clamp WPL 836077 Contact Us For Availability

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

Cord, Service WPL 850626 Contact Us For Availability

Grommet WPL 842339 Contact Us For Availability

Medallion (White) WPL 848382 Contact Us For Availability

Medallion (Coffee) WPL 989901 Contact Us For Availability

Medallion (New Avocado) WPL 989902 Contact Us For Availability

Medallion (Golden Harvest) WPL 989903 Contact Us For Availability

Medallion (Almond) WPL 989904 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Tray, Evaporating WPL 842041 Contact Us For Availability

Bracket, Thermostat WPL 848446 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

WP819470 Whirlpool Refrigerator Thermostat Backorder WPL WP819470 $62.70

WP986540 Whirlpool Refrigerator Endcap Trim In Stock WPL WP986540 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Clamp (4) WPL 548738 Contact Us For Availability

Door, Refrigerator (White) WPL 943169 Contact Us For Availability

Door, Refrigerator (Coffee) WPL 943170 Contact Us For Availability

Door, Refrigerator (Golden Harvest) WPL 943171 Contact Us For Availability

Door, Refrigerator (New Avocado) WPL 943172 Contact Us For Availability

Door, Refrigerator (Almond) WPL 943173 Contact Us For Availability

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Grommet (4) WPL 548737 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Panel, Interior WPL 945207 Contact Us For Availability

29

Gasket, Seal WPL 940121 Contact Us For Availability

30

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $31.71

30

Frame WPL 548654 Contact Us For Availability

30

Panel, Control WPL 942214 Contact Us For Availability

31

Shim, Handle WPL 943187 Contact Us For Availability

31

Knob, Control (Includes Illus. 50) WPL 837445 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Rail, Front WPL 548662 Contact Us For Availability

Knob, Thermostat WPL 836482 Contact Us For Availability

Screw (Repair) WPL 488923 Contact Us For Availability

Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability

33

Lens, Light WPL 983910 Contact Us For Availability

33

Door, Utility WPL 984846 Contact Us For Availability

33

Shim, Bottom WPL 836196 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

Support, Heater WPL 851358 Contact Us For Availability

Clip (2) WPL 836090 Contact Us For Availability

Butt, Hinge WPL 836159 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $24.12

Pin, Hinge WPL 654366 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

36

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

36

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

36

Exchanger, Heat WPL 943357 Contact Us For Availability

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

Heater, Defrost WPL 989612 Contact Us For Availability

Air Diffuser WPL 836487 Contact Us For Availability

38

Spa WPL 943188 Contact Us For Availability

38

Retainer WPL 836493 Contact Us For Availability

38

Support, Grille (2) WPL 844614 Contact Us For Availability

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

Clip, Heater (2) WPL 850721 Contact Us For Availability

Damper, Air WPL 836247 Contact Us For Availability

WPL 989196 WPL 989196 Contact Us For Availability

WPL 989892 WPL 989892 Contact Us For Availability

WPL 989894 WPL 989894 Contact Us For Availability

40

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Breaker, Retainer Clip (3) WPL 939139 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

Grille, Exterior (White) WPL 841670 Contact Us For Availability

Grille, Exterior (Coffee) WPL 989941 Contact Us For Availability

Grille, Exterior (New Avocado) WPL 989943 Contact Us For Availability

Grille, Exterior (Golden Harvest) WPL 989945 Contact Us For Availability

WPL 989947 WPL 989947 Contact Us For Availability

42

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

42

Clamp (2) WPL 510716 Contact Us For Availability

43

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

44

WPL 944036 WPL 944036 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 849802 WPL 849802 Contact Us For Availability

WPL 877473 WPL 877473 Contact Us For Availability

WPL 939415 WPL 939415 Contact Us For Availability

WPL 942935 WPL 942935 Contact Us For Availability

WPL 943387 WPL 943387 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

46

Stud, Shelf (2) WPL 836423 Contact Us For Availability

46

Evaporator WPL 938179 Contact Us For Availability

49

Screw WPL 488474 Contact Us For Availability

49

WPL 836162 WPL 836162 Contact Us For Availability

50

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

50

Knob, Retainer WPL 837444 Contact Us For Availability

51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

51

Clip (2) WPL 548744 Contact Us For Availability

52

Clamp WPL 548508 Contact Us For Availability

52

Container Timer WPL 983079 Contact Us For Availability

52

WPL 549947 WPL 549947 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

Timer, Defrost (8 Hr.) (Alternate) WPL 850694 Contact Us For Availability

Timer, Defrost (8 Hr.) WPL 851161 Contact Us For Availability

WPL 981127 WPL 981127 Contact Us For Availability

54

Condenser & Precooler WPL 481851 Contact Us For Availability

54

Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability

54

WPL 836372 WPL 836372 Contact Us For Availability

55

Baffle WPL 850764 Contact Us For Availability

56

Bracket, Motor WPL 548695 Contact Us For Availability

56

WPL 850459 WPL 850459 Contact Us For Availability

57

Fan, Blade WPL 989524 Contact Us For Availability

58

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

60

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

62

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

63

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

64

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

66

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Pan, Drip WPL 989269 Contact Us For Availability

72

Gasket, Evaporator Cover (2) WPL 981750 Contact Us For Availability

73

Post, Crisper WPL 836410 Contact Us For Availability

74

Shelf, Freezer WPL 935204 Contact Us For Availability

Stud, Shelf (2) WPL 536475 Contact Us For Availability

WPL 838535 WPL 838535 Contact Us For Availability

WPL 989928 WPL 989928 Contact Us For Availability

WPL 989929 WPL 989929 Contact Us For Availability

WPL 989930 WPL 989930 Contact Us For Availability

WPL 989931 WPL 989931 Contact Us For Availability

78

Stud, Crisper Support WPL 836412 Contact Us For Availability

79

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

79

Hole, Plug WPL 659776 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989875 WPL 989875 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

WPL 989877 WPL 989877 Contact Us For Availability

81

WPL 488454 WPL 488454 Contact Us For Availability

82

WPL 546131 WPL 546131 Contact Us For Availability

84

Stud, Shelf WPL 836492 Contact Us For Availability

85

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

87

Pan, Meat WPL 983810 Contact Us For Availability
